NISSAN TEANA 2014 Service Manual
TM-42
< SYSTEM DESCRIPTION >[CVT: RE0F10D]
DIAGNOSIS SYSTEM (TCM)
• When the self-diagnosis result is acceptable at the 2nd
trip (conforming to driving condition B), DTC of the
1st trip is erased.

TM-42
< SYSTEM DESCRIPTION >[CVT: RE0F10D]
DIAGNOSIS SYSTEM (TCM)
• When the self-diagnosis result is acceptable at the 2nd
trip (conforming to driving condition B), DTC of the
1st trip is erased.
COUNTER SYSTEM LIST
DRIVING CONDITION
Driving condition A
Driving condition A is the driving condition that provides warm-up.
In specific, count-up is performed when all of the following conditions are satisfied.
• Engine speed is 400 rpm or more.
• After start of the engine, the water temperature increased by 20 °C (36 °F) or more.
• Water temperature was 70 °C (158 °F) or more.
• The ignition switch was changed from ON to OFF.
NOTE:
• If the same malfunction is detected regardless of the driving condition, reset the A counter.
• When the above is satisfied without detecting t he same malfunction, count up the A counter.
• When MIL goes off due to the malfunction and the A counter reaches 40, the DTC is erased.
Driving condition B
Driving condition B is the driving condition that performs all diagnoses once.
In specific, count-up is performed when all of the following conditions are satisfied.
• Engine speed is 400 rpm or more.
• Water temperature was 70 °C (158 °F) or more.
• In closed loop control, vehicle speed of 70 – 120 km/h (43 – 75 MPH) continued for 60 seconds or more.
• In closed loop control, vehicle speed of 30 – 60 km/h (19 – 37 MPH) continued for 10 seconds or more.
• In closed loop control, vehicle speed of 4 km/h (2 MPH) or less and idle determination ON continued for 12
seconds or more.
• After start of the engine, 22 minutes or more have passed.
• The condition that the vehicle speed is 10 km/h (6 MPH) or more continued for 10 seconds or more in total.
• The ignition switch was changed from ON to OFF.
NOTE:
• If the same malfunction is detected regardless of the driving condition, reset the B counter.
• When the above is satisfied without detecting t he same malfunction, count up the B counter.
• When the B counter reaches 3 wit hout malfunction, MIL goes off.
• When the B counter is counted once without detecting the same malfunction after TCM memorizes DTC of
the 1st trip, DTC of the 1st trip is erased.
Item Driving condition Trip
MIL (OFF) B 3
DTC (clear) A 40
DTC at 1st trip (clear) B 1
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 4258 of 4801

NISSAN TEANA 2014 Service Manual
DIAGNOSIS SYSTEM (TCM)TM-43
< SYSTEM DESCRIPTION > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P

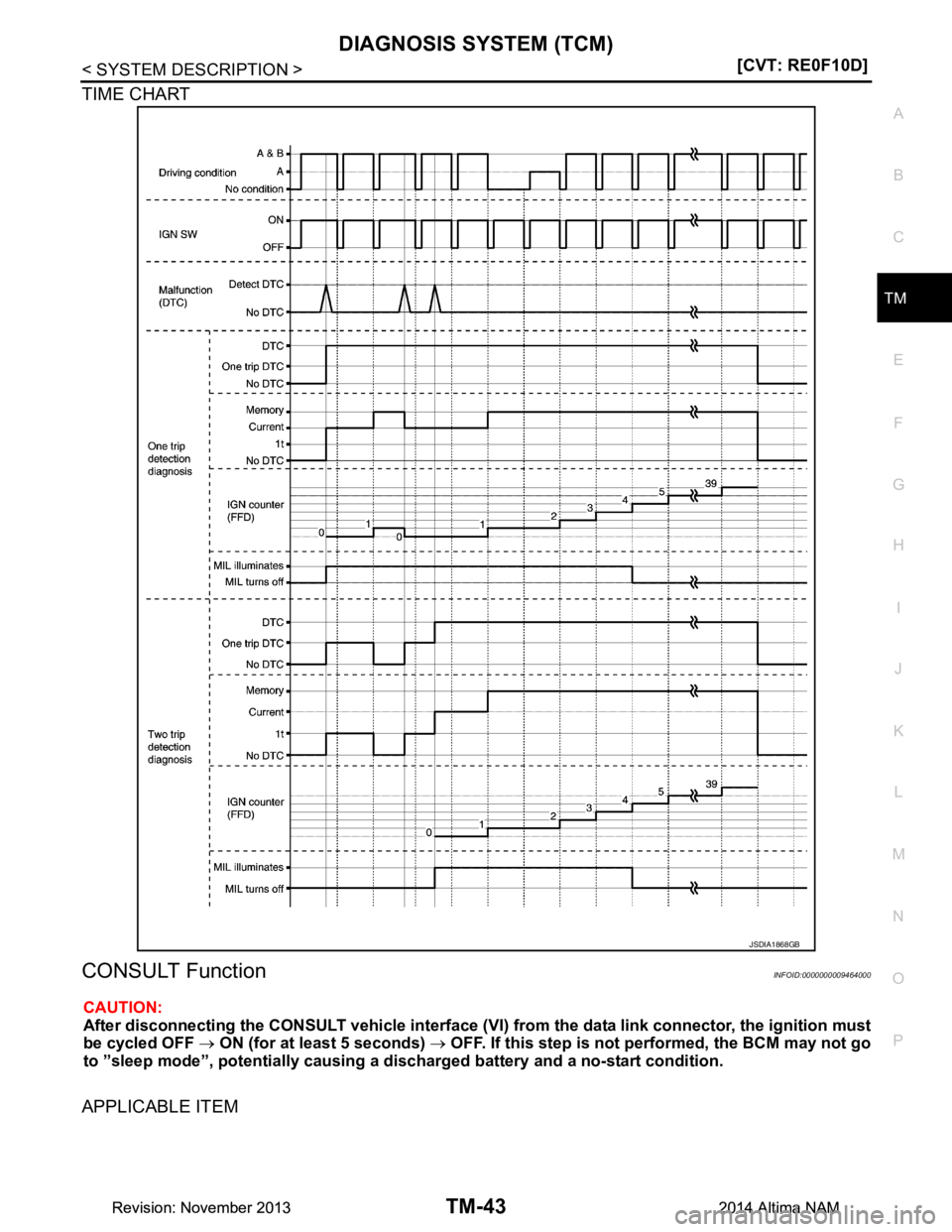

TIME CHART
CONSULT FunctionINFOID:0000000009464000
CAUTION:
After disconnecting the CONSULT vehicle

Page 4259 of 4801

NISSAN TEANA 2014 Service Manual
TM-44
< SYSTEM DESCRIPTION >[CVT: RE0F10D]
DIAGNOSIS SYSTEM (TCM)
SELF DIAGNOSTIC RESULTS
Display Item List
Refer to
TM-60, "DTC Index".
DTC at 1st trip and method to read DTC
• DTC (P0705, P0711

TM-44
< SYSTEM DESCRIPTION >[CVT: RE0F10D]
DIAGNOSIS SYSTEM (TCM)
SELF DIAGNOSTIC RESULTS
Display Item List
Refer to
TM-60, "DTC Index".
DTC at 1st trip and method to read DTC
• DTC (P0705, P0711, P0720, etc.) is specified by SAE J2012/ISO 15031-6.
• DTC and DTC at 1st trip are displayed on “Self Diagnostic results” of CONSULT.
When DTC is currently detected, “CRNT” is displayed. If “PAST” is displayed, it shows a malfunction
occurred in the past. The trip number of drive wit hout malfunction of concerned DTC can be confirmed with
“IGN counter” inside “FFD”.
• When the DTC at the 1st trip is detected, “1t” is displayed.
DTC deletion method
NOTE:
If the ignition switch is left ON after repair, turn O FF the ignition switch and wait for 10 seconds or more. Then,
turn the ignition ON again. (Engine stop)
1. Touch “TRANSMISSION” of CONSULT.
2. Touch “Self Diagnostic Result”.
3. Touch “Erase”. (DTC memorized in TCM is erased.)
IGN counter
The ignition counter is displayed in “FFD” and the number of times of satisfied “Driving condition A” is dis-
played after normal recovery of DTC. Refer to TM-41, "DIAGNOSIS DESCRIPTION : Counter System"
.
• If malfunction (DTC) is currently detected, “0” is displayed.
• After normal recovery, every time “Driving condition A” is satisfied, the display value increases from 1 → 2 →
3...38 → 39.
• When MIL turns OFF due to the malfunction and t he counter reaches 40, the DTC is erased.
NOTE:
The counter display of “40” cannot be checked.
DATA MONITOR
NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.
× : Application : Optional selection
Conditions Function
Work Support The settings for ECU functions can be changed.
Self Diagnostic Results The ECU self diagnostic results are displayed.
Data Monitor The ECU input/output data is displayed in real time.
CAN Diagnosis Support Monitor The result of transmit/receive diagnosis of CAN communication is displayed.
Active Test The ECU activates outputs to test components.
ECU Identification The ECU part number is displayed.
CALIB DATA The calibration data status of TCM can be checked.
Monitored item (Unit) Monitor item selection
Remarks
ECU IN-
PUT SIG-
NALS MAIN SIG-
NALS
VSP SENSOR (km/h or mph) ×Displays the vehicle speed calculated from the CVT out-
put shaft speed.
ESTM VSP SIG (km/h or mph) ×• Displays the vehi
cle speed signal (ABS) received
through CAN communication.
• Models with ABS are displayed.
INPUT SPEED SENSOR (rpm) ×Displays the input speed calculated from the pulse signal
of the input speed sensor.
PRI SPEED SEN (rpm) ×Displays the primary pulley speed calculated from the
pulse signal of the primary speed sensor.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 4260 of 4801

NISSAN TEANA 2014 Service Manual
DIAGNOSIS SYSTEM (TCM)TM-45
< SYSTEM DESCRIPTION > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
SEC REV SENSOR (rpm) ×Displays the secondary pulley speed calculated from the
pulse signal of the

DIAGNOSIS SYSTEM (TCM)TM-45
< SYSTEM DESCRIPTION > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
SEC REV SENSOR (rpm) ×Displays the secondary pulley speed calculated from the
pulse signal of the output speed sensor.
ENG SPEED SIG (rpm) ×Displays the engine speed received through CAN com-
munication.
SEC PRESSURE SEN (V) ×Displays the signal voltage of the secondary pressure-
sensor.
PRI PRESSURE SEN (V) ×Displays the signal voltage of the primary pressuresen-
sor.
ATF TEMP SEN (V) ×Displays the signal voltage of the CVT fluid temperature
sensor.
G SENSOR* (G) ×Displays the signal voltage of the G sensor.
VIGN SEN (V) ×Displays the battery voltage applied to TCM.
PVING VOLT (V) ×Displays the backup voltage of TCM.
VEHICLE SPEED (km/h or mph) ×Displays the vehicle speed recognized by TCM.
INPUT REV (rpm) Displays the input shaft speed of CVT recognized by
TCM.
PRI SPEED (rpm) ×Displays the primary pulley speed recognized by TCM.
SEC SPEED (rpm) Displays the secondary pulley speed recognized by
TCM.
ENG SPEED (rpm) ×Displays the engine speed recognized by TCM.
SLIP REV (rpm) ×Displays the speed difference between the input shaft
speed of CVT and the engine speed.
PULLEY GEAR RATIO ×Displays the pulley gear ratio calculated from primary
pulley speed/secondary pulley speed.
G SPEED* (G) Displays the acceleration and deceleration speed of the
vehicle calculated from vehicle speed change.
ACCEL POSI SEN 1 (deg) ××Displays the estimated throttle position received through
CAN communication.
VENG TRQ (Nm) ×Display the engine torque recognized by TCM.
PRI TRQ (Nm) Display the input shaft torque of CVT.
TRQ RTO Display the torque ratio of torque converter.
SEC PRESSURE (MPa) Displays the secondary pressure calculated from the sig-
nal voltage of the secondary pressure sensor.
PRI PRESSURE (MPa) Displays the primary pressure calculated from the signal
voltage of the primary pressure sensor.
FLUID TEMP ( °C or °F) ×Displays the CVT fluid temperature calculated from the
signal voltage of the CVT fluid temperature sensor.
DSR REV (rpm) Displays the target primary pulley speed calculated from
processing of gear shift control.
TGT PLLY GR RATIO Displays the target gear ratio of the pulley from process-
ing of gear shift control.
LU PRS (MPa) Displays the target oil pressure of the torque converter
clutch solenoid valve calculated from oil pressure pro-
cessing of gear shift control.
LINE PRS (MPa) Displays the target oil pressure of the line pressure sole-
noid valve calculated from oil pressure processing of
gear shift control.
Monitored item (Unit)
Monitor item selection
Remarks
ECU IN-
PUT SIG-
NALS MAIN SIG-
NALS
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 4261 of 4801

NISSAN TEANA 2014 Service Manual
TM-46
< SYSTEM DESCRIPTION >[CVT: RE0F10D]
DIAGNOSIS SYSTEM (TCM)
TRGT PRI PRESSURE (MPa)Displays the target oil pressure of the primary pressure
solenoid valve calculated from oil pressure process

TM-46
< SYSTEM DESCRIPTION >[CVT: RE0F10D]
DIAGNOSIS SYSTEM (TCM)
TRGT PRI PRESSURE (MPa)Displays the target oil pressure of the primary pressure
solenoid valve calculated from oil pressure processing of
gear shift control.
TRGT SELECT PRESSURE (MPa) Displays the target oil pressure of the select solenoid
valve calculated from oil pressure processing of gear
shift control.
TRGT SEC PRESSURE (MPa) Displays the target oil pressure of the secondary pres-
sure solenoid valve calculated from oil pressure process-
ing of gear shift control.
ISOLT1 (A) ×Displays the command current from TCM to the torque
converter clutch solenoid valve.
ISOLT2 (A) ×Displays the command current from TCM to the line
pressure solenoid valve.
PRI SOLENOID (A) ×Displays the command current from TCM to the primary
pressure solenoid valve.
SEC SOLENOID CURRENT (A) ×Displays the command current from TCM to the second-
ary pressure solenoid valve.
SELECT SOLENOID CUR-
RENT (A)
×Displays the command current from TCM to the select
solenoid valve.
SOLMON1 (A) ××Monitors the command current from TCM to the torque
converter clutch solenoid valve and displays the moni-
tored value.
SOLMON2 (A) ××Monitors the command current from TCM to the line
pressure solenoid valve and displays the monitored val-
ue.
PRI SOL MON (A) ××Monitors the command current from TCM to the primary
pressure solenoid valve and displays the monitored val-
ue.
SEC SOL MON CURRENT (A) ××Monitors the command current from TCM to the second-
ary pressure solenoid valve and displays the monitored
value.
SELECT SOL MON CURRENT (A) ××Monitors the command current from TCM to the select
solenoid valve and displays the monitored value.
D POSITION SW (On/Off) ×Displays the operation status of the transmission range
switch (D position).
N POSITION SW (On/Off) ×Displays the operation status of the transmission range
switch (N position).
R POSITION SW (On/Off) ×Displays the operation status of the transmission range
switch (R position).
P POSITION SW (On/Off) ×Displays the operation status of the transmission range
switch (P position).
L POSITION SW* (On/Off) ×Displays the operation status of the transmission range
switch (L position).
DS RANGE SW (On/Off) ×Displays the operation status of the transmission range
switch (Ds position).
BRAKESW (On/Off) ××Displays the reception status of the stop lamp switch sig-
nal received through CAN communication.
IDLE SW (On/Off) ××Displays the reception status of the closed throttle posi-
tion signal received through CAN communication.
SPORT MODE SW (On/Off) ××Displays the reception status of the overdrive control
switch signal received through CAN communication.
Monitored item (Unit)
Monitor item selection
Remarks
ECU IN-
PUT SIG-
NALS MAIN SIG-
NALS
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 4262 of 4801

NISSAN TEANA 2014 Service Manual
DIAGNOSIS SYSTEM (TCM)TM-47
< SYSTEM DESCRIPTION > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
ECO MODE SW* (On/Off) ××Displays the reception status of the ECO mode switch
signal received thr

DIAGNOSIS SYSTEM (TCM)TM-47
< SYSTEM DESCRIPTION > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
ECO MODE SW* (On/Off) ××Displays the reception status of the ECO mode switch
signal received through CAN communication.
STRDWNSW* (On/Off) ×Displays the operation status of the paddle shifter (down
switch).
STRUPSW* (On/Off) ×Displays the operation status of the paddle shifter (up
switch).
DOWNLVR* (On/Off) ×Displays the operation status of the selector lever (down
switch).
UPLVR* (On/Off) ×Displays the operation status of the selector lever (up
switch).
NONMMODE* (On/Off) ×Displays if the selector lever position is not at the manual
shift gate.
MMODE* (On/Off) ×Displays if the selector lever position is at the manual
shift gate.
TOW MODE SW* (On/Off) ×Displays the reception status of the TOW mode switch
signal received through CAN communication.
SHIFT IND SIGNAL Displays the transaxle value of shift position signal trans-
mitted via CAN communication.
CVT LAMP* (On/Off) Displays the transaxle status of the CVT warning lamp
signal transmitted through CAN communication.
SPORT MODE IND (On/Off) Displays the transaxle status of the O/D OFF indicator
lamp signal transmitted through CAN communication.
MANU MODE SIGNAL* (On/Off) Displays the transaxle status of the manual mode signal
transmitted through CAN communication.
DS RANGE SIGNAL (On/Off) Displays the shift position signal status from transmis-
sion range switch (DS position).
ECO MODE SIGNAL* (On/Off) Displays the transaxle status of the ECO mode signal
transmitted through CAN communication.
VDC ON (On/Off) ×Displays the reception status of the VDC operation signal
received through CAN communication.
TCS ON (On/Off) ×Displays the reception status of the TCS operation signal
received through CAN communication.
ABS FAIL SIGNAL (On/Off) ×Displays the reception status of the ABS malfunction sig-
nal received through CAN communication.
ABS ON (On/Off) ×Displays the reception status of the ABS operation signal
received through CAN communication.
RANGE ×Displays the gear position recognized by TCM.
M GEAR POS* ×Display the target gear of manual mode
G SEN SLOPE* (%) Displays the gradient angle calculated from the G sensor
signal voltage.
G SEN CALIBRATION* (YET/DONE) Displays the status of “G
SENSOR CALIBRATION” in
“Work Support”.
N IDLE STATUS* (On/Off) Displays idle neutral status.
ENGBRKLVL (On/Off) Displays the
setting of “ENGINE BRAKE ADJ” in “Work
Support”.
DRIVE MODE STATS* Displays the drive mode status recognized by TCM.
SNOW MODE* (On/Off) Displays whether it is the SNOW mode.
ECO MODE* (On/Off) Displays whether it is the ECO mode. Monitored item (Unit)
Monitor item selection
Remarks
ECU IN-
PUT SIG-
NALS MAIN SIG-
NALS
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 4263 of 4801

NISSAN TEANA 2014 Service Manual
TM-48
< SYSTEM DESCRIPTION >[CVT: RE0F10D]
DIAGNOSIS SYSTEM (TCM)
*: Not applicable but displayed.
WORK SUPPORT
Engine brake adjustment
Check the degradation level of the CVT fluid.
ACTIVE TEST
NORM

TM-48
< SYSTEM DESCRIPTION >[CVT: RE0F10D]
DIAGNOSIS SYSTEM (TCM)
*: Not applicable but displayed.
WORK SUPPORT
Engine brake adjustment
Check the degradation level of the CVT fluid.
ACTIVE TEST
NORMAL MODE* (On/Off) D
isplays whether it is the NORMAL mode.
SPORT MODE* (On/Off) Displays whether it is the SPORT mode.
AIR BLDING STATE* (INCOMP/
COMP) Displays the status of “E
LECTRIC O.P. AIR BLEEDING”
in “Work Support”.
ELECTRIC OP DUTY* (%) Displays the command signal value (duty) of the electric
oil pump transmitted from TCM.
E-OP DUTY MON* (%) Monitors the status signal value (duty) transmitted from
the electric oil pump and displays the monitored value.
ELECTRIC OP RELAY* (On/Off) Displays the command status from TCM to the electric oil
pump relay.
E-OP RELAY MON* (On/Off) Monitors the command status from TCM to the oil pump
relay and displays the monitored value.
Monitored item (Unit)
Monitor item selection
Remarks
ECU IN-
PUT SIG-
NALS MAIN SIG-
NALS
Item name Description
CONFORM CVTF DETERIORTN Checks the degradation level of the CVT fluid under severe conditions.
ERASE MEMORY DATA Performs “erasing of the calibration data” and “erasing of the learned value” at the
same time.
G SENSOR CALIBRATION Compensates the G sensor.
ERASE LEARNING VALUE Erases lear ning value memorized by TCM.
ENGINE BRAKE ADJ. Although there is no malfunction on the transaxle and the CVT system, if a cus-
tomer make a complaint like “I do not feel comfortable with automatic operation of
the engine brake on downhill”, the engine brake may be cancelled with “engine
brake adjustment”.
ERASE CALIBRATION DATA Erases cali bration data memorized by TCM.
WRITE IP CHARA - REPLACEMENT AT/CVT Writes IP characteristics when transaxle assembly is replaced.
READ IP CHARA - REPLACEMENT TCM Reads IP characteristics when TCM is replaced.
WRITE IP CHARA - REPLACEMENT TCM Writes IP characteristics when TCM is replaced.
ENGINE BRAKE LEVEL
ON : Turn ON the engine brake control.
OFF : Turn OFF the engine brake control.
CVTF degradation level data
210,000 or more : Replacement of the CVT fluid is required.
Less than 210,000 : Replacement of the CVT fluid is not required.
Item name Description
CVT OIL COOLER FAN CIRCUIT Checks the operation of CVT oil cooler fan relay.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 4264 of 4801

NISSAN TEANA 2014 Service Manual
TCM
TM-49
< ECU DIAGNOSIS INFORMATION > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
ECU DIAGNOSIS INFORMATION
TCM
Reference ValueINFOID:0000000009464001
CONSULT DATA MONITOR STANDARD VALUE
• In

TCM
TM-49
< ECU DIAGNOSIS INFORMATION > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
ECU DIAGNOSIS INFORMATION
TCM
Reference ValueINFOID:0000000009464001
CONSULT DATA MONITOR STANDARD VALUE
• In CONSULT, electric shift timing or lock-up timing, i. e. operation timing of each solenoid valve, is displayed.
Therefore, if there is an obvious difference between t he shift timing estimated from a shift shock (or engine
speed variations) and that shown on the CONSULT, the mechanism parts (including the hydraulic circuit)
excluding the solenoids and sensors may be malfunctioning. In this case, check the mechanical parts follow-
ing the appropriate diagnosis procedure.
• Shift point (gear position) displayed on CONSULT slight ly differs from shift pattern described in Service Man-
ual. This is due to the following reasons.
- Actual shift pattern may vary slightly within specified tolerances.
- While shift pattern described in Service Manual indica tes start of each shift, CONSULT shows gear position
at end of shift.
- The solenoid display (ON/OFF) on CONSULT is changed at the start of gear shifting. In contrast, the gear
position display is changed at the time when gear shif ting calculated in the control unit is completed.
NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.
Monitor item Condition Value/Status (Approx.)
VSP SENSOR While driving Almost same as the speedometer display.
ESTM VSP SIG While driving Almost same as the speedometer display.
INPUT SPEED SENSOR In driving (lock-up ON) Ap proximately matches the engine speed.
PRI SPEED SEN In driving (lock-up ON) Approximately matches the engine speed.
SEC REV SENSOR While driving VSP SENSOR × 40
ENG SPEED SIG Engine ru nning Almost same reading as tachometer
SEC PRESSURE SEN • After engine warm up
• Selector lever: “N” position
• At idle 1.2 – 1.3 V
PRI PRESSURE SEN • After engine warm up
• Selector lever: “N” position
• At idle 0.70 – 0.85 V
ATF TEMP SEN CVT fluid: Approx. 20
°C (68 °F) 2.01 – 2.05 V
CVT fluid: Approx. 50 °C (122 °F) 1.45 – 1.50 V
CVT fluid: Approx. 80 °C (176 °F) 0.90 – 0.94 V
G SENSOR Vehicle is level 0 V
VIGN SEN Ignition switch: ON 10 – 16 V
PVING VOLT Ignition switch: ON 10 – 16 V
VEHICLE SPEED While driving Almost sa me as the speedometer display.
INPUT REV In driving (lock-up ON) Almost same as the engine speed.
PRI SPEED In driving (lock-up ON) Approximately matches the engine speed.
SEC SPEED While driving VSP SENSOR × 40
ENG SPEED Engine running Almost same reading as tachometer
SLIP REV While driving Engine speed − Input speed
PULLEY GEAR RATIO In driving (forward) 2.70
− 0.38
In driving (reverse) 2.70
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Load next 8 pages

Page: < prev 1-10 ... 4225-4232 4233-4240 4241-4248 4249-4256 4257-4264 4265-4272 4273-4280 4281-4288 4289-4296 ... 4808 next >

rear view mirror gearbox fuel dimensions mileage open bonnet
