Page 4393 of 4801
TM-178
< PERIODIC MAINTENANCE >[CVT: RE0F10D]
CVT FLUID
PERIODIC MAINTENANCE
CVT FLUID
InspectionINFOID:0000000009464119
FLUID LEAKAGE
• Check transaxle surrounding area (oil seal and plug etc.)for fluid
leakage.
• If anything is found, repair or replace damaged parts and adjust
CVT fluid level. Refer to TM-84, "Adjustment"
.
SMA146B
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 4394 of 4801
![NISSAN TEANA 2014 Service Manual
CVT SHIFT SELECTORTM-179
< REMOVAL AND INSTALLATION > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
REMOVAL AND INSTALLATION
CVT SHIFT SELECTOR
Exploded ViewINFOID:0000000009464120
Removal and Inst NISSAN TEANA 2014 Service Manual
CVT SHIFT SELECTORTM-179
< REMOVAL AND INSTALLATION > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
REMOVAL AND INSTALLATION
CVT SHIFT SELECTOR
Exploded ViewINFOID:0000000009464120
Removal and Inst](/manual-img/5/57390/w960_57390-4393.png)
CVT SHIFT SELECTORTM-179
< REMOVAL AND INSTALLATION > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
REMOVAL AND INSTALLATION
CVT SHIFT SELECTOR
Exploded ViewINFOID:0000000009464120
Removal and InstallationINFOID:0000000009464121
CAUTION:
Always apply the parking brake befo re removal and installation.
REMOVAL
1. Apply the parking brake.
CAUTION:
Make sure the vehicle cannot move with the parking brake applied.
2. Disconnect battery negative terminal. Refer to PG-73, "Removal and Installation (Battery)"
.
3. Remove shift lock override button cover (1) using suitable tool, and insert suitable tool into opening (A) to depress the shift lock
override button. Move CVT shift selector to "N" position while
depressing shift lock override button.
: Front
1. CVT shift selector assembly 2. Control cable 3. Shift selector handle cover
4 Shift selector handle A. Shift selector handle clip
ALDIA0355GB
ALDIA0356GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 4395 of 4801
![NISSAN TEANA 2014 Service Manual
TM-180
< REMOVAL AND INSTALLATION >[CVT: RE0F10D]
CVT SHIFT SELECTOR
4. Remove the shift selector handle (1).
a. Release the shift selector handle cover (2) using a suitable tool from the base of t NISSAN TEANA 2014 Service Manual
TM-180
< REMOVAL AND INSTALLATION >[CVT: RE0F10D]
CVT SHIFT SELECTOR
4. Remove the shift selector handle (1).
a. Release the shift selector handle cover (2) using a suitable tool from the base of t](/manual-img/5/57390/w960_57390-4394.png)
TM-180
< REMOVAL AND INSTALLATION >[CVT: RE0F10D]
CVT SHIFT SELECTOR
4. Remove the shift selector handle (1).
a. Release the shift selector handle cover (2) using a suitable tool from the base of the shift selector handle (1).
b. Remove the shift selector handle clip (A).
c. Pull upward and remove the shift selector handle (1).
5. Remove the center console. Refer to IP-18, "Removal and Installation"
.
6. Release the harness clip, then disconnect the harness connector from CVT shift selector.
7. Depress shift lock override button and move CVT shift selector to "P" position“”.
8. Remove the control cable from the CV T shift selector assembly. Refer to TM-181, "Exploded View"
.
9. Remove the four CVT shift selector assembly nuts and the CVT shift selector assembly from the vehicle.
INSTALLATION
Installation is in the reverse order of removal.
• When installing control cable (1) to the CVT shift selector assembly (2), check that control cable is fully pressed in until it stops with the
ribbed surface (A) facing upward.
NOTE:
Apply multi-purpose grease to control cable eye before installation.
• Adjust control cable as necessary. Refer to TM-182, "Inspection
and Adjustment".
InspectionINFOID:0000000009464122
INSPECTION AFTER INSTALLATION
Check the CVT shift selector position. Refer to TM-87, "Inspection".
If a malfunction is found, adjust the CVT position. Refer to TM-87, "Adjustment"
.
ALDIA0319ZZ
JSDIA1624ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 4396 of 4801
![NISSAN TEANA 2014 Service Manual
CONTROL CABLETM-181
< REMOVAL AND INSTALLATION > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
CONTROL CABLE
Exploded ViewINFOID:0000000009464123
Removal and InstallationINFOID:0000000009464124
CAU NISSAN TEANA 2014 Service Manual
CONTROL CABLETM-181
< REMOVAL AND INSTALLATION > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
CONTROL CABLE
Exploded ViewINFOID:0000000009464123
Removal and InstallationINFOID:0000000009464124
CAU](/manual-img/5/57390/w960_57390-4395.png)
CONTROL CABLETM-181
< REMOVAL AND INSTALLATION > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
CONTROL CABLE
Exploded ViewINFOID:0000000009464123
Removal and InstallationINFOID:0000000009464124
CAUTION:
Always apply the parking brake before pe rforming removal and installation.
REMOVAL
1. Apply the parking brake.
CAUTION:
Make sure the vehicle cannot move with the parking brake applied.
2. Remove the front air duct and air cleaner case assembly. Refer to EM-29, "Removal and Installation"
.
3. Remove the control cable nut ( ), using suitable tool.
4. Remove control cable (2) from manual lever (A).
5. Remove the lock plate (3) from control cable (2).
6. Remove control cable (2) from bracket (1).
7. Remove center console. Refer to IP-18, "Removal and Installation"
.
8. Disconnect the ITS control unit harness connectors and remove the ITS control unit (if equipped). Refer to
AV-436, "Removal and Installation"
.
1. Lock plate 2. Transaxle assembly 3. Bracket
4. Control cable 5. CVT shift selector assembly A. Manual lever
B. Retainer grommet
ALDIA0351GB
ALDIA0357ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 4397 of 4801
![NISSAN TEANA 2014 Service Manual
TM-182
< REMOVAL AND INSTALLATION >[CVT: RE0F10D]
CONTROL CABLE
9. Remove control cable (1) from the CVT shift selector assembly
(2).
(A): Ribbed surface
10. Pull back dash trim and remove two retai NISSAN TEANA 2014 Service Manual
TM-182
< REMOVAL AND INSTALLATION >[CVT: RE0F10D]
CONTROL CABLE
9. Remove control cable (1) from the CVT shift selector assembly
(2).
(A): Ribbed surface
10. Pull back dash trim and remove two retai](/manual-img/5/57390/w960_57390-4396.png)
TM-182
< REMOVAL AND INSTALLATION >[CVT: RE0F10D]
CONTROL CABLE
9. Remove control cable (1) from the CVT shift selector assembly
(2).
(A): Ribbed surface
10. Pull back dash trim and remove two retainer grommet bolts.
11. Thread the control cable through the sheet meta l and remove the control cable from the vehicle.
INSTALLATION
Installation is in the reverse order of removal.
• When installing control cable (1) to the CVT shift selector assembly
(2), check that control cable is fully pressed in until it stops with the
ribbed surface (A) facing upward.
NOTE:
Apply multi-purpose grease to control cable eye before installation.
• Adjust control cable as necessary. Refer to TM-180, "Inspection"
.
Inspection and AdjustmentINFOID:0000000009464125
ADJUSTMENT AFTER INSTALLATION
Adjust the CVT position. Refer to TM-87, "Adjustment".
INSPECTION AFTER ADJUSTMENT
Check the CVT shift selector posit ion after the adjustment. Refer to TM-87, "Inspection".
JSDIA1624ZZ
JSDIA1624ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 4398 of 4801
TCM
TM-183
< REMOVAL AND INSTALLATION > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P

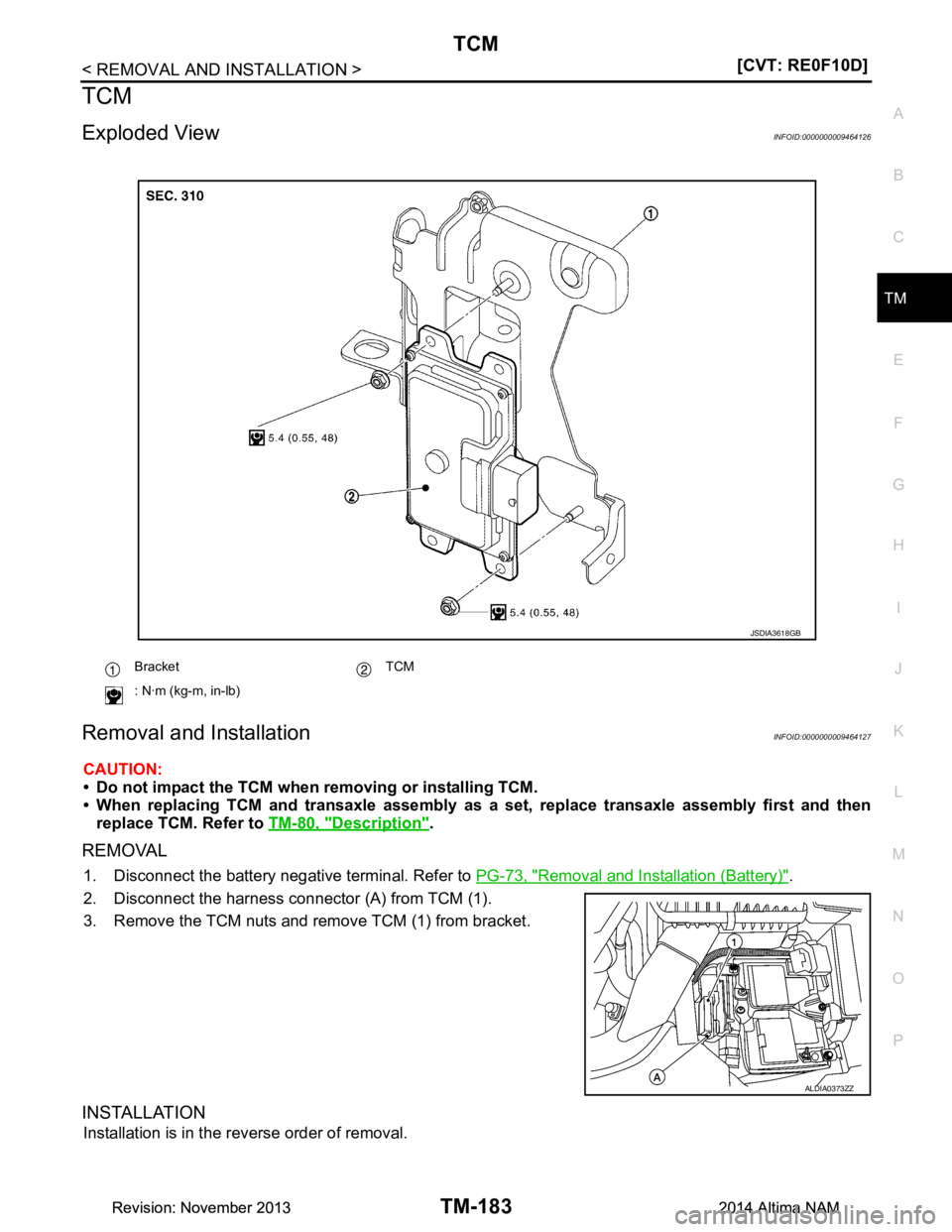

TCM
Exploded ViewINFOID:0000000009464126
Removal and InstallationINFOID:0000000009464127
CAUTION:
• Do not impact the TCM when removing or installing TCM.
• When replacing TCM and transaxle assembly as a set, replace transaxle assembly first and then
replace TCM. Refer to TM-80, "Description"
.
REMOVAL
1. Disconnect the battery negative terminal. Refer to PG-73, "Removal and Installation (Battery)".
2. Disconnect the harness connector (A) from TCM (1).
3. Remove the TCM nuts and remove TCM (1) from bracket.
INSTALLATION
Installation is in the reverse order of removal.
Bracket TCM
: N·m (kg-m, in-lb)
JSDIA3618GB
ALDIA0373ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 4399 of 4801
TM-184
< REMOVAL AND INSTALLATION >[CVT: RE0F10D]
TCM
Adjustment
INFOID:0000000009464128
ADJUSTMENT AFTER INSTALLATION
Perform "ADDITIONAL SERVICE WHEN REPLACING TCM". Refer to TM-80, "Description".
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 4400 of 4801
AIR BREATHER HOSETM-185
< REMOVAL AND INSTALLATION > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
AIR BREATHER HOSE
Removal and InstallationINFOID:0000000009464129
REMOVAL
1. Remove the front air duct and air cleaner case assembly. Refer to EM-29, "Removal and Installation".
2. Remove air breather hose from transaxle assembly.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• Install air breather hose with paint mark facing front.
• Install air breather hose onto air breather tube until overlap area reaches the spool.
• Make sure there are no pinched or restricted ar eas on air breather hose caused by bending of wind-
ing during installation.
