Page 3817 of 4801

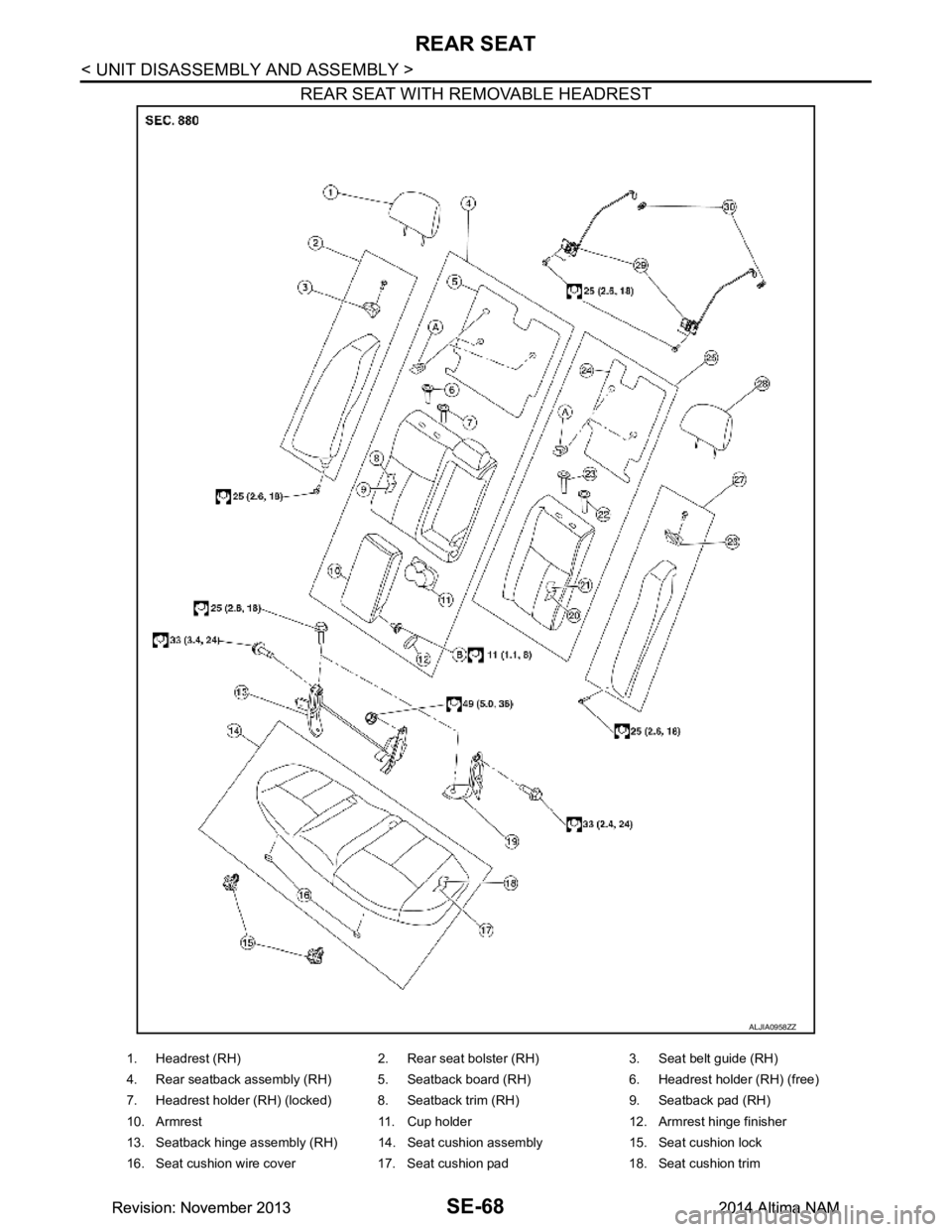

NISSAN TEANA 2014 Service Manual SE-68 < UNIT DISASSEMBLY AND ASSEMBLY > REAR SEAT REAR SEAT WITH REMOVABLE HEADREST ALJIA0958ZZ 1. Headrest (RH) 2. Rear seat bolster (RH) 3. Seat belt guide (RH) 4. Rear seatback assembly (RH) 5. S

Page 3818 of 4801

NISSAN TEANA 2014 Service Manual REAR SEATSE-69 < UNIT DISASSEMBLY AND ASSEMBLY > C D E F G H I K L M A B SE N O P Disassembly and AssemblyINFOID:0000000009462955 SEAT CUSHION Disassembly 1. Remove the seat cushion assembly. Refer

Page 3819 of 4801

NISSAN TEANA 2014 Service Manual SE-70 < UNIT DISASSEMBLY AND ASSEMBLY > REAR SEAT • Make sure any old hog ring pieces are removed from seat. NOTE: • Install new hog rings on the seat cushion trim in original positions. • U

Page 3820 of 4801

NISSAN TEANA 2014 Service Manual REAR SEATSE-71 < UNIT DISASSEMBLY AND ASSEMBLY > C D E F G H I K L M A B SE N O P c. Release the headrest holder locks as shown and remove the headrest holders (1) from the seatback frame (2). CAU

Page 3821 of 4801

NISSAN TEANA 2014 Service Manual SE-72 < UNIT DISASSEMBLY AND ASSEMBLY > REAR SEAT REAR SEATBACK ASSEMBLY (RH) - WITHOUT REMOVABLE HEADREST Disassembly 1. Remove the rear seatback assembly (RH). Refer to SE-36, "Removal and Install

Page 3822 of 4801

NISSAN TEANA 2014 Service Manual REAR SEATSE-73 < UNIT DISASSEMBLY AND ASSEMBLY > C D E F G H I K L M A B SE N O P • Install new hog rings on the seatback trim in original positions. • Use only one hog ring in each designate

Page 3823 of 4801

NISSAN TEANA 2014 Service Manual SE-74 < UNIT DISASSEMBLY AND ASSEMBLY > REAR SEAT b. Release the headrest holder locks as shown and remove theheadrest holders (1) from the seatback frame (2). CAUTION: Before removing headrest ho

Page 3824 of 4801

NISSAN TEANA 2014 Service Manual REAR SEATSE-75 < UNIT DISASSEMBLY AND ASSEMBLY > C D E F G H I K L M A B SE N O P Disassembly 1. Remove the rear seatback assembly (LH). Refer to SE-36, "Removal and Installation - Seat Assembly".
