NISSAN TEANA 2014 Service Manual
SYSTEMEC-57
< SYSTEM DESCRIPTION > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
tioner)INFOID:0000000009462102
SYSTEM DIAGRAM
SYSTEM DESCRIPTION

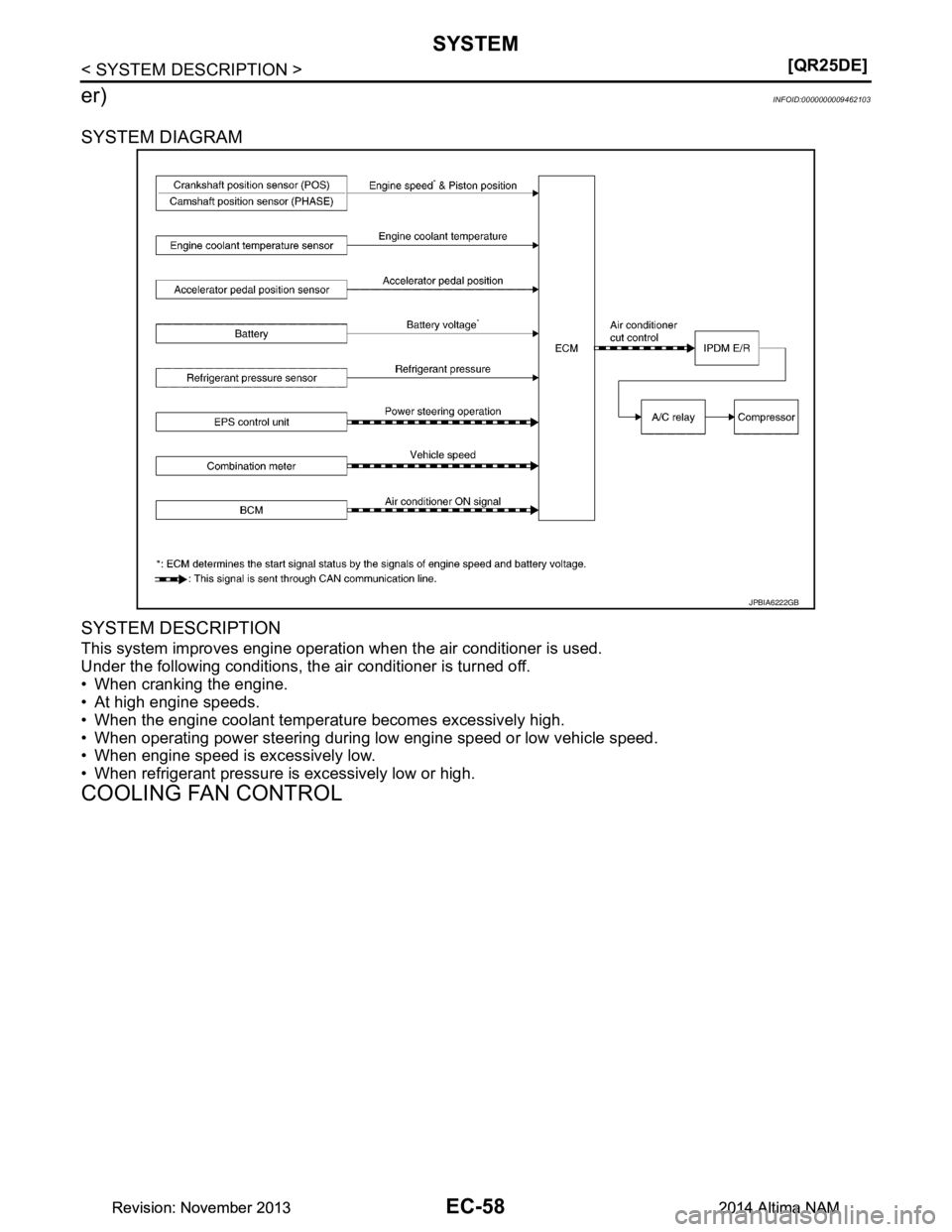

This system improves engine operation when the air condi

Page 1058 of 4801

NISSAN TEANA 2014 Service Manual
EC-58
< SYSTEM DESCRIPTION >[QR25DE]
SYSTEM
er)
INFOID:0000000009462103

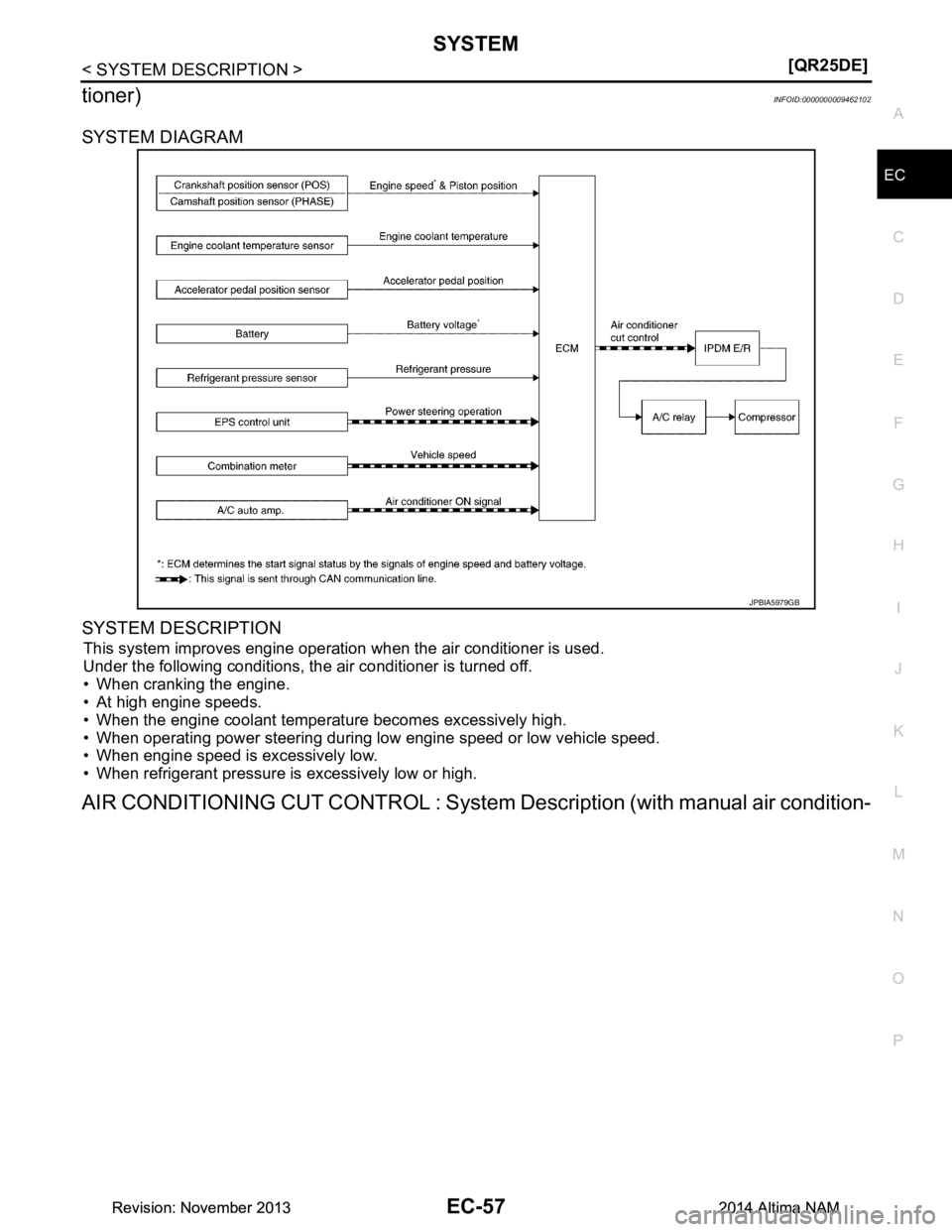

SYSTEM DIAGRAM
SYSTEM DESCRIPTION
This system improves engine operati on when the air conditioner is used.
Under the following

Page 1059 of 4801

NISSAN TEANA 2014 Service Manual
SYSTEMEC-59
< SYSTEM DESCRIPTION > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
COOLING FAN CONTROL : System Descripti
on (with automatic air conditioner)
INFOID:0000000009462104

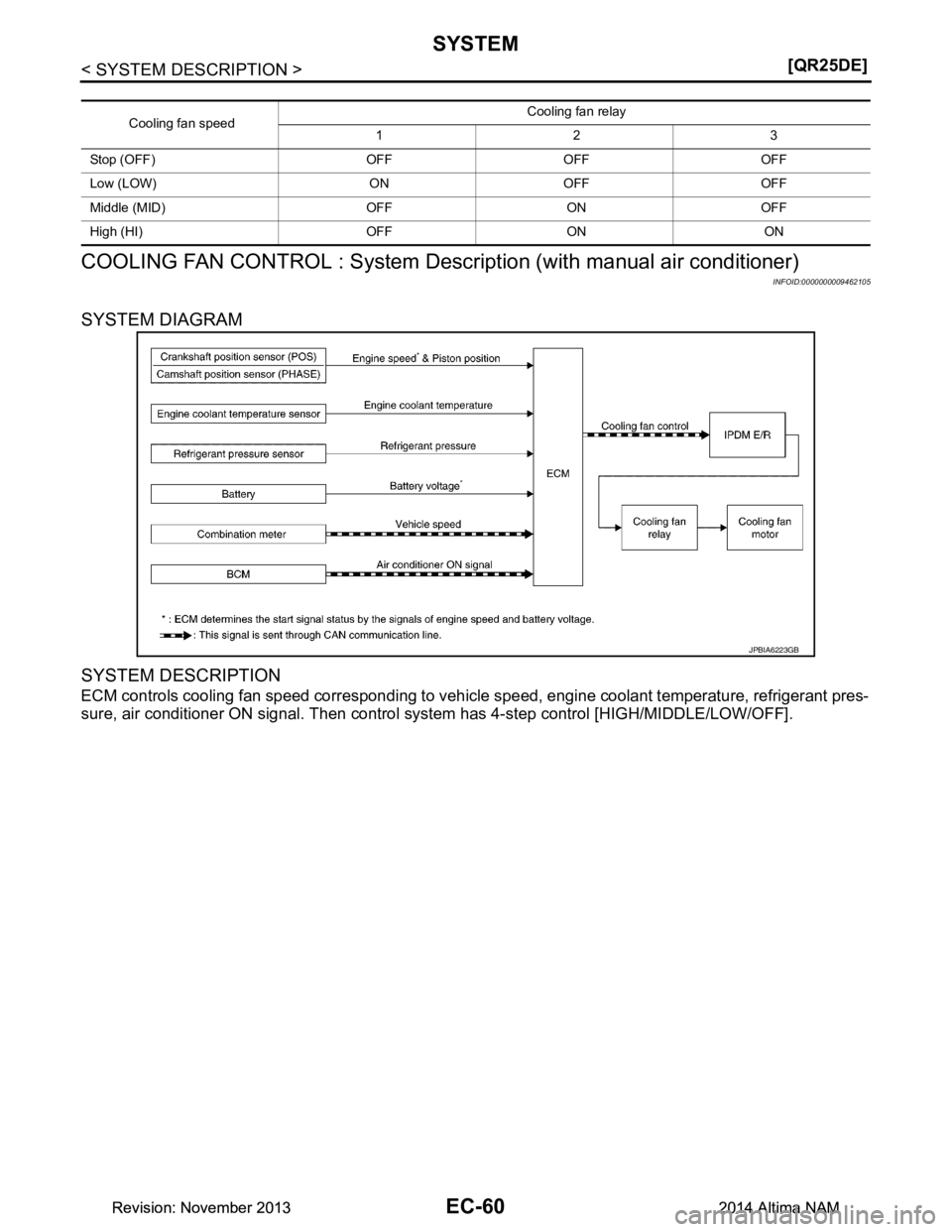

SYSTEM DIAGRAM
SYSTEM

Page 1060 of 4801

NISSAN TEANA 2014 Service Manual
EC-60
< SYSTEM DESCRIPTION >[QR25DE]
SYSTEM
COOLING FAN CONTROL : S ystem Description (with manual air conditioner)
INFOID:0000000009462105
SYSTEM DIAGRAM

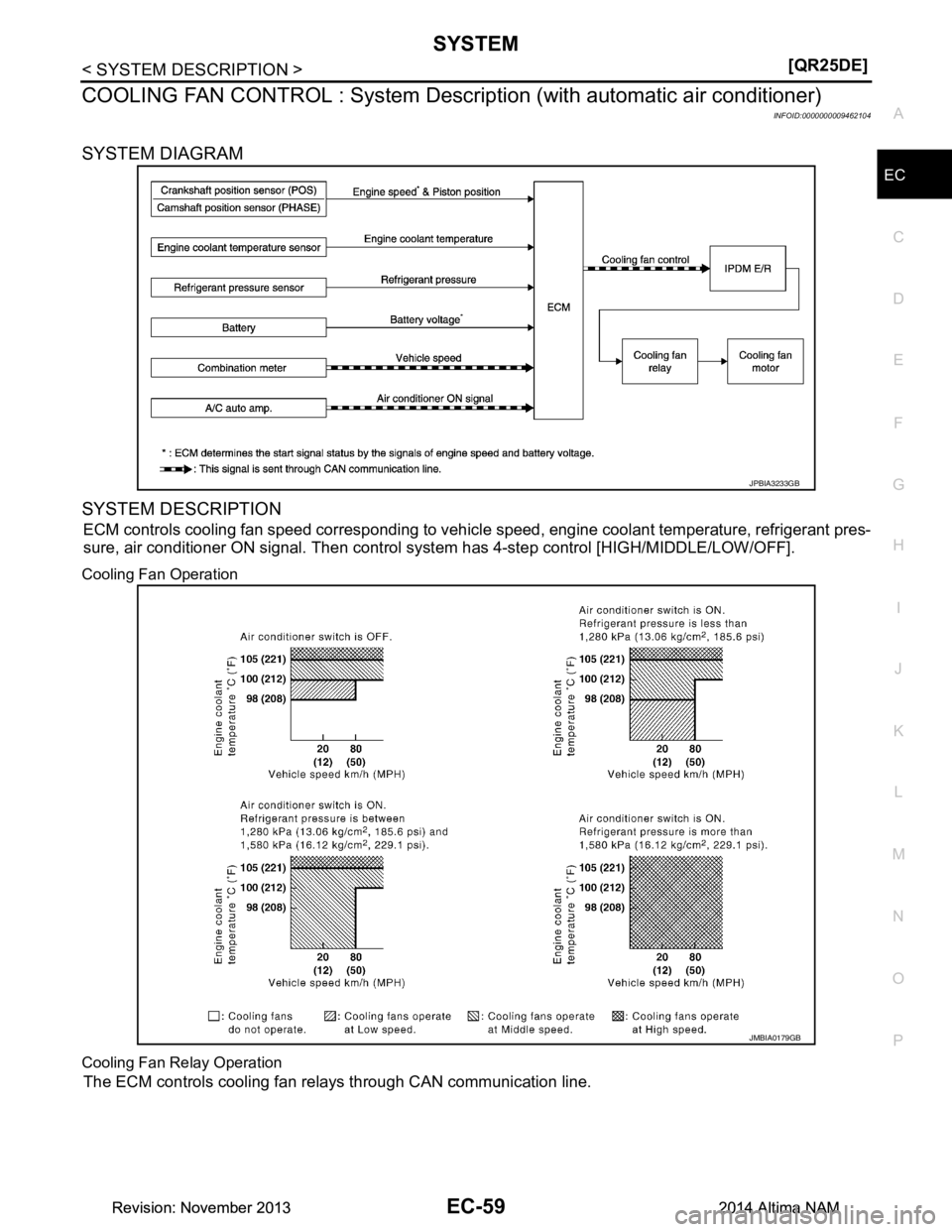

SYSTEM DESCRIPTION
ECM controls cooling fan

Page 1061 of 4801

NISSAN TEANA 2014 Service Manual
SYSTEMEC-61
< SYSTEM DESCRIPTION > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O

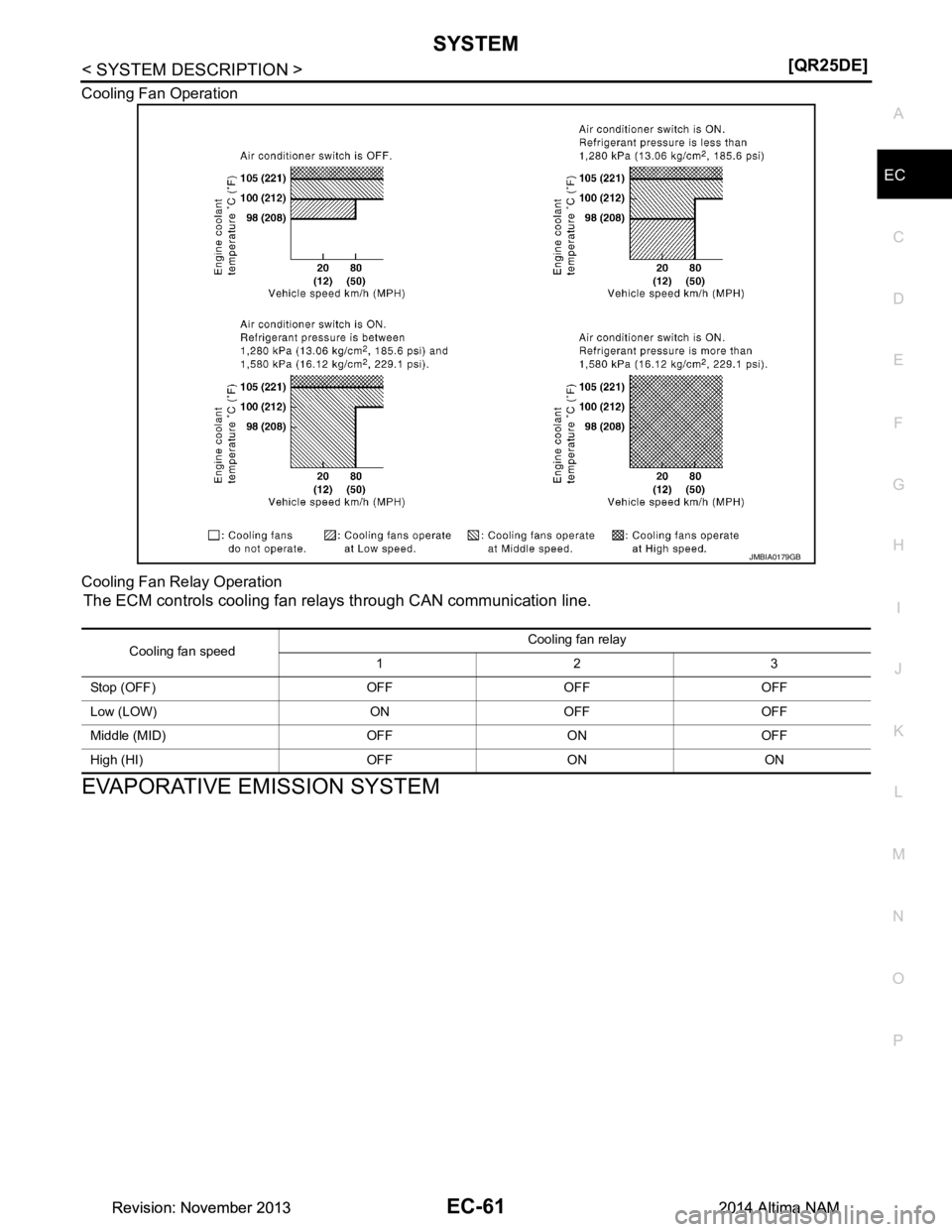

Cooling Fan Operation
Cooling Fan Relay Operation
The ECM controls cooling fan relays through CAN communication line.
EVA

Page 1062 of 4801

NISSAN TEANA 2014 Service Manual
EC-62
< SYSTEM DESCRIPTION >[QR25DE]
SYSTEM
EVAPORATIVE EMISSION SYSTEM : System Description
INFOID:0000000009462106

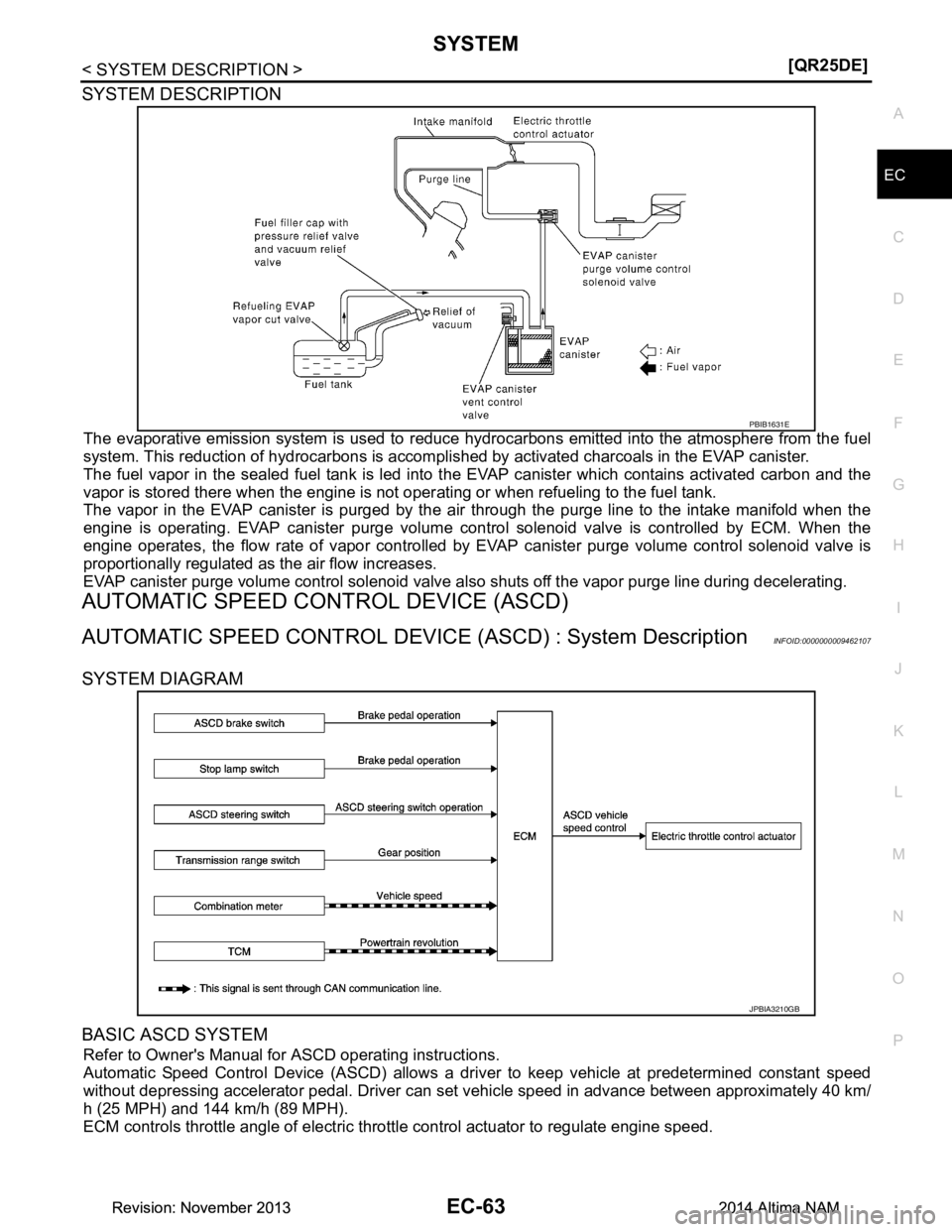

SYSTEM DIAGRAM
INPUT/OUTPUT SIGNAL CHART
*1: ECM determines the start signal stat

Page 1063 of 4801

NISSAN TEANA 2014 Service Manual
SYSTEMEC-63
< SYSTEM DESCRIPTION > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
SYSTEM DESCRIPTION
The evaporative emission system is used to reduce hydr
ocarbons emitted into the atmosphere from the fu

Page 1064 of 4801

NISSAN TEANA 2014 Service Manual
EC-64
< SYSTEM DESCRIPTION >[QR25DE]
SYSTEM
The ASCD operation status is indicated by two indica
tors (CRUISE and SET on the information display) on the
combination meter. If any malfunction occurs i

EC-64
< SYSTEM DESCRIPTION >[QR25DE]
SYSTEM
The ASCD operation status is indicated by two indica
tors (CRUISE and SET on the information display) on the
combination meter. If any malfunction occurs in AS CD system, SET indicator blinks and ASCD control is deac-
tivated.
NOTE:
Always drive vehicle in safe manner according to traffic conditions and obey all traffic laws.
SET OPERATION
Press MAIN switch. (CRUISE is indicated on the information display.)
When vehicle speed reaches a desired speed between approximately 40 km/h (25 MPH) and 144 km/h (89
MPH), press SET/COAST switch. (Then SET is indicated on the information display.)
ACCELERATE OPERATION
If the RESUME/ACCELERATE switch is pressed during cruise control driving, increase the vehicle speed until
the switch is released or vehicle speed r eaches maximum speed controlled by the system.
And then ASCD will keep the new set speed.
CANCEL OPERATION
When any of following conditions exist, cruise operation will be canceled.
• CANCEL switch is pressed
• More than 2 switches at ASCD steering switch are pressed at the same time (Set speed will be cleared)
• Brake pedal is depressed
• Selector lever is changed to N, P, R position
• Vehicle speed decreased to 13 km/h (8 MPH) lower than the set speed
• TCS system is operated
When the ECM detects any of the following conditions , the ECM will cancel the cruise operation and inform
the driver by blinking indicators.
• Engine coolant temperature is slightly higher than t he normal operating temperature, CRUISE indicator may
blink slowly.
When the engine coolant temperature decreases to the normal operating temperature, CRUISE indicator will
stop blinking and the cruise operation will be able to wo rk by pressing SET/COAST switch or RESUME/
ACCELERATE switch.
• Malfunction for some self-diagnoses regarding AS CD control: SET indicator will blink quickly.
If MAIN switch is turned to OFF during ASCD is acti vated, all of ASCD operations will be canceled and vehicle
speed memory will be erased.
COAST OPERATION
When the SET/COAST switch is press ed during cruise control driving, decrease vehicle set speed until the
switch is released. And then ASCD will keep the new set speed.
RESUME OPERATION
When the RESUME/ACCELERATE switch is pressed after cancel operation other than pressing MAIN switch
is performed, vehicle speed will return to last set s peed. To resume vehicle set speed, vehicle condition must
meet following conditions.
• Brake pedal is released
• Selector lever is in other than P and N positions
• Vehicle speed is greater than 40 km/h (25 MPH) and less than 144 km/h (89 MPH)
CAN COMMUNICATION
CAN COMMUNICATION : System DescriptionINFOID:0000000009462108
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication s peed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CA N communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
Refer to LAN-32, "CAN COMMUNICA TION SYSTEM : CAN Communication Signal Chart"
, about CAN com-
munication for detail.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
