P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
EC-345
< DTC/CIRCUIT DIAGNOSIS > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
YES >> GO TO 8.
NO >> GO TO 7.
7.CHECK EVAP CANISTER PURGE VO LUME

P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
EC-345
< DTC/CIRCUIT DIAGNOSIS > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
YES >> GO TO 8.
NO >> GO TO 7.
7.CHECK EVAP CANISTER PURGE VO LUME CONTROL SOLENOID VALVE
Check the EVAP canister purge volume control solenoid valve. Refer to EC-345, "Component Inspection"
.
Is the inspection result normal?
YES >> GO TO 8.
NO >> Replace EVAP canister purge volume control solenoid valve. Refer to EC-21,
"Component Parts Location".
8.CHECK RUBBER TUBE FOR CLOGGING
1. Disconnect rubber tube connected to EV AP canister vent control valve.
2. Check the rubber tube for clogging.
Is the inspection result normal?
YES >> GO TO 9.
NO >> Clean the rubber tube using an air blower.
9.CHECK EVAP CANISTER VENT CONTROL VALVE
Check the EVAP canister vent control valve. Refer to EC-352, "Component Inspection"
.
Is the inspection result normal?
YES >> GO TO 10.
NO >> Replace EVAP canister vent control valve. Refer to FL-17, "Removal and Installation"
.
10.CHECK IF EVAP CANISTER IS SATURATED WITH WATER
1. Remove EVAP canister with EVAP canister vent c ontrol valve and EVAP control system pressure sensor
attached.
2. Check if water will drain from EVAP canister.
Does water drain from the EVAP canister?
YES >> GO TO 11.
NO >> Check intermittent incident. Refer to GI-43, "Intermittent
Incident".
11 .CHECK EVAP CANISTER
Weigh the EVAP canister with the EV AP canister vent control valve and EVAP control system pressure sensor
attached.
The weight should be less than 2.1 kg (4.6 lb).
Is the inspection result normal?
YES >> Check intermittent incident. Refer to GI-43, "Intermittent Incident".
NO >> GO TO 12.
12.DETECT MALFUNCTIONING PART
Check the following.
• EVAP canister for damage
• EVAP hose between EVAP canister and vehi cle frame for clogging or poor connection
>> Repair hose or replace EVAP canister. Refer to FL-14, "Removal and Installation"
.
Component InspectionINFOID:0000000009462274
1.CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
With CONSULT
1. Turn ignition switch OFF.
PBIB1213E
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 1346 of 4801

NISSAN TEANA 2014 Service Manual
EC-346
< DTC/CIRCUIT DIAGNOSIS >[QR25DE]
P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
2. Reconnect all harness connectors disconnected.
3. Disconnect EVAP purge hoses connected to EVAP c

Page 1347 of 4801

NISSAN TEANA 2014 Service Manual
P0444, P0445 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID
VALVE
EC-347
< DTC/CIRCUIT DIAGNOSIS > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
P0444, P0445 EVAP CANISTER PU
RGE VOLUME CONTROL SOLENOID
VA

P0444, P0445 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID
VALVE
EC-347
< DTC/CIRCUIT DIAGNOSIS > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
P0444, P0445 EVAP CANISTER PU
RGE VOLUME CONTROL SOLENOID
VA LV E
DTC LogicINFOID:0000000009462275
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.CONDITIONING
If DTC Confirmation Procedure has been previously conducted, always perform the following procedure
before conducting the next test.
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
TESTING CONDITION:
Before performing the following procedure, confi rm battery voltage is more than 11 V at idle.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE
1. Start engine and let it idle for at least 13 seconds.
2. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Proceed to EC-347, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000009462276
1.CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE POWER SUPPLY
1. Turn ignition switch OFF.
2. Disconnect EVAP canister purge volume control solenoid valve harness connector.
3. Turn ignition switch ON.
4. Check the voltage between EVAP canister purge volume control solenoid valve harness connector and ground.
Is the inspection result normal?
YES >> GO TO 3.
DTC No. CONSULT screen terms
(Trouble diagnosis content) DTC detecting condition Possible cause
P0444 PURG VOLUME CONT/V
(Evaporative emission system
purge control valve circuit open) An excessively low voltage signal is sent to
ECM through the EVAP canister purge vol-
ume control solenoid valve. • Harness or connectors
(EVAP canister purge volume control
solenoid valve circuit is open or short-
ed.)
• EVAP canister purge volume control solenoid valve
P0445 PURG VOLUME CONT/V
(Evaporative emission system
purge control valve circuit short-
ed) An excessively high voltage signal is sent
to ECM through the valve • Harness or connectors
(EVAP canister purge volume control
solenoid valve circuit is shorted.)
• EVAP canister purge volume control solenoid valve
+
−Vo l ta g e
EVAP canister purge volume
control solenoid valve
Connector Terminal F29 2 Ground Battery voltage
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 1348 of 4801

NISSAN TEANA 2014 Service Manual
EC-348
< DTC/CIRCUIT DIAGNOSIS >[QR25DE]
P0444, P0445 EVAP CANISTER P
URGE VOLUME CONTROL SOLENOID
VALVE
NO >> GO TO 2.
2.CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE POWER SUPPLY CIRCUI

EC-348
< DTC/CIRCUIT DIAGNOSIS >[QR25DE]
P0444, P0445 EVAP CANISTER P
URGE VOLUME CONTROL SOLENOID
VALVE
NO >> GO TO 2.
2.CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R harness connector.
3. Check the continuity between EVAP canister pur ge volume control solenoid valve harness connector and
IPDM E/R harness connector.
4. Also check harness for short to ground.
Is the inspection result normal?
YES >> Perform the trouble diagnosis for power supply circuit.
NO >> Repair or replace error-detected parts.
3.CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check the continuity between EVAP canister pur ge volume control solenoid valve harness connector and
ECM harness connector.
*1: Except for California
*2: For California
4. Also check harness for short to power.
Is the inspection result normal?
YES-1 >> With CONSULT: GO TO 4.
YES-2 >> Without CONSULT: GO TO 5.
NO >> Repair or replace error-detected parts.
4.CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE OPERATION
With CONSULT
1. Reconnect all harness connectors disconnected.
2. Start engine.
3. Perform “PURG VOL CONT/V” in “ACTIVE TEST” mode of “ENGINE” using CONSULT.
4. Check that engine speed varies according to the valve opening.
Does engine speed vary according to the valve opening?
YES >> Check intermittent incident. Refer to GI-43, "Intermittent Incident".
NO >> GO TO 5.
5.CHECK EVAP CANISTER PURGE VO LUME CONTROL SOLENOID VALVE
Check the EVAP canister purge volume control solenoid valve. Refer to EC-345, "Component Inspection"
.
Is the inspection result normal?
YES >> Check intermittent incident. Refer to GI-43, "Intermittent Incident".
NO >> Replace EVAP canister purge volume control solenoid valve. Refer to EC-21,
"Component Parts Location".
+−
Continuity
EVAP canister purge volume
control solenoid valve IPDM E/R
Connector Terminal Connector Terminal F29 2 E18 13 Existed
+ −
Continuity
EVAP canister purge volume
control solenoid valve ECM
Connector Terminal Connector Terminal
F29 1 F14
*1
F91*217 Existed
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 1349 of 4801

NISSAN TEANA 2014 Service Manual
P0444, P0445 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID
VALVE
EC-349
< DTC/CIRCUIT DIAGNOSIS > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O

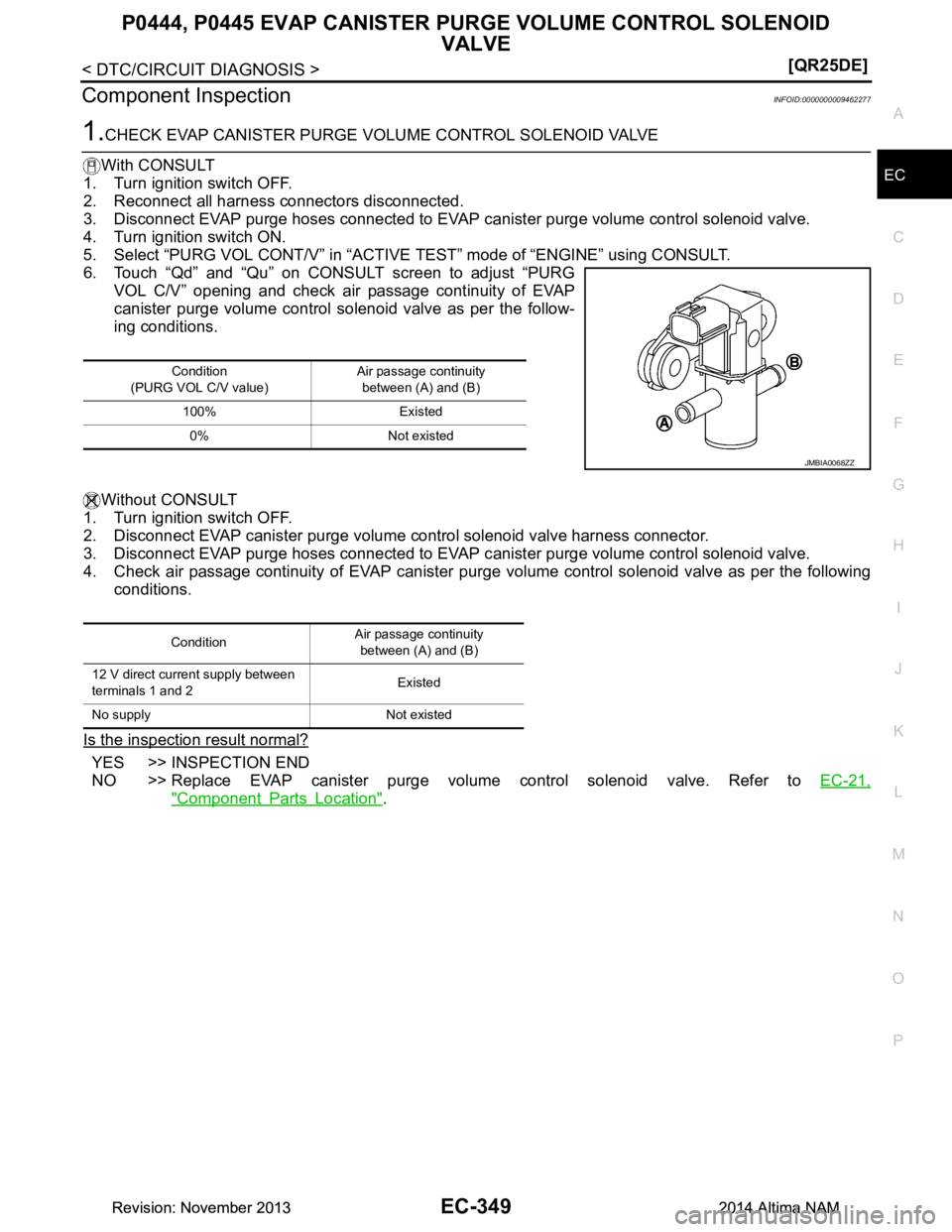

Component InspectionINFOID:0000000009462277
1.CHECK EVAP CAN

Page 1350 of 4801

NISSAN TEANA 2014 Service Manual
EC-350
< DTC/CIRCUIT DIAGNOSIS >[QR25DE]
P0447 EVAP CANISTER VENT CONTROL VALVE
P0447 EVAP CANISTER VENT CONTROL VALVE
DTC LogicINFOID:0000000009462278
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE

Page 1351 of 4801

NISSAN TEANA 2014 Service Manual
P0447 EVAP CANISTER VENT CONTROL VALVEEC-351
< DTC/CIRCUIT DIAGNOSIS > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
4. Check the voltage between EVAP canister
vent control valve harness connector and g

Page 1352 of 4801

NISSAN TEANA 2014 Service Manual

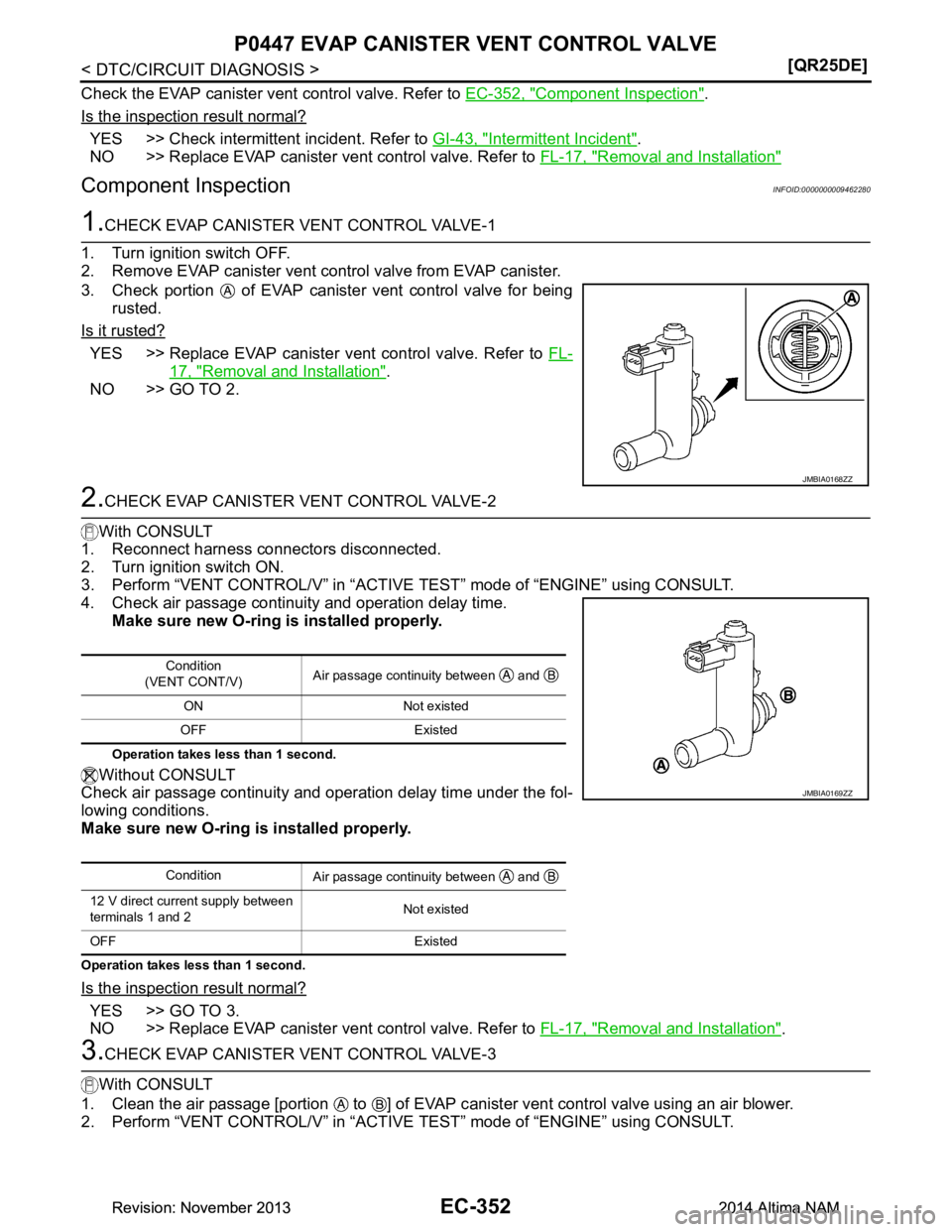

EC-352
< DTC/CIRCUIT DIAGNOSIS >[QR25DE]
P0447 EVAP CANISTER VENT CONTROL VALVE
Check the EVAP canister vent control valve. Refer to
EC-352, "Component Inspection".
Is the inspection result normal?
