2. Install the engine mounting insulator (front) bolts and tighten to
specification in the order shown.
CAU

Page 2218 of 4801

NISSAN TEANA 2014 Service Manual
EM-220
< UNIT REMOVAL AND INSTALLATION >[VQ35DE]
ENGINE ASSEMBLY
UNIT REMOVAL AND INSTALLATION
ENGINE ASSEMBLY
Exploded ViewINFOID:0000000009460579
Removal and InstallationINFOID:0000000009460580
WAR

Page 2219 of 4801

NISSAN TEANA 2014 Service Manual
ENGINE ASSEMBLYEM-221
< UNIT REMOVAL AND INSTALLATION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O
• Do not damage the edge of the crankshaft
position sensor (POS) or the ring gear teeth.
REMOVAL

ENGINE ASSEMBLYEM-221
< UNIT REMOVAL AND INSTALLATION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O
• Do not damage the edge of the crankshaft
position sensor (POS) or the ring gear teeth.
REMOVAL
NOTE:
When removing components such as hoses, tubes/lines, etc. , cap or plug openings to prevent fluid from spill-
ing.
1. Remove hood assembly. Refer to DLK-170, "HOOD ASSEMBLY : Removal and Installation"
.
2. Release fuel pressure. Refer to FL-5, "Inspection"
.
3. Drain engine coolant. Refer to CO-36, "Changing Engine Coolant"
.
4. Drain power steering fluid. Refer to ST-30, "Draining and Refilling"
.
5. Remove front wheels and tires (RH/LH). Refer to WT-55, "Adjustment"
.
6. Remove fender protector side covers (RH/LH). Refer to EXT-26, "FENDER PROTECTOR : Removal and
Installation".
7. Remove the engine under cover. Refer to EXT-17, "Removal and Installation"
.
8. Remove the engine room cover. Refer to EM-143, "Removal and Installation"
.
9. Remove air duct hose and resonator assembly and air cleaner case assembly with mass air flow sensor.
Refer to EM-144, "Removal and Installation"
.
10. Remove battery and battery tray. Refer to PG-74, "Removal and Installation (Battery Tray)"
.
11. Remove transmission control module. Refer to TM-183, "Removal and Installation"
.
12. Remove cowl top. Refer to EXT-24, "Removal and Installation"
.
13. Remove strut brace using power tools. Refer to FSU-19, "Exploded View"
.
14. Remove IPDM E/R. Refer to PCS-32, "Removal and Installation"
.
15. Remove the following parts: • EVAP vacuum hose
• Brake booster vacuum hose
• Heater hoses (engine side)
16. Disconnect transaxle shift control cables. Refer to TM-380, "Removal and Installation"
.
17. Remove upper and lower radiator hoses.
18. Disconnect CVT fluid cooler hoses.
19. Remove power steering reservoir, suction hose and high pressure hose.
20. Disconnect fuel hose quick connection at vehicle piping side. Refer to EM-163, "Removal and Installa-
tion".
21. Remove the front exhaust tube using power tools. Refer to EX-10, "Exploded View"
.
22. Discharge and recover the R134a refrigerant. Refer to HA-23, "Recycle Refrigerant"
.
23. Remove the A/C compressor using power tools. Refer to HA-30, "COMPRESSOR : Removal and Installa-
tion".
24. Install engine slingers into front of LH cylinder head and rear of RH cylinder head.
• (A): RH cylinder head
ALBIA0262GB
Revision: November 20132014 Altima NAM

Page 2220 of 4801

NISSAN TEANA 2014 Service Manual
EM-222
< UNIT REMOVAL AND INSTALLATION >[VQ35DE]
ENGINE ASSEMBLY
• (B): LH cylinder head
25. Remove rear cover plate.
26. Remove the torque converter nuts.
27. Remove nuts of stabilizer connectin

EM-222
< UNIT REMOVAL AND INSTALLATION >[VQ35DE]
ENGINE ASSEMBLY
• (B): LH cylinder head
25. Remove rear cover plate.
26. Remove the torque converter nuts.
27. Remove nuts of stabilizer connecting rods from struts. Refer to FSU-19, "Exploded View"
.
28. Remove front wheel speed sensors and position aside. Refer to BRC-124, "Removal and Installation -
Front Wheel Sensor".
29. Remove front brake rotors. Refer to BR-36, "BRAKE CALIPER ASSEMBLY : Removal and Installation"
.
30. Remove piston rod nut. Refer to FSU-19, "Exploded View"
.
31. Remove front drive shaft (LH/RH). Refer to FAX-10, "Removal and Installation (LH)"
and FAX-12,
"Removal and Installation (RH)".
32. Remove RH drive shaft center bearing bracket.
33. Remove lower steering column pinch bolt. Refer to ST-33, "Exploded View"
.
34. Remove three way catalyst (manifold) (bank 1) heat shield.
35. Disconnect front and rear engine mounting insulator vacuum hoses.
36. Remove front and rear engine mounting insulator nut.
37. Position a suitable support table under suspension member and engine assembly. TM-206, "Removal and
Installation"
38. Disconnect the engine mounting insulator (LH), upper torque rod, and engine mounting insulator (RH).
39. For additional safety, secure the engine in position with suitable tool.
40. Remove suspension member bolts. Refer to FSU-19, "Exploded View"
.
41. Carefully lower the engine, transaxle assembly and suspension member using Tool, avoiding interference
with the vehicle body.
CAUTION:
• Before and during this procedure, alw ays check if any harnesses are left connected.
• Avoid any damage to, or any oil/grease smearin g or spilling onto the engine mounting insula-
tors.
42. Remove the starter motor. Refer to STR-23, "VQ35DE : Removal and Installation"
.
43. Remove the crankshaft position sensor (POS).
44. Remove engine and transaxle harness.
45. Separate the engine and transaxle and mount the engine on a suitable engine stand.
INSTALLATION
Installation is in the reverse order of removal.
NOTE:
Tighten transmission bolts to specification. Refer to TM-206, "Removal and Installation"
.
INSPECTION AFTER INSTALLATION
• Before starting engine, check oil/fluid levels including engine coolant and engine oil. If less than required
quantity, fill to the specified level. Refer to MA-11, "FOR USA AND CANADA : Fluids and Lubricants"
.
• Use procedure below to check for fuel leakage.
• Turn ignition switch ON (with engine stopped). With fuel pressure applied to fuel piping, check for fuel leak-
age at connection points.
ALBIA0263GB
Tool number : KV101J0010 (J-47242)
Revision: November 20132014 Altima NAM

Page 2221 of 4801

NISSAN TEANA 2014 Service Manual
ENGINE ASSEMBLYEM-223
< UNIT REMOVAL AND INSTALLATION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O
• Start engine. With engine speed increased, check again for fuel leakage at connection points.
�

Page 2222 of 4801

NISSAN TEANA 2014 Service Manual
EM-224
< UNIT DISASSEMBLY AND ASSEMBLY >[VQ35DE]
CYLINDER BLOCK
UNIT DISASSEMBLY AND ASSEMBLY
CYLINDER BLOCK
Disassembly and AssemblyINFOID:0000000009460581
AWBIA1354ZZ
Revision: November 20132014 Al

Page 2223 of 4801

NISSAN TEANA 2014 Service Manual
CYLINDER BLOCKEM-225
< UNIT DISASSEMBLY AND ASSEMBLY > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O
CAUTION:
• Apply new engine oil to parts as marked in illustrations before installation.
• Place

CYLINDER BLOCKEM-225
< UNIT DISASSEMBLY AND ASSEMBLY > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O
CAUTION:
• Apply new engine oil to parts as marked in illustrations before installation.
• Place removed parts such as bearings and bear ing caps in their proper order and direction.
• When installing the connecting ro d nuts, and main bearing cap bolts, apply new engine oil to the
threads and mating surfaces
• Do not allow any magnetic materials to contact the signal plate teeth on the drive plate.
DISASSEMBLY
1. Remove the engine assembly. Refer to EM-220, "Removal and Installation".
2. Remove drive plate. • Loosen bolts in diagonal order.
CAUTION:
• Do not disassemble drive plate.
• Place the drive plate with signal plate surface facing
upward.
• Be careful not to damage or scratch drive plate. Espe- cially avoiding deforming and damaging of signal plate
teeth.
• Keep magnetic materials away from signal plate.
3. Remove pilot converter using Tool.
4. Install the engine on the engine stand. CAUTION:
• Use an engine stand that has a load capacity [approximately 240kg (529) or more] large enough
for supporting the engine weight.
• Before removing the hanging chains, make sure th e engine stand is stable and there is no risk of
overturning.
5. Remove the knock sensors. CAUTION:
Carefully handle sensors avoiding shocking it.

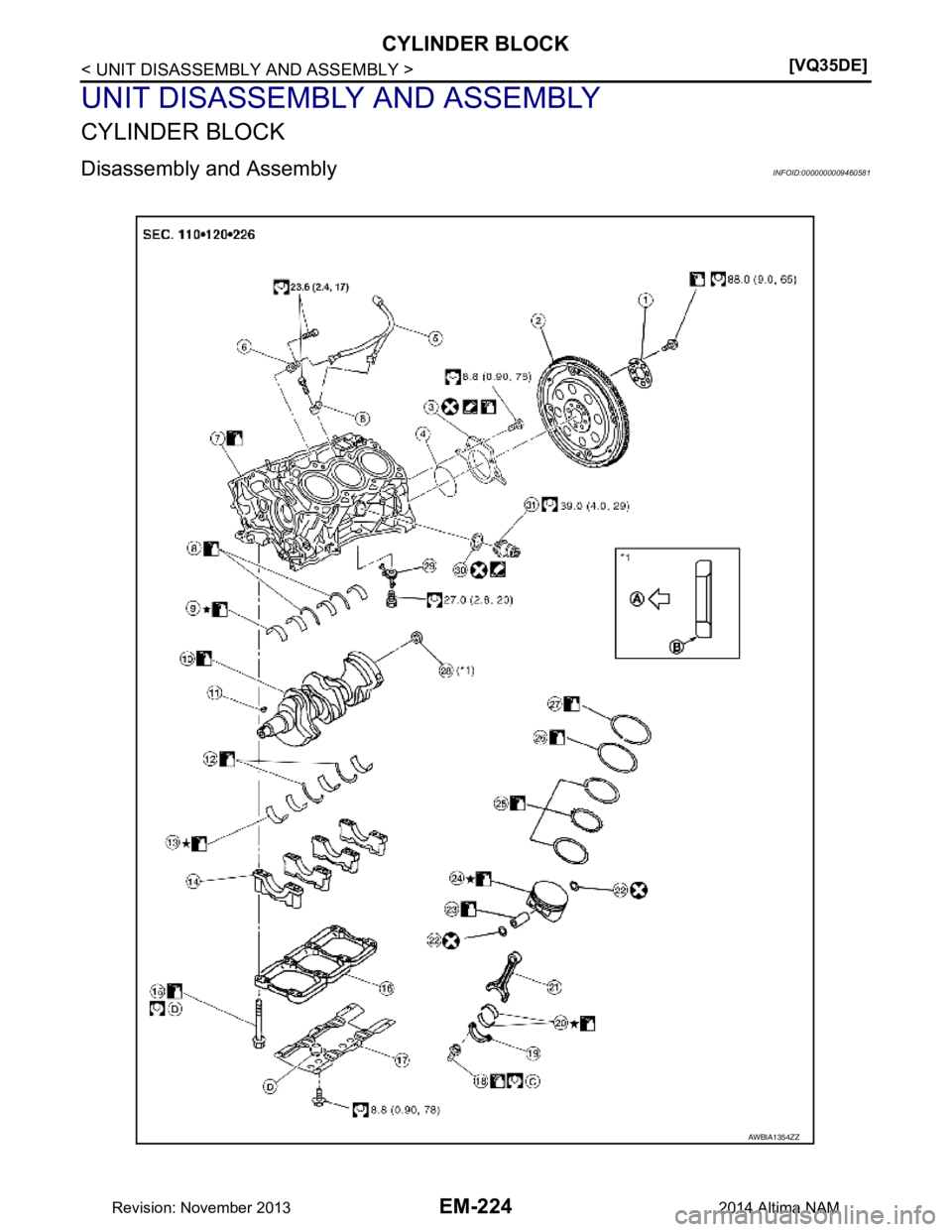

1. Reinforcement plate 2. Drive plate 3. Rear oil seal retainer
4. Rear oil seal 5. Sub harness 6. Knock sensor
7. Cylinder block 8. Thrust bearing (upper) 9. Main bearing (upper)
10. Crankshaft 11. Crankshaft key 12. Thrust bearing (lower)
13. Main bearing (lower) 14. Main bearing cap 15. Main bearing cap bolt
16. Main bearing beam 17. Baffle plate 18. Connecting rod bolt
19. Connecting rod bearing cap 20. Connecting rod bearing 21. Connecting rod
22. Snap ring 23. Piston pin 24. Piston
25. Oil ring 26. Second ring 27. Top ring
28. Pilot converter 29. Oil jet 30. Gasket (for Canada)
31. Cylinder block heater (for Canada) A. Crankshaft side B. Chamfered
C. Follow the assembly procedure D. Front mark
SEM760G
Tool number : ST16610001 (J-23907)
SEM005G
Revision: November 20132014 Altima NAM

Page 2224 of 4801

NISSAN TEANA 2014 Service Manual
EM-226
< UNIT DISASSEMBLY AND ASSEMBLY >[VQ35DE]
CYLINDER BLOCK
6. Drain the engine of all coolant and oil.
7. Remove the oil pan. Refer to EM-157, "Removal and Installation (Upper Oil Pan)"
.
8. R

EM-226
< UNIT DISASSEMBLY AND ASSEMBLY >[VQ35DE]
CYLINDER BLOCK
6. Drain the engine of all coolant and oil.
7. Remove the oil pan. Refer to EM-157, "Removal and Installation (Upper Oil Pan)"
.
8. Remove the timing chain primary and secondary. Refer to EM-182, "Removal and Installation"
.
9. Remove the cylinder head. Refer to EM-207, "Removal and Installation"
.
10. Cut away liquid gasket and remove rear oil seal retainer using Tool. Refer to EM-124, "Precaution for Liquid Gasket"
.
CAUTION:
• Be careful not to damage mounting surface.
• If rear oil seal retainer is removed, replace it with a new one.
NOTE:
Rear oil seal and retainer form a single part and are handled as
an assembly.

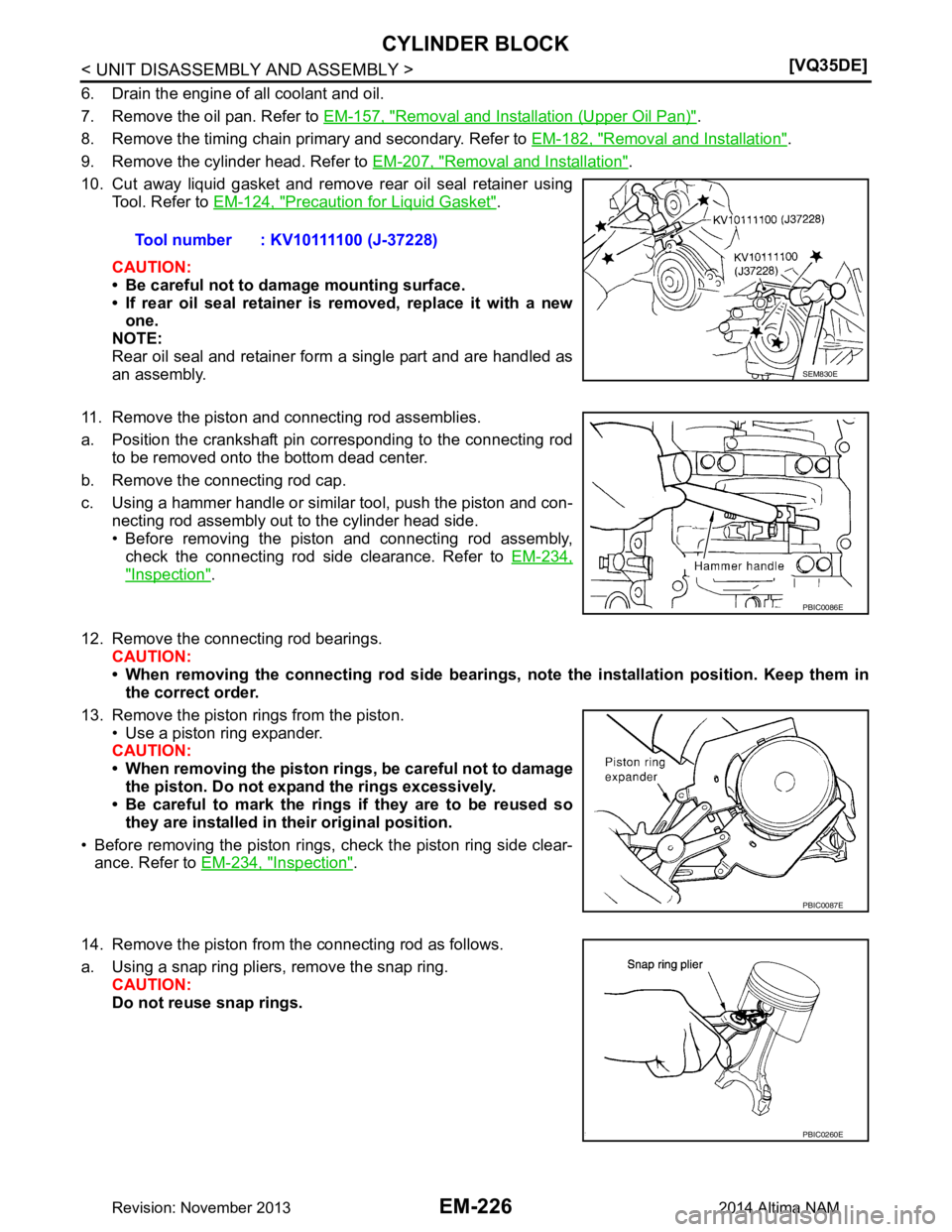

11. Remove the piston and connecting rod assemblies.
a. Position the crankshaft pin corresponding to the connecting rod to be removed onto the bottom dead center.
b. Remove the connecting rod cap.
c. Using a hammer handle or similar tool, push the piston and con- necting rod assembly out to the cylinder head side.
• Before removing the piston and connecting rod assembly, check the connecting rod side clearance. Refer to EM-234,
"Inspection".
12. Remove the connecting rod bearings. CAUTION:
• When removing the connecting rod side bearings, note the installation position. Keep them in
the correct order.
13. Remove the piston rings from the piston. • Use a piston ring expander.
CAUTION:
• When removing the piston rings, be careful not to damage the piston. Do not exp and the rings excessively.
• Be careful to mark the rings if they are to be reused so
they are installed in their original position.
• Before removing the piston rings, check the piston ring side clear- ance. Refer to EM-234, "Inspection"
.
14. Remove the piston from the connecting rod as follows.
a. Using a snap ring pliers, remove the snap ring. CAUTION:
Do not reuse snap rings. Tool number : KV10111100 (J-37228)
SEM830E
PBIC0086E
PBIC0087E
PBIC0260E
Revision: November 20132014 Altima NAM
