ON BOARD REFUELING VAPOR RECOVERY (ORVR)EC-977
< DTC/CIRCUIT DIAGNOSIS > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace refueling EVAP vapor cut valve with fuel tank. Refer to FL-10, "Removal and Installation"
.
3.CHECK REFUELING EVAP VAPOR CUT VALVE
Without CONSULT
1. Turn ignition switch OFF.
2. Remove fuel tank. Refer to FL-10, "Removal and Installation"
.
3. Drain fuel from the tank as per the following:
- Remove fuel gauge retainer.
- Drain fuel from the tank using a handy pump into a fuel container.
4. Check refueling EVAP vapor cut valve for being stuck to close as per the following. Blow air into the refueling EVAP vapor cut valv e (from the end of EVAP/ORVR line hose), and check that
the air flows freely into the tank.
5. Check refueling EVAP vapor cut valve for being stuck to open as per the following.
- Connect vacuum pump to hose end.
- Remove fuel gauge retainer with fuel gauge unit. Always replace O-ring with new one.
- Turn fuel tank upside down.
- Apply vacuum pressure to hose end [ −13.3 kPa ( −0.136 kg/cm
2, −1.93 psi)] with fuel gauge retainer
remaining open and check that the pressure is applicable.

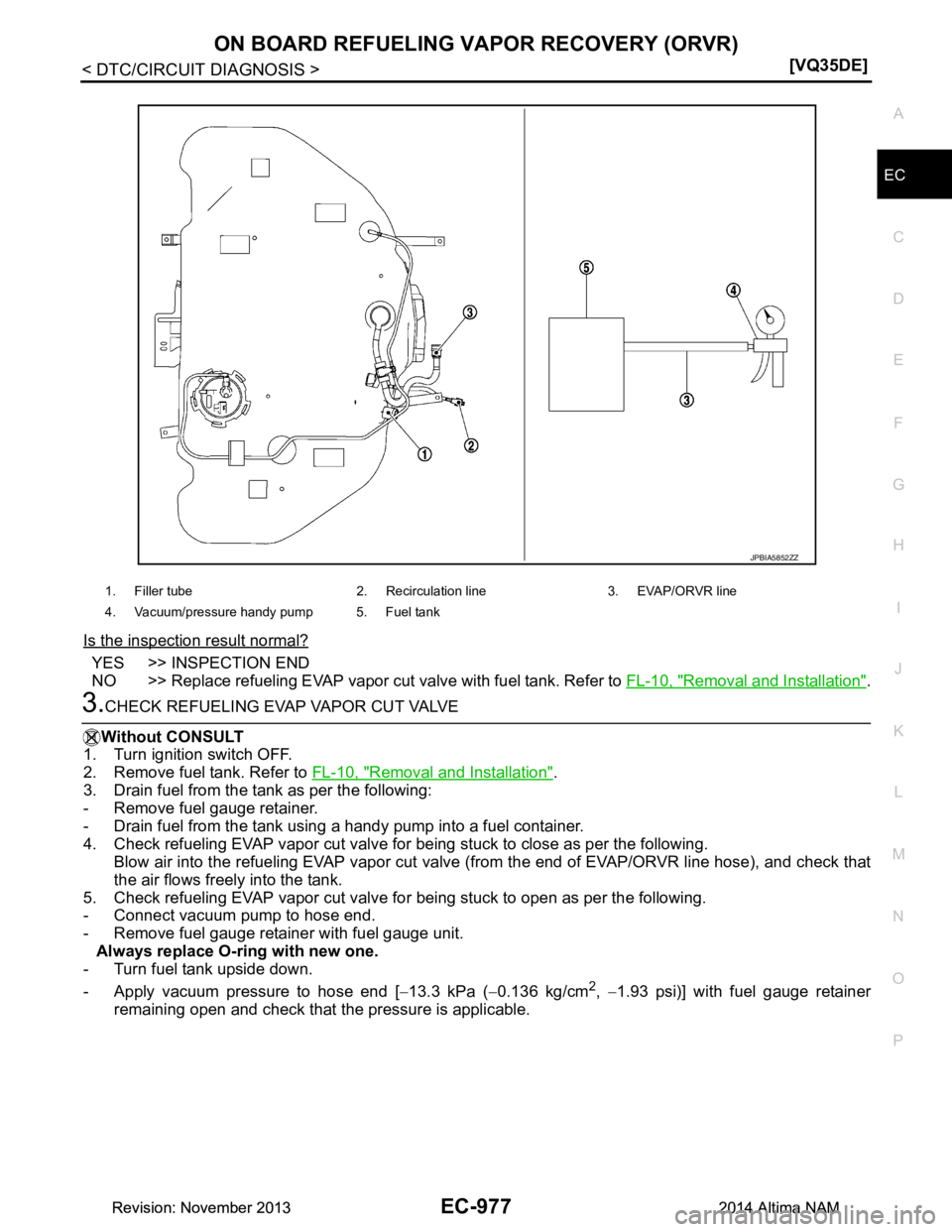

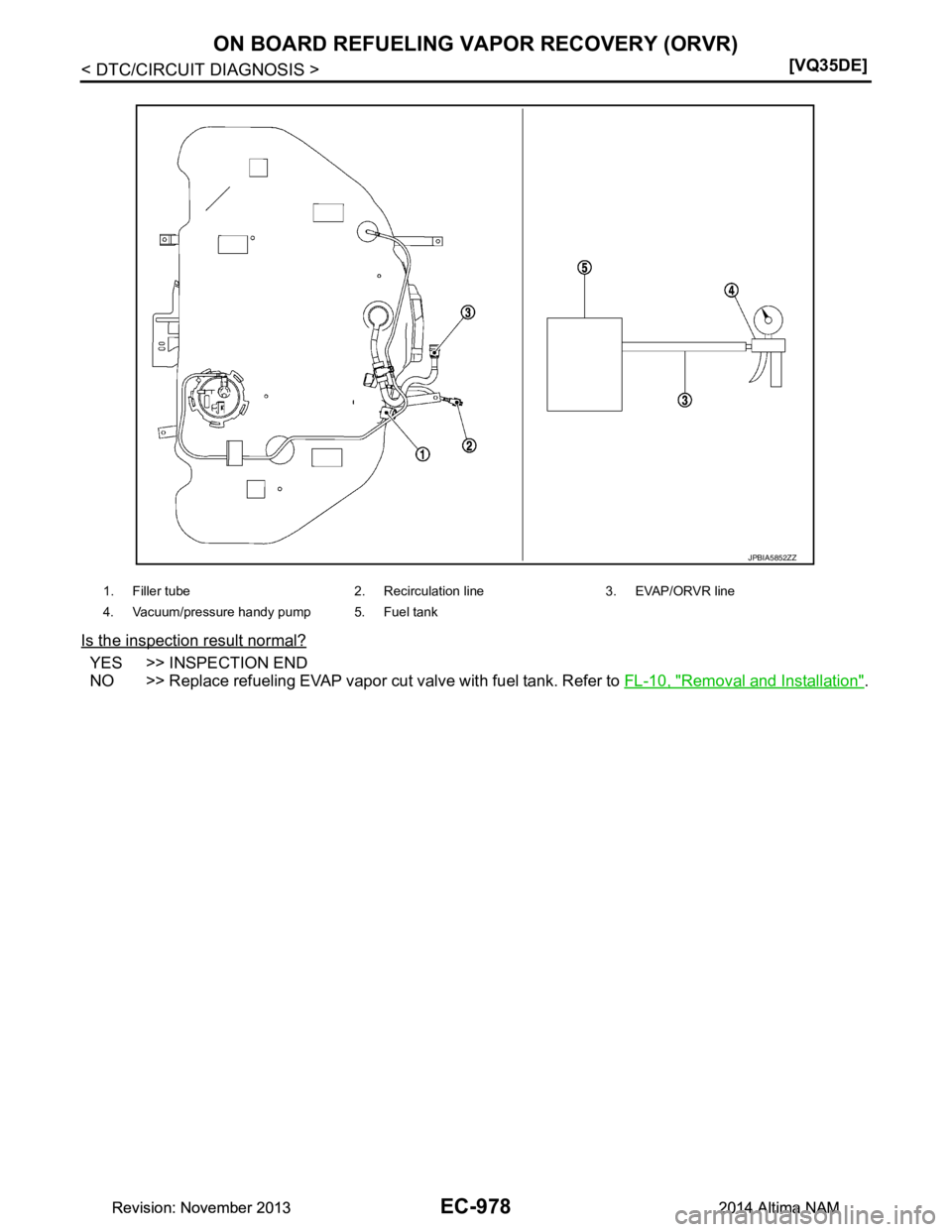

1. Filler tube 2. Recirculation line 3. EVAP/ORVR line
4. Vacuum/pressure handy pump 5. Fuel tank
JPBIA5852ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 1978 of 4801
EC-978
< DTC/CIRCUIT DIAGNOSIS >[VQ35DE]
ON BOARD REFUELING VAPOR RECOVERY (ORVR)
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace refueling EVAP vapor cut valve with fuel tank. Refer to FL-10, "Removal and Installation"
.
1. Filler tube 2. Recirculation line 3. EVAP/ORVR line
4. Vacuum/pressure handy pump 5. Fuel tank
JPBIA5852ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 1979 of 4801
![NISSAN TEANA 2014 Service Manual
REFRIGERANT PRESSURE SENSOREC-979
< DTC/CIRCUIT DIAGNOSIS > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
REFRIGERANT PRESSURE SENSOR
Component Function CheckINFOID:0000000009462859
1.CHECK REFRIGERANT P NISSAN TEANA 2014 Service Manual
REFRIGERANT PRESSURE SENSOREC-979
< DTC/CIRCUIT DIAGNOSIS > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
REFRIGERANT PRESSURE SENSOR
Component Function CheckINFOID:0000000009462859
1.CHECK REFRIGERANT P](/manual-img/5/57390/w960_57390-1978.png)
REFRIGERANT PRESSURE SENSOREC-979
< DTC/CIRCUIT DIAGNOSIS > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
REFRIGERANT PRESSURE SENSOR
Component Function CheckINFOID:0000000009462859
1.CHECK REFRIGERANT PRE
SSURE SENSOR FUNCTION
1. Start engine and warm it up to normal operating temperature.
2. Turn A/C switch and blower fan switch ON.
3. Check the voltage between ECM harness connector terminals under the following conditions.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Proceed to EC-979, "Diagnosis Procedure"
.
Diagnosis ProcedureINFOID:0000000009462860
1.CHECK REFRIGERANT PRESSURE SENSOR POWER SUPPLY
1. Disconnect refrigerant pressu re sensor harness connector.
2. Turn ignition switch ON.
3. Check the voltage between refrigerant pr essure sensor harness connector and ground.
Is the inspection result normal?
YES >> GO TO 3.
NO >> GO TO 2.
2.CHECK REFRIGERANT PRESSURE SE NSOR POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check the continuity between refrigerant pre ssure sensor harness connector and ECM harness connec-
tor.
Is the inspection result normal?
YES >> Perform the trouble diagnosis for power supply circuit.
NO >> Repair or replace error-detected parts.
3.CHECK REFRIGERANT PRESSURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check the continuity between refrigerant pre ssure sensor harness connector and ECM harness connec-
tor.
ECM
Voltage (V)
Connector +–
Te r m i n a l
F79 63 64 1.0 - 4.0
Refrigerant pressure sensor Ground Voltage (V)
Connector Terminal
E219 1 Ground Approx. 5
Refrigerant pressure sensor ECM Continuity
Connector Terminal Connector Terminal
E219 1 F79 96 Existed
Refrigerant pressure sensor ECM Continuity
Connector Terminal Connector Terminal
E219 3 F79 64 Existed
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 1980 of 4801
![NISSAN TEANA 2014 Service Manual
EC-980
< DTC/CIRCUIT DIAGNOSIS >[VQ35DE]
REFRIGERANT PRESSURE SENSOR
4. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 4.
NO >> Repair or r NISSAN TEANA 2014 Service Manual
EC-980
< DTC/CIRCUIT DIAGNOSIS >[VQ35DE]
REFRIGERANT PRESSURE SENSOR
4. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 4.
NO >> Repair or r](/manual-img/5/57390/w960_57390-1979.png)
EC-980
< DTC/CIRCUIT DIAGNOSIS >[VQ35DE]
REFRIGERANT PRESSURE SENSOR
4. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 4.
NO >> Repair or replace error-detected parts.
4.CHECK REFRIGERANT PRESSURE SENSOR INPU T SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check the continuity between refrigerant pre ssure sensor harness connector and ECM harness connec-
tor.
2. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 5.
NO >> Repair or replace error-detected parts.
5.CHECK INTERMITTENT INCIDENT
Check intermittent incident. Refer to GI-43, "Intermittent Incident"
.
Is the inspection result normal?
YES >> Replace refrigerant pressure sensor. Refer to HA-39, "REFRIGERANT PRESSURE SENSOR :
Removal and Installation".
NO >> Repair or replace error-detected parts.
Refrigerant pressure sensor ECM Continuity
Connector Terminal Connector Terminal
E219 2 F79 63 Existed
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 1981 of 4801
![NISSAN TEANA 2014 Service Manual
SENSOR POWER SUPPLY2 CIRCUITEC-981
< DTC/CIRCUIT DIAGNOSIS > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
SENSOR POWER SUPPLY2 CIRCUIT
DescriptionINFOID:0000000009462861
ECM supplies a voltage of 5 V to NISSAN TEANA 2014 Service Manual
SENSOR POWER SUPPLY2 CIRCUITEC-981
< DTC/CIRCUIT DIAGNOSIS > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
SENSOR POWER SUPPLY2 CIRCUIT
DescriptionINFOID:0000000009462861
ECM supplies a voltage of 5 V to](/manual-img/5/57390/w960_57390-1980.png)
SENSOR POWER SUPPLY2 CIRCUITEC-981
< DTC/CIRCUIT DIAGNOSIS > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
SENSOR POWER SUPPLY2 CIRCUIT
DescriptionINFOID:0000000009462861
ECM supplies a voltage of 5 V to some of the sensors systematically divided into 2 groups, respectively.
Accordingly, when a short circuit develops in a sensor power source, a malfunction may occur simultaneously
in the sensors belonging to the same group as the short-circuited sensor.
Sensor power supply 1
• Accelerator pedal position (APP) sensor 1
• Camshaft position (CMP) sensor (PHASE)
• Electric throttle control actuator
• Battery current sensor
NOTE:
If sensor power supply 1 circuit is malfunctioning, DTC P0643 is displayed.
Sensor power supply 2
• Accelerator pedal position (APP) sensor 2
• Crankshaft position (CKP) sensor (POS)
• Refrigerant pressure sensor
• EVAP control system pressure sensor
• Engine oil pressure sensor
Diagnosis ProcedureINFOID:0000000009462862
1.CHECK SENSOR POWER SUPPLY 1
1. Turn ignition switch OFF.
2. Disconnect ECM harness connectors
3. Turn ignition switch ON.
4. Check the voltage between ECM harness connector and ground.
Is the inspection result normal?
YES >> Check intermittent incident. Refer to GI-43, "Intermittent Incident".
NO >> GO TO 2.
2.CHECK SENSOR POWER SUPPLY 2 CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect following sensors harness connector.
3. Check harness for short to power and short to ground, between the following terminals.
+
−Vo l ta g e
(Approx.)
ECM
Connector Terminal
F79 54
Ground 5 V
96
E32 103
107
ECM Sensor + Name +
Connector Terminal Connector Terminal
F79 54 CKP sensor (POS) F30 1
96 Refrigerant pressure sensor E219 1
E32 103 APP sensor 2 E40 5
107
EVAP control system pressure sensor B41 3
EOP sensor F87 3
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 1982 of 4801
EC-982
< DTC/CIRCUIT DIAGNOSIS >[VQ35DE]
SENSOR POWER SUPPLY2 CIRCUIT
Is the inspection result normal?
YES >> GO TO 3.
NO >> Repair or replace error-detected parts.
3.CHECK COMPONENTS
Check the following.
• Crankshaft position sensor (POS) (Refer to EC-819, "Component Inspection"
.)
• Refrigerant pressure sensor (Refer to EC-979, "Diagnosis Procedure"
.)
• APP sensor 2 (Refer to EC-941, "Component Inspection"
.)
• EVAP control system pressure sensor (Refer to EC-849, "Component Inspection"
.)
• EOP sensor (Refer to EC-877, "Component Inspection"
.)
Is the inspection result normal?
YES >> Perform GI-43, "Intermittent Incident".
NO >> Replace malfunctioning component.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 1983 of 4801
![NISSAN TEANA 2014 Service Manual
VARIABLE INDUCTION AIR SYSTEMEC-983
< DTC/CIRCUIT DIAGNOSIS > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
VARIABLE INDUCTION AIR SYSTEM
Component Function CheckINFOID:0000000009462863
1.CHECK OVERALL F NISSAN TEANA 2014 Service Manual
VARIABLE INDUCTION AIR SYSTEMEC-983
< DTC/CIRCUIT DIAGNOSIS > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
VARIABLE INDUCTION AIR SYSTEM
Component Function CheckINFOID:0000000009462863
1.CHECK OVERALL F](/manual-img/5/57390/w960_57390-1982.png)
VARIABLE INDUCTION AIR SYSTEMEC-983
< DTC/CIRCUIT DIAGNOSIS > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
VARIABLE INDUCTION AIR SYSTEM
Component Function CheckINFOID:0000000009462863
1.CHECK OVERALL FUNCTION-I
With CONSULT
1. Start engine and warm it up to the normal operating temperature.
2. Perform “VIAS S/V-1” in “A CTIVE TEST” mode with CONSULT.
3. Turn VIAS control solenoid valve 1 “ON” and “OFF” , and check that power valve actuator 1 rod moves.
Without CONSULT
1. Start engine and warm it up to the normal operating temperature.
2. Rev engine quickly up to approximately 5,000 rpm.
3. Check that power valve actuator 1 rod moves.
Is the inspection result normal?
YES >> GO TO 2.
NO >> EC-984, "Diagnosis Procedure"
.
2.CHECK OVERALL FUNCTION-II
With CONSULT
1. Perform “VIAS S/V-2” in “A CTIVE TEST” mode with CONSULT.
2. Turn VIAS control solenoid valve 2 “ON” and “OFF” , and check that power valve actuator 2 rod moves.

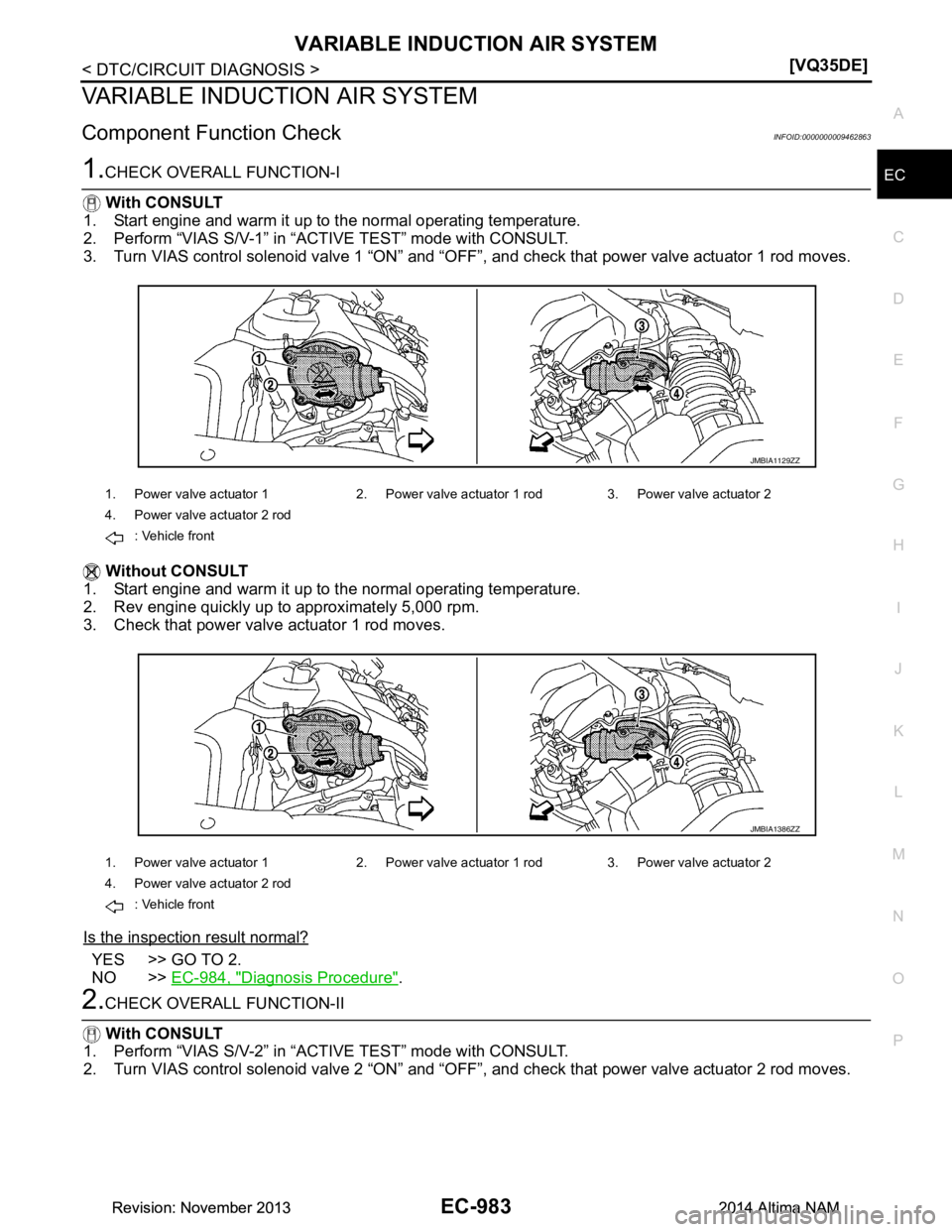

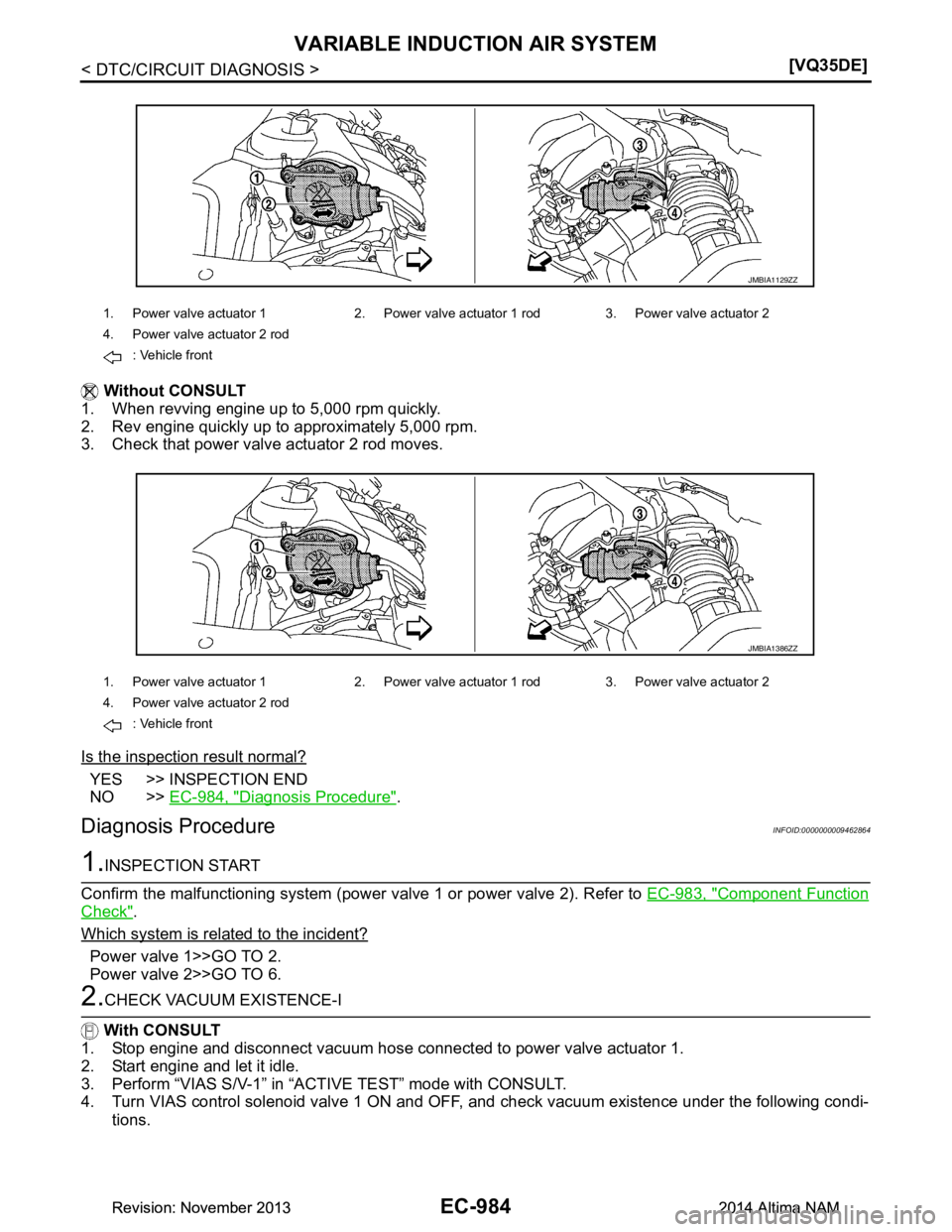

1. Power valve actuator 1 2. Power valve actuator 1 rod 3. Power valve actuator 2
4. Power valve actuator 2 rod
: Vehicle front
1. Power valve actuator 1 2. Power valve actuator 1 rod 3. Power valve actuator 2
4. Power valve actuator 2 rod
: Vehicle front
JMBIA1129ZZ
JMBIA1386ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 1984 of 4801
![NISSAN TEANA 2014 Service Manual
EC-984
< DTC/CIRCUIT DIAGNOSIS >[VQ35DE]
VARIABLE INDUCTION AIR SYSTEM
Without CONSULT
1. When revving engine up to 5,000 rpm quickly.
2. Rev engine quickly up to approximately 5,000 rpm.
3. Check NISSAN TEANA 2014 Service Manual
EC-984
< DTC/CIRCUIT DIAGNOSIS >[VQ35DE]
VARIABLE INDUCTION AIR SYSTEM
Without CONSULT
1. When revving engine up to 5,000 rpm quickly.
2. Rev engine quickly up to approximately 5,000 rpm.
3. Check](/manual-img/5/57390/w960_57390-1983.png)
EC-984
< DTC/CIRCUIT DIAGNOSIS >[VQ35DE]
VARIABLE INDUCTION AIR SYSTEM
Without CONSULT
1. When revving engine up to 5,000 rpm quickly.
2. Rev engine quickly up to approximately 5,000 rpm.
3. Check that power valve actuator 2 rod moves.
Is the inspection result normal?
YES >> INSPECTION END
NO >> EC-984, "Diagnosis Procedure"
.
Diagnosis ProcedureINFOID:0000000009462864
1.INSPECTION START
Confirm the malfunctioning system (power valve 1 or power valve 2). Refer to EC-983, "Component Function
Check".
Which system is related to the incident?
Power valve 1>>GO TO 2.
Power valve 2>>GO TO 6.
2.CHECK VACUUM EXISTENCE-I
With CONSULT
1. Stop engine and disconnect vacuum hose connected to power valve actuator 1.
2. Start engine and let it idle.
3. Perform “VIAS S/V-1” in “ACTIVE TEST” mode with CONSULT.
4. Turn VIAS control solenoid valve 1 ON and OFF, and check vacuum existence under the following condi-
tions.
1. Power valve actuator 1 2. Power valve actuator 1 rod 3. Power valve actuator 2
4. Power valve actuator 2 rod : Vehicle front
1. Power valve actuator 1 2. Power valve actuator 1 rod 3. Power valve actuator 2
4. Power valve actuator 2 rod : Vehicle front
JMBIA1129ZZ
JMBIA1386ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
