Page 3625 of 4801

NISSAN TEANA 2014 Service Manual
PWC-118
< DTC/CIRCUIT DIAGNOSIS >[LH & RH FRONT ANTI-PINCH]
DOOR SWITCH
DOOR SWITCH
DescriptionINFOID:0000000009460950
Detects door open/close condition.
Component Function CheckINFOID:00000000094609

Page 3626 of 4801

NISSAN TEANA 2014 Service Manual
DOOR SWITCHPWC-119
< DTC/CIRCUIT DIAGNOSIS > [LH & RH FRONT ANTI-PINCH]
C
D E
F
G H
I
J
L
M A
B
PWC
N
O P
2.CHECK DOOR SWITCH CIRCUIT
1. Disconnect BCM connector.
2. Check continuity between BCM

Page 3627 of 4801

NISSAN TEANA 2014 Service Manual
PWC-120
< DTC/CIRCUIT DIAGNOSIS >[LH & RH FRONT ANTI-PINCH]
DOOR KEY CYLINDER SWITCH
DOOR KEY CYLINDER SWITCH
DescriptionINFOID:0000000009460954
Power window main switch detects condition of the door

Page 3628 of 4801

NISSAN TEANA 2014 Service Manual
DOOR KEY CYLINDER SWITCHPWC-121
< DTC/CIRCUIT DIAGNOSIS > [LH & RH FRONT ANTI-PINCH]
C
D E
F
G H
I
J
L
M A
B
PWC
N
O P
4. Check continuity between main power window and door lock/unlock switch conn

Page 3629 of 4801

NISSAN TEANA 2014 Service Manual
PWC-122
< DTC/CIRCUIT DIAGNOSIS >[LH & RH FRONT ANTI-PINCH]
DOOR KEY CYLINDER SWITCH
Special Repair Requirement
INFOID:0000000009460958
1. PERFORM INITIALIZATION PROCEDURE
Perform initialization proc

Page 3630 of 4801

NISSAN TEANA 2014 Service Manual
POWER WINDOW SERIAL LINKPWC-123
< DTC/CIRCUIT DIAGNOSIS > [LH & RH FRONT ANTI-PINCH]
C
D E
F
G H
I
J
L
M A
B
PWC
N
O P
POWER WINDOW SERIAL LINK
POWER WINDOW MAIN SWITCH
POWER WINDOW MAIN SWITCH : D

POWER WINDOW SERIAL LINKPWC-123
< DTC/CIRCUIT DIAGNOSIS > [LH & RH FRONT ANTI-PINCH]
C
D E
F
G H
I
J
L
M A
B
PWC
N
O P
POWER WINDOW SERIAL LINK
POWER WINDOW MAIN SWITCH
POWER WINDOW MAIN SWITCH : DescriptionINFOID:0000000009460959
Main power window and door lock/unlock switch, pow er window and door lock/unlock switch RH and BCM
transmit and receive the signal by power window serial link.
The signal mentioned below is transmitted from BCM to main power window and door lock/unlock switch and
power window and door lock/unlock switch RH
• Keyless power window down signal
The signal mentioned below is transmitted from main pow er window and door lock/unlock switch to power win-
dow and door lock/unlock switch RH
• Front door window RH operation signal
• Power window control by key cylinder switch signal
• Power window lock switch signal
• Retained power operation signal
POWER WINDOW MAIN SWITCH : Component Function CheckINFOID:0000000009460960
1. CHECK POWER WINDOW SWITCH OUTPUT SIGNAL
Check (“CDL LOCK SW ”, “CDL UNLOCK SW”) in “D ATA MONITOR” mode for “POWER DOOR LOCK SYS-
TEM” with CONSULT. Refer to BCS-15, "DOOR LOCK : CONSULT Function (BCM - DOOR LOCK)"
.
Is the inspection result normal?
YES >> Power window serial link is OK.
NO >> Refer to PWC-123, "POWER WINDOW MAIN SWITCH : Diagnosis Procedure"
.
POWER WINDOW MAIN SWITCH : Diagnosis ProcedureINFOID:0000000009460961
Regarding Wiring Diagram information, refer to PWC-83, "Wiring Diagram - With Left And Right Front Power
Window Anti-Pinch".
Power Window Serial Link Check
1. CHECK POWER WINDOW SWITCH OUTPUT SIGNAL
1. Remove Intelligent Key, and close front door LH and RH.
2. Check signal between BCM connector and ground wit h oscilloscope when door lock and unlock switch
(LH and RH) is turned to “LOCK” or “UNLOCK”.
3. Check that signals which are shown in the figure below can be detected during 10 second just after door
lock and unlock switch (LH and RH) is turned to “LOCK” or “UNLOCK”.
Monitor item Condition
CDL LOCK SW LOCK : ON
UNLOCK : OFF
CDL UNLOCK SW LOCK : OFF
UNLOCK : ON
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

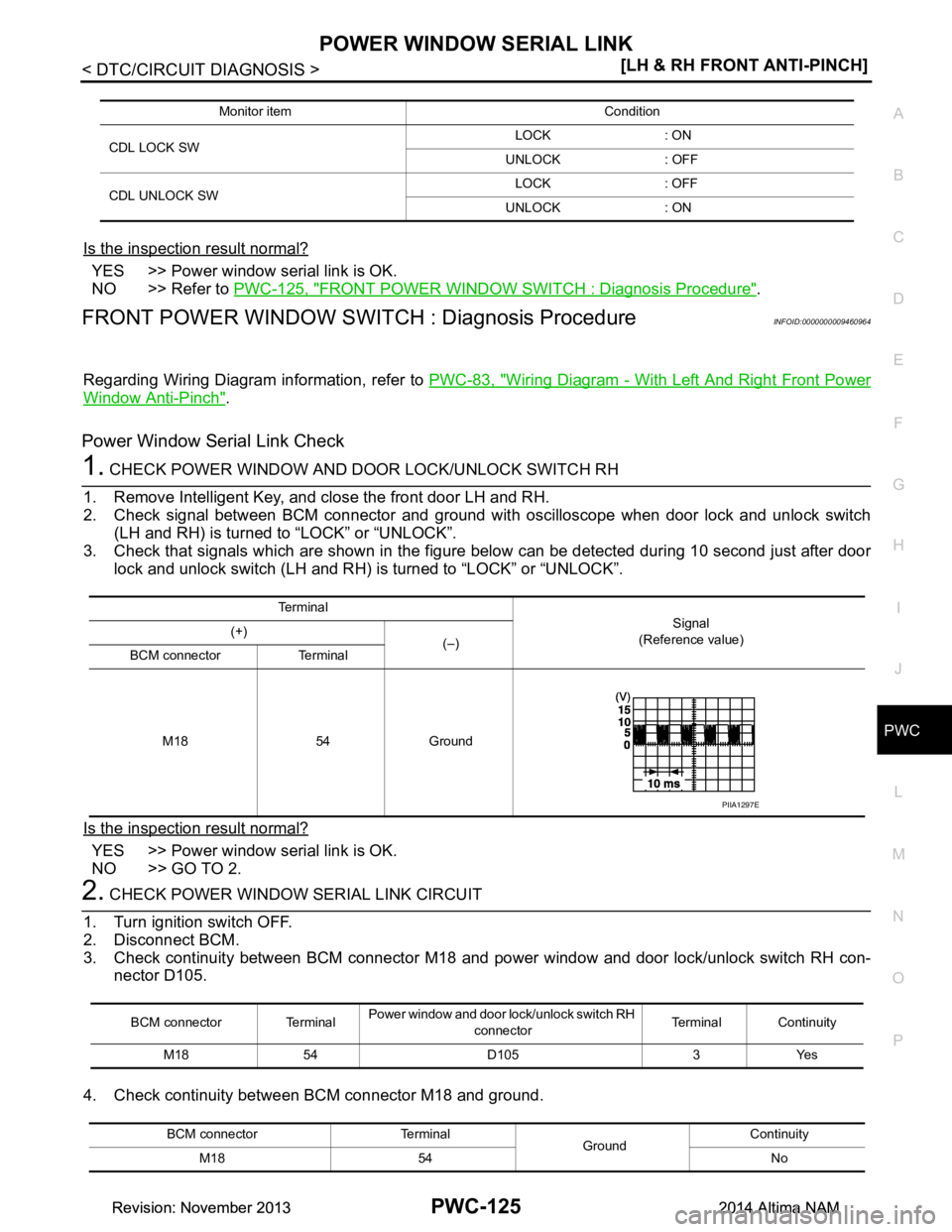

Page 3631 of 4801

NISSAN TEANA 2014 Service Manual
PWC-124
< DTC/CIRCUIT DIAGNOSIS >[LH & RH FRONT ANTI-PINCH]
POWER WINDOW SERIAL LINK
Is the inspection result normal?
YES >> Power window serial link is OK.
NO >> GO TO 2.
2. CHECK POWER WINDOW SER

PWC-124
< DTC/CIRCUIT DIAGNOSIS >[LH & RH FRONT ANTI-PINCH]
POWER WINDOW SERIAL LINK
Is the inspection result normal?
YES >> Power window serial link is OK.
NO >> GO TO 2.
2. CHECK POWER WINDOW SERIAL LINK CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM and main power window and door lock/unlock switch.
3. Check continuity between BCM connector M18 and ma in power window and door lock/unlock switch con-
nector D7.
4. Check continuity between BCM connector M18 and ground.
Is the inspection result normal?
YES >> Replace main power window and door lock/unlock switch. Refer to PWC-142, "Removal and
Installation". After that, refer to PWC-93, "ADDITIONAL SERVICE WHEN REPLACING CON-
TROL UNIT : Special Repair Requirement".
NO >> Repair or replace harness or connectors.
FRONT POWER WINDOW SWITCH
FRONT POWER WINDOW SWITCH : DescriptionINFOID:0000000009460962
Main power window and door lock/unlock switch, power window and door lock/unlock switch RH and BCM
transmit and receive the signal by power window serial link.
The signal mentioned below is transmitted from BCM to main power window and door lock/unlock switch and
power window and door lock/unlock switch RH
• Keyless power window down signal
The signal mentioned below is transmitted from main power window and door lock/unlock switch to power win-
dow and door lock/unlock switch RH
• Front door window RH operation signal
• Power window control by key cylinder switch signal
• Retained power operation signal
• Power window lock switch signal
FRONT POWER WINDOW SWITCH : Component Function CheckINFOID:0000000009460963
1. CHECK POWER WINDOW AND DOOR LO CK/UNLOCK SWITCH RH OUTPUT SIGNAL
Check (“CDL LOCK SW ”, “CDL UNLOCK SW”) in “D ATA MONITOR” mode for “POWER DOOR LOCK SYS-
TEM” with CONSULT. Refer to BCS-15, "DOOR LOCK : CONSULT Function (BCM - DOOR LOCK)"
.
Te r m i n a l
Signal
(Reference value)
(+)
(–)
BCM connector Terminal
M18 54 Ground
PIIA1297E
BCM connector Terminal Main power window and door lock/unlock
switch connector Terminal Continuity
M18 54 D7 11 Yes
BCM connector Terminal GroundContinuity
M18 54 No
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 3632 of 4801

NISSAN TEANA 2014 Service Manual
POWER WINDOW SERIAL LINKPWC-125
< DTC/CIRCUIT DIAGNOSIS > [LH & RH FRONT ANTI-PINCH]
C
D E
F
G H
I
J
L
M A
B
PWC
N
O P
Is the inspection result normal?
YES >> Power window serial link is OK.
NO >>
