SYSTEM DESCRIPTION
The amount of fuel injected from the fuel injector is determined by the ECM. The ECM controls the length of
time the valve remains open (injection pulse duration). T he amount of fuel injected is a program value in the
ECM memory. The program value is preset by engi ne operating conditions. These conditions are determined
by input signals (for engine speed and intake air) from t he crankshaft position sensor (POS), camshaft position
sensor (PHASE) and the mass air flow sensor.
VARIOUS FUEL INJECTION INCREASE/DECREASE COMPENSATION
In addition, the amount of fuel injected is compens ated to improve engine performance under various operat-
ing conditions as listed below.

• During warm-up
• When starting the engine
• During acceleration
• Hot-engine operation
• When selector lever position is changed from N to D
• High-load, high-speed operation

• During deceleration
• During high engine speed operation
Sensor Input signal to ECM ECM function Actuator
Crankshaft position sensor (POS) Engine speed
*1
Fuel injection
& mixture ratio
control Fuel injector
Camshaft position sensor (PHASE) Piston position
Mass air flow sensor Amount of intake air
Intake air temperature sensor Intake air temperature
Engine coolant temperature sensor Engine coolant temperature
Air fuel ratio (A/F) sensor 1 Density of oxygen in exhaust gas
Throttle position sensor Throttle position
Accelerator pedal position sensor Accelerator pedal position
Transmission range switch Gear position
Battery Battery voltage
*1
Knock sensor Engine knocking condition
Heated oxygen sensor 2
*2Density of oxygen in exhaust gas
ABS actuator and electric unit (control unit) • VDC operation signal
• TCS operation signal
CAN communi-
cation
Power steering control module EPS operation signal
Combination meter Vehicle speed signal
A/C auto amp.
*3• A/C ON signal
• Blower fan ON signal
BCM
*4
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 1570 of 4801

NISSAN TEANA 2014 Service Manual
EC-570
< SYSTEM DESCRIPTION >[VQ35DE]
SYSTEM
MIXTURE RATIO FEEDBACK CONTROL (CLOSED LOOP CONTROL)
The mixture ratio feedback system prov
ides the best air-fuel mixture ratio for drive ability and emi

EC-570
< SYSTEM DESCRIPTION >[VQ35DE]
SYSTEM
MIXTURE RATIO FEEDBACK CONTROL (CLOSED LOOP CONTROL)
The mixture ratio feedback system prov
ides the best air-fuel mixture ratio for drive ability and emission control.
The three way catalyst (manifold) can better reduce CO , HC and NOx emissions. This system uses A/F sen-
sor 1 in the exhaust manifold to monitor whether the engine operation is rich or lean. The ECM adjusts the
injection pulse width according to the sensor voltage signal. For more information about A/F sensor 1, refer to
EC-552, "Air Fuel Ratio (A/F) Sensor 1"
. This maintains the mixture ratio within the range of stoichiometric
(ideal air-fuel mixture).
This stage is referred to as the closed loop control condition.
Heated oxygen sensor 2 is located downstream of the th ree way catalyst (manifold). Even if the switching
characteristics of A/F sensor 1 shift, the air-fuel ratio is controlled to stoichiometric by the signal from heated
oxygen sensor 2.
• Open Loop Control
The open loop system condition refers to when the ECM detects any of the following conditions. Feedback
control stops in order to maintain stabilized fuel combustion.
- Deceleration and acceleration
- High-load, high-speed operation
- Malfunction of A/F sensor 1 or its circuit
- Insufficient activation of A/F sensor 1 at low engine coolant temperature
- High engine coolant temperature
- During warm-up
- After shifting from N to D
- When starting the engine
MIXTURE RATIO SELF-LEARNING CONTROL
The mixture ratio feedback control system monitors t he mixture ratio signal transmitted from A/F sensor 1.
This feedback signal is then sent to the ECM. The ECM c ontrols the basic mixture ratio as close to the theoret-
ical mixture ratio as possible. However, the basic mi xture ratio is not necessarily controlled as originally
designed. Both manufacturing differences (i.e., mass ai r flow sensor hot wire) and characteristic changes dur-
ing operation (i.e., fuel injector clogging) directly affect mixture ratio.
Accordingly, the difference between the basic and theoretical mixture ratios is monitored in this system. This is
then computed in terms of “injection pulse duration” to automatically compensate for the difference between
the two ratios.
“Fuel trim” refers to the feedback compensation value co mpared against the basic injection duration. Fuel trim
includes “short-term fuel trim” and “long-term fuel trim”.
“Short-term fuel trim” is the short-term fuel compensati on used to maintain the mixture ratio at its theoretical
value. The signal from A/F sensor 1 indicates whether the mixture ratio is RICH or LEAN compared to the the-
oretical value. The signal then triggers a reduction in fuel volume if the mixture ratio is rich, and an increase in
fuel volume if it is lean.
“Long-term fuel trim” is overall fuel compensation carri ed out over time to compensate for continual deviation
of the “short-term fuel trim” from the central value. Continual deviation will occur due to individual engine differ-
ences, wear over time and changes in the usage environment.
PBIB3020E
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 1571 of 4801

NISSAN TEANA 2014 Service Manual
SYSTEMEC-571
< SYSTEM DESCRIPTION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
FUEL INJECTION TIMING
Two types of systems are used.
• Sequential Multiport Fuel Injection System
Fuel is injected int

Page 1572 of 4801

NISSAN TEANA 2014 Service Manual
EC-572
< SYSTEM DESCRIPTION >[VQ35DE]
SYSTEM
*: ECM determines the start signal status by the signals of engine speed and battery voltage.
SYSTEM DESCRIPTION
Ignition order: 1 - 2 - 3 - 4 - 5 - 6
Th

Page 1573 of 4801

NISSAN TEANA 2014 Service Manual
SYSTEMEC-573
< SYSTEM DESCRIPTION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O

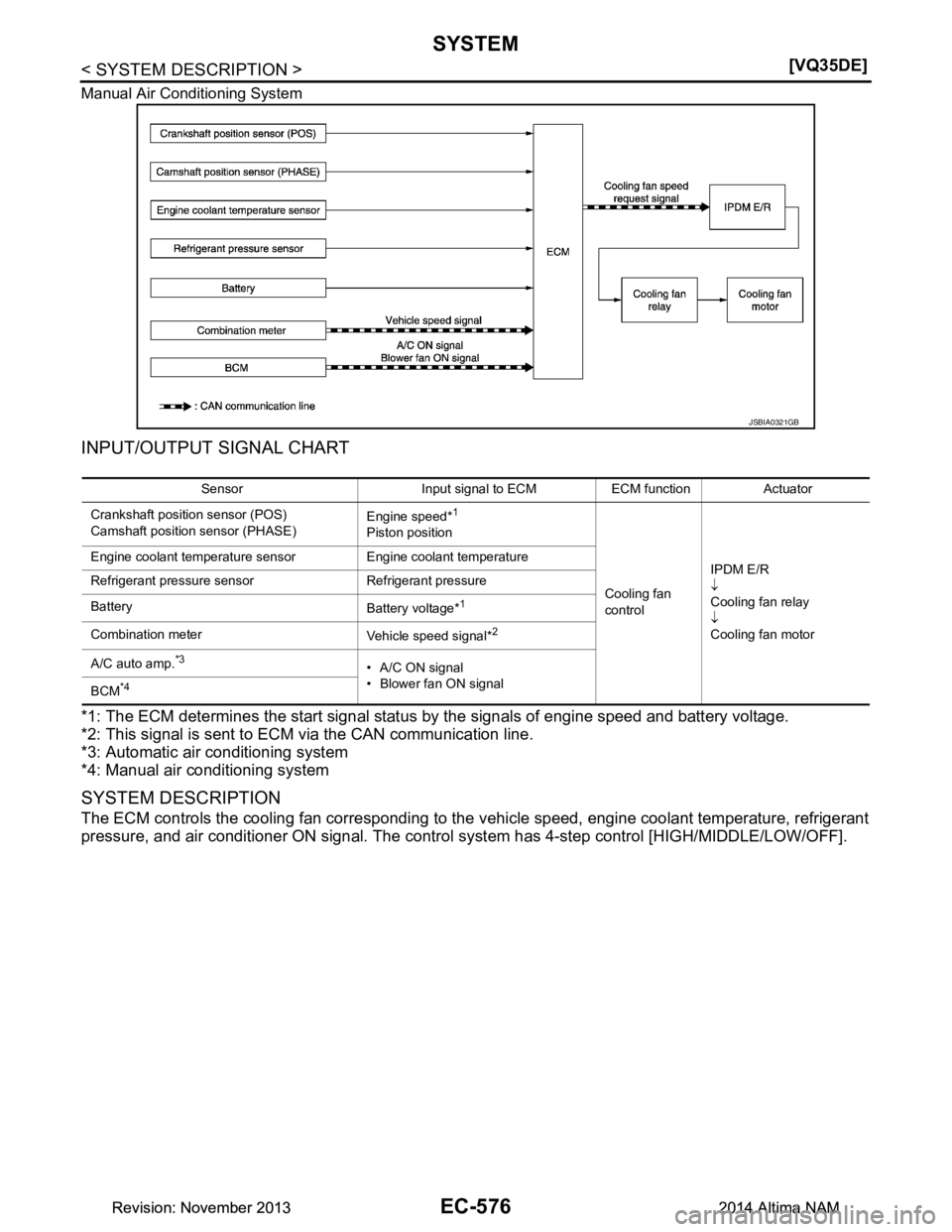

AIR CONDITIONING CUT CONTROL : System DescriptionINFOID:0000000009462517
SYSTEM DIAGRAM
*1: Automatic air conditioning sy

Page 1574 of 4801

NISSAN TEANA 2014 Service Manual
EC-574
< SYSTEM DESCRIPTION >[VQ35DE]
SYSTEM
• When engine speed is excessively low.
• When refrigerant pressure is excessively low or high.
AUTOMATIC SPEED CONTROL DEVICE (ASCD)
AUTOMATIC SPEED

EC-574
< SYSTEM DESCRIPTION >[VQ35DE]
SYSTEM
• When engine speed is excessively low.
• When refrigerant pressure is excessively low or high.
AUTOMATIC SPEED CONTROL DEVICE (ASCD)
AUTOMATIC SPEED CONTROL DEVICE (ASCD) : System DescriptionINFOID:0000000009462518
SYSTEM DIAGRAM
INPUT/OUTPUT SIGNAL CHART
*: This signal is sent to the ECM via the CAN communication line
BASIC ASCD SYSTEM
Refer to Owner's Manual for ASCD operating instructions.
Automatic Speed Control Device (ASCD) allows a dr iver to keep vehicle at predetermined constant speed
without depressing accelerator pedal. Driver can set vehicle speed in advance between approximately 40 km/
h (25 MPH) and 144 km/h (89 MPH).
ECM controls throttle angle of electric thro ttle control actuator to regulate engine speed.
Operation status of ASCD is indicated by CRUISE indi cator and SET indicator in combination meter. If any
malfunction occurs in the ASCD system, it automatically deactivates control.
NOTE:
Always drive vehicle in a safe manner according to traffic conditions and obey all traffic laws.
SET OPERATION
Press MAIN switch. (The CRUISE indicato r in combination meter illuminates.)
When vehicle speed reaches a desired speed between approximately 40 km/h (25 MPH) and 144 km/h (89
MPH), press SET/COAST switch. (Then SET la mp in combination meter illuminates.)
ACCELERATE OPERATION
If the RESUME/ACCELERATE switch is pressed during cruise control driving, increase the vehicle speed until
the switch is released or vehicle speed r eaches maximum speed controlled by the system.
And then ASCD will maintain the new set speed.
CANCEL OPERATION
When any of following conditions exist, cruise operation will be canceled.
• CANCEL switch is pressed
• ON/OFF (MAIN) switch pressed (Set speed is cleared)
JSBIA2692GB
Sensor Input signal to ECM ECM function Actuator
Brake pedal position switch Brake pedal operation ASCD vehicle speed control Electric throttle control actuator
Stop lamp switch Brake pedal operation
ASCD steering switch ASCD steering switch operation
Transmission range switch Park/neutral position signal ASCD status signal Combination meter
Combination meter Vehicle speed*
TCM Output shaft revolution signal*
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 1575 of 4801

NISSAN TEANA 2014 Service Manual
SYSTEMEC-575
< SYSTEM DESCRIPTION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
• More than 2 switches at ASCD steer
ing switch are pressed at the same time (Set speed will be cleared)
• Brake peda

Page 1576 of 4801

NISSAN TEANA 2014 Service Manual
EC-576
< SYSTEM DESCRIPTION >[VQ35DE]
SYSTEM
Manual Air Conditioning System
INPUT/OUTPUT SIGNAL CHART
*1: The ECM determines the start signal status by the signals of engine speed and battery voltage
