TM-394
< REMOVAL AND INSTALLATION >[CVT: RE0F10E]
INPUT SPEED SENSOR
Adjust the CVT fluid level. Refer to
TM-286, "Adjustment".
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 4610 of 4801
![NISSAN TEANA 2014 Service Manual
PRIMARY SPEED SENSORTM-395
< REMOVAL AND INSTALLATION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
PRIMARY SPEED SENSOR
Exploded ViewINFOID:0000000009464350
Removal and InstallationINFOID:000000 NISSAN TEANA 2014 Service Manual
PRIMARY SPEED SENSORTM-395
< REMOVAL AND INSTALLATION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
PRIMARY SPEED SENSOR
Exploded ViewINFOID:0000000009464350
Removal and InstallationINFOID:000000](/manual-img/5/57390/w960_57390-4609.png)
PRIMARY SPEED SENSORTM-395
< REMOVAL AND INSTALLATION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
PRIMARY SPEED SENSOR
Exploded ViewINFOID:0000000009464350
Removal and InstallationINFOID:0000000009464351
REMOVAL
1. Disconnect the negative battery terminal. Refer to PG-73, "Removal and Installation (Battery)".
2. Remove the fender protector side cover (LH). Refer to EXT-26, "FENDER PROTECTOR : Removal and
Installation".
3. Disconnect the harness connecto r from primary speed sensor
(1).
4. Remove the primary speed sensor bolt, then the primary speed sensor (1).
5. Remove the O-ring (2) from the primary speed sensor (1). CAUTION:
Do not reuse O-ring.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• Do not reuse O-ring.
• Apply Genuine NISSAN CVT Fluid NS-3 to the O-ring.
Inspection and AdjustmentINFOID:0000000009464352
INSPECTION AFTER INSTALLATION
Check for CVT fluid leakage. Refer to TM-377, "Inspection".
Transaxle assembly Primary speed sensor O-ring
: Always replace after every disassembly.
: N m (kg-m, in-lb)
: Apply CVT Fluid
JSDIA3620GB
ALDIA0361ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 4611 of 4801
TM-396
< REMOVAL AND INSTALLATION >[CVT: RE0F10E]
PRIMARY SPEED SENSOR
ADJUSTMENT AFTER INSTALLATION
Adjust the CVT fluid level. Refer to
TM-286, "Adjustment".
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 4612 of 4801
![NISSAN TEANA 2014 Service Manual
OUTPUT SPEED SENSORTM-397
< REMOVAL AND INSTALLATION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
OUTPUT SPEED SENSOR
Exploded ViewINFOID:0000000009464353
Removal and InstallationINFOID:00000000 NISSAN TEANA 2014 Service Manual
OUTPUT SPEED SENSORTM-397
< REMOVAL AND INSTALLATION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
OUTPUT SPEED SENSOR
Exploded ViewINFOID:0000000009464353
Removal and InstallationINFOID:00000000](/manual-img/5/57390/w960_57390-4611.png)
OUTPUT SPEED SENSORTM-397
< REMOVAL AND INSTALLATION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
OUTPUT SPEED SENSOR
Exploded ViewINFOID:0000000009464353
Removal and InstallationINFOID:0000000009464354
REMOVAL
1. Disconnect the battery negative terminal. Refer to PG-73, "Removal and Installation (Battery)".
2. Disconnect the harness connector fr om output speed sensor (1).
3. Remove the output speed sensor bolt, then the output speed sensor (1).
4. Remove the O-ring (2) from the output speed sensor (1). CAUTION:
Do not reuse O-ring.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• Do not reuse O-ring.
• Apply Genuine NISSAN CVT Fluid NS-3 to the O-ring.
Inspection and AdjustmentINFOID:0000000009464355
INSPECTION AFTER INSTALLATION
Check for CVT fluid leakage. Refer to TM-377, "Inspection".
ADJUSTMENT AFTER INSTALLATION
Adjust the CVT fluid level. Refer to TM-286, "Adjustment".
Transaxle assembly Output speed sensor O-ring
: Always replace after every disassembly.
: N·m (kg-m, in-lb)
: Apply CVT Fluid
JSDIA4209GB
ALDIA0363ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 4613 of 4801
![NISSAN TEANA 2014 Service Manual
TM-398
< REMOVAL AND INSTALLATION >[CVT: RE0F10E]
DIFFERENTIAL SIDE OIL SEAL
DIFFERENTIAL SIDE OIL SEAL
Exploded ViewINFOID:0000000009464356
Removal and InstallationINFOID:0000000009464357
REMOVAL
NO NISSAN TEANA 2014 Service Manual
TM-398
< REMOVAL AND INSTALLATION >[CVT: RE0F10E]
DIFFERENTIAL SIDE OIL SEAL
DIFFERENTIAL SIDE OIL SEAL
Exploded ViewINFOID:0000000009464356
Removal and InstallationINFOID:0000000009464357
REMOVAL
NO](/manual-img/5/57390/w960_57390-4612.png)
TM-398
< REMOVAL AND INSTALLATION >[CVT: RE0F10E]
DIFFERENTIAL SIDE OIL SEAL
DIFFERENTIAL SIDE OIL SEAL
Exploded ViewINFOID:0000000009464356
Removal and InstallationINFOID:0000000009464357
REMOVAL
NOTE:
When removing components such as hoses, tubes/lines, etc. , cap or plug openings to prevent fluid from spill-
ing.
1. Remove front drive shaft. Refer to FAX-10, "Removal and Installation (LH)"
(LH) or FAX-12, "Removal and
Installation (RH)" (RH).
2. Remove differential oil side seal (1) using suitable tool (A). CAUTION:
Be careful not to scratch transaxle case and converter
housing.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• Do not reuse differe ntial side oil seal.
• Apply Genuine NISSAN CVT Fluid NS -3 to differential side oil seals.
• When inserting the drive shaf t, be sure to use Tool.

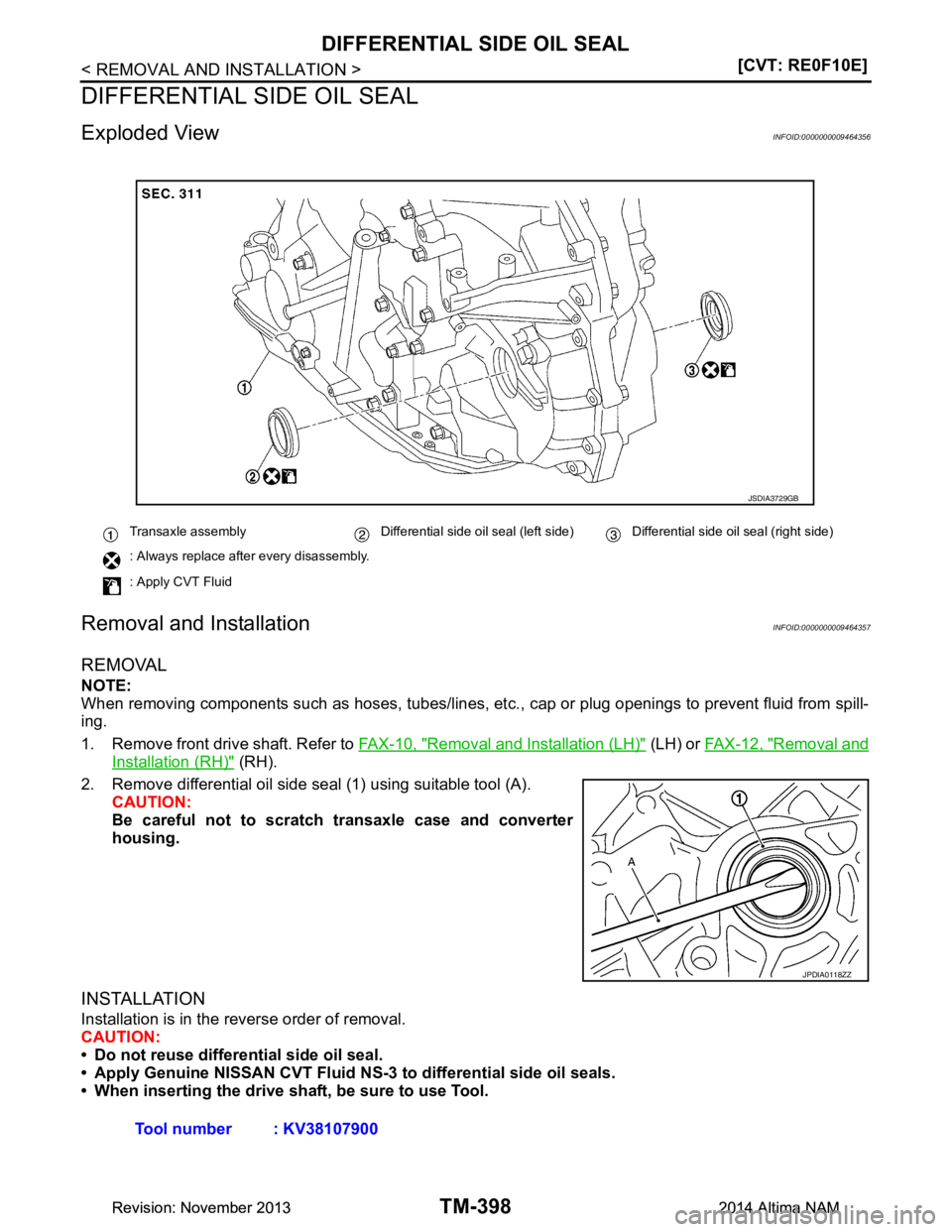

Transaxle assembly Differential side oil seal (left side) Differential side oil seal (right side)
: Always replace after every disassembly.
: Apply CVT Fluid
JSDIA3729GB
JPDIA0118ZZ
Tool number : KV38107900
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 4614 of 4801
![NISSAN TEANA 2014 Service Manual
DIFFERENTIAL SIDE OIL SEALTM-399
< REMOVAL AND INSTALLATION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
Install each differential side oil seal evenly using Tool so that differ-
ential side oi NISSAN TEANA 2014 Service Manual
DIFFERENTIAL SIDE OIL SEALTM-399
< REMOVAL AND INSTALLATION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
Install each differential side oil seal evenly using Tool so that differ-
ential side oi](/manual-img/5/57390/w960_57390-4613.png)
DIFFERENTIAL SIDE OIL SEALTM-399
< REMOVAL AND INSTALLATION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
Install each differential side oil seal evenly using Tool so that differ-
ential side oil seal protrudes by the dimension (C) and (D) respect-
fully.
NOTE:
The reference is the installation direction of the differential side oil seal.
Drift to be used:
Inspection and AdjustmentINFOID:0000000009464358
INSPECTION AFTER INSTALLATION
Check for CVT fluid leakage. Refer to TM-377, "Inspection".
ADJUSTMENT AFTER INSTALLATION
Adjust the CVT fluid level. Refer to TM-286, "Adjustment".
(A) : Differential side oil seal (LH)
(B) : Differential side oil seal (RH)
JSDIA1836ZZ
Dimension (C) :Height difference from case end surface is within 0 ± 0.5 mm (0.0 ± 0.020
in).
Dimension (D) :Height difference from case end surface is within 0 ± 0.5 mm (0.0 ± 0.020
in).
Location Commercial Service Tools
Transaxle case side Commercial service tool with outer dia. 56 mm (2.20 in) and in-
ner dia. 50 mm (1.97 in)
Converter housing side
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 4615 of 4801
![NISSAN TEANA 2014 Service Manual
TM-400
< REMOVAL AND INSTALLATION >[CVT: RE0F10E]
CVT OIL WARMER SYSTEM
CVT OIL WARMER SYSTEM
WATER HOSE
WATER HOSE : Exploded ViewINFOID:0000000009464359
WATER HOSE : Removal and InstallationINFOID: NISSAN TEANA 2014 Service Manual
TM-400
< REMOVAL AND INSTALLATION >[CVT: RE0F10E]
CVT OIL WARMER SYSTEM
CVT OIL WARMER SYSTEM
WATER HOSE
WATER HOSE : Exploded ViewINFOID:0000000009464359
WATER HOSE : Removal and InstallationINFOID:](/manual-img/5/57390/w960_57390-4614.png)
TM-400
< REMOVAL AND INSTALLATION >[CVT: RE0F10E]
CVT OIL WARMER SYSTEM
CVT OIL WARMER SYSTEM
WATER HOSE
WATER HOSE : Exploded ViewINFOID:0000000009464359
WATER HOSE : Removal and InstallationINFOID:0000000009464360
REMOVAL
WARNING:
Do not remove the radiator cap when the engine is hot. Serious burns could occur from high pressure
coolant escaping from the radiator. Wrap a thick clot h around the cap. Slowly turn it a quarter turn to
allow built-up pressure to escape. Carefully remove the cap by turning it all the way.
CAUTION:
Perform when the engine is cold.
NOTE:
When removing components such as hoses, tubes/lines, etc. , cap or plug openings to prevent fluid from spill-
ing.
1. Remove front under cover. Refer to EXT-28, "Removal and Installation"
.

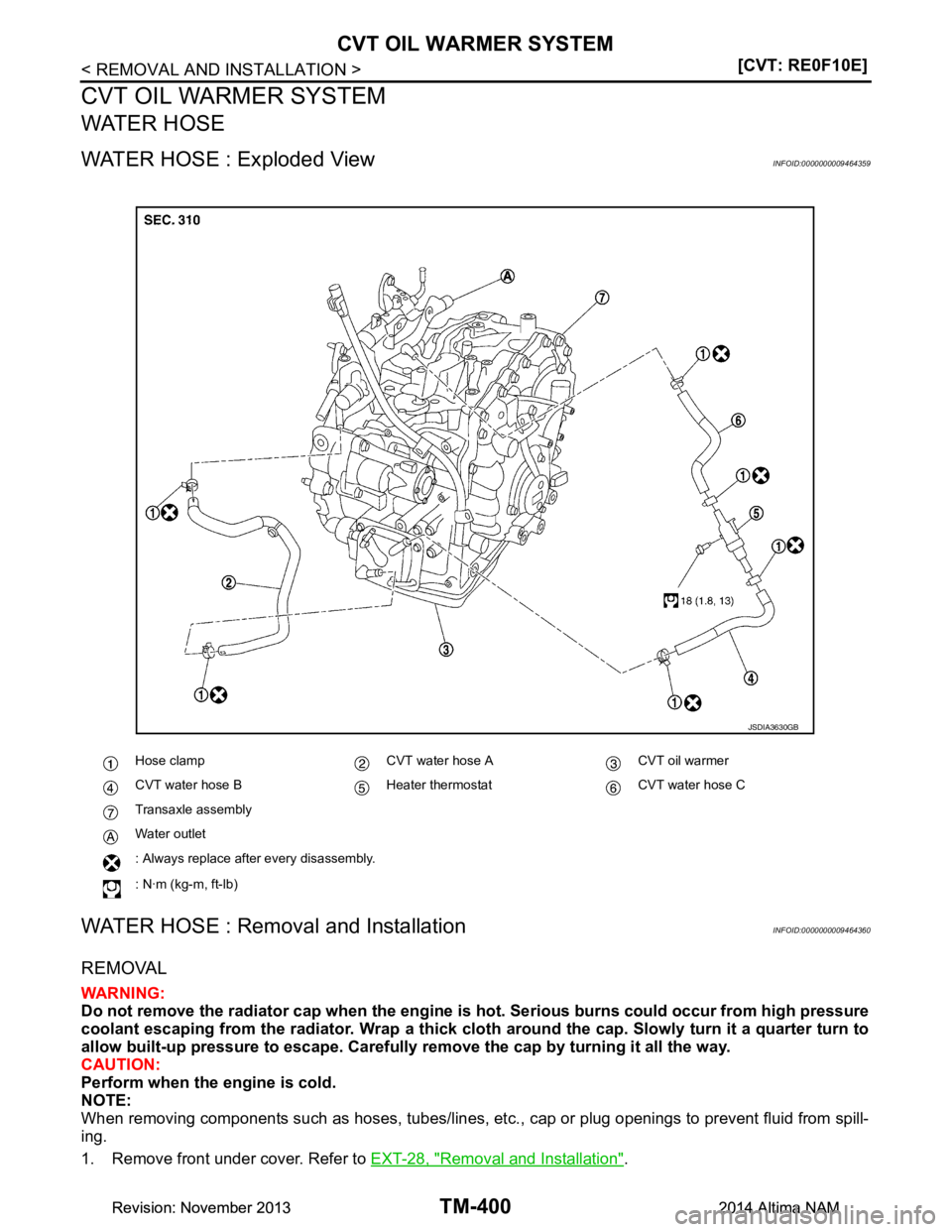

Hose clamp CVT water hose A CVT oil warmer
CVT water hose B Heater thermostat CVT water hose C
Transaxle assembly
Water outlet
: Always replace after every disassembly.
: N·m (kg-m, ft-lb)
JSDIA3630GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 4616 of 4801
![NISSAN TEANA 2014 Service Manual
CVT OIL WARMER SYSTEMTM-401
< REMOVAL AND INSTALLATION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
2. Remove engine room cover. Refer to EM-28, "Removal and Installation".
3. Remove front air NISSAN TEANA 2014 Service Manual
CVT OIL WARMER SYSTEMTM-401
< REMOVAL AND INSTALLATION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
2. Remove engine room cover. Refer to EM-28, "Removal and Installation".
3. Remove front air](/manual-img/5/57390/w960_57390-4615.png)
CVT OIL WARMER SYSTEMTM-401
< REMOVAL AND INSTALLATION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
2. Remove engine room cover. Refer to EM-28, "Removal and Installation".
3. Remove front air duct and air cleaner case assembly. Refer to EM-29, "Removal and Installation"
.
4. Release clip (A) and release hose clamps and remove CVT water hose A from water outlet.
CAUTION:
Do not reuse hose clamps.
5. Remove CVT heater thermostat bolt, release hose clamps then remove CVT heater thermostat and CVT
water hose C from water outlet.
CAUTION:
Do not reuse hose clamps.
6. Remove CVT water hose inlet and CVT water hose outlet from CVT oil warmer.
INSTALLATION
Note the following, and install in the reverse order of removal.
CAUTION:
Do not reuse hose clamps.
• Insert CVT water hose according to dimension (A) described below.
