NISSAN TEANA 2014 Service Manual
PWC-22
< WIRING DIAGRAM >[LH FRONT ONLY ANTI-PINCH]
POWER WINDOW SYSTEM

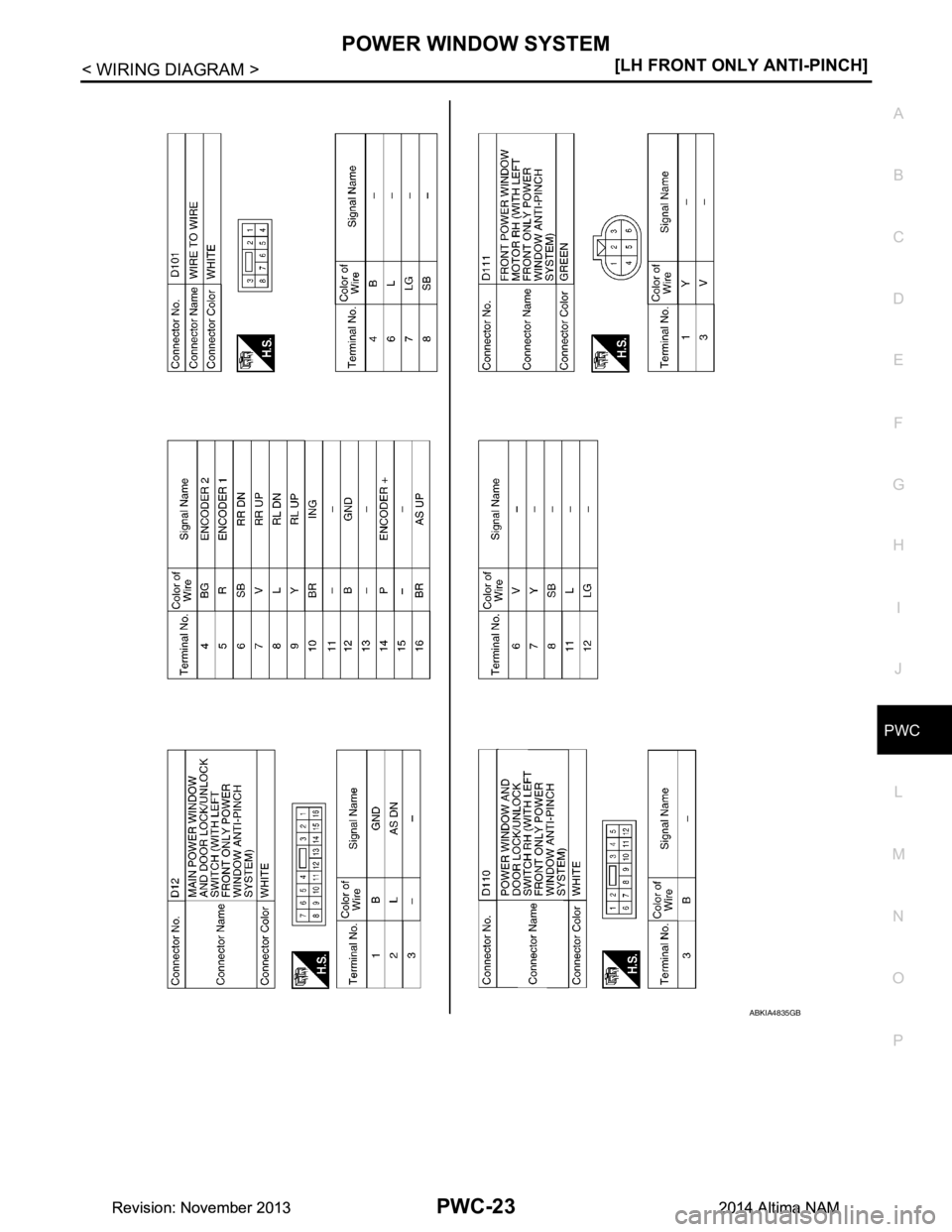

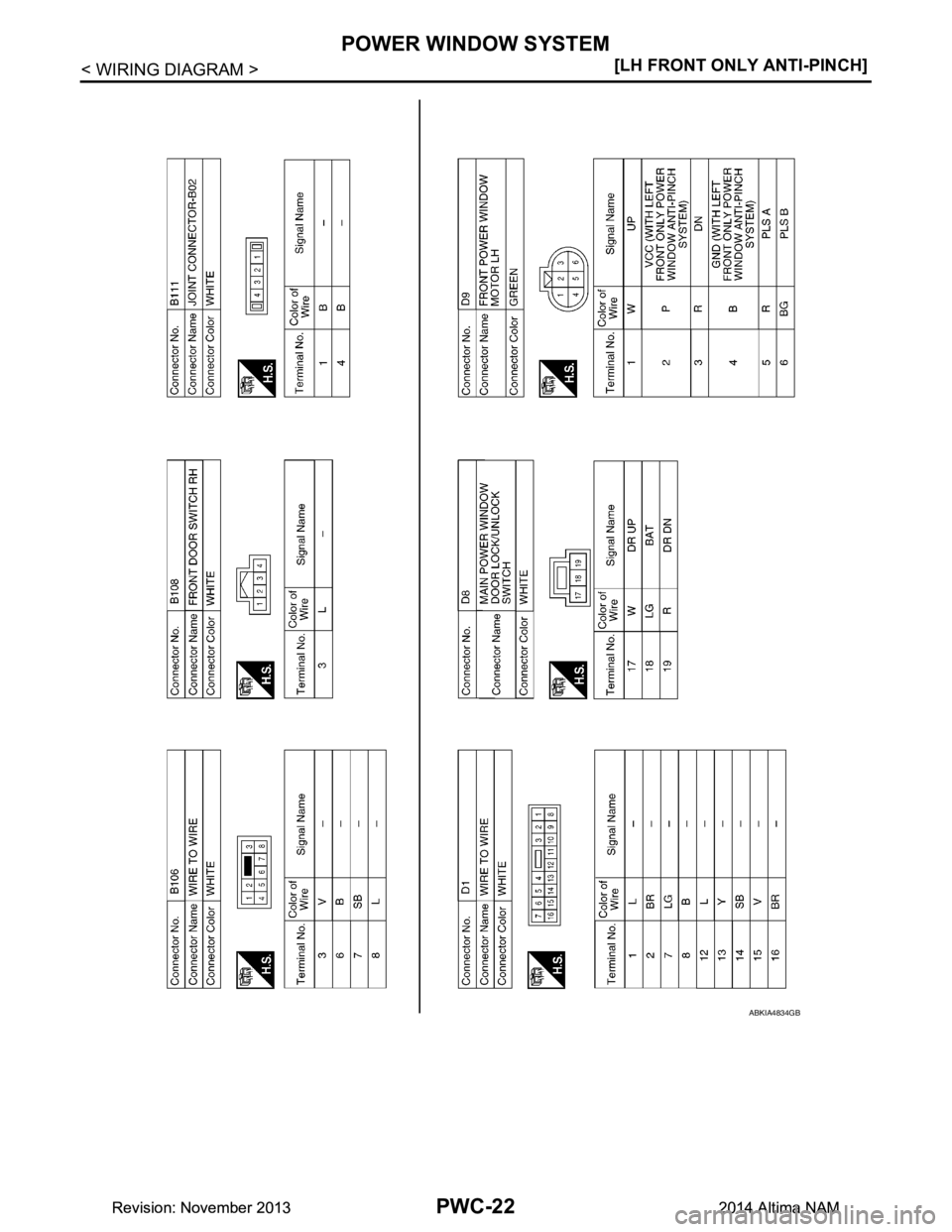

ABKIA4834GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 3530 of 4801

NISSAN TEANA 2014 Service Manual
POWER WINDOW SYSTEMPWC-23
< WIRING DIAGRAM > [LH FRONT ONLY ANTI-PINCH]
C
D E
F
G H
I
J
L
M A
B
PWC
N
O P

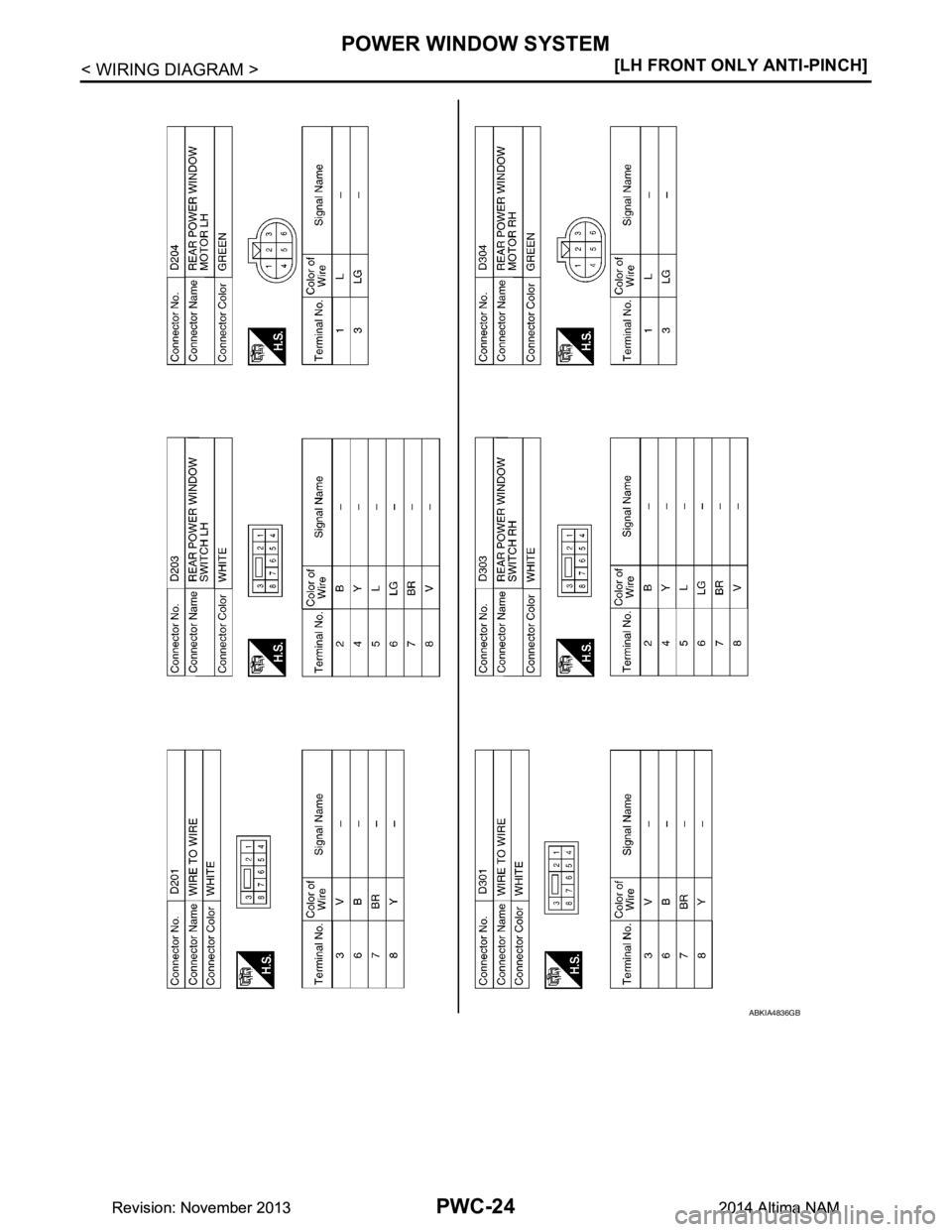

ABKIA4835GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 3531 of 4801

NISSAN TEANA 2014 Service Manual
PWC-24
< WIRING DIAGRAM >[LH FRONT ONLY ANTI-PINCH]
POWER WINDOW SYSTEM
ABKIA4836GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 3532 of 4801

NISSAN TEANA 2014 Service Manual
DIAGNOSIS AND REPAIR WORKFLOWPWC-25
< BASIC INSPECTION > [LH FRONT ONLY ANTI-PINCH]
C
D E
F
G H
I
J
L
M A
B
PWC
N
O P
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORKFLOW
Work FlowINFOID:0000000009460829

Page 3533 of 4801

NISSAN TEANA 2014 Service Manual
PWC-26
< BASIC INSPECTION >[LH FRONT ONLY ANTI-PINCH]
DIAGNOSIS AND REPAIR WORKFLOW
>> GO TO 2.
2. CONFIRM THE SYMPTOM
Check the malfunction on the vehicle that the customer describes.
Inspect the r

Page 3534 of 4801

NISSAN TEANA 2014 Service Manual
INSPECTION AND ADJUSTMENTPWC-27
< BASIC INSPECTION > [LH FRONT ONLY ANTI-PINCH]
C
D E
F
G H
I
J
L
M A
B
PWC
N
O P
INSPECTION AND ADJUSTMENT
ADDITIONAL SERVICE WHEN REMOVI NG BATTERY NEGATIVE TERMIN

INSPECTION AND ADJUSTMENTPWC-27
< BASIC INSPECTION > [LH FRONT ONLY ANTI-PINCH]
C
D E
F
G H
I
J
L
M A
B
PWC
N
O P
INSPECTION AND ADJUSTMENT
ADDITIONAL SERVICE WHEN REMOVI NG BATTERY NEGATIVE TERMINAL
ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL : De-
scription
INFOID:0000000009460830
Initial setting is necessary when battery terminal is disconnected.
CAUTION:
The following specified operations are not pe rformed under the non-initialized condition.
• Auto-up operation
• Anti-pinch function
• Retained power operation
ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL : Spe-
cial Repair Requirement
INFOID:0000000009460831
INITIALIZATION PROCEDURE
1. Disconnect battery minus terminal or power window ma in switch connector. Reconnect it after a minute or
more.
2. Turn ignition switch ON.
3. Operate power window switch to fully open the wi ndow. (This operation is unnecessary if the window is
already fully open)
4. Continue pulling the power window switch UP (AUTO-UP operation). Even after glass stops at fully closed
position, keep pulling the switch for 4 seconds or more.
5. Inspect anti-pinch function.
CHECK ANTI-PINCH FUNCTION
1. Fully open the door window.
2. Place a piece of wood near fully closed position.
3. Close door glass completely with AUTO-UP.
• Check that glass lowers for approximately 150 mm or 2 seconds without pinching piece of wood and stops.
• Check that glass does not rise when operating the power window main switch while lowering.
CAUTION:
• Do not check with hands and other part of body because they may be pinched. Do not get pinched.
• Check that AUTO-UP operates before inspectio n when system initialization is performed.
• It may switch to fail-safe mode if open/close oper ation is performed continuously. Perform initial set-
ting in that situ ation. Refer to PWC-11, "Fail-safe"
.
• Perform initial setting when auto-up operation or anti-pinch function does not operate normally.
• Finish initial setting. Otherwise, next operation cannot be done.
1. Auto-up operation
2. Anti-pinch function
3. Retained power operation wh en ignition switch is OFF.
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT
ADDITIONAL SERVICE WHEN REPL ACING CONTROL UNIT : Description
INFOID:0000000009460832
Initial setting is necessary when replacing power window main switch.
CAUTION:
The following specified operations are not pe rformed under the non-initialized condition.
• Auto-up operation
• Anti-pinch function
• Retained power operation
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Re-
quirement
INFOID:0000000009460833
INITIALIZATION PROCEDURE
1. Disconnect battery minus terminal or power window ma in switch connector. Reconnect it after a minute or
more.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 3535 of 4801

NISSAN TEANA 2014 Service Manual
PWC-28
< BASIC INSPECTION >[LH FRONT ONLY ANTI-PINCH]
INSPECTION AND ADJUSTMENT
2. Turn ignition switch ON.
3. Operate power window switch to fully open the window. (This operation is unnecessary if

Page 3536 of 4801

NISSAN TEANA 2014 Service Manual
POWER SUPPLY AND GROUND CIRCUITPWC-29
< DTC/CIRCUIT DIAGNOSIS > [LH FRONT ONLY ANTI-PINCH]
C
D E
F
G H
I
J
L
M A
B
PWC
N
O P
DTC/CIRCUIT DIAGNOSIS
POWER SUPPLY AND GROUND CIRCUIT
BCM
BCM : Diagnosi
