NISSAN TEANA 2014 Service Manual
TM-18
< SYSTEM DESCRIPTION >[CVT: RE0F10D]
COMPONENT PARTS
• The fluid temperature sensor uses a thermistor, and
changes the signal voltage by converting changes in the
CVT fluid temperature to a

Page 4234 of 4801

NISSAN TEANA 2014 Service Manual
COMPONENT PARTSTM-19
< SYSTEM DESCRIPTION > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
• When pressure is applied to the metal diaphragm in the secondary pressure sensor, the metal diaphragm i

COMPONENT PARTSTM-19
< SYSTEM DESCRIPTION > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
• When pressure is applied to the metal diaphragm in the secondary pressure sensor, the metal diaphragm is deformed, resulting in voltage change. TCM evaluates the secondary pressure from its voltage change. Volt-
age is increased along with pressure increase.
CVT CONTROL SYSTEM : Primar y Pressure Solenoid ValveINFOID:0000000009463971
• The primary pressure solenoid valve is installed to control valve.
• The primary pressure solenoid valve controls the pr imary reducing valve. For information about the primary
reducing valve, refer to TM-27, "TRANSAXLE : Component Description"
.
• The primary pressure solenoid valve uses the linear solenoid valve [N/H (normal high) type].
NOTE:
• The principle of the linear solenoid valve utilizes the fa ct that the force pressing on the valve spool installed
inside the coil increases nearly in proportion to the current . This allows it to produce a fluid pressure that is
proportional to this pressing force.
• The N/H (normal high) produces hydraulic control when the coil is not energized.
CVT CONTROL SYSTEM : Secondar y Pressure Solenoid ValveINFOID:0000000009463972
• The secondary pressure solenoid valve is installed to control valve.
• The secondary pressure solenoid valve controls the secondary reducing valve. For information about the
secondary reducing valve, refer to TM-27, "TRANSAXLE : Component Description"
.
• The secondary pressure solenoid valve uses the linear solenoid valve [N/H (normal high) type].
NOTE:
• The principle of the linear solenoid valve utilizes the fa ct that the force pressing on the valve spool installed
inside the coil increases nearly in proportion to the current . This allows it to produce a fluid pressure that is
proportional to this pressing force.
• The N/H (normal high) produces hydraulic control when the coil is not energized.
CVT CONTROL SYSTEM : Se lect Solenoid ValveINFOID:0000000009463973
• The select solenoid valve is installed to control valve.
• The select solenoid valve adjusts the tightening pressure of the forward clutch and reverse brake. For infor- mation about the forward clutch and reverse brake, refer to TM-27, "TRANSAXLE : Component Description"
.
• The select solenoid valve uses the linear solenoid valve [N/H (normal high) type].
NOTE:
• The principle of the linear solenoid valve utilizes the fa ct that the force pressing on the valve spool installed
inside the coil increases nearly in proportion to the current . This allows it to produce a fluid pressure that is
proportional to this pressing force.
• The N/H (normal high) type produces hydraulic control when the coil is not energized.
CVT CONTROL SYSTEM : Torque Converter Clutch Solenoid ValveINFOID:0000000009463974
• The torque converter clutch solenoid valve is installed to control valve.
• The torque converter clutch solenoid valve controls the torque converter clutch control valve. For information
about the torque converter clutch control valve, refer to TM-27, "TRANSAXLE : Component Description"
.
• The torque converter clutch solenoid valve utilizes a linear solenoid valve [N/L (normal low) type].
NOTE:
JSDIA1831GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 4235 of 4801

NISSAN TEANA 2014 Service Manual
TM-20
< SYSTEM DESCRIPTION >[CVT: RE0F10D]
COMPONENT PARTS
• The principle of the linear solenoid valve utilizes the fa
ct that the force pressing on the valve spool installed
inside the coil incre

TM-20
< SYSTEM DESCRIPTION >[CVT: RE0F10D]
COMPONENT PARTS
• The principle of the linear solenoid valve utilizes the fa
ct that the force pressing on the valve spool installed
inside the coil increases nearly in proportion to the current . This allows it to produce a fluid pressure that is
proportional to this pressing force.
• The N/L (normal low) type does not produce hydr aulic control when the coil is not energized.
CVT CONTROL SYSTEM : Line Pressure Solenoid ValveINFOID:0000000009463975
• The line pressure solenoid valve is installed to control valve.
• The line pressure solenoid valve controls the pressure regulator valve. For information about the pressure
regulator valve, refer to TM-27, "TRANSAXLE : Component Description"
.
• The line pressure solenoid valve uses the linear solenoid valve [N/H (normal high) type]. NOTE:
• The principle of the linear solenoid valve utilizes the fa ct that the force pressing on the valve spool installed
inside the coil increases nearly in proportion to the current . This allows it to produce a fluid pressure that is
proportional to this pressing force.
• The N/H (normal high) produces hydraulic control when the coil is not energized.
CVT CONTROL SYSTEM : Overdrive Control SwitchINFOID:0000000009463976
• The overdrive control switch is inst alled to the selector lever knob.
• If the overdrive control switch is pressed when the O/D OFF indicator lamp on the combination meter is not
lit, the status changes to overdrive OFF and the O/D OFF indicator lamp illuminates.
• If the overdrive control switch is pressed when the O/ D OFF indicator lamp on the combination meter is lit,
the overdrive OFF status is canceled and the O/D OFF indicator lamp turns off.
CVT CONTROL SYSTEM : O/D OFF Indicator LampINFOID:0000000009463977
• O/D OFF indicator lamp is positioned on the combination meter.
• The O/D OFF indicator lamp illuminates when the overdrive function is deactivated (O/D OFF).
• For checking the bulb, this lamp turns on for a cert ain period of time when the ignition switch turns ON,
andthen turns off.
CVT CONTROL SYSTEM : Sh ift Position IndicatorINFOID:0000000009463978
TCM transmits shift position signal to combination meter via CAN communication. The actual shift position is
displayed on combination meter according to the signal.
SHIFT LOCK SYSTEM
Condition (status) O/D OFF indicator lamp
Ignition switch OFF. OFF
Ignition switch ON. ON (Approx. 2 seconds)
Overdrive control switch is pressed when the selector lever is in
the D position and the O/D OFF indicator lamp is OFF (when sys-
tem is normal). ON
Overdrive control switch is pressed when the selector lever is in
the D position and the O/D OFF indicator lamp is ON. OFF
Selector lever is shifted from the D position to another position-
when the O/D OFF indicator lamp is ON. OFF
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 4236 of 4801

NISSAN TEANA 2014 Service Manual
COMPONENT PARTSTM-21
< SYSTEM DESCRIPTION > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
SHIFT LOCK SYSTEM : Co mponent Parts LocationINFOID:0000000009463979
COMPONENT DESCRIPTION
ALDIA0346ZZ
No.

Page 4237 of 4801

NISSAN TEANA 2014 Service Manual
TM-22
< SYSTEM DESCRIPTION >[CVT: RE0F10D]
STRUCTURE AND OPERATION
STRUCTURE AND OPERATION
TRANSAXLE
TRANSAXLE : Cross-Sectional ViewINFOID:0000000009463980
Converter housing Oil pump Planetary gear

Page 4238 of 4801

NISSAN TEANA 2014 Service Manual
STRUCTURE AND OPERATIONTM-23
< SYSTEM DESCRIPTION > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
TRANSAXLE : Operation StatusINFOID:0000000009463981
× : Engaged or applied.
TRANSAXLE : Transaxle

Page 4239 of 4801

NISSAN TEANA 2014 Service Manual
TM-24
< SYSTEM DESCRIPTION >[CVT: RE0F10D]
STRUCTURE AND OPERATION

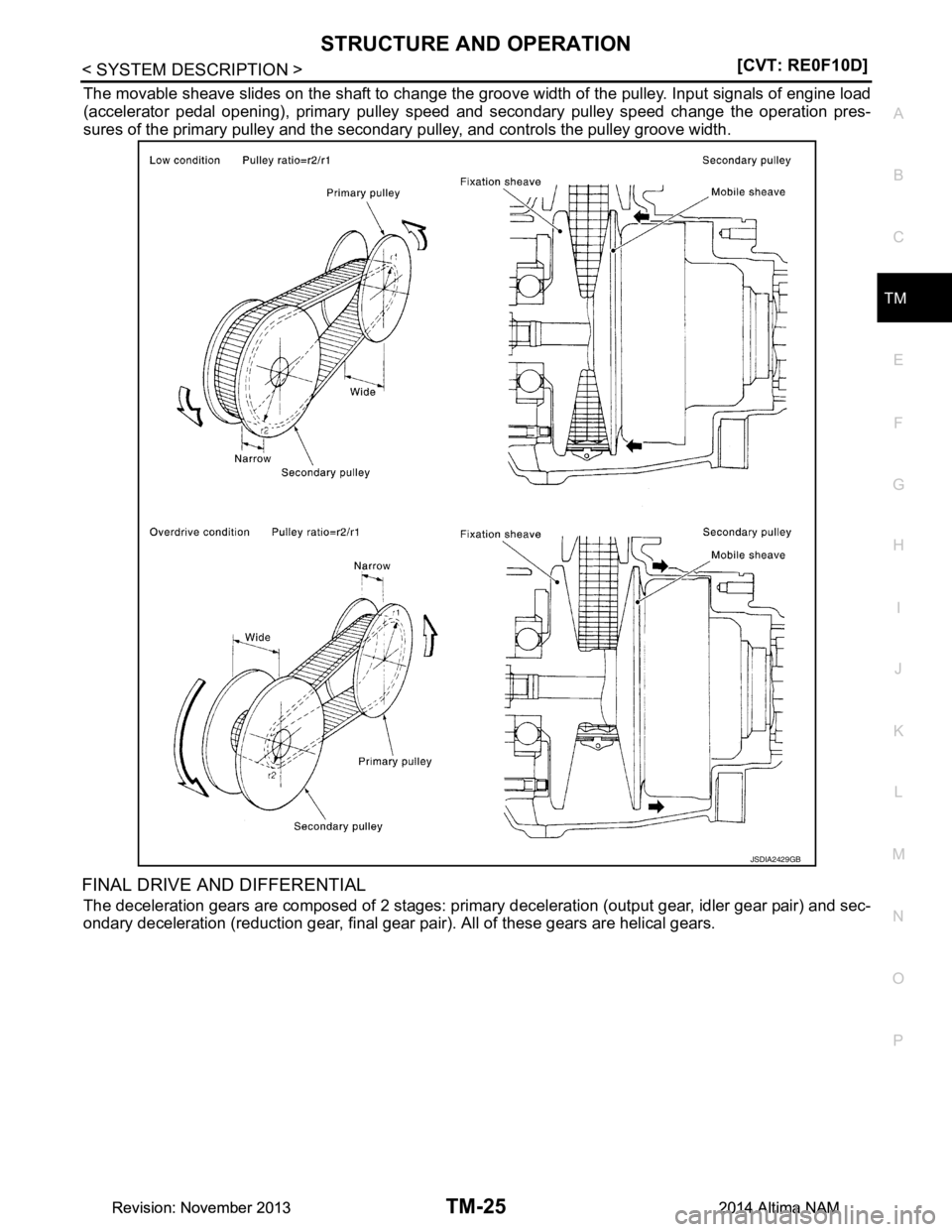

The groove width changes according to wrapping radius of
steel belt and pulley from low status to overdrive
status continuously wit

Page 4240 of 4801

NISSAN TEANA 2014 Service Manual
STRUCTURE AND OPERATIONTM-25
< SYSTEM DESCRIPTION > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
The movable sheave slides on the shaft to change the gr oove width of the pulley. Input signals of
