PCS-20
< ECU DIAGNOSIS INFORMATION >[IPDM E/R]
IPDM E/R (INTELLIGENT POWER DI
STRIBUTION MODULE ENGINE ROOM)
IGNITION RELAY MALFUNCTION DETECTION FUNCTION
• IPDM E/R monitors the voltage at the contact circuit and excitation coil circuit of the ignition relay inside it.
• IPDM E/R judges the ignition relay error if the voltage differs between the contact circuit and the excitation
coil circuit.
• If the ignition relay cannot turn OFF due to contact seiz ure, it activates the tail lamp relay for 10 minutes to
alert the user to the ignition relay malfunction when the ignition switch is turned OFF.
NOTE:
The tail lamp turns OFF when the ignition switch is turned ON.
FRONT WIPER CONTROL
IPDM E/R detects front wiper stop posit ion by a front wiper auto stop signal.
When a front wiper auto stop signal is in the conditions listed below, IPDM E/R stops power supply to wiper
after repeating a front wiper 10 second activation and 20 second stop five times.
NOTE:
This operation status can be confirmed on the IPDM E/ R “Data Monitor” that displays “BLOCK” for the item
“WIP PROT” while the wiper is stopped.
STARTER MOTOR PROTECTION FUNCTION
IPDM E/R turns OFF the starter control relay to protect the starter motor when the starter control relay remains
active for 90 seconds.
DTC IndexINFOID:0000000009461605
NOTE:
The details of TIME display are as follows.
• CRNT: The malfunctions that are detected now
• 1 - 39: The number is indicated when it is normal at present and a malfunction was detected in the past. It
increases like 0 → 1 → 2 ··· 38 → 39 after returning to the normal condition whenever IGN OFF → ON. It is
fixed to 39 until the self-diagnosis results are erased if it is over 39. It returns to 0 when a malfunction is
detected again in the process.
DTC Ignition switch Ignition relay Tail lamp relay
—ONON—
—OFFOFF—
B2098: IGN RELAY ON OFF ON ON (10 minutes)
B2099: IGN RELAY OFF ON OFF —
Ignition switch Front wiper switch Auto stop signal
ON OFF
Front wiper stop position signal cannot be
input 10 seconds.
ON The signal does not change for 10 seconds.
CONSULT display Fail-safe TIMENOTERefer to
No DTC is detected. Further testing may be required. — — — —
U1000: CAN COMM CIRCUIT ×CRNT 1 – 39 PCS-27
U1010: CONTROL UNIT (CAN) ×CRNT 1 – 39 PCS-28
B2098: IGN RELAY ON ×CRNT 1 – 39 PCS-29
B2099: IGN RELAY OFF — CRNT 1 – 39 PCS-30
B210B: INHIBIT relay ON stuck failure — CRNT 1 – 39 SEC-73
B210C: INHIBIT relay OFF stuck failure — CRNT 1 – 39 SEC-74
B210D: STARTER relay ON stuck failure — CRNT 1 – 39 SEC-76
B210E: STARTER relay OFF stuck failure — CRNT 1 – 39SEC-78
B210F: Interlock/NP switch ON stuck failure — CRNT 1 – 39 SEC-80
B2110: Interlock/NP switch OFF stuck failure — CRNT 1 – 39 SEC-82
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 3370 of 4801
PCS
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
PCS-21
< WIRING DIAGRAM > [IPDM E/R]
C
D E
F
G H
I
J
K L
B
A
O P
N

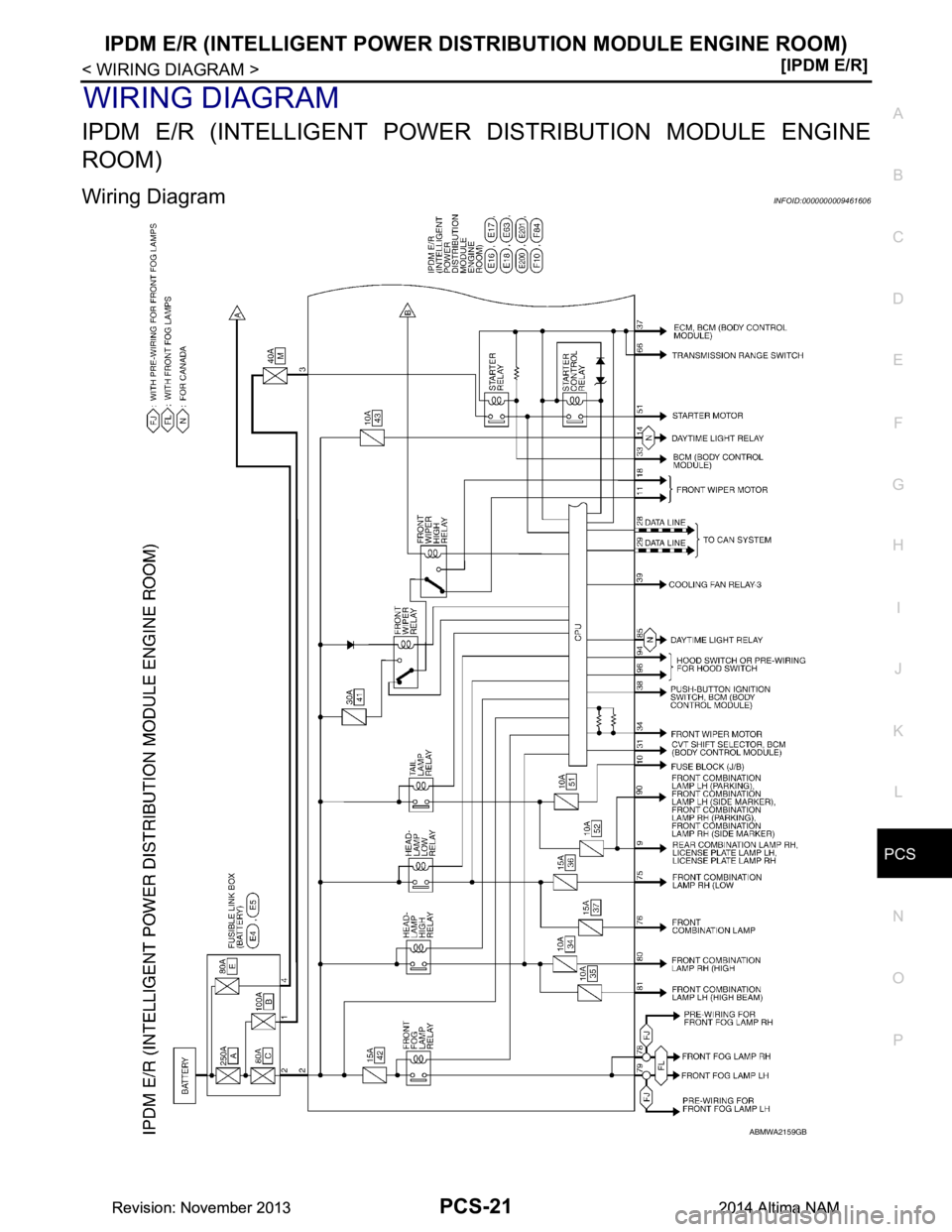

WIRING DIAGRAM
IPDM E/R (INTELLIGENT POWER
DISTRIBUTION MODULE ENGINE
ROOM)
Wiring DiagramINFOID:0000000009461606
ABMWA2159GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 3371 of 4801
PCS-22
< WIRING DIAGRAM >[IPDM E/R]
IPDM E/R (INTELLIGENT POWER DI
STRIBUTION MODULE ENGINE ROOM)

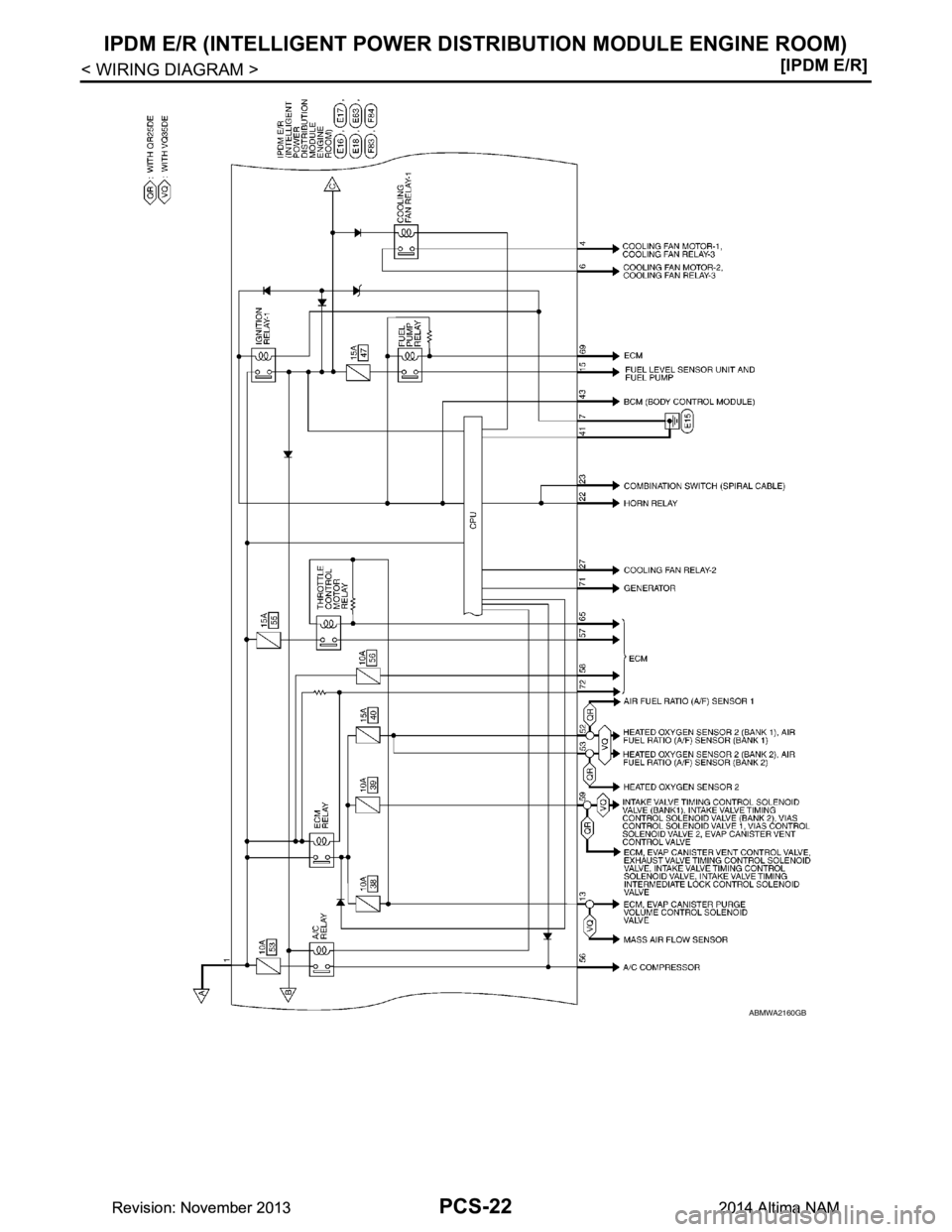

ABMWA2160GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 3372 of 4801
PCS
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
PCS-23
< WIRING DIAGRAM > [IPDM E/R]
C
D E
F
G H
I
J
K L
B
A
O P
N

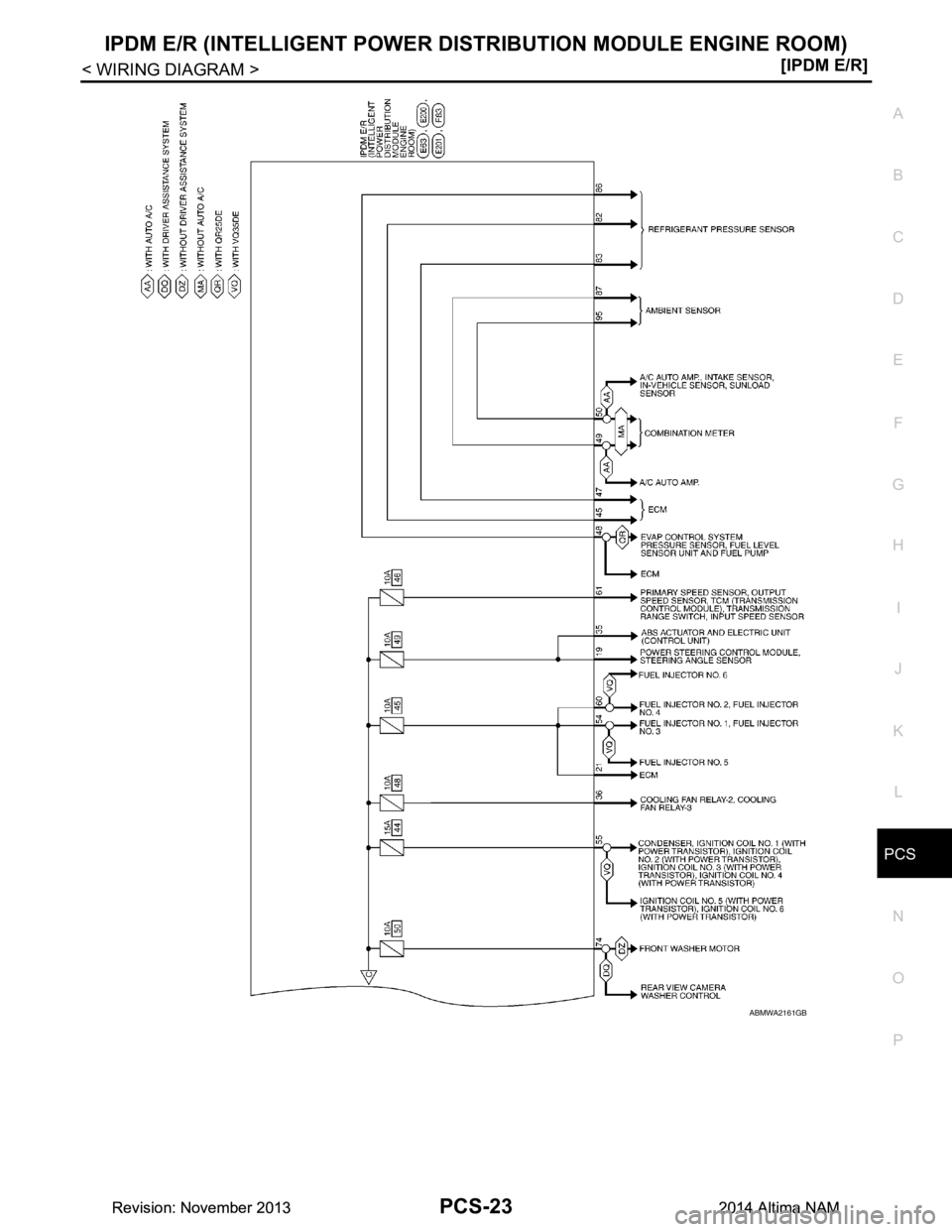

ABMWA2161GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 3373 of 4801
PCS-24
< WIRING DIAGRAM >[IPDM E/R]
IPDM E/R (INTELLIGENT POWER DI
STRIBUTION MODULE ENGINE ROOM)

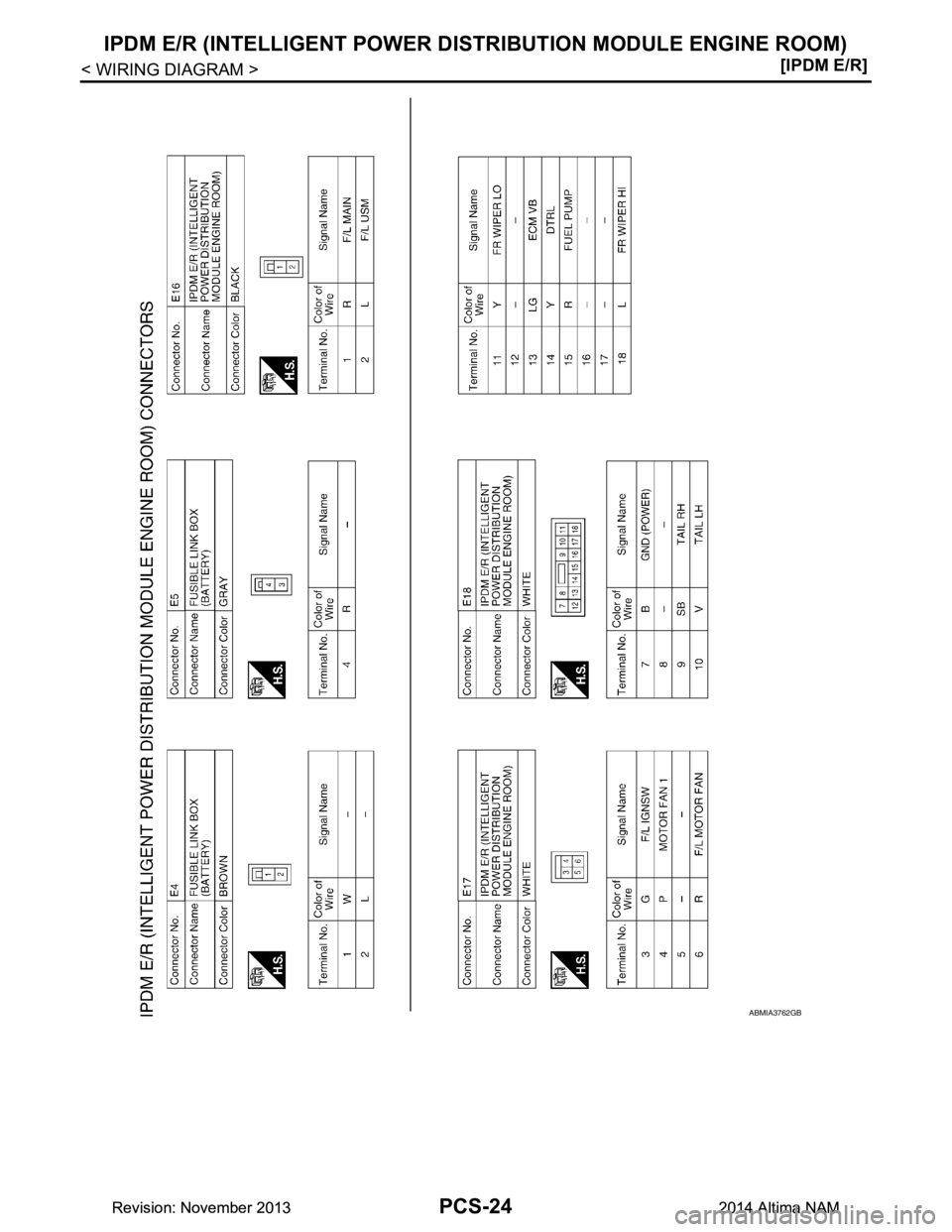

ABMIA3762GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 3374 of 4801
PCS
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
PCS-25
< WIRING DIAGRAM > [IPDM E/R]
C
D E
F
G H
I
J
K L
B
A
O P
N

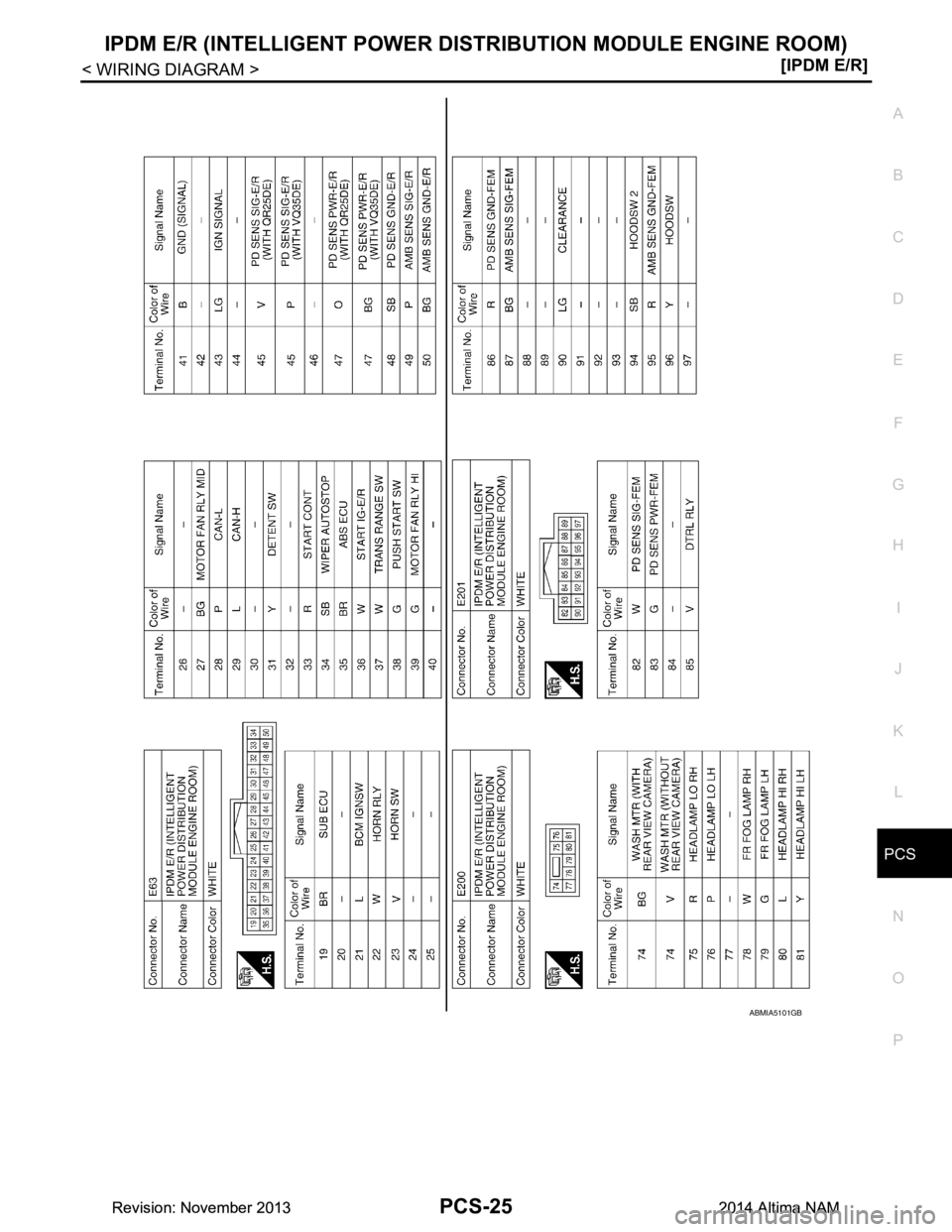

ABMIA5101GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 3375 of 4801
PCS-26
< WIRING DIAGRAM >[IPDM E/R]
IPDM E/R (INTELLIGENT POWER DI
STRIBUTION MODULE ENGINE ROOM)

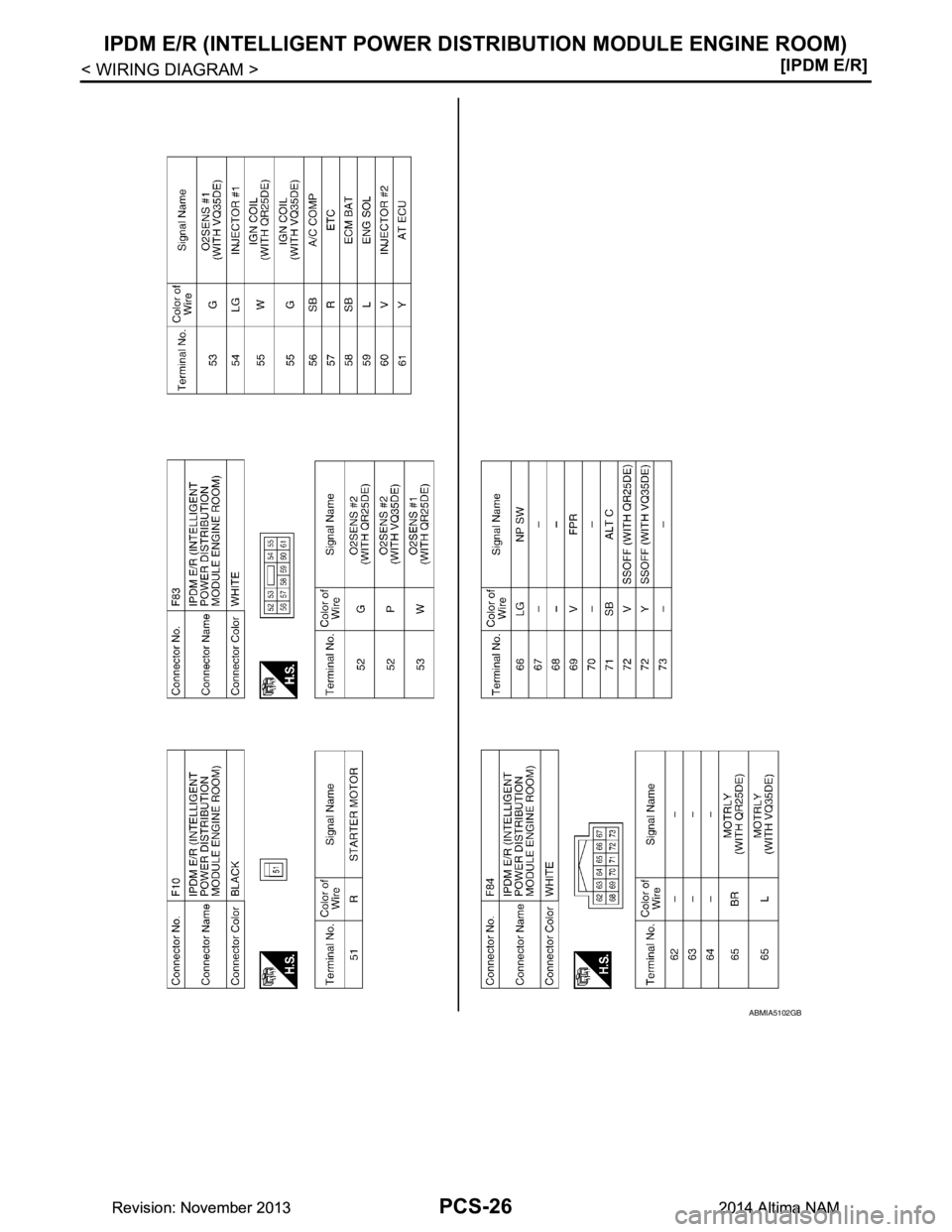

ABMIA5102GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 3376 of 4801
![NISSAN TEANA 2014 Service Manual
PCS
U1000 CAN COMM CIRCUITPCS-27
< DTC/CIRCUIT DIAGNOSIS > [IPDM E/R]
C
D E
F
G H
I
J
K L
B
A
O P
N
DTC/CIRCUIT DIAGNOSIS
U1000 CAN COMM CIRCUIT
DescriptionINFOID:0000000009461607
Refer to
LAN-9, NISSAN TEANA 2014 Service Manual
PCS
U1000 CAN COMM CIRCUITPCS-27
< DTC/CIRCUIT DIAGNOSIS > [IPDM E/R]
C
D E
F
G H
I
J
K L
B
A
O P
N
DTC/CIRCUIT DIAGNOSIS
U1000 CAN COMM CIRCUIT
DescriptionINFOID:0000000009461607
Refer to
LAN-9,](/manual-img/5/57390/w960_57390-3375.png)
PCS
U1000 CAN COMM CIRCUITPCS-27
< DTC/CIRCUIT DIAGNOSIS > [IPDM E/R]
C
D E
F
G H
I
J
K L
B
A
O P
N
DTC/CIRCUIT DIAGNOSIS
U1000 CAN COMM CIRCUIT
DescriptionINFOID:0000000009461607
Refer to
LAN-9, "CAN COMMUNICATION S YSTEM : System Description".
DTC LogicINFOID:0000000009461608
DTC DETECTION LOGIC
Diagnosis ProcedureINFOID:0000000009461609
1. PERFORM SELF DIAGNOSTIC RESULT
1. Turn ignition switch ON and wait for 2 second or more.
2. Check “SELF-DIAG RESULTS” of IPDM E/R.
Is
“CAN COMM CIRCUIT” displayed?
YES >> Refer to LAN-18, "Trouble Diagnosis Flow Chart".
NO >> Refer to GI-43, "Intermittent Incident"
.
CONSULT Display DTC Detectio n Condition Possible Cause
CAN COMM CIRCUIT
[U1000] When IPDM E/R cannot communicate with CAN com-
munication signal continuously for 2 seconds or more In CAN communication system, any item (or items) of
the following listed below is malfunctioning.
•Transmission
• Receiving (ECM)
• Receiving (BCM)
• Receiving (Combination meter)
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
