NISSAN TEANA 2014 Service Manual
TM-26
< SYSTEM DESCRIPTION >[CVT: RE0F10D]
STRUCTURE AND OPERATION
The lubrication oil is the same as the CVT
fluid which lubricates the entire transaxle.
TRANSAXLE : Oil Pressure System INFOID:0000

Page 4242 of 4801

NISSAN TEANA 2014 Service Manual
STRUCTURE AND OPERATIONTM-27
< SYSTEM DESCRIPTION > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P

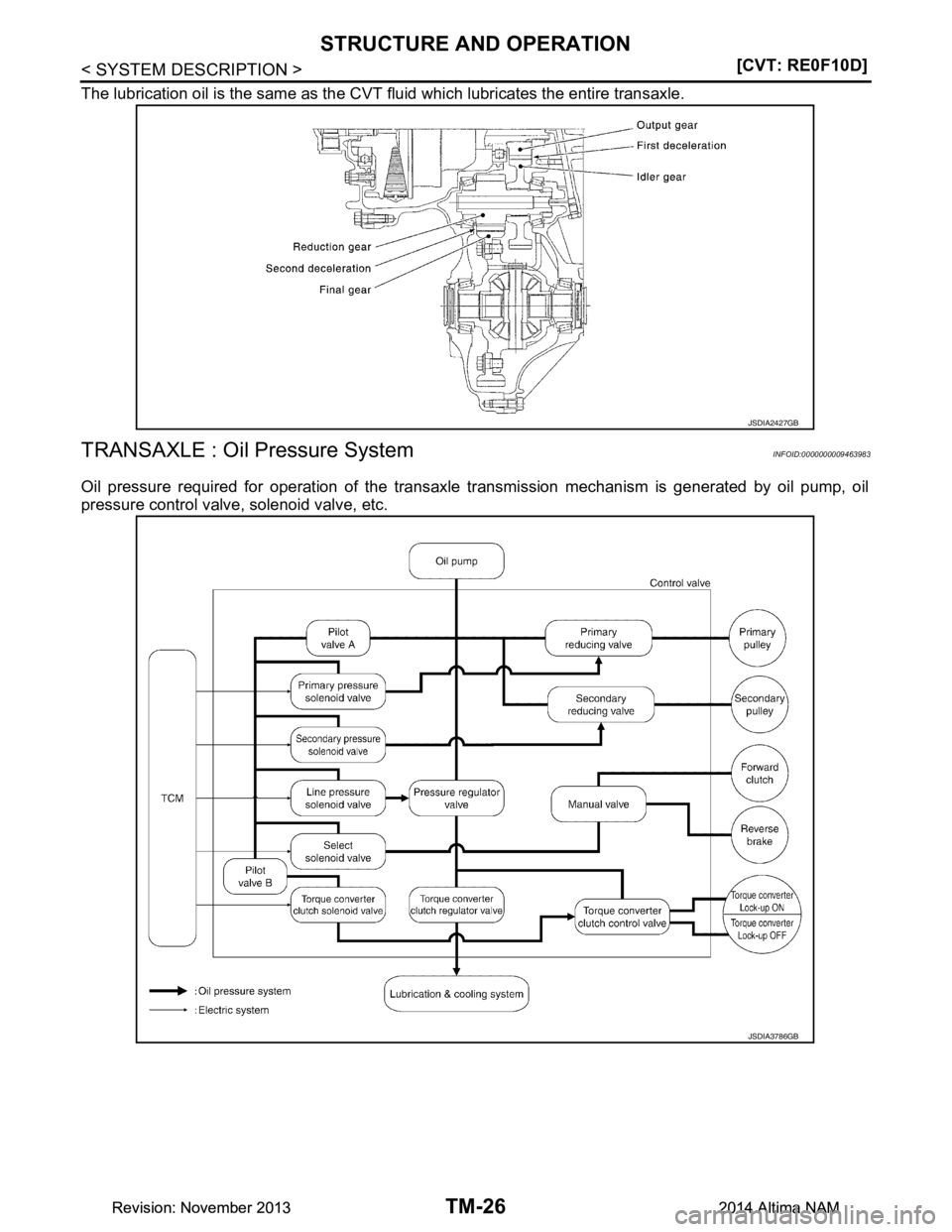

TRANSAXLE : Component DescriptionINFOID:0000000009463984
FLUID COOLER & FLUID WARMER SYSTEM
Part na

STRUCTURE AND OPERATIONTM-27
< SYSTEM DESCRIPTION > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
TRANSAXLE : Component DescriptionINFOID:0000000009463984
FLUID COOLER & FLUID WARMER SYSTEM
Part name Function
Torque converter Increases engine torque and transmits it to the transaxle.
Oil pump Utilizes a vane-type oil pump that is driven by the engine through the oil pump drive chain in order to
increase efficiency of pump discharge volume in low-speed zone and optimize pump discharge volume
in high-speed zone. Discharged oil from oil pump is tr ansmitted to control valve. It is used as the oil of
primary and secondary pulley operation, the oil of clutch operation, and the lubricant for each part.
Forward clutch The forward clutch is wet and multiple plate type clutch that consists of clutch drum, piston, drive plate,
and driven plate. It is a clutch to move the vehicle forward by activating piston hydraulically, engaging
plates, and directly connecting sun gear and input shaft.
Reverse brake The reverse brake is a wet multiple-plate type brake that consists of transaxle case, piston, drive plate,
and driven plate. It is a brake to move the vehicle in reverse by activating piston hydraulically, engaging
plates, and fixing planetary gear.
Internal gear The internal gear is directly connected to forward clutch drum. It is a gear that moves the outer edge of
pinion planet of planet carrier. It transmits power to move the vehicle in reverse when the planet carrier
is fixed.
Planet carrier Composed of a carrier, pinion planet, and pinion shaft. This gear fixes and releases the planet carrier in
order to switch between forward and reverse driving.
Sun gear Sun gear is a set part with planet carrier and internal gear. It transmits transmitted force to primary fixed
sheave. It rotates in forward or reverse direction according to activation of either forward clutch or re-
verse brake.
Input shaft The input shaft is directly connected to forward clutch drum and transmits traction force from torque con-
verter. In shaft center, there are holes for hydraulic distribution to primary pulley and hydraulic distribution
for lockup ON/OFF.
Primary pulley It is composed of a pair of pulleys (the groove width is changed freely in the axial direction) and the steel belt. The groove width changes according to wrapping radius of steel belt and pulley from low status to
overdrive status continuously with non-step. It is controlled with the oil pressures of primary pulley and
secondary pulley.
Secondary pulley
Steel belt
Manual shaft When the manual shaft is in the P position, the parking rod that is linked to the manual shaft rotates the
parking pole. When the parking pole rotates, it engages with the parking gear, fixing the parking gear. As
a result, the secondary pulley that is integrated with the parking gear is fixed.
Parking rod
Parking pawl
Parking gear
Output gear
The deceleration gears are composed of 2 stages: primary deceleration (output gear, idler gear pair) and
secondary deceleration (reduction gear, final gear pair). All of these gears are helical gears.
Idler gear
Reduction gear
Differential
Torque converter regulator
valve Adjusts the feed pressure to the torque converter to the optimum pressure corresponding to the driving
condition.
Pressure regulator valve Adjusts the discharge pressure from the oil pump to the optimum pressure (line pressure) corresponding
to the driving condition.
Torque converter clutch
control valve Adjusts the torque converter engage and disengage pressures.
Manual valve Distributes the clutch operation pressure to each circuit according to the selector lever position.
Secondary reducing valve Reduces line pressure and adjusts secondary pressure.
Primary reducing valve Reduces line pressure and adjusts primary pressure.
Pilot valve A Reduces line pressure and adjusts pilot pressure to the solenoid valves listed below.
• Primary pressure solenoid valve
• Secondary pressure solenoid valve
• Select solenoid valve
• Line pressure solenoid valve
Pilot valve B Reduces pilot pressure and adjusts pilot pressure to the torque converter clutch solenoid valve.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 4243 of 4801

NISSAN TEANA 2014 Service Manual
TM-28
< SYSTEM DESCRIPTION >[CVT: RE0F10D]
STRUCTURE AND OPERATION
FLUID COOLER & FLUID WARMER SYSTEM : System Description
INFOID:0000000009463985
CVT FLUID COOLER SCHEMATIC
COMPONENT DESCRIPTION
C

Page 4244 of 4801

NISSAN TEANA 2014 Service Manual
STRUCTURE AND OPERATIONTM-29
< SYSTEM DESCRIPTION > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
SHIFT LOCK OPERATION AT “P” POSITION
When Brake Pedal Is Not Depressed (No Selector Operation A

STRUCTURE AND OPERATIONTM-29
< SYSTEM DESCRIPTION > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P

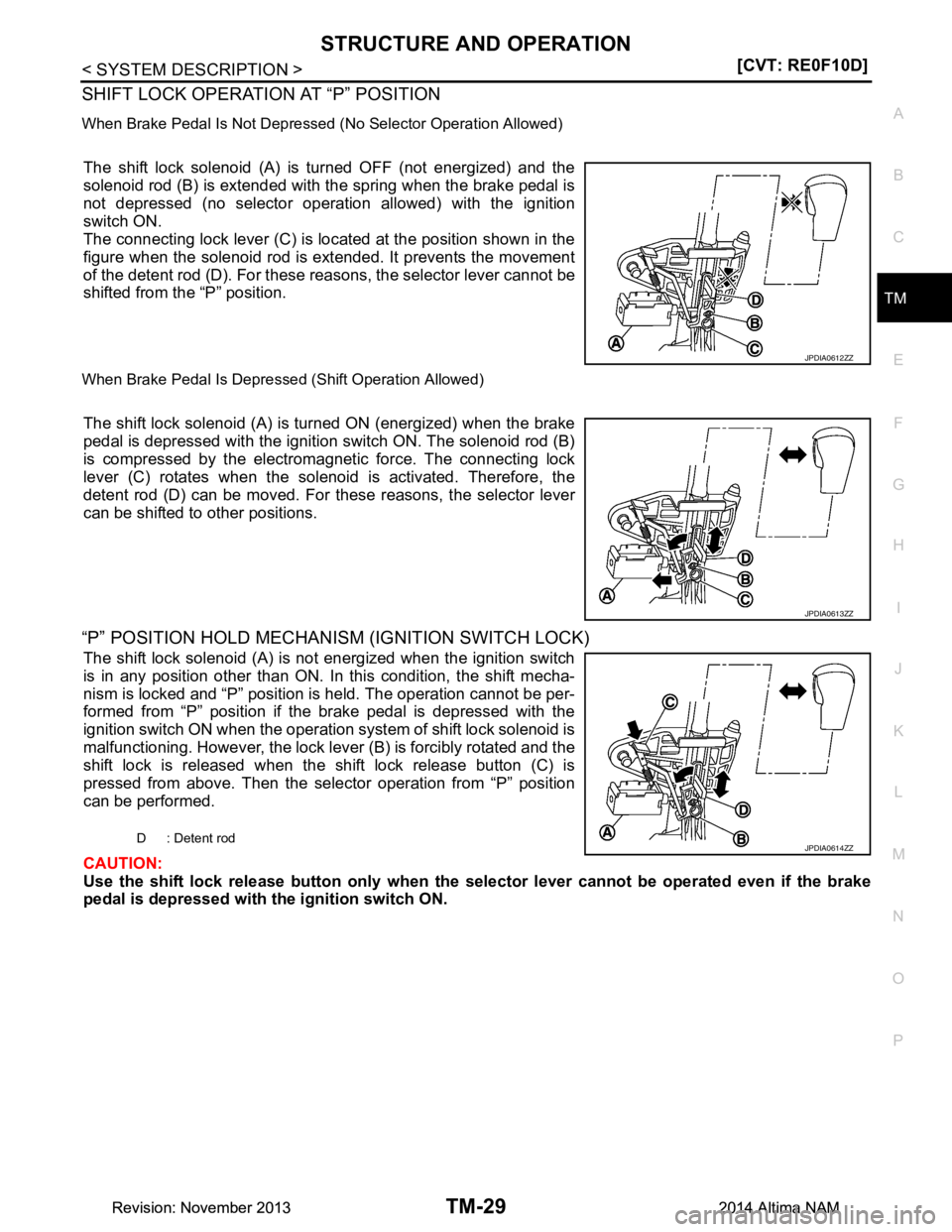

SHIFT LOCK OPERATION AT “P” POSITION
When Brake Pedal Is Not Depressed (No Selector Operation Allowed)
The shift lock solenoid (A) is turned OFF (not energized) and the
solenoid rod (B) is extended with the spring when the brake pedal is
not depressed (no selector operation allowed) with the ignition
switch ON.
The connecting lock lever (C) is located at the position shown in the
figure when the solenoid rod is extended. It prevents the movement
of the detent rod (D). For these r easons, the selector lever cannot be
shifted from the “P” position.
When Brake Pedal Is Depressed (Shift Operation Allowed)
The shift lock solenoid (A) is turned ON (energized) when the brake
pedal is depressed with the ignition switch ON. The solenoid rod (B)
is compressed by the electromagnetic force. The connecting lock
lever (C) rotates when the solenoid is activated. Therefore, the
detent rod (D) can be moved. For t hese reasons, the selector lever
can be shifted to other positions.
“P” POSITION HOLD MECHANISM (IGNITION SWITCH LOCK)
The shift lock solenoid (A) is not energized when the ignition switch
is in any position other than ON. In this condition, the shift mecha-
nism is locked and “P” position is held. The operation cannot be per-
formed from “P” position if the brake pedal is depressed with the
ignition switch ON when the operation system of shift lock solenoid is
malfunctioning. However, the lock lever (B) is forcibly rotated and the
shift lock is released when the shift lock release button (C) is
pressed from above. Then the sele ctor operation from “P” position
can be performed.
CAUTION:
Use the shift lock release button only when the selector lever canno t be operated even if the brake
pedal is depressed with the ignition switch ON.
JPDIA0612ZZ
JPDIA0613ZZ
D : Detent rodJPDIA0614ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 4245 of 4801

NISSAN TEANA 2014 Service Manual
TM-30
< SYSTEM DESCRIPTION >[CVT: RE0F10D]
SYSTEM
SYSTEM
CVT CONTROL SYSTEM
CVT CONTROL SYSTEM :
System DescriptionINFOID:0000000009463987

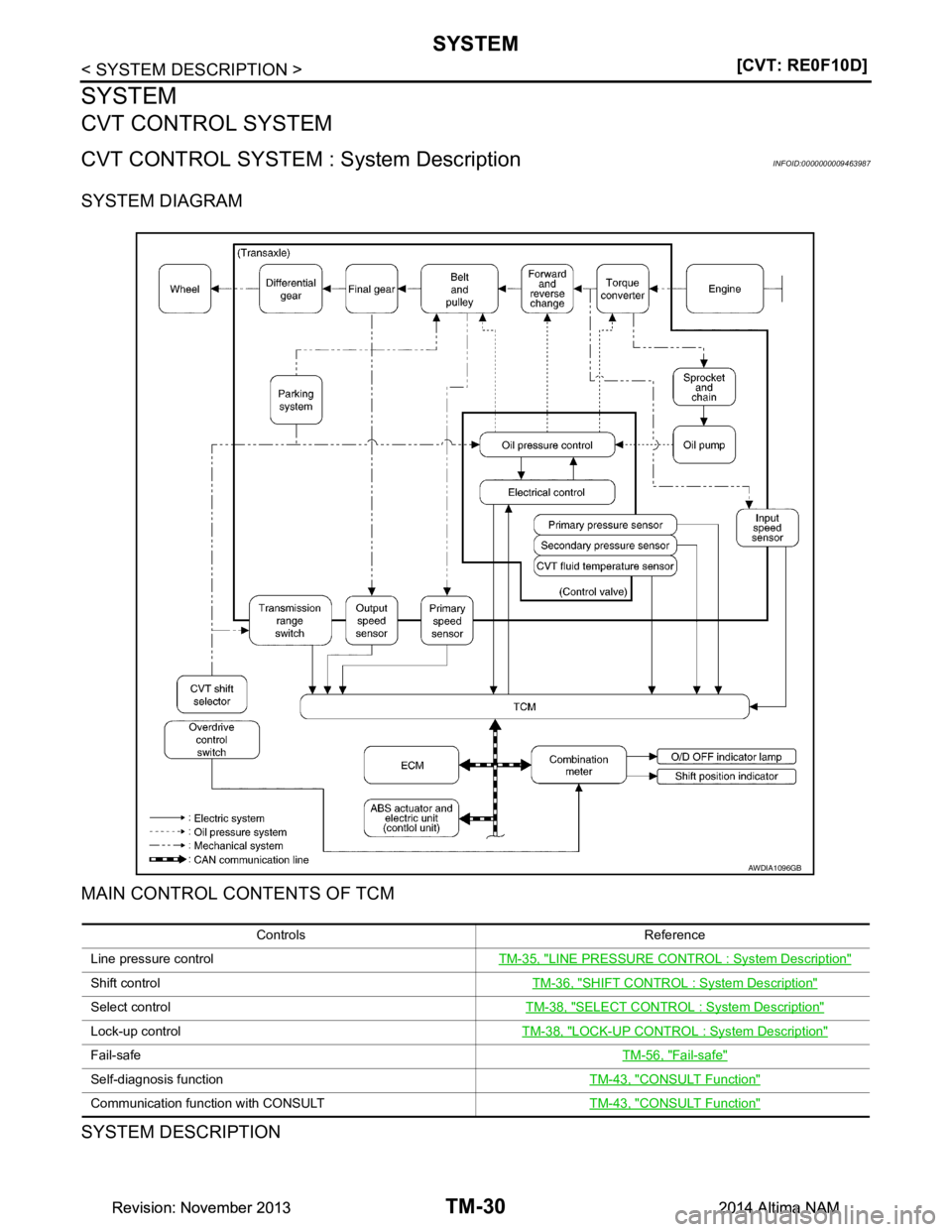

SYSTEM DIAGRAM

MAIN CONTROL CONTENTS OF TCM
SYSTEM DESCRI

Page 4246 of 4801

NISSAN TEANA 2014 Service Manual
SYSTEMTM-31
< SYSTEM DESCRIPTION > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
• CVT detects the vehicle driving status from switc hes, sensors and signals, and controls the vehicle so that
the

SYSTEMTM-31
< SYSTEM DESCRIPTION > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
• CVT detects the vehicle driving status from switc hes, sensors and signals, and controls the vehicle so that
the optimum shift position and shift timing may always be achieved. It also controls the vehicle to reduce
shift and lockup shock, etc.
• Receives input signals from switches and sensors.
• Sends the output signal necessary for operation of so lenoid valves, and evaluates the line pressure, shift
timing, lockup operation, engine brake performance, etc.
• If a malfunction occurs on the electric system, activa te the fail-safe mode only to drive the vehicle.
LIST OF CONTROL ITEMS AND INPUT/OUTPUT
*: If these input/output signals show errors, TCM activates the fail-safe function.
CVT CONTROL SYSTEM : Fail-safeINFOID:0000000009463988
TCM has a fail-safe mode. The mode functions so that operation can be continued even if the signal circuit of
the main electronically controlled input/output parts is damaged.
If the vehicle shows following behaviors including “poor acceleration”, a malfunction of the applicable system
is detected by TCM and the vehicle may be in a fail-s afe mode. At this time, check the DTC code and perform
inspection and repair according to the malfunction diagnosis procedures.
Fail-safe function
Control Item Shift control Line pressure
control Select control Lock-up con-
trol Fail-safe func-
tion*
Input Engine torque signal
(CAN communication) ×××××
Engine speed signal
(CAN communication) ×××××
Accelerator pedal position signal
(CAN communication) ××××
Closed throttle position signal
(CAN communication) ×× ×
Stop lamp switch signal
(CAN communication) ××××
Primary pressure sensor ×
Secondary pressure sensor ×× ×
CVT fluid temperature sensor ×××××
Primary speed sensor ×××××
Output speed sensor ×× ××
Input speed sensor ×××××
Transmission range switch ×××××
Overdrive control switch
(CAN communication) ×× ×
Output Line pressure solenoid valve
××× ×
Primary pressure solenoid valve ×× ×
Torque converter clutch solenoid
valve ××
Secondary pressure solenoid valve ×× ×
Select solenoid valve ×××
Shift position indicator
(CAN communication) ×
O/D OFF indicator lamp
(CAN communication) ×
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 4247 of 4801

NISSAN TEANA 2014 Service Manual
TM-32
< SYSTEM DESCRIPTION >[CVT: RE0F10D]
SYSTEM
DTC Vehicle behavior Conditions of vehicle
P062F • Not changed from normal driving —
P0705 • Shift position indicator on combination meter is n

TM-32
< SYSTEM DESCRIPTION >[CVT: RE0F10D]
SYSTEM
DTC Vehicle behavior Conditions of vehicle
P062F • Not changed from normal driving —
P0705 • Shift position indicator on combination meter is not dis-
played
• Selector shock is large
•Start is slow
• Acceleration is slow
• Lock-up is not performed —
P0706 • Shift position indicator on combination meter is not dis-
played
• Selector shock is large
•Start is slow
• Acceleration is slow
• Lock-up is not performed —
P0711 •Start is slow
• Acceleration is slow Engine coolant temperature when engine start:
Te m p . ≥ 10 °C (50 °F)
• Selector shock is large
•Start is slow
• Acceleration is slow Engine coolant temperature when engine start:
− 35 °C ( −31 °F) ≤ Temp. < 10 °C (50 °F)
• Selector shock is large
•Start is slow
• Acceleration is slow Engine coolant temperature when engine star:
Te m p . < −35 °C ( −31 °F)
P0712 •Start is slow
• Acceleration is slow Engine coolant temperature when engine start:
Te m p . ≥ 10 °C (50 °F)
• Selector shock is large
•Start is slow
• Acceleration is slow Engine coolant temperature when engine start:
− 35 °C ( −31 °F) ≤ Temp. < 10 °C (50 °F)
• Selector shock is large
•Start is slow
• Acceleration is slow Engine coolant temperature when engine star:
Te m p . < −35 °C ( −31 °F)
P0713 •Start is slow
• Acceleration is slow Engine coolant temperature when engine start:
Te m p . ≥ 10 °C (50 °F)
• Selector shock is large
•Start is slow
• Acceleration is slow Engine coolant temperature when engine start:
− 35 °C ( −31 °F) ≤ Temp. < 10 °C (50 °F)
• Selector shock is large
•Start is slow
• Acceleration is slow Engine coolant temperature when engine star:
Te m p . < −35 °C ( −31 °F)
P0715 •Start is slow
• Acceleration is slow
• Lock-up is not performed —
P0717 •Start is slow
• Acceleration is slow
• Lock-up is not performed —
P0740 •Start is slow
• Acceleration is slow
• Lock-up is not performed —
P0743 •Start is slow
• Acceleration is slow
• Lock-up is not performed —
P0744 •Start is slow
• Acceleration is slow
• Lock-up is not performed —
P0746 • Selector shock is large
•Start is slow
• Acceleration is slow
• Lock-up is not performed —
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 4248 of 4801

NISSAN TEANA 2014 Service Manual
SYSTEMTM-33
< SYSTEM DESCRIPTION > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
P0776 • Selector shock is large
•Start is slow
• Acceleration is slow
• Lock-up is not performed
• Vehi

SYSTEMTM-33
< SYSTEM DESCRIPTION > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
P0776 • Selector shock is large
•Start is slow
• Acceleration is slow
• Lock-up is not performed
• Vehicle speed is not increased When a malfunction occurs on the low oil pressure side
• Selector shock is large
•Start is slow
• Acceleration is slow
• Lock-up is not performed When a malfunction occurs on the high oil pressure side
P0778 • Selector shock is large
•Start is slow
• Acceleration is slow
• Lock-up is not performed —
P0779 • Selector shock is large
•Start is slow
• Acceleration is slow
• Lock-up is not performed
P0841 • Not changed from normal driving
P0847 • Not changed from normal driving —
P0848 • Not changed from normal driving —
P084C • Not changed from normal driving
P084D • Not changed from normal driving
P0863 • Selector shock is large
•Start is slow
• Acceleration is slow
• Lock-up is not performed —
P0890 • Selector shock is large
•Start is slow
• Acceleration is slow
• Lock-up is not performed
• Vehicle speed is not increased
P0962 • Selector shock is large
•Start is slow
• Acceleration is slow
• Lock-up is not performed —
P0963 • Selector shock is large
•Start is slow
• Acceleration is slow
• Lock-up is not performed —
P0965 • Selector shock is large
•Start is slow
• Acceleration is slow
• Lock-up is not performed When a malfunction occurs on the low oil pressure side
• Selector shock is large
• Lock-up is not performed When a malfunction occurs on the high oil pressure side
P0966 • Selector shock is large
•Start is slow
• Acceleration is slow
• Lock-up is not performed —
P0967 • Selector shock is large
•Start is slow
• Acceleration is slow
• Lock-up is not performed —
P2765 •Start is slow
• Acceleration is slow
• Lock-up is not performed —
DTC Vehicle behavior Conditions of vehicle
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
