Page 3777 of 4801

NISSAN TEANA 2014 Service Manual
SE-28
< REMOVAL AND INSTALLATION >
FRONT SEAT
4. Disconnect the harness connector (A) from the lumbar supportassembly (1).
5. Press ( ) lumbar retainer clips (B), as shown, to remove lum- bar support

Page 3778 of 4801

NISSAN TEANA 2014 Service Manual
FRONT SEATSE-29
< REMOVAL AND INSTALLATION >
C
D E
F
G H
I
K L
M A
B
SE
N
O P

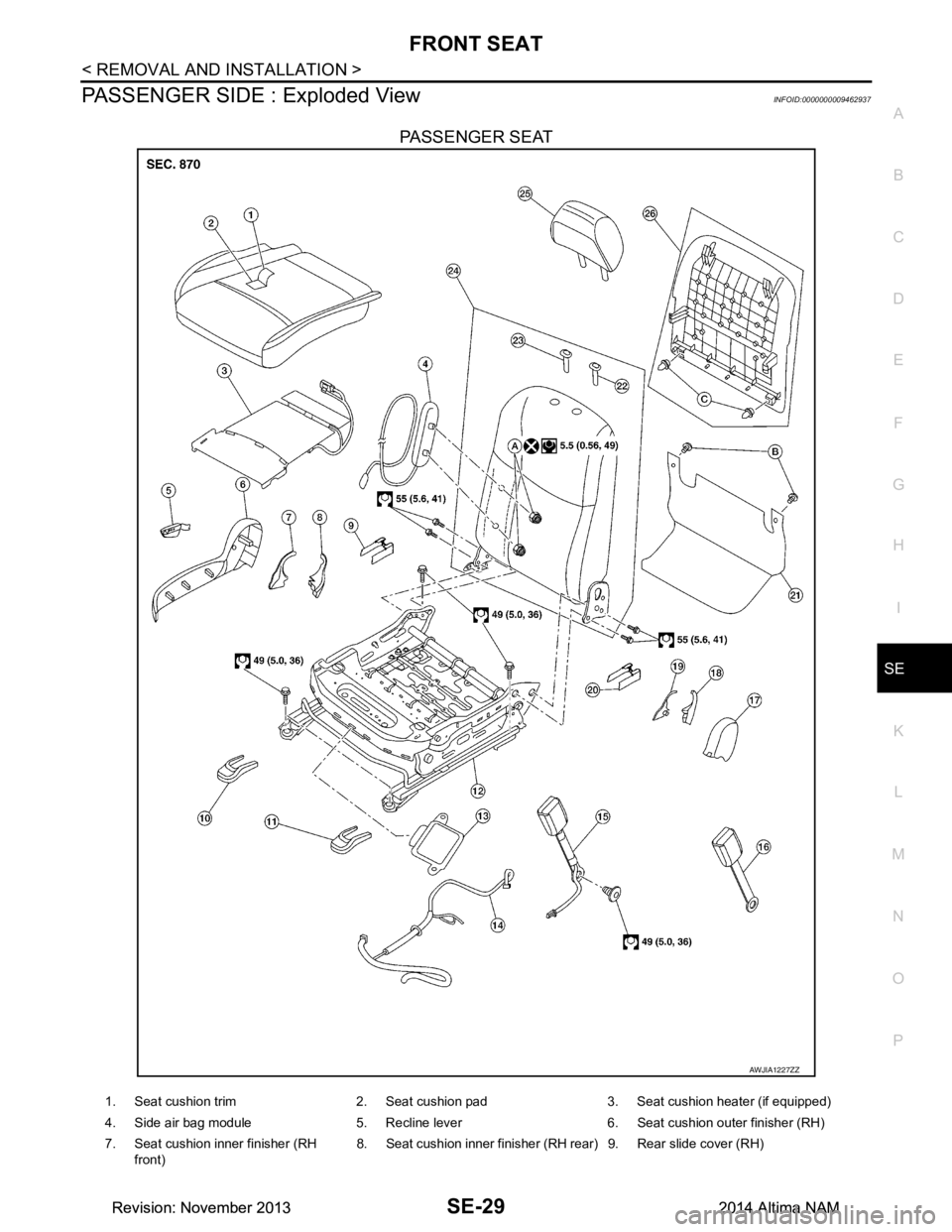

PASSENGER SIDE : Exploded ViewINFOID:0000000009462937
PASSENGER SEAT
AWJIA1227ZZ
1. Seat cushion trim 2. Seat cushion p

Page 3779 of 4801

NISSAN TEANA 2014 Service Manual
SE-30
< REMOVAL AND INSTALLATION >
FRONT SEAT
PASSENGER SIDE : Removal and Installation - Seat Assembly
INFOID:0000000009462938
REMOVAL
WARNING:
Do not leave any objects (screwdriver s, tools, etc.

SE-30
< REMOVAL AND INSTALLATION >
FRONT SEAT
PASSENGER SIDE : Removal and Installation - Seat Assembly
INFOID:0000000009462938
REMOVAL
WARNING:
Do not leave any objects (screwdriver s, tools, etc.) on the seat during seat repair. It can lead to per-
sonal injury if the side air bag module should accidentally deploy.
CAUTION:
• When removing or installing the seat trim, handle it carefully to keep dirt out and to avoid damage.
• When checking the power seat circuit for continuity using a circuit tester, do not confuse its connec-
tor with the side air bag module connector. Such an error may cau se the air bag module to deploy.
• Do not drop, tilt, or bump the si de air bag module while installing the seat. Always handle it with
care.
• After front side air bag module inflates, the front seatback assembly must be replaced.
• When removing and installing the seat, use shop cloths to protect components from damage.
• Before removing the front seat, turn the ignition switch OFF, disconnect both battery cables and wait
at least three minutes.
1. Disconnect the negative and positive battery terminal s and wait at least three minutes. Refer to PG-73,
"Removal and Installation (Battery)".
2. Remove the headrest.
3. Slide the seat to the full rearward position.
4. Remove the front slide covers (LH/RH) (A) by releasing four pawls on each.
: Pawl
5. Remove the two front seat bolts.
6. Slide the seat to the full forward position.
7. Remove the two rear seat bolts.
8. Tilt the seat rearward to disconnect the harness connectors from the seat and remove.
INSTALLATION
Installation is in the reverse order of removal.
WARNING:
• Perform additional services when instal ling front passenger seat. Refer to SRC-42, "ZERO POINT
RESET : Description".
• Zero point reset must be performed every time th e front passenger seat is removed from the vehicle.
• Zero point reset is done after the front passenger seat is installed in vehicle and all bolts are tight-
ened to specification.
CAUTION:
Make sure that the seat harness or the floor trim is not damaged during installation.
10. Front slide cover (RH) 11. Front sl ide cover (LH) 12. Seat frame assembly
13. Occupant classification control unit 14. Seat harness 15. Seat belt buckle with switch
16. Seat belt buckle without switch 17. Seat cushion outer finisher (LH) 18. Seat cushion inner finisher (LH rear)
19. Seat cushion inner finisher (LH front) 20. Rear slide cover (LH) 21. Rear hinge cover
22. Headrest holder (locked) 23. Headrest holder (free) 24. Seatback assembly
25. Headrest 26. Seatback board A. Side air bag module nuts
B. Rear hinge cover clips C. Seatback board clips
ALJIA0929ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 3780 of 4801

NISSAN TEANA 2014 Service Manual
FRONT SEATSE-31
< REMOVAL AND INSTALLATION >
C
D E
F
G H
I
K L
M A
B
SE
N
O P
• When installing the RH front seat, tighten the bolts in the order shown.
PASSENGER SIDE : Removal and In stallation

Page 3781 of 4801

NISSAN TEANA 2014 Service Manual
SE-32
< REMOVAL AND INSTALLATION >
FRONT SEAT
2. Release pawls (A) using a suitable tool and release the seatheater switch finisher (2) from the center console assembly (1).
3. Disconnect the harnes

Page 3782 of 4801

NISSAN TEANA 2014 Service Manual
REAR SEATSE-33
< REMOVAL AND INSTALLATION >
C
D E
F
G H
I
K L
M A
B
SE
N
O P
REAR SEAT

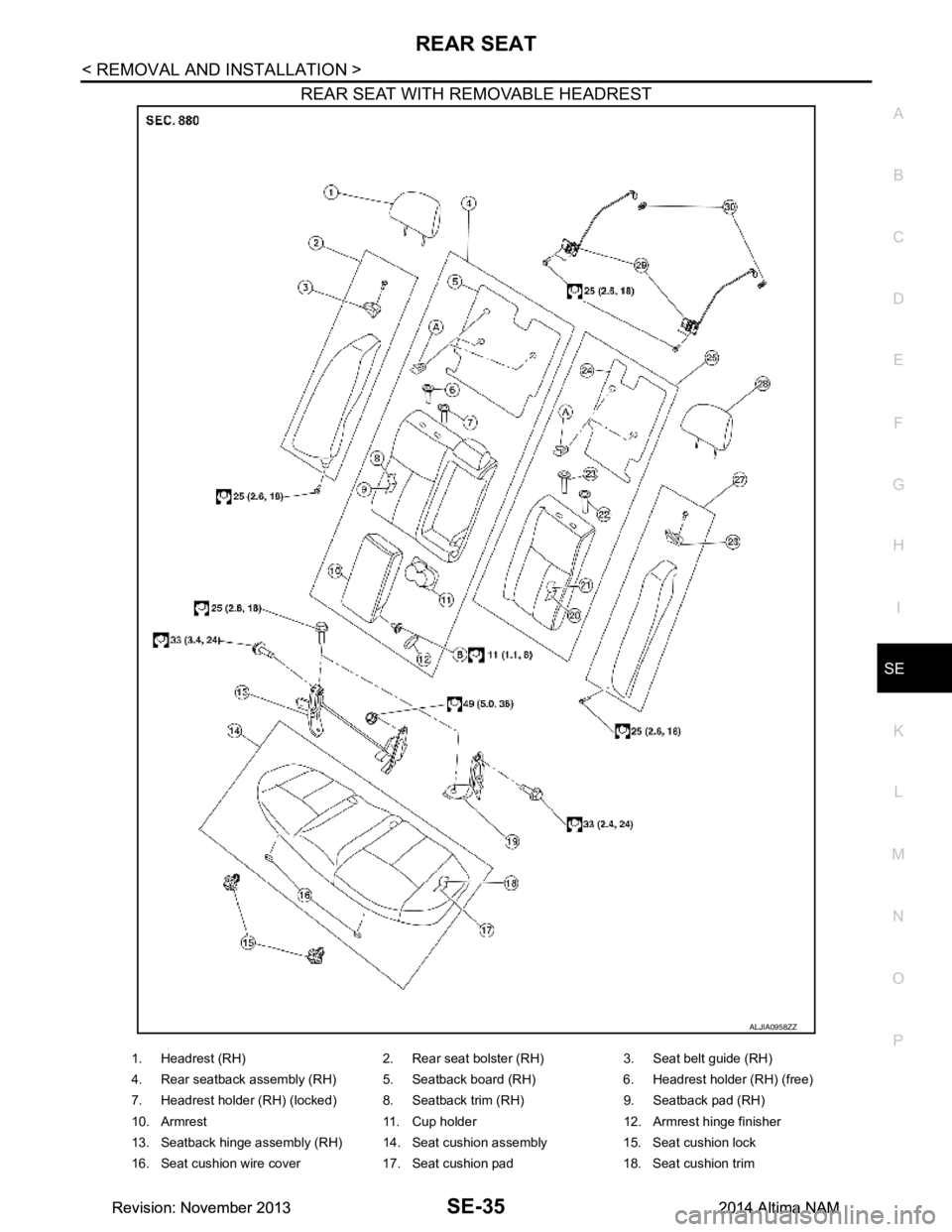

Exploded ViewINFOID:0000000009462941
REAR SEAT WITHOUT REMOVABLE HEADREST
ALJIA0959ZZ
1. Rear seatback assembl

Page 3783 of 4801

NISSAN TEANA 2014 Service Manual
SE-34
< REMOVAL AND INSTALLATION >
REAR SEAT
7. Armrest 8. Cup holder 9. Armrest hinge finisher
10. Seatback hinge assembly (RH) 11. Seat cushion assembly 12. Seat cushion wire cover
13. Seat cushi

Page 3784 of 4801

NISSAN TEANA 2014 Service Manual
REAR SEATSE-35
< REMOVAL AND INSTALLATION >
C
D E
F
G H
I
K L
M A
B
SE
N
O P

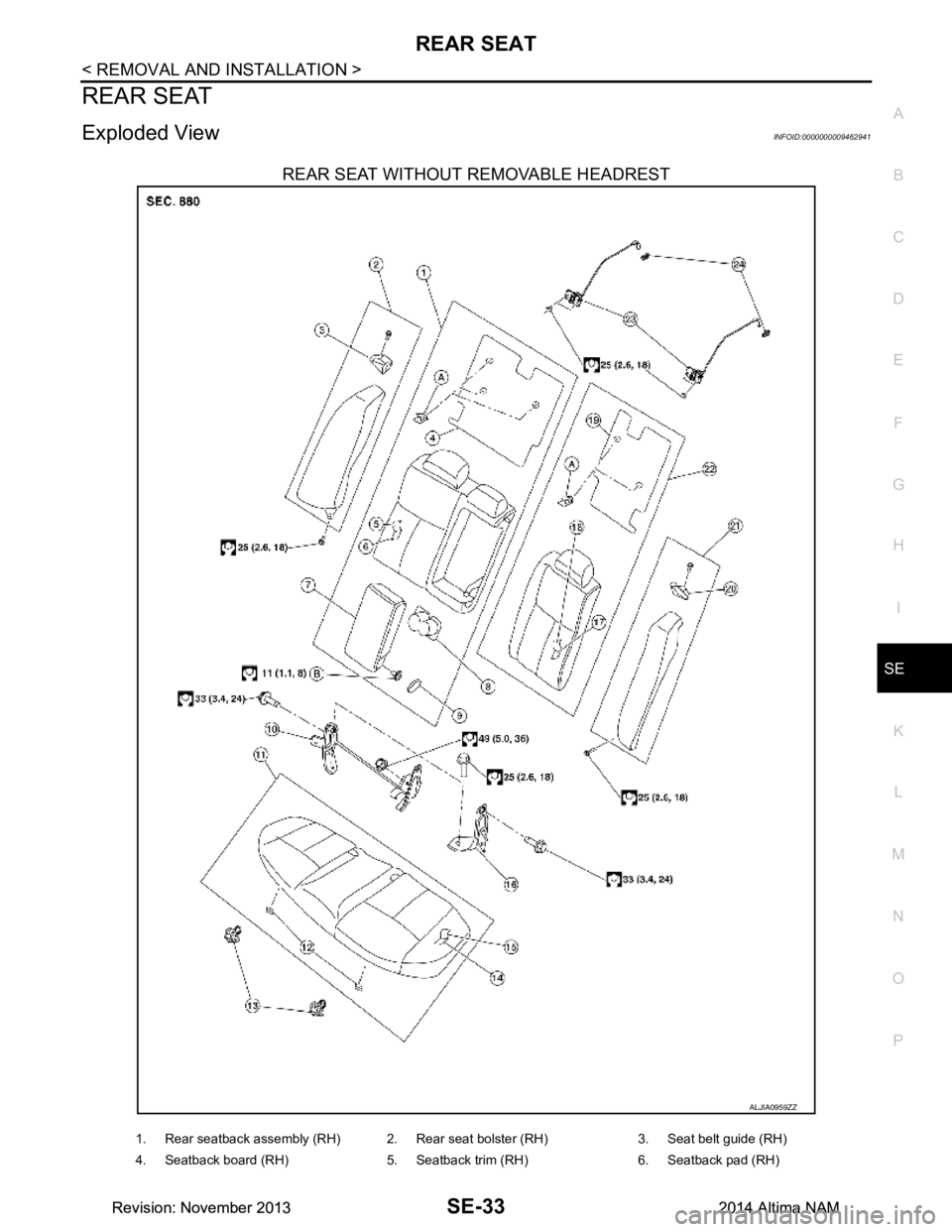

REAR SEAT WITH REMOVABLE HEADREST
ALJIA0958ZZ
1. Headrest (RH) 2. Rear seat bolster (RH) 3. Seat belt guide (RH)
4. Rea
