Page 2865 of 4801
INL-44
< WIRING DIAGRAM >
ILLUMINATION

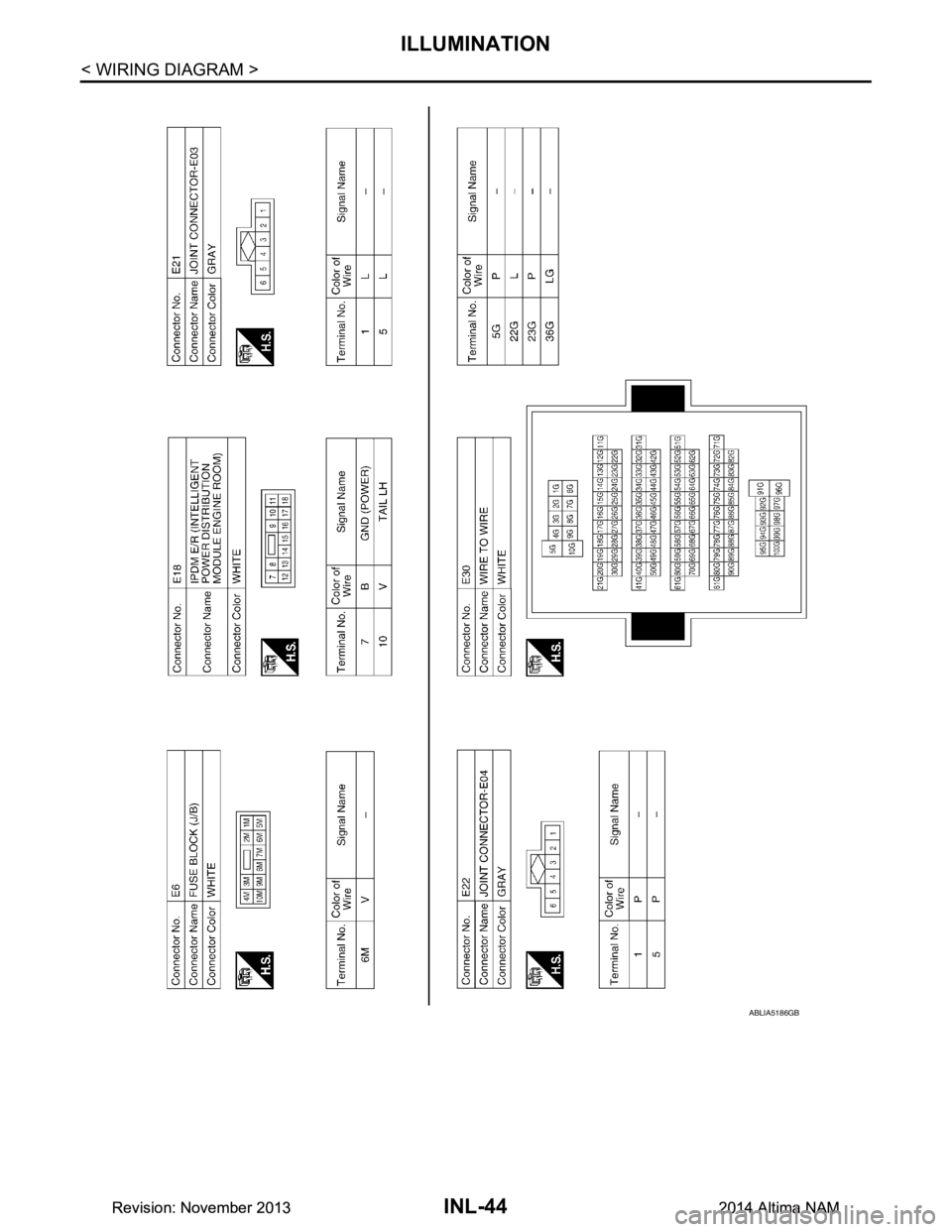

ABLIA5186GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 2866 of 4801
ILLUMINATIONINL-45
< WIRING DIAGRAM >
C
D E
F
G H
I
J
K
M A
B
INL
N
O P

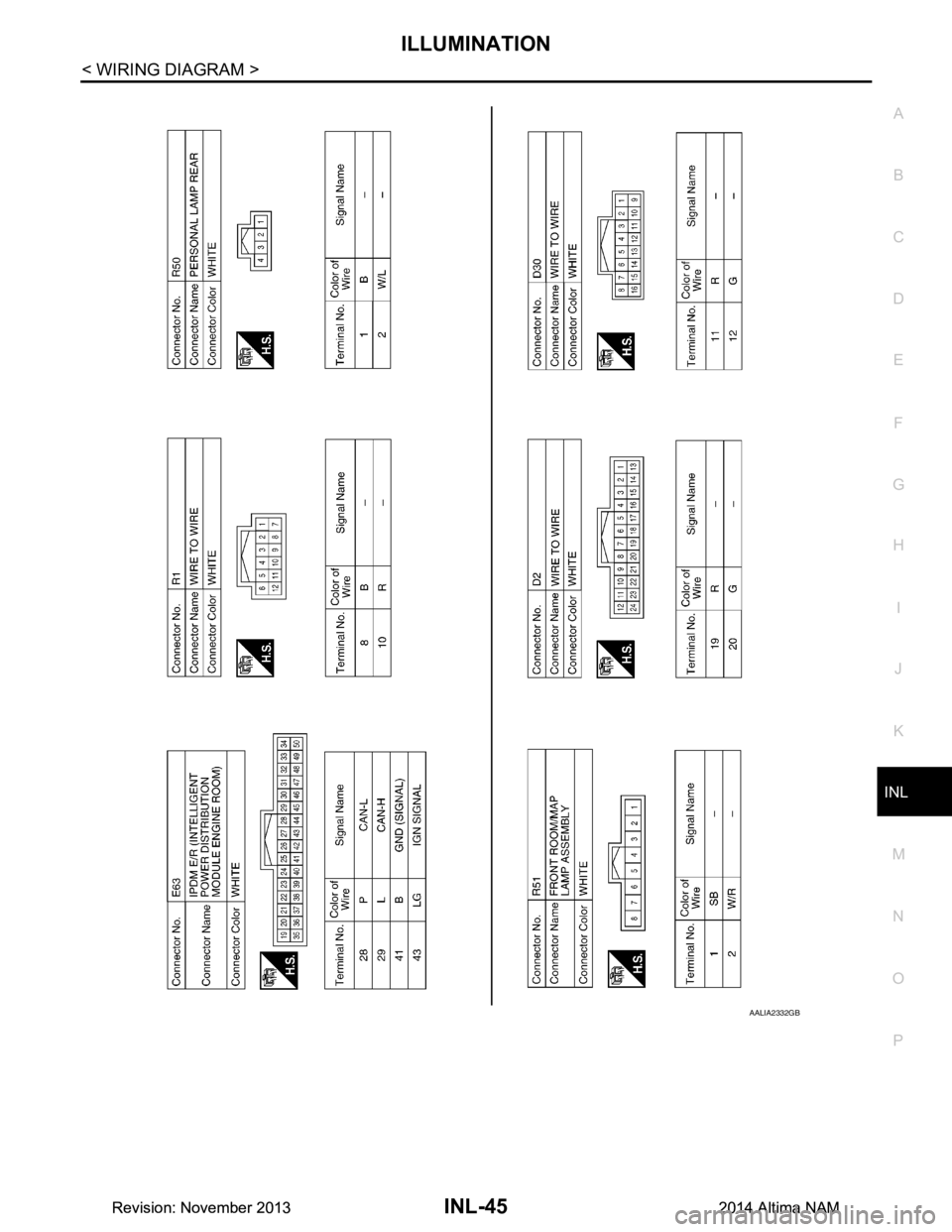

AALIA2332GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 2867 of 4801
INL-46
< WIRING DIAGRAM >
ILLUMINATION
ABLIA5188GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 2868 of 4801
DIAGNOSIS AND REPAIR WORKFLOWINL-47
< BASIC INSPECTION >
C
D E
F
G H
I
J
K
M A
B
INL
N
O P
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORKFLOW
Work FlowINFOID:0000000009463876

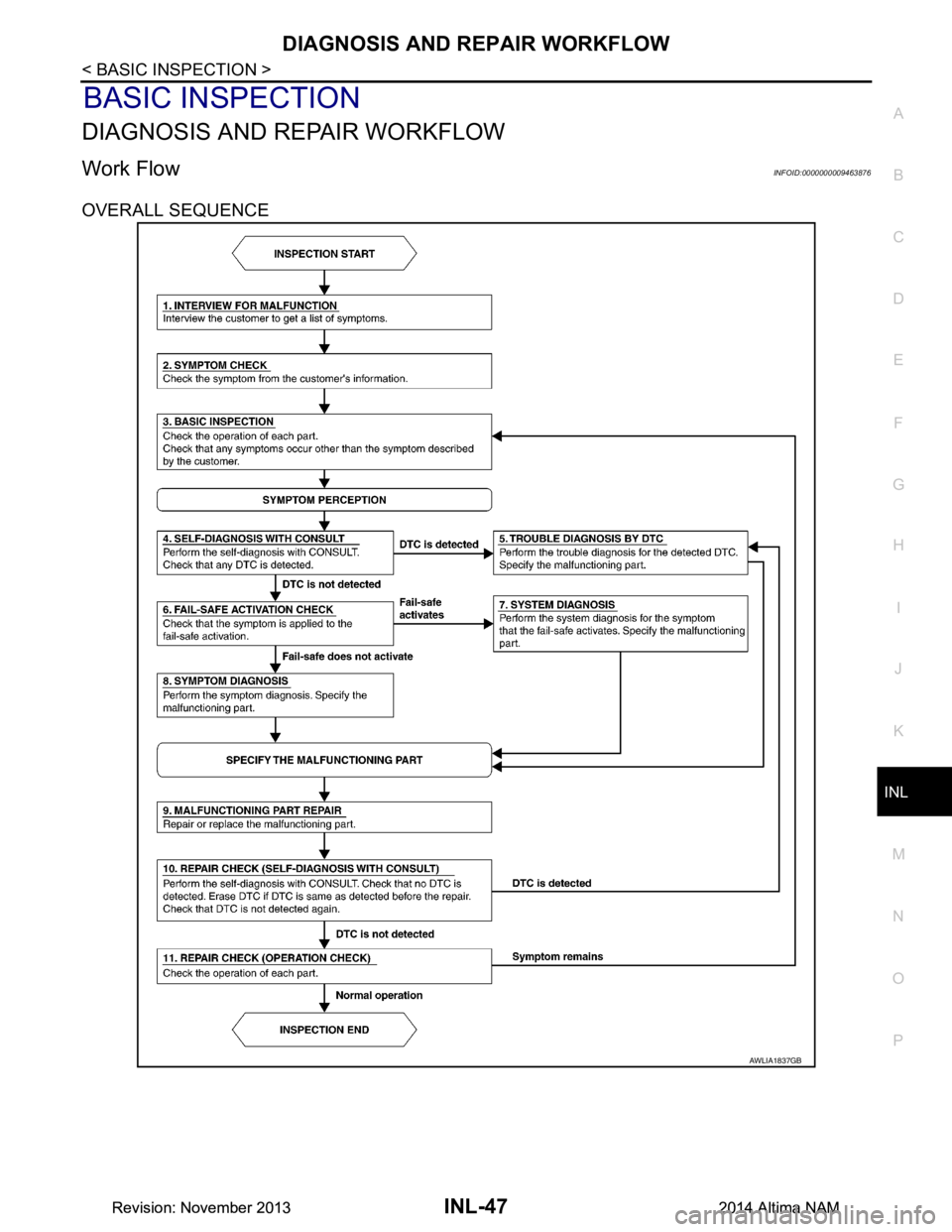

OVERALL SEQUENCE
AWLIA1837GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 2869 of 4801

INL-48
< BASIC INSPECTION >
DIAGNOSIS AND REPAIR WORKFLOW
DETAILED FLOW
1.INTERVIEW FOR MALFUNCTION
Find out what the customer's concerns are.
>> GO TO 2.
2.SYMPTOM CHECK
Verify the symptom from t he customer's information.
>> GO TO 3.
3.BASIC INSPECTION
Check the operation of each part. Check that any conc erns occur other than those mentioned in the customer
interview.
>> GO TO 4.
4.SELF-DIAGNOSIS WITH CONSULT
Perform the self-diagnosis with CONSUL T. Check that any DTC is detected.
Is any DTC detected?
YES >> GO TO 5.
NO >> GO TO 6.
5.TROUBLE DIAGNOSIS BY DTC
Perform the trouble diagnosis for the detect ed DTC. Specify the malfunctioning part.
>> GO TO 9.
6.FAIL-SAFE ACTIVATION CHECK
Determine if the customer's concern is related to fail-safe activation.
Does the fail-safe activate?
YES >> GO TO 7.
NO >> GO TO 8.
7.SYSTEM DIAGNOSIS
Perform the system diagnosis for the system in which the fail-safe activates. Specify the malfunctioning part.
>> GO TO 9.
8.SYMPTOM DIAGNOSIS
Perform the symptom diagnosis, refer to INL-62, "Symptom Table"
. Specify the malfunctioning part.
>> GO TO 9.
9.MALFUNCTION PART REPAIR
Repair or replace the malfunctioning part.
>> GO TO 10.
10.REPAIR CHECK (SELF-DIAGNOSIS WITH CONSULT)
Perform the self-diagnosis with CONSULT. Verify that no DTCs are detected. Erase all DTCs detected prior to
the repair. Verify that DTC is not detected again.
Is any DTC detected?
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 2870 of 4801
DIAGNOSIS AND REPAIR WORKFLOWINL-49
< BASIC INSPECTION >
C
D E
F
G H
I
J
K
M A
B
INL
N
O P
YES >> GO TO 5.
NO >> GO TO 11.
11 .REPAIR CHECK (OPERATION CHECK)
Check the operation of each part.
Does it operate normally?
YES >> Inspection End
NO >> GO TO 3.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 2871 of 4801

INL-50
< DTC/CIRCUIT DIAGNOSIS >
POWER SUPPLY AND GROUND CIRCUIT
DTC/CIRCUIT DIAGNOSIS
POWER SUPPLY AND GROUND CIRCUIT
BCM
BCM : Diagnosis ProcedureINFOID:0000000009956807
Regarding Wiring Diagram information, refer to BCS-55, "Wiring Diagram".
1. CHECK FUSE AND FUSIBLE LINK
Check that the following fuse and fusible link are not blown.
Is the fuse or fusible link blown?
YES >> Replace the blown fuse or fusible link after repairing the affected circuit.
NO >> GO TO 2
2. CHECK POWER SUPPLY CIRCUIT
1. Disconnect BCM connector M21.
2. Check voltage between BCM connector M21 terminals 131, 139 and ground.
Is the inspection result normal?
YES >> GO TO 3
NO >> Repair or replace harness or connectors.
3. CHECK GROUND CIRCUIT
Check continuity between BCM connector M21 terminals 134, 143 and ground.
Is the inspection result normal?
YES >> Inspection End.
NO >> Repair or replace harness or connectors.
IPDM E/R
IPDM E/R : Diagnosis ProcedureINFOID:0000000009956808
Regarding Wiring Diagram information, refer to PCS-21, "Wiring Diagram".
1. CHECK FUSIBLE LINKS
Terminal No. Signal name Fuse and fusible link No.
139 Fusible link battery power I (40A)
131 BCM battery fuse 1 (10A)
BCM GroundVo l ta g e
(Approx.)
Connector Terminal
M21 131
— Battery voltage
139
BCM Ground Continuity
Connector Terminal
M21 134
—Yes
143
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 2872 of 4801

POWER SUPPLY AND GROUND CIRCUITINL-51
< DTC/CIRCUIT DIAGNOSIS >
C
D E
F
G H
I
J
K
M A
B
INL
N
O P
Check that the following fusible links are not blown.
Is the fusible link blown?
YES >> Replace the blown fusible link after repairing the affected circuit.
NO >> GO TO 2
2. CHECK POWER SUPPLY CIRCUIT
1. Disconnect IPDM E/R connectors E16 and E17.
2. Check voltage between IPDM E/R connectors and ground.
Is the inspection result normal?
YES >> GO TO 3
NO >> Repair or replace harness or connectors.
3. CHECK GROUND CIRCUIT
1. Disconnect IPDM E/R connectors E18 and E63.
2. Check continuity between IPDM E/R connectors and ground.
Is the inspection result normal?
YES >> Inspection End.
NO >> Repair or replace harness or connectors.
Terminal No. Signal name Fusible link No.
1 Fusible link main E (80A)
2 Fusible link IPDM E/R A (250A), C (80A)
3 Fusible link ignition switch A (250A), B (100A), M (40A)
IPDM E/R GroundVol tag e
(Approx.)
Connector Terminal
E16 1
— Battery voltage
2
E17 3
IPDM E/R Ground Continuity
Connector Terminal
E18 7 —Yes
E63 41
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
