Page 161 of 4801

NISSAN TEANA 2014 Service Manual
SYSTEMBRC-15
< SYSTEM DESCRIPTION > [VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
N
O P
Front RH brake caliper• Since the cut valve 1 and the suction valve 1 are closed, the front RH brake caliper, m

SYSTEMBRC-15
< SYSTEM DESCRIPTION > [VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
N
O P
Front RH brake caliper• Since the cut valve 1 and the suction valve 1 are closed, the front RH brake caliper, master cylinder, and res- ervoir are blocked. This maintains fluid pressure applied on the front RH brake caliper. The pressurization for
the left caliper is controlled separately from the right caliper.
Front LH brake caliper
• Since the cut valve 2 and the suction valve 2 are clos ed, the front LH brake caliper, master cylinder, and res-
ervoir are blocked. This maintains fluid pressure app lied on the front LH brake caliper. The pressurization for
the right caliper is controlled separately from the left caliper.
Rear RH brake caliper
• Since the cut valve 2 and the suction valve 2 are clos ed, the rear RH brake caliper, master cylinder, and res-
ervoir are blocked. This maintains fluid pressure applied on the rear RH brake caliper. The pressurization for
the left caliper is controlled separately from the right caliper.
Rear LH brake caliper• Since the cut valve 1 and the suction valve 1 are closed, the rear LH brake caliper, master cylinder, and res- ervoir are blocked. This maintains fluid pressure app lied on the rear LH brake caliper. The pressurization for
the right caliper is controlled separately from the left caliper.
VDC and TCS Functions Operating (Pressure Decreases)
Suction valve 2 Power supply is not supplied (close) Power supply is not supplied (close)
ABS IN valve Power supp ly is not supplied (open) Power supp ly is not supplied (open)
ABS OUT valve Power supp ly is not supplied (close) Power supply is not supplied (close)
Each brake caliper (fluid pressure) — Pressure holds Name Not activated Pressure holds

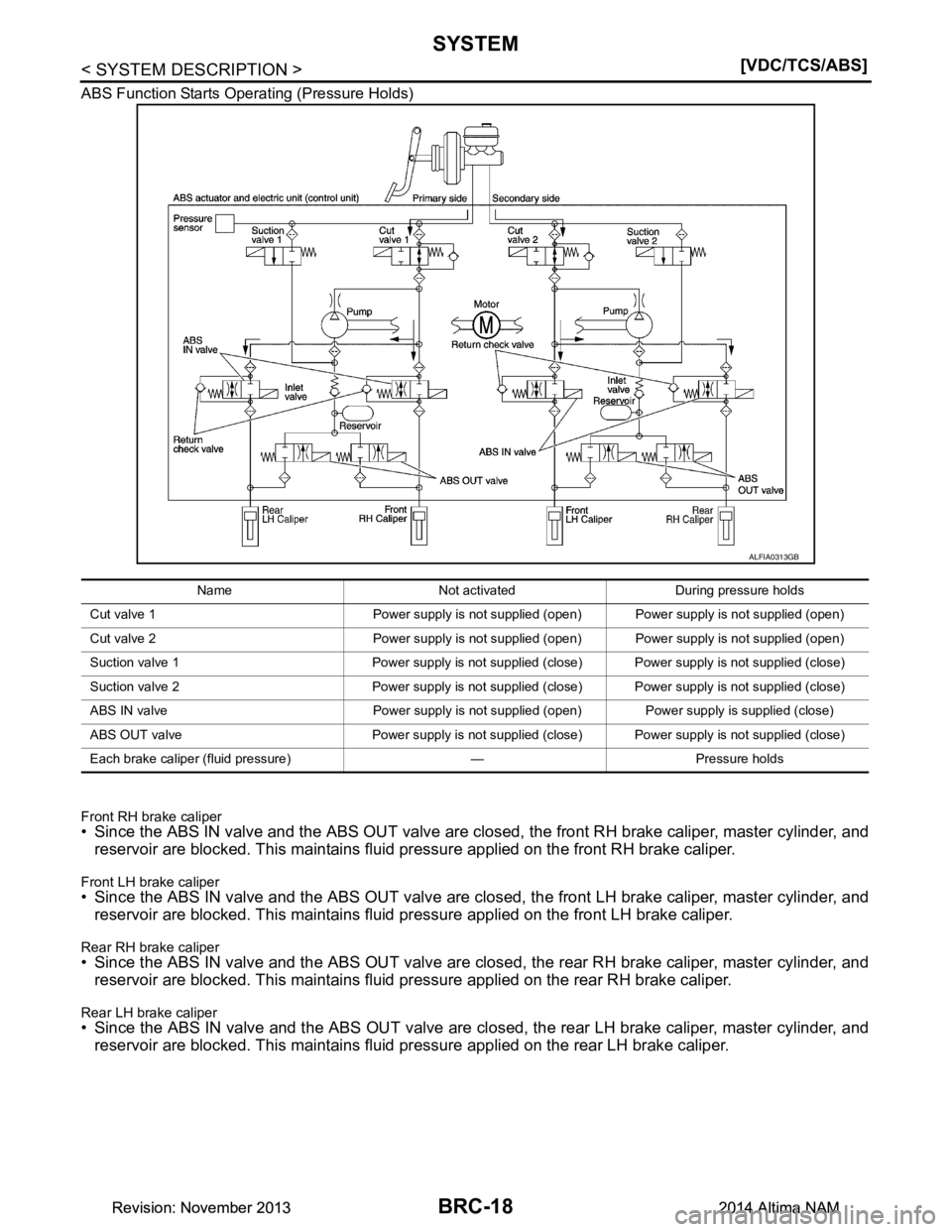

ALFIA0311GB
Name Not activated During pressure decreases
Cut valve 1 Power supply is not supplied (open) Power supply is not supplied (open)
Cut valve 2 Power supply is not supplied (open) Power supply is not supplied (open)
Suction valve 1 Power supply is not supplied (close) Power supply is not supplied (close)
Suction valve 2 Power supply is not supplied (close) Power supply is not supplied (close)
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 162 of 4801

NISSAN TEANA 2014 Service Manual
BRC-16
< SYSTEM DESCRIPTION >[VDC/TCS/ABS]
SYSTEM
Front RH brake caliper• Since the suction valve 1 and the ABS OUT valve are closed and the cut valve 1 and the ABS IN valve are
open, the fluid pre

BRC-16
< SYSTEM DESCRIPTION >[VDC/TCS/ABS]
SYSTEM
Front RH brake caliper• Since the suction valve 1 and the ABS OUT valve are closed and the cut valve 1 and the ABS IN valve are
open, the fluid pressure applied on the front RH brake ca liper is reduced by supplying the fluid pressure to
the master cylinder via the ABS IN valve and the cut valv e 1. The pressurization for the right caliper is con-
trolled separately from the left caliper.
Front LH brake caliper
• Since the suction valve 2 and the ABS OUT valve are closed and the cut valve 2 and the ABS IN valve are open, the fluid pressure applied on the front LH brake caliper is reduced by supplying the fluid pressure to
the master cylinder via the ABS IN valve and the cut valv e 2. The pressurization for the left caliper is con-
trolled separately from the right caliper.
Rear RH brake caliper
• Since the suction valve 2 and the ABS OUT valve are closed and the cut valve 2 and the ABS IN valve are open, the fluid pressure applied on the rear RH brake ca liper is reduced by supplying the fluid pressure to
the master cylinder via the ABS IN valve and the cut valv e 2. The pressurization for the right caliper is con-
trolled separately from the left caliper.
Rear LH brake caliper• Since the suction valve 1 and the ABS OUT valve are closed and the cut valve 1 and the ABS IN valve are open, the fluid pressure applied on the rear LH brake cali per is reduced by supplying the fluid pressure to the
master cylinder via the ABS IN valve and the cut valve 1. The pressurization for the left caliper is controlled
separately from the right caliper.
Component Parts and Function
VALVE OPERATION (ABS AND EBD FUNCTIONS)
The control unit built into the ABS act uator and electric unit (control unit) controls fluid pressure of the brake
calipers by operating each valve.
ABS IN valve Power supply is not supplied (open) Power supply is not supplied (open)
ABS OUT valve Power supply is not supplied (close) Power supply is not supplied (close)
Each brake caliper (fluid pressure) — Pressure decreases Name Not activated During pressure decreases
Component Function
Pump Returns the brake fluid reserved in reservoir to master cylinder by reducing pressure.
Motor Activates the pu mp according to signals from ABS actuator and el ectric unit (control unit).
Cut valve 1
Cut valve 2 Shuts off the ordinary brake line from master cylinder.
Suction valve 1
Suction valve 2 Supplies the brake fluid from master cylinder to the pump.
ABS IN valve Switches the fluid pressure line to increase or hold according to signals from control unit.
ABS OUT valve Switches the fluid pressure li ne to increase, hold or decrease according to si gnals from control unit.
Return check valve Returns the brake fluid from brake caliper to master cylinder by bypassing orifice of each valve when
brake is released.
Reservoir Temporarily reserves the brake fluid drained from brake caliper, so that pressure efficiently decreas-
es when decreasing pressure of brake caliper.
Pressure sensor Detects the brak e fluid pressure and transmits signal to ABS actuator and electric unit (control unit).
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 163 of 4801

NISSAN TEANA 2014 Service Manual
SYSTEMBRC-17
< SYSTEM DESCRIPTION > [VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
N
O P
Brake Pedal Applied or ABS Function
Operating (Pressure Increases)
Front RH brake caliper
• When the cut valve

Page 164 of 4801

NISSAN TEANA 2014 Service Manual
BRC-18
< SYSTEM DESCRIPTION >[VDC/TCS/ABS]
SYSTEM

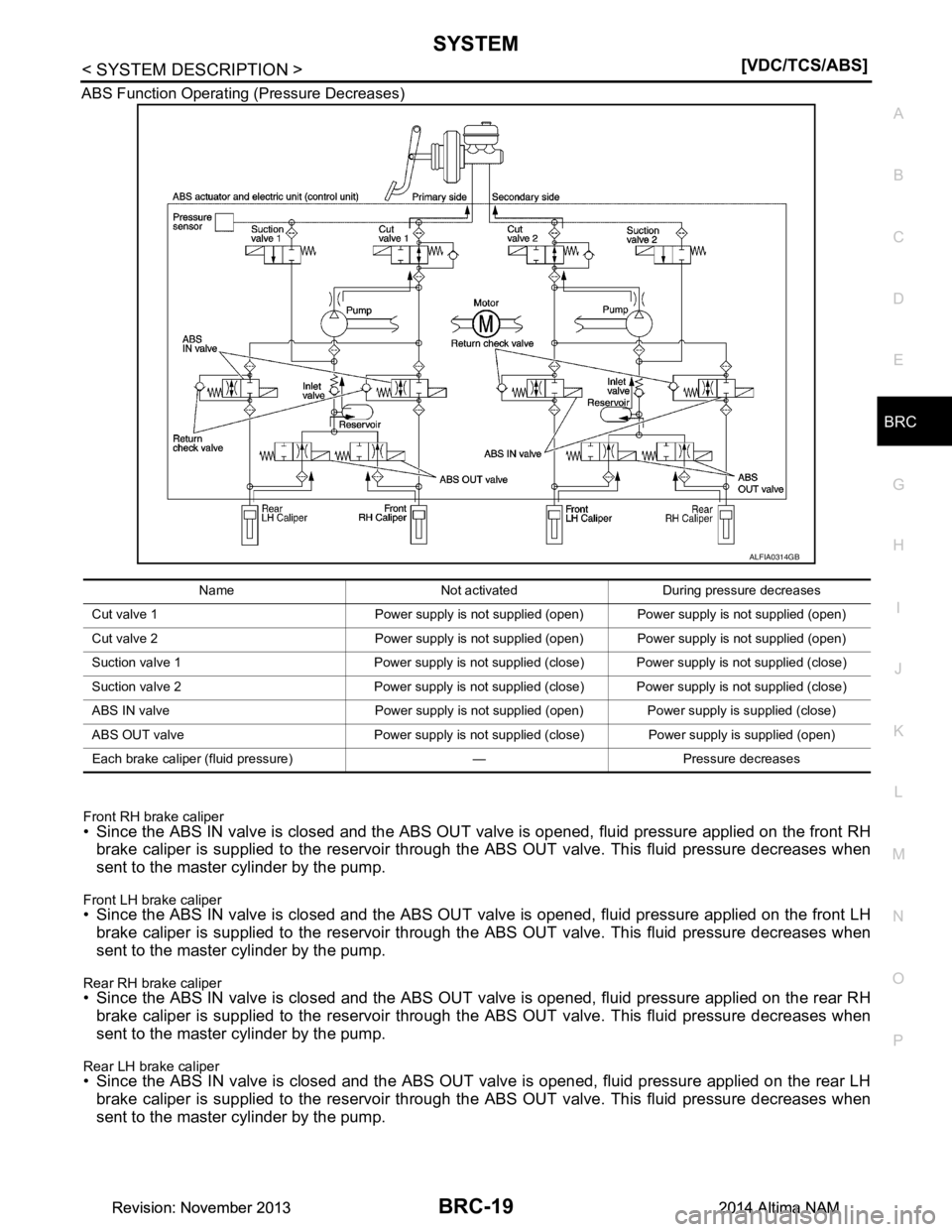

ABS Function Starts Operating (Pressure Holds)
Front RH brake caliper
• Since the ABS IN valve and the ABS OUT valve are cl
osed, the front RH brak

Page 165 of 4801

NISSAN TEANA 2014 Service Manual
SYSTEMBRC-19
< SYSTEM DESCRIPTION > [VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
N
O P
ABS Function Operating
(Pressure Decreases)
Front RH brake caliper
• Since the ABS IN valve is closed and the

Page 166 of 4801

NISSAN TEANA 2014 Service Manual
BRC-20
< SYSTEM DESCRIPTION >[VDC/TCS/ABS]
SYSTEM
ABS Function Operating
(Pressure Increases)
Front RH brake caliper
• Brake fluid is supplied to the front RH brake caliper from the master cylinde

BRC-20
< SYSTEM DESCRIPTION >[VDC/TCS/ABS]
SYSTEM
ABS Function Operating
(Pressure Increases)
Front RH brake caliper
• Brake fluid is supplied to the front RH brake caliper from the master cylinder through the cut valve 1 and the
ABS IN valve. Since the suction valve 1 and the ABS OU T valve is closed, the fluid does not flow into the
reservoir. The amount of brake fluid supplied to the fr ont RH brake caliper from the master cylinder is con-
trolled according to time that the ABS IN valve is not energized (time that the ABS IN valve is open).
Front LH brake caliper• Brake fluid is supplied to the front LH brake caliper from the master cylinder through the cut valve 2 and the
ABS IN valve. Since the suction valve 2 and the ABS OU T valve is closed, the fluid does not flow into the
reservoir. The amount of brake fluid supplied to the fr ont LH brake caliper from the master cylinder is con-
trolled according to time that the ABS IN valve is not energized (time that the ABS IN valve is open).
Rear RH brake caliper• Brake fluid is supplied to the rear RH brake caliper from the master cylinder through the cut valve 2 and the
ABS IN valve. Since the suction valve 2 and the ABS OU T valve is closed, the fluid does not flow into the
reservoir. The amount of brake fluid supplied to the r ear RH brake caliper from the master cylinder is con-
trolled according to time that the ABS IN valve is not energized (time that the ABS IN valve is open).
Rear LH brake caliper
• Brake fluid is supplied to the rear LH brake caliper from the master cylinder through the cut valve 1 and the
ABS IN valve. Since the suction valve 1 and the ABS OU T valve is closed, the fluid does not flow into the

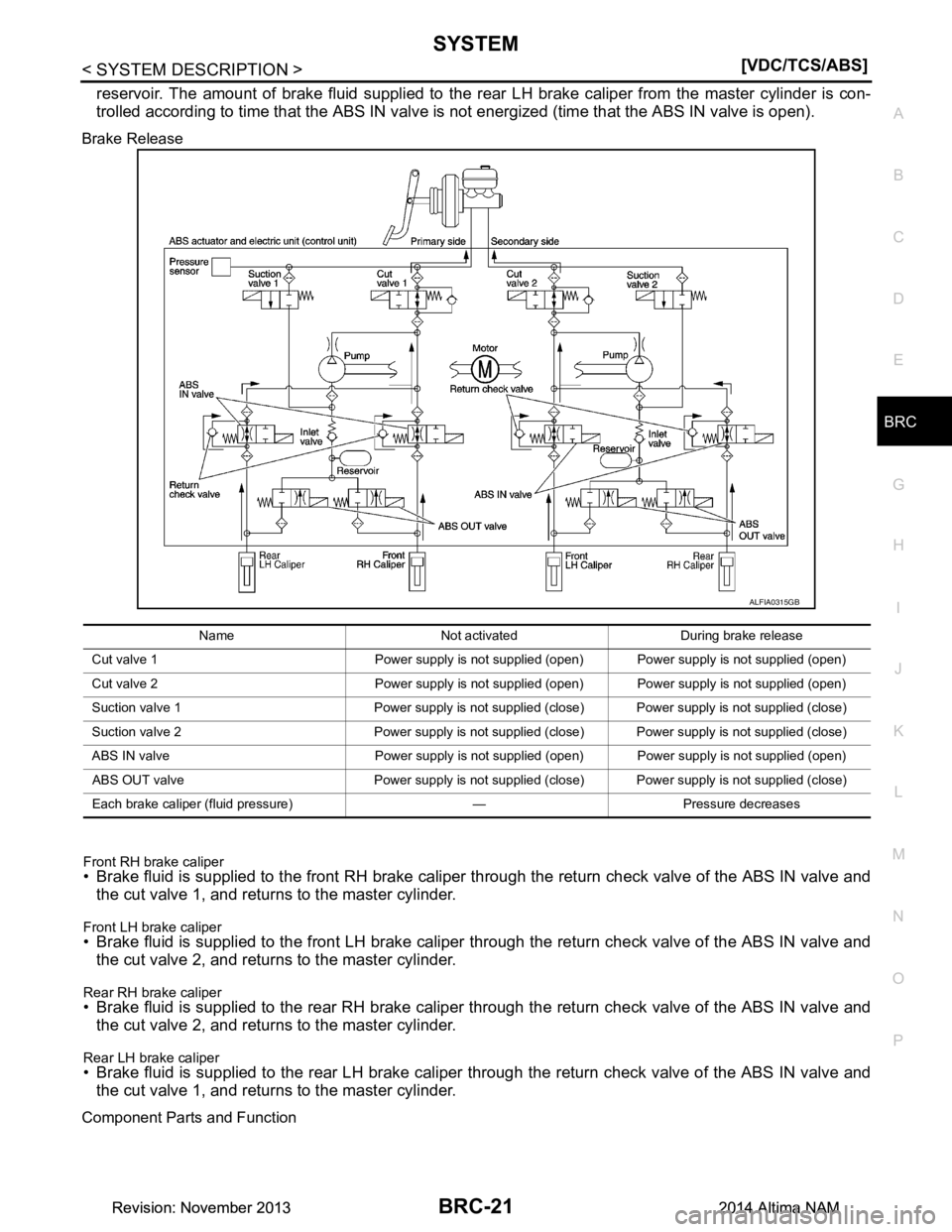

ALFIA0312GB
Name Not activated During pressure increases
Cut valve 1 Power supply is not supplied (open) Power supply is not supplied (open)
Cut valve 2 Power supply is not supplied (open) Power supply is not supplied (open)
Suction valve 1 Power supply is not supplied (close) Power supply is not supplied (close)
Suction valve 2 Power supply is not supplied (close) Power supply is not supplied (close)
ABS IN valve Power supply is not supplied (open) Power supply is not supplied (open)
ABS OUT valve Power supply is not supplied (close) Power supply is not supplied (close)
Each brake caliper (fluid pressure) — Pressure increases
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 167 of 4801

NISSAN TEANA 2014 Service Manual
SYSTEMBRC-21
< SYSTEM DESCRIPTION > [VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
N
O P
reservoir. The amount of brake fluid supplied to the r ear LH brake caliper from the master cylinder is con-
trol

Page 168 of 4801

NISSAN TEANA 2014 Service Manual
BRC-22
< SYSTEM DESCRIPTION >[VDC/TCS/ABS]
SYSTEM
CONDITIONS FOR INDICATOR LAMP ILLUMINATION
• Turns ON when VDC and TCS functions are switched to
non-operational status (OFF) by VDC OFF switch.
�

BRC-22
< SYSTEM DESCRIPTION >[VDC/TCS/ABS]
SYSTEM
CONDITIONS FOR INDICATOR LAMP ILLUMINATION
• Turns ON when VDC and TCS functions are switched to
non-operational status (OFF) by VDC OFF switch.
• Turns ON when ignition switch turns ON and turns OF F when the system is normal, for bulb check purposes.
CONDITIONS FOR WARNING LAMP ILLUMINATION
Turns ON when ignition switch turns ON and turns OFF when the system is normal, for bulb check purposes.
Component Function
Pump Returns the brake fluid reserved in reservoir to master cylinder by reducing pressure.
Motor Activates the pu mp according to signals from ABS actuator and el ectric unit (control unit).
Cut valve 1
Cut valve 2 Shuts off the ordinary brake line from master cylinder.
Suction valve 1
Suction valve 2 Supplies the brake fluid from master cylinder to the pump.
ABS IN valve Switches the fluid pressure line to increase or hold according to signals from control unit.
ABS OUT valve Switches the fluid pressure li ne to increase, hold or decrease according to si gnals from control unit.
Return check valve Returns the brake fluid from brake caliper to master cylinder by bypassing orifice of each valve when
brake is released.
Reservoir Temporarily reserves the brake fluid drained from brake caliper, so that pressure efficiently decreas-
es when decreasing pressure of brake caliper.
Pressure sensor Detects the brak e fluid pressure and transmits signal to ABS actuator and electric unit (control unit).
Condition (status) VDC OFF indicator lamp SLIP indicator lamp
Ignition switch OFF OFF OFF
For approx. 1 second after the ignition switch
is turned ON ON ON
Approx. 1 second after ignition switch is
turned ON (when the system is in normal op-
eration) OFF OFF
When VDC OFF switch is ON (VDC function
and TCS function are OFF) ON OFF
VDC function is malfunctioning OFF ON
TCS function is malfunctioning OFF ON
Condition (status) ABS warning lamp Brake warning lamp
Ignition switch OFF OFF OFF
For approx. 1 second after the ignition switch
is turned ON ON ON
Approx. 1 second after ignition switch is
turned ON (when the system is in normal op-
eration) OFF OFF
After engine starts OFF OFF
When parking brake operates (parking brake
switch ON) OFF ON
When brake fluid is less than the specified
level (brake fluid level switch ON) OFF ON
When vacuum sensor is malfunctioning OFF ON
VDC function is malfunctioning OFF OFF
TCS function is malfunctioning OFF OFF
ABS function is malfunctioning ON OFF
EBD function is malfunctioning ON ON
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
