2014 NISSAN TEANA Service Manual

oil reset adblue 4WD washer fluid technical specifications fuel filter

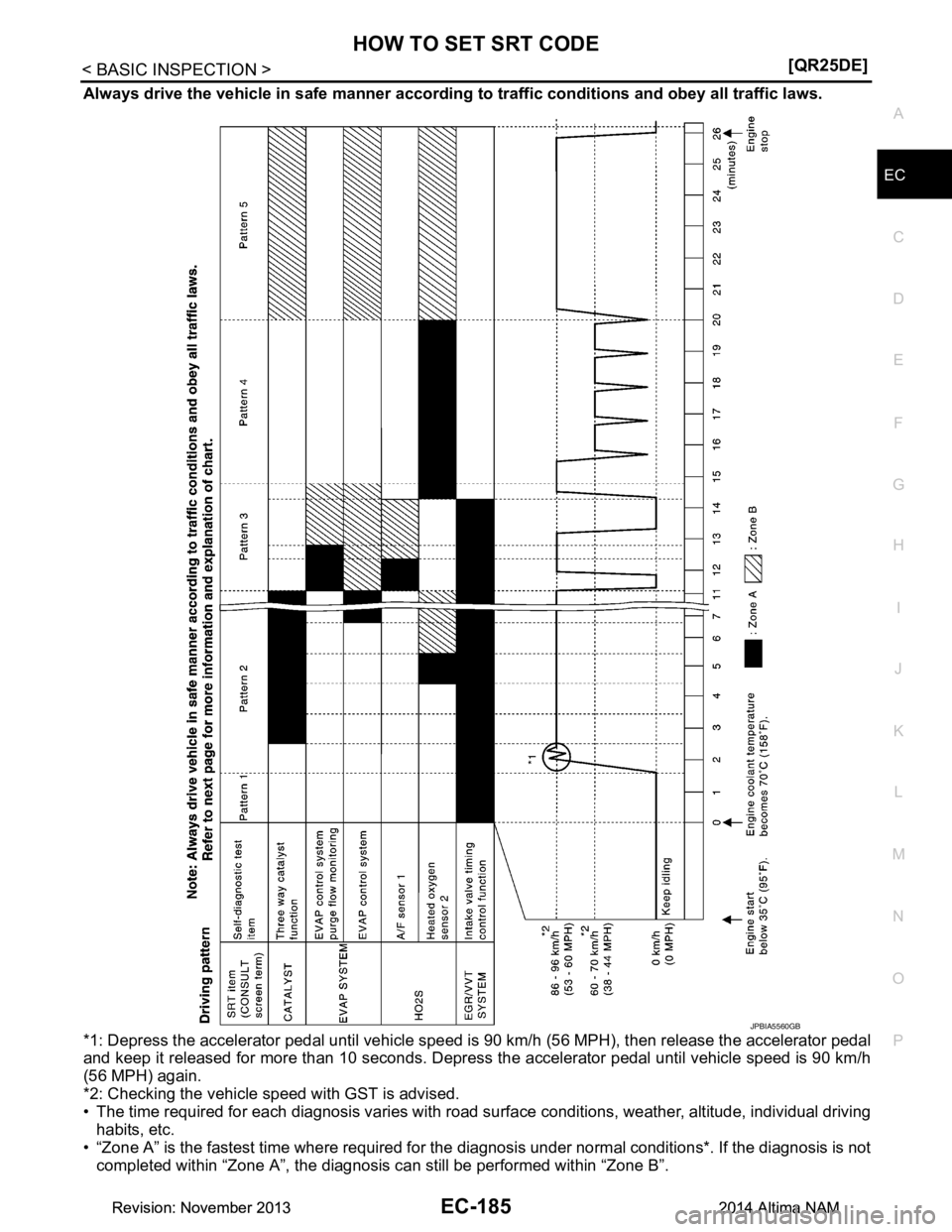

Page 1185 of 4801

NISSAN TEANA 2014 Service Manual
HOW TO SET SRT CODEEC-185
< BASIC INSPECTION > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
Always drive the vehicle in safe ma
nner according to traffic conditions and obey all traffic laws.
*1: Depres

Page 1186 of 4801

NISSAN TEANA 2014 Service Manual
EC-186
< BASIC INSPECTION >[QR25DE]
HOW TO SET SRT CODE
*: Normal conditions- Sea level
- Flat road
- Ambient air temperature: 20 – 30 °C (68 – 86 °F)
NOTE:
Diagnosis is performed as quickly

EC-186
< BASIC INSPECTION >[QR25DE]
HOW TO SET SRT CODE
*: Normal conditions- Sea level
- Flat road
- Ambient air temperature: 20 – 30 °C (68 – 86 °F)
NOTE:
Diagnosis is performed as quickly as possible under normal conditions. However, under other conditions,
diagnosis may also be performed. [For example: ambient air temperature other than 20 – 30°C (68 – 86 °F)]
Work ProcedureINFOID:0000000009462145
1.CHECK DTC
Check DTC.
Is any DTC detected?
YES >> Repair malfunction(s) and erase DTC. Refer to EC-105, "DTC Index".
NO >> GO TO 2.
2.CHECK SRT STATUS
With CONSULT
Select “SRT STATUS” in “DTC & SRT CONFIRMATION” mode with CONSULT.
Without CONSULT
Perform “SRT status” mode with EC-74, "On Board Diagnosis Function"
.
With GST
Select Service $01 with GST.
Is SRT code(s) set?
YES >> GO TO 11.
NO-1 >> With CONSULT: GO TO 3.
NO-2 >> Without CONSULT: GO TO 4.
3.DTC CONFIRMATION PROCEDURE
1. Select “SRT WORK SUPPORT” in “DTC & SRT CONFIRMATION” mode with CONSULT.
2. For SRT(s) that is not set, perform the corre sponding “DTC CONFIRMATION PROCEDURE” according to
the “Performance Priority” in the “SRT ITEM” table. Refer to EC-183, "Description"
.
3. Check DTC.
Is any DTC detected?
YES >> Repair malfunction(s) and erase DTC. Refer to EC-105, "DTC Index".
NO >> GO TO 10.
4.PERFORM ROAD TEST
• Check the “Performance Priority” in the “SRT ITEM” table. Refer to EC-183, "Description"
.
• Perform the most efficient SRT set driving pattern to set the SRT properly. Refer to EC-184, "SRT Set Driv-
ing Pattern".
In order to set all SRTs, the SRT set driving pattern must be performed at least once.
>> GO TO 5.
5.PATTERN 1
1. Check the vehicle condition;
- Engine coolant temperature is −10 to 35 °C (14 to 95 °F).
- Fuel tank temperature is more than 0 °C (32 °F).
2. Start the engine.
3. Keep engine idling until the engine coolant temperature is greater than 70 °C (158 °F)
NOTE:
ECM terminal voltage is follows;
• Engine coolant temperature
- −10 to 35 °C (14 to 95 °F): 3.0 – 4.3 V
-70 °(158 °F): Less than 4.1 V
• Fuel tank temperature: Less than 1.4 V
Refer to EC-88, "Reference Value"
.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 1187 of 4801

NISSAN TEANA 2014 Service Manual
HOW TO SET SRT CODEEC-187
< BASIC INSPECTION > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
>> GO TO 6.
6.PATTERN 2
1. Drive the vehicle. And depress the accelerator pedal until vehicle speed is 90 km/

Page 1188 of 4801

NISSAN TEANA 2014 Service Manual
EC-188
< BASIC INSPECTION >[QR25DE]
HOW TO SET SRT CODE
NOTE:
Permanent DTC cannot be checked with a tool other than CONSULT or GST.
With CONSULT
Select “SRT STATUS” in “DTC & SRT CONFIRMATIO

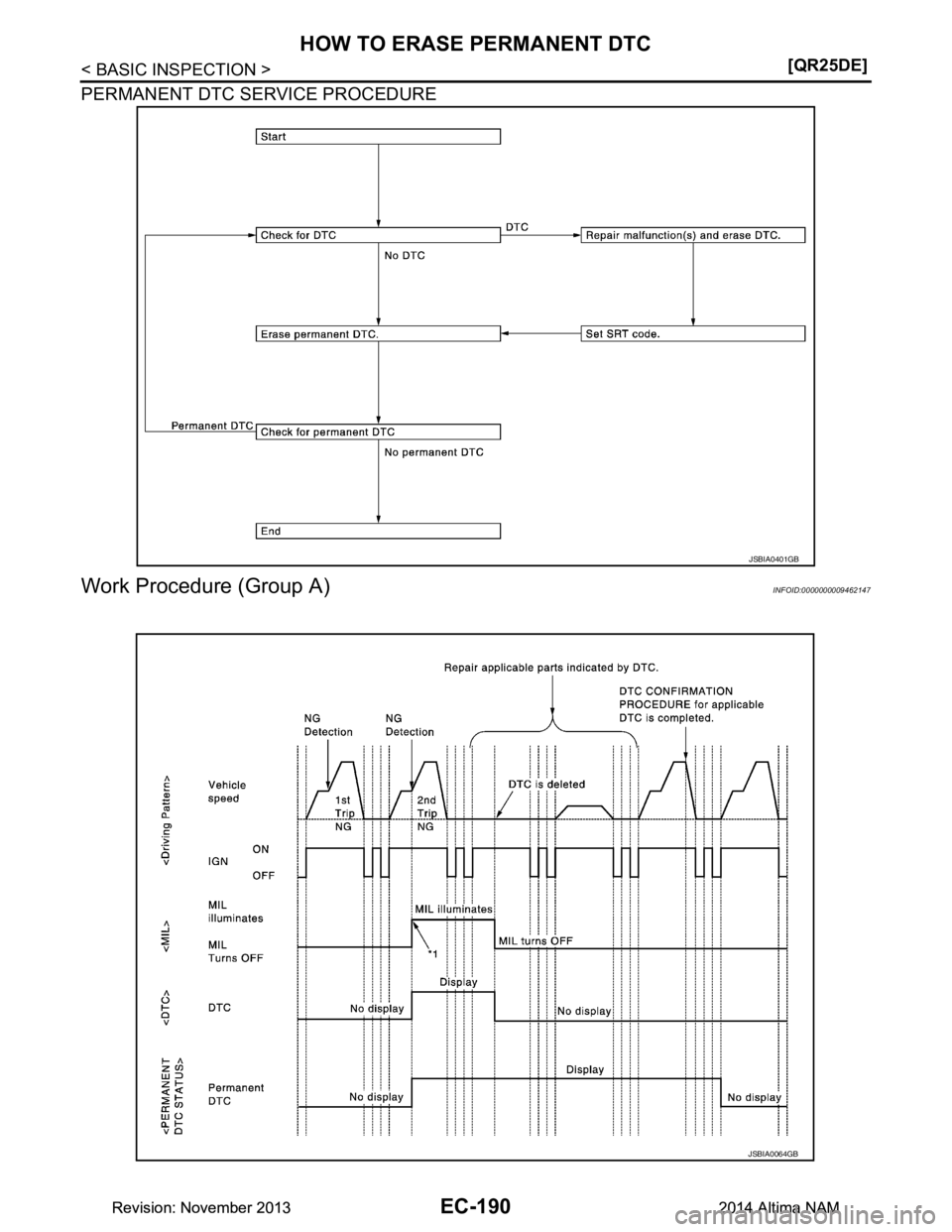

Page 1189 of 4801

NISSAN TEANA 2014 Service Manual
HOW TO ERASE PERMANENT DTCEC-189
< BASIC INSPECTION > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
HOW TO ERASE PERMANENT DTC
DescriptionINFOID:0000000009462146
OUTLINE
When a DTC is stored in ECM
When

Page 1190 of 4801

NISSAN TEANA 2014 Service Manual
EC-190
< BASIC INSPECTION >[QR25DE]
HOW TO ERASE PERMANENT DTC
PERMANENT DTC SERVICE PROCEDURE
Work Procedure (Group A)INFOID:0000000009462147
JSBIA0401GB
JSBIA0064GB
Revision: November 20132014 Alti

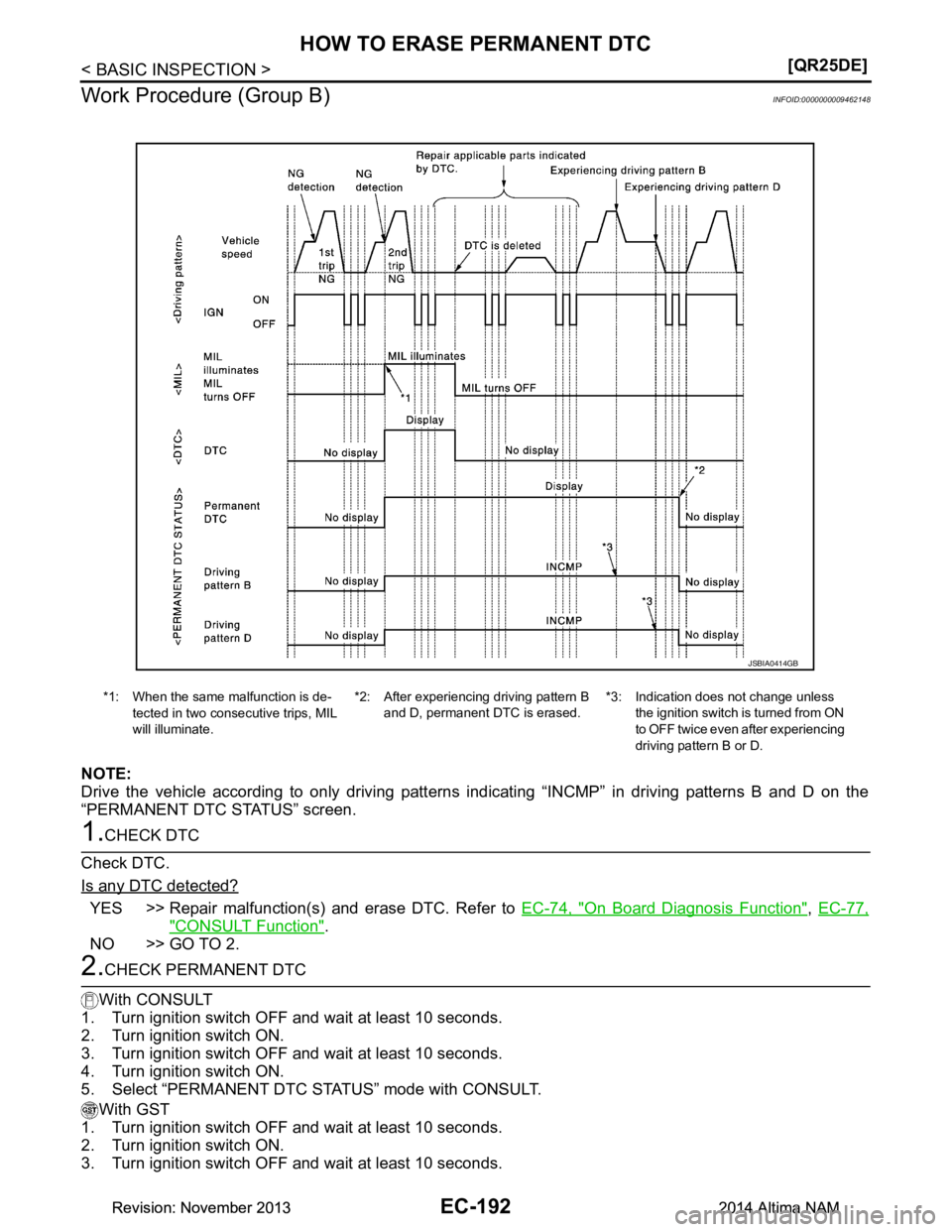

Page 1191 of 4801

NISSAN TEANA 2014 Service Manual
HOW TO ERASE PERMANENT DTCEC-191
< BASIC INSPECTION > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O1.CHECK DTC
Check DTC.
Is any DTC detected?
YES >> Repair malfunction(s) and erase DTC. Refer to EC-74

Page 1192 of 4801

NISSAN TEANA 2014 Service Manual
EC-192
< BASIC INSPECTION >[QR25DE]
HOW TO ERASE PERMANENT DTC
Work Procedure (Group B)
INFOID:0000000009462148
NOTE:
Drive the vehicle according to only driving patterns indicating “INCMP” in d
