Page 3617 of 4801

NISSAN TEANA 2014 Service Manual
PWC-110
< DTC/CIRCUIT DIAGNOSIS >[LH & RH FRONT ANTI-PINCH]
POWER WINDOW MOTOR
Is the inspection result normal?
YES >> Check rear power window switch LH. Refer to
PWC-103, "REAR POWER WINDOW SWITCH

PWC-110
< DTC/CIRCUIT DIAGNOSIS >[LH & RH FRONT ANTI-PINCH]
POWER WINDOW MOTOR
Is the inspection result normal?
YES >> Check rear power window switch LH. Refer to
PWC-103, "REAR POWER WINDOW SWITCH :
Component Inspection".
NO >> Repair or replace the harness or connectors.
3. CHECK REAR POWER WINDOW MOTOR LH
Check rear power window motor LH.
Refer to PWC-110, "REAR LH : Component Inspection"
.
Is the inspection result normal?
YES >> Check intermittent incident. Refer to GI-43, "Intermittent Incident".
NO >> Replace rear power window motor LH. Refer to GW-25, "Removal and Installation"
.
REAR LH : Component InspectionINFOID:0000000009460939
COMPONENT INSPECTION
1. CHECK REAR POWER WINDOW MOTOR LH
Check motor operation by connecting the battery voltage directly to rear power window motor LH D204.
Is the inspection result normal?
YES >> Rear power window motor LH is OK.
NO >> Replace rear power window motor LH. Refer to GW-25, "Removal and Installation"
.
REAR RH
REAR RH : DescriptionINFOID:0000000009460940
Door glass moves UP/DOWN by receiving the signal from main power window and door lock/unlock switch or
rear power window switch RH.
REAR RH : Component Function CheckINFOID:0000000009460941
1. CHECK REAR POWER WINDOW MOTOR RH CIRCUIT
Check rear power window motor RH operation with operat ing main power window and door lock/unlock switch
or rear power window switch RH.
Is the inspection result normal?
YES >> Rear power window motor RH is OK.
NO >> Refer to PWC-110, "REAR RH : Diagnosis Procedure"
.
REAR RH : Diagnosis ProcedureINFOID:0000000009460942
Regarding Wiring Diagram information, refer to PWC-83, "Wiring Diagram - With Left And Right Front Power
Window Anti-Pinch".
Rear Power Window Motor RH Circuit Check
1. CHECK REAR POWER WINDOW SWITCH RH OUTPUT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect rear power window motor RH.
3. Turn ignition switch ON.
4. Check voltage between rear power window motor RH connector D304 and ground.
Te r m i n a l Motor condition
(+) (–)
31 DOWN
13 UP
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 3618 of 4801

NISSAN TEANA 2014 Service Manual
POWER WINDOW MOTORPWC-111
< DTC/CIRCUIT DIAGNOSIS > [LH & RH FRONT ANTI-PINCH]
C
D E
F
G H
I
J
L
M A
B
PWC
N
O P
Is the measurement value within the specification?
YES >> GO TO 3.
NO >> GO TO 2.

Page 3619 of 4801

NISSAN TEANA 2014 Service Manual
PWC-112
< DTC/CIRCUIT DIAGNOSIS >[LH & RH FRONT ANTI-PINCH]
POWER WINDOW MOTOR
NO >> Replace rear power window motor RH. Refer to
GW-25, "Removal and Installation".
Revision: November 20132014 Altim

Page 3620 of 4801

NISSAN TEANA 2014 Service Manual
ENCODERPWC-113
< DTC/CIRCUIT DIAGNOSIS > [LH & RH FRONT ANTI-PINCH]
C
D E
F
G H
I
J
L
M A
B
PWC
N
O P

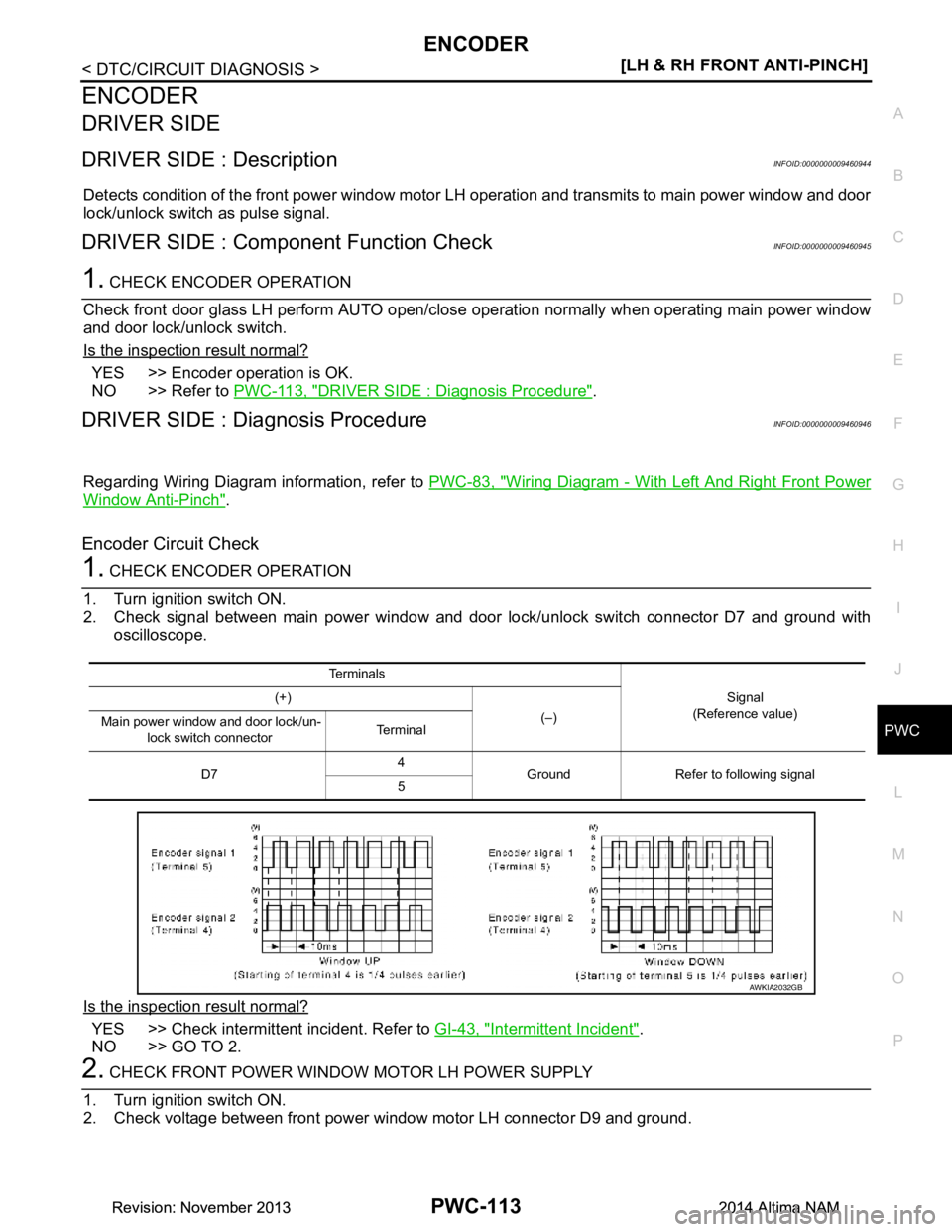

ENCODER
DRIVER SIDE
DRIVER SIDE : DescriptionINFOID:0000000009460944
Detects condition of the f

Page 3621 of 4801

NISSAN TEANA 2014 Service Manual
PWC-114
< DTC/CIRCUIT DIAGNOSIS >[LH & RH FRONT ANTI-PINCH]
ENCODER
Is the measurement value within the specification?
YES >> GO TO 4.
NO >> GO TO 3.
3. CHECK HARNESS CONTINUITY 1
1. Turn ignition s

PWC-114
< DTC/CIRCUIT DIAGNOSIS >[LH & RH FRONT ANTI-PINCH]
ENCODER
Is the measurement value within the specification?
YES >> GO TO 4.
NO >> GO TO 3.
3. CHECK HARNESS CONTINUITY 1
1. Turn ignition switch OFF.
2. Disconnect main power window and door lock/unl ock switch and front power window motor LH.
3. Check continuity between main power window and door lock/unlock switch connector D7 and front power
window motor LH connector D9.
4. Check continuity between main power window and door lock/unlock switch connector D7 and ground.
Is the inspection result normal?
YES >> Replace main power window and door lock/unlock switch. Refer to PWC-142, "Removal and
Installation". After that, refer to PWC-93, "ADDITIONAL SERVICE WHEN REPLACING CON-
TROL UNIT : Special Repair Requirement".
NO >> Repair or replace the harness or connectors.
4. CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect front power window motor LH.
3. Check continuity between front power window motor LH connector D9 and ground.
Is the inspection result normal?
YES >> GO TO 6.
NO >> GO TO 5.
5. CHECK HARNESS CONTINUITY 2
1. Disconnect main power window and door lock/unlock switch.
2. Check continuity between main power window and door lock/unlock switch connector D7 and front power
window motor LH connector D9.
Is the inspection result normal?
YES >> Replace main power window and door lock/unlock switch. Refer to PWC-142, "Removal and
Installation". After that, refer to PWC-93, "ADDITIONAL SERVICE WHEN REPLACING CON-
TROL UNIT : Special Repair Requirement".
NO >> Repair or replace the harness or connectors.
6. CHECK HARNESS CONTINUITY 3
Te r m i n a l
Voltag e
(Approx.)
(+)
(–)
Front power window motor LH
connector Te r m i n a l
D9 2 Ground 10
Main power window and door lock/ unlock switch connector Te r m i n a lFront power window motor LH
connector Terminal Continuity
D7 14 D9 2 Yes
Main power window and door lock/unlock switch connector Te r m i n a l
Ground Continuity
D7 14 No
Front power window motor LH connector Terminal GroundContinuity
D9 4 Yes
Main power window and door lock/un- lock switch connector Te r m i n a l
Front power window motor LH
connector Terminal Continuity
D7 12 D9 4 Yes
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 3622 of 4801

NISSAN TEANA 2014 Service Manual
ENCODERPWC-115
< DTC/CIRCUIT DIAGNOSIS > [LH & RH FRONT ANTI-PINCH]
C
D E
F
G H
I
J
L
M A
B
PWC
N
O P
1. Disconnect main power window and door lock/unlock switch.
2. Check continuity between main

ENCODERPWC-115
< DTC/CIRCUIT DIAGNOSIS > [LH & RH FRONT ANTI-PINCH]
C
D E
F
G H
I
J
L
M A
B
PWC
N
O P
1. Disconnect main power window and door lock/unlock switch.
2. Check continuity between main power window and door lock/unlock switch connector D7 and front power
window motor LH connector D9.
3. Check continuity between main power window and door lock/unlock switch connector D7 and ground.
Is the inspection result normal?
YES >> Replace front power window motor LH. Refer to GW-16, "Removal and Installation - Front Regula-
tor". After that, refer to PWC-93, "ADDITIONAL SERVICE WH EN REPLACING CONTROL UNIT :
Special Repair Requirement".
NO >> Repair or replace the harness or connectors.
PASSENGER SIDE
PASSENGER SIDE : DescriptionINFOID:0000000009460947
Detects condition of the front power window motor RH operation and transmits to power window and door
lock/unlock switch RH as pulse signal.
PASSENGER SIDE : Comp onent Function CheckINFOID:0000000009460948
1.CHECK ENCODER OPERATION
Check front door glass RH perform AUTO open/close operation normally when operating power window and
door lock/unlock switch RH.
Is the inspection result normal?
YES >> Encoder operation is OK.
NO >> Refer to PWC-115, "PASSENGER SIDE : Diagnosis Procedure"
.
PASSENGER SIDE : Dia gnosis ProcedureINFOID:0000000009460949
Regarding Wiring Diagram information, refer to PWC-83, "Wiring Diagram - With Left And Right Front Power
Window Anti-Pinch".
1. CHECK ENCODER SIGNAL
1. Connect front power window motor RH.
2. Turn ignition switch ON.
3. Check signal between power window and door lock/unlock switch RH connector D105 and ground with oscilloscope.
Main power window and door lock/un-
lock switch connector Te r m i n a lFront power window motor LH
connector Terminal Continuity
D7 5
D9 5
Ye s
46
Main power window and door lock/unlock switch connector Te r m i n a l
GroundContinuity
D7 5
No
4

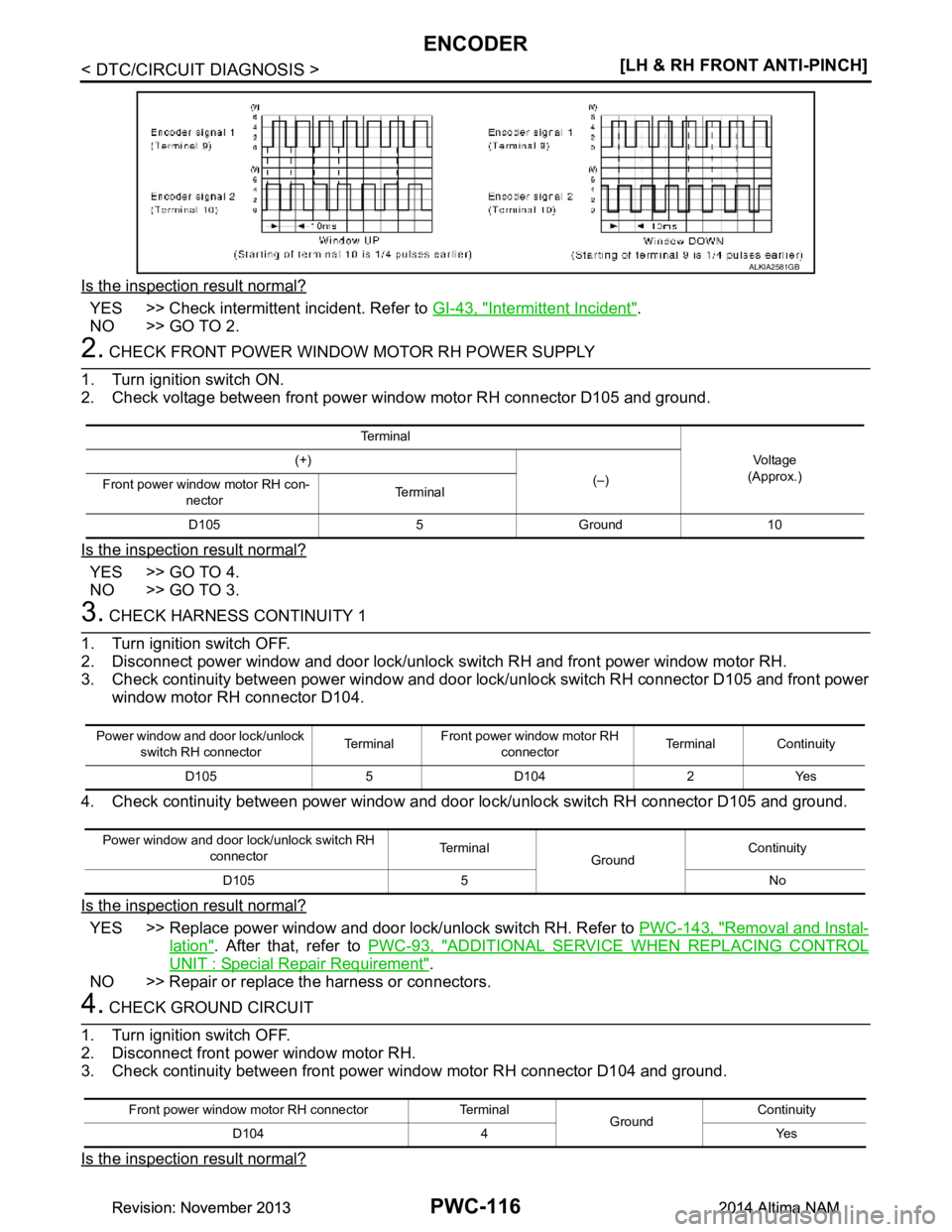

Te r m i n a l s
Signal
(Reference value)
(+)
(–)
Power window and door lock/unlock
switch RH
connector Te r m i n a l
D105 9
Ground Refer to following signal
10
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 3623 of 4801

NISSAN TEANA 2014 Service Manual
PWC-116
< DTC/CIRCUIT DIAGNOSIS >[LH & RH FRONT ANTI-PINCH]
ENCODER
Is the inspection result normal?
YES >> Check intermittent incident. Refer to
GI-43, "Intermittent Incident".
NO >> GO TO 2.
2. CH

Page 3624 of 4801

NISSAN TEANA 2014 Service Manual
ENCODERPWC-117
< DTC/CIRCUIT DIAGNOSIS > [LH & RH FRONT ANTI-PINCH]
C
D E
F
G H
I
J
L
M A
B
PWC
N
O P
YES >> GO TO 6.
NO >> GO TO 5.
5. CHECK HARNESS CONTINUITY 2
1. Disconnect power window and do
