Page 4529 of 4801

NISSAN TEANA 2014 Service Manual
TM-314
< DTC/CIRCUIT DIAGNOSIS >[CVT: RE0F10E]
P0713 TRANSMISSION FLUID
TEMPERATURE SENSOR A
P0713 TRANSMISSION FLUID TEMPERATURE SENSOR A
DTC LogicINFOID:0000000009464269
DTC DETECTION LOGIC
DTC C

Page 4530 of 4801

NISSAN TEANA 2014 Service Manual
P0713 TRANSMISSION FLUID TEMPERATURE SENSOR A
TM-315
< DTC/CIRCUIT DIAGNOSIS > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
Is the inspection result normal?
YES >> GO TO 3.
NO >> Repair or replac

Page 4531 of 4801

NISSAN TEANA 2014 Service Manual
TM-316
< DTC/CIRCUIT DIAGNOSIS >[CVT: RE0F10E]
P0715 INPUT SPEED SENSOR A
P0715 INPUT SPEED SENSOR A
DTC LogicINFOID:0000000009464272
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
CAUTION:
Be care

TM-316
< DTC/CIRCUIT DIAGNOSIS >[CVT: RE0F10E]
P0715 INPUT SPEED SENSOR A
P0715 INPUT SPEED SENSOR A
DTC LogicINFOID:0000000009464272
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
CAUTION:
Be careful of the driving speed.
1.PREPARATION BEFORE WORK
If another "DTC CONFIRMATION PROCEDURE" occurs just before, turn ignition switch OFF and wait for at
least 10 seconds, then perform the next test.
>> GO TO 2.
2.CHECK DTC DETECTION
1. Start the engine.
2. Drive the vehicle.
3. Maintain the following conditions for 10 seconds or more.
4. Stop the vehicle.
5. Check the first trip DTC.
Is
“P0715” detected?
DTC CONSULT screen terms
(Trouble diagnosis con-
tent) DTC detection condition
Possible causes
P0715 INPUT SPEED SEN-
SOR A
(Input/Turbine Speed
Sensor A Circuit) When 1 is satisfied and any of 2, 3 or 4 is satisfied:
1. When the following conditions are satisfied:
- TCM power supply voltage: More than 11 V
- After range change completion, it spends 2 sec- onds or more.
2. When all of the following conditions are satisfied
and this state is maintained for 5 seconds:
- Primary pulley speed: Less than 150 rpm
- Secondary pulley speed: 500 rpm or more
3. When all of the following conditions are satisfied and this state is maintained for 0.5 seconds:
- 10-msec-ago primary pulley speed: 1,000 rpm or
more
- Now primary pulley speed: 0 rpm
4. When all of the following conditions are satisfied
and this state is maintained for 5 seconds:
- Range: D or DS
- Engine speed: 450 rpm or more
- Input peed: 300 rpm or more
- Primary pulley speed: 300 rpm or more
- Secondary pulley seed: 300 rpm or more
- Differences between engine speed and primary
pulley speed: More than 1,000 rpm
- Differences between primary pulley speed and in- put speed speed: More than 1,000 rpm
- Differences between engine speed and input speed speed: 1,000 rpm or less
- Lock-up command is being given (except for slip
lock-up)
- DTC other than the applicable DTC is not detected. • Harness or connector
(Primary speed sensor circuit is
open or shorted)
• Primary speed sensor
Selector lever : “D” POSITION
Engine speed : 1,200 rpm or more
Vehicle speed : 40 km/h (25 MPH) or more
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

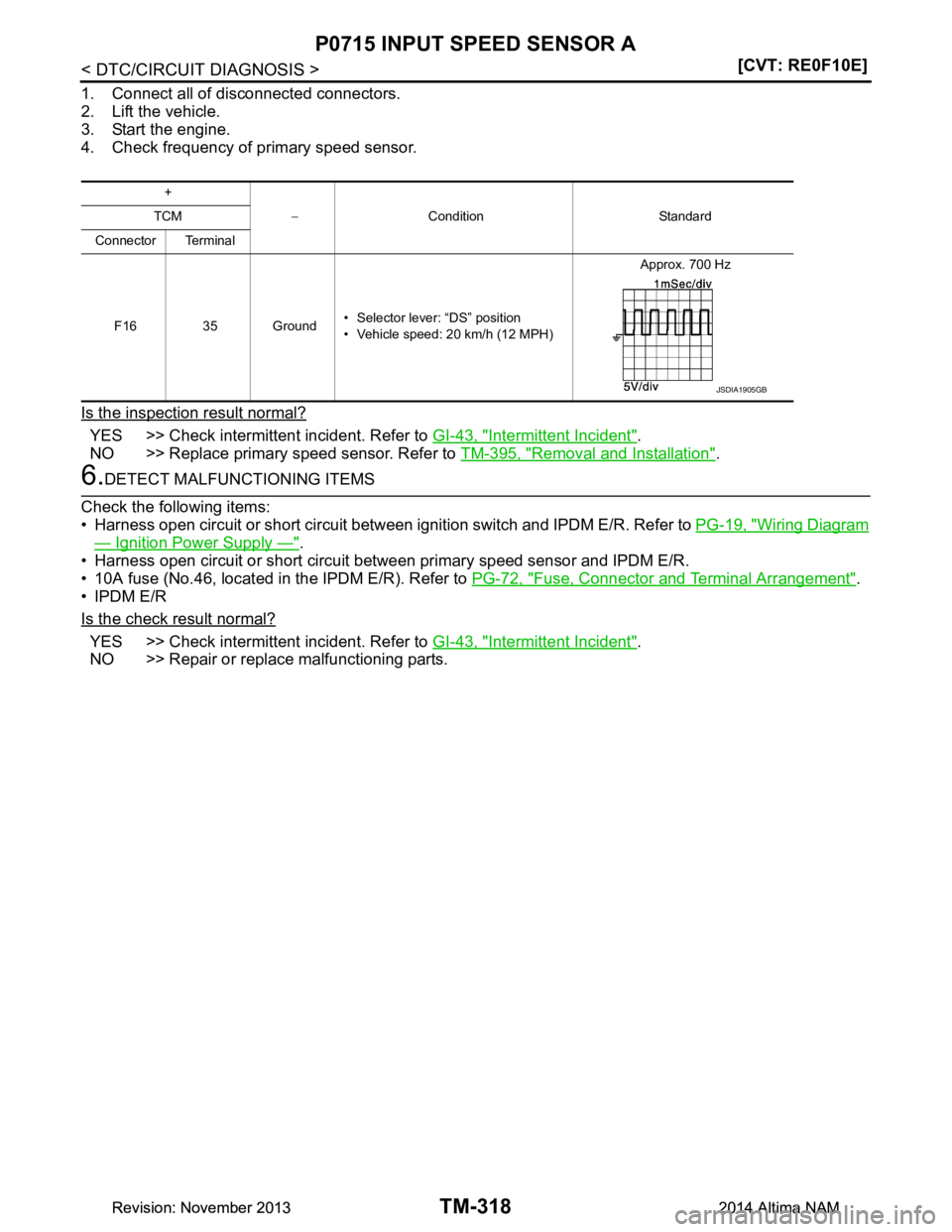

Page 4532 of 4801

NISSAN TEANA 2014 Service Manual
P0715 INPUT SPEED SENSOR ATM-317
< DTC/CIRCUIT DIAGNOSIS > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
YES >> Go to TM-317, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:

Page 4533 of 4801

NISSAN TEANA 2014 Service Manual
TM-318
< DTC/CIRCUIT DIAGNOSIS >[CVT: RE0F10E]
P0715 INPUT SPEED SENSOR A
1. Connect all of disconnected connectors.
2. Lift the vehicle.
3. Start the engine.
4. Check frequency of pr imary speed

Page 4534 of 4801

NISSAN TEANA 2014 Service Manual
P0717 INPUT SPEED SENSOR ATM-319
< DTC/CIRCUIT DIAGNOSIS > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
P0717 INPUT SPEED SENSOR A
DTC LogicINFOID:0000000009464274
DTC DETECTION LOGIC
DTC CONFIRM

P0717 INPUT SPEED SENSOR ATM-319
< DTC/CIRCUIT DIAGNOSIS > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
P0717 INPUT SPEED SENSOR A
DTC LogicINFOID:0000000009464274
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
CAUTION:
Always drive vehicle at a safe speed.
1.PREPARATION BEFORE WORK
If another “DTC CONFIRMATION PROC EDURE” occurs just before, turn ignition switch OFF and wait for at
least 10 seconds, then perform the next test.
>> GO TO 2.
2.CHECK DTC DETECTION
With CONSULT
1. Start the engine.
2. Drive the vehicle.
3. Maintain the following conditions for 10 seconds or more.
DTC CONSULT screen terms
(Trouble diagnosis content) DTC detection condition Possible cause
P0717 INPUT SPEED SENSOR A
(Input/Turbine Speed Sensor
“A” Circuit No Signal) When 1 is satisfied and any of 2, 3 or 4 is satisfied:
1. When the following conditions are satisfied:
- TCM power supply voltage: More than 11 V
- After range change completion, it spends 2
seconds or more.
2. When all of the following conditions are satis- fied and this state is maintained for 5 sec-
onds:
- Primary pulley speed: 500 rpm or more
- Input speed: Less than 150 rpm
- Range: Other than P, N
- P0715 is not detected
3. When all of the following conditions are satis-
fied and this state is maintained for 0.5 sec-
onds:
- 10-msec-ago input speed: 1,000 rpm or more
- Now input speed: 0 rpm
4. When all of the following conditions are satis- fied and this state is maintained for 5 sec-
onds:
- Range: D or DS
- Engine speed: 450 rpm or more
- Input peed: 300 rpm or more
- Primary pulley speed: 300 rpm or more
- Secondary pulley seed: 300 rpm or more
- Differences between engine speed and pri-
mary pulley speed: 1,000 rpm or less
- Differences between primary pulley speed and input speed speed: More than 1,000 rpm
- Differences between engine speed and input speed speed: More than 1,000 rpm
- Lock-up command is being given (except for
slip lock-up)
- DTC other than the applicable DTC is not de- tected. • Harness or connectors
(Input speed sensor circuit is open
or shorted.)
• Input speed sensor
Selector lever : “D” position
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 4535 of 4801

NISSAN TEANA 2014 Service Manual
TM-320
< DTC/CIRCUIT DIAGNOSIS >[CVT: RE0F10E]
P0717 INPUT SPEED SENSOR A
4. Stop the vehicle.
5. Check the first trip DTC.
Is
“P0717” detected?
YES >> Go to TM-320, "Diagnosis Procedure".
NO

Page 4536 of 4801

NISSAN TEANA 2014 Service Manual
P0717 INPUT SPEED SENSOR ATM-321
< DTC/CIRCUIT DIAGNOSIS > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
Is the inspection result normal?
YES >> GO TO 5.
NO >> Repair or replace malfunctioning pa
