Page 1689 of 4801

NISSAN TEANA 2014 Service Manual
HOW TO SET SRT CODEEC-689
< BASIC INSPECTION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
HOW TO SET SRT CODE
DescriptionINFOID:0000000009462564
OUTLINE
In order to set all SRTs, the self-diagnoses as

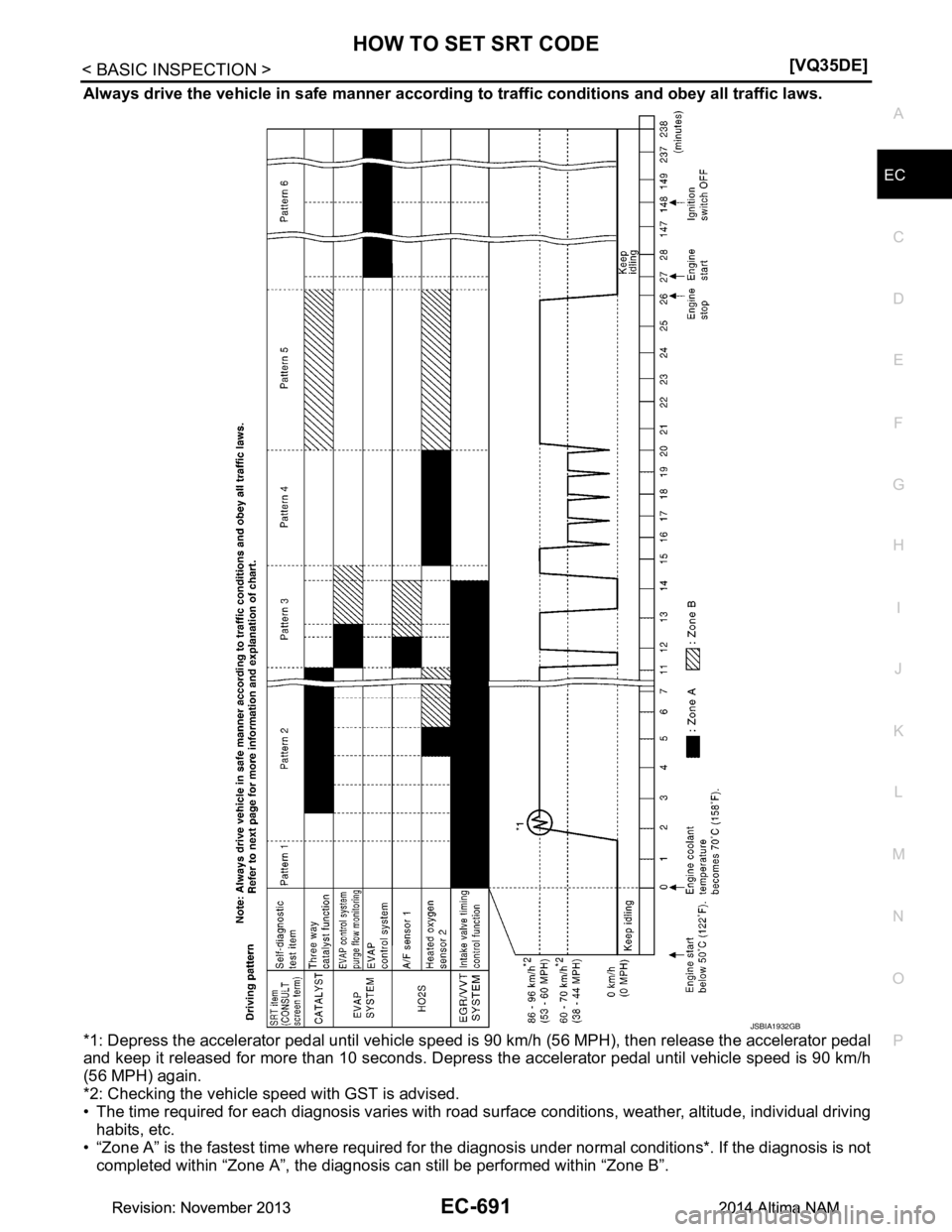

Page 1690 of 4801

NISSAN TEANA 2014 Service Manual
EC-690
< BASIC INSPECTION >[VQ35DE]
HOW TO SET SRT CODE

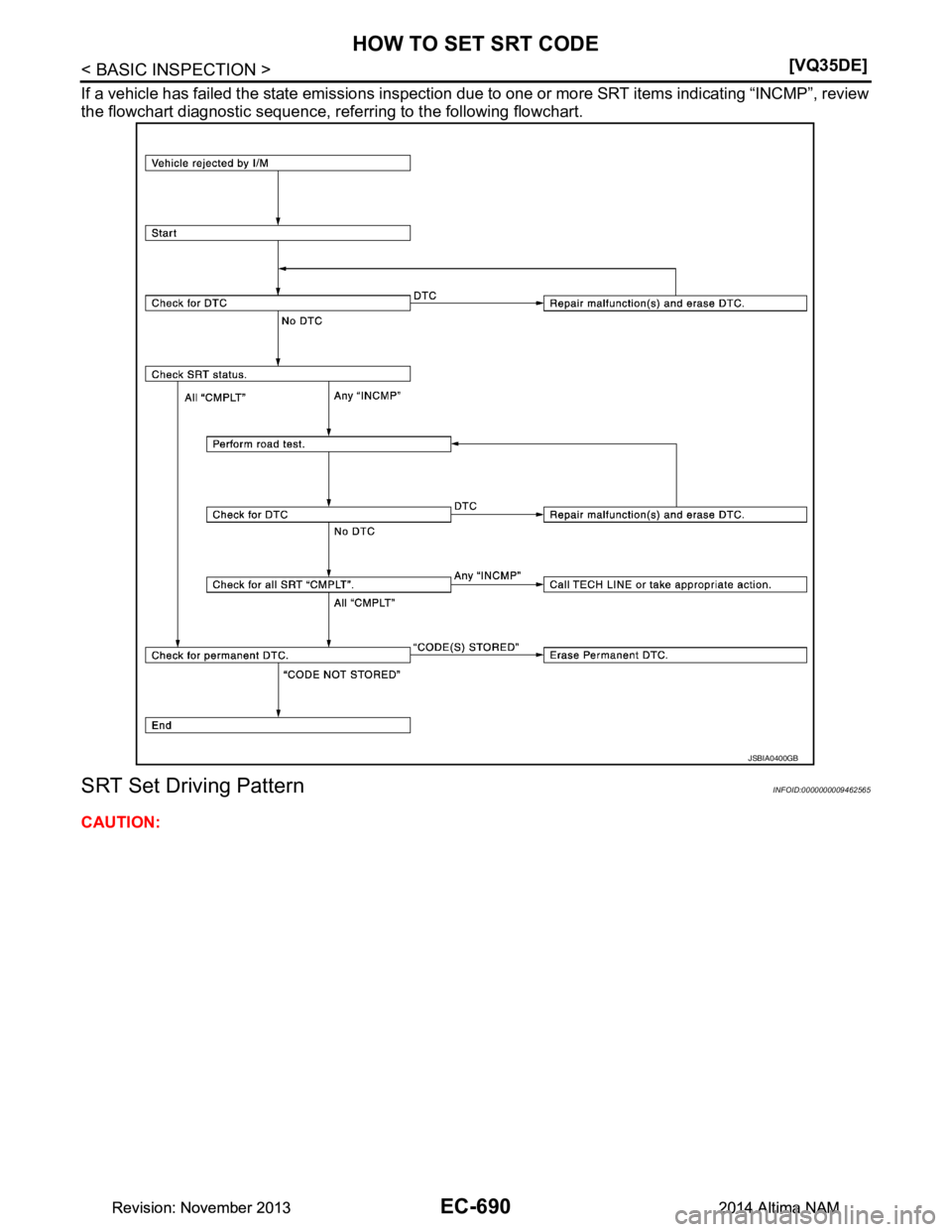

If a vehicle has failed the state emissions inspection
due to one or more SRT items indicating “INCMP”, review
the flowchart diagnostic se

Page 1691 of 4801

NISSAN TEANA 2014 Service Manual
HOW TO SET SRT CODEEC-691
< BASIC INSPECTION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
Always drive the vehicle in safe ma
nner according to traffic conditions and obey all traffic laws.
*1: Depres

Page 1692 of 4801

NISSAN TEANA 2014 Service Manual
EC-692
< BASIC INSPECTION >[VQ35DE]
HOW TO SET SRT CODE

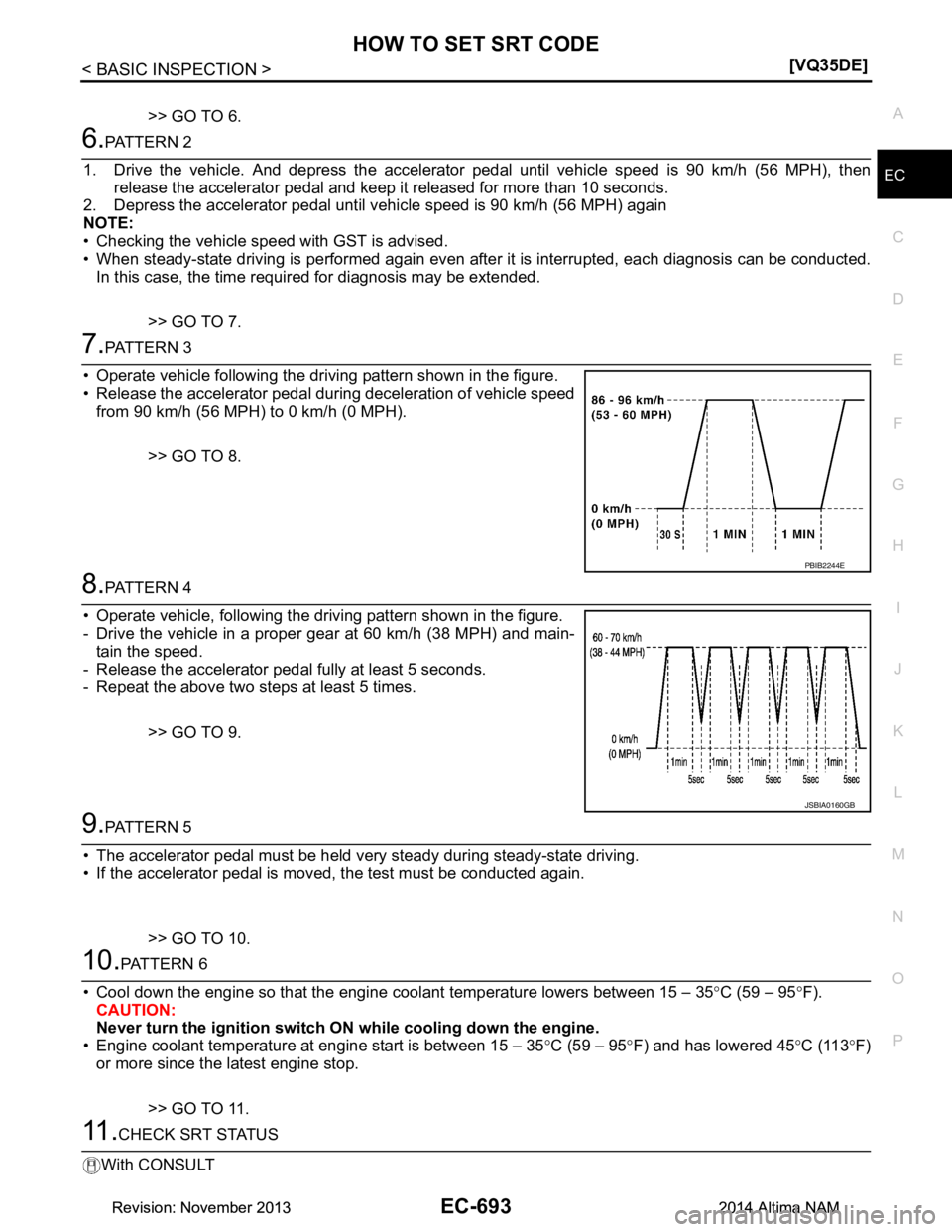

*: Normal conditions- Sea level
- Flat road
- Ambient air temperature: 20 – 30 °C (68 – 86 °F)
NOTE:
Diagnosis is performed as quickly

EC-692
< BASIC INSPECTION >[VQ35DE]
HOW TO SET SRT CODE
*: Normal conditions- Sea level
- Flat road
- Ambient air temperature: 20 – 30 °C (68 – 86 °F)
NOTE:
Diagnosis is performed as quickly as possible under normal conditions. However, under other conditions,
diagnosis may also be performed. [For example: ambient air temperature other than 20 – 30°C (68 – 86 °F)]
Work ProcedureINFOID:0000000009462566
1.CHECK DTC
Check DTC.
Is any DTC detected?
YES >> Repair malfunction(s) and erase DTC. Refer to EC-630, "DTC Index".
NO >> GO TO 2.
2.CHECK SRT STATUS
With CONSULT
Select “SRT STATUS” in “DTC & SRT CONFIRMATION” mode with CONSULT.
Without CONSULT
Perform “SRT status” mode with EC-598, "On Board Diagnosis Function"
.
With GST
Select Service $01 with GST.
Is SRT code(s) set?
YES >> GO TO 12.
NO-1 >> With CONSULT: GO TO 3.
NO-2 >> Without CONSULT: GO TO 4.
3.DTC CONFIRMATION PROCEDURE
1. Select “SRT WORK SUPPORT” in “DTC & SRT CONFIRMATION” mode with CONSULT.
2. For SRT(s) that is not set, perform the corre sponding “DTC CONFIRMATION PROCEDURE” according to
the “Performance Priority” in the “SRT ITEM” table. Refer to EC-689, "Description"
.
3. Check DTC.
Is any DTC detected?
YES >> Repair malfunction(s) and erase DTC. Refer to EC-630, "DTC Index".
NO >> GO TO 11.
4.PERFORM ROAD TEST
• Check the “Performance Priority” in the “SRT ITEM” table. Refer to EC-689, "Description"
.
• Perform the most efficient SRT set driving pattern to set the SRT properly. Refer to EC-690, "SRT Set Driv-
ing Pattern".
In order to set all SRTs, the SRT set driving pattern must be performed at least once.
>> GO TO 5.
5.PATTERN 1
1. Check the vehicle condition;
- Engine coolant temperature is −10 to 35 °C (14 to 95 °F).
- Fuel tank temperature is more than 0 °C (32 °F).
2. Start the engine.
3. Keep engine idling until the engine coolant temperature is greater than 70 °C (158 °F)
NOTE:
ECM terminal voltage is follows;
• Engine coolant temperature
- −10 to 35 °C (14 to 95 °F): 3.0 – 4.3 V
-70 °(158 °F): Less than 4.1 V
• Fuel tank temperature: Less than 1.4 V
Refer to EC-613, "Reference Value"
.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

Page 1693 of 4801

NISSAN TEANA 2014 Service Manual
HOW TO SET SRT CODEEC-693
< BASIC INSPECTION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
>> GO TO 6.
6.PATTERN 2
1. Drive the vehicle. And depress the accelerator pedal until vehicle speed is 90 km/

Page 1694 of 4801

NISSAN TEANA 2014 Service Manual
EC-694
< BASIC INSPECTION >[VQ35DE]
HOW TO SET SRT CODE
Select “SRT STATUS” in “DTC & SRT CONFIRMATION” mode with CONSULT.
Without CONSULT
Perform “SRT status” mode with EC-598, "On Boar

Page 1695 of 4801

NISSAN TEANA 2014 Service Manual
HOW TO ERASE PERMANENT DTCEC-695
< BASIC INSPECTION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
HOW TO ERASE PERMANENT DTC
DescriptionINFOID:0000000009462567
OUTLINE
When a DTC is stored in ECM
When

Page 1696 of 4801

NISSAN TEANA 2014 Service Manual
EC-696
< BASIC INSPECTION >[VQ35DE]
HOW TO ERASE PERMANENT DTC

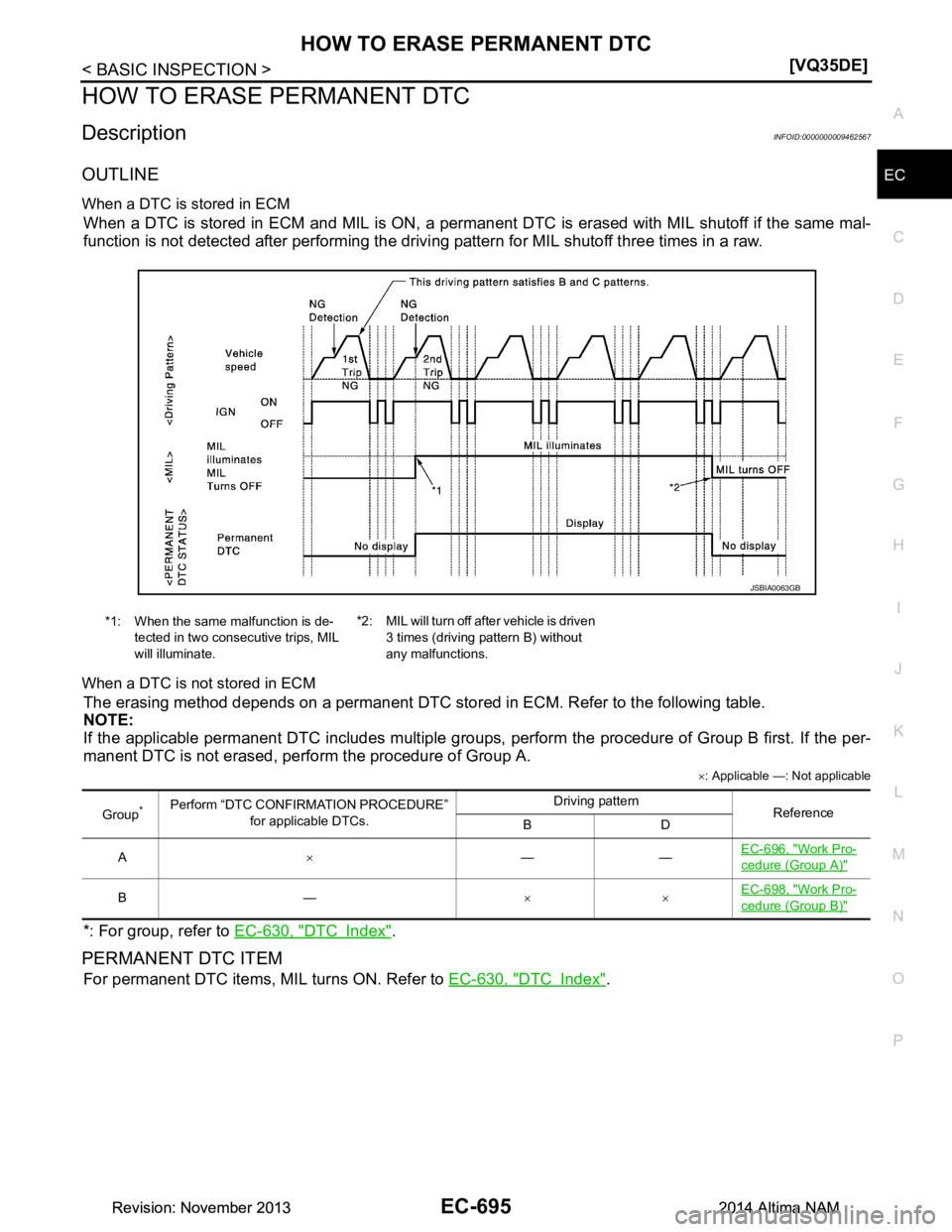

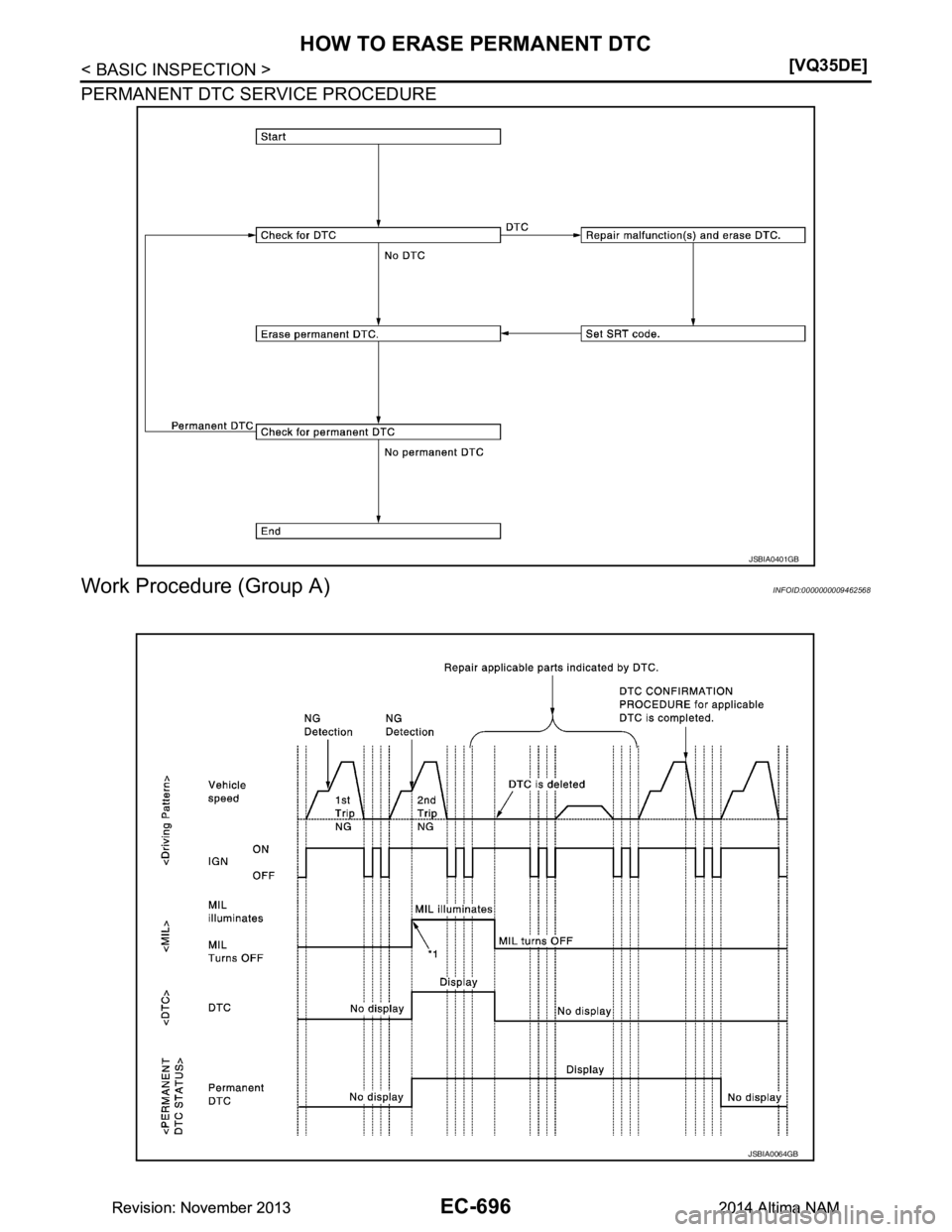

PERMANENT DTC SERVICE PROCEDURE
Work Procedure (Group A)INFOID:0000000009462568
JSBIA0401GB
JSBIA0064GB
Revision: November 20132014 Alti
