Page 2921 of 4801

NISSAN TEANA 2014 Service Manual
INT-30
< REMOVAL AND INSTALLATION >

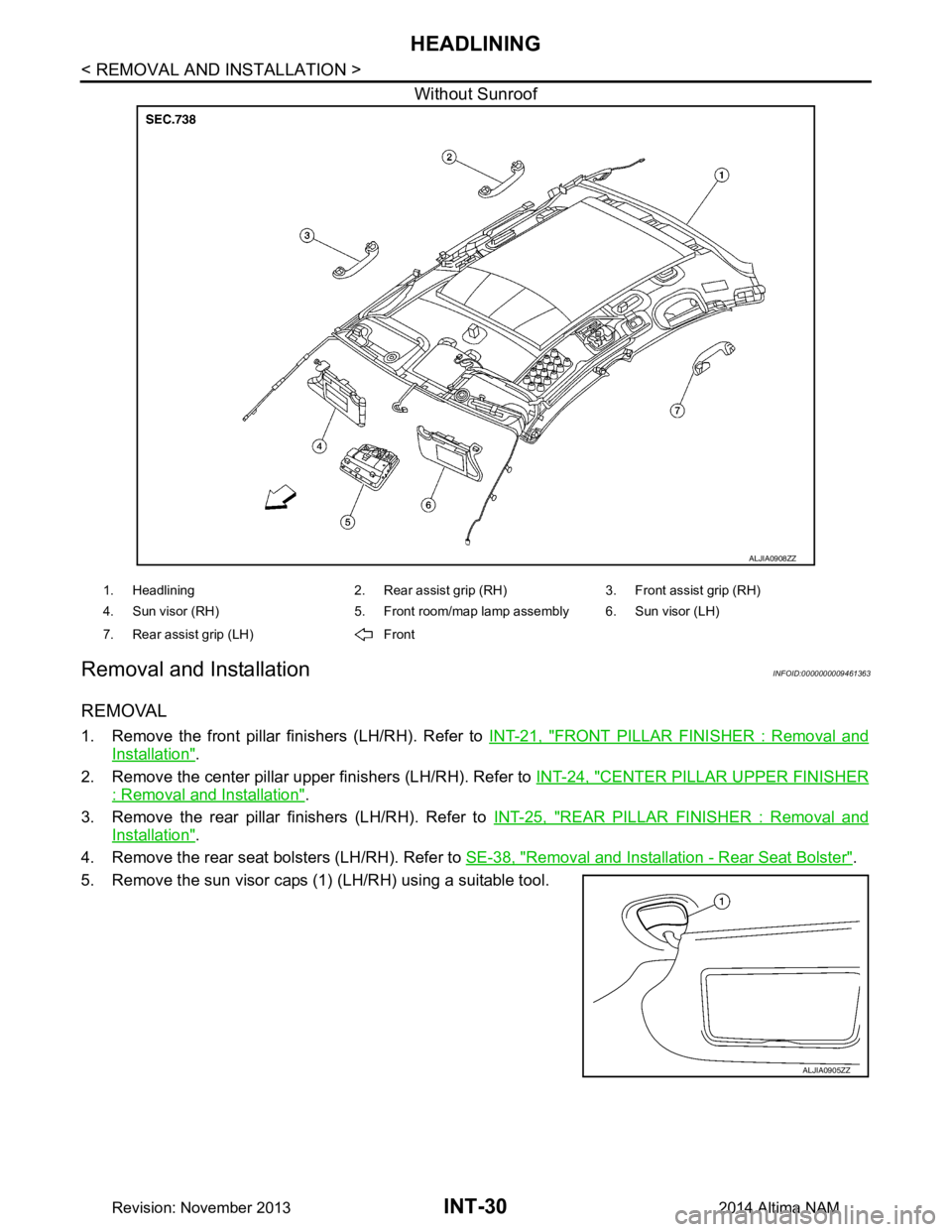

HEADLINING
Without Sunroof
Removal and InstallationINFOID:0000000009461363
REMOVAL
1. Remove the front pillar finishers (LH/RH). Refer to INT-21, "FRONT PILLAR FIN

Page 2922 of 4801

NISSAN TEANA 2014 Service Manual
HEADLININGINT-31
< REMOVAL AND INSTALLATION >
C
D E
F
G H
I
K L
M A
B
INT
N
O P
6. Remove the sun visor screws (A) (LH/RH).
7. Disconnect the harness connector from the sun visors (LH/RH) and rem

Page 2923 of 4801

NISSAN TEANA 2014 Service Manual
INT-32
< REMOVAL AND INSTALLATION >
HEADLINING
Installation is in the reverse order of removal.
Revision: November 20132014 Altima NAM

Page 2924 of 4801

NISSAN TEANA 2014 Service Manual
TRUNK ROOM TRIM & TRUNK LID FINISHERINT-33
< REMOVAL AND INSTALLATION >
C
D E
F
G H
I
K L
M A
B
INT
N
O P

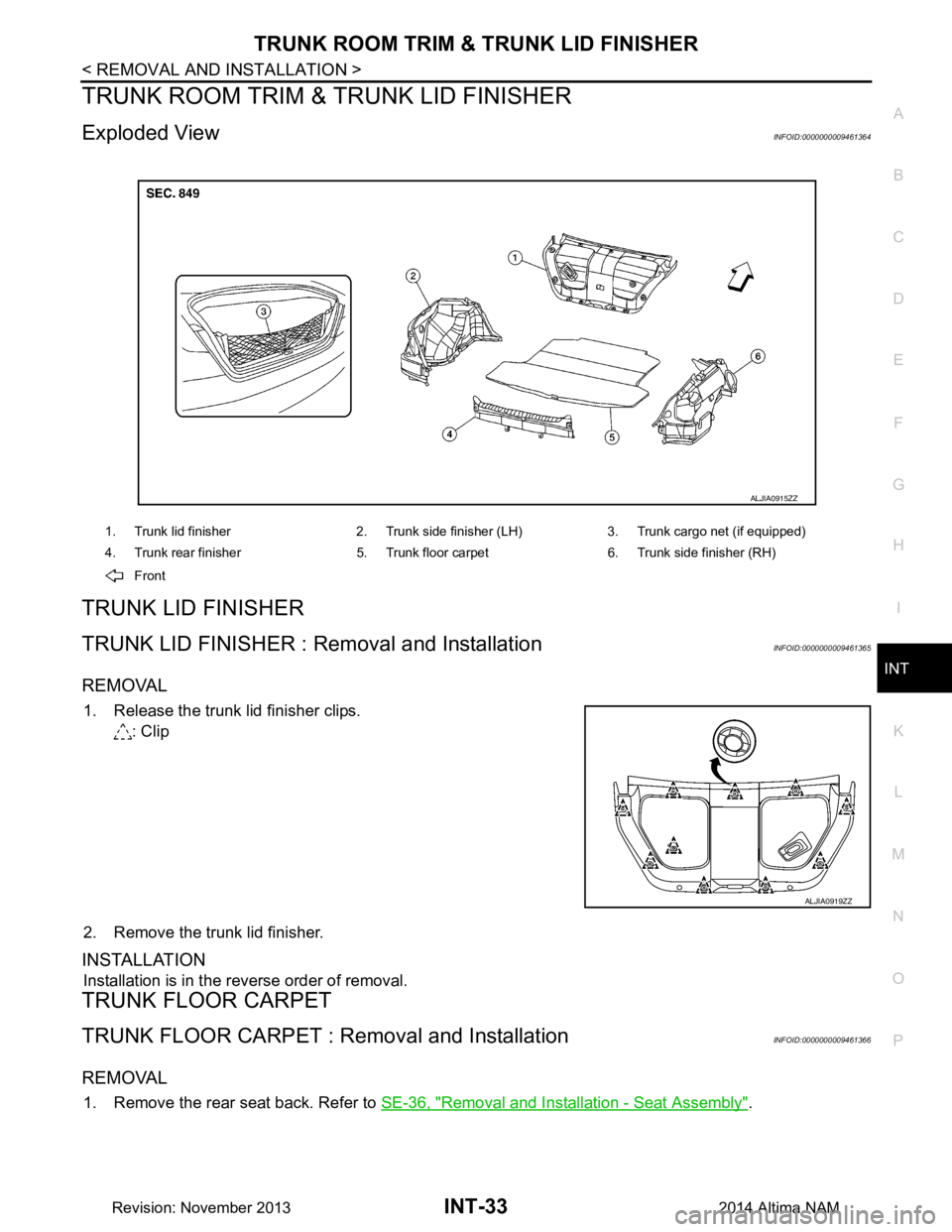

TRUNK ROOM TRIM & TRUNK LID FINISHER
Exploded ViewINFOID:0000000009461364
TRUNK LID FINISHE

Page 2925 of 4801

NISSAN TEANA 2014 Service Manual
INT-34
< REMOVAL AND INSTALLATION >

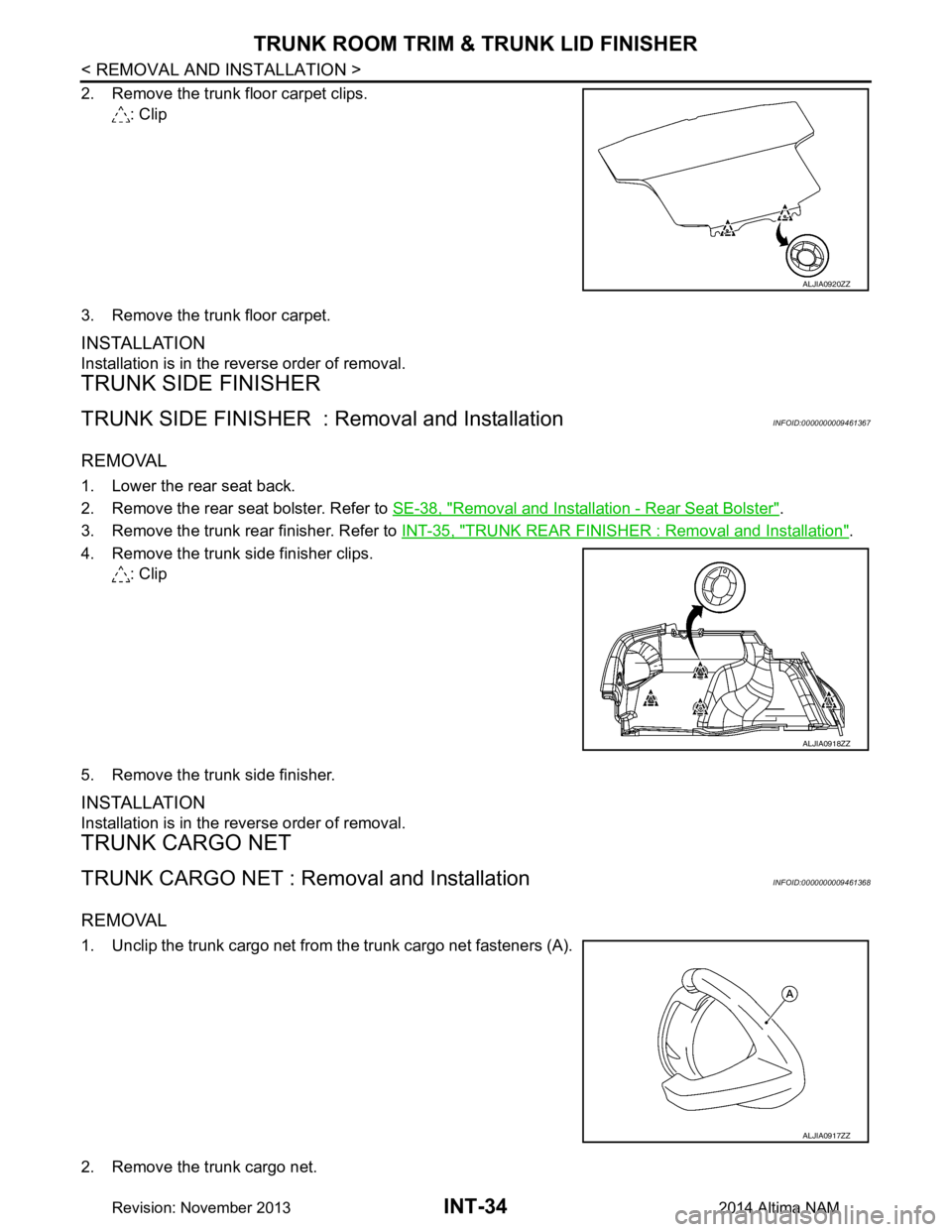

TRUNK ROOM TRIM & TRUNK LID FINISHER
2. Remove the trunk floor carpet clips.: Clip
3. Remove the trunk floor carpet.
INSTALLATION
Installation is in the reverse or

Page 2926 of 4801

NISSAN TEANA 2014 Service Manual
TRUNK ROOM TRIM & TRUNK LID FINISHERINT-35
< REMOVAL AND INSTALLATION >
C
D E
F
G H
I
K L
M A
B
INT
N
O P
INSTALLATION
Installation is in the reverse order of removal.
TRUNK REAR FINISHER
TRUNK REA

Page 2927 of 4801

NISSAN TEANA 2014 Service Manual
IP-1
BODY INTERIOR
C
D E
F
G H
I
K L
M
SECTION IP
A
B
IP
N
O P
CONTENTS
INSTRUMENT PANEL
PRECAUTION ................ ...............................2
PRECAUTIONS ...................................

IP-1
BODY INTERIOR
C
D E
F
G H
I
K L
M
SECTION IP
A
B
IP
N
O P
CONTENTS
INSTRUMENT PANEL
PRECAUTION ................ ...............................2
PRECAUTIONS .............................................. .....2
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ............................................................. ......
2
Precaution for Work ..................................................2
PREPARATION ............................................3
PREPARATION .............................................. .....3
Special Service Tools ........................................ ......3
Commercial Service Tools .......................................3
CLIP LIST ............................................................4
Descriptions for Clips .......................................... ......4
SYMPTOM DIAGNOSIS ...............................8
SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ........................................................... .....
8
Work Flow ........................................................... ......8
Generic Squeak and Rattle Troubleshooting ............9
Diagnostic Worksheet .............................................12
REMOVAL AND INSTALLATION ...............14
INSTRUMENT PANEL ASSEMBLY .............. ....14
Exploded View ..................................................... ....14
Removal and Installation .........................................15
STEERING COLUMN COVERS .......................17
Removal and Installation .........................................17
CENTER CONSOLE ASSEMBLY ....................18
Exploded View .........................................................18
Removal and Installation .........................................18
CLUSTER LID A ...............................................19
Removal and Installation .........................................19
CLUSTER LID C ...............................................20
Cluster Lid C ............................................................20
Cluster Lid C Lower .................................................20
INSTRUMENT LOWER PANEL LH ..................21
Removal and Installation .........................................21
GLOVE BOX ASSEMBLY ................................22
Removal and Installation .........................................22
UNIT DISASSEMBLY AND ASSEMBLY ....23
CENTER CONSOLE ASSEMBLY ....................23
Exploded View ..................................................... ....23
Disassembly and Assembly .....................................23
Revision: November 20132014 Altima NAM

Page 2928 of 4801

NISSAN TEANA 2014 Service Manual
IP-2
< PRECAUTION >
PRECAUTIONS
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000009951558
The Supplemental Restraint S

IP-2
< PRECAUTION >
PRECAUTIONS
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000009951558
The Supplemental Restraint System such as “A IR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severi ty of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SR and SB section of
this Service Manual.
WARNING:
• To avoid rendering the SRS inopera tive, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISS AN/INFINITI dealer.
• Improper maintenance, including in correct removal and installation of the SRS, can lead to personal
injury caused by unintent ional activation of the system. For re moval of Spiral Cable and Air Bag
Module, see the SR section.
• Do not use electrical test equipmen t on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harn esses can be identified by yellow and/or orange harnesses or har-
ness connectors.
PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS
WARNING:
• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-
tion ON or engine running, DO NOT use air or electri c power tools or strike near the sensor(s) with a
hammer. Heavy vibration could activate the sensor( s) and deploy the air bag(s), possibly causing
serious injury.
• When using air or electric power tools or hammers , always switch the Ignition OFF, disconnect the
battery and wait at least three minutes before performing any service.
Precaution for WorkINFOID:0000000009461371
• When removing or disassembling each component, be careful not to damage or deform it. If a component may be subject to interference, be sure to protect it with a shop cloth.
• When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the component with a shop cloth or vinyl tape to protect it.
• Protect the removed parts with a s hop cloth and prevent them from being dropped.
• Replace a deformed or damaged clip.
• If a part is specified as a non-reusable part, always replace it with a new one.
• Be sure to tighten bolts and nuts securely to the specified torque.
• After installation is complete, be sure to check that each part works properly.
• Follow the steps below to clean components:
- Water soluble dirt:
• Dip a soft cloth into lukewarm water, wring the water out of the cloth and wipe the dirty area.
• Then rub with a soft, dry cloth.
- Oily dirt:
• Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%) and wipe the dirty area.
• Then dip a cloth into fresh water, wring the water out of the cloth and wipe the detergent off.
• Then rub with a soft, dry cloth.
- Do not use organic solvent such as thinner, benzene, alcohol or gasoline.
- For genuine leather seats, use a genuine leather seat cleaner.
Revision: November 20132014 Altima NAM
