Page 3161 of 5135
670SK±01
I352072 Claws
I35208
67±32
±
AUDIO & VISUAL SYSTEM POWER POINT SOCKET ASSY
AVENSIS REPAIR MANUAL (RM1018E)
POWER POINT SOCKET ASSY
REPLACEMENT
1. REMOVE FLOOR SHIFT SHIFT LEVER KNOB SUB±ASSY (M/T TRANSAXLE) (See page 41±11)
2.REMOVE CONSOLE PANEL SUB±ASSY UPPER (See page 71±11)
3.REMOVE CONSOLE PANEL SUB±ASSY LOWER (See page 71±11)
4.REMOVE CONSOLE BOX ASSY RR (See page 71±11)
5.REMOVE CONSOLE REAR END PANEL (See page 71±11)
6. REMOVE POWER POINT SOCKET ASSY
(a) Disengage the 2 claws and push out the power pointsocket to the room side.
(b) Remove the power point socket cover from the rear consol panel.
7. INSTALL POWER POINT SOCKET ASSY
(a) Install the power point socket cover to the rear consol panel.
(b) Align the claw of power point socket with the one of the socket cover, and push in the power point socket.
Page 3162 of 5135
670SJ±01
I35195
I35197Claw
I35196
I35205
±
AUDIO & VISUAL SYSTEM CIGARETTE LIGHTER ASSY
67±29
AVENSIS REPAIR MANUAL (RM1018E)
CIGARETTE LIGHTER ASSY
REPLACEMENT
1.REMOVE CONSOLE PANEL SUB±ASSY UPPER (See page 71±11)
2. REMOVE FRONT ASH RECEPTACLE ASSY
(a) Using a torx socket wrench (T20), remove the 4 screwsand front ash receptacle assy.
3. RE MO V E FRO NT AS H RE CE P TACLE RE TAINE R SUB±ASSY
(a) Disengage the claw and disconnect the connector.
(b) Push up the corner of the outer case open and remove the retainer assy as shown in the illustration.
4. REMOVE CIGARETTE LIGHTER ASSY
(a) Remove the 2 springs.
Page 3163 of 5135
I351992 Claws
I35200
I35203
I35204
5.0mm
(0.20in.)
I35205
67±30
± AUDIO & VISUAL SYSTEMCIGARETTE LIGHTER ASSY
AVENSIS REPAIR MANUAL (RM1018E)

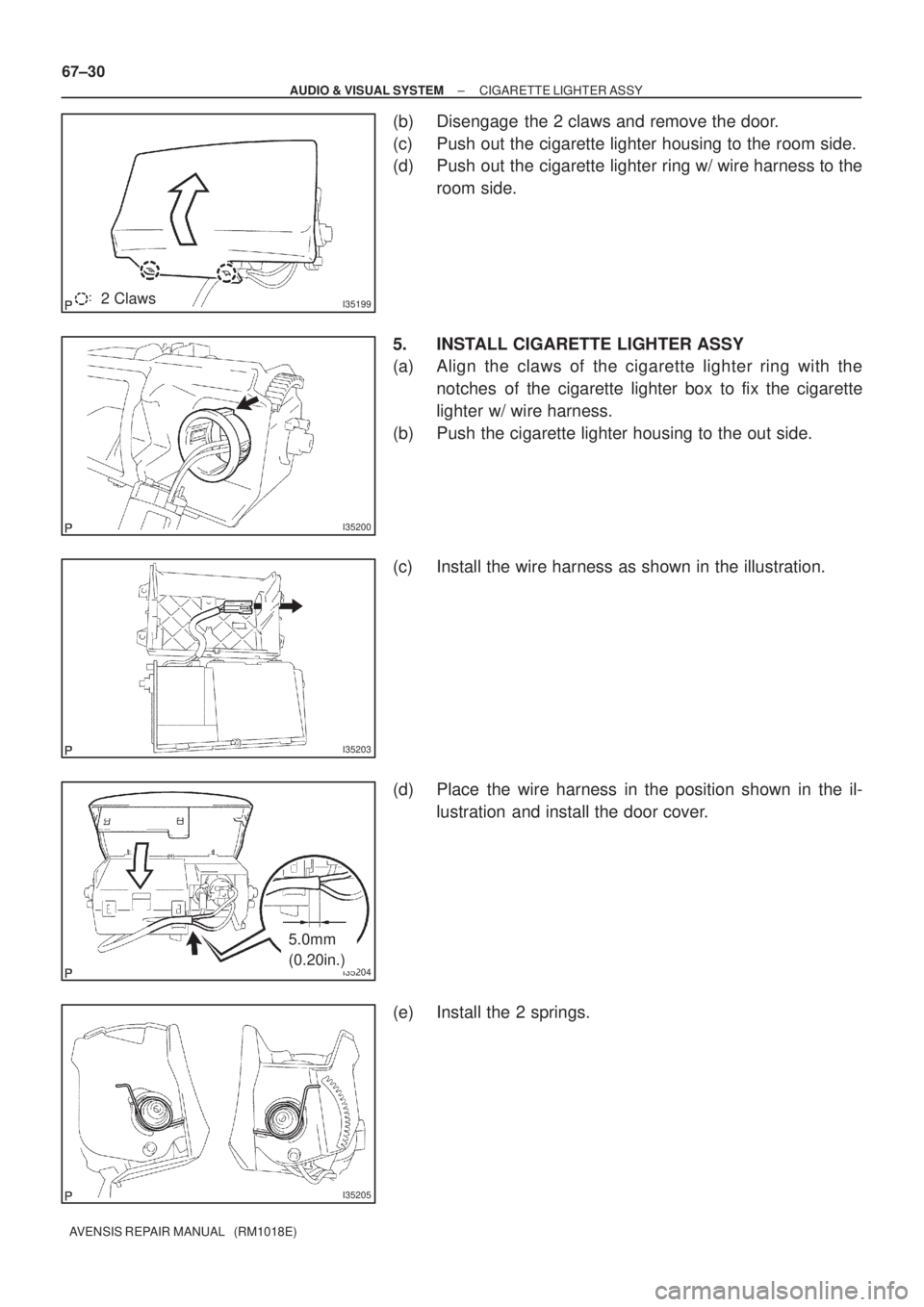

(b) Disengage the 2 claws and remove the door.
(c) Push out the cigarette lighter housing to the room side.
(d) Push out the cigarette lighter ring w/ wire harness to the
room side.
5. INSTALL CIGARETTE LIGHTER ASSY
(a) Align the claws of the cigarette lighter ring with the
notches of the cigarette lighter box to fix the cigarette
lighter w/ wire harness.
(b) Push the cigarette lighter housing to the out side.
(c) Install the wire harness as shown in the illustration.
(d) Place the wire harness in the position shown in the il-
lustration and install the door cover.
(e) Install the 2 springs.
Page 3164 of 5135
I35206
I35195
± AUDIO & VISUAL SYSTEMCIGARETTE LIGHTER ASSY
67±31
AVENSIS REPAIR MANUAL (RM1018E)

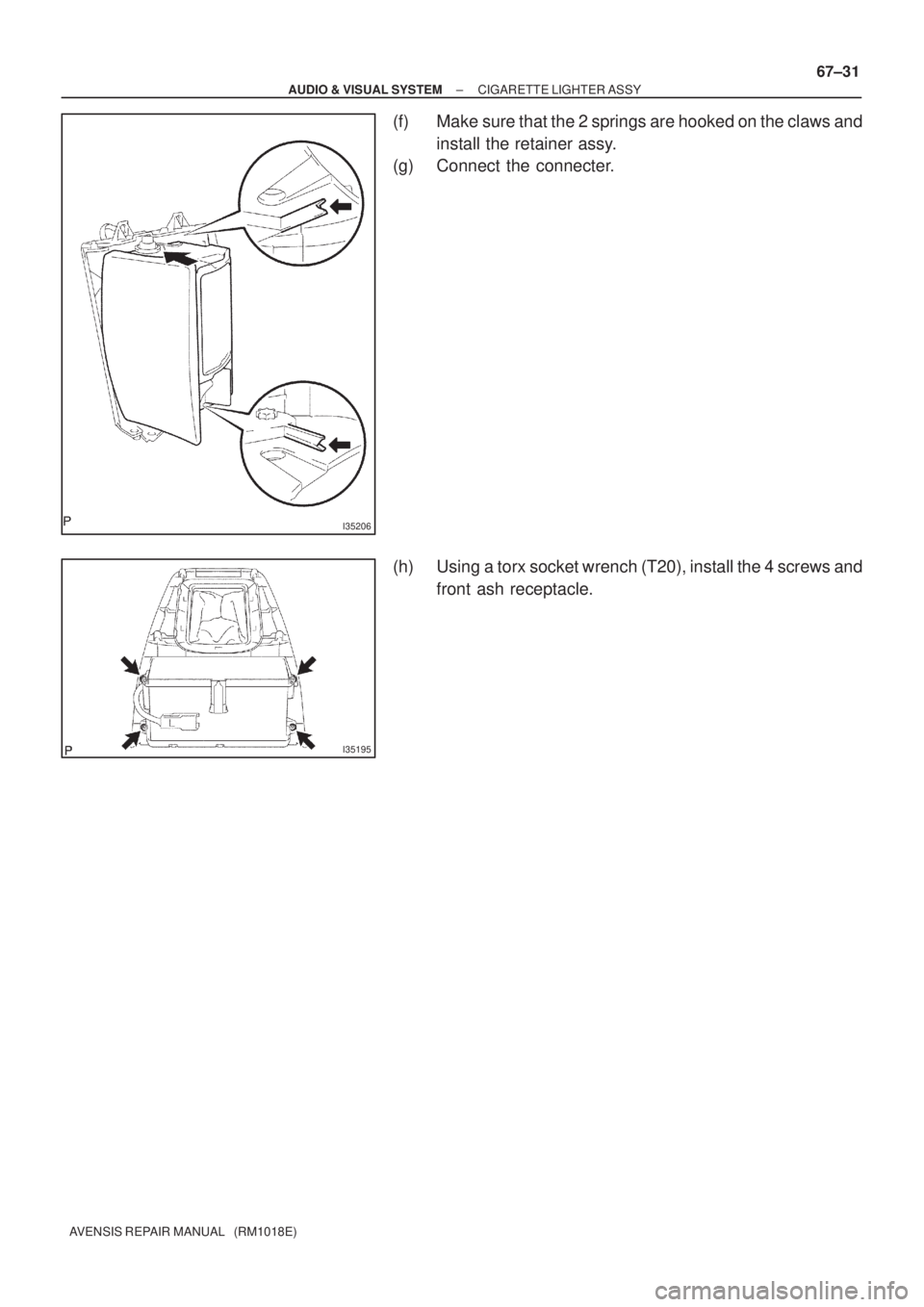

(f) Make sure that the 2 springs are hooked on the claws and
install the retainer assy.
(g) Connect the connecter.
(h) Using a torx socket wrench (T20), install the 4 screws and
front ash receptacle.
Page 3165 of 5135
670SI±02
I35212
67±28
±
AUDIO & VISUAL SYSTEM NAVIGATION ANTENNA ASSY
AVENSIS REPAIR MANUAL (RM1018E)
NAVIGATION ANTENNA ASSY
REPLACEMENT
1.DISCONNECT BATTERY NEGATIVE TERMINAL (See page 60±1)
2.REMOVE INSTRUMENT PANEL SUB±ASSY UPPER W/INSTR PNL PASS L/DOOR AIR BAG ASSY (See page 71±11)
3.REMOVE NAVIGATION ANTENNA ASSY
(a)Disconnect the connector.
(b)Remove the 2 screws and navigation antenna assy.
4.INSTALL INSTRUMENT PANEL SUB±ASSY UPPER W/INSTR PNL PASS L/DOOR AIR BAG ASSY (See page 71±11)
Page 3166 of 5135
670SF±01
I35218: Clamp
I36708
±
AUDIO & VISUAL SYSTEM ANTENNA CORD SUB±ASSY
67±23
AVENSIS REPAIR MANUAL (RM1018E)
ANTENNA CORD SUB±ASSY
REPLACEMENT
1.REMOVE ROOF HEADLINING ASSY (See page 76±45)
2.REMOVE BACK DOOR TRIM PANEL ASSY UPPER (See page 75±40)
3.REMOVE ANTENNA CORD SUB±ASSY
(a)Disconnect the connectors.
(b)Remove the bolt.
(c)Remove the clamp and draw out the antenna cord sub±assy from the inte\
rior and the back door.
4.INSTALL ANTENNA CORD SUB±ASSY
(a)Press the 4 points of the grommet shown in the illustra-tion, and install the antenna cord sub±assy.
(b)Install the bolt. Torque: 7.0 N m (71 kgf cm, 62 in. lbf)
(c)Connect the connectors.
5.INSTALL ROOF HEADLINING ASSY (See page 76±45)
Page 3167 of 5135
670SE±01
I35216: Clamps
67±22
±
AUDIO & VISUAL SYSTEM AMPLIFIER ANTENNA ASSY(LIFTBACK MODELS)
AVENSIS REPAIR MANUAL (RM1018E)
AMPLIFIER ANTENNA ASSY(LIFTBACK MODELS)
REPLACEMENT
1.REMOVE ROOF HEADLINING ASSY (See page 76±45)
2.REMOVE AMPLIFIER ANTENNA ASSY
(a)Disconnect the connectors.
(b)Remove the bolt.
(c)Remove the 3 clamps and the amplifier antenna assy.
3.INSTALL AMPLIFIER ANTENNA ASSY
(a)Install the bolt. Torque: 7.0 N m (71 kgf cm, 62 in. lbf)
(b)Install the 3 clamps and the amplifier antenna assy.
(c)Disconnect the connectors.
4.INSTALL ROOF HEADLINING ASSY (See page 76±45)
Page 3168 of 5135
670SD±02
±
AUDIO & VISUAL SYSTEM AMPLIFIER ANTENNA ASSY (WAGON MODELS)
67±19
AVENSIS REPAIR MANUAL (RM1018E)
AMPLIFIER ANTENNA ASSY (WAGON MODELS)
REPLACEMENT
1. DISCONNEC T B ATTE RY NEG ATIVE TERMINAL ( See page 60±1)
2 . REMOVE INSTRUMENT CLUSTER FINISH P ANEL GARNISH NO.2 ( See page 71±11 )
3. REMOVE INSTRUMENT PANEL REGISTER ASSY CTR (W/ NAVIGATION SYSTEM) (See page 67±6 )
4 . REMOVE SHIFT LEVER KNOB SUB±ASSY (M/T TRANSAXLE) ( See page 41±11 )
5 . REMOVE CONSOLE PANEL SUB±ASSY UPPER ( See page 71±11 )
6 . REMOVE RADIO RECEIVER ASSEMB LY W/BRACKET ( See page 67±5)
7 . REMOVE CONSOLE BOX ASSY RR ( See page 71±11 )
8 . REMOVE HE ATER T O REGISTER DUCT NO.2 ( See page 71±11 )
9 . REMOVE FRONT SE AT ASSY RH ( See page POWER SE AT 72± 11 , MANUAL SE AT 72±16 )
10 . REMOVE FRONT DOOR SCUFF PL ATE RH ( See page 76±36 )
1 1 . REMOVE REAR DOOR SCUFF PL ATE RH ( See page 76±36 )
12 . REMOVE COWL SIDE TRIM BOARD RH ( See page 76±36)
13 . REMOVE FRONT DOOR OPENING TRIM WE ATHERSTRIP RH ( See page 76±36 )
14 . REMOVE REAR DOOR OPENING TRIM WE ATHERSTRIP RH ( See page 76±36 )
15. REMOVE REAR SEAT CUSHION ASSEMBLY (See page 40/60 FOLDING FLIP±UP CUSHION72±21 , 40/60 FOLDING 72±27 )
16. REMOVE REAR SEATBACK ASSY
(See page 40/60 FOLDING FLIP±UP CUSHION72±21 , 40/60 FOLDING 72±27 )
17. REMOVE REAR SIDE SEAT BACK ASSY RH (See page 40/60 FOLDING FLIP±UP CUSHION72±21 , 40/60 FOLDING 72±27 )
18. REMOVE TONNEAU COVER ASSY
19 . REMOVE BACK DOOR WE ATHERSTRIP ( See page 76±54 )
20 . REMOVE DECK BOARD SUB±ASSY ( See page 76±54)
21 . REMOVE DECK FLOOR BOX REAR ( See page 76±54)
22 . REMOVE DECK FLOOR BOX FRONT ( See page 76±54)
23 . REMOVE DECK FLOOR BOX RH ( See page 76±54)
24 . REMOVE REAR FLOOR FINISH PL ATE ( See page 76±54 )
25 . REMOVE DECK TRIM SIDE BOARD RH ( See page 76±54)
26 . REMOVE ROOF SIDE GARNISH INNER RH ( See page 76±54)
27. REMOVE FLOOR CARPET ASSY FRONT
