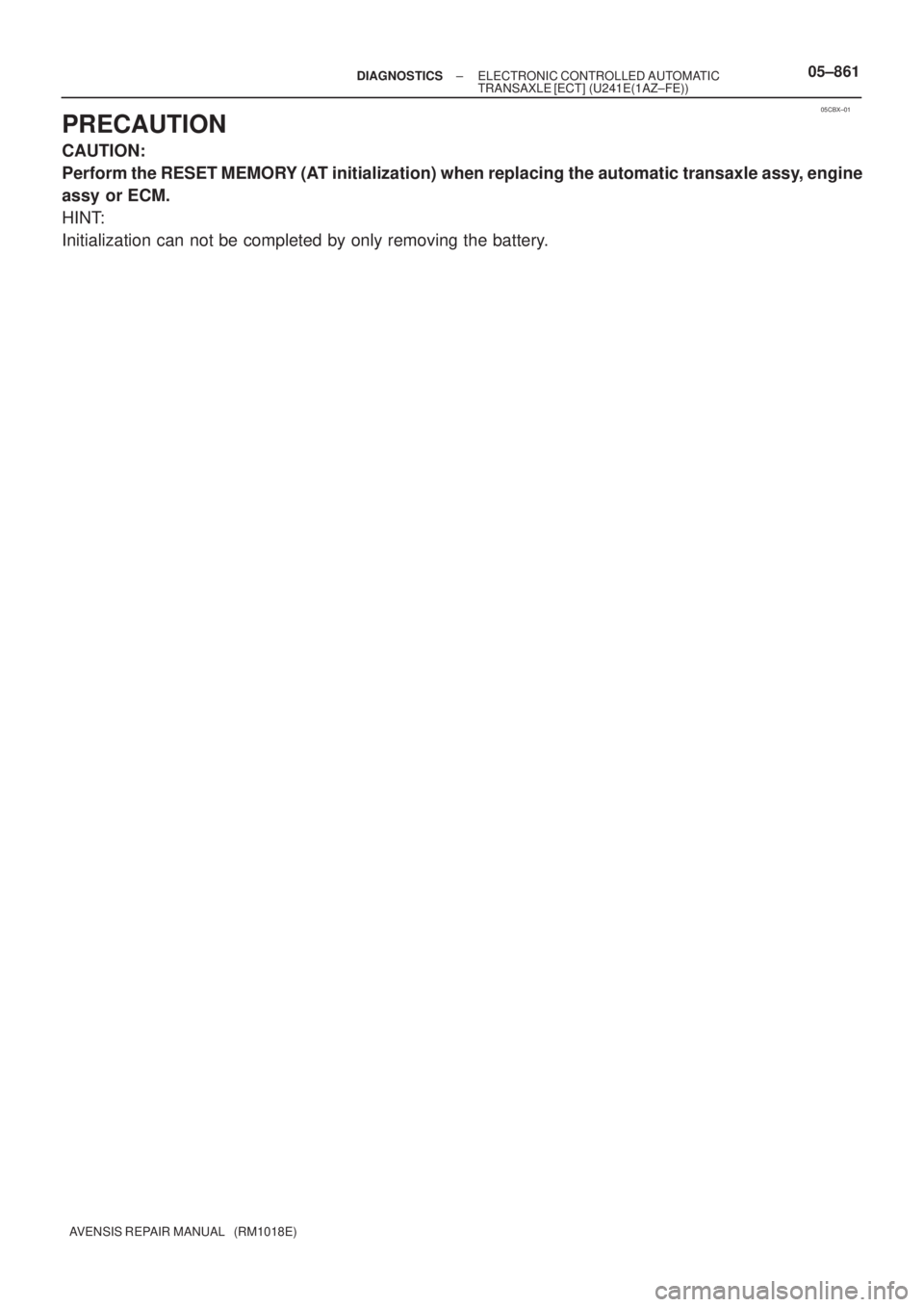

Page 929 of 5135
05CBX±01
± DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E(1AZ±FE))05±861
AVENSIS REPAIR MANUAL (RM1018E)
PRECAUTION
CAUTION:
Perform the RESET MEMORY (AT initialization) when replacing the automatic transaxle assy, engine
assy or ECM.
HINT:
Initialization can not be completed by only removing the battery.

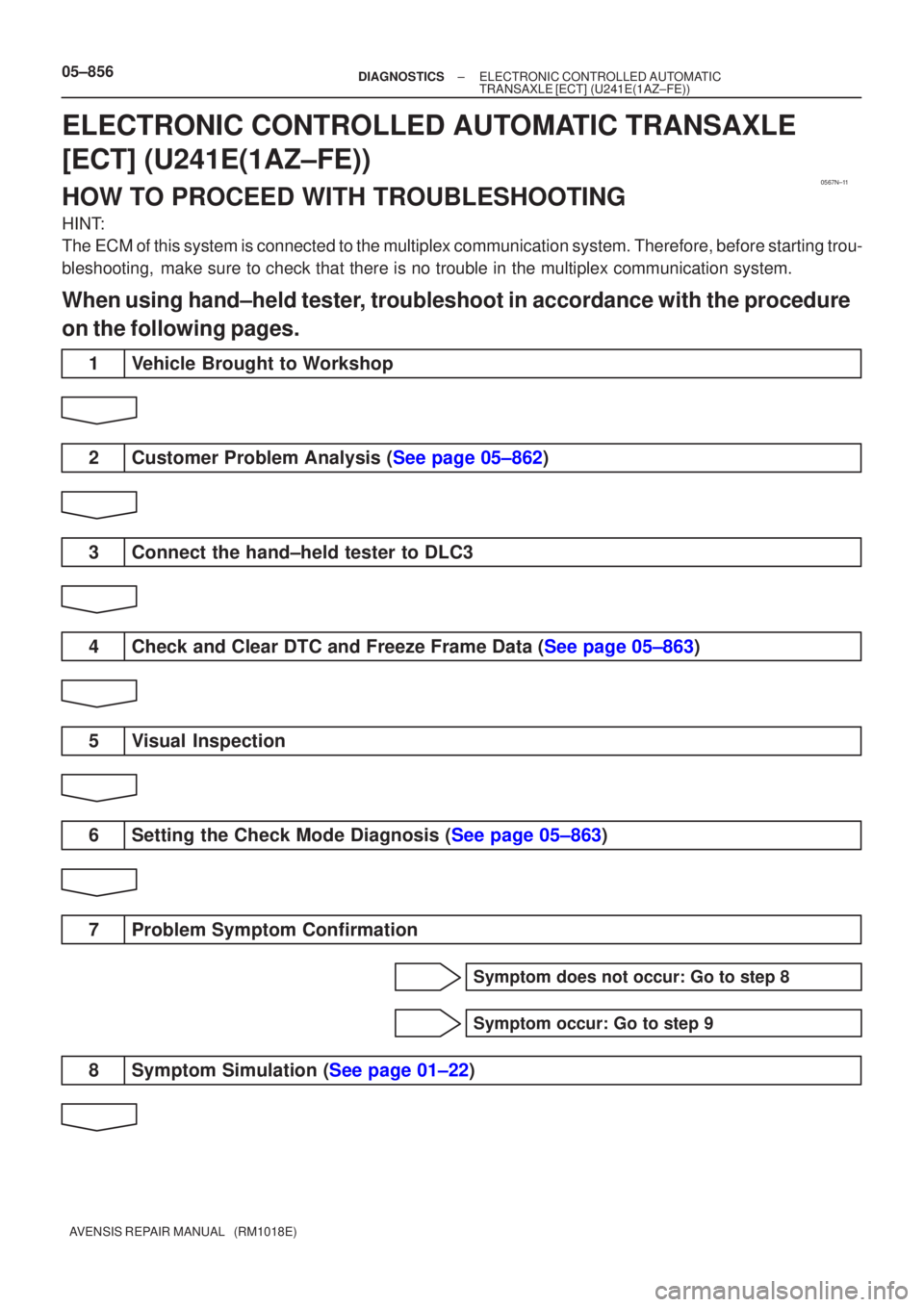

Page 930 of 5135
0567N±11
05±856±
DIAGNOSTICS ELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT](U241E(1AZ±FE))
AVENSIS REPAIR MANUAL (RM1018E)
ELECTRONIC CONTROLLED AUTOMATIC TRANSAXLE
[ECT](U241E(1AZ±FE))
HOW TO PROCEED WITH TROUBLESHOOTING
HINT:
The ECM of this system is connected to the multiplex communication system. \
Therefore, before starting trou-
bleshooting, make sure to check that there is no trouble in the multiplex communicat\
ion system.
When using hand±held tester, troubleshoot in accordance with the procedure
on the following pages.
1Vehicle Brought to Workshop
2Customer Problem Analysis (See page 05±862)
3 Connect the hand±held tester to DLC3
4Check and Clear DTC and Freeze Frame Data (See page 05±863)
5 Visual Inspection
6Setting the Check Mode Diagnosis (See page 05±863)
7 Problem Symptom Confirmation
Symptom does not occur: Go to step 8
Symptom occur: Go to step 9
8Symptom Simulation (See page 01±22)

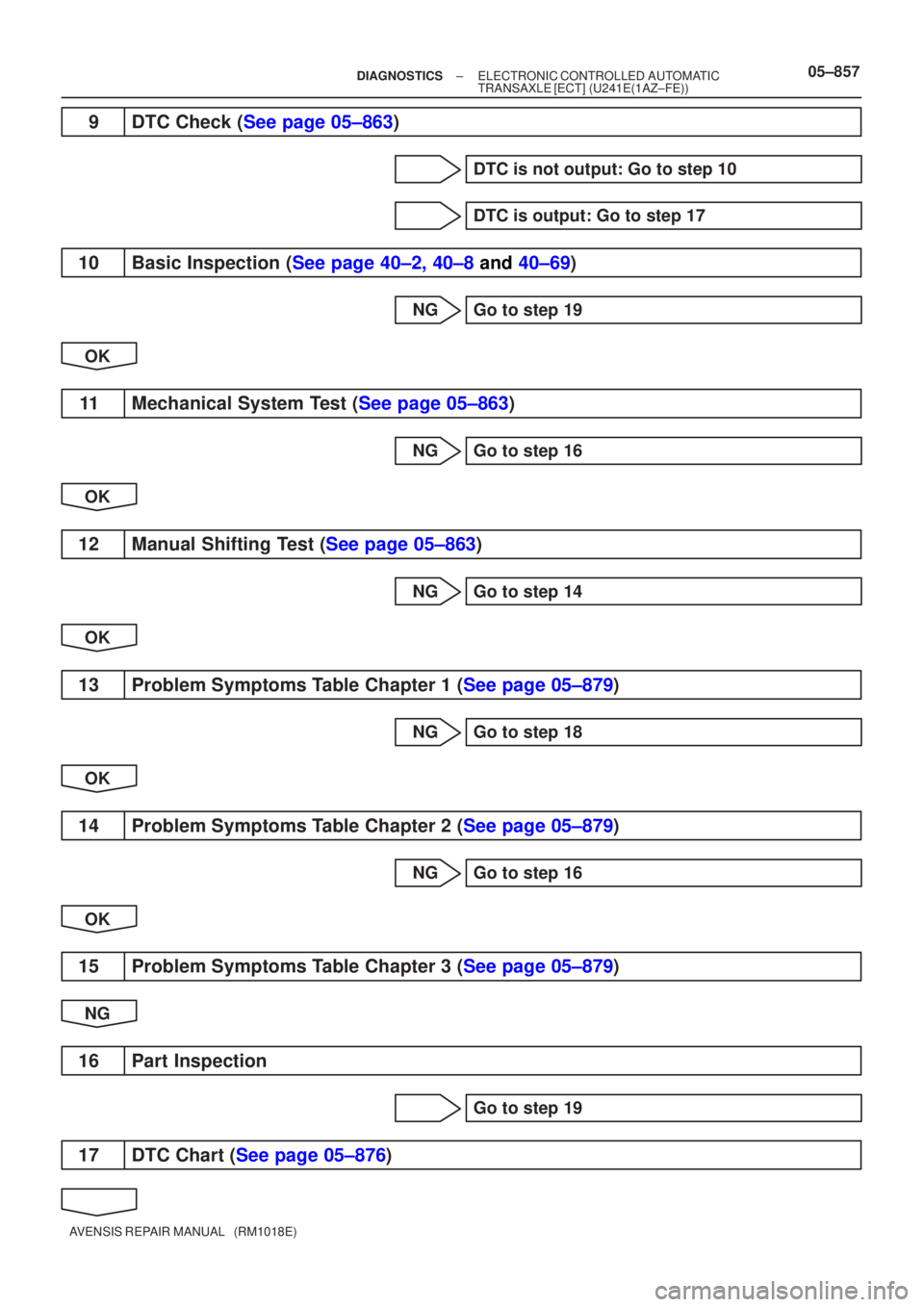

Page 931 of 5135
±
DIAGNOSTIC SELECTRONI C CONTROLLED AU TOM ATIC
TRANSAXLE [ECT ](U241E(1AZ±FE))05±857
A VENSIS RE PAIR MANUAL (RM1018E)
9 DTC Check ( See page 05±863 )
DTC is not output: Go to step 10
DTC is output: Go to step 17
10 Basic Inspection ( See page 40±2, 40±8 and 40±69 )
NG Go to step 19
OK
1 1 Mechanical System Test ( See page 05±863 )
NG Go to step 16
OK
1 2 Manual Shifting T est ( See page 05±863 )
NG Go to step 14
OK
1 3 Problem Symptoms T able Chapter 1 ( See page 05±879 )
NG Go to step 18
OK
1 4 Problem Symptoms T able Chapter 2 ( See page 05±879 )
NG Go to step 16
OK
1 5 Problem Symptoms T able Chapter 3 ( See page 05±879 )
NG
16 Part Inspection
Go to step 19
17 DTC Chart ( See page 05±876 )
Page 932 of 5135
05±858±
DIAGNOSTICS ELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E(1AZ±FE))
AVENSIS REPAIR MANUAL (RM1018E)
18Circuit Inspection (See page 05±882)
19 Identification of Problem
20 Repair
21 Confirmation Test
End
When not using hand±held tester, troubleshoot in accordance with the proce-
dure on the following pages.
1 Vehicle Brought to Workshop
2Customer Problem Analysis (See page 05±862)
3Check and Clear DTCs (See page 05±863)
4 Problem Symptom Confirmation
Symptom does not occur: Go to step 5
Symptom occur: Go to step 6
5Symptom Simulation (See page 01±22)
Page 933 of 5135
±
DIAGNOSTICS ELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E(1AZ±FE))05±859
AVENSIS REPAIR MANUAL (RM1018E)
6DTC Check ( See page 05±863 )
DTC is not output: Go to step 7
DTC is output: Go to step 14
7Basic Inspection ( See page 40±2, 40±8 and 40±69 )
NG Go to step 16
OK
8 Mechanical System Test ( See page 05±863 )
NG Go to step 13
OK
9 Manual Shifting T est ( See page 05±863 )
NG Go to step 11
OK
1 0 Problem Symptoms T able Chapter 1 ( See page 05±879 )
NG Go to step 15
OK
1 1 Problem Symptoms T able Chapter 2 ( See page 05±879 )
NG Go to step 13
OK
1 2 Problem Symptoms T able Chapter 3 ( See page 05±879 )
NG
13 Part Inspection
Go to step 16
14 DTC Chart ( See page 05±876 )
Page 934 of 5135
05±860±
DIAGNOSTICS ELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E(1AZ±FE))
AVENSIS REPAIR MANUAL (RM1018E)
15Circuit Inspection (See page 05±882)
16 Identification of Problem
17 Repair
18 Confirmation Test
End
Page 935 of 5135
C87489
Skid Control ECU
with Actuator
W− B (*1) W− B (*1)
W−
B (*2)
W (*2) W (*1)
W (*1) W
S1 TS
28
W− B (*2)
CB CA6
3 IE2 12
J8
J/C
D
A IO IP
CG TS
D5
DLC3
4 12 D
ACenter J/B
J16
J/C
*1: LHD
*2: RHD IO: 1AZ
−FSE
IL: 1CD− FTV
C
B
J20 J21 W (*2)
J/C
C52361
Ts
CGDLC3
05− 854
−
DIAGNOSTICS ABS WITH EBD & BA & TRC & VSC SYSTEM
TS TERMINAL CIRCUIT
CIRCUIT DESCRIPTION
The sensor check circuit detects troubles in the sensor signal which cannot be detected by the DTC check.
Connecting terminals Ts and CG of the DLC3 starts the check.
WIRING DIAGRAM
INSPECTION PROCEDURE
1 INSPECT DLC3 TERMINAL VOLTAGE(Ts TERMINAL)
(a) Turn the ignition switch ON.
(b) Measure the voltage between terminals Ts and CG of the
DLC3.
OK:
Voltage: 10 to 14 V
OK Go to step 3
NG
056T8− 03
Page 936 of 5135
±
DIAGNOSTICS ABS WITH EBD & BA & TRC & VSC SYSTEM
05±855
AVENSIS REPAIR MANUAL (RM1018E)
2CHECK HARNESS AND CONNECTOR(DLC3 ± BODY GROUND)
(a)Check for an open or short circuit in harness and connector between terminal Ts of the DLC3 and skid
control ECU (See page 01±32).
NG REPAIR OR REPLACE HARNESS ORCONNECTOR
OK
3 CHECK AND REPAIR HARNESS AND CONNECTOR(SKID CONTROL ECU ± DLC3)
(a) Check for an open or short circuit in harness and connector between terminal \
CG of the DLC3 and body ground (See page 01±32).
NG REPAIR OR REPLACE HARNESS ORCONNECTOR
OK
REPLACE ABS & TRACTION ACTUATOR ASSY(See page 32±57)
