TOYOTA AVENSIS 2005 Service Repair Manual 600K0±01
H42754Nm (kgfcm, ftlbf) : Specified torqueCurtain Shield Airbag Assy LH
3.5 (36, 31 in.lbf)
14 (143, 10)3.5 (36, 31 in.lbf)
14 (143, 10)
Sedan/Liftback Models: 60±36
± SUPPLEMENTAL R

Page 3042 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual H42756Nm (kgfcm, ftlbf) : Specified torqueCurtain Shield Airbag Assy LH
3.5 (36, 31 in.lbf)
14 (143, 10)
3.5 (36, 31 in.lbf)
14 (143, 10)
Wagon Models:
± SUPPLEMENTAL RESTRAINT SYSTEMCURTAIN SHI

Page 3043 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual 600JZ±01
H40004
SST(s)
H40005
Battery
SST(s)
60±30
±
SUPPLEMENTAL RESTRAINT SYSTEM INSTRUMENT PANEL PASSENGER AIR BAG ASSY
AVENSIS REPAIR MANUAL (RM1018E)
DISPOSAL
HINT:
When scrapping a vehicle

Page 3044 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual H42642
H42645
SST(s)
H40007
10 m (33 ft) or more
Battery
SST(s)
±
SUPPLEMENTAL RESTRAINT SYSTEM INSTRUMENT PANEL PASSENGER AIR BAG ASSY
60±31
AVENSIS REPAIR MANUAL (RM1018E)
(b) Disconnect the ai

Page 3045 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual H40005
Battery
SST(s)
60±32
±
SUPPLEMENTAL RESTRAINT SYSTEM INSTRUMENT PANEL PASSENGER AIR BAG ASSY
AVENSIS REPAIR MANUAL (RM1018E)
(d) Deploy the airbag. (1) Check that no one is inside the vehic

Page 3046 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual H42620
H40008
Wire Harness
Diameter
Stripped Wire Harness Section
±
SUPPLEMENTAL RESTRAINT SYSTEM INSTRUMENT PANEL PASSENGER AIR BAG ASSY
60±33
AVENSIS REPAIR MANUAL (RM1018E)
(b) Remove the instr

Page 3047 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual H42646
Inner
Diam.
Width
Tire
H43004
SST(s)
H42647
Tires
(5 or more) 60±34
± SUPPLEMENTAL RESTRAINT SYSTEMINSTRUMENT PANEL PASSENGER AIR BAG ASSY
AVENSIS REPAIR MANUAL (RM1018E)
NOTICE:
The tire w

Page 3048 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual H42763
SST(s)
H43299
Battery Instrument Panel
Passenger Airbag Assy
10 m (33 ft) or more
SST(s) SST(s)
H42648
± SUPPLEMENTAL RESTRAINT SYSTEMINSTRUMENT PANEL PASSENGER AIR BAG ASSY
60±35
AVENSIS RE

H42763
SST(s)
H43299
Battery Instrument Panel
Passenger Airbag Assy
10 m (33 ft) or more
SST(s) SST(s)
H42648
± SUPPLEMENTAL RESTRAINT SYSTEMINSTRUMENT PANEL PASSENGER AIR BAG ASSY
60±35
AVENSIS REPAIR MANUAL (RM1018E)

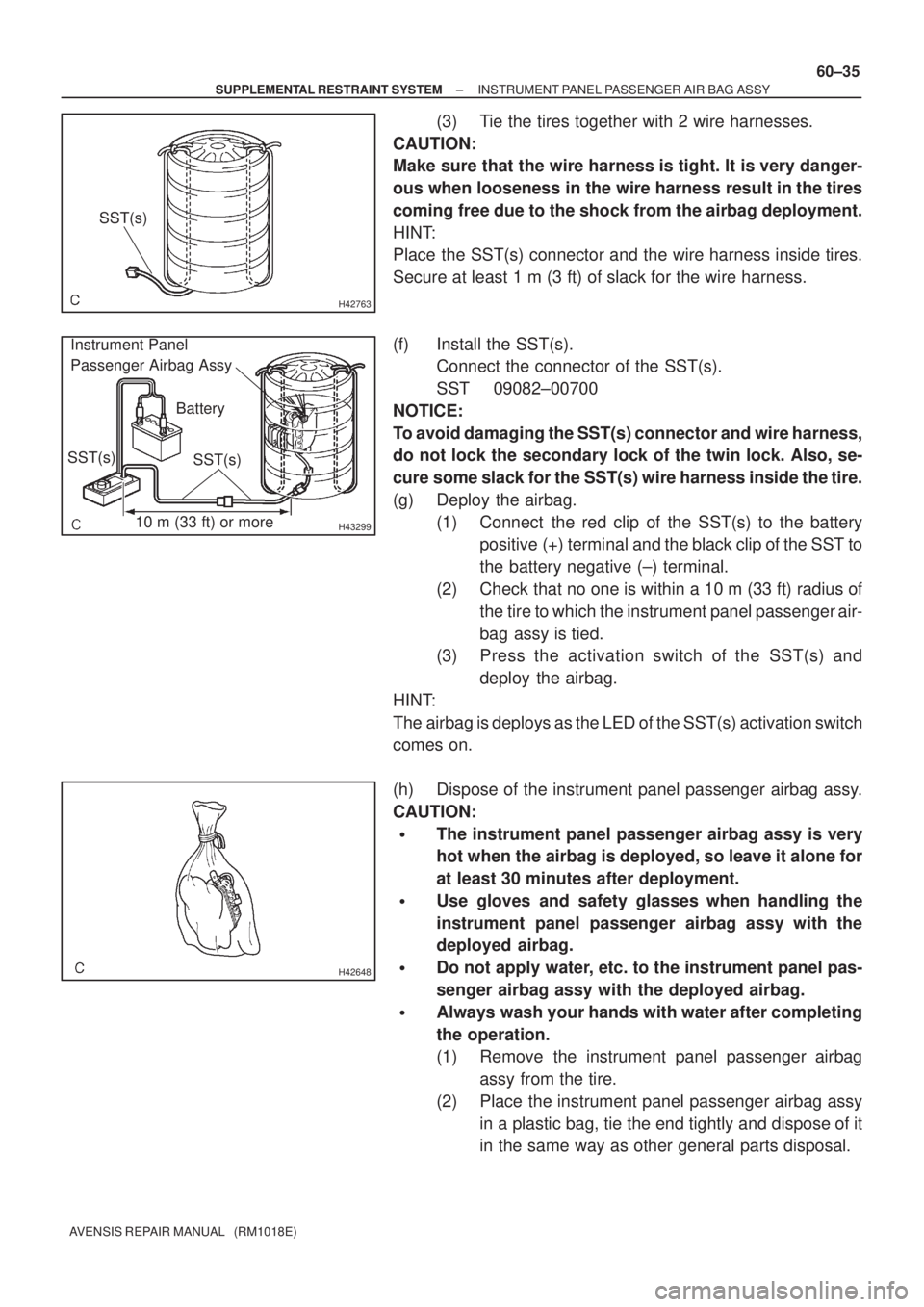

(3) Tie the tires together with 2 wire harnesses.
CAUTION:
Make sure that the wire harness is tight. It is very danger-
ous when looseness in the wire harness result in the tires
coming free due to the shock from the airbag deployment.
HINT:
Place the SST(s) connector and the wire harness inside tires.
Secure at least 1 m (3 ft) of slack for the wire harness.
(f) Install the SST(s).
Connect the connector of the SST(s).
SST 09082±00700
NOTICE:
To avoid damaging the SST(s) connector and wire harness,
do not lock the secondary lock of the twin lock. Also, se-
cure some slack for the SST(s) wire harness inside the tire.
(g) Deploy the airbag.
(1) Connect the red clip of the SST(s) to the battery
positive (+) terminal and the black clip of the SST to
the battery negative (±) terminal.
(2) Check that no one is within a 10 m (33 ft) radius of
the tire to which the instrument panel passenger air-
bag assy is tied.
(3) Press the activation switch of the SST(s) and
deploy the airbag.
HINT:
The airbag is deploys as the LED of the SST(s) activation switch
comes on.
(h) Dispose of the instrument panel passenger airbag assy.
CAUTION:
The instrument panel passenger airbag assy is very
hot when the airbag is deployed, so leave it alone for
at least 30 minutes after deployment.
Use gloves and safety glasses when handling the
instrument panel passenger airbag assy with the
deployed airbag.
Do not apply water, etc. to the instrument panel pas-
senger airbag assy with the deployed airbag.
Always wash your hands with water after completing
the operation.
(1) Remove the instrument panel passenger airbag
assy from the tire.
(2) Place the instrument panel passenger airbag assy
in a plastic bag, tie the end tightly and dispose of it
in the same way as other general parts disposal.
