Page 1513 of 5135

I34690
ºINFOº
Switch
Navigation Controller Assy:
I35902
05±1440
± DIAGNOSTICSNAVIGATION SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
(a) Start±up and finishing of the diagnosis.
HINT:
Before starting the diagnosis system, make sure that the map
appears on the screen after turning the IG switch ON.
If not, some items cannot be checked.
(b) Diagnosis start±up by the light control switch.
(1) Vehicle speed should be 0 km/h (0 mph).
(2) Turn the ignition switch to ACC or ON.
(3) While pressing the ºINFOº switches on the naviga-
tion controller assy, turn the light control switch from
OFF TAIL OFF TAIL OFF TAIL OFF.
HINT:
Operate the navigation controller assy by pointing if to the in-
frared ray emitted portion on the multi±display (CRT display)
display or mounting it to the navigation controller holder.
DisplayDescription
Service Check
By performing system check and collecting data of diagno-
sis memory, this mode checks the current and past condi-
tion of each connection device.
Display CheckIt displays the Display Check on the screen.
Navigation CheckIt displays the Navigation ECU Check on the screen.
HINT:
When the diagnosis system starts, the service check
screen is displayed and the service check begins.
Select MENU to display diagnosis check menu.
(c) Finishing the diagnosis system
Turn the ignition switch OFF to finish the mode.
Page 1514 of 5135
I34692
to section 4. DIAGNOSIS
SYSTEM MODE
Recheck
DTC memory clear
DTC history clearDTC history clear
± DIAGNOSTICSNAVIGATION SYSTEM
05±1441
AVENSIS REPAIR MANUAL (RM1018E)
5. SERVICE CHECK MODE
Page 1515 of 5135

I34699
*2
*4*3
*5 *6
*7
*1*1
05±1442
± DIAGNOSTICSNAVIGATION SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

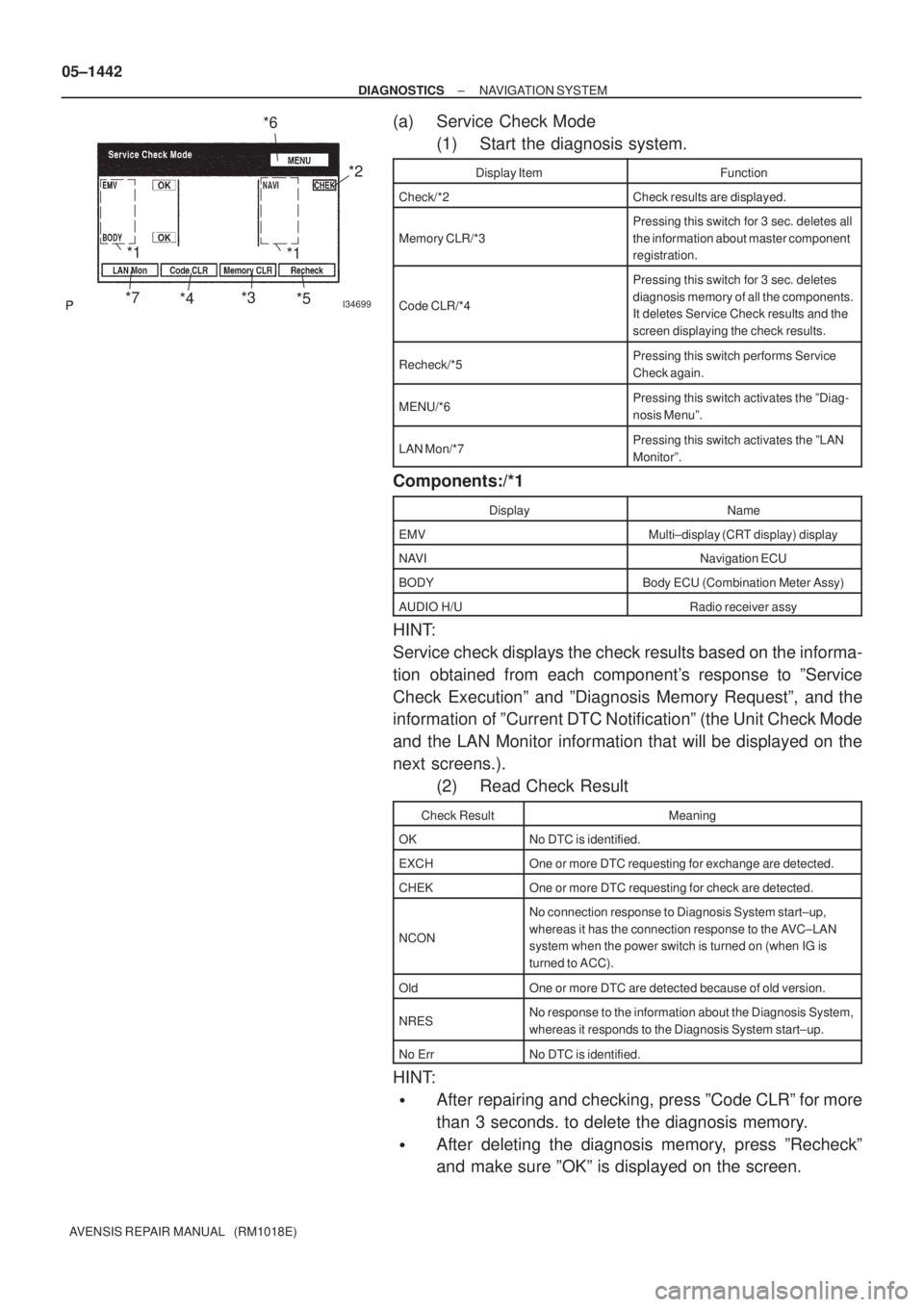

(a) Service Check Mode
(1) Start the diagnosis system.
Display ItemFunction
Check/*2Check results are displayed.
Memory CLR/*3
Pressing this switch for 3 sec. deletes all
the information about master component
registration.
Code CLR/*4
Pressing this switch for 3 sec. deletes
diagnosis memory of all the components.
It deletes Service Check results and the
screen displaying the check results.
Recheck/*5Pressing this switch performs Service
Check again.
MENU/*6Pressing this switch activates the ºDiag-
nosis Menuº.
LAN Mon/*7Pressing this switch activates the ºLAN
Monitorº.
Components:/*1
DisplayName
EMVMulti±display (CRT display) display
NAVINavigation ECU
BODYBody ECU (Combination Meter Assy)
AUDIO H/URadio receiver assy
HINT:
Service check displays the check results based on the informa-
tion obtained from each component's response to ºService
Check Executionº and ºDiagnosis Memory Requestº, and the
information of ºCurrent DTC Notificationº (the Unit Check Mode
and the LAN Monitor information that will be displayed on the
next screens.).
(2) Read Check Result
Check ResultMeaning
OKNo DTC is identified.
EXCHOne or more DTC requesting for exchange are detected.
CHEKOne or more DTC requesting for check are detected.
NCON
No connection response to Diagnosis System start±up,
whereas it has the connection response to the AVC±LAN
system when the power switch is turned on (when IG is
turned to ACC).
OldOne or more DTC are detected because of old version.
NRESNo response to the information about the Diagnosis System,
whereas it responds to the Diagnosis System start±up.
No ErrNo DTC is identified.
HINT:
After repairing and checking, press ºCode CLRº for more
than 3 seconds. to delete the diagnosis memory.
After deleting the diagnosis memory, press ºRecheckº
and make sure ºOKº is displayed on the screen.
Page 1516 of 5135

I32709
*3
*2
*4
*5*6
*1
I34700
*2
*1
*3
± DIAGNOSTICSNAVIGATION SYSTEM
05±1443
AVENSIS REPAIR MANUAL (RM1018E)

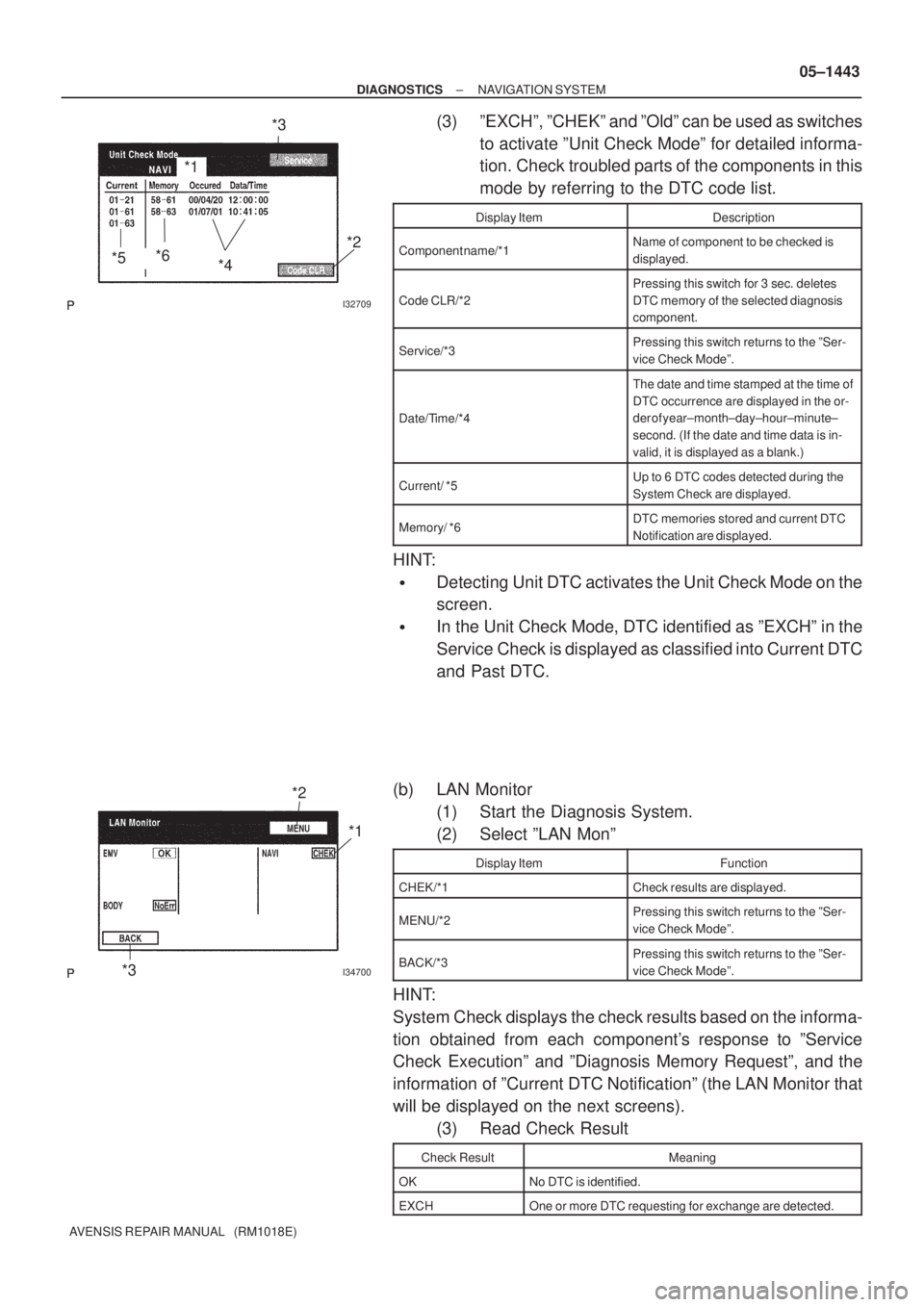

(3) ºEXCHº, ºCHEKº and ºOldº can be used as switches
to activate ºUnit Check Modeº for detailed informa-
tion. Check troubled parts of the components in this
mode by referring to the DTC code list.
Display ItemDescription
Component name/*1Name of component to be checked is
displayed.
Code CLR/*2
Pressing this switch for 3 sec. deletes
DTC memory of the selected diagnosis
component.
Service/*3Pressing this switch returns to the ºSer-
vice Check Modeº.
Date/Time/*4
The date and time stamped at the time of
DTC occurrence are displayed in the or-
der of year±month±day±hour±minute±
second. (If the date and time data is in-
valid, it is displayed as a blank.)
Current/ *5Up to 6 DTC codes detected during the
System Check are displayed.
Memory/ *6DTC memories stored and current DTC
Notification are displayed.
HINT:
Detecting Unit DTC activates the Unit Check Mode on the
screen.
In the Unit Check Mode, DTC identified as ºEXCHº in the
Service Check is displayed as classified into Current DTC
and Past DTC.
(b) LAN Monitor
(1) Start the Diagnosis System.
(2) Select ºLAN Monº
Display ItemFunction
CHEK/*1Check results are displayed.
MENU/*2Pressing this switch returns to the ºSer-
vice Check Modeº.
BACK/*3Pressing this switch returns to the ºSer-
vice Check Modeº.
HINT:
System Check displays the check results based on the informa-
tion obtained from each component's response to ºService
Check Executionº and ºDiagnosis Memory Requestº, and the
information of ºCurrent DTC Notificationº (the LAN Monitor that
will be displayed on the next screens).
(3) Read Check Result
Check ResultMeaning
OKNo DTC is identified.
EXCHOne or more DTC requesting for exchange are detected.
Page 1517 of 5135

I34701
*6
*5
*4 *3
*2
*1*7
05±1444
± DIAGNOSTICSNAVIGATION SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)CHEK
One or more DTC requesting for check are detected.
NCON
No connection response to Diagnosis System start±up,
where as it has the connection response to the AVC±LAN
system when the power switch is turned on (when IG is
turned to ACC).
OldOne or more DTC are detected because of old version.
NRESNo response to the information about the Diagnosis System,
where as it responds to the Diagnosis System start±up.
No ErrNo DTC is identified.
HINT:
After repair and check, press ºCode CLRº for more than
3 sec. to delete the diagnosis memory.
After deleting the diagnosis memory, press ºRecheckº
and make sure ºOKº is displayed on the screen.

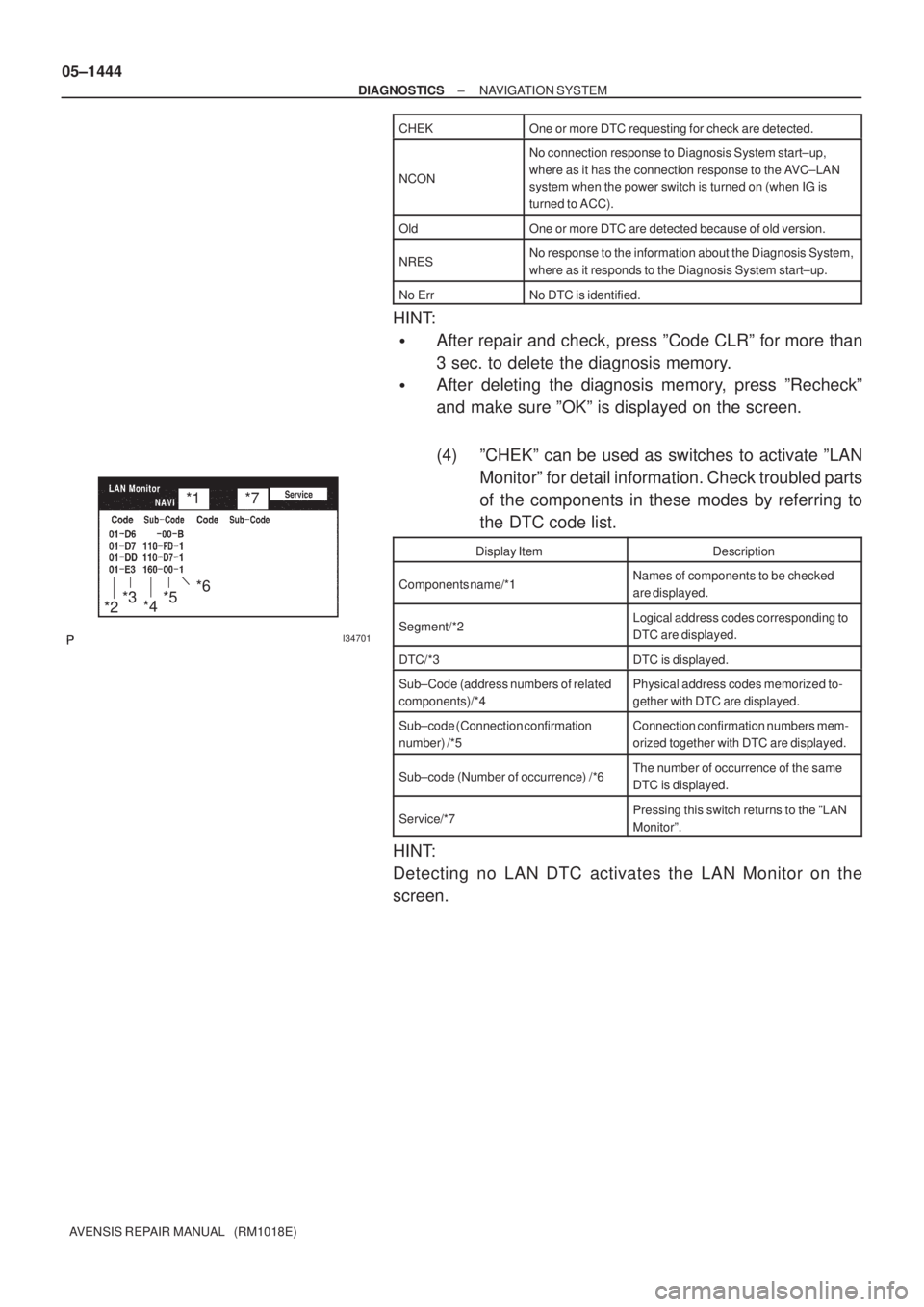

(4) ºCHEKº can be used as switches to activate ºLAN
Monitorº for detail information. Check troubled parts
of the components in these modes by referring to
the DTC code list.
Display ItemDescription
Components name/*1Names of components to be checked
are displayed.
Segment/*2Logical address codes corresponding to
DTC are displayed.
DTC/*3DTC is displayed.
Sub±Code (address numbers of related
components)/*4Physical address codes memorized to-
gether with DTC are displayed.
Sub±code (Connection confirmation
number) /*5Connection confirmation numbers mem-
orized together with DTC are displayed.
Sub±code (Number of occurrence) /*6The number of occurrence of the same
DTC is displayed.
Service/*7Pressing this switch returns to the ºLAN
Monitorº.
HINT:
Detecting no LAN DTC activates the LAN Monitor on the
screen.
Page 1518 of 5135
I34693
to section 4.
DIAGNOSIS
SYSTEM MODE
Select a
color barEnter switch
± DIAGNOSTICSNAVIGATION SYSTEM
05±1445
AVENSIS REPAIR MANUAL (RM1018E)

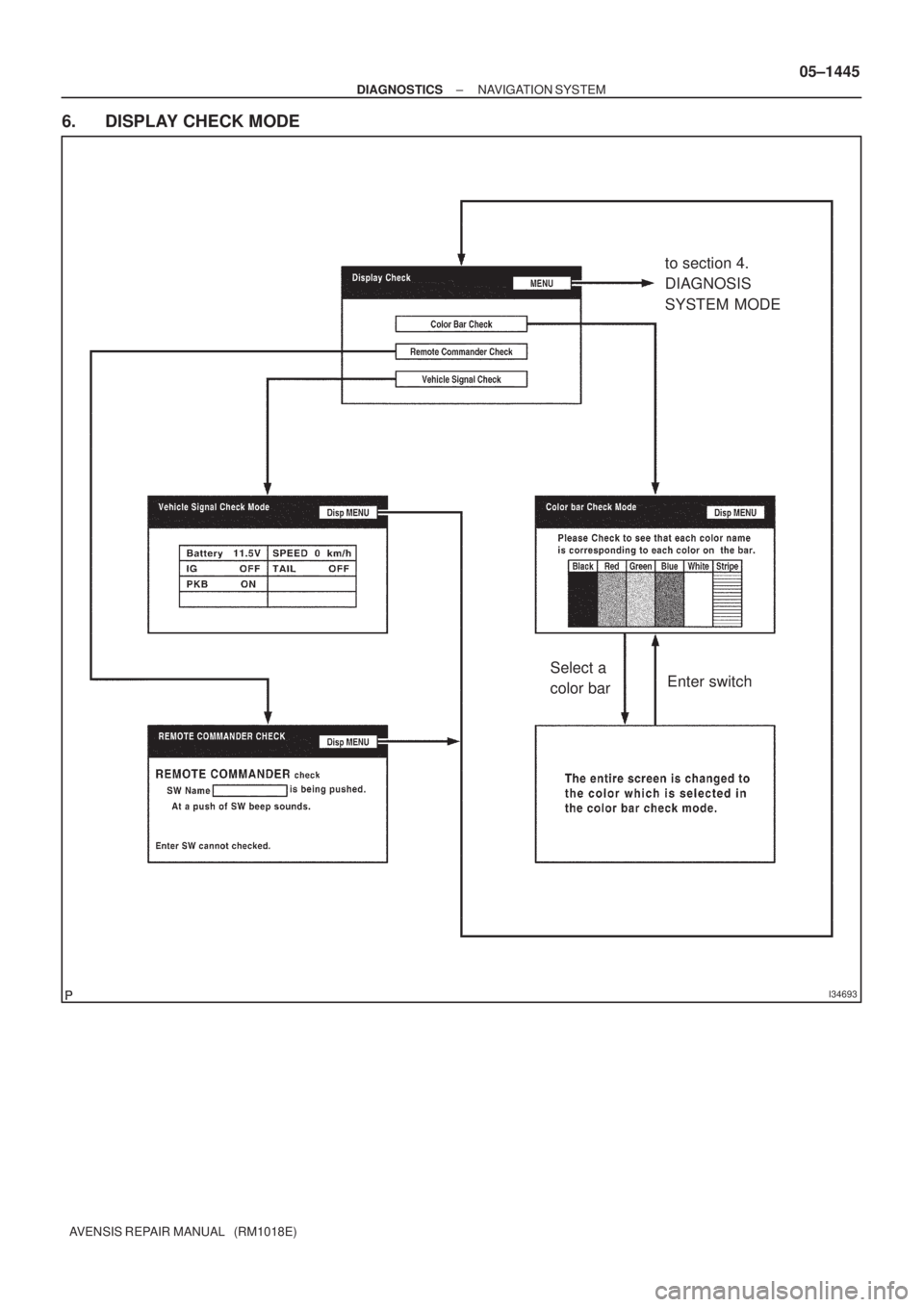

6. DISPLAY CHECK MODE
Page 1519 of 5135

I34702
*2 *4
*3 *1
I34711
Select a
color barEnter switch*1
05±1446
± DIAGNOSTICSNAVIGATION SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

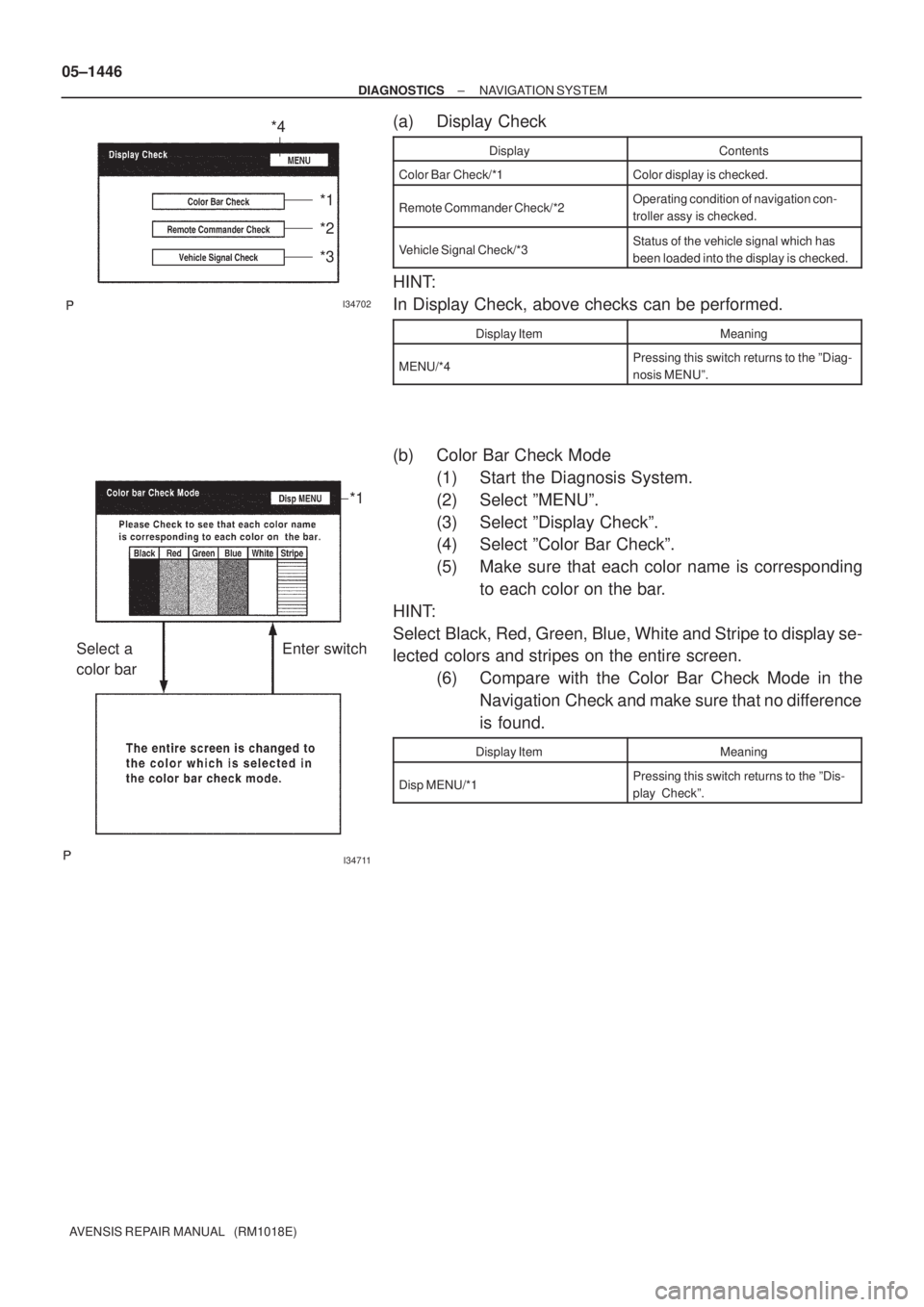

(a) Display Check
DisplayContents
Color Bar Check/*1Color display is checked.
Remote Commander Check/*2Operating condition of navigation con-
troller assy is checked.
Vehicle Signal Check/*3Status of the vehicle signal which has
been loaded into the display is checked.
HINT:
In Display Check, above checks can be performed.
Display ItemMeaning
MENU/*4Pressing this switch returns to the ºDiag-
nosis MENUº.
(b) Color Bar Check Mode
(1) Start the Diagnosis System.
(2) Select ºMENUº.
(3) Select ºDisplay Checkº.
(4) Select ºColor Bar Checkº.
(5) Make sure that each color name is corresponding
to each color on the bar.
HINT:
Select Black, Red, Green, Blue, White and Stripe to display se-
lected colors and stripes on the entire screen.
(6) Compare with the Color Bar Check Mode in the
Navigation Check and make sure that no difference
is found.
Display ItemMeaning
Disp MENU/*1Pressing this switch returns to the ºDis-
play Checkº.
Page 1520 of 5135

I34703
*1
*2
I34704
*1
± DIAGNOSTICSNAVIGATION SYSTEM
05±1447
AVENSIS REPAIR MANUAL (RM1018E)

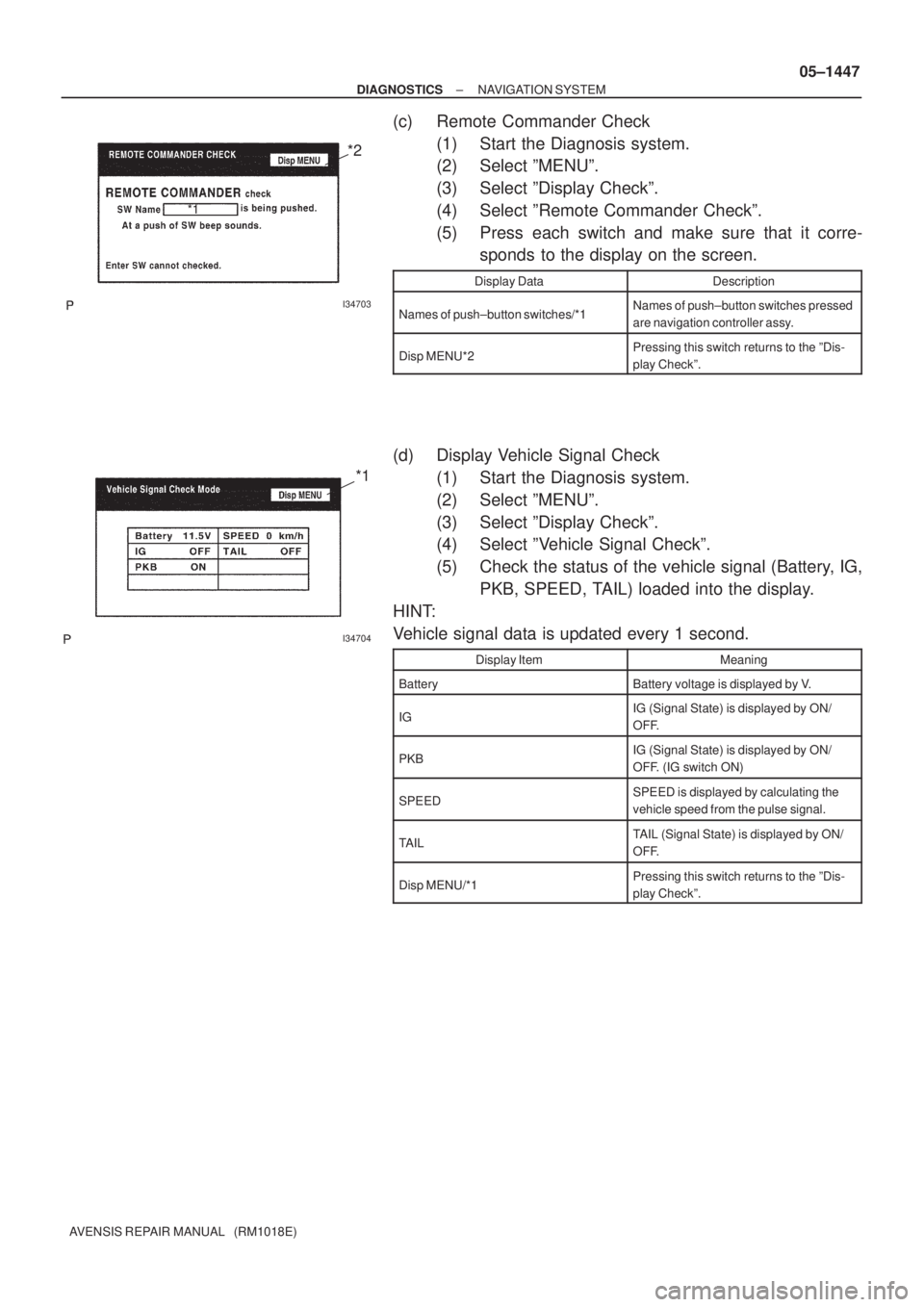

(c) Remote Commander Check
(1) Start the Diagnosis system.
(2) Select ºMENUº.
(3) Select ºDisplay Checkº.
(4) Select ºRemote Commander Checkº.
(5) Press each switch and make sure that it corre-
sponds to the display on the screen.
Display DataDescription
Names of push±button switches/*1Names of push±button switches pressed
are navigation controller assy.
Disp MENU*2Pressing this switch returns to the ºDis-
play Checkº.
(d) Display Vehicle Signal Check
(1) Start the Diagnosis system.
(2) Select ºMENUº.
(3) Select ºDisplay Checkº.
(4) Select ºVehicle Signal Checkº.
(5) Check the status of the vehicle signal (Battery, IG,
PKB, SPEED, TAIL) loaded into the display.
HINT:
Vehicle signal data is updated every 1 second.
Display ItemMeaning
BatteryBattery voltage is displayed by V.
IGIG (Signal State) is displayed by ON/
OFF.
PKBIG (Signal State) is displayed by ON/
OFF. (IG switch ON)
SPEEDSPEED is displayed by calculating the
vehicle speed from the pulse signal.
TAILTAIL (Signal State) is displayed by ON/
OFF.
Disp MENU/*1Pressing this switch returns to the ºDis-
play Checkº.
