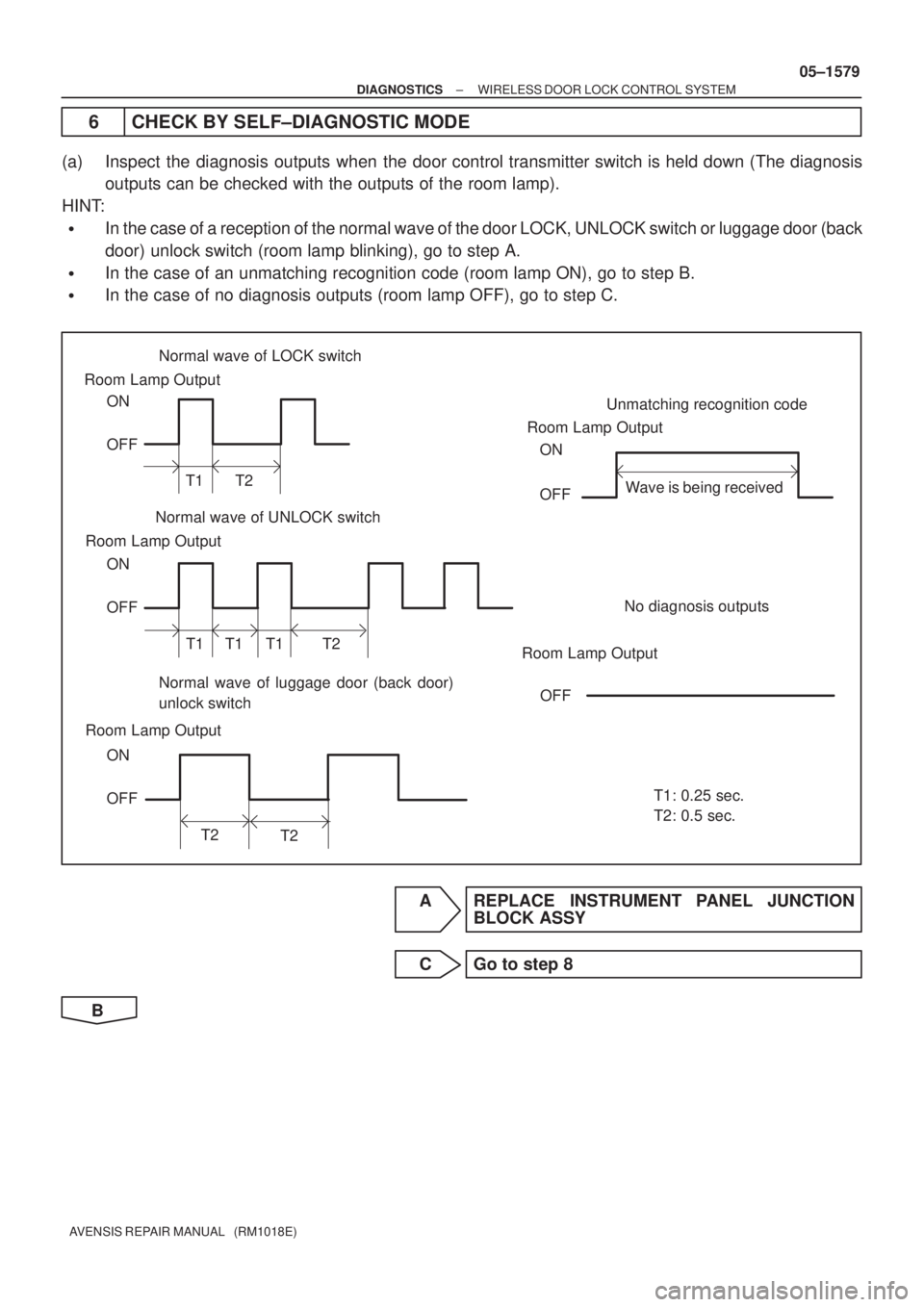

TOYOTA AVENSIS 2005 Service Repair Manual Room Lamp Output
Normal wave of UNLOCK switchUnmatching recognition code
No diagnosis outputs ON
OFF
T1: 0.25 sec. Wave is being received ON
OFF
OFF T1 T1 T1 T2 Normal wave of LOCK switch
ON
OFF
T1 T2

Page 1594 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual 05±1580
± DIAGNOSTICSWIRELESS DOOR LOCK CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

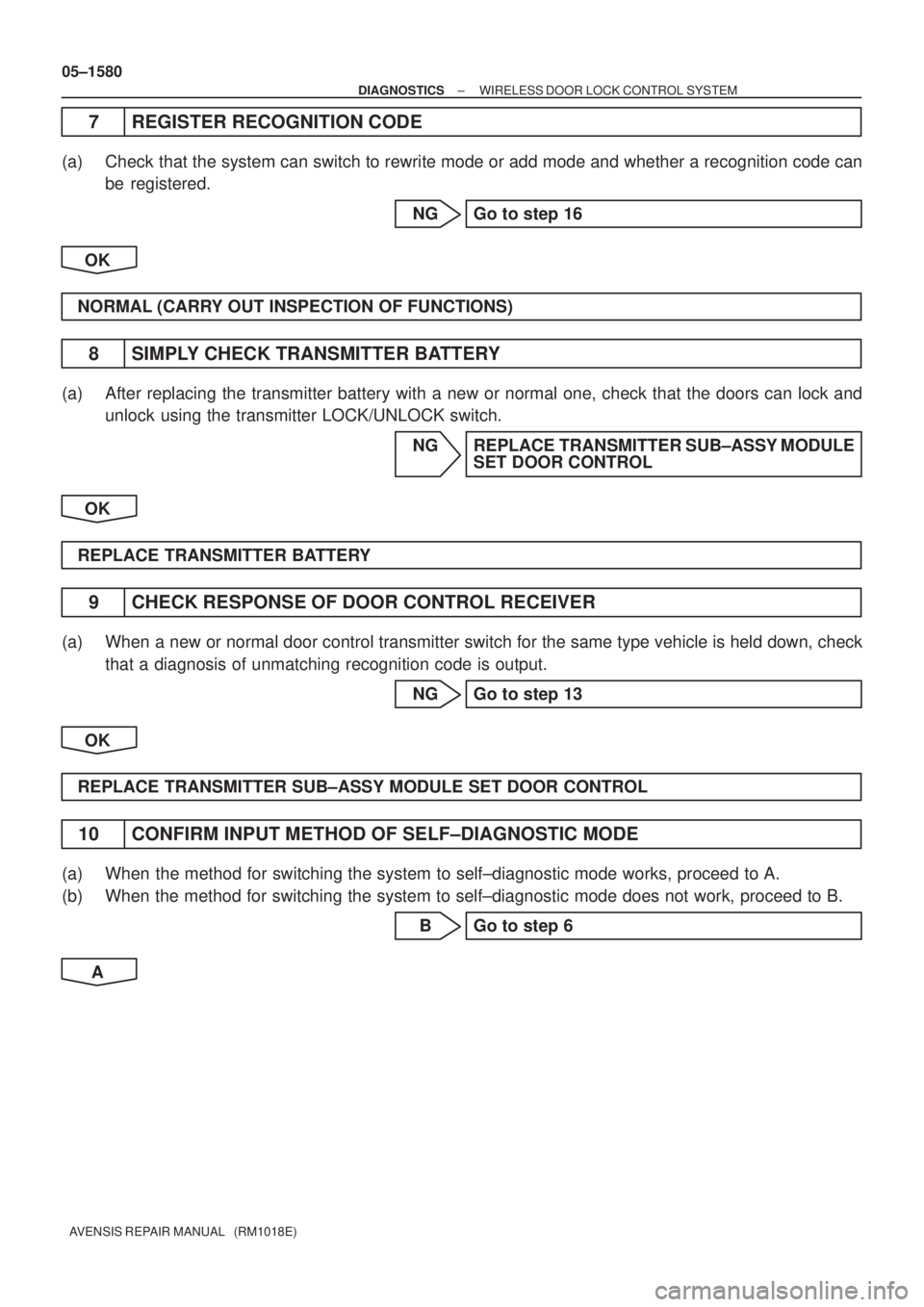

7 REGISTER RECOGNITION CODE
(a) Check that the system can switch to rewrite mode or add mode and whether a re

Page 1595 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual B51903
PushedFree
B66769
DA
Instrument Panel J/B AssyU1
Unlock Warning Switch Wire Harness Side
KSW
± DIAGNOSTICSWIRELESS DOOR LOCK CONTROL SYSTEM
05±1581
AVENSIS REPAIR MANUAL (RM1018E)

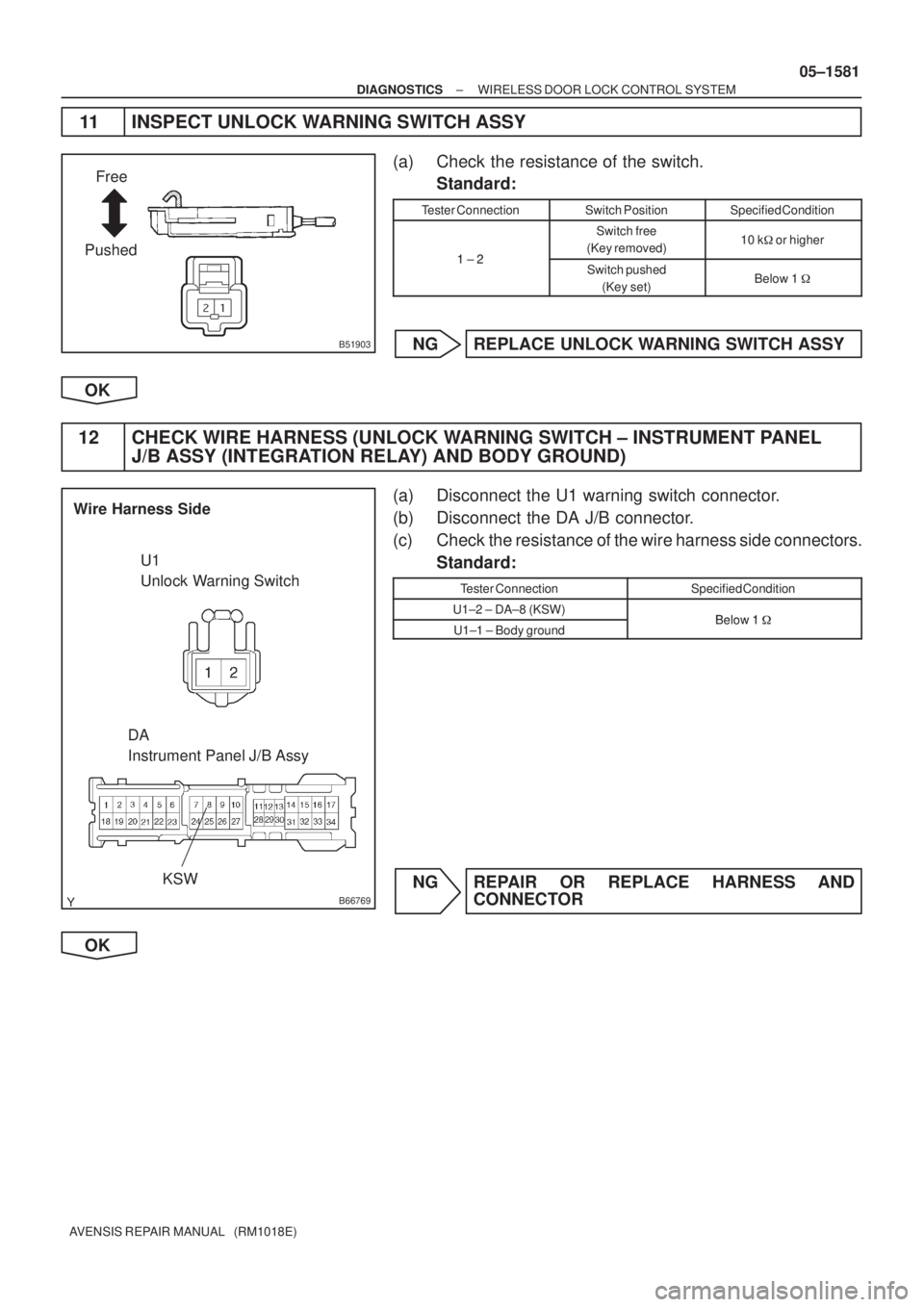

11 INSPEC

Page 1596 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual B59092
D6
Door Control Receiver Wire Harness Side
+B GROUND
B70999PDA
D6
Door Control Receiver
05±1582
± DIAGNOSTICSWIRELESS DOOR LOCK CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
13 CHECK

Page 1597 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual B66767
I14
Instrument Panel J/B AssyD6
Door Control Receiver Wire Harness Side
PDA
PDA
± DIAGNOSTICSWIRELESS DOOR LOCK CONTROL SYSTEM
05±1583
AVENSIS REPAIR MANUAL (RM1018E)

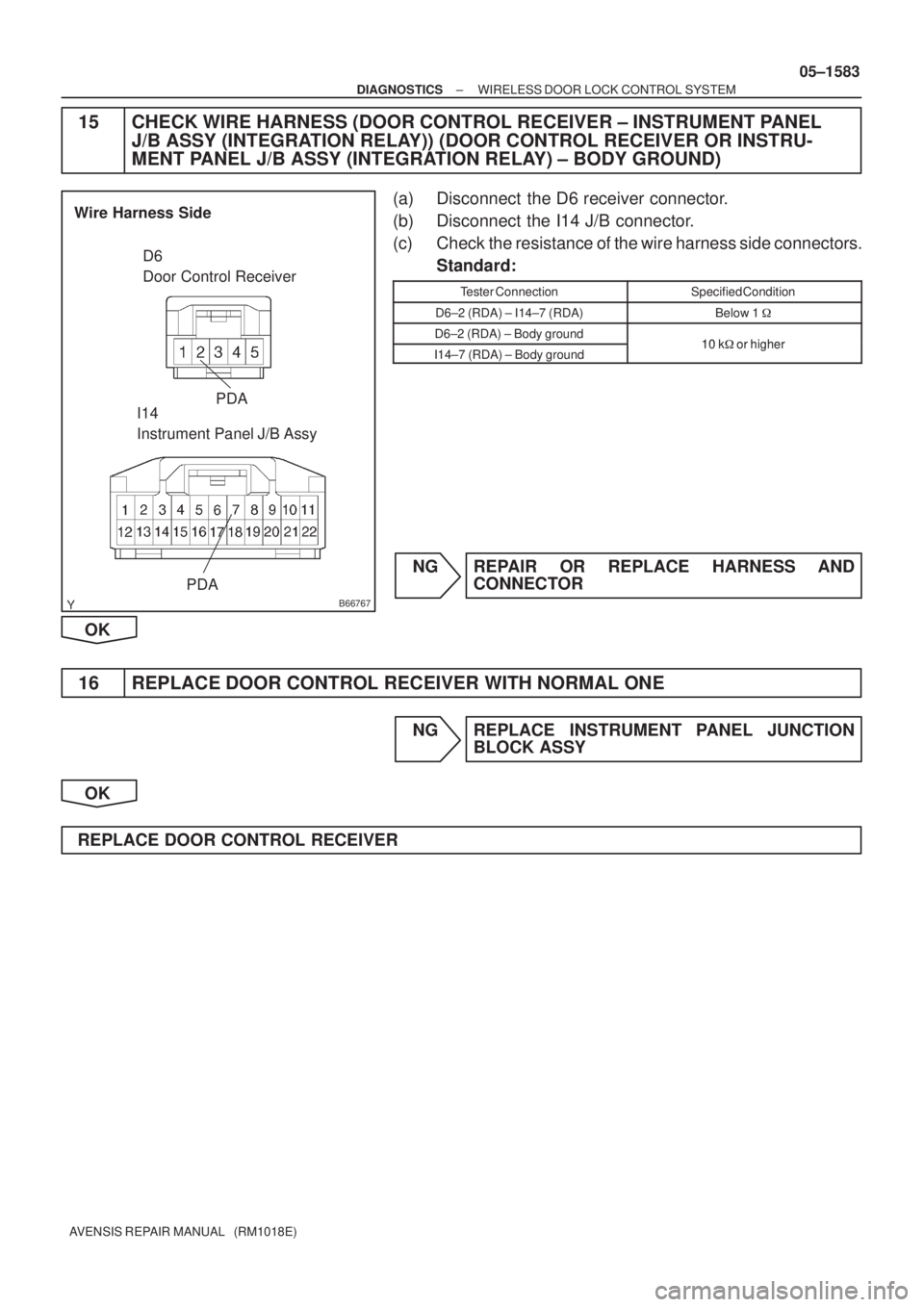

15 CHECK WIRE HARNESS

Page 1598 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual 056Q3±04
05±1574
±
DIAGNOSTICS WIRELESS DOOR LOCK CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

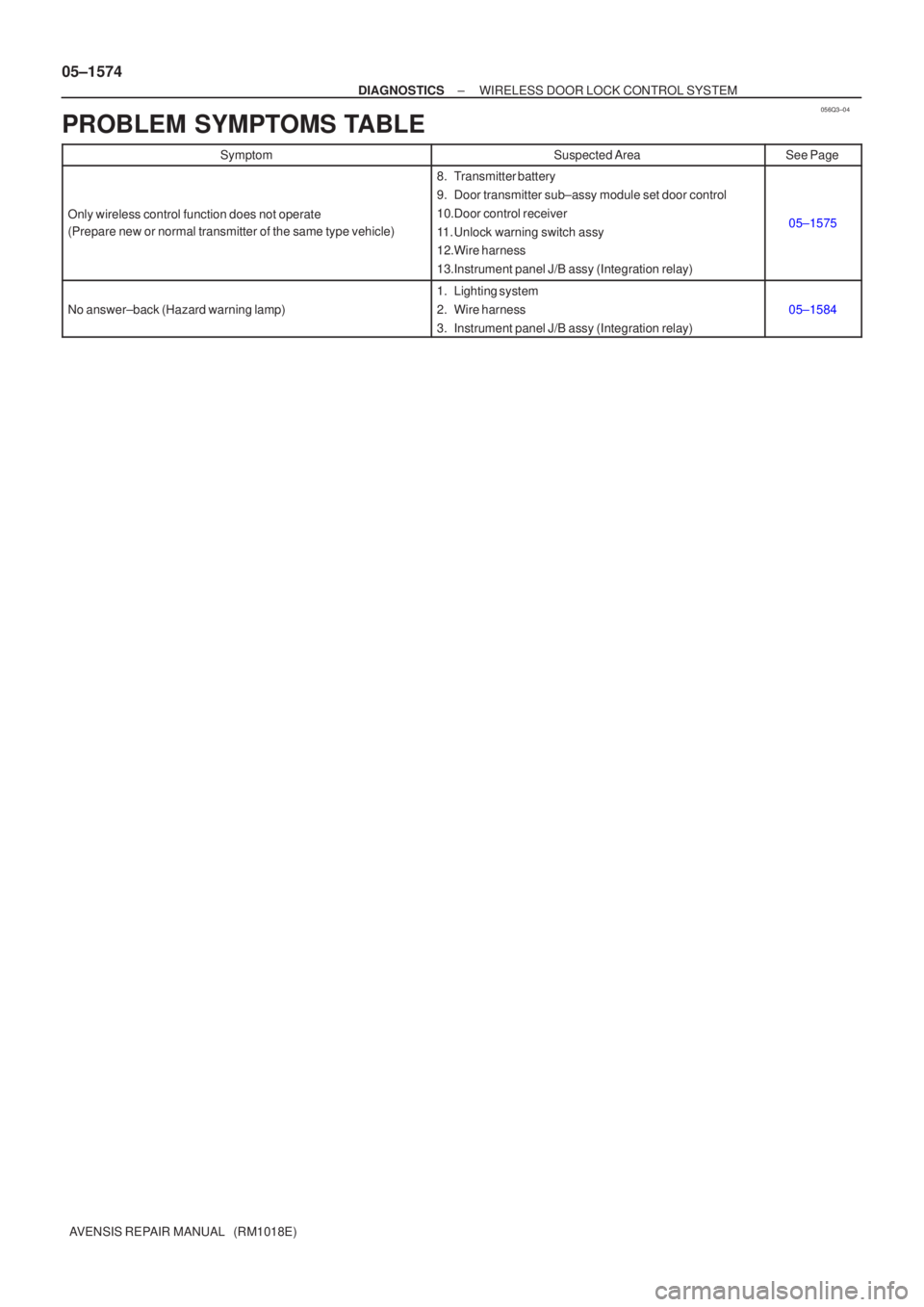

PROBLEM SYMPTOMS TABLE
SymptomSuspected AreaSee Page
Only wireless control function does not opera

Page 1599 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual 05BND±01
B67293
DADBDM
Vehicle Front Side Vehicle Rear Side
DB
DA
DHDC
I14DN
DC
DH
I14
DM
DN
Integration Relay
05±1572
± DIAGNOSTICSWIRELESS DOOR LOCK CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018

Page 1600 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual ± DIAGNOSTICSWIRELESS DOOR LOCK CONTROL SYSTEM
05±1573
AVENSIS REPAIR MANUAL (RM1018E)

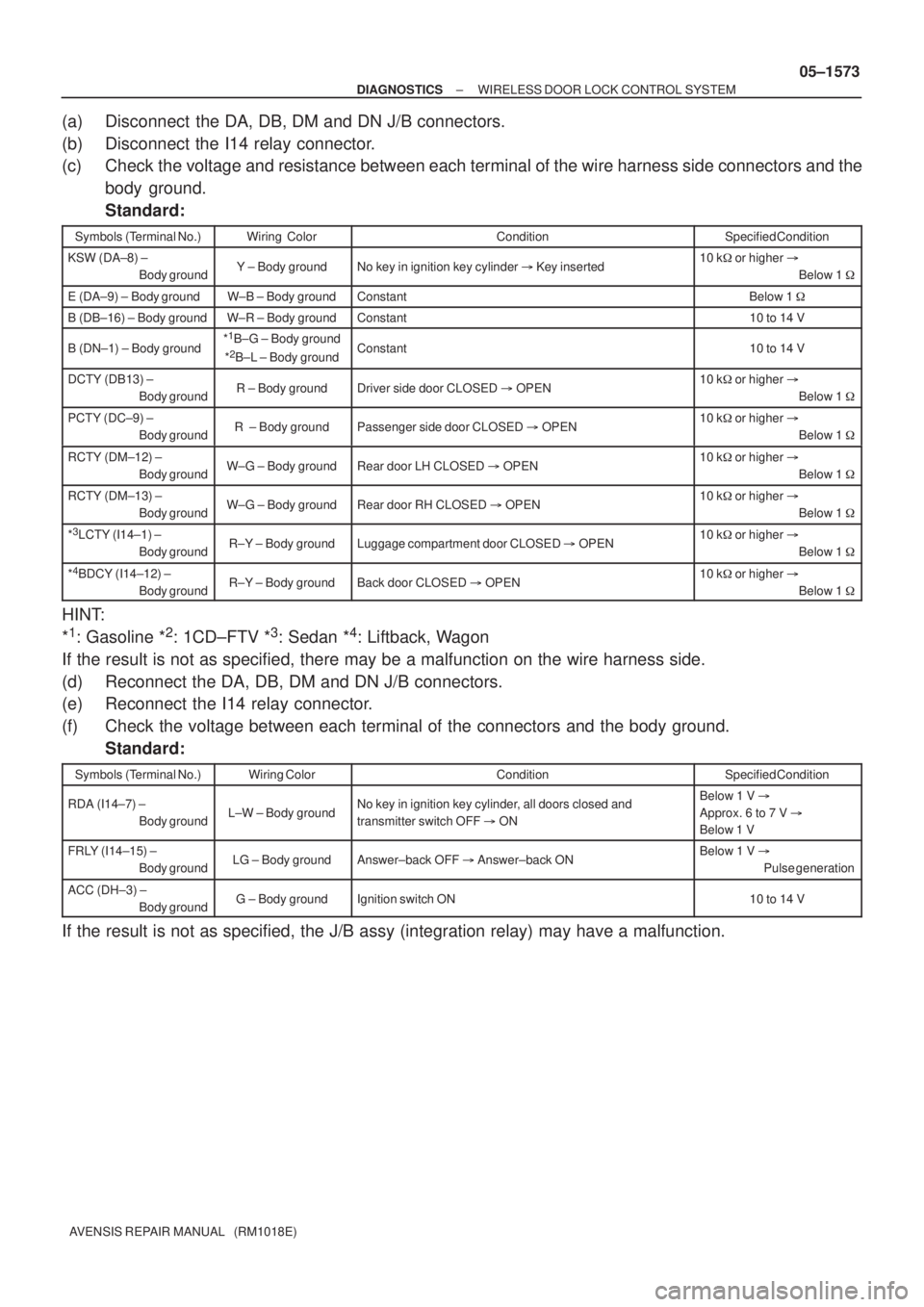

(a) Disconnect the DA, DB, DM and DN J/B connectors.
(b) Disconnect the I14 relay connector.
(c) Check the v

± DIAGNOSTICSWIRELESS DOOR LOCK CONTROL SYSTEM
05±1573
AVENSIS REPAIR MANUAL (RM1018E)
(a) Disconnect the DA, DB, DM and DN J/B connectors.
(b) Disconnect the I14 relay connector.
(c) Check the voltage and resistance between each terminal of the wire harness side connectors and the
body ground.
Standard:
Symbols (Terminal No.)Wiring ColorConditionSpecified Condition
KSW (DA±8) ±
Body groundY ± Body groundNo key in ignition key cylinder Key inserted10 k or higher
Below 1
E (DA±9) ± Body groundW±B ± Body groundConstantBelow 1
B (DB±16) ± Body groundW±R ± Body groundConstant10 to 14 V
B (DN±1) ± Body ground*1B±G ± Body ground
*2B±L ± Body groundConstant10 to 14 V
DCTY (DB13) ±
Body groundR ± Body groundDriver side door CLOSED OPEN10 k or higher
Below 1
PCTY (DC±9) ±
Body groundR ± Body groundPassenger side door CLOSED OPEN10 k or higher
Below 1
RCTY (DM±12) ±
Body groundW±G ± Body groundRear door LH CLOSED OPEN10 k or higher
Below 1
RCTY (DM±13) ±
Body groundW±G ± Body groundRear door RH CLOSED OPEN10 k or higher
Below 1
*3LCTY (I14±1) ±
Body groundR±Y ± Body groundLuggage compartment door CLOSED OPEN10 k or higher
Below 1
*4BDCY (I14±12) ±
Body groundR±Y ± Body groundBack door CLOSED OPEN10 k or higher
Below 1
HINT:
*
1: Gasoline *2: 1CD±FTV *3: Sedan *4: Liftback, Wagon
If the result is not as specified, there may be a malfunction on the wire harness side.
(d) Reconnect the DA, DB, DM and DN J/B connectors.
(e) Reconnect the I14 relay connector.
(f) Check the voltage between each terminal of the connectors and the body ground.
Standard:
Symbols (Terminal No.)Wiring ColorConditionSpecified Condition
RDA (I14±7) ±
Body groundL±W ± Body groundNo key in ignition key cylinder, all doors closed and
transmitter switch OFF ONBelow 1 V
Approx. 6 to 7 V
Below 1 V
FRLY (I14±15) ±
Body groundLG ± Body groundAnswer±back OFF Answer±back ONBelow 1 V
Pulse generation
ACC (DH±3) ±
Body groundG ± Body groundIgnition switch ON10 to 14 V
If the result is not as specified, the J/B assy (integration relay) may have a malfunction.
