Page 881 of 5135
BR3795OKNG
BR3719
±
DIAGNOSTICS ABS WITH EBD & BA & TRC & VSC SYSTEM
05±777
AVENSIS REPAIR MANUAL (RM1018E)

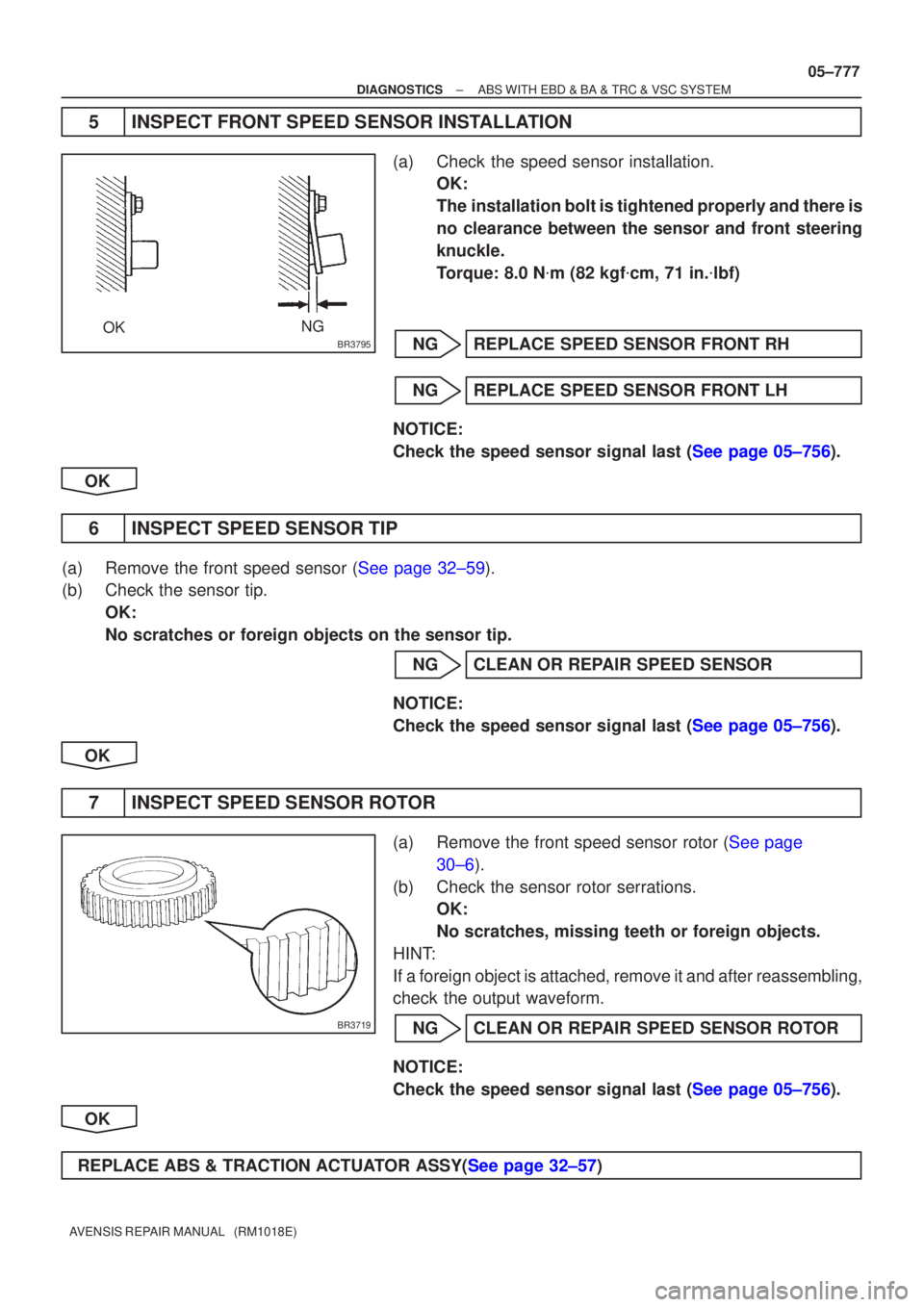

5INSPECT FRONT SPEED SENSOR INSTALLATION
(a)Check the speed sensor installation.
OK:
The installation bolt is tightened properly and there is
no clearance between the sensor and front steering
knuckle.
Torque: 8.0 N m (82 kgf cm, 71 in. lbf)
NGREPLACE SPEED SENSOR FRONT RH
NGREPLACE SPEED SENSOR FRONT LH
NOTICE:
Check the speed sensor signal last (See page 05±756).
OK
6INSPECT SPEED SENSOR TIP
(a)Remove the front speed sensor (See page 32±59).
(b)Check the sensor tip. OK:
No scratches or foreign objects on the sensor tip.
NGCLEAN OR REPAIR SPEED SENSOR
NOTICE:
Check the speed sensor signal last (See page 05±756).
OK
7INSPECT SPEED SENSOR ROTOR
(a)Remove the front speed sensor rotor (See page 30±6).
(b) Check the sensor rotor serrations. OK:
No scratches, missing teeth or foreign objects.
HINT:
If a foreign object is attached, remove it and after reassembling,
check the output waveform.
NG CLEAN OR REPAIR SPEED SENSOR ROTOR
NOTICE:
Check the speed sensor signal last (See page 05±756).
OK
REPLACE ABS & TRACTION ACTUATOR ASSY(See page 32±57)
Page 882 of 5135
0542T±04
05±772
±
DIAGNOSTICS ABS WITH EBD & BA & TRC & VSC SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
PROBLEM SYMPTOMS TABLE
If a normal code is displayed during the DTC check but the problem still o\
ccurs, check the circuits for each
problem symptom in the order given in the table below and proceed to the releva\
nt troubleshooting page.
NOTICE:
When replacing the ABS & TRACTION actuator, sensor or etc., turn the ignition switch to OFF.
SymptomSuspect AreaSee page
ABS does not operate
BA does not operate
EBD does not operate
If the symptoms still occur even after the following circuits
in suspect areas are inspected and proved to be normal,
replace the ABS & TRACTION actuator.
1. Check the DTC again and make sure that the normal code is output.
2. IG power source circuit
3. Speed sensor circuit
4. Check the brake master cylinder with a ABS actuator checker or hand±held tester.
If there is malfunction, check the hydraulic circuit for leak-
age.
05±756
05±808
05±774
05±778 32±56
ABS does not operate properly
BA does not operate properly
EBD does not operate properly
If the symptoms still occur even after the following circuits
in suspect areas are inspected and proved to be normal,
replace the ABS & TRACTION actuator.
1. Check the DTC again and make sure that the normal code is output.
2. Speed sensor circuit
3. Stop light switch circuit
4. Check the brake master cylinder with a ABS actuator checker or hand±held tester.
If there is malfunction, check the hydraulic circuit for leak-
age.
05±756
05±774
05±778
05±815 32±56
ABS warning light malfunction1. ABS warning light circuit
2. ABS & TRACTION actuator05±827 ±
DTC of ABS check cannot be performed
If the symptoms still occur even after the following circuits
in suspect areas are inspected and proved to be normal,
replace the ABS & TRACTION actuator.
1. Check the DTC again and make sure that the normal code is output.
2. Tc terminal circuit
05±756
05±852
Sensor signal check cannot be performed1. Ts terminal circuit
2. ABS & TRACTION actuator05±854 ±
TRC does not operate
If the symptoms still occur even after the following circuits
in suspect areas are inspected and proved to be normal,
replace the ABS & TRACTION actuator.
1. Check the DTC again and make sure that the normal code is output.
2. IG power source circuit
3. Check the hydraulic circuit for leakage.
4. Speed sensor circuit
05±756
05±808 ±
05±774
05±778
Page 883 of 5135
±
DIAGNOSTICS ABS WITH EBD & BA & TRC & VSC SYSTEM
05±773
AVENSIS REPAIR MANUAL (RM1018E) Symptom
Suspect AreaSee page
VSC does not operate
If the symptoms still occur even after the following circuits
in suspect areas are inspected and proved to be normal,
replace the ABS & TRACTION actuator.
1. Check the DTC again and make sure that the normal
code is output.
2. IG power source circuit
3. Check the hydraulic circuit for leakage.
4. Speed sensor circuit
5. Yaw rate sensor and deceleration sensor circuit
6. Steering angle sensor circuit
05±756
05±808 ±
05±774
05±778
05±790
05±793
05±801
SLIP indicator light malfunction1. SLIP indicator light circuit
2. ABS & TRACTION actuator05±848 ±
TRC OFF indicator malfunction
If the symptoms still occur even after the following circuits
in suspect areas are inspected and proved to be normal,
replace the ABS & TRACTION actuator.
1. Check the DTC again and make sure that the normal code is output.
2. TRC OFF switch circuit
05±756
05±844
DTC of VSC check cannot be performed
If the symptoms still occur even after the following circuits
in suspect areas are inspected and proved to be normal,
replace the ABS & TRACTION actuator.
1. Check the DTC again and make sure that the normal code is output.
2. Tc terminal circuit
05±756
05±852
VSC warning light malfunction
If the symptoms still occur even after the following circuits
in suspect areas are inspected and proved to be normal,
replace the ABS & TRACTION actuator.
1. Check the DTC again and make sure that the normal code is output.
2. VSC warning circuit
05±756
05±831
Page 884 of 5135
0542S±04
C94401
05±770
± DIAGNOSTICSABS WITH EBD & BA & TRC & VSC SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
TERMINALS OF ECU
Symbols (Terminals No.)Wiring ColorConditionSTD Voltage (V)
WT (2) GND (6 10)LG B W BIG Switch ON, TRAC OFF Light ONBelow 2.0WT (2) ± GND (6, 10)LG±B ± W±BIG Switch ON, TRAC OFF Light OFF10 to 14
IND (4) GND (6 10)LG W BIG Switch ON, SLIP indicator light ONBelow 2.0IND (4) ± GND (6, 10)LG ± W±BIG Switch ON, SLIP indicator light OFF10 to 14
+BS (5) ± GND (6, 10)R ± W±BAlways10 to 14
ENG+ (8) ± ENG± (7)Y ± BIG switch ONPulse generation
+BM (9) ± GND (6, 10)L ± W±BAlways10 to 14
PMC (11) ± E2 (12)GR ± Y±RIG switch ON, stop light switch OFF0.3 to 0.9
SS1 (13) ± SS2 (29)W ± BEngine idling, slowly tun steering wheelPulse generation
IG1 (14) ± GND (6, 10)R±W ± W±BIG switch ON10 to 14
BZ (15) GND (6 10)BY WBIG switch ON, VSC buzzer is soundedBelow 1.0 10 to 14BZ (15) ± GND (6, 10)B±Y ± W±BIG switch ON, VSC buzzer is not sounded10 to 14
Tc (17) ± GND (6, 10)W±L ± W±BIG Switch ON10 to 14
TRC+ (18) ± TRC± (19)G ± LIG switch ONPulse generation
EBDW (20) GND (6 10)PWBIG Switch ON, Brake warning light ON5 to 9EBDW (20) ± GND (6, 10)P ± W±BIG Switch ON, Brake warning light OFFBelow 2.0
FR+ (21) ± FR± (22)W ± BIG switch ON, slowly turn right front wheelAC generation
RL+ (23) ± RL± (40)R ± GIG switch ON, slowly turn left rear wheelAC generation
D/G (26) ± GND (6, 10)W±G ± W±BIG switch ON8 to 12
VCM (27) ± GND (6, 10)Y±G ± W±BIG switch ON4.5 to 5.5
Ts (28) ± GND (6, 10)W ± W±BIG switch ON10 to 14
YIGA (30) ± YGND (16)W±L ± W±GIG Switch ON10 to 14
PKB (31) GND (6 10)BW WBIG switch ON, parking brake switch ONBelow 1.5PKB (31) ± GND (6, 10)B±W ± W±BIG switch ON, parking brake switch OFF10 to 14
NEO (32) ± GND (6, 10)Y±B ± W±BEngine idlingPulse generation
VSCW (34) GND (6 10)WR WBIG Switch ON, VSC warning light ON5 to 9VSCW (34) ± GND (6, 10)W±R ± W±BIG Switch ON, VSC warning light OFFBelow 2.0
SP1 (35) ± GND (6, 10)L±W ± W±BVehicle drives at about 20 km/h (12 mph)Pulse generation
WA (36) GND (6 10)RY WBIG Switch ON, ABS warning light ONBelow 2.0WA (36) ± GND (6, 10)R±Y ± W±BIG Switch ON, ABS warning light OFF10 to 14
STP (37) GND (6 10)GW WBStop light switch OFFBelow 1.5STP (37) ± GND (6, 10)G±W ± W±BStop light switch ON8 to 14
RR+ (38) ± RR± (39)P ± VIG switch ON, slowly turn right rear wheelAC generation
FL+ (41) ± FL± (24)L±Y ± R±LIG switch ON, slowly turn left front wheelAC generation
Page 885 of 5135
± DIAGNOSTICSABS WITH EBD & BA & TRC & VSC SYSTEM
05±771
AVENSIS REPAIR MANUAL (RM1018E)

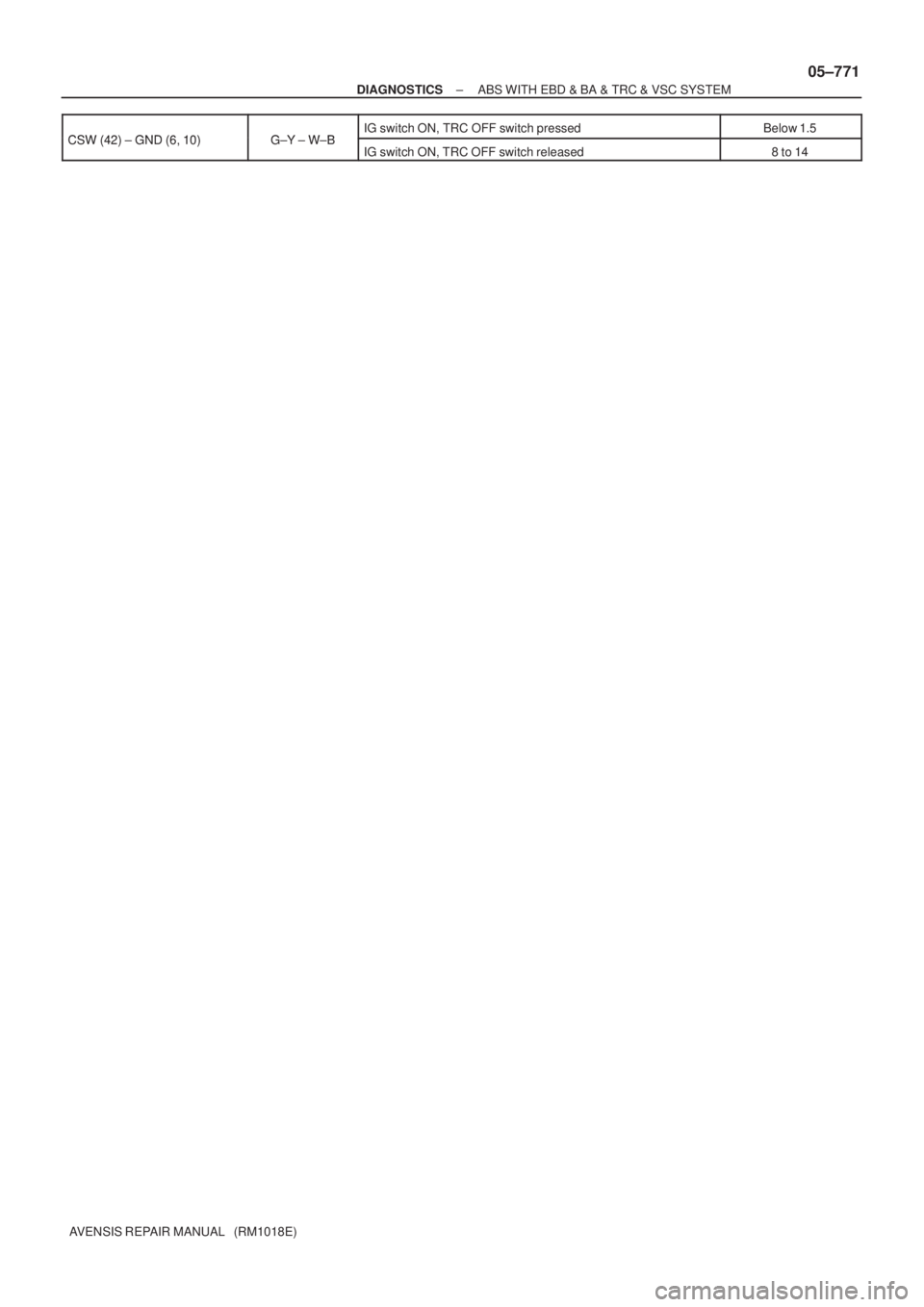

CSW (42) GND (6 10)GY WBIG switch ON, TRC OFF switch pressedBelow 1.5CSW (42) ± GND (6, 10)G±Y ± W±BIG switch ON, TRC OFF switch released8 to 14
Page 886 of 5135
F45132
Battery FL MAINSkid Control ECU
with Actuator
B±G (*1) L (*1)
1 ALT Engine Room R/B No.4 & Engine Room J/B No.4
1
4B
W±BS1
S1 109
+BM
12
1 2
GND1 GND2
S16
W±BW±B
*1: 1AZ±FSE
*2: 1CD±FTVEA4
L (*2)
W (*2)
2 12 33 11B1VSC
ALT Engine Room R/B No.3Engine Room R/B No.1 &
Engine Room J/B No.1
B (*2)
B±G (*1)VSC
± DIAGNOSTICSABS WITH EBD & BA & TRC & VSC SYSTEM
05±825
AVENSIS REPAIR MANUAL (RM1018E)

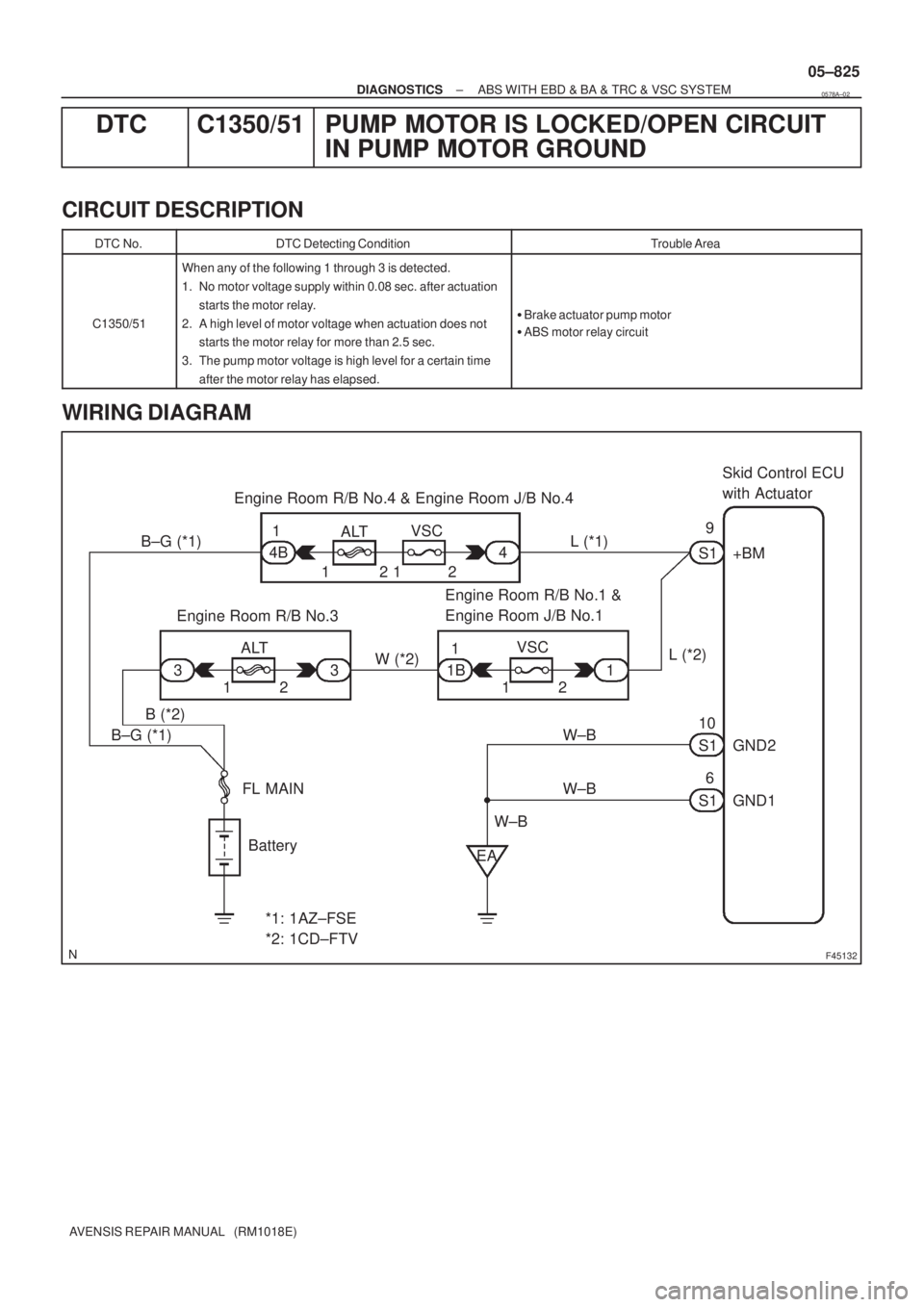

DTC C1350/51 PUMP MOTOR IS LOCKED/OPEN CIRCUIT
IN PUMP MOTOR GROUND
CIRCUIT DESCRIPTION
DTC No.DTC Detecting ConditionTrouble Area
C1350/51
When any of the following 1 through 3 is detected.
1. No motor voltage supply within 0.08 sec. after actuation
starts the motor relay.
2. A high level of motor voltage when actuation does not
starts the motor relay for more than 2.5 sec.
3. The pump motor voltage is high level for a certain time
after the motor relay has elapsed.
Brake actuator pump motor
ABS motor relay circuit
WIRING DIAGRAM
0578A±02
Page 887 of 5135
05±826
±
DIAGNOSTICS ABS WITH EBD & BA & TRC & VSC SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
INSPECTION PROCEDURE
1RECONFIRM DTC
(a)Check if other DTCs are detected (See page 05±756). YES REPAIR CIRCUIT INDICATED BY OUTPUTCODE
NO
REPLACE ABS & TRACTION ACTUATOR ASSY(See page 32±57)
Page 888 of 5135
± DIAGNOSTICSABS WITH EBD & BA & TRC & VSC SYSTEM
05±821
AVENSIS REPAIR MANUAL (RM1018E)

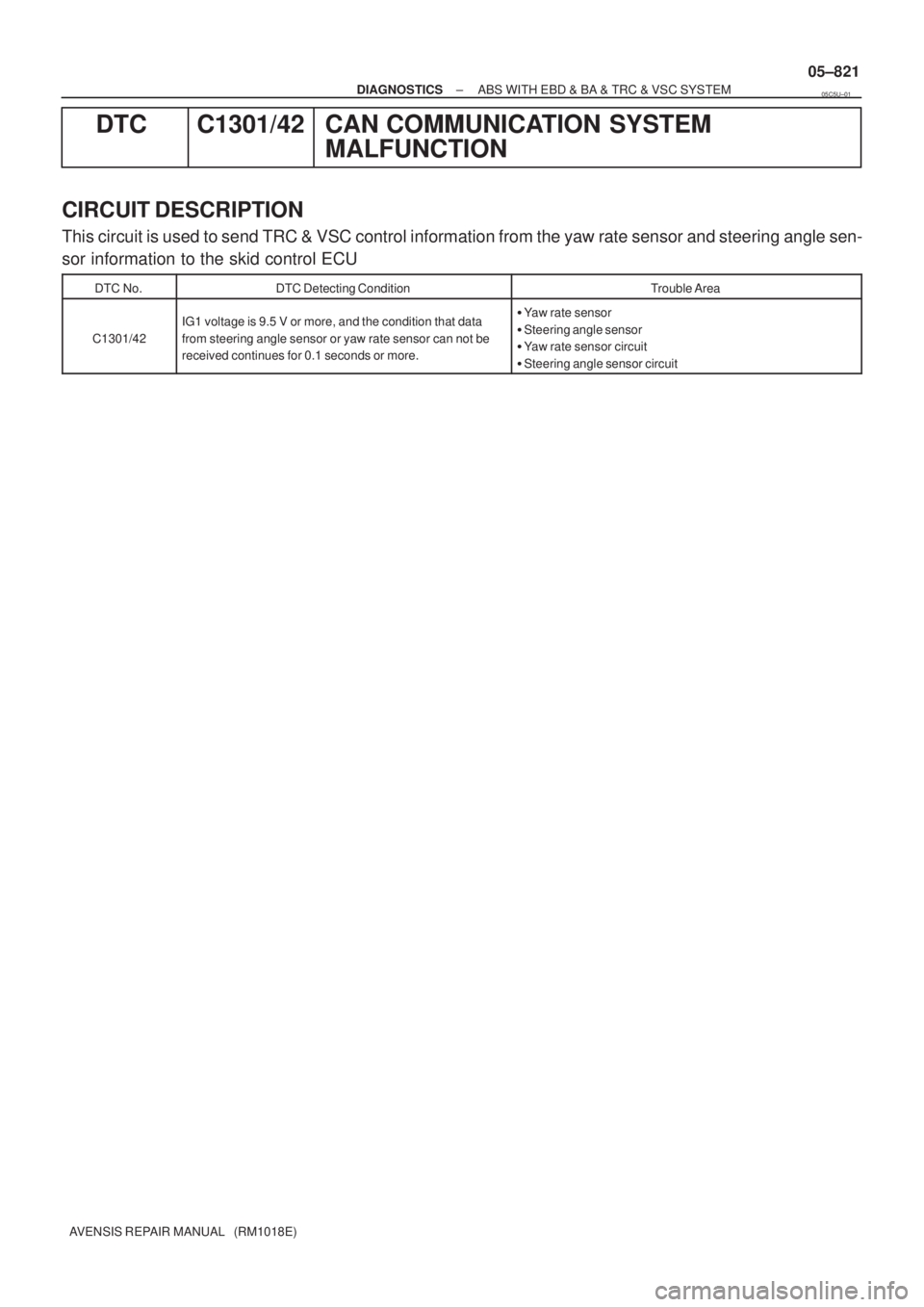

DTC C1301/42 CAN COMMUNICATION SYSTEM
MALFUNCTION
CIRCUIT DESCRIPTION
This circuit is used to send TRC & VSC control information from the yaw rate sensor and steering angle sen-
sor information to the skid control ECU
DTC No.DTC Detecting ConditionTrouble Area
C1301/42
IG1 voltage is 9.5 V or more, and the condition that data
from steering angle sensor or yaw rate sensor can not be
received continues for 0.1 seconds or more.Yaw rate sensor
Steering angle sensor
Yaw rate sensor circuit
Steering angle sensor circuit
05C5U±01
