Page 3385 of 5135
B68947
Liftback Models
Fuel Lid Lock Control Assy
Fuel Filler Opening Lid Lock Retainer
Rear Floor Finish Plate
Rear Door Opening Trim Weatherstrip LH
Rear Door Scuff Plate LHDeck Trim Side Board LH Rope Hook Assy
Rope Hook Assy
: Specified torqueNm (kgfcm, ftlbf)
5.5 (56, 49 in.´lbf)
76±12
± EXTERIOR/INTERIOR TRIMFUEL LID LOCK CONTROL ASSY
AVENSIS REPAIR MANUAL (RM1018E)
Page 3386 of 5135
B68946
Wagon Models
Fuel Lid Lock Control Assy
Fuel Filler Opening Lid Lock Retainer
Deck Trim Side Board LH
Luggage Compartment
Trim Hook No. 2 Tonneau Cover Assy
Deck Board Sub±assy Deck Floor Box Front
Deck Floor Box LHRear Floor Finish Plate
Deck Floor Box Rear
Rear Door Opening Trim Weatherstrip LH
Rear Door Scuff Plate LH
: Specified torqueNm (kgfcm, ftlbf)
5.5 (56, 49 in.´lbf)
± EXTERIOR/INTERIOR TRIMFUEL LID LOCK CONTROL ASSY
76±13
AVENSIS REPAIR MANUAL (RM1018E)
Page 3387 of 5135

760X4±01
B67429
Clip
B67430
Claw
±
EXTERIOR/INTERIOR TRIM REAR BUMPER(WAGON MODELS)
76±9
AVENSIS REPAIR MANUAL (RM1018E)

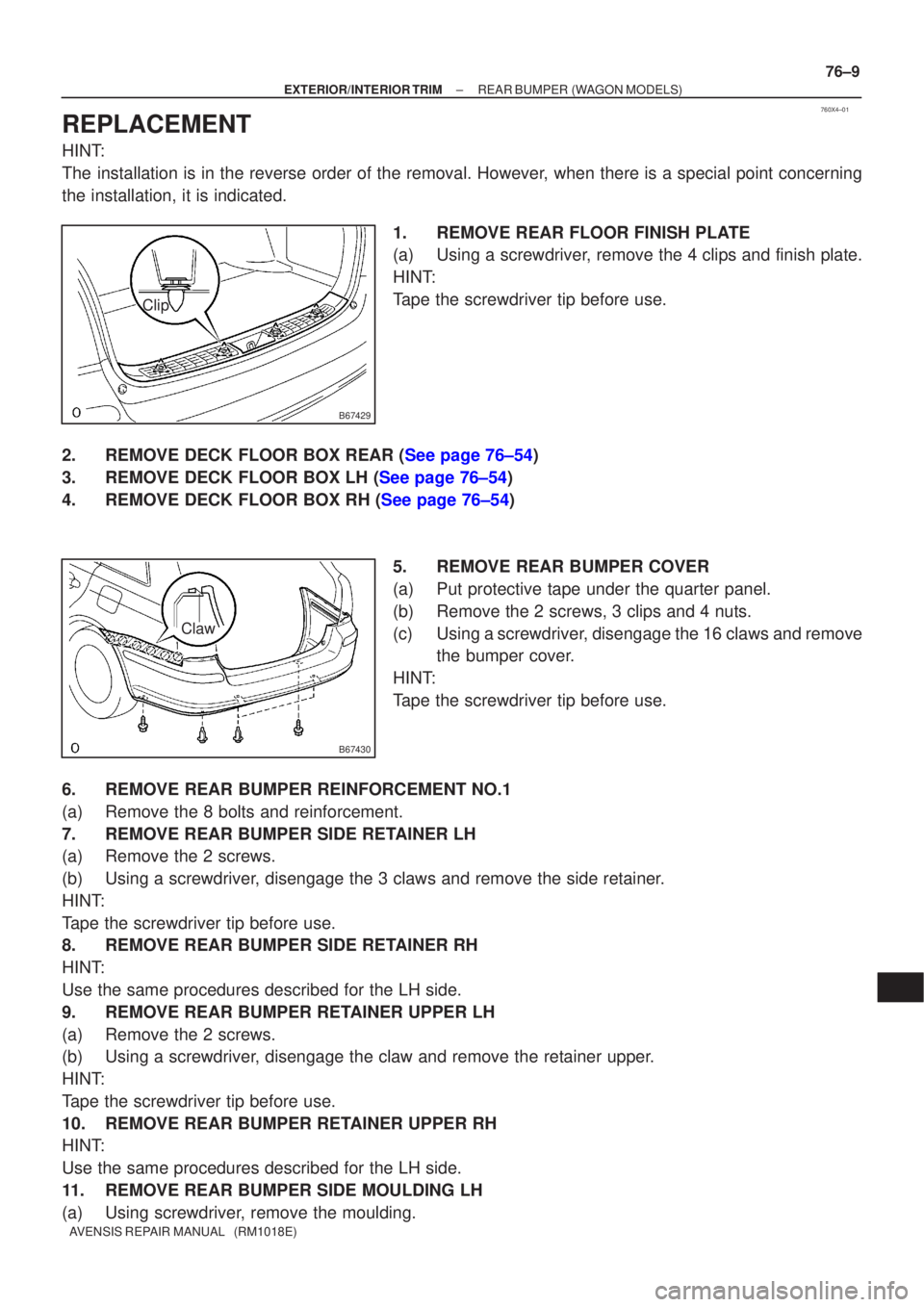

REPLACEMENT
HINT:
The installation is in the reverse order of the removal. However, when there is a special point concerning
the installation, it is indicated.
1.REMOVE REAR FLOOR FINISH PLATE
(a)Using a screwdriver, remove the 4 clips and finish plate.
HINT:
Tape the screwdriver tip before use.
2.REMOVE DECK FLOOR BOX REAR (See page 76±54)
3.REMOVE DECK FLOOR BOX LH (See page 76±54)
4.REMOVE DECK FLOOR BOX RH (See page 76±54) 5. REMOVE REAR BUMPER COVER
(a) Put protective tape under the quarter panel.
(b) Remove the 2 screws, 3 clips and 4 nuts.
(c) Using a screwdriver, disengage the 16 claws and removethe bumper cover.
HINT:
Tape the screwdriver tip before use.
6. REMOVE REAR BUMPER REINFORCEMENT NO.1
(a) Remove the 8 bolts and reinforcement.
7. REMOVE REAR BUMPER SIDE RETAINER LH
(a) Remove the 2 screws.
(b) Using a screwdriver, disengage the 3 claws and remove the side retainer.
HINT:
Tape the screwdriver tip before use.
8. REMOVE REAR BUMPER SIDE RETAINER RH
HINT:
Use the same procedures described for the LH side.
9. REMOVE REAR BUMPER RETAINER UPPER LH
(a) Remove the 2 screws.
(b) Using a screwdriver, disengage the claw and remove the retainer upper.
HINT:
Tape the screwdriver tip before use.
10. REMOVE REAR BUMPER RETAINER UPPER RH
HINT:
Use the same procedures described for the LH side.
11. REMOVE REAR BUMPER SIDE MOULDING LH
(a) Using screwdriver, remove the moulding.
Page 3388 of 5135
B67430
76±10
± EXTERIOR/INTERIOR TRIMREAR BUMPER (WAGON MODELS)
AVENSIS REPAIR MANUAL (RM1018E)

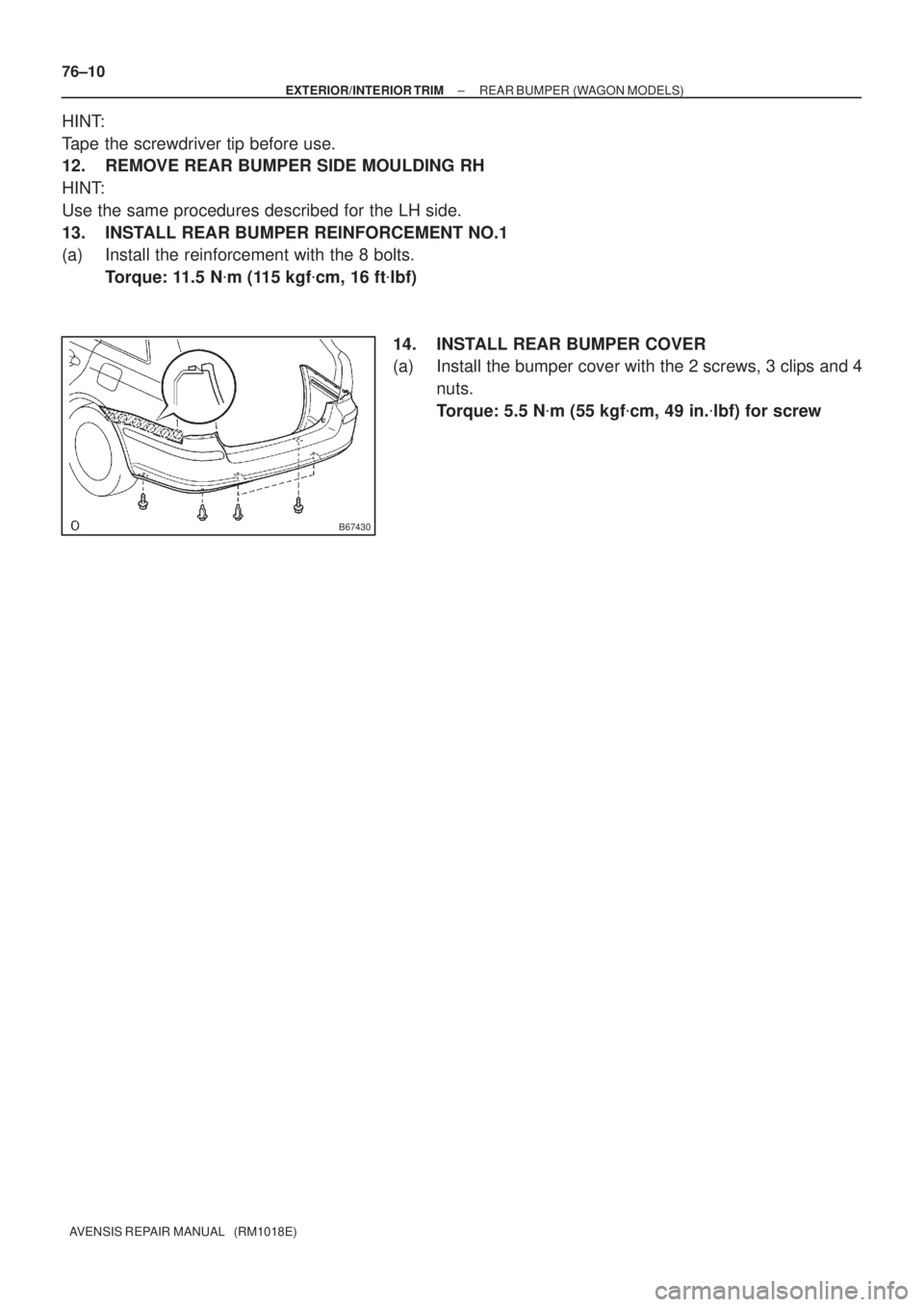

HINT:
Tape the screwdriver tip before use.
12. REMOVE REAR BUMPER SIDE MOULDING RH
HINT:
Use the same procedures described for the LH side.
13. INSTALL REAR BUMPER REINFORCEMENT NO.1
(a) Install the reinforcement with the 8 bolts.
Torque: 11.5 Nm (115 kgfcm, 16 ftlbf)
14. INSTALL REAR BUMPER COVER
(a) Install the bumper cover with the 2 screws, 3 clips and 4
nuts.
Torque: 5.5 Nm (55 kgfcm, 49 in.lbf) for screw
Page 3389 of 5135
760X3±01
B67423
Rear Floor
Finish Plate
Rear Bumper Cover Rear Bumper Side
Retainer LHRear Bumper Side
Retainer RH
Rear Bumper
Retainer Upper LHRear Bumper
Retainer Upper RH
Rear Bumper Side
Moulding LHRear Bumper Side
Moulding RH Rear Bumper
Reinforcement No. 1
Rear Bumper Pad RH
Rear Bumper
Pad LH
Nm (kgfcm, ftlbf) : Specified torque
Deck Floor Box Rear
Deck Floor
Box LH
Deck Floor Box RH
11.5 (115, 16)
11.5 (115, 16)
5.5 (55,49 in.lbf)
76±8
± EXTERIOR/INTERIOR TRIMREAR BUMPER (WAGON MODELS)
AVENSIS REPAIR MANUAL (RM1018E)

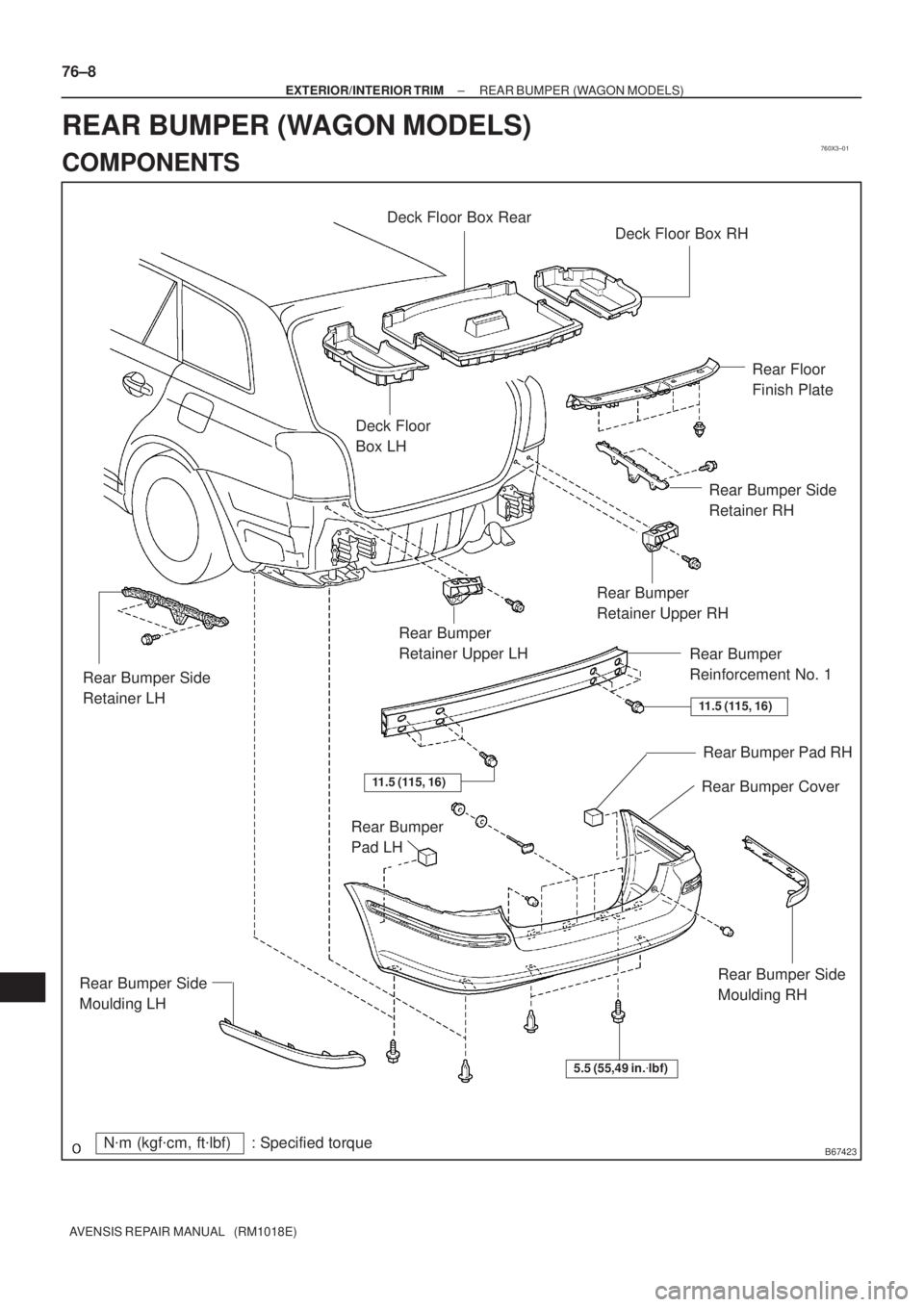

REAR BUMPER (WAGON MODELS)
COMPONENTS
Page 3390 of 5135

760X2±01
B67426
B67427Protective Tape
Claw
76±6
± EXTERIOR/INTERIOR TRIMREAR BUMPER (SEDAN/LIFTBACK)
AVENSIS REPAIR MANUAL (RM1018E)
REPLACEMENT
HINT:
The installation is in the reverse order of the removal. However, when there is a special point concerning
the installation, it is indicated.
1. REMOVE REAR FLOOR FINISH PLATE (SEDAN
MODELS)
(a) Remove the 2 hooks and 2 rope hooks.
(b) Using a moulding remover, remove the 2 clips and finish
plate.
(c) Using a screwdriver, disengage the 4 claws and finish
plate.
HINT:
Tape the screwdriver tip before use.
2. REMOVE REAR FLOOR FINISH PLATE (LIFTBACK MODELS)
(a) Remove the 2 bolts and 2 rope hooks.
(b) Using a screwdriver, disengage the 4 claws and finish plate.
HINT:
Tape the screwdriver tip before use.
3. REMOVE REAR BUMPER COVER
(a) Put protective tape under the quarter panel.
(b) Remove the 2 screws, 4 nuts and 3 clips.
(c) Using a screwdriver, disengage the 14 claws and remove
the bumper.
HINT:
Tape the screwdriver tip before use.
4. REMOVE REAR BUMPER REINFORCEMENT NO.1
(a) Remove the 8 bolts and reinforcement.
5. REMOVE REAR BUMPER SIDE RETAINER LH
(a) Remove the 2 screws.
(b) Using a screwdriver, remove the retainer.
HINT:
Tape the screwdriver tip before use.
6. REMOVE REAR BUMPER SIDE RETAINER RH
HINT:
Use the same procedures described for the LH side.
7. REMOVE REAR BUMPER RETAINER UPPER LH
(a) Remove the 2 screws.
(b) Using a screwdriver, remove the retainer.
Page 3391 of 5135
B67427
± EXTERIOR/INTERIOR TRIMREAR BUMPER (SEDAN/LIFTBACK)
76±7
AVENSIS REPAIR MANUAL (RM1018E)

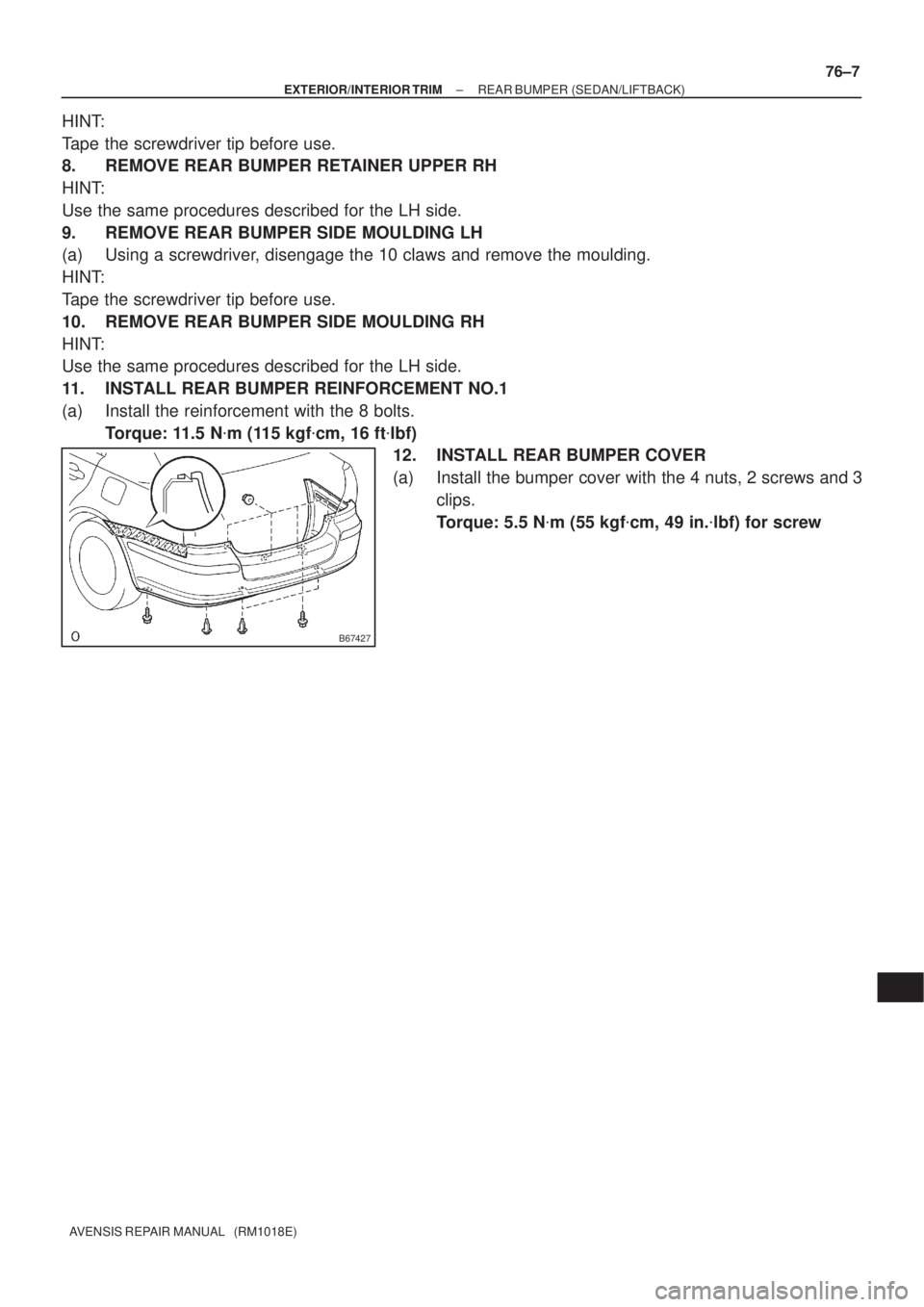

HINT:
Tape the screwdriver tip before use.
8. REMOVE REAR BUMPER RETAINER UPPER RH
HINT:
Use the same procedures described for the LH side.
9. REMOVE REAR BUMPER SIDE MOULDING LH
(a) Using a screwdriver, disengage the 10 claws and remove the moulding.
HINT:
Tape the screwdriver tip before use.
10. REMOVE REAR BUMPER SIDE MOULDING RH
HINT:
Use the same procedures described for the LH side.
11. INSTALL REAR BUMPER REINFORCEMENT NO.1
(a) Install the reinforcement with the 8 bolts.
Torque: 11.5 Nm (115 kgfcm, 16 ftlbf)
12. INSTALL REAR BUMPER COVER
(a) Install the bumper cover with the 4 nuts, 2 screws and 3
clips.
Torque: 5.5 Nm (55 kgfcm, 49 in.lbf) for screw
Page 3392 of 5135
760X1±01
B67428
Rear Floor
Finish Plate
Rear Floor Finish Plate
Rear Bumper CoverRear Bumper
Reinforcement No. 1
Rear Bumper Side
Retainer LHRear Bumper Side
Retainer RH
Rear Bumper
Retainer Upper LHRear Bumper
Retainer Upper RH
Rear Bumper Side
Moulding LHRear Bumper Side
Moulding RH Liftback ModelsLuggage Compartment
Trim Hook
Rope Hook AssyRope Hook
Assy
Rear Bumper Pad RH
Rear Bumper Pad LH
Nm (kgfcm, ftlbf) : Specified torque
5.5 (55, 49 in.lbf)
11.5 (115, 16)
± EXTERIOR/INTERIOR TRIMREAR BUMPER (SEDAN/LIFTBACK)
76±5
AVENSIS REPAIR MANUAL (RM1018E)

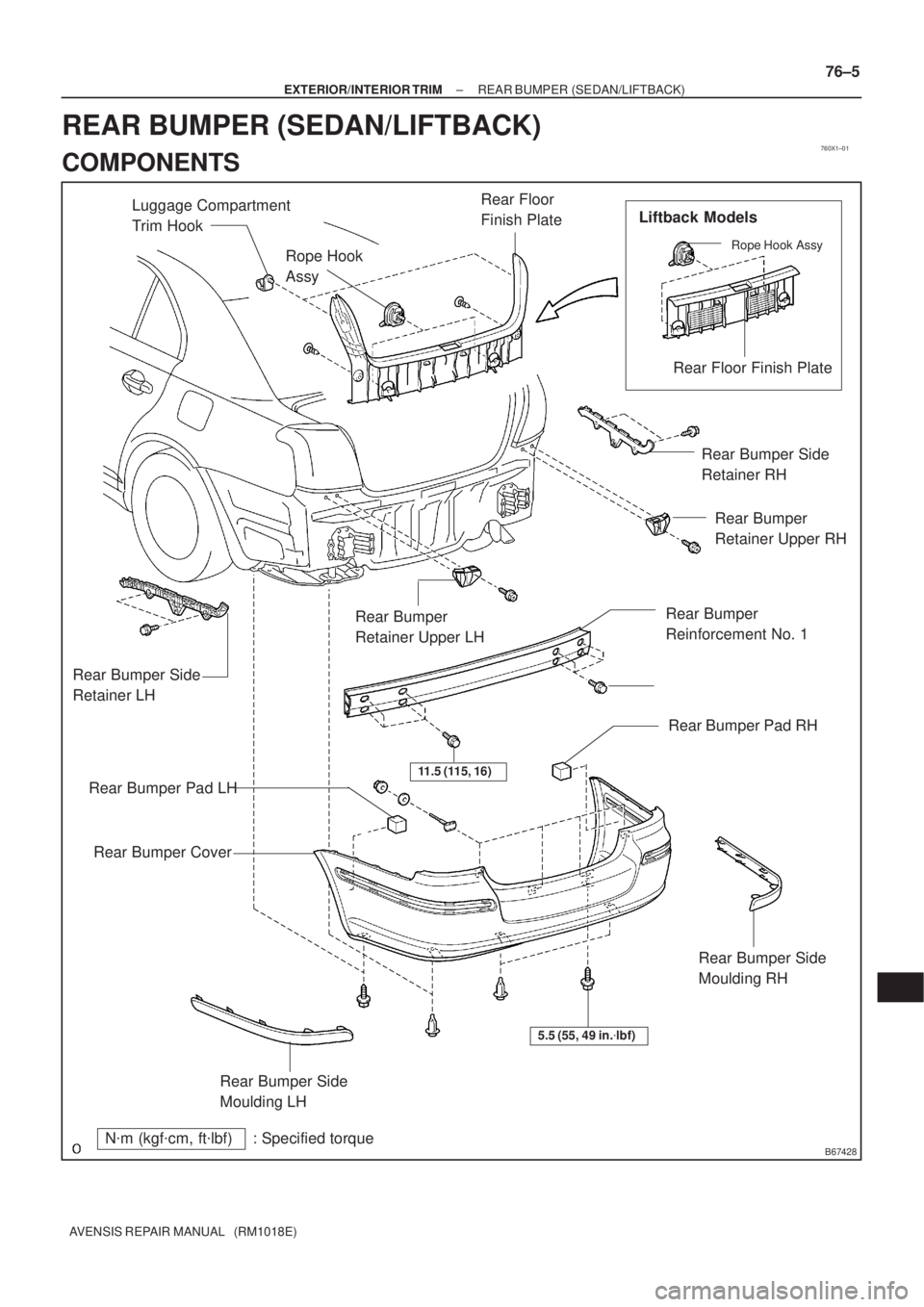

REAR BUMPER (SEDAN/LIFTBACK)
COMPONENTS
