Page 3129 of 5135
670S5±01
I35223
Instrument Cluster Finish Panel Garnish No.2
Radio Bracket No.2Radio Receiver Assy
Instrument Panel
Register Assy CTR
Air Conditioning Control AssyConsole Panel
Sub±assy Upper
Navigation System:Navigation Computer Cover
Instrument Panel
Support No.3 Instrument Panel
Support No.1Instrument Panel
Support No.2
Door Control Motor
Door Control Switch
Assy (TILT)
Instrument Cluster Finish Panel AssyDoor Control Switch Instrument Cluster Finish
Upper PanelMulti±display Instrument Panel Box
Door CoverRadio Bracket No.1
Instrument Panel
Register Control Gear
Control Knob
Protector No.1
Position Sensor
67±2
± AUDIO & VISUAL SYSTEMAUDIO & VISUAL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

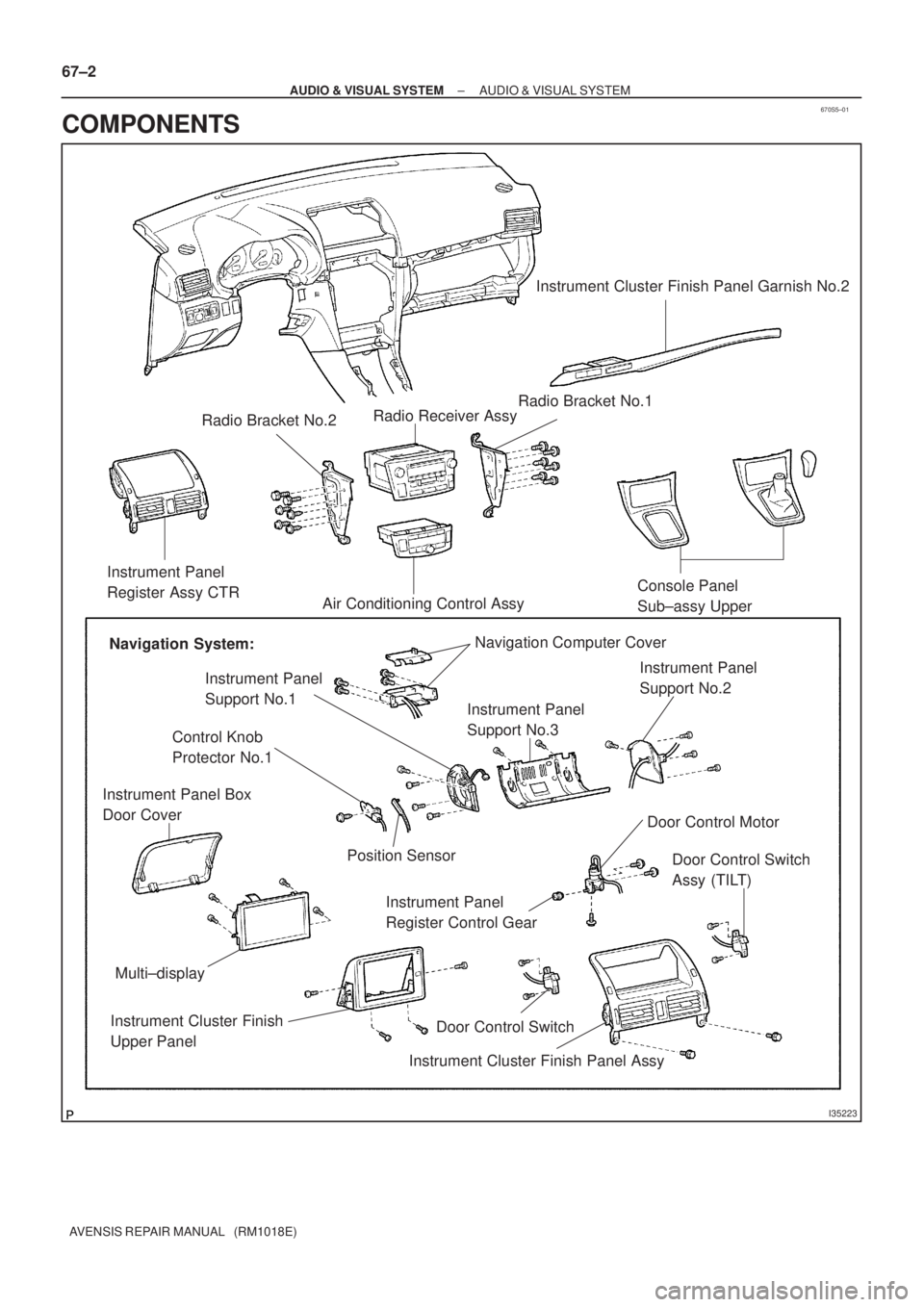

COMPONENTS

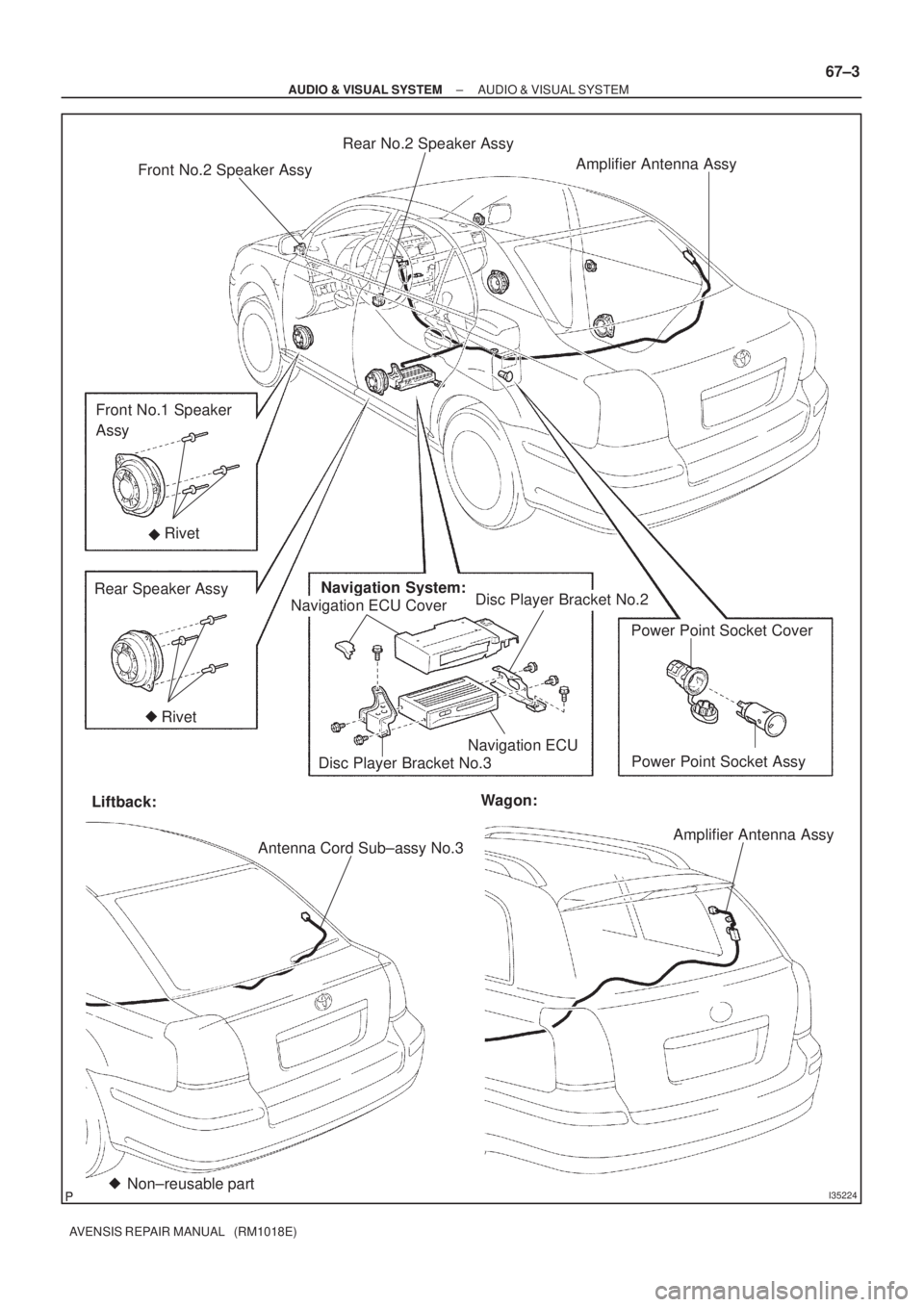

Page 3130 of 5135
I35224
Front No.2 Speaker AssyAmplifier Antenna Assy
Front No.1 Speaker
Assy
Rear Speaker AssyNavigation System:
Disc Player Bracket No.2 Rivet
Navigation ECUPower Point Socket Cover
Power Point Socket Assy
Liftback:
Antenna Cord Sub±assy No.3Amplifier Antenna Assy Wagon:
Non±reusable part
Disc Player Bracket No.3
Rivet
Rear No.2 Speaker Assy
Navigation ECU Cover
± AUDIO & VISUAL SYSTEMAUDIO & VISUAL SYSTEM
67±3
AVENSIS REPAIR MANUAL (RM1018E)

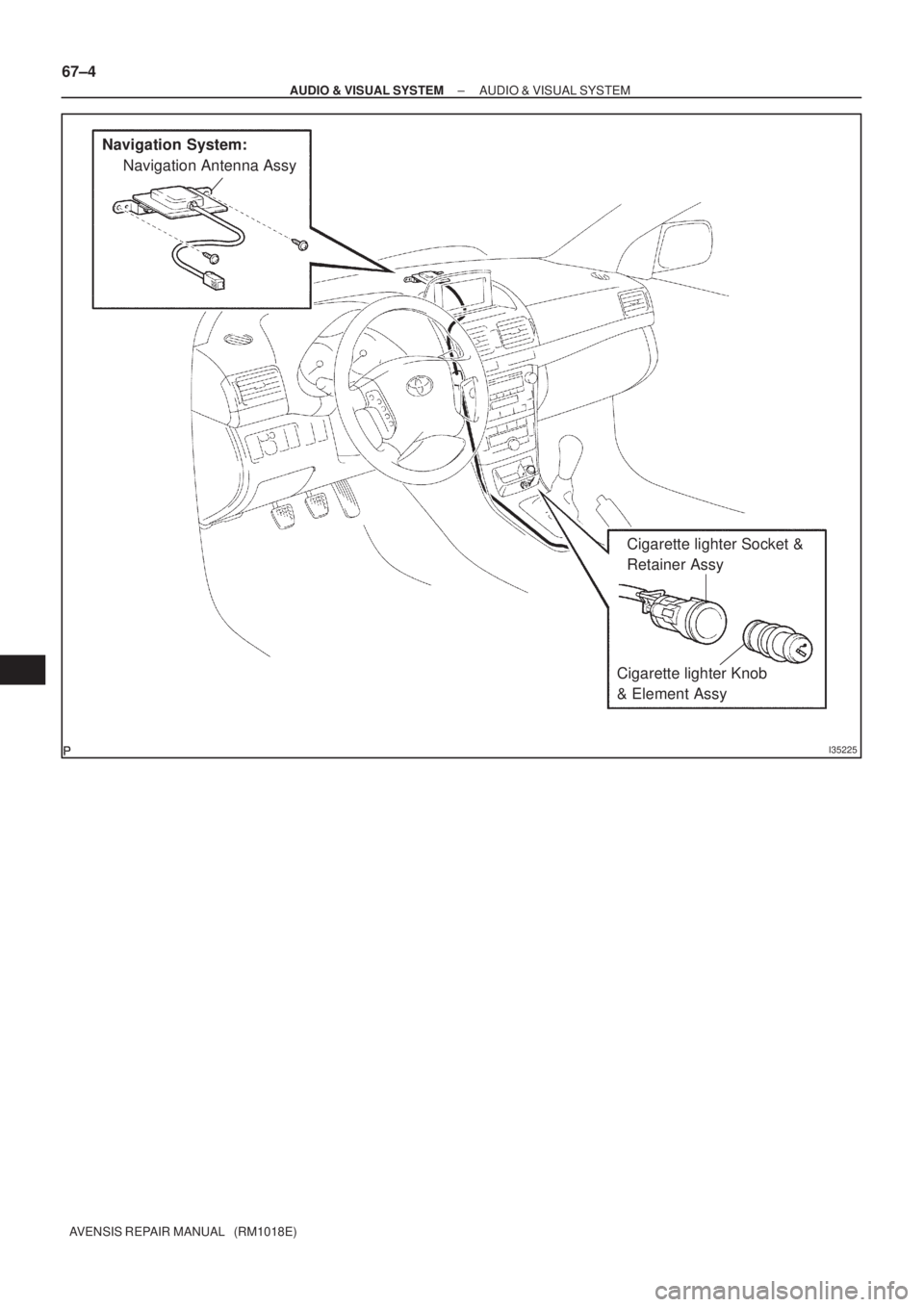

Page 3131 of 5135
I35225
Navigation System:
Navigation Antenna Assy
Cigarette lighter Socket &
Retainer Assy
Cigarette lighter Knob
& Element Assy 67±4
± AUDIO & VISUAL SYSTEMAUDIO & VISUAL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
Page 3132 of 5135

670S4±01
± AUDIO & VISUAL SYSTEMAUDIO & VISUAL SYSTEM
67±1
AVENSIS REPAIR MANUAL (RM1018E)

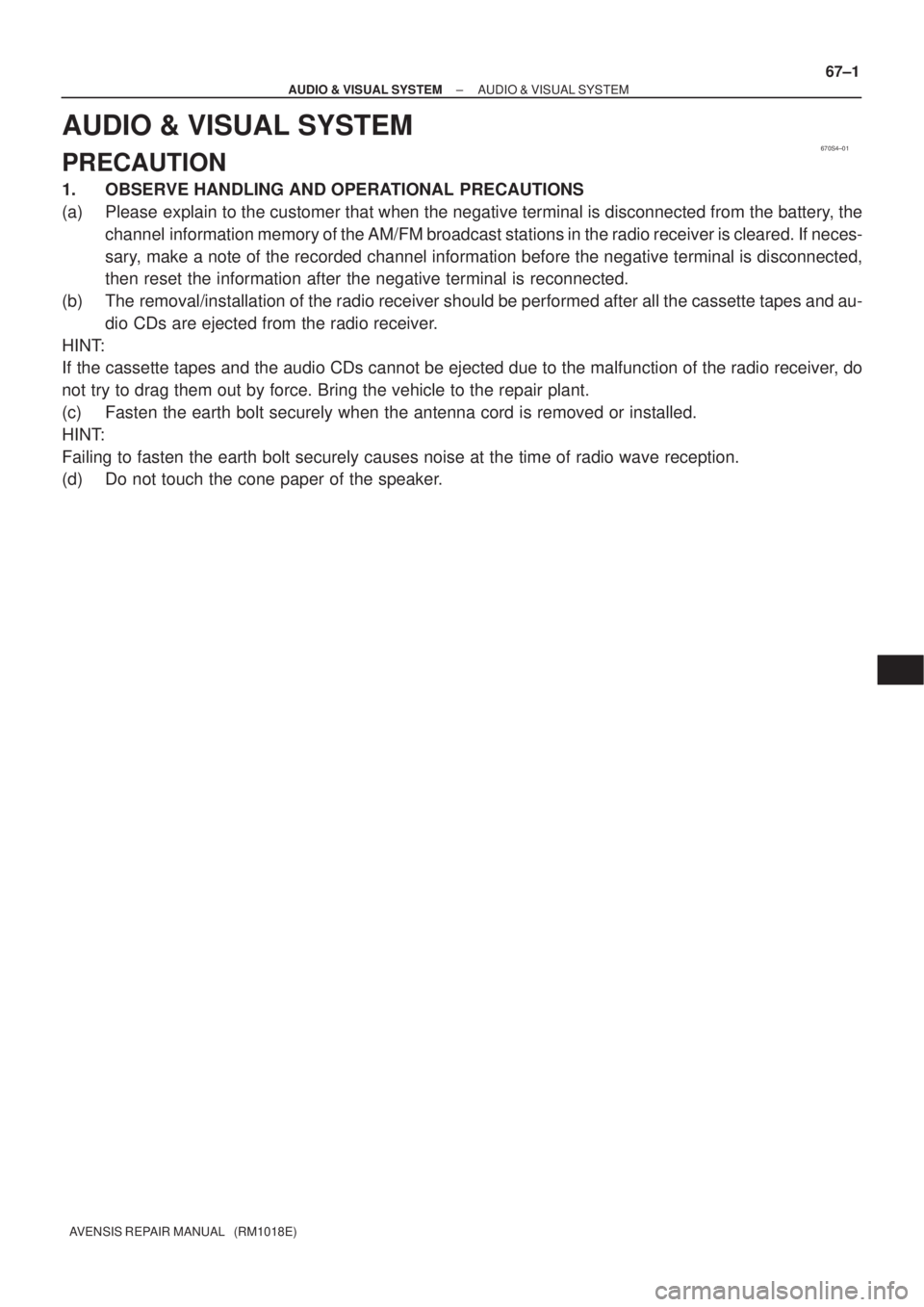

AUDIO & VISUAL SYSTEM
PRECAUTION
1. OBSERVE HANDLING AND OPERATIONAL PRECAUTIONS
(a) Please explain to the customer that when the negative terminal is disconnected from the battery, the
channel information memory of the AM/FM broadcast stations in the radio receiver is cleared. If neces-
sary, make a note of the recorded channel information before the negative terminal is disconnected,
then reset the information after the negative terminal is reconnected.
(b) The removal/installation of the radio receiver should be performed after all the cassette tapes and au-
dio CDs are ejected from the radio receiver.
HINT:
If the cassette tapes and the audio CDs cannot be ejected due to the malfunction of the radio receiver, do
not try to drag them out by force. Bring the vehicle to the repair plant.
(c) Fasten the earth bolt securely when the antenna cord is removed or installed.
HINT:
Failing to fasten the earth bolt securely causes noise at the time of radio wave reception.
(d) Do not touch the cone paper of the speaker.
Page 3133 of 5135
660CT±02
I357963 Claws
I357972 Claws
I357982 Claws
I35799
66±26
± WIPER & WASHERRAIN SENSOR
AVENSIS REPAIR MANUAL (RM1018E)
RAIN SENSOR
REPLACEMENT

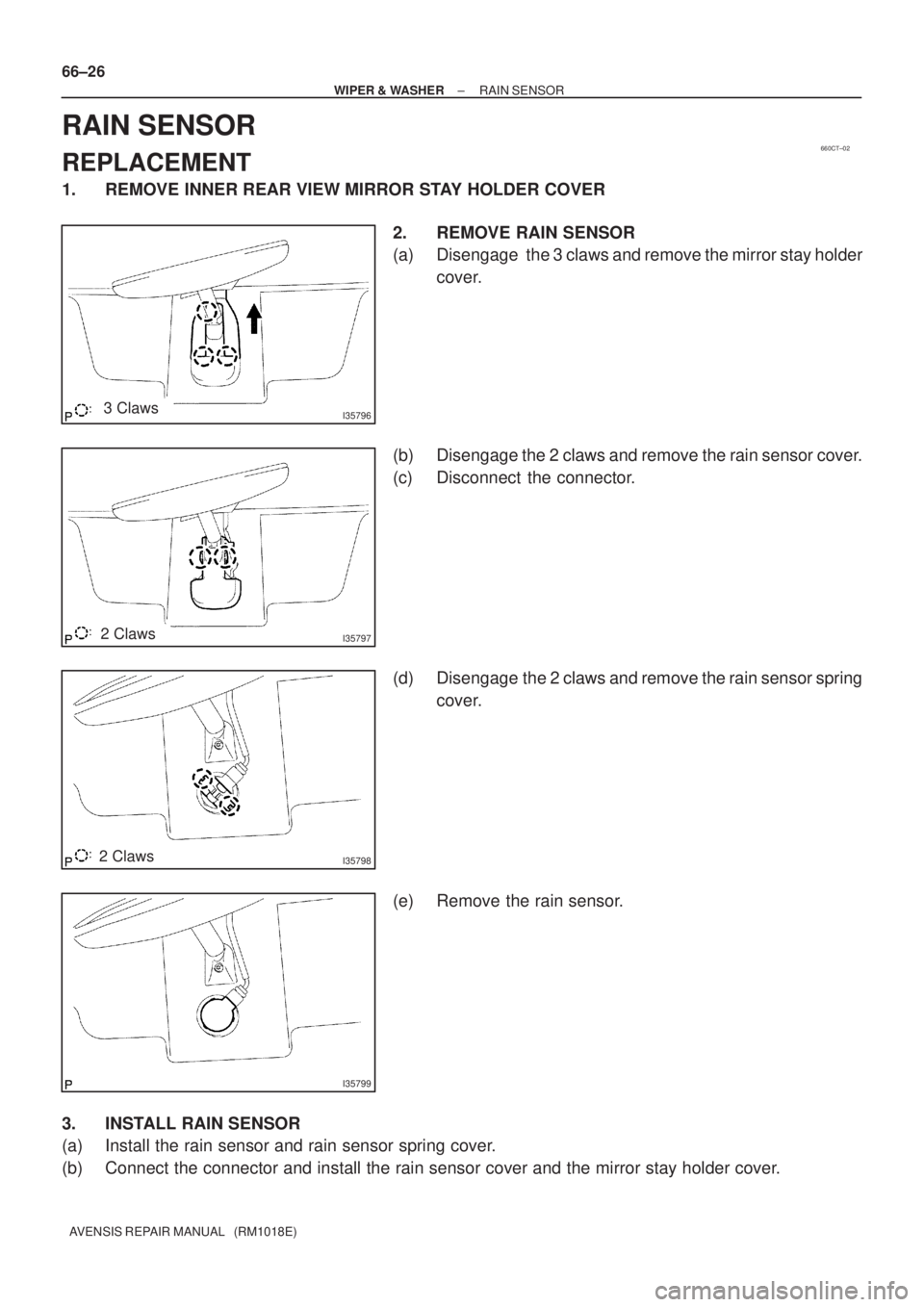

1. REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER
2. REMOVE RAIN SENSOR
(a) Disengage the 3 claws and remove the mirror stay holder
cover.
(b) Disengage the 2 claws and remove the rain sensor cover.
(c) Disconnect the connector.
(d) Disengage the 2 claws and remove the rain sensor spring
cover.
(e) Remove the rain sensor.
3. INSTALL RAIN SENSOR
(a) Install the rain sensor and rain sensor spring cover.
(b) Connect the connector and install the rain sensor cover and the mirror stay holder cover.
Page 3134 of 5135
± WIPER & WASHERRAIN SENSOR
66±27
AVENSIS REPAIR MANUAL (RM1018E)

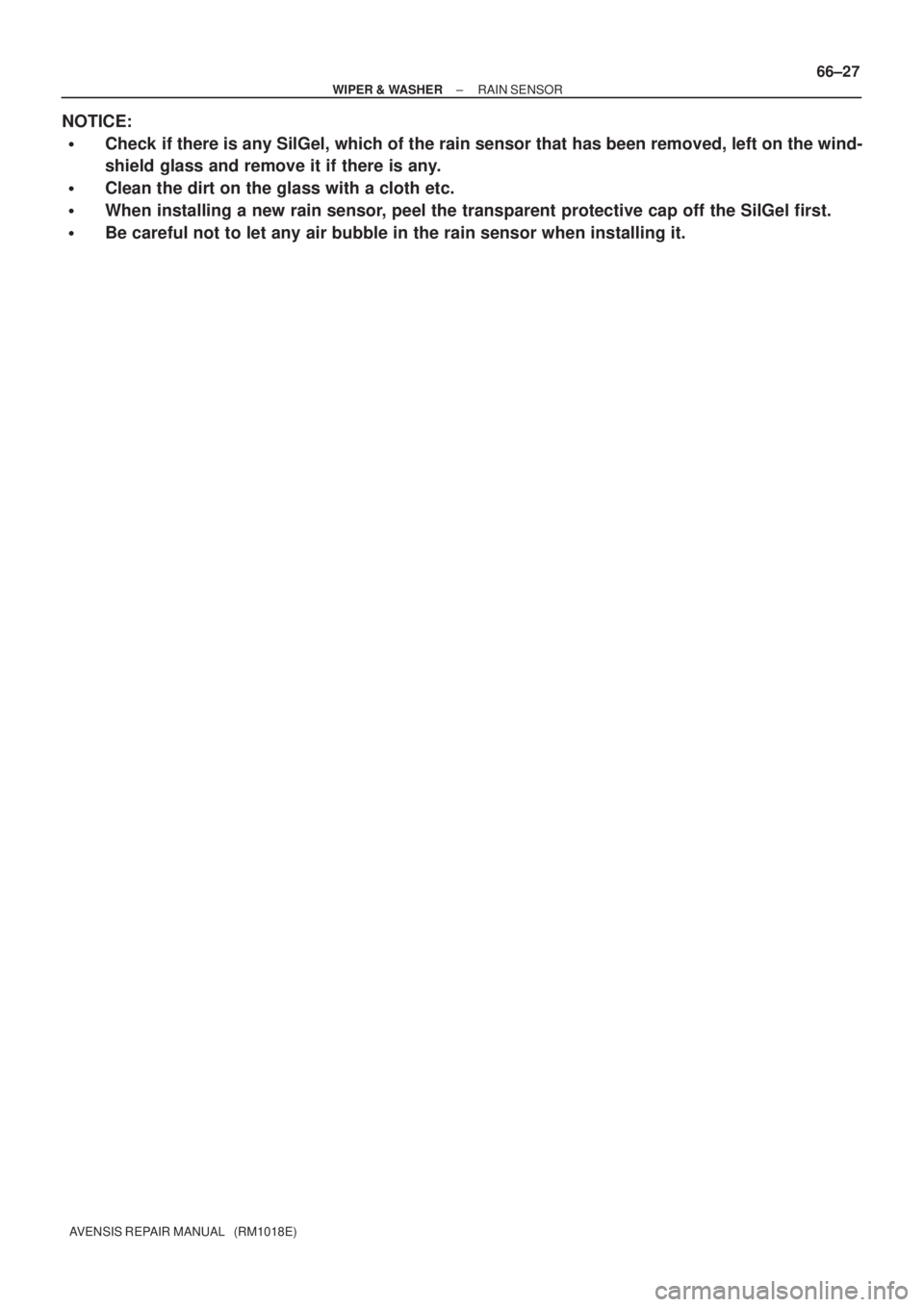

NOTICE:
Check if there is any SilGel, which of the rain sensor that has been removed, left on the wind-
shield glass and remove it if there is any.
Clean the dirt on the glass with a cloth etc.
When installing a new rain sensor, peel the transparent protective cap off the SilGel first.
Be careful not to let any air bubble in the rain sensor when installing it.
Page 3135 of 5135
660CS±01
E68351
I35261
E68352
±
WIPER & WASHER HEADLAMP WASHER ACTUATOR SUB±ASSY LH
66±25
AVENSIS REPAIR MANUAL (RM1018E)
HEADLAMP WASHER ACTUATOR SUB±ASSY LH
REPLACEMENT
1.REMOVE FRONT BUMPER COVER (See page 76±3)

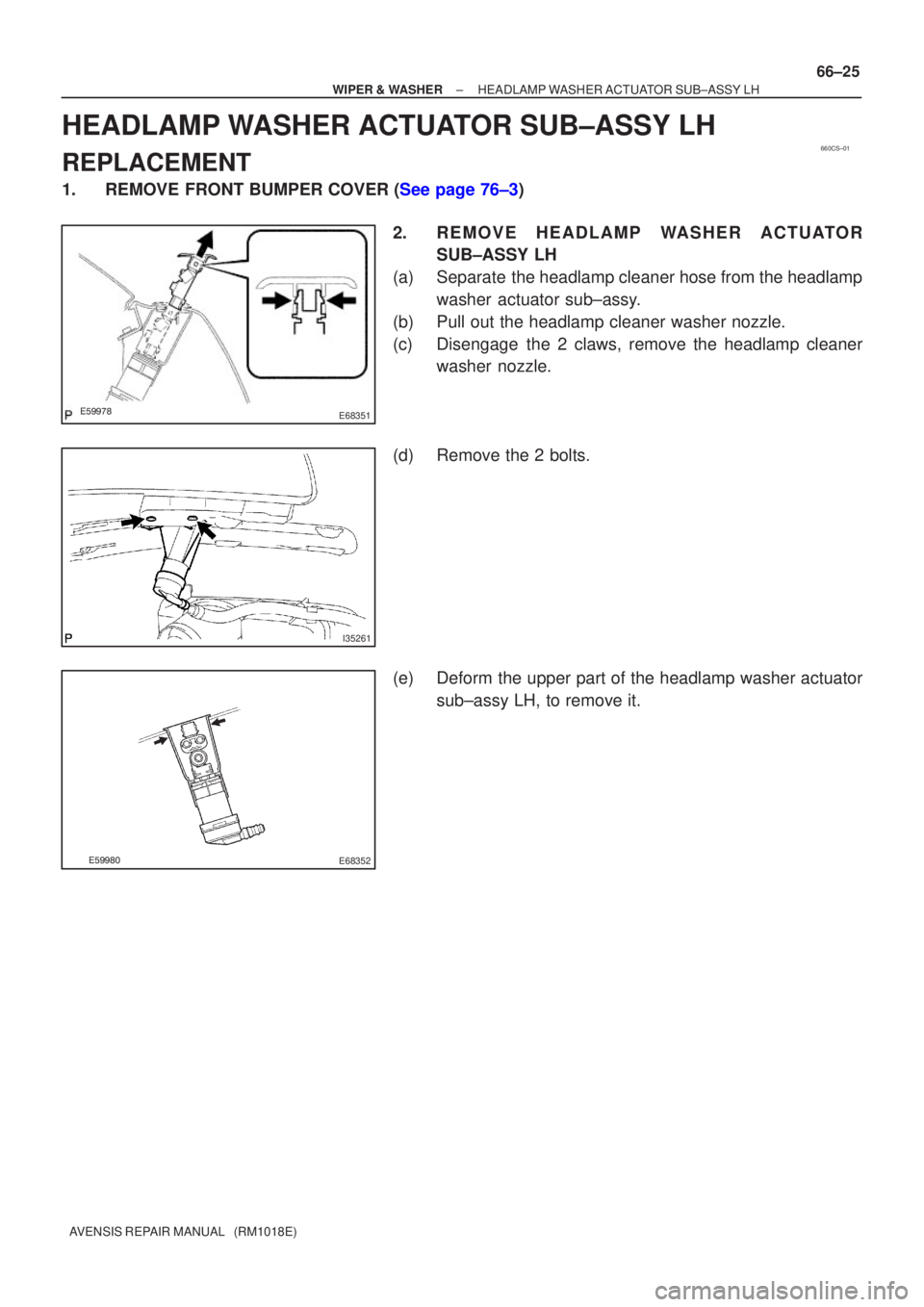

2. R E M O V E H E A D L A M P WA S H E R A C T U ATO RSUB±ASSY LH
(a) Separate the headlamp cleaner hose from the headlamp washer actuator sub±assy.
(b) Pull out the headlamp cleaner washer nozzle.
(c) Disengage the 2 claws, remove the headlamp cleaner washer nozzle.
(d) Remove the 2 bolts.
(e) Deform the upper part of the headlamp washer actuator sub±assy LH, to remove it.
Page 3136 of 5135
660CR±01
I35801:Claw
66±24
±
WIPER & WASHER WINDSHIELD WIPER SWITCH ASSY
AVENSIS REPAIR MANUAL (RM1018E)
WINDSHIELD WIPER SWITCH ASSY
REPLACEMENT

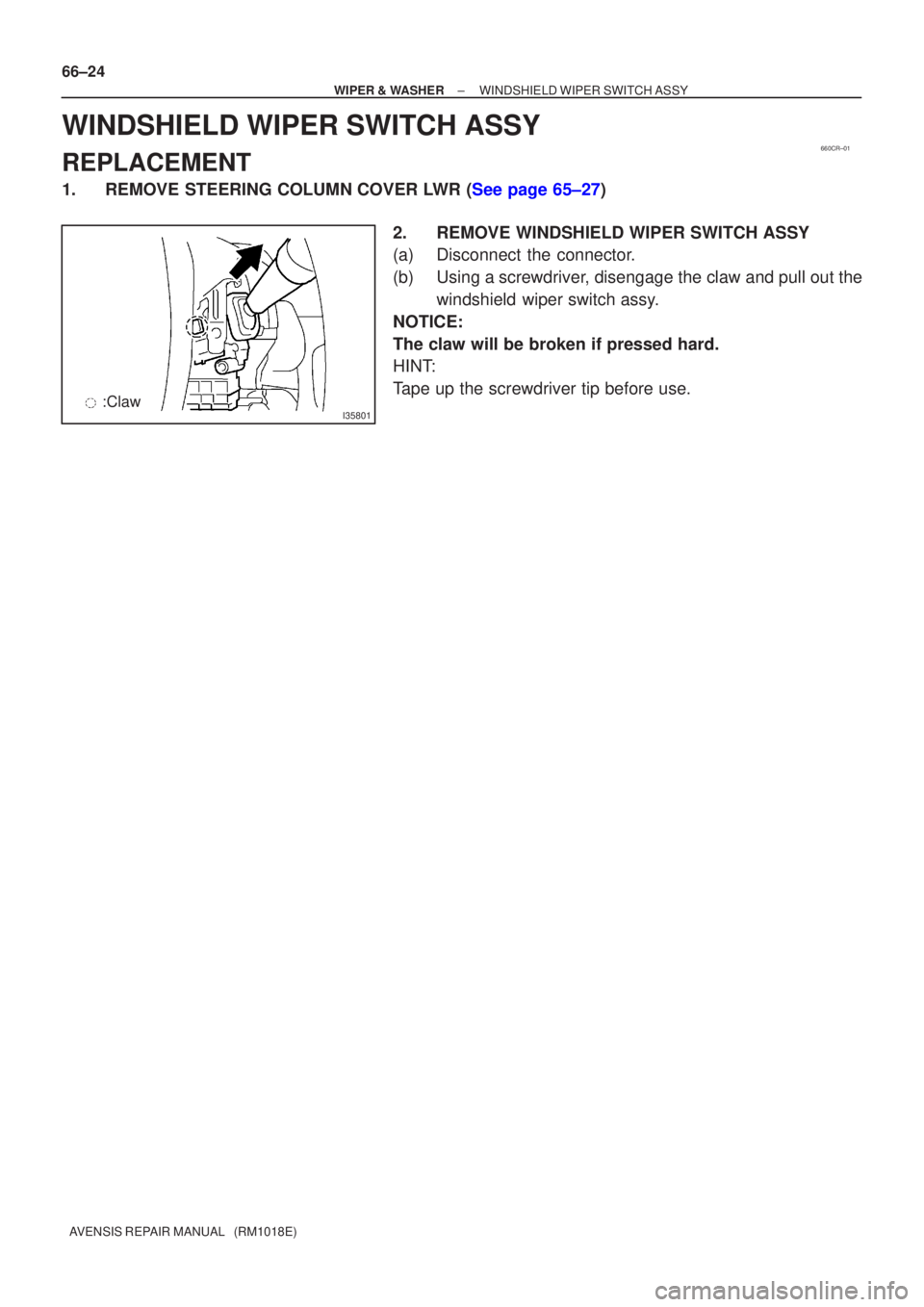

1.REMOVE STEERING COLUMN COVER LWR (See page 65±27) 2. REMOVE WINDSHIELD WIPER SWITCH ASSY
(a) Disconnect the connector.
(b) Using a screwdriver, disengage the claw and pull out thewindshield wiper switch assy.
NOTICE:
The claw will be broken if pressed hard.
HINT:
Tape up the screwdriver tip before use.
