Page 1609 of 5135
B64707
Unlock
Lock
05±1564
± DIAGNOSTICSPOWER DOOR LOCK CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

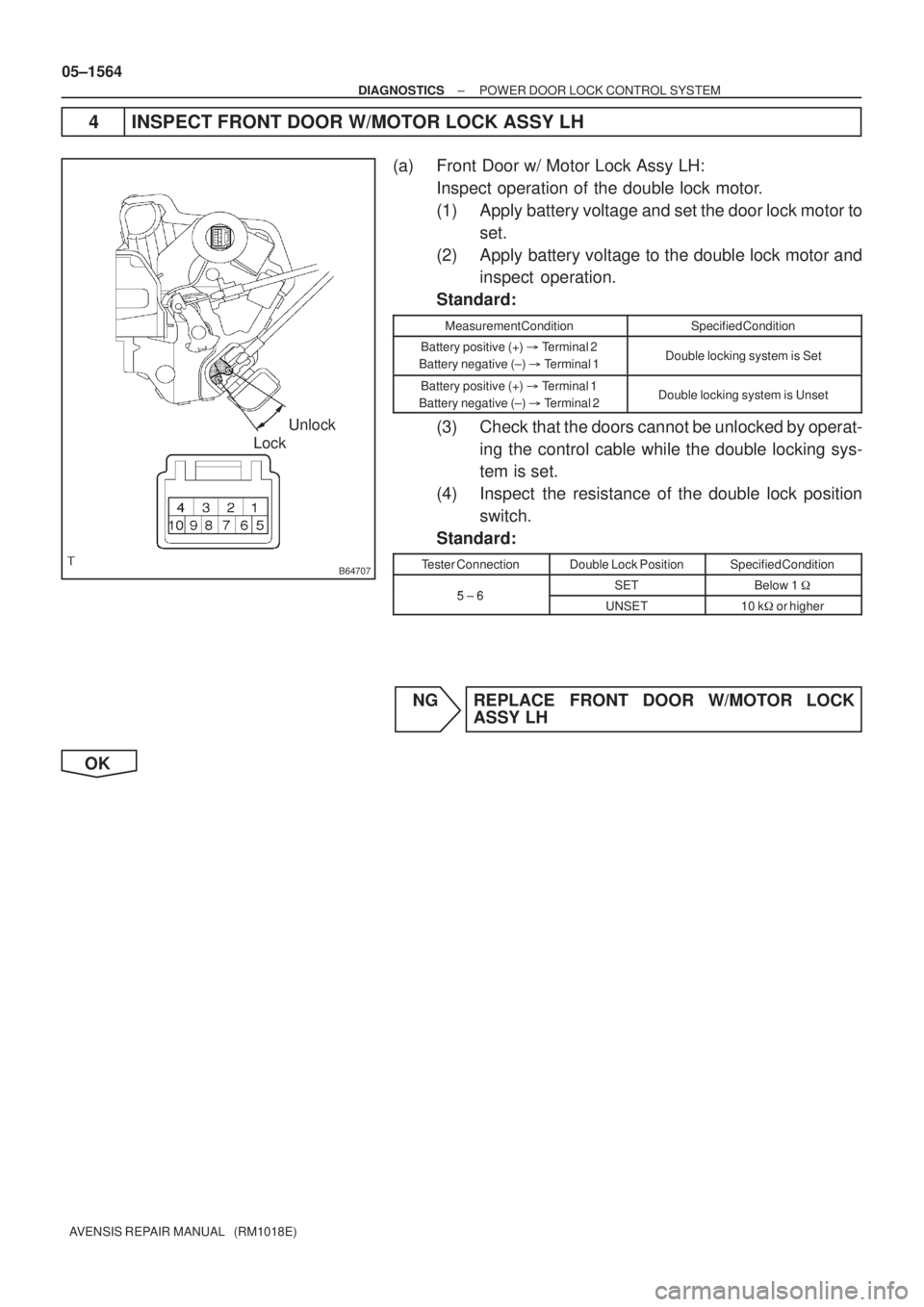

4 INSPECT FRONT DOOR W/MOTOR LOCK ASSY LH
(a) Front Door w/ Motor Lock Assy LH:
Inspect operation of the double lock motor.
(1) Apply battery voltage and set the door lock motor to
set.
(2) Apply battery voltage to the double lock motor and
inspect operation.
Standard:
Measurement ConditionSpecified Condition
Battery positive (+) Terminal 2
Battery negative (±) Terminal 1Double locking system is Set
Battery positive (+) Terminal 1
Battery negative (±) Terminal 2Double locking system is Unset
(3) Check that the doors cannot be unlocked by operat-
ing the control cable while the double locking sys-
tem is set.
(4) Inspect the resistance of the double lock position
switch.
Standard:
Tester ConnectionDouble Lock PositionSpecified Condition
56SETBelow 1 5 ± 6UNSET10 kor higher
NG REPLACE FRONT DOOR W/MOTOR LOCK
ASSY LH
OK
Page 1610 of 5135
B64706
Unlock Lock
± DIAGNOSTICSPOWER DOOR LOCK CONTROL SYSTEM
05±1565
AVENSIS REPAIR MANUAL (RM1018E)
5 INSPECT REAR DOOR W/MOTOR LOCK ASSY RH
(a) Rear Door w/ Motor Lock Assy RH:
Inspect operation of the double lock motor.
(1) Apply battery voltage and set the door lock motor to
set.
(2) Apply battery voltage to the double lock motor and
inspect operation.
Standard:
Measurement ConditionSpecified Condition
Battery positive (+) Terminal 2
Battery negative (±) Terminal 1Double locking system is Set
Battery positive (+) Terminal 1
Battery negative (±) Terminal 2Double locking system is Unset
(3) Check that the doors cannot be unlocked by operat-
ing the control cable while the double locking sys-
tem is set.
(4) Inspect the resistance of the double lock position
switch.
Standard:
Tester ConnectionDouble Lock PositionSpecified Condition
56SETBelow 1 5 ± 6UNSET10 kor higher
NG REPLACE REAR DOOR W/MOTOR LOCK ASSY
RH
OK
Page 1611 of 5135
B64705
Unlock Lock
05±1566
± DIAGNOSTICSPOWER DOOR LOCK CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

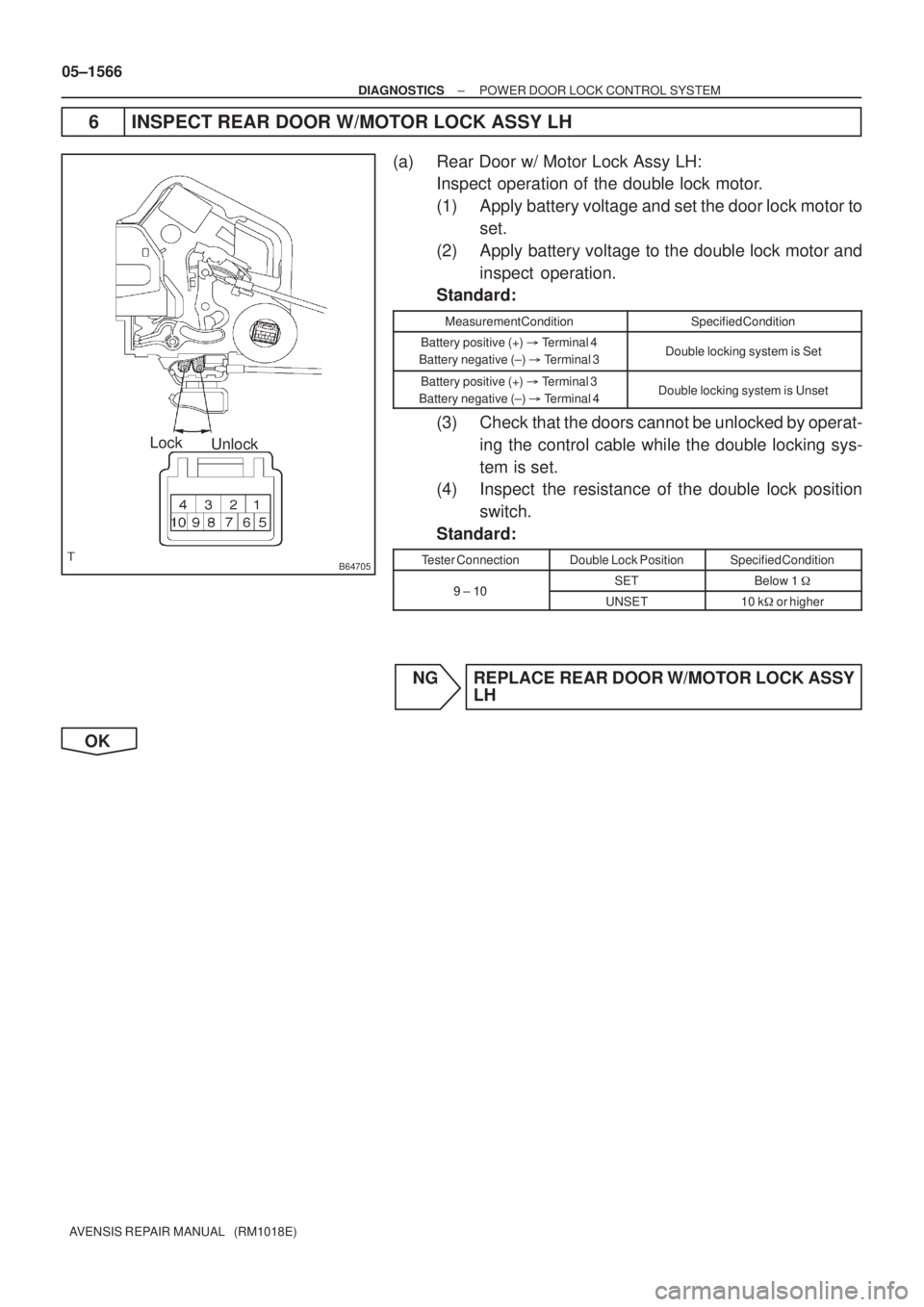

6 INSPECT REAR DOOR W/MOTOR LOCK ASSY LH
(a) Rear Door w/ Motor Lock Assy LH:
Inspect operation of the double lock motor.
(1) Apply battery voltage and set the door lock motor to
set.
(2) Apply battery voltage to the double lock motor and
inspect operation.
Standard:
Measurement ConditionSpecified Condition
Battery positive (+) Terminal 4
Battery negative (±) Terminal 3Double locking system is Set
Battery positive (+) Terminal 3
Battery negative (±) Terminal 4Double locking system is Unset
(3) Check that the doors cannot be unlocked by operat-
ing the control cable while the double locking sys-
tem is set.
(4) Inspect the resistance of the double lock position
switch.
Standard:
Tester ConnectionDouble Lock PositionSpecified Condition
910SETBelow 1 9 ± 10UNSET10 kor higher
NG REPLACE REAR DOOR W/MOTOR LOCK ASSY
LH
OK
Page 1612 of 5135

B70501
D14*1, D21*2, D16*3, D19*4
Door Lock Wire Harness Side
I14
Instrument Panel J/B Assy
(Integration Relay)
DJ
Instrument Panel J/B Assy
56 12
783
49
*1 Driver side *2 Passenger side
*3 Rear right side *4 Rear left side
± DIAGNOSTICSPOWER DOOR LOCK CONTROL SYSTEM
05±1567
AVENSIS REPAIR MANUAL (RM1018E)

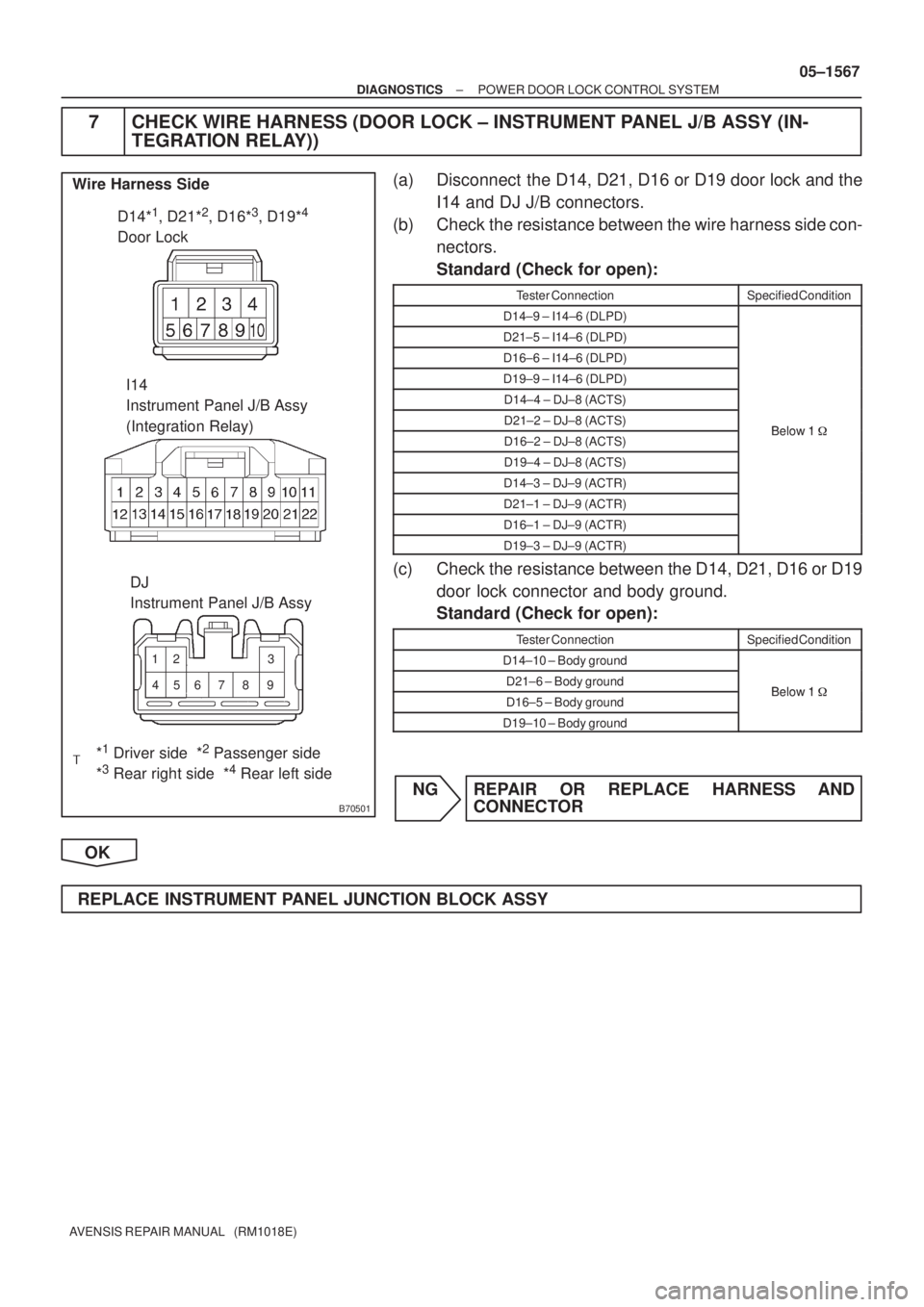

7 CHECK WIRE HARNESS (DOOR LOCK ± INSTRUMENT PANEL J/B ASSY (IN-
TEGRATION RELAY))
(a) Disconnect the D14, D21, D16 or D19 door lock and the
I14 and DJ J/B connectors.
(b) Check the resistance between the wire harness side con-
nectors.
Standard (Check for open):
Tester ConnectionSpecified Condition
D14±9 ± I14±6 (DLPD)
D21±5 ± I14±6 (DLPD)
D16±6 ± I14±6 (DLPD)
D19±9 ± I14±6 (DLPD)
D14±4 ± DJ±8 (ACTS)
D21±2 ± DJ±8 (ACTS)Below 1D16±2 ± DJ±8 (ACTS)Below 1
D19±4 ± DJ±8 (ACTS)
D14±3 ± DJ±9 (ACTR)
D21±1 ± DJ±9 (ACTR)
D16±1 ± DJ±9 (ACTR)
D19±3 ± DJ±9 (ACTR)
(c) Check the resistance between the D14, D21, D16 or D19
door lock connector and body ground.
Standard (Check for open):
Tester ConnectionSpecified Condition
D14±10 ± Body ground
D21±6 ± Body groundBelow 1D16±5 ± Body groundBelow 1
D19±10 ± Body ground
NG REPAIR OR REPLACE HARNESS AND
CONNECTOR
OK
REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSY
Page 1613 of 5135
B66819
DCTY
Integration Relay
KSW 13
DB D9
Front Door Courtesy Lamp Switch Assy
(Driver Side)
128
DA U1
Unlock Warning Switch AssyInstrument Panel J/B Assy
1 LHD models
R14
IC2J10
J/C
B
Y W±B J16
J/C
A
*
2: 1CD±FTVB
RR
A
IO*
1
IL*2
*1: Gasoline
W±B17
19
± DIAGNOSTICSPOWER DOOR LOCK CONTROL SYSTEM
05±1555
AVENSIS REPAIR MANUAL (RM1018E)

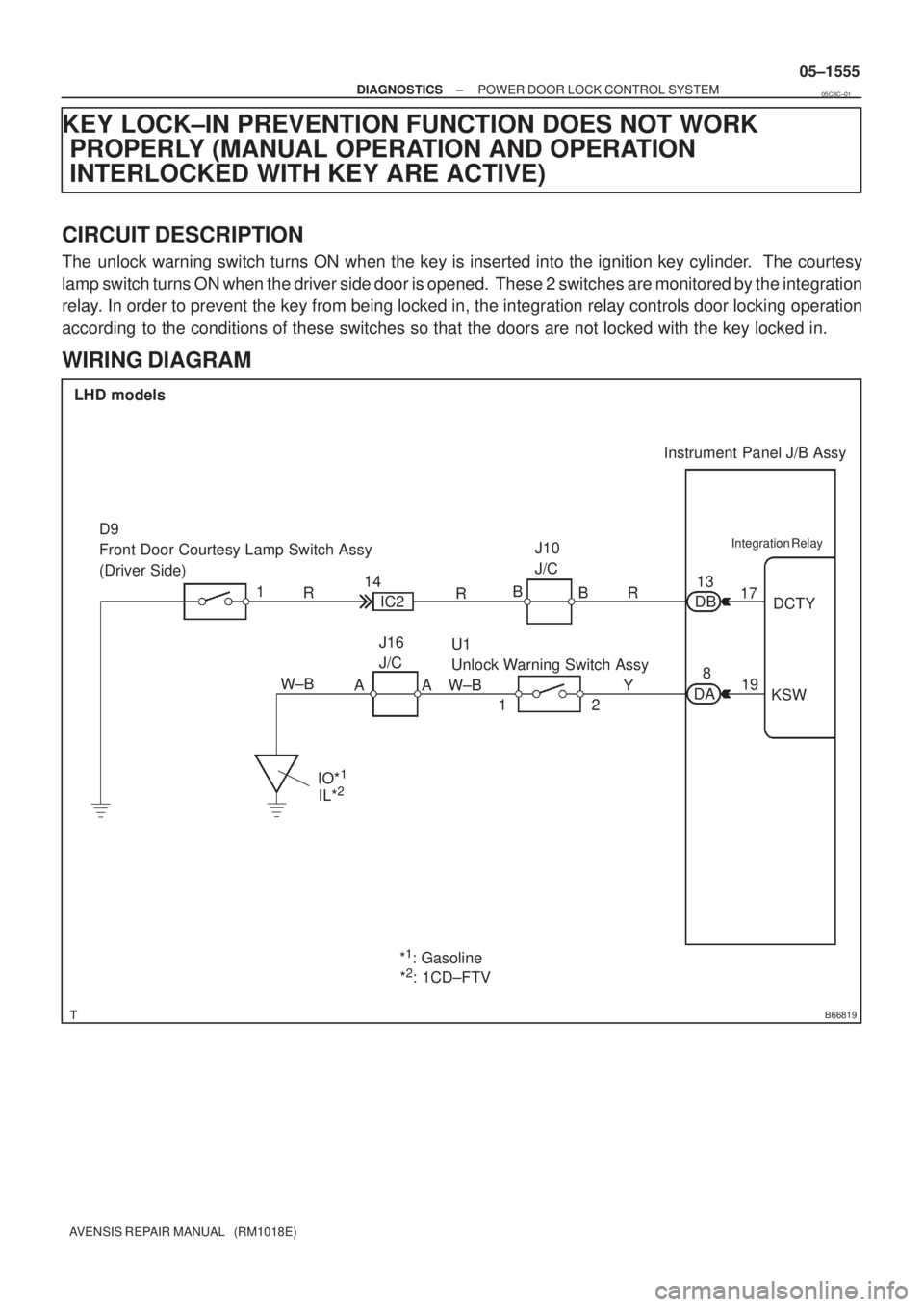

KEY LOCK±IN PREVENTION FUNCTION DOES NOT WORK
PROPERLY (MANUAL OPERATION AND OPERATION
INTERLOCKED WITH KEY ARE ACTIVE)
CIRCUIT DESCRIPTION
The unlock warning switch turns ON when the key is inserted into the ignition key cylinder. The courtesy
lamp switch turns ON when the driver side door is opened. These 2 switches are monitored by the integration
relay. In order to prevent the key from being locked in, the integration relay controls door locking operation
according to the conditions of these switches so that the doors are not locked with the key locked in.
WIRING DIAGRAM
05C8C±01
Page 1614 of 5135

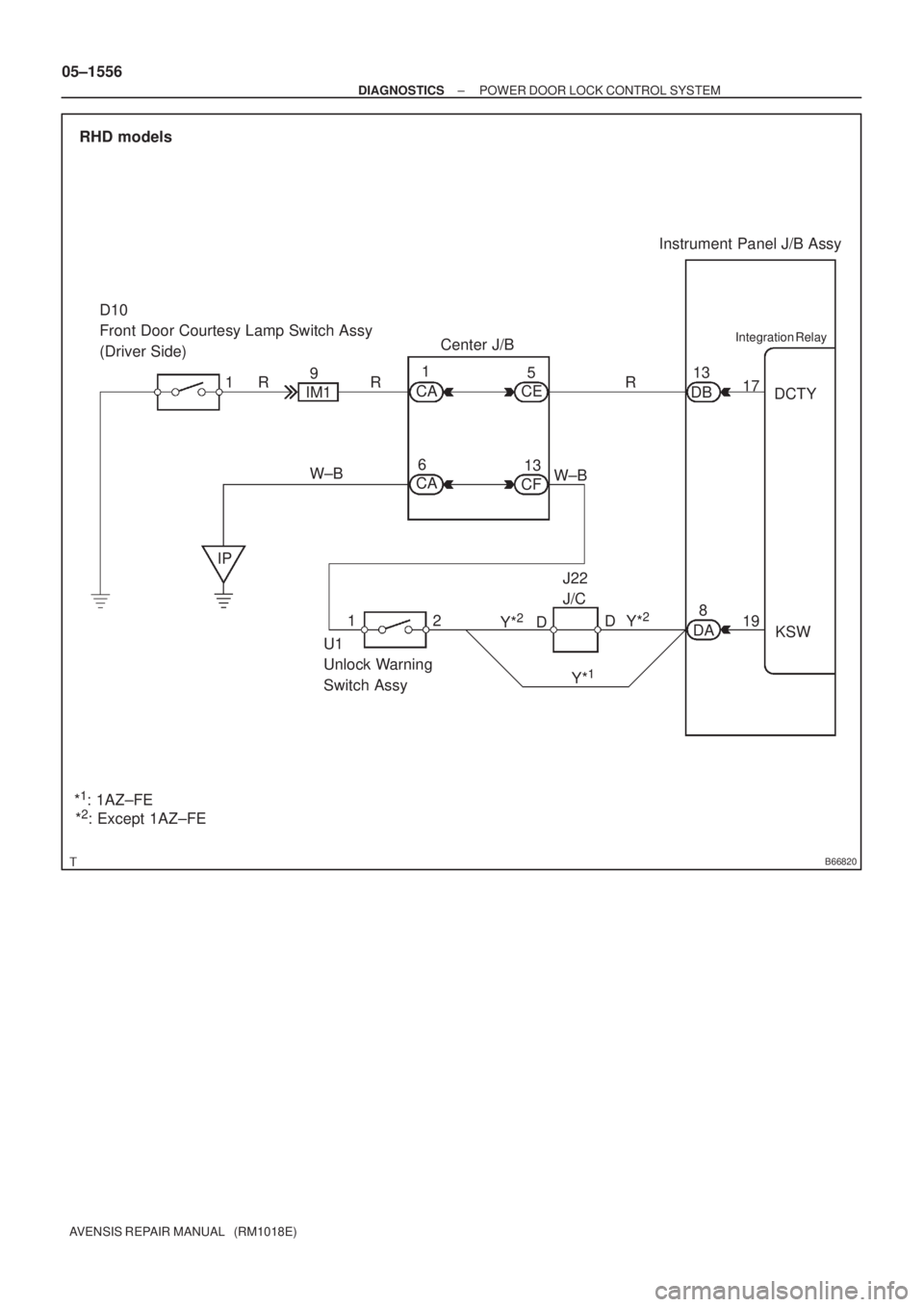

B66820
DCTY
Integration Relay
KSW 13
DB D10
Front Door Courtesy Lamp Switch Assy
(Driver Side)
128
DA
U1
Unlock Warning
Switch AssyInstrument Panel J/B Assy
1 RHD models
1
RR
W±B135
6 9
W±B IM1CA CE
CF
IPCA
Y*2
J22
J/C
*
1: 1AZ±FE
*2: Except 1AZ±FER
17
19 Y*
2DD
Y*
1
Center J/B 05±1556
± DIAGNOSTICSPOWER DOOR LOCK CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
Page 1615 of 5135
B51903
Pushed Free
Pin
± DIAGNOSTICSPOWER DOOR LOCK CONTROL SYSTEM
05±1557
AVENSIS REPAIR MANUAL (RM1018E)

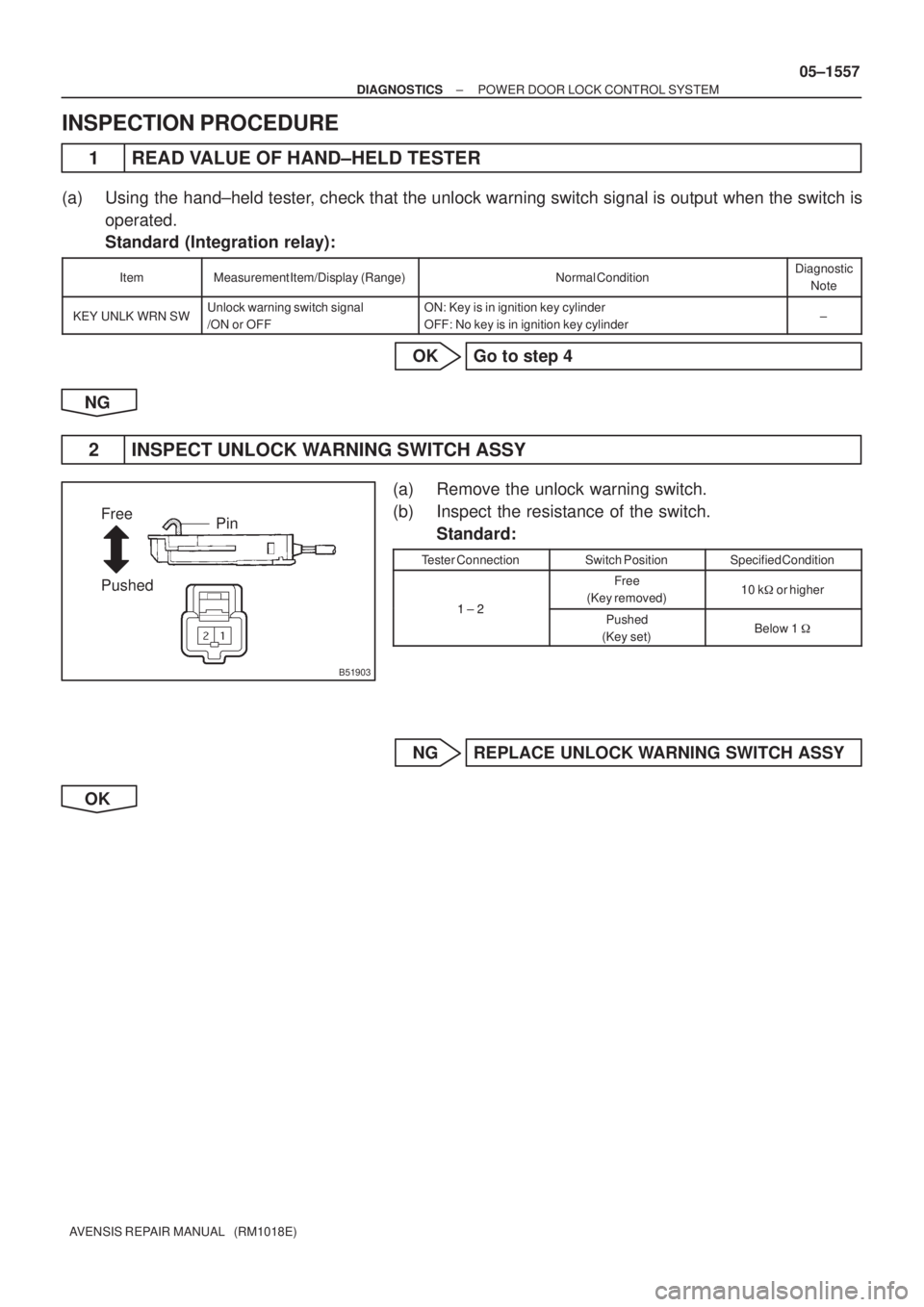

INSPECTION PROCEDURE
1 READ VALUE OF HAND±HELD TESTER
(a) Using the hand±held tester, check that the unlock warning switch signal is output when the switch is
operated.
Standard (Integration relay):
ItemMeasurement Item/Display (Range)Normal ConditionDiagnostic
Note
KEY UNLK WRN SWUnlock warning switch signal
/ON or OFFON: Key is in ignition key cylinder
OFF: No key is in ignition key cylinder±
OK Go to step 4
NG
2 INSPECT UNLOCK WARNING SWITCH ASSY
(a) Remove the unlock warning switch.
(b) Inspect the resistance of the switch.
Standard:
Tester ConnectionSwitch PositionSpecified Condition
12
Free
(Key removed)10 kor higher
1 ± 2Pushed
(Key set)Below 1
NG REPLACE UNLOCK WARNING SWITCH ASSY
OK
Page 1616 of 5135

17
34
16
33
1532
14 31
13 30
1229
11 2 8
1027
926
825
724
623
522
4
21
320
2
19
118
B70499
U1
Unlock Warning Switch Assy Wire Harness Side
DA
Instrument Panel J/B Assy
05±1558
± DIAGNOSTICSPOWER DOOR LOCK CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

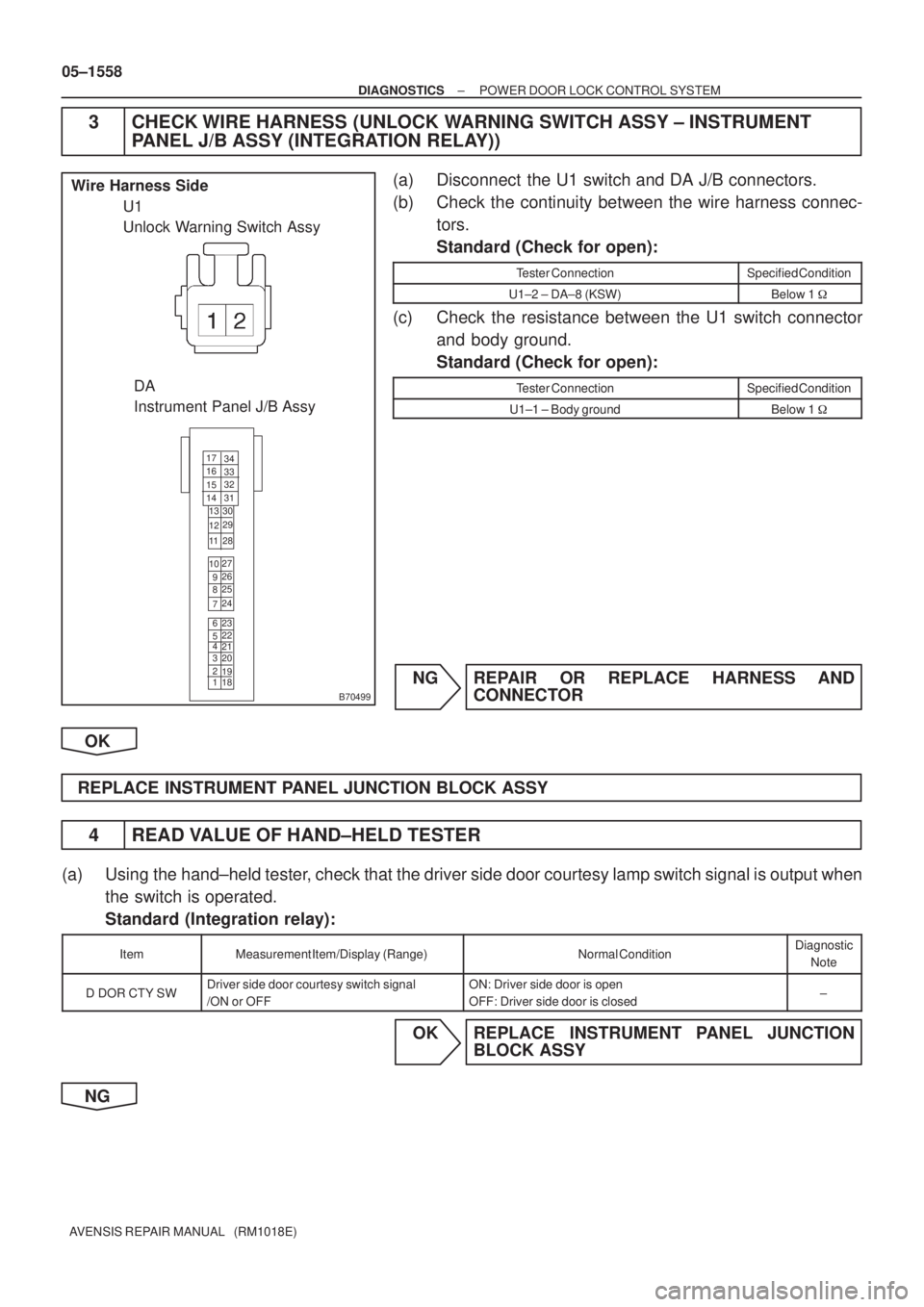

3 CHECK WIRE HARNESS (UNLOCK WARNING SWITCH ASSY ± INSTRUMENT
PANEL J/B ASSY (INTEGRATION RELAY))
(a) Disconnect the U1 switch and DA J/B connectors.
(b) Check the continuity between the wire harness connec-
tors.
Standard (Check for open):
Tester ConnectionSpecified Condition
U1±2 ± DA±8 (KSW)Below 1
(c) Check the resistance between the U1 switch connector
and body ground.
Standard (Check for open):
Tester ConnectionSpecified Condition
U1±1 ± Body groundBelow 1
NG REPAIR OR REPLACE HARNESS AND
CONNECTOR
OK
REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSY
4 READ VALUE OF HAND±HELD TESTER
(a) Using the hand±held tester, check that the driver side door courtesy lamp switch signal is output when
the switch is operated.
Standard (Integration relay):
ItemMeasurement Item/Display (Range)Normal ConditionDiagnostic
Note
D DOR CTY SWDriver side door courtesy switch signal
/ON or OFFON: Driver side door is open
OFF: Driver side door is closed±
OK REPLACE INSTRUMENT PANEL JUNCTION
BLOCK ASSY
NG
