Page 2497 of 5135

270E1±01
SA3213
AD B
Front
C
G23862
27±4
±
REAR SUSPENSION REAR WHEEL ALIGNMENT
AVENSIS REPAIR MANUAL (RM1018E)
REAR WHEEL ALIGNMENT
ADJUSTMENT
1.INSPECT TIRE (See page 28±1)
2.MEASURE VEHICLE HEIGHT (See page 26±6)
NOTICE:
Before inspecting the wheel alignment, adjust the vehicle height to the \
specified value. 3. INSPECT TOE±IN
Toe±in:
(Normal package)
Toe±in(total)A + B: 0 18' \b 12' (0.3 \b 0.2 )
C ± D: 3.0 \b 2.0 mm (0.12 \b 0.08 in.)
(Rough road package)
Toe±in
(total)A + B: 0 ' \b 12' (0.3 \b 0.2 )
C ± D: 3.0 \b 2.0 mm (0.12 \b 0.08 in.)
If the toe±in is not within the specified value, inspect the sus-
pension parts and replace them if necessary.
4. INSPECT CAMBER
(a) Install the camber±caster±kingpin gauge or position the vehicle on\
the wheel alignment tester.
(b) Inspect the camber.
Camber:
(Normal package)
Camber
Right±left error±0 ' \b 30' (±0.9 \b 0.5 )
30' (0.5 ) or less
(Rough road package)
Camber
Right±left error±0 ' \b 30' (±0.5 \b 0.5 )
30' (0.5 ) or less
If the measured value is not within the specified value, inspect the suspension parts for damage and/or wear
and replace them if necessary because camber is not adjustable.
5. ADJUST CAMBER AND TOE±IN
(a) Measure the distance from the LH rear suspension armbracket assy set bolt to the RH rear axle carrier rear side
set bolt as shown in the illustration.
(b) Measure the distance from the RH rear suspension arm bracket assy set bolt to the LH rear axle carrier rear side
set bolt as shown in the illustration.
(c) Employ the same manner to the LH±RH.
Length difference: 6.0 mm (0.236 in.) or less
If the difference exceeds the specified value, adjust it by turning
the camber adjusting cam assy and tie rod adjusting tube.
Page 2498 of 5135

G23877
G23886
Outward Inward
LongerShorterInward Outward
Front
Longer Shorter CAMBER ADJUSTING CAM ASSY
TIE ROD ADJUSTING TUBE
± REAR SUSPENSIONREAR WHEEL ALIGNMENT
27±5
AVENSIS REPAIR MANUAL (RM1018E)
(d) Loosen the camber adjusting cam assy set nut.
(e) Loosen the tie rod adjusting tube set nut.
(f) Adjust the camber and toe±in by turning the adjusting
cam and adjusting tube.
HINT:
Adjust the camber and toe±in to the center of the specified val-
ues as much as possible.
Toe±in:
(Normal package)
Toe±in
(total)A + B: 0' 6' (0.3 0.1)
C ± D: 3.0 1.0 mm (0.12 0.04 in.)
(Rough road package)
Toe±in
(total)A + B: 0' 6' (0.3 0.1)
C ± D: 3.0 1.0 mm (0.12 0.04 in.)
Camber:
(Normal package)
Camber
Right±left error±0' 20' (±0.9 0.3)
30' (0.5) or less
(Rough road package)
Camber
Right±left error±0' 20' (±0.5 0.3)
30' (0.5) or less
(g) Tighten the camber adjusting cam assy set nut.
Torque: 74 Nm (755 kgfcm, 55 ftlbf)
(h) Tighten the tie rod adjusting tube set nut.
Torque: 56 Nm (571 kgfcm, 41 ftlbf)
Page 2499 of 5135

G23890
Example:
Camber
To e
100'
(1.0)
(Scale) 0 2 4 6
27±6
± REAR SUSPENSIONREAR WHEEL ALIGNMENT
AVENSIS REPAIR MANUAL (RM1018E)

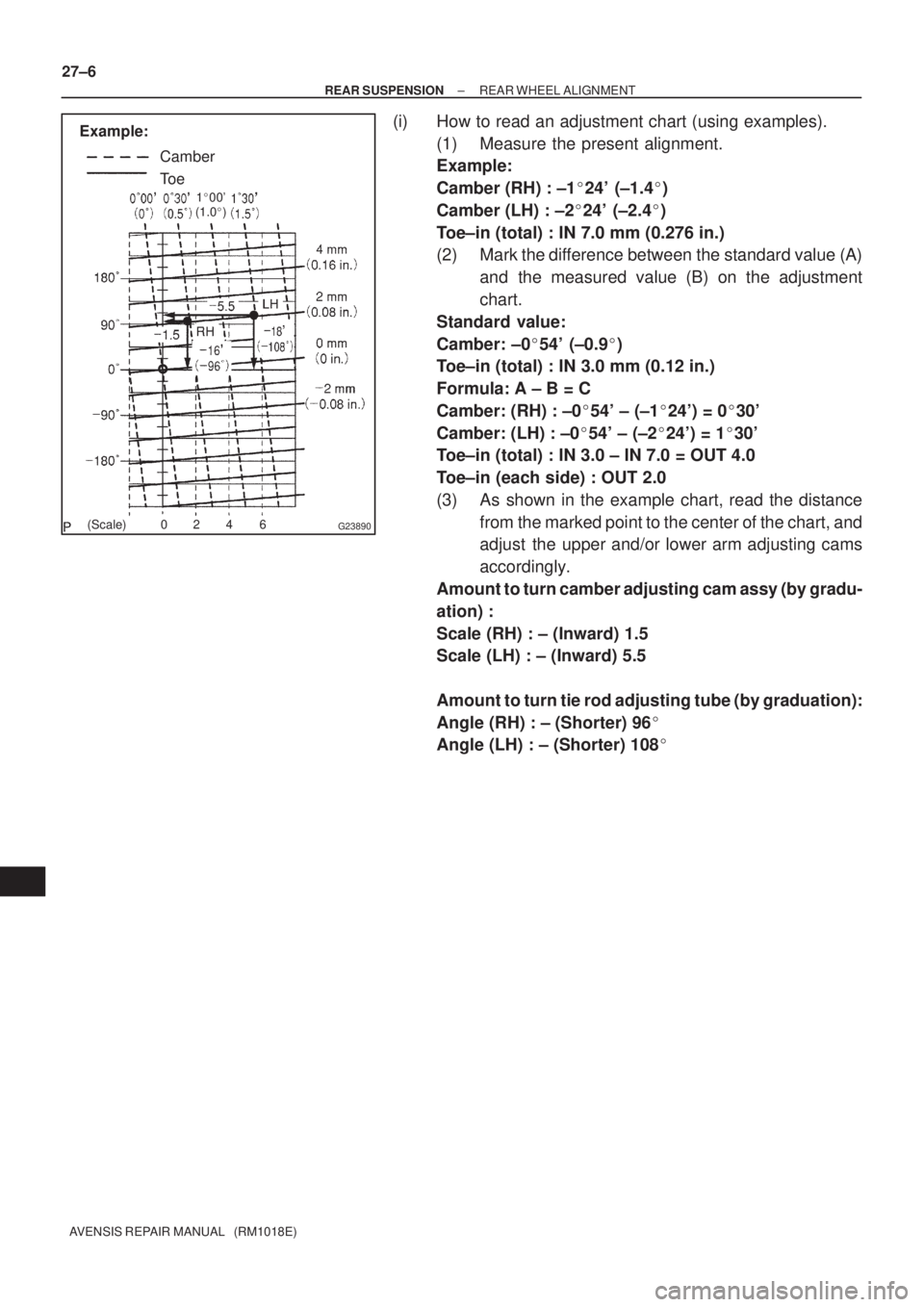

(i) How to read an adjustment chart (using examples).
(1) Measure the present alignment.
Example:
Camber (RH) : ±124' (±1.4)
Camber (LH) : ±224' (±2.4)
Toe±in (total) : IN 7.0 mm (0.276 in.)
(2) Mark the difference between the standard value (A)
and the measured value (B) on the adjustment
chart.
Standard value:
Camber: ±054' (±0.9)
Toe±in (total) : IN 3.0 mm (0.12 in.)
Formula: A ± B = C
Camber: (RH) : ±054' ± (±124') = 030'
Camber: (LH) : ±054' ± (±224') = 130'
Toe±in (total) : IN 3.0 ± IN 7.0 = OUT 4.0
Toe±in (each side) : OUT 2.0
(3) As shown in the example chart, read the distance
from the marked point to the center of the chart, and
adjust the upper and/or lower arm adjusting cams
accordingly.
Amount to turn camber adjusting cam assy (by gradu-
ation) :
Scale (RH) : ± (Inward) 1.5
Scale (LH) : ± (Inward) 5.5
Amount to turn tie rod adjusting tube (by graduation):
Angle (RH) : ± (Shorter) 96
Angle (LH) : ± (Shorter) 108
Page 2500 of 5135

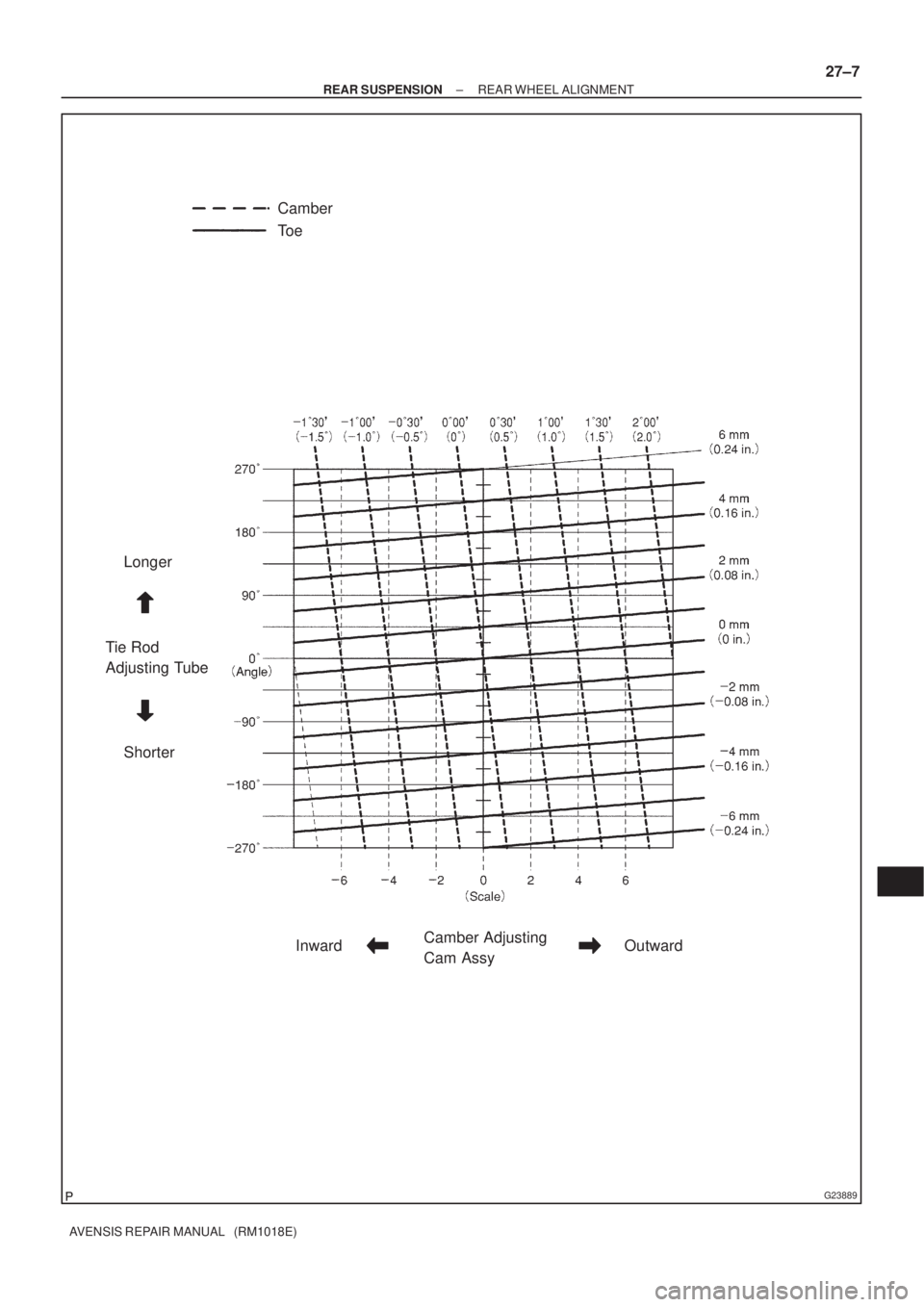

G23889
Camber
To e
Longer
Tie Rod
Adjusting Tube
Shorter
InwardCamber Adjusting
Cam AssyOutward
± REAR SUSPENSIONREAR WHEEL ALIGNMENT
27±7
AVENSIS REPAIR MANUAL (RM1018E)
Page 2501 of 5135

270E0±01
G26285
w/ Height Control Sensor:
5.8 (59, 51 in.lbf)
80 (816, 59)
Rear Suspension Member Sub±assy
Rear Shock Absorber
Cushion Washer No.1
Coil Rear Spring
Rear Coil Spring Insulator Upper LH
Rear Spring Bumper No.1 LH
Rear Suspension Support Assy LH
Rear Spring Front Bracket
Sub±assy LH
Rear Shock
Absorber Cushion No.1
Lower Control Arm Assy RH
Rear Shock Absorber
Assy LH
160 (1,632, 118)
110 (1,122, 81)
65 (663, 48)
Rear Suspension
Support Stopper
Rear Suspension Arm
Bracket Assy LH
Rear Suspension
Arm Bush No.1Camber Adjust Cam Assy
Rear Suspension Arm Assy No.1 LH
74 (755, 55)
105 (1,071, 77)
44 (449, 32)
74 (755, 55)
74 (755, 55)
Parking Brake Cable Assy No.3
5.0 (51, 44 in.lbf)Rear Axle Carrier Sub±assy LH
Skid Control Sensor Wire
74 (755, 55)
Upper Control Arm Assy
Camber Adjust Cam No.2
Lower Control Arm Assy LH
105 (1,071, 77)
5.0 (51, 44 in.lbf)
60 (612, 44)
Nm (kgfcm, ftlbf) : Specified torque
Non±reusable part
56 (571, 41)
56 (571, 41)
Clip
Clip 27±2
± REAR SUSPENSIONREAR SUSPENSION
AVENSIS REPAIR MANUAL (RM1018E)
REAR SUSPENSION
COMPONENTS
Page 2502 of 5135

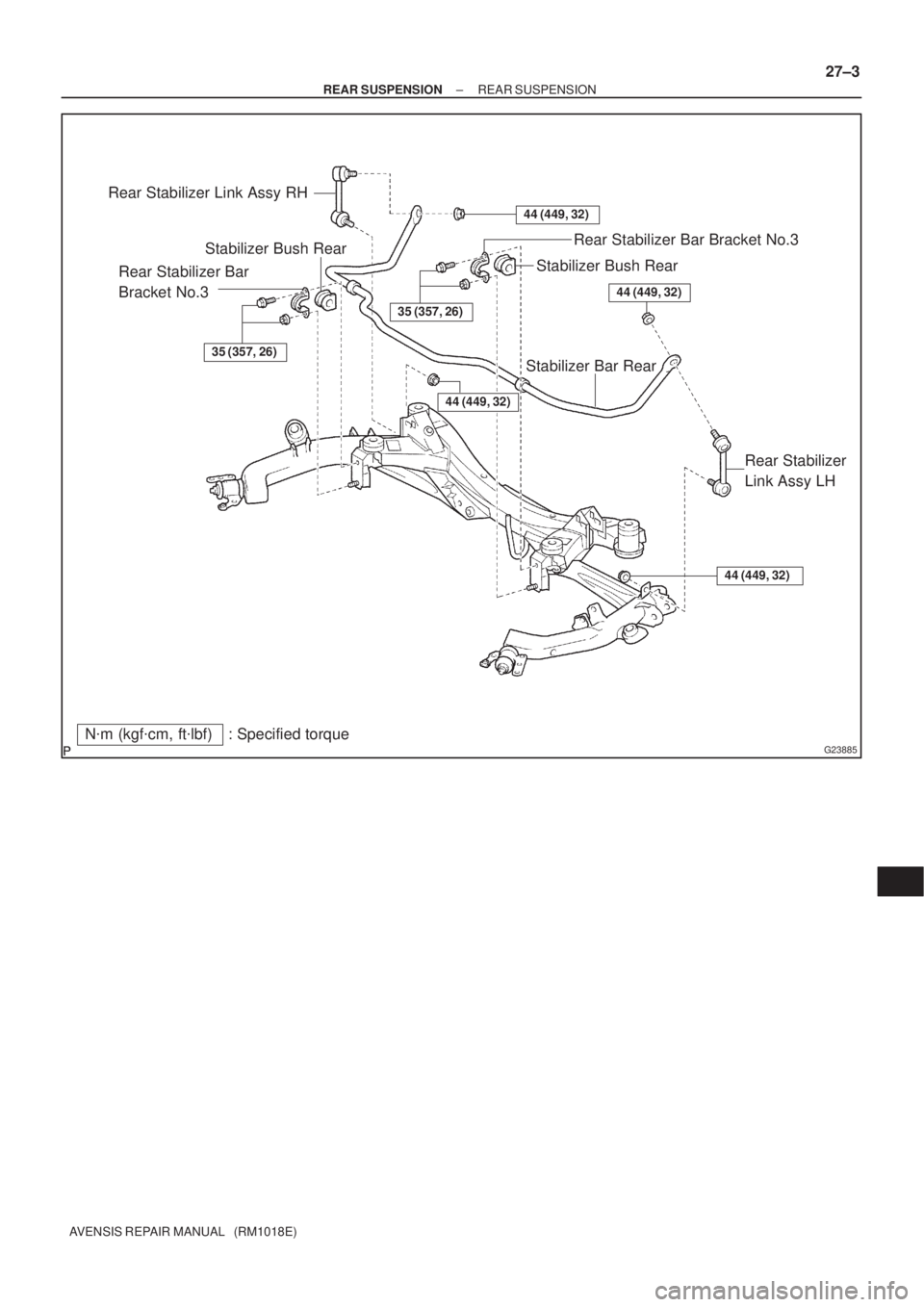

G23885
Rear Stabilizer Link Assy RH
Stabilizer Bush Rear
Rear Stabilizer Bar
Bracket No.3
Rear Stabilizer
Link Assy LH Rear Stabilizer Bar Bracket No.3
Stabilizer Bush Rear
Stabilizer Bar Rear
35 (357, 26)
44 (449, 32)
35 (357, 26)
44 (449, 32)
44 (449, 32)
44 (449, 32)
Nm (kgfcm, ftlbf) : Specified torque
± REAR SUSPENSIONREAR SUSPENSION
27±3
AVENSIS REPAIR MANUAL (RM1018E)
Page 2503 of 5135

270E7±01
±
REAR SUSPENSION REAR SUSPENSION SYSTEM
27±1
AVENSIS REPAIR MANUAL (RM1018E)
REAR SUSPENSION SYSTEM
PROBLEM SYMPTOMS TABLE
Use the table below to help you find the cause of the problem. The numbers \
indicate the probability
of the likely cause of the problem. Check each part in order. If necessary, replace these parts.
SymptomSuspect AreaSee page
Wander/pulls
1. Tire (Worn or improperly inflated)
2. Wheel alignment (Incorrect)
3. Steering linkage (Loose or worn)
4. Hub bearing (Worn)
5. Suspension parts (Worn)28±1
27±4
±
30±2 ±
Bottoming
1. Vehicle (Overloaded)
2. Spring (Weak)
3. Shock absorber (Worn)±
27±8
27±8
Sways/pitches
1. Tire (Worn or improperly inflated)
2. Stabilizer bar (Bent or broken)
3. Shock absorber (Worn)28±1
27±29 27±8
Rear wheel shimmy
1. Tire (Worn or improperly inflated)
2. Wheel (Out of balance)
3. Shock absorber (Worn)
4. Wheel alignment (Incorrect)
5. Hub bearing (Worn)28±1
28±1
27±8
27±4
30±2
Abnormal tire wear
1. Tire (Worn or improperly inflated)
2. Wheel alignment (Incorrect)
3. Shock absorber (Worn)
4. Suspension parts (Worn)28±1
27±4
27±8
±
Page 2504 of 5135

2600P±03
F44620
G21679
26±26
±
FRONT SUSPENSION STABILIZER BAR FRONT
AVENSIS REPAIR MANUAL (RM1018E)
STABILIZER BAR FRONT
REPLACEMENT
HINT:
COMPONENTS: See page 26±2
1. REMOVE FRONT WHEEL 2. REMOVE FRONT STABILIZER LINK ASSY LH
(a) Remove the 2 nuts and front stabilizer link assy LH.
HINT:
If the ball joint turns together with the nut,use a hexagon wrench
(6 mm) to hold the stud.
3. REMOVE FRONT STABILIZER LINK ASSY RH
HINT:
Remove the RH side by the same procedures as the LH side. 4. INSPECT FRONT STABILIZER LINK ASSY LH
(a) As shown in the illustration, flip the ball joint stud back andforth 5 times, before installing the nut.
(b) Using a torque wrench, turn the nut continuously at a rate
of 3 ± 5 seconds per 1 turn and take the torque reading
on the 5th turn.
Turning torque:
0.05 ± 1.96 N´m (0.5 ± 20 kgf´cm, 0.4 ± 17 in.´lbf)
5.SEPARATE TIE ROD END SUB±ASSY LH (See page 30±6) SST 09628±62011
6. SEPARATE TIE ROD END SUB±ASSY RH
SST 09628±62011
HINT:
Separate the RH side by the same procedures as the LH side.
7.SEPARATE FRONT SUSPENSION ARM SUB±ASSY LOWER NO.1 LH (See page 30±6)
8. SEPARATE FRONT SUSPENSION ARM SUB±ASSY LOWER NO.1 RH
HINT:
Separate the RH side by the same procedures as the LH side.
9. SEPARATE RACK & PINION POWER STEERING GEAR ASSY
(a)Electric power steering model: See page 51±28
(b)Oil pressure power steering model: See page 51±36
