Page 1929 of 5135
± FUELFUEL SYSTEM (1CD±FTV)
11±57
AVENSIS REPAIR MANUAL (RM1018E)
5. LEVEL WARNING SWITCH
(a) Continuity inspection.
(1) Using an ohmmeter, check that there is continuity between terminals.
Specified condition:
There is continuity when raising a float.
There is no continuity when letting a float down.
6. FUEL TEMPERATURE SENSOR
(a) Resistance inspection.
(1) Using an ohmmeter, measure the resistance between the terminals.
Resistance:
Approx. 20C (68F) 2.21 to 2.69
Approx. 80C (176F) 0.287 to 0.349
Page 1930 of 5135
110TB±01
A79569
A79570
SST
A79571
A79572
11±52
±
FUEL FUEL PUMP ASSY(1AZ±FSE)
AVENSIS REPAIR MANUAL (RM1018E)
REPLACEMENT
1.DISCHARGE FUEL SYSTEM PRESSURE (See page 11±30)
2.REMOVE RADIATOR SUPPORT OPENING COVER (See page 18±16)
3.REMOVE ENGINE COVER SUB±ASSY NO.1 (See page 10±44)
4.REMOVE AIR CLEANER CAP SUB±ASSY (See page 10±44) 5.REMOVE ENGINE COVER BRACKET
(a)Remove the bolt and the engine cover bracket.
6.REMOVE FUEL PRESSURE PULSATION DAMPERASSY
(a)Disconnect the fuel tube sub±assy. (See page 11±30)
(b) Using SST, remove the fuel pressure pulsation damper assy, the fuel tube sub±assy and the 2 gasket.
SST 09617±24011
7. REMOVE FUEL PIPE SUB±ASSY NO.1
(a) Remove the fuel hose.
(b) Clamp the union bolt on the fuel pump assy with a 21 mm wrench and remove the fuel pipe sub±assy No. 1 from the
fuel pump assy using a 19 mm union±nut wrench.
NOTICE:
Do not loosen the union bolt on the fuel pump assy. If it be-
come loose, replace the fuel pump assy with new fuel
pump assy.
Page 1931 of 5135
A79573
A79574
A79834
± FUELFUEL PUMP ASSY (1AZ±FSE)
11±53
AVENSIS REPAIR MANUAL (RM1018E)

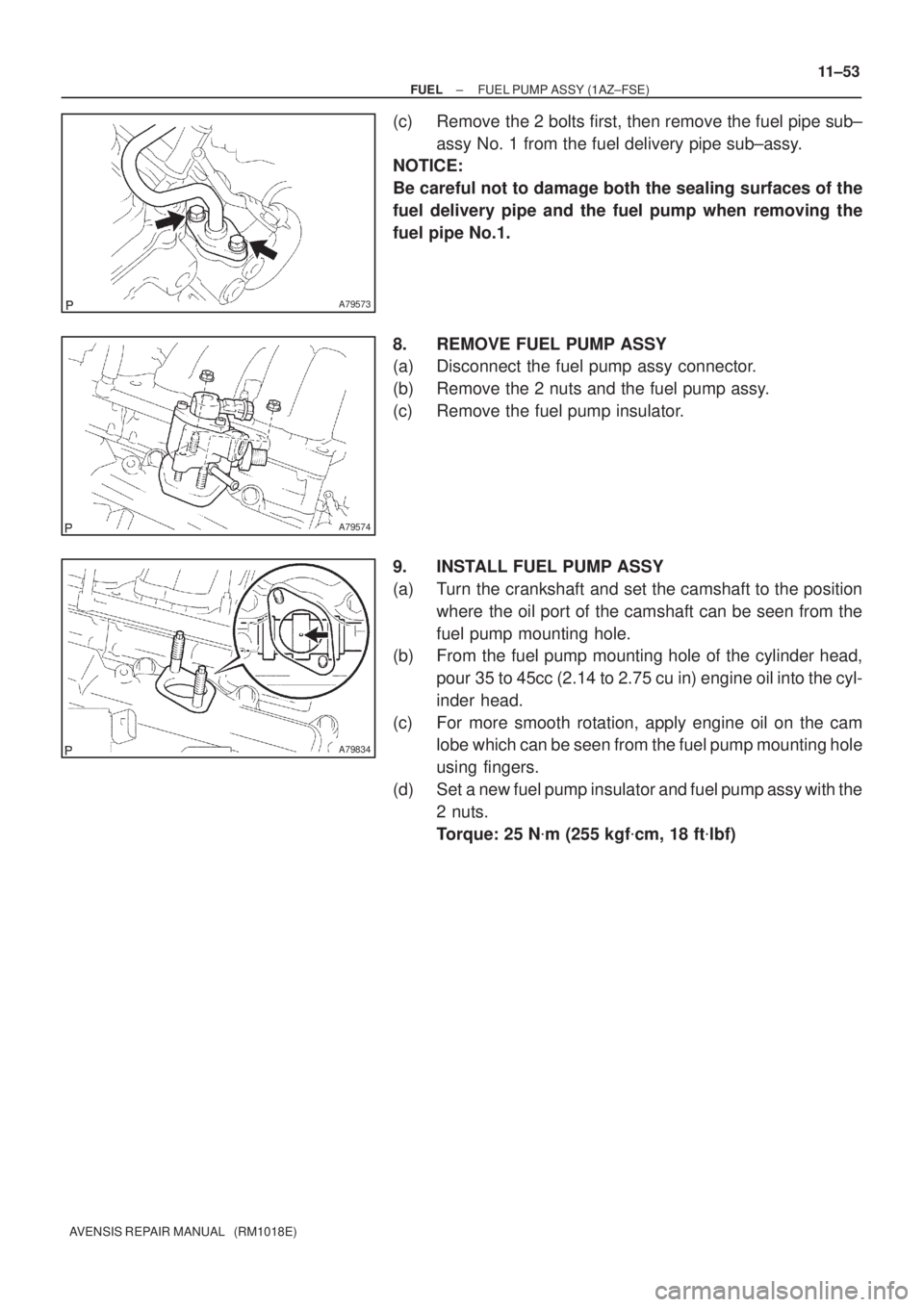

(c) Remove the 2 bolts first, then remove the fuel pipe sub±
assy No. 1 from the fuel delivery pipe sub±assy.
NOTICE:
Be careful not to damage both the sealing surfaces of the
fuel delivery pipe and the fuel pump when removing the
fuel pipe No.1.
8. REMOVE FUEL PUMP ASSY
(a) Disconnect the fuel pump assy connector.
(b) Remove the 2 nuts and the fuel pump assy.
(c) Remove the fuel pump insulator.
9. INSTALL FUEL PUMP ASSY
(a) Turn the crankshaft and set the camshaft to the position
where the oil port of the camshaft can be seen from the
fuel pump mounting hole.
(b) From the fuel pump mounting hole of the cylinder head,
pour 35 to 45cc (2.14 to 2.75 cu in) engine oil into the cyl-
inder head.
(c) For more smooth rotation, apply engine oil on the cam
lobe which can be seen from the fuel pump mounting hole
using fingers.
(d) Set a new fuel pump insulator and fuel pump assy with the
2 nuts.
Torque: 25 Nm (255 kgfcm, 18 ftlbf)
Page 1932 of 5135
A79575
Fuel Injector
Back±up Ring No. 1
Fuel Injector
Back±up Ring No. 2
O±ring
Fuel injector
Back±up Ring No. 3
A79576
A79570
SST
11±54
± FUELFUEL PUMP ASSY (1AZ±FSE)
AVENSIS REPAIR MANUAL (RM1018E)

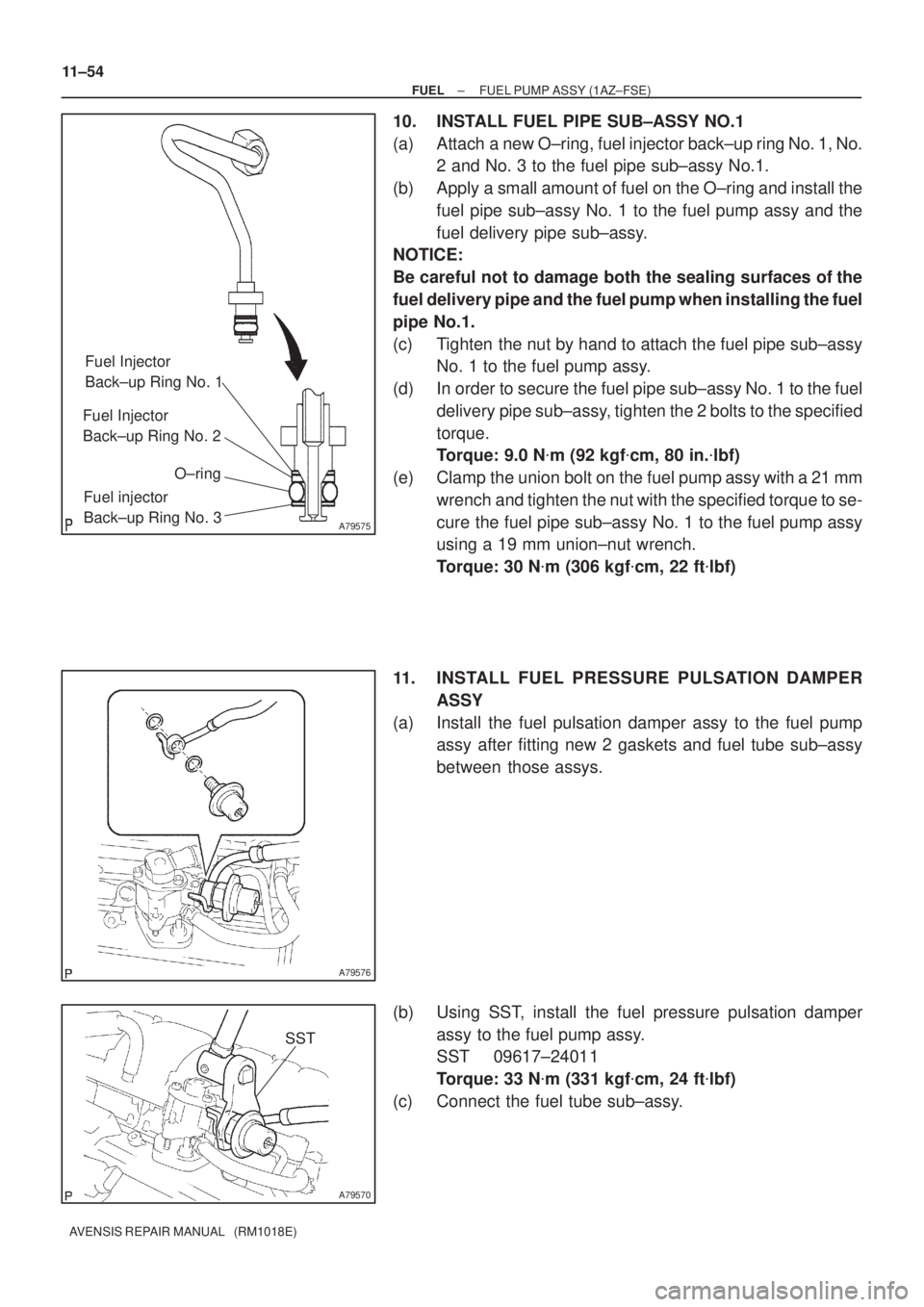

10. INSTALL FUEL PIPE SUB±ASSY NO.1
(a) Attach a new O±ring, fuel injector back±up ring No. 1, No.
2 and No. 3 to the fuel pipe sub±assy No.1.
(b) Apply a small amount of fuel on the O±ring and install the
fuel pipe sub±assy No. 1 to the fuel pump assy and the
fuel delivery pipe sub±assy.
NOTICE:
Be careful not to damage both the sealing surfaces of the
fuel delivery pipe and the fuel pump when installing the fuel
pipe No.1.
(c) Tighten the nut by hand to attach the fuel pipe sub±assy
No. 1 to the fuel pump assy.
(d) In order to secure the fuel pipe sub±assy No. 1 to the fuel
delivery pipe sub±assy, tighten the 2 bolts to the specified
torque.
Torque: 9.0 Nm (92 kgfcm, 80 in.lbf)
(e) Clamp the union bolt on the fuel pump assy with a 21 mm
wrench and tighten the nut with the specified torque to se-
cure the fuel pipe sub±assy No. 1 to the fuel pump assy
using a 19 mm union±nut wrench.
Torque: 30 Nm (306 kgfcm, 22 ftlbf)
11. INSTALL FUEL PRESSURE PULSATION DAMPER
ASSY
(a) Install the fuel pulsation damper assy to the fuel pump
assy after fitting new 2 gaskets and fuel tube sub±assy
between those assys.
(b) Using SST, install the fuel pressure pulsation damper
assy to the fuel pump assy.
SST 09617±24011
Torque: 33 Nm (331 kgfcm, 24 ftlbf)
(c) Connect the fuel tube sub±assy.
Page 1933 of 5135
±
FUEL FUEL PUMP ASSY(1AZ±FSE)
11±55
AVENSIS REPAIR MANUAL (RM1018E)

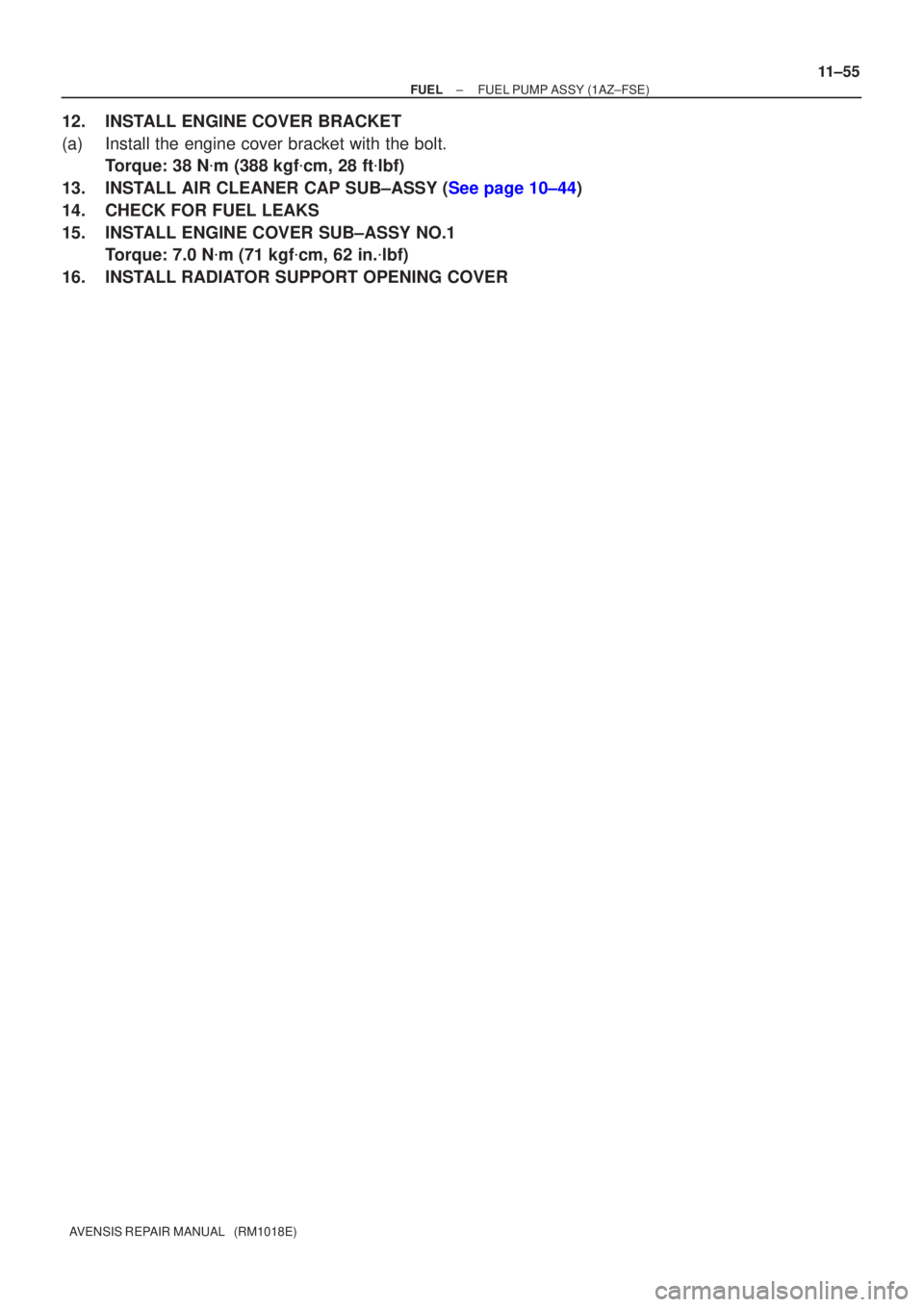

12.INSTALL ENGINE COVER BRACKET
(a)Install the engine cover bracket with the bolt.
Torque: 38 N m (388 kgf cm, 28 ft lbf)
13.INSTALL AIR CLEANER CAP SUB±ASSY (See page 10±44)
14. CHECK FOR FUEL LEAKS
15. INSTALL ENGINE COVER SUB±ASSY NO.1 Torque: 7.0 N m (71 kgf cm, 62 in. lbf)
16. INSTALL RADIATOR SUPPORT OPENING COVER
Page 1934 of 5135
1203V±03
B08075
12±16
± EMISSION CONTROLEMISSION CONTROL SYSTEM (1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)
EMISSION CONTROL SYSTEM (1CD±FTV)
ON±VEHICLE INSPECTION
1. VISUALLY INSPECT HOSES, CONNECTIONS AND
GASKETS
(a) Check for cracks, leak or damage.
HINT:
Separation of the engine oil dipstick, oil filler cap, PCV hose,
etc. may cause the engine to run improperly. Disconnection,
looseness or cracks in the parts of the air induction system be-
tween the throttle body and cylinder head will allow air suction
and cause the engine to run improperly.
Page 1935 of 5135
1209H±02
A62250
Port A
Port BPort C
A60562
Cylinder Head Side
A60563
Intake Manifold Side
Gasket
B11870
± EMISSION CONTROLEMISSION CONTROL SYSTEM (1AZ±FSE)
12±13
AVENSIS REPAIR MANUAL (RM1018E)

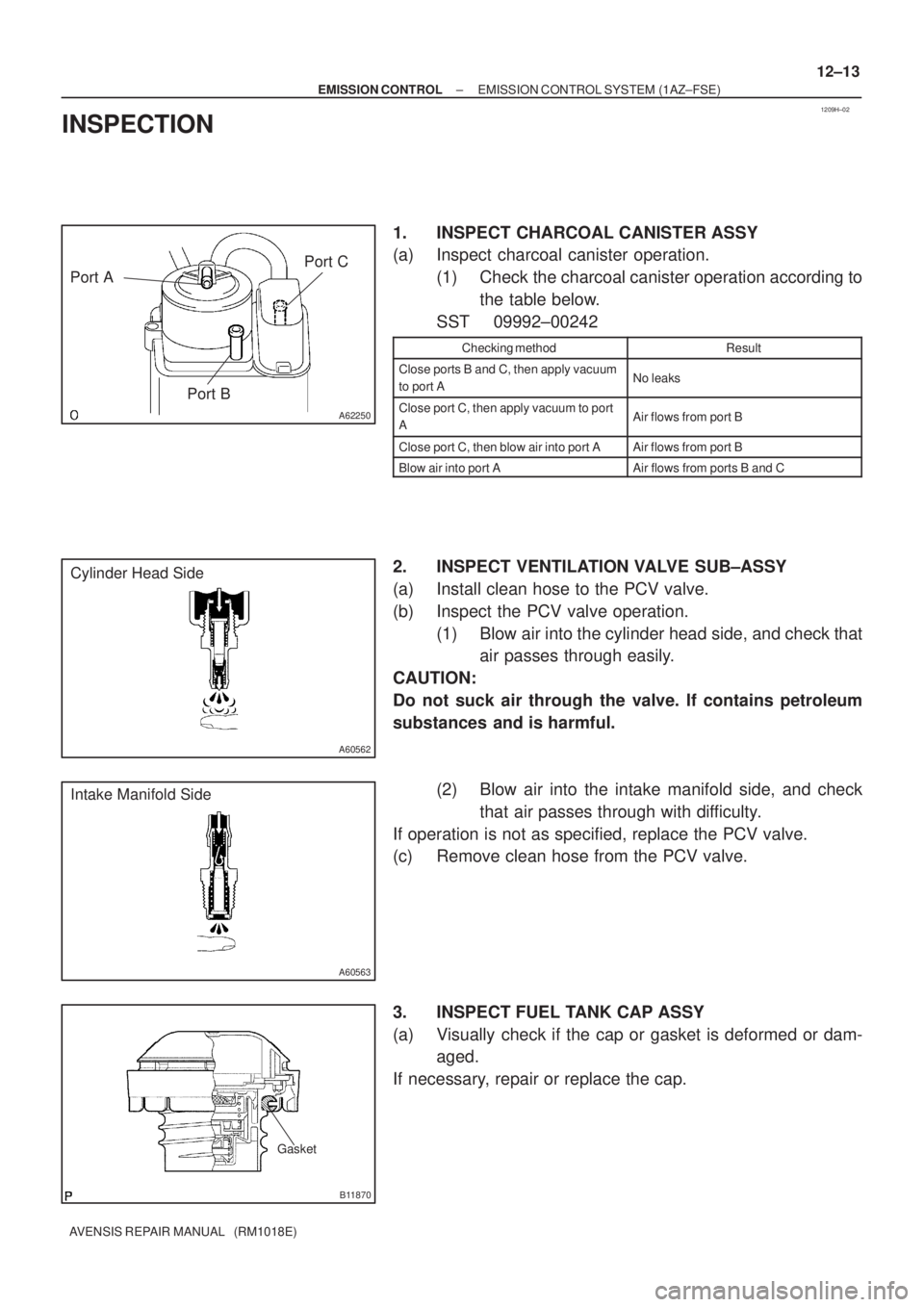

INSPECTION
1. INSPECT CHARCOAL CANISTER ASSY
(a) Inspect charcoal canister operation.
(1) Check the charcoal canister operation according to
the table below.
SST 09992±00242
Checking methodResult
Close ports B and C, then apply vacuum
to port ANo leaks
Close port C, then apply vacuum to port
AAir flows from port B
Close port C, then blow air into port AAir flows from port B
Blow air into port AAir flows from ports B and C
2. INSPECT VENTILATION VALVE SUB±ASSY
(a) Install clean hose to the PCV valve.
(b) Inspect the PCV valve operation.
(1) Blow air into the cylinder head side, and check that
air passes through easily.
CAUTION:
Do not suck air through the valve. If contains petroleum
substances and is harmful.
(2) Blow air into the intake manifold side, and check
that air passes through with difficulty.
If operation is not as specified, replace the PCV valve.
(c) Remove clean hose from the PCV valve.
3. INSPECT FUEL TANK CAP ASSY
(a) Visually check if the cap or gasket is deformed or dam-
aged.
If necessary, repair or replace the cap.
Page 1936 of 5135
A77115
Ohmmeter
Resistance
A77116
Ohmmeter
No continuity
A77117
Air E F
A77118
Air E
F
Battery
A64543
+B
Bank 2 Sensor 1:
HT
E1
12±14
± EMISSION CONTROLEMISSION CONTROL SYSTEM (1AZ±FSE)
AVENSIS REPAIR MANUAL (RM1018E)
4. INSPECT VACUUM SWITCHING VALVE ASSY NO.1
(a) Inspect VSV for open circuit.
(1) Using an ohmmeter, measure resistance between
the terminals.
Resistance: 26 to 30 at 20C (68F)
If the resistance is not as specified, replace the VSV.
(b) Inspect the VSV for ground.
(1) Using an ohmmeter, check that there is no continu-
ity between each terminal and the body.
If there is continuity, replace the VSV.
(c) Inspect the VSV operation.
(1) Check that air flows with a little difficulty from port E
to port F.
(2) Apply battery voltage across the terminals.
(3) Check that air flows from port E to port F.
If operation is not as specified, replace the VSV.
5. INSPECT HEATED OXYGEN SENSOR
(a) Bank 2 Sensor 1:
(1) Using an ohmmeter, measure the resistance be-
tween the terminals.
Resistance:
Terminal No.Resistance
1 (HT) ± 2 (+B)11 to 16 at 20 C (68 F)
1 (HT) ± 4 (E1)No Continuity
If the resistance is not as specified, replace the sensor.
