Page 3673 of 5135

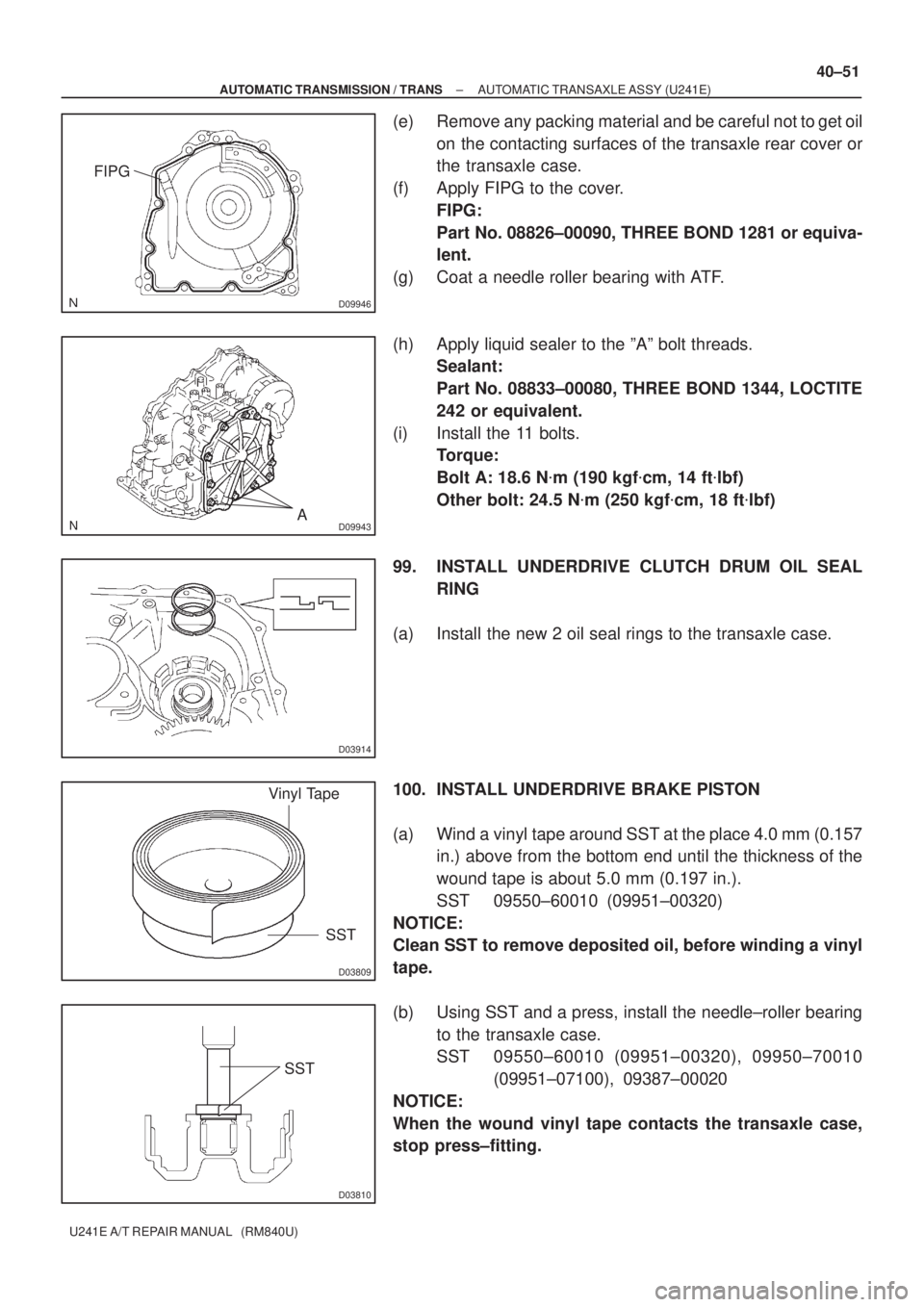

TOYOTA AVENSIS 2005 Service Repair Manual D09946 FIPG D09943A D03914 D03809 Vinyl Tape SST D03810 SST ± AUTOMATIC TRANSMISSION / TRANSAUTOMATIC TRANSAXLE ASSY (U241E) 40±51 U241E A/T REPAIR MANUAL (RM840U) (e) Remove any packing material

Page 3674 of 5135

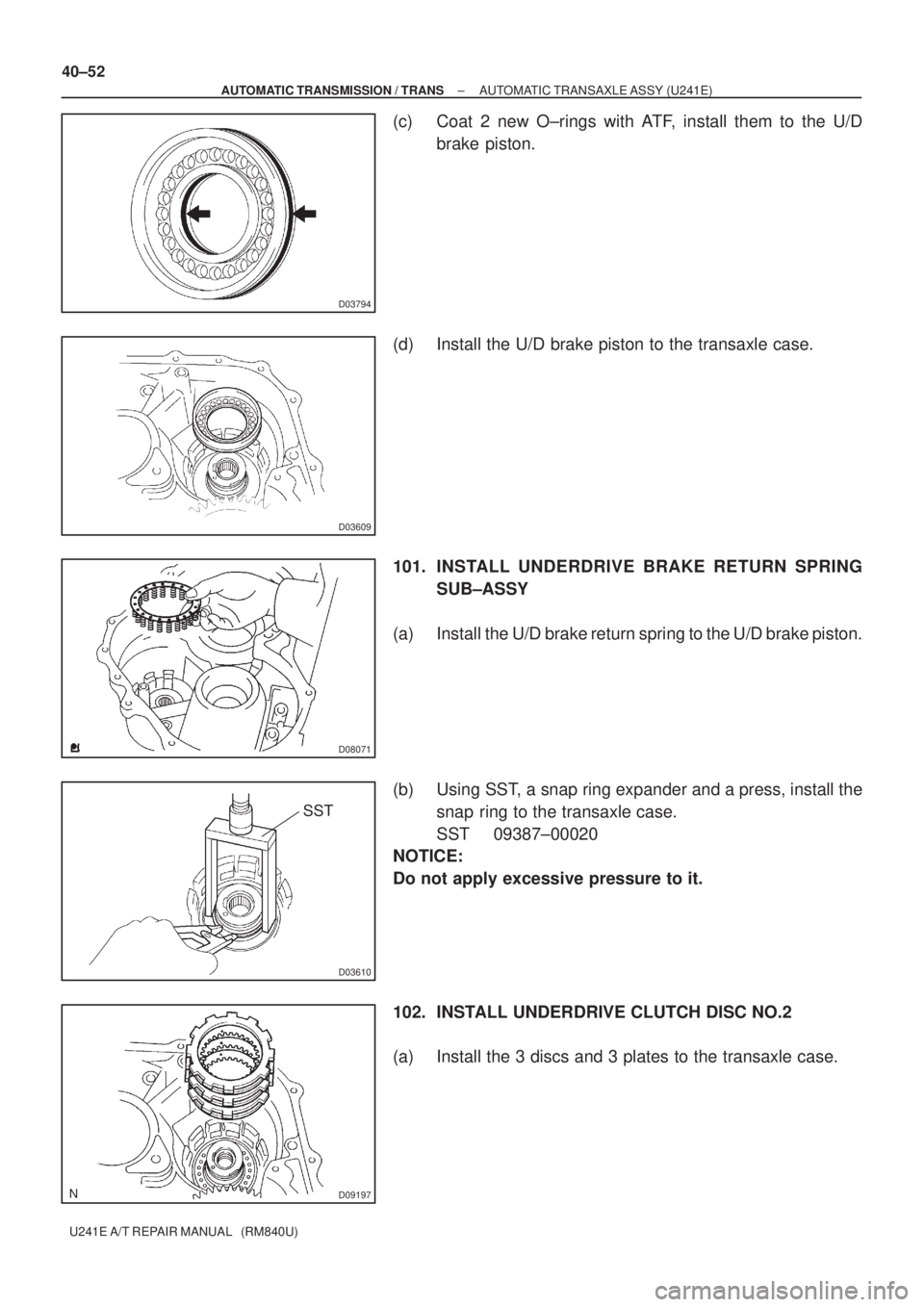

TOYOTA AVENSIS 2005 Service Repair Manual D03794 D03609 D08071 D03610 SST D09197 40±52 ± AUTOMATIC TRANSMISSION / TRANSAUTOMATIC TRANSAXLE ASSY (U241E) U241E A/T REPAIR MANUAL (RM840U) (c) Coat 2 new O±rings with ATF, install them to the

Page 3675 of 5135

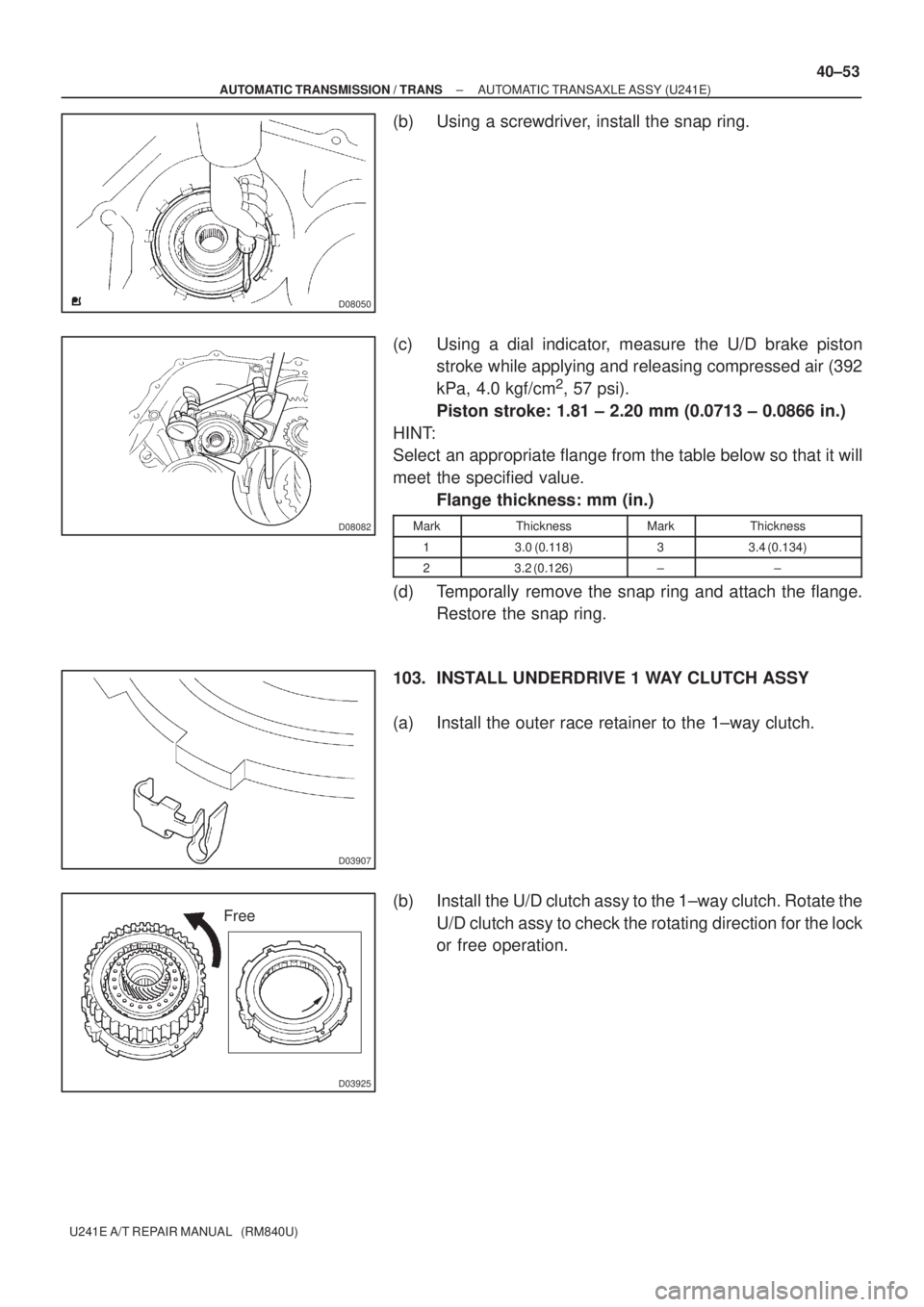

TOYOTA AVENSIS 2005 Service Repair Manual D08050 D08082 D03907 D03925 Free ± AUTOMATIC TRANSMISSION / TRANSAUTOMATIC TRANSAXLE ASSY (U241E) 40±53 U241E A/T REPAIR MANUAL (RM840U) (b) Using a screwdriver, install the snap ring. (c) Using a

Page 3676 of 5135

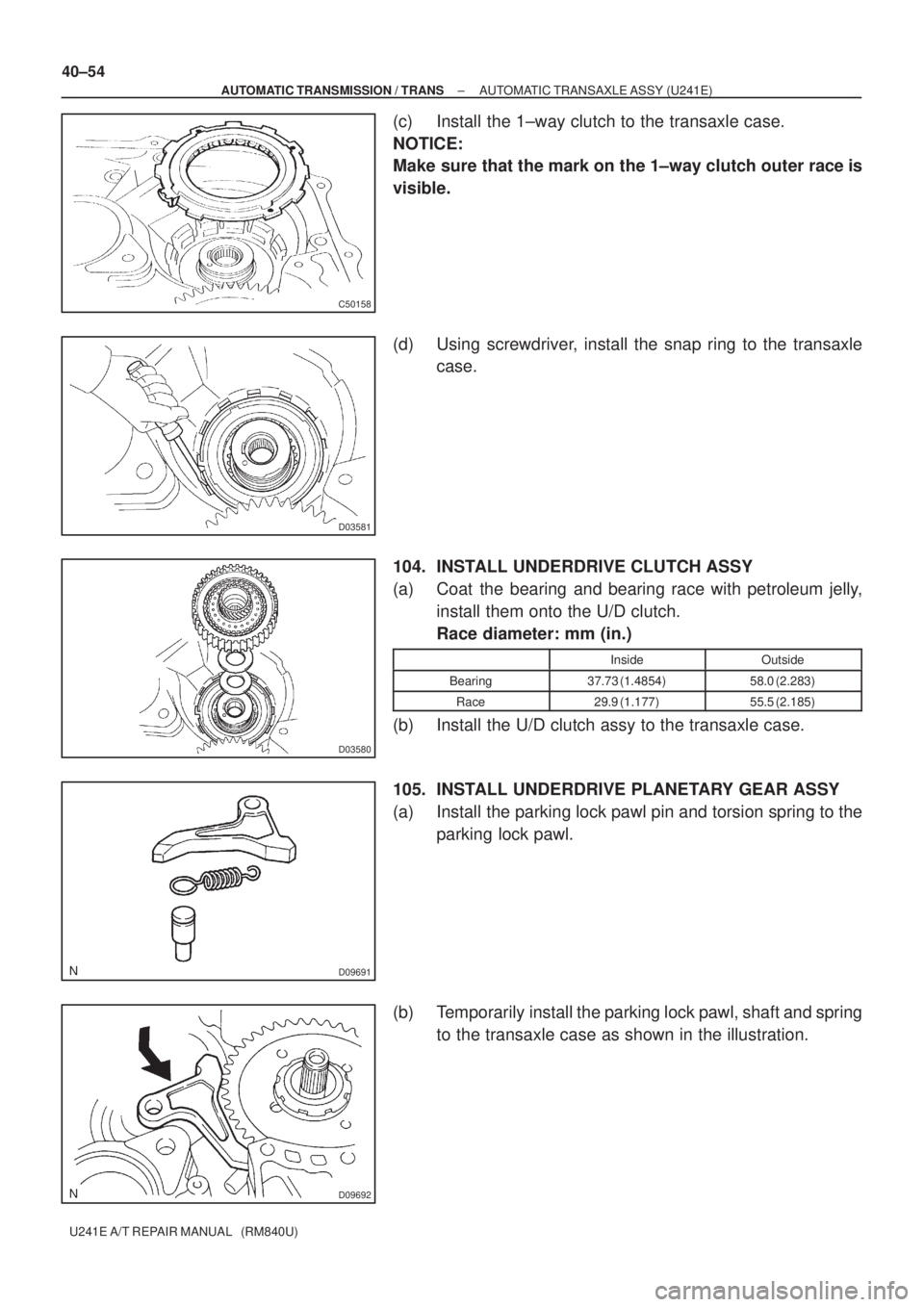

TOYOTA AVENSIS 2005 Service Repair Manual C50158 D03581 D03580 D09691 D09692 40±54 ± AUTOMATIC TRANSMISSION / TRANSAUTOMATIC TRANSAXLE ASSY (U241E) U241E A/T REPAIR MANUAL (RM840U) (c) Install the 1±way clutch to the transaxle case. NOTI

Page 3677 of 5135

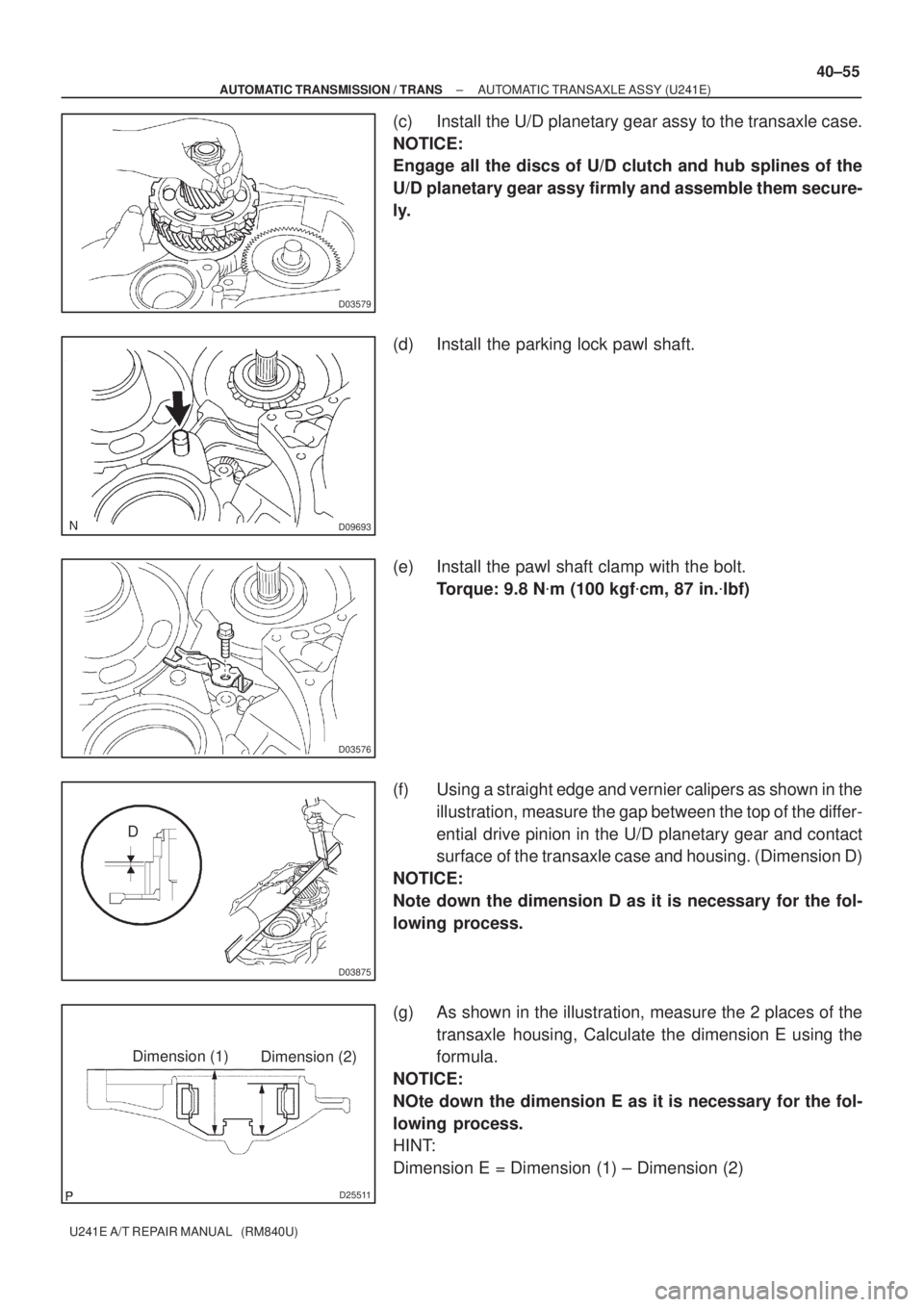

TOYOTA AVENSIS 2005 Service Repair Manual D03579 D09693 D03576 D03875 D D25511 Dimension (1) Dimension (2) ± AUTOMATIC TRANSMISSION / TRANSAUTOMATIC TRANSAXLE ASSY (U241E) 40±55 U241E A/T REPAIR MANUAL (RM840U) (c) Install the U/D planeta

Page 3678 of 5135

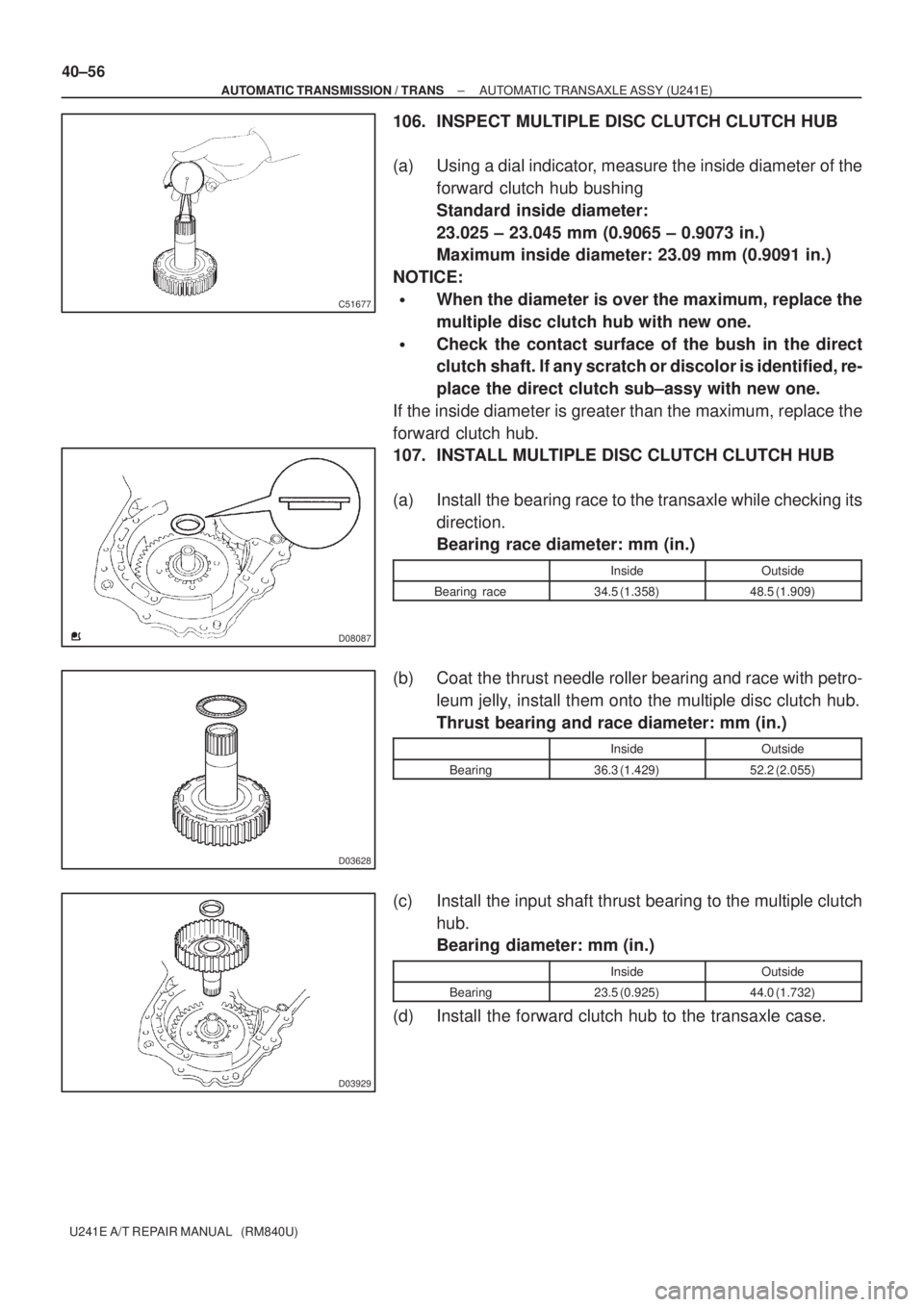

TOYOTA AVENSIS 2005 Service Repair Manual C51677 D08087 D03628 D03929 40±56 ± AUTOMATIC TRANSMISSION / TRANSAUTOMATIC TRANSAXLE ASSY (U241E) U241E A/T REPAIR MANUAL (RM840U) 106. INSPECT MULTIPLE DISC CLUTCH CLUTCH HUB (a) Using a dial in

Page 3679 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual D11358 Race ”B” Race ”A” Forward Clutch Side D03574 D03573 C50035 D03569 − AUTOMATIC TRANSMISSION / TRANS AUTOMATIC TRANSAXLE ASSY (U24 1E) 40− 57 Correction to R/M Pub. No. RM840U (Bullet

Page 3680 of 5135

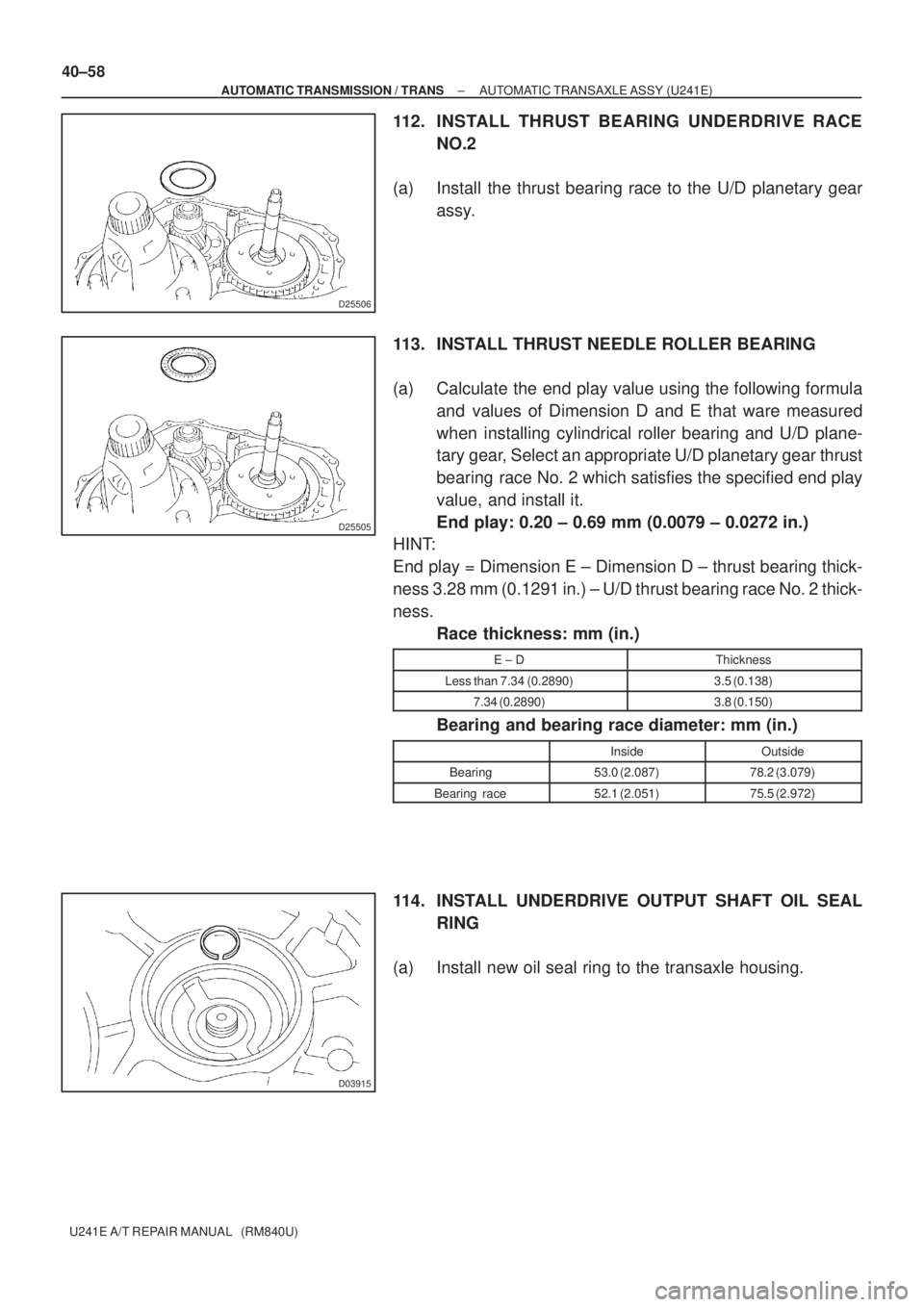

TOYOTA AVENSIS 2005 Service Repair Manual D25506 D25505 D03915 40±58 ± AUTOMATIC TRANSMISSION / TRANSAUTOMATIC TRANSAXLE ASSY (U241E) U241E A/T REPAIR MANUAL (RM840U) 112. INSTALL THRUST BEARING UNDERDRIVE RACE NO.2 (a) Install the thrust
