TOYOTA AVENSIS 2005  Service Repair Manual 141CD±01
A60622
±
ENGINE MECHANICAL FAN AND GENERATOR V BELT(1ZZ±FE/3ZZ±FE)
14±5
AVENSIS REPAIR MANUAL   (RM1018E)
FAN AND GENERATOR V BELT(1ZZ±FE/3ZZ±FE)
REPLACEMENT
1.REMOVE RADIATOR SUPPORT

Page 1986 of 5135

TOYOTA AVENSIS 2005  Service Repair Manual 140KR±02
A62199
TCCG
A62200
±
ENGINE MECHANICAL ENGINE(1ZZ±FE/3ZZ±FE)
14±1
AVENSIS REPAIR MANUAL   (RM1018E)
ENGINE(1ZZ±FE/3ZZ±FE)
INSPECTION
1.INSPECT COOLANT (See page 16±1)
2.INSPECT ENGINE

Page 1987 of 5135

TOYOTA AVENSIS 2005  Service Repair Manual TA C
A52006
A01037
14±2
± ENGINE MECHANICALENGINE (1ZZ±FE/3ZZ±FE)
AVENSIS REPAIR MANUAL   (RM1018E)
(5) Inspect ignition timing at idle.
Ignition timing: 8 to 12BTDC
NOTICE:
When checking the ign

Page 1988 of 5135

TOYOTA AVENSIS 2005  Service Repair Manual ± ENGINE MECHANICALENGINE (1ZZ±FE/3ZZ±FE)
14±3
AVENSIS REPAIR MANUAL   (RM1018E)
(3) While cranking the engine, measure the compres-
sion pressure.
Compression pressure

1,300 kPa (13.3 kgfcm
2

Page 1989 of 5135

TOYOTA AVENSIS 2005  Service Repair Manual 14±4
± ENGINE MECHANICALENGINE (1ZZ±FE/3ZZ±FE)
AVENSIS REPAIR MANUAL   (RM1018E)CO
HCProblemsCauses
NormalHighRough idle
1. Faulty ignitions:
Incorrect timing
Fouled, shorted or improperly gappe

Page 1990 of 5135

TOYOTA AVENSIS 2005  Service Repair Manual 13070±01
A79168
A80112
A80113
A64328
2 to 7 mm0 to 5 mm
13±18
±
INTAKE INTERCOOLER ASSY(1CD±FTV)
AVENSIS REPAIR MANUAL   (RM1018E)
INTERCOOLER ASSY(1CD±FTV)
REPLACEMENT
1.REMOVE FRONT BUMPER COVE

Page 1991 of 5135

TOYOTA AVENSIS 2005  Service Repair Manual A64007
Front90

Clamp
Bolt
±
INTAKE INTERCOOLER ASSY(1CD±FTV)
13±19
AVENSIS REPAIR MANUAL   (RM1018E)

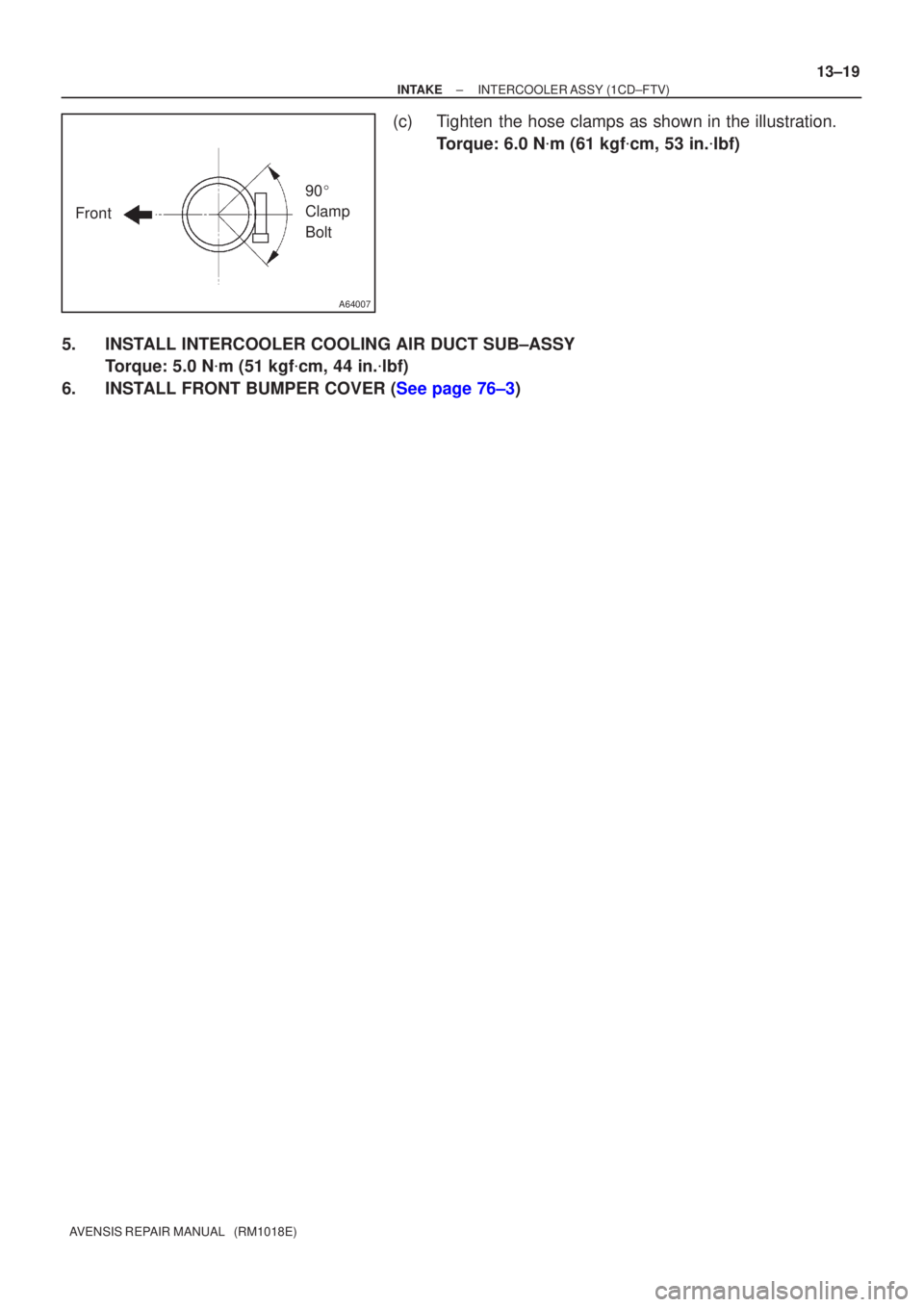

(c)Tighten the hose clamps as shown in the illustration.
Torque: 6.0 N m (61 kgf cm, 53 in

Page 1992 of 5135

TOYOTA AVENSIS 2005  Service Repair Manual 1306Z±01
A79155
A80093
A79158
±
INTAKE TURBOCHARGER SUB±ASSY(1CD±FTV)
13±11
AVENSIS REPAIR MANUAL   (RM1018E)
REPLACEMENT
1.REMOVE ENGINE UNDER COVER SUB±ASSY NO.1
2.DRAIN ENGINE COOLANT(See pag
