Page 1465 of 5135
± DIAGNOSTICSAUDIO SYSTEM
05±1429
AVENSIS REPAIR MANUAL (RM1018E)

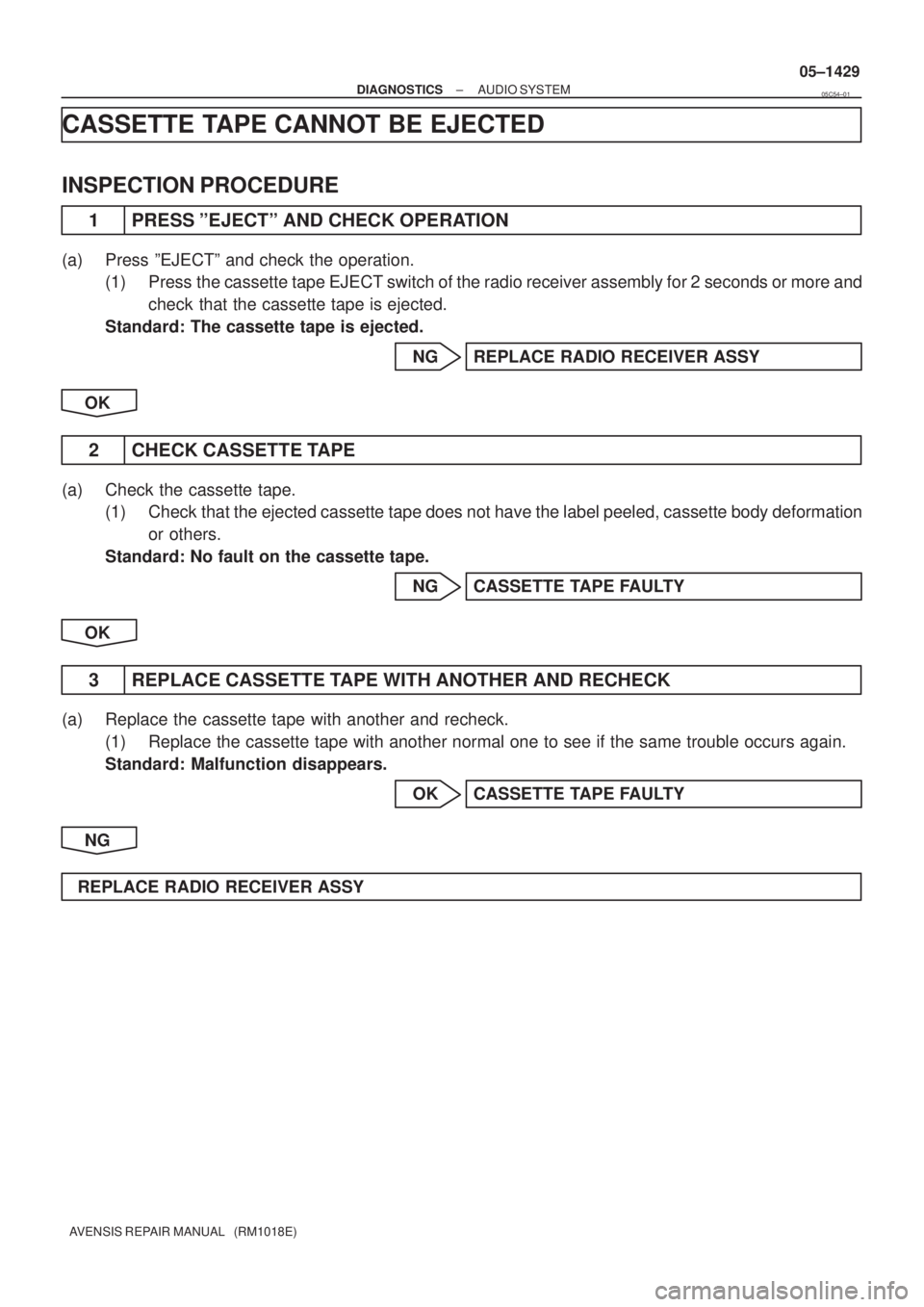

CASSETTE TAPE CANNOT BE EJECTED
INSPECTION PROCEDURE
1 PRESS ºEJECTº AND CHECK OPERATION
(a) Press ºEJECTº and check the operation.
(1) Press the cassette tape EJECT switch of the radio receiver assembly for 2 seconds or more and
check that the cassette tape is ejected.
Standard: The cassette tape is ejected.
NG REPLACE RADIO RECEIVER ASSY
OK
2 CHECK CASSETTE TAPE
(a) Check the cassette tape.
(1) Check that the ejected cassette tape does not have the label peeled, cassette body deformation
or others.
Standard: No fault on the cassette tape.
NG CASSETTE TAPE FAULTY
OK
3 REPLACE CASSETTE TAPE WITH ANOTHER AND RECHECK
(a) Replace the cassette tape with another and recheck.
(1) Replace the cassette tape with another normal one to see if the same trouble occurs again.
Standard: Malfunction disappears.
OK CASSETTE TAPE FAULTY
NG
REPLACE RADIO RECEIVER ASSY
05C54±01
Page 1466 of 5135
05±1428
± DIAGNOSTICSAUDIO SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

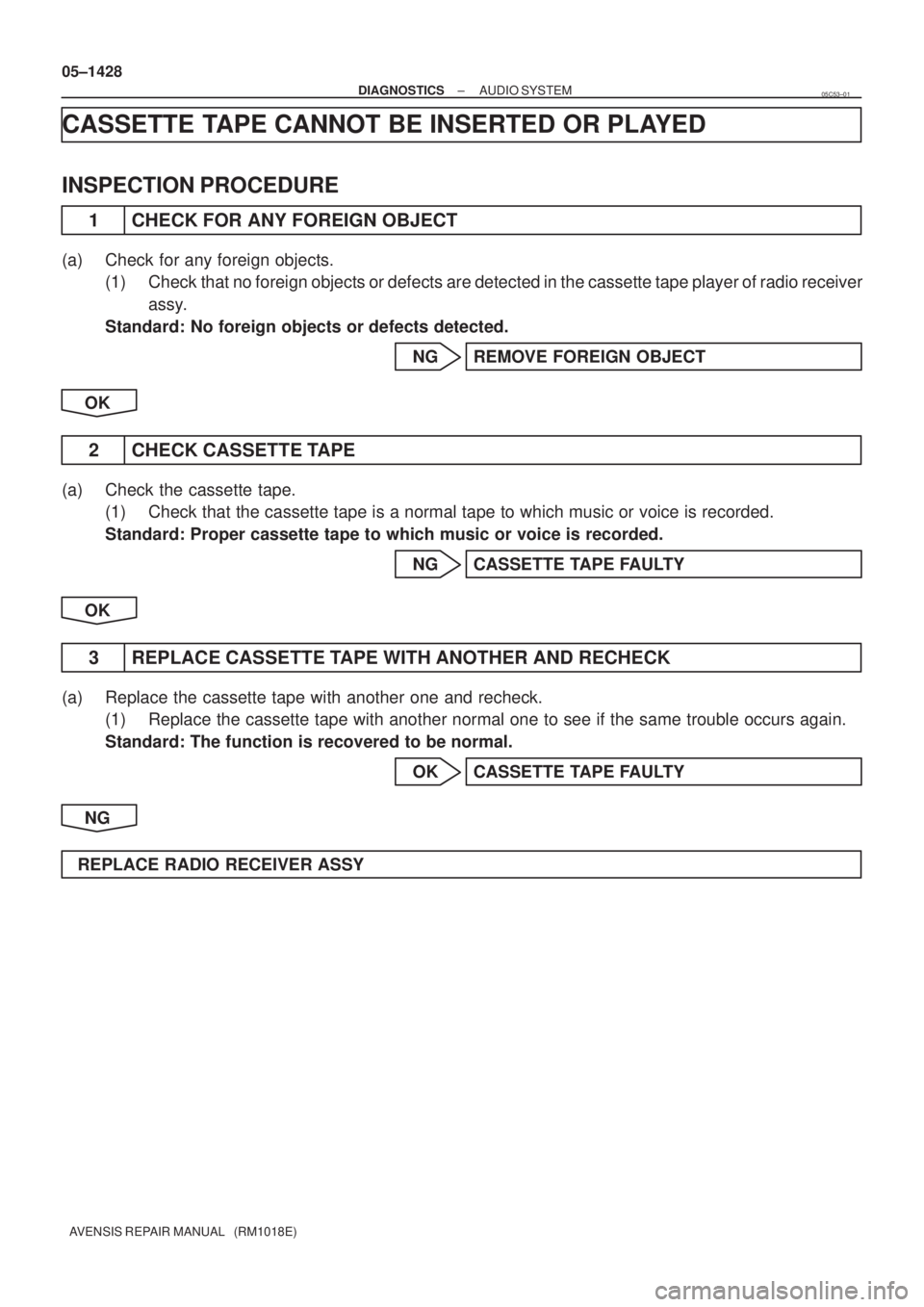

CASSETTE TAPE CANNOT BE INSERTED OR PLAYED
INSPECTION PROCEDURE
1 CHECK FOR ANY FOREIGN OBJECT
(a) Check for any foreign objects.
(1) Check that no foreign objects or defects are detected in the cassette tape player of radio receiver
assy.
Standard: No foreign objects or defects detected.
NG REMOVE FOREIGN OBJECT
OK
2 CHECK CASSETTE TAPE
(a) Check the cassette tape.
(1) Check that the cassette tape is a normal tape to which music or voice is recorded.
Standard: Proper cassette tape to which music or voice is recorded.
NG CASSETTE TAPE FAULTY
OK
3 REPLACE CASSETTE TAPE WITH ANOTHER AND RECHECK
(a) Replace the cassette tape with another one and recheck.
(1) Replace the cassette tape with another normal one to see if the same trouble occurs again.
Standard: The function is recovered to be normal.
OK CASSETTE TAPE FAULTY
NG
REPLACE RADIO RECEIVER ASSY
05C53±01
Page 1467 of 5135

E50013
05±1426
± DIAGNOSTICSAUDIO SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

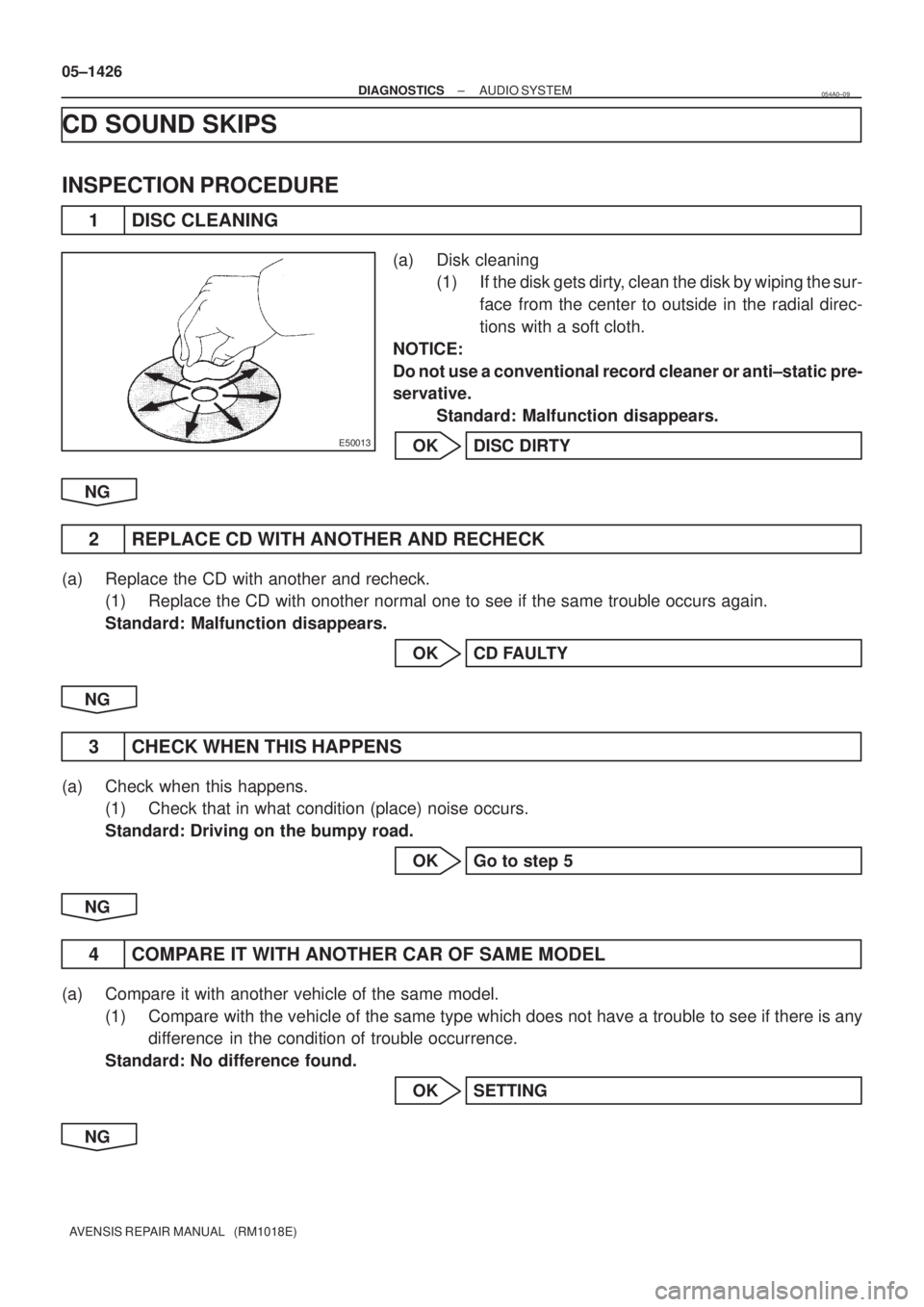

CD SOUND SKIPS
INSPECTION PROCEDURE
1 DISC CLEANING
(a) Disk cleaning
(1) If the disk gets dirty, clean the disk by wiping the sur-
face from the center to outside in the radial direc-
tions with a soft cloth.
NOTICE:
Do not use a conventional record cleaner or anti±static pre-
servative.
Standard: Malfunction disappears.
OK DISC DIRTY
NG
2 REPLACE CD WITH ANOTHER AND RECHECK
(a) Replace the CD with another and recheck.
(1) Replace the CD with onother normal one to see if the same trouble occurs again.
Standard: Malfunction disappears.
OK CD FAULTY
NG
3 CHECK WHEN THIS HAPPENS
(a) Check when this happens.
(1) Check that in what condition (place) noise occurs.
Standard: Driving on the bumpy road.
OK Go to step 5
NG
4 COMPARE IT WITH ANOTHER CAR OF SAME MODEL
(a) Compare it with another vehicle of the same model.
(1) Compare with the vehicle of the same type which does not have a trouble to see if there is any
difference in the condition of trouble occurrence.
Standard: No difference found.
OK SETTING
NG
054A0±09
Page 1468 of 5135
± DIAGNOSTICSAUDIO SYSTEM
05±1427
AVENSIS REPAIR MANUAL (RM1018E)

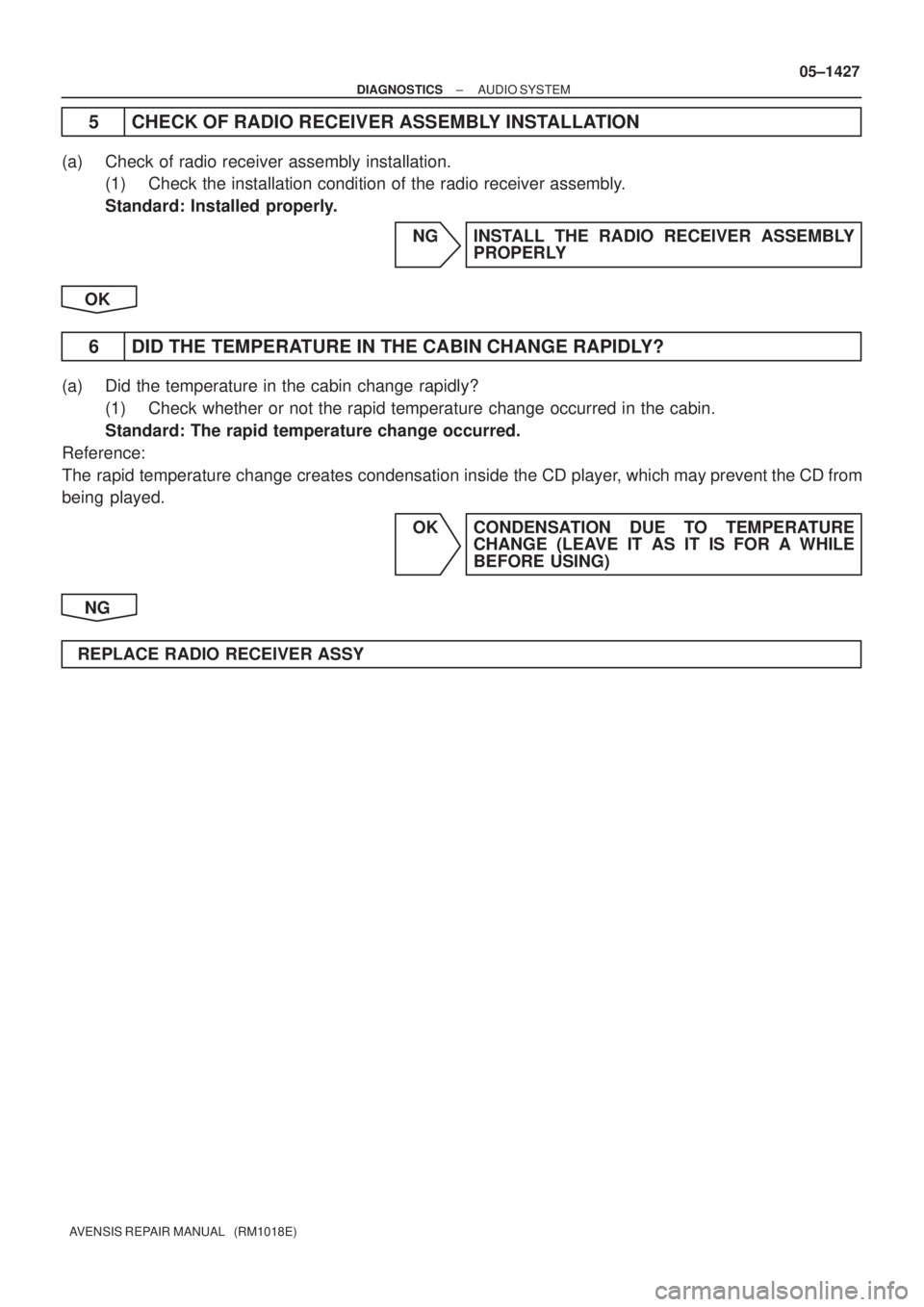

5 CHECK OF RADIO RECEIVER ASSEMBLY INSTALLATION
(a) Check of radio receiver assembly installation.
(1) Check the installation condition of the radio receiver assembly.
Standard: Installed properly.
NG INSTALL THE RADIO RECEIVER ASSEMBLY
PROPERLY
OK
6 DID THE TEMPERATURE IN THE CABIN CHANGE RAPIDLY?
(a) Did the temperature in the cabin change rapidly?
(1) Check whether or not the rapid temperature change occurred in the cabin.
Standard: The rapid temperature change occurred.
Reference:
The rapid temperature change creates condensation inside the CD player, which may prevent the CD from
being played.
OK CONDENSATION DUE TO TEMPERATURE
CHANGE (LEAVE IT AS IT IS FOR A WHILE
BEFORE USING)
NG
REPLACE RADIO RECEIVER ASSY
Page 1469 of 5135
± DIAGNOSTICSAUDIO SYSTEM
05±1425
AVENSIS REPAIR MANUAL (RM1018E)
SOUND QUALITY IS BAD ONLY WHEN CD IS PLAYED (VOLUME IS
TOO LOW)
INSPECTION PROCEDURE
1 REPLACE CD WITH ANOTHER AND RECHECK
(a) Replace the CD with another and recheck.
(1) Check the installation condition of the radio receiver assembly.
Standard: Malfunction disappears.
OK CD FAULTY
NG
REPLACE RADIO RECEIVER ASSY
0549Z±09
Page 1470 of 5135
05±1424
± DIAGNOSTICSAUDIO SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

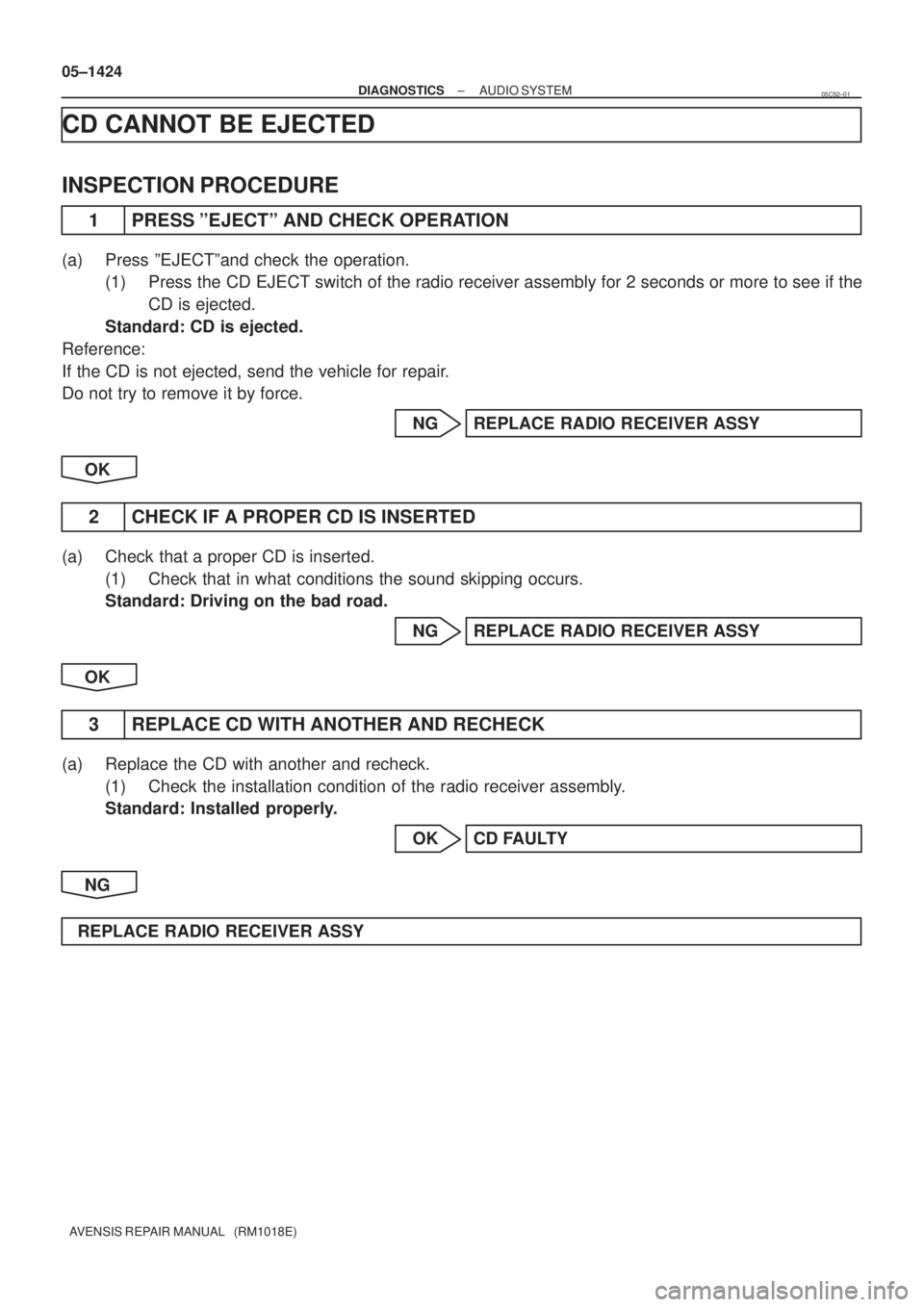

CD CANNOT BE EJECTED
INSPECTION PROCEDURE
1 PRESS ºEJECTº AND CHECK OPERATION
(a) Press ºEJECTºand check the operation.
(1) Press the CD EJECT switch of the radio receiver assembly for 2 seconds or more to see if the
CD is ejected.
Standard: CD is ejected.
Reference:
If the CD is not ejected, send the vehicle for repair.
Do not try to remove it by force.
NG REPLACE RADIO RECEIVER ASSY
OK
2 CHECK IF A PROPER CD IS INSERTED
(a) Check that a proper CD is inserted.
(1) Check that in what conditions the sound skipping occurs.
Standard: Driving on the bad road.
NG REPLACE RADIO RECEIVER ASSY
OK
3 REPLACE CD WITH ANOTHER AND RECHECK
(a) Replace the CD with another and recheck.
(1) Check the installation condition of the radio receiver assembly.
Standard: Installed properly.
OK CD FAULTY
NG
REPLACE RADIO RECEIVER ASSY
05C52±01
Page 1471 of 5135

E50013
05±1422
± DIAGNOSTICSAUDIO SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

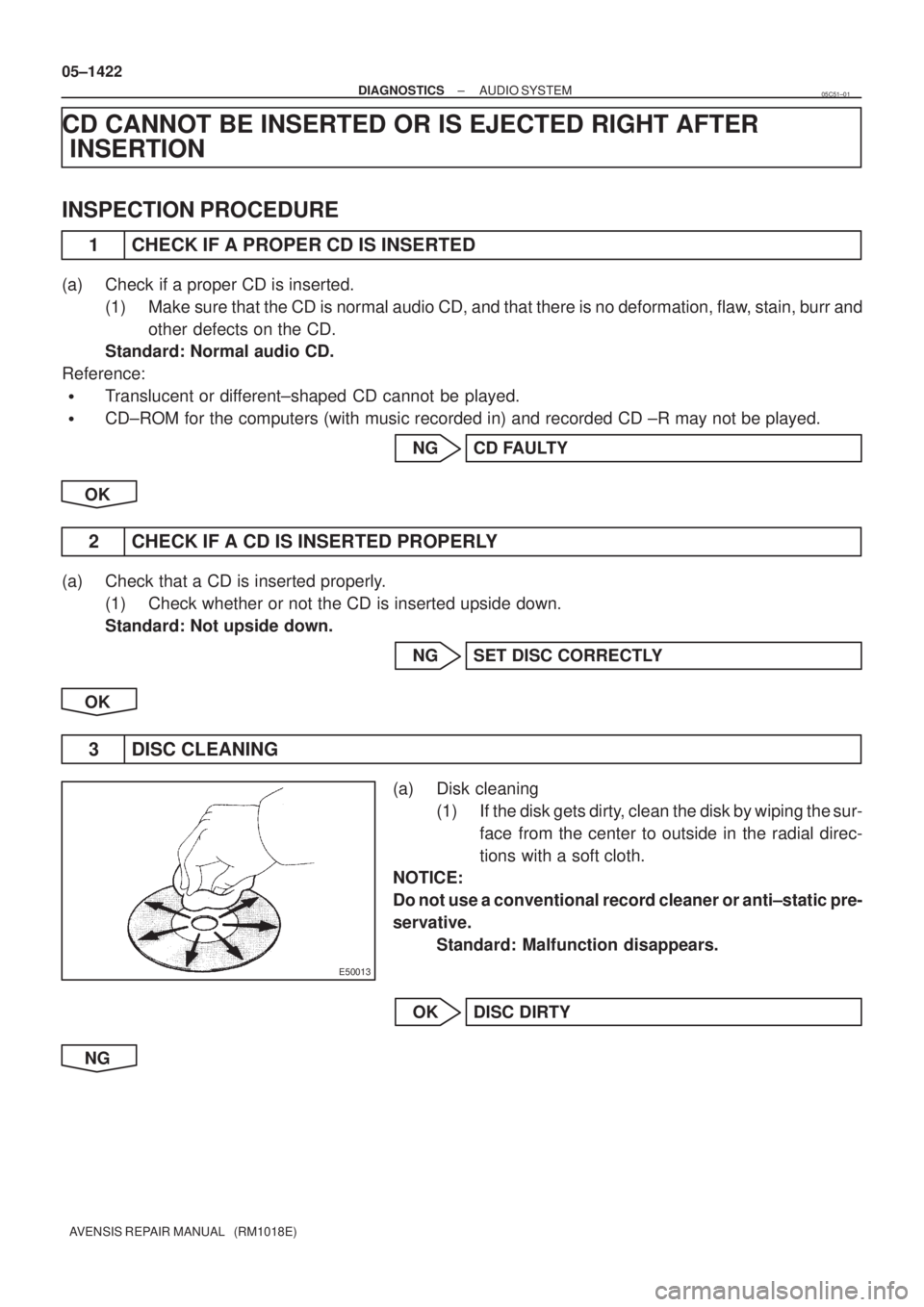

CD CANNOT BE INSERTED OR IS EJECTED RIGHT AFTER
INSERTION
INSPECTION PROCEDURE
1 CHECK IF A PROPER CD IS INSERTED
(a) Check if a proper CD is inserted.
(1) Make sure that the CD is normal audio CD, and that there is no deformation, flaw, stain, burr and
other defects on the CD.
Standard: Normal audio CD.
Reference:
Translucent or different±shaped CD cannot be played.
CD±ROM for the computers (with music recorded in) and recorded CD ±R may not be played.
NG CD FAULTY
OK
2 CHECK IF A CD IS INSERTED PROPERLY
(a) Check that a CD is inserted properly.
(1) Check whether or not the CD is inserted upside down.
Standard: Not upside down.
NG SET DISC CORRECTLY
OK
3 DISC CLEANING
(a) Disk cleaning
(1) If the disk gets dirty, clean the disk by wiping the sur-
face from the center to outside in the radial direc-
tions with a soft cloth.
NOTICE:
Do not use a conventional record cleaner or anti±static pre-
servative.
Standard: Malfunction disappears.
OK DISC DIRTY
NG
05C51±01
Page 1472 of 5135
± DIAGNOSTICSAUDIO SYSTEM
05±1423
AVENSIS REPAIR MANUAL (RM1018E)

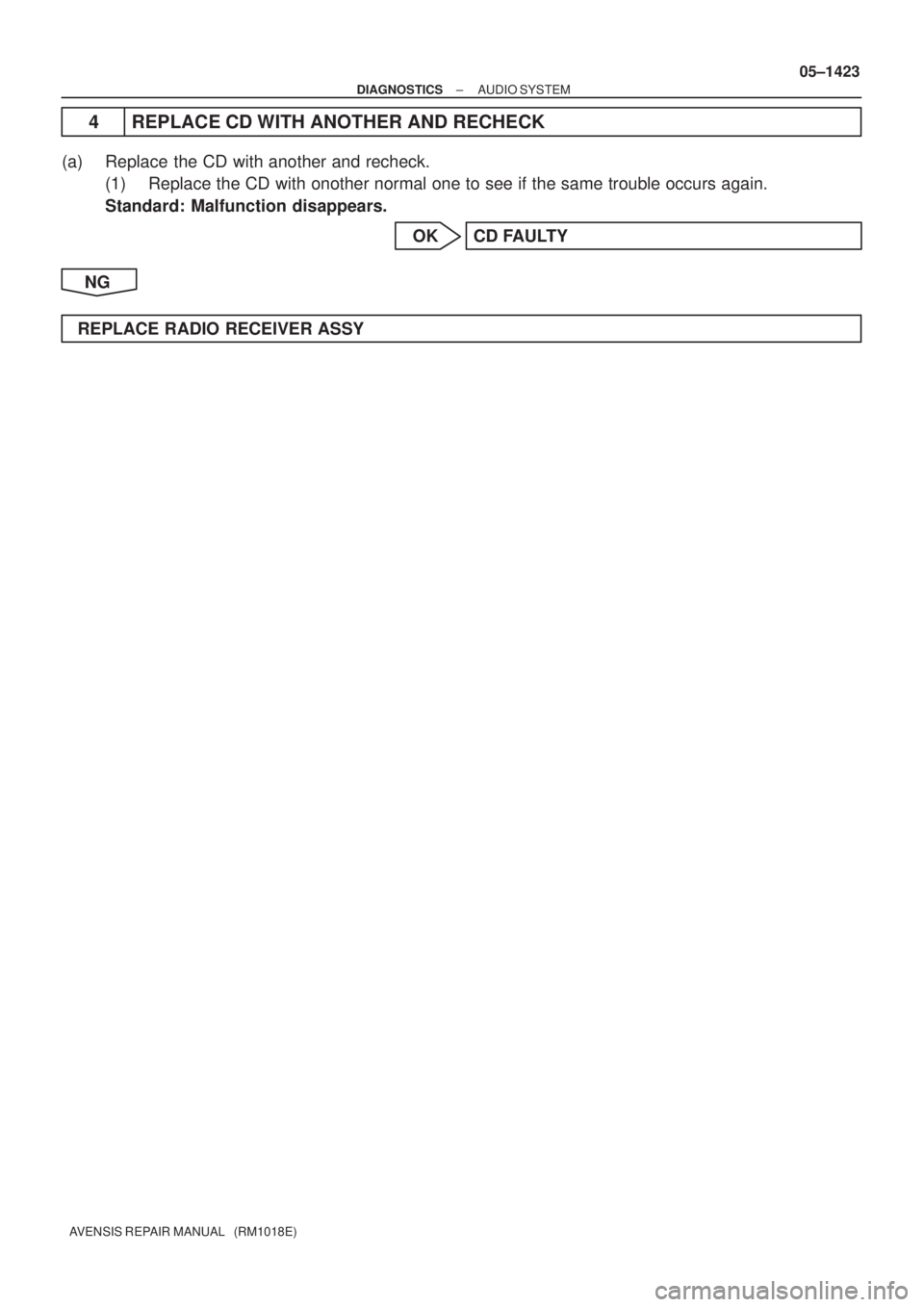

4 REPLACE CD WITH ANOTHER AND RECHECK
(a) Replace the CD with another and recheck.
(1) Replace the CD with onother normal one to see if the same trouble occurs again.
Standard: Malfunction disappears.
OK CD FAULTY
NG
REPLACE RADIO RECEIVER ASSY
