Page 3225 of 5135

B70029: 4 Clips
A/T Transaxle:
M/T Transaxle:
B66045Claw
±
INSTRUMENT PANEL/METER INSTRUMENT PANEL SUB±ASSY LOWER
71±15
AVENSIS REPAIR MANUAL (RM1018E)
16.REMOVE CONSOLE PANEL SUB±ASSY UPPER
(a)Using a moulding remover, disengage the 4 clips.
(b)Disconnect the connectors, and remove the console pan-
el sub±assy upper.
17.REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB±ASSY CENTER (W/O RADIO) (See page 55±50)
18.REMOVE STEREO OPENING COVER W/BRACKET (W/O RADIO)
19.REMOVE RADIO RECEIVER ASSEMBLY W/BRACKET (See page 67±5)
20.REMOVE HORN BUTTON ASSY (See page 60±17)
21.REMOVE STEERING WHEEL ASSY (See page 50±9) SST09950±50013 (09951±05010, 09952±05010, 09953±05020, 09954±\
05021)
22.REMOVE HEADLAMP DIMMER SWITCH ASSY (See page 65±27)
23.REMOVE WINDSHIELD WIPER SWITCH ASSY (See page 66±24)
24.REMOVE INSTRUMENT PANEL UNDER COVERSUB±ASSY NO.1
(a)Remove the 2 screws .
(b)Disengage the claw and remove the instrument panel un- der cover sub±assy No.1.
25.REMOVE INSTRUMENT PANEL HOLE COVER (See page 60±54)
26.REMOVE INSTRUMENT PANEL AIR BAG ASSY (See page 60±54)
27.REMOVE STEERING COLUMN COVER LWR (See page 50±9)
Page 3226 of 5135
B660308 Claws
B660312 Clips
B660423 Clips
B660356 Clips
71±16
± INSTRUMENT PANEL/METERINSTRUMENT PANEL SUB±ASSY LOWER
AVENSIS REPAIR MANUAL (RM1018E)

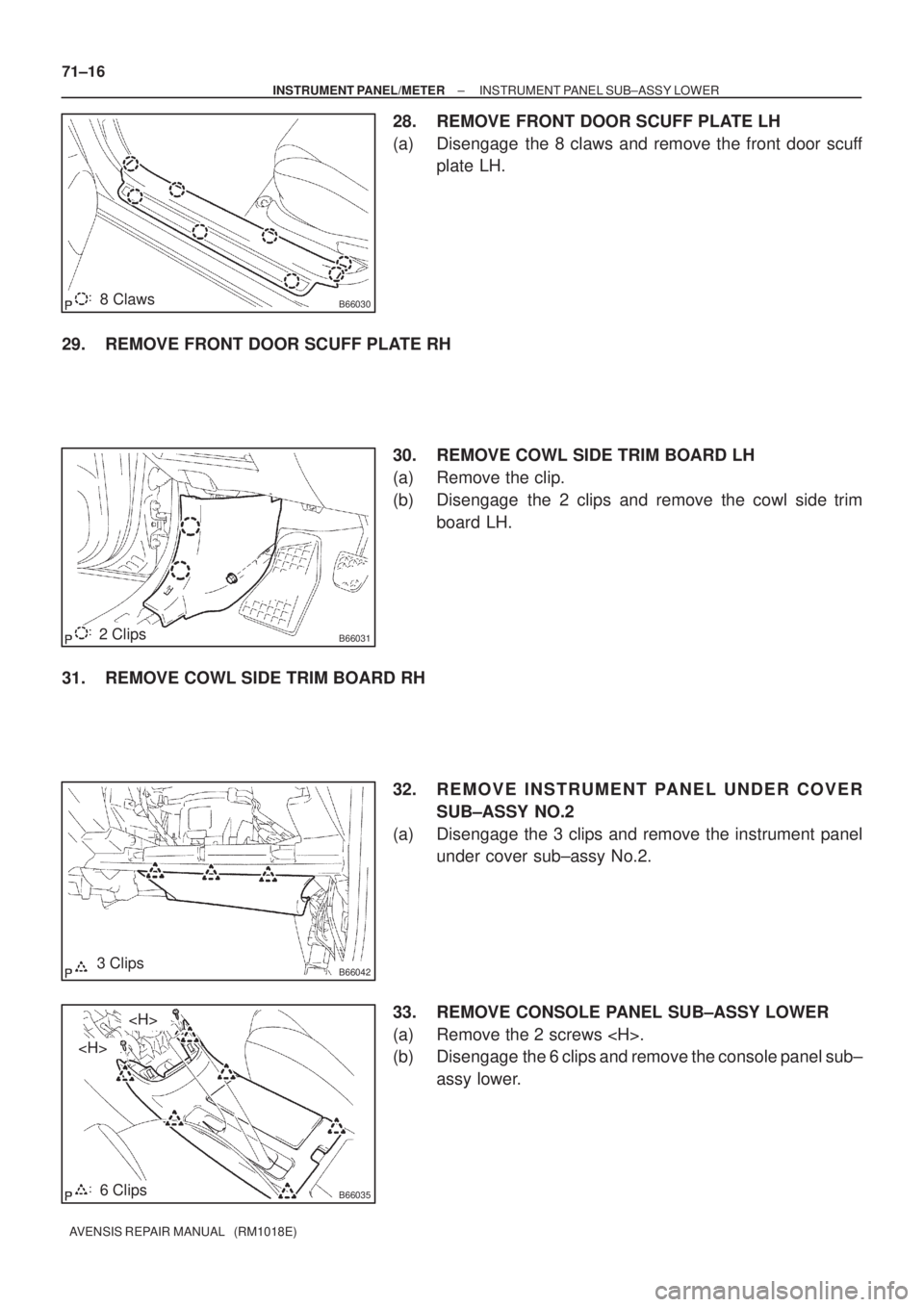

28. REMOVE FRONT DOOR SCUFF PLATE LH
(a) Disengage the 8 claws and remove the front door scuff
plate LH.
29. REMOVE FRONT DOOR SCUFF PLATE RH
30. REMOVE COWL SIDE TRIM BOARD LH
(a) Remove the clip.
(b) Disengage the 2 clips and remove the cowl side trim
board LH.
31. REMOVE COWL SIDE TRIM BOARD RH
32. R E M O V E I N S T R U M E N T PA N E L U N D E R C O V E R
SUB±ASSY NO.2
(a) Disengage the 3 clips and remove the instrument panel
under cover sub±assy No.2.
33. REMOVE CONSOLE PANEL SUB±ASSY LOWER
(a) Remove the 2 screws .
(b) Disengage the 6 clips and remove the console panel sub±
assy lower.
Page 3227 of 5135
I35213
B66044
A/T Only:
M/T Only:
B66033
± INSTRUMENT PANEL/METERINSTRUMENT PANEL SUB±ASSY LOWER
71±17
AVENSIS REPAIR MANUAL (RM1018E)

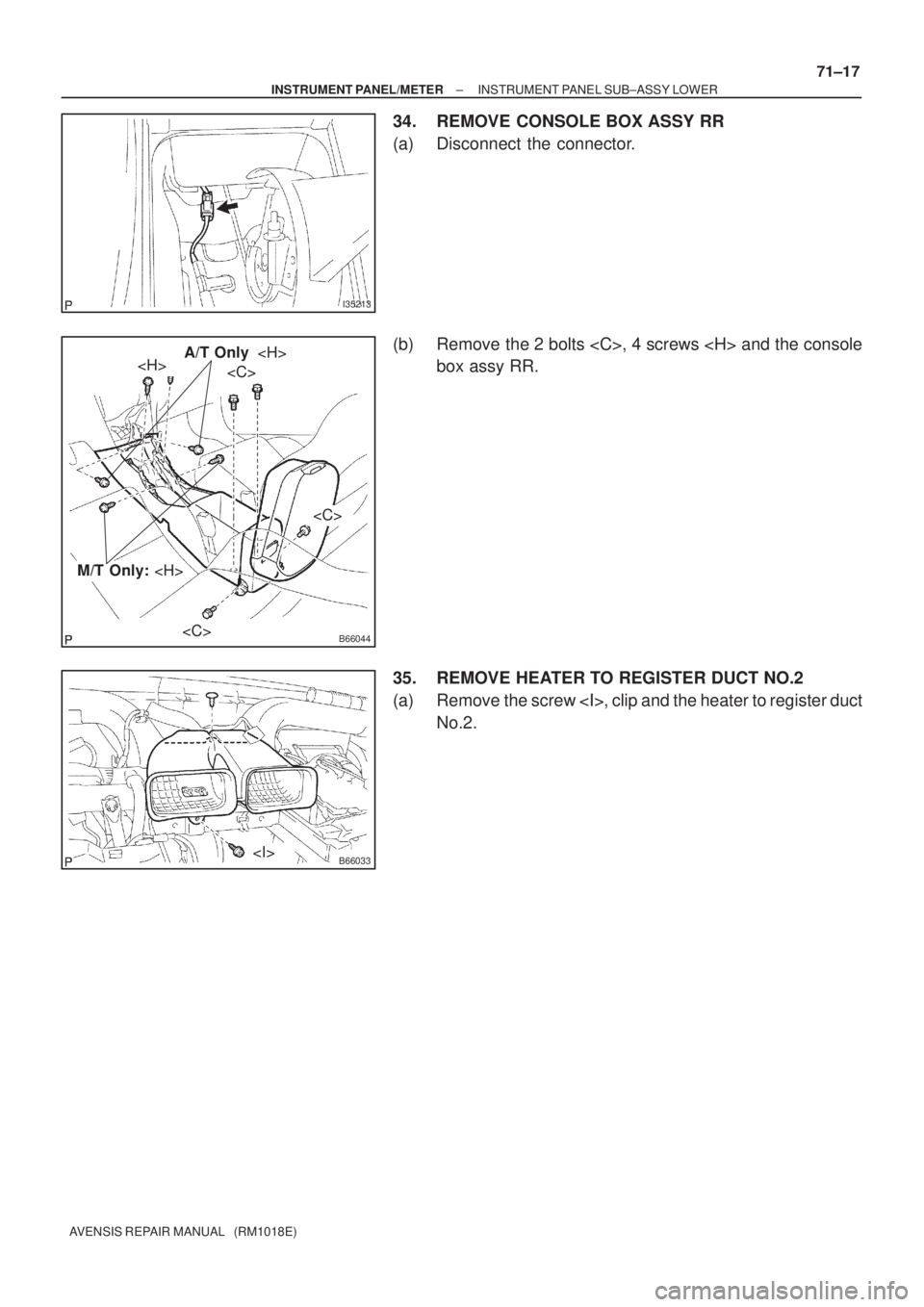

34. REMOVE CONSOLE BOX ASSY RR
(a) Disconnect the connector.
(b) Remove the 2 bolts , 4 screws and the console
box assy RR.
35. REMOVE HEATER TO REGISTER DUCT NO.2
(a) Remove the screw , clip and the heater to register duct
No.2.
Page 3228 of 5135
B660325 Clips
or
oror
or
or
or
71±18
±
INSTRUMENT PANEL/METER INSTRUMENT PANEL SUB±ASSY LOWER
AVENSIS REPAIR MANUAL (RM1018E)
36.REMOVE INSTRUMENT PANEL LOWER ASSY
(a)Disconnect the hood lock control cable.
(b)Using a clip remover, remove the 2 clips.
(c)Remove the 2 bolts 7 screws or .
(d)Disengage the wire harness 5 clamps.
(e)Remove the instrument panel lower assy.
37.REMOVE OUTER MIRROR SWITCH ASSY W/BEZEL
38.REMOVE FUSE BOX OPENING COVER
39.REMOVE GLOVE BOX LAMP ASSY
40.REMOVE INSTRUMENT PANEL BRACKET SUB±ASSY CENTER
(a)Remove the screw and the instrument panel bracket sub±assy center.
41.REMOVE INSTRUMENT PANEL SUB±ASSY LOWER
42.INSTALL INSTRUMENT PANEL AIR BAG ASSY (See page 60±29)
Page 3229 of 5135

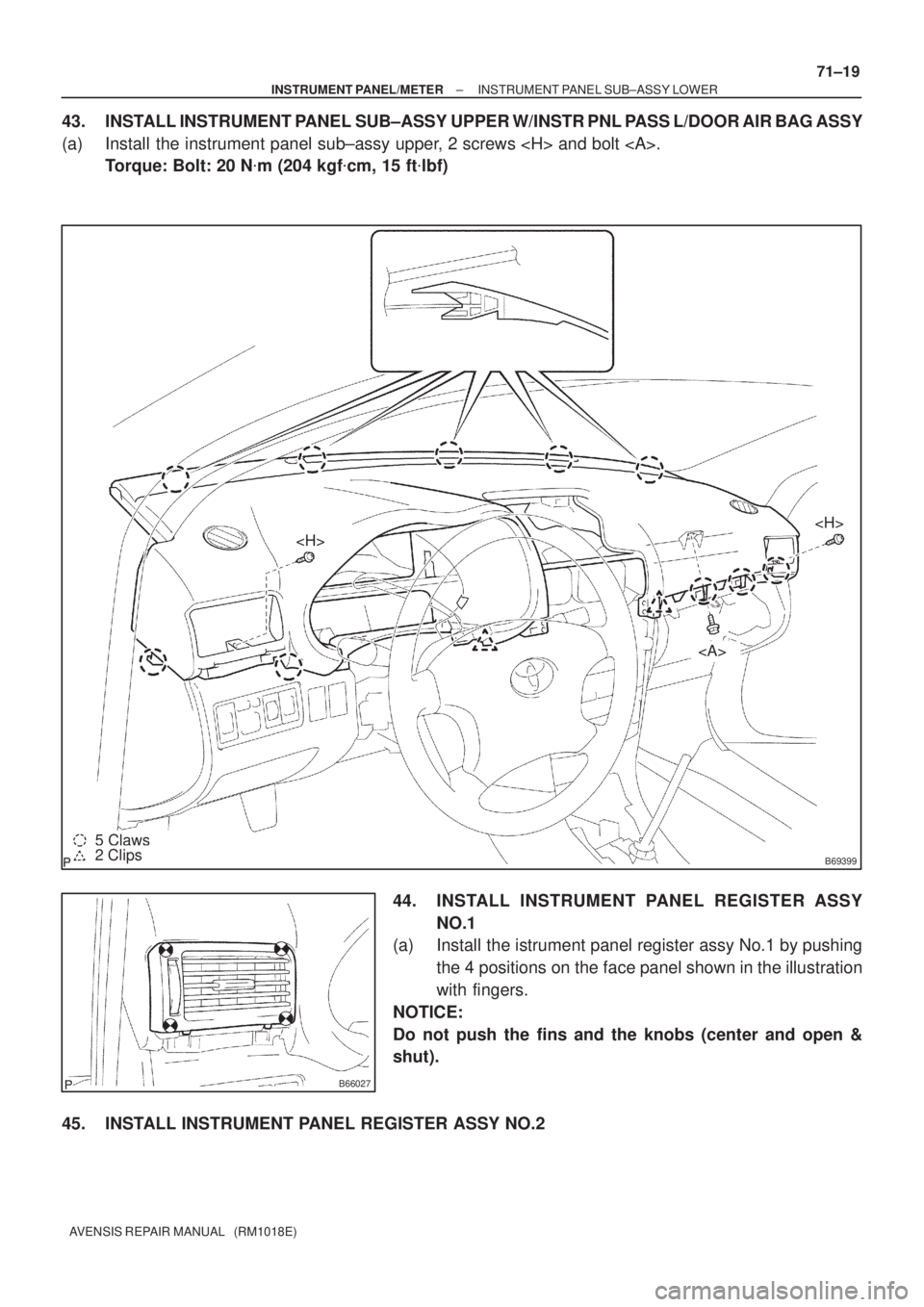

Page 3230 of 5135
71±20
±
INSTRUMENT PANEL/METER INSTRUMENT PANEL SUB±ASSY LOWER
AVENSIS REPAIR MANUAL (RM1018E)
46.ADJUST SPIRAL CABLE SUB±ASSY (See page 60±26)
47.INSTALL STEERING WHEEL ASSY (See page 50±9)
48.INSTALL HORN BUTTON ASSY (See page 60±17)
49.INSPECT HORN BUTTON ASSY (See page 60±11)
50.INSPECT SRS WARNING LIGHT (See page 05±1184)
Page 3231 of 5135
710FY±01
71±10
± INSTRUMENT PANEL/METERINSTRUMENT PANEL SUB±ASSY LOWER
AVENSIS REPAIR MANUAL (RM1018E)

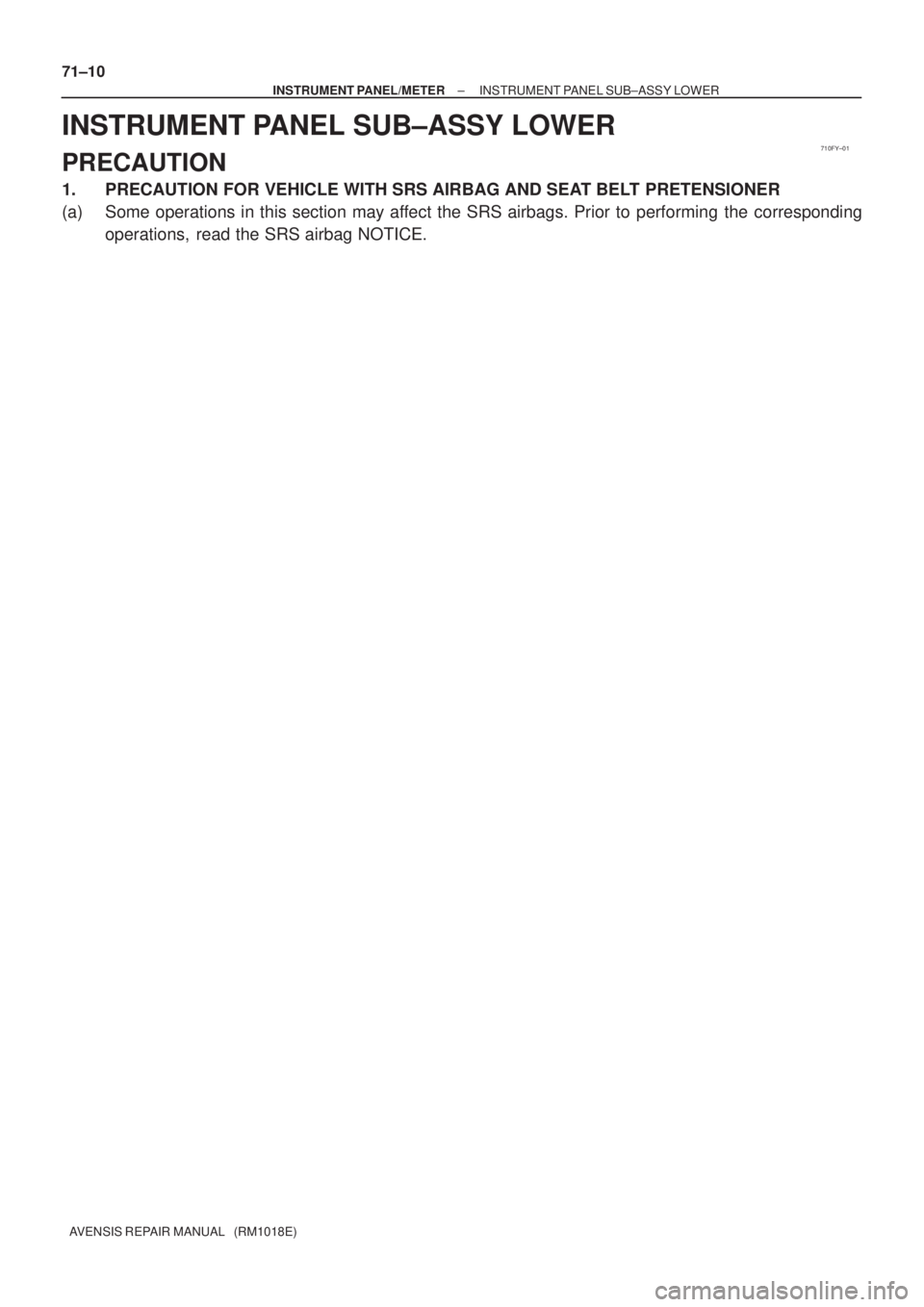

INSTRUMENT PANEL SUB±ASSY LOWER
PRECAUTION
1. PRECAUTION FOR VEHICLE WITH SRS AIRBAG AND SEAT BELT PRETENSIONER
(a) Some operations in this section may affect the SRS airbags. Prior to performing the corresponding
operations, read the SRS airbag NOTICE.
Page 3232 of 5135
710G2±01
B66037
Front Pillar Garnish LH
Front Pillar Garnish RH
Instrument Panel Register
Assy No.2
Instrument Panel Register
Assy No.1
Steering Column Cover
w/ Instrument Cluster Finish Panel AssyCombination Meter AssyGlove Compartment
Door AssyGlove Compartment
Door Stopper Sub±assy
w/ Multi±Display: w/ Box: w/ Navi:
Instrument Panel Register Assy CTR
Instrument Cluster Finish
Panel Garnish No.2 Steering
Column Cover LWR
Instrument Cluster Finish
Panel Garnish No.1
Combination Meter Glass
N´m (kgf´cm, ft´lbf) : Specified torque
A
G
H
H
HHHHHH
20 (200, 14)
± INSTRUMENT PANEL/METERINSTRUMENT PANEL/METER
71±7
AVENSIS REPAIR MANUAL (RM1018E)

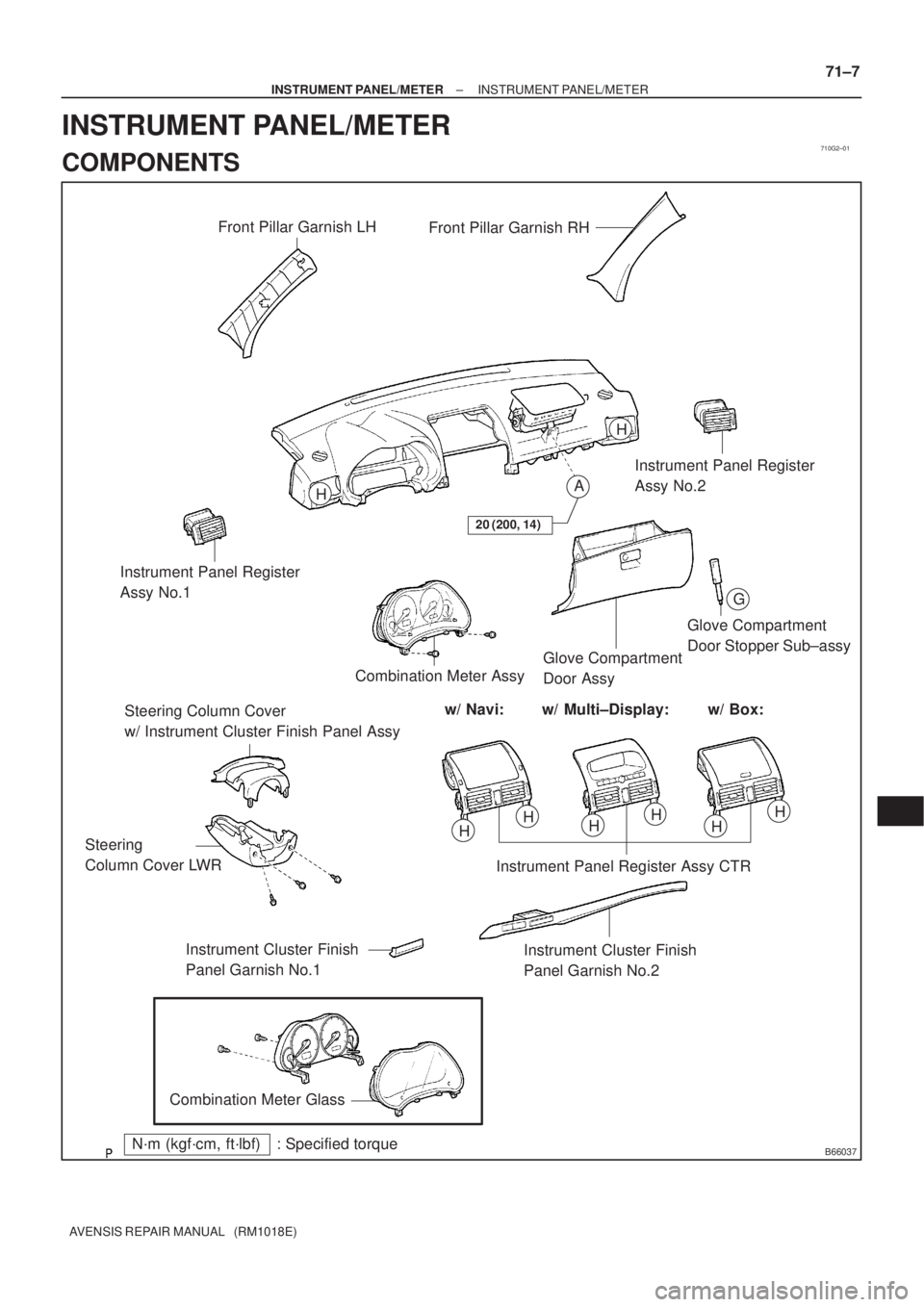

INSTRUMENT PANEL/METER
COMPONENTS
