± AUDIO & VISUAL SYSTEMAMPLIFIER ANTENNA ASSY (WAGON MODELS)
AVENSIS REPAIR MANUAL (RM1018E)
28. REMOVE AMPLIFIER ANTENNA ASSY
(a) Disconnect the connectors.
(b) w/ Navigation:
Remove the 3 bolts, nut and screw.
w/o Navigation:
Remove the 3 bolts and nut.
(c) w/ Navigation:
Remove the 15 clamps and the amplifier antenna assy.
w/o Navigation:
Remove the 14 clamps and the amplifier antenna assy.
Page 3170 of 5135
±
AUDIO & VISUAL SYSTEM AMPLIFIER ANTENNA ASSY (WAGON MODELS)
67±21
AVENSIS REPAIR MANUAL (RM1018E)
29. INSTALL AMPLIFIER ANTENNA ASSY
(a) Install the 3 bolts.
Torque: 7.0 N m (71 kgf cm, 62 in. lbf)
(b) w/ Navigation: Install the nut and screw.
w/o Navigation:
Install the nut.
(c) w/ Navigation: Install the 15 clamps and the amplifier antenna assy.
w/o Navigation:
Install the 14 clamps and the amplifier antenna assy.
(d) Connect the connectors.
30. INSTALL REAR SEATBACK ASSY
(See page 40/60 FOLDING FLIP±UP CUSHION72±21 , 40/60 FOLDING 72±27 )
31 . REMOVE FRONT SE AT ASSY RH ( See page POWER SE AT 72± 11 , MANUAL SE AT 72±16 )
Page 3171 of 5135
700TB±01
B67064
LHD Models
Defogger Wire
Liftback
Wagon
Defogger Wire
Defogger Wire
Hazard Warning Signal Switch Assy w/ Deicer:
FR DEICER Relay
Fuse Block Assy
w/ Deicer:
FR DIC Fuse
w/ Mirror Heater:
MIR HTR Fuse
Passenger Side R/B Assy
w/ Mirror Heater:
Outer Rear View Mirror Assy RH
w/ Mirror Heater:
Outer Rear View
Mirror Assy LH
Rear Window
Defogger Relay
70±46
± WINDSHIELD/WINDOWGLASS/MIRRORWINDOW DEFOGGER SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
WINDOW DEFOGGER SYSTEM
LOCATION
Page 3172 of 5135
B67246
RHD Models
Defogger Wire
Liftback
Wagon
Defogger Wire Defogger Wire
Hazard Warning Signal Switch Assy
Passenger Side R/B Assy
w/ Deicer:
FR DEICER Relay
Fuse Block Assy
w/ Deicer:
FR DIC Fuse w/ Mirror Heater:
Outer Rear View Mirror Assy RH
w/ Mirror Heater:
Outer Rear View Mirror Assy LH
w/ Mirror Heater:
MIR HTR Fuse
Rear Window
Defogger Relay
± WINDSHIELD/WINDOWGLASS/MIRRORWINDOW DEFOGGER SYSTEM
70±47
AVENSIS REPAIR MANUAL (RM1018E)
Page 3173 of 5135
B67063
w/ Deicer:
Deicer Wire
RR DEF H±Fuse Engine Room R/B
Gasoline 1CD±FTV
70±48
± WINDSHIELD/WINDOWGLASS/MIRRORWINDOW DEFOGGER SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
Page 3174 of 5135
700TA±01
B68025
Clip
Piano Wire
B69236
Protective Tape
BO4421
±
WINDSHIELD/WINDOWGLASS/MIRROR BACK DOOR GLASS (WAGON MODELS)
70±41
AVENSIS REPAIR MANUAL (RM1018E)
REPLACEMENT
HINT:
The installation is in the reverse order of the removal. However, when there is a special point concerning
the installation, it is indicated.
1.REMOVE BACK DOOR TRIM BOARD ASSY (See page 75±45)
(a) Remove the back door trim panel upper.
(b) Remove the back door side garnish LH.
(c) Remove the back door side garnish RH.
(d) Remove the back door trim board.
2.REMOVE REAR SPOILER (See page 76±30)
3.REMOVE REAR WIPER MOTOR ASSY (See page 66±17)
(a) Remove the wiper arm head cap.
(b) Remove the rear wiper arm.
(c) Remove the wiper motor.
4. REMOVE BACK DOOR GLASS
(a) Pass a piano wire between the body and glass from theinterior.
(b) Tie both wire ends to wooden blocks or similar objects.
HINT:
Apply protective tape to the outer surface to prevent the surface
from being scratched.
NOTICE:
When separating the glass, take care not to damage the
paint and interior and exterior ornaments.
(c) Cut off the adhesive by pulling the piano wire around it.
(d) Using a suction rubber, remove the glass.
NOTICE:
Leave as much adhesive on the body as possible when re-
moving the glass.
5. CLEAN BACK DOOR GLASS
(a) Clean the outer circumference of the glass with white gas- oline.
NOTICE:
Do not touch the glass surface after cleaning it.
Be careful not to damage the body.
Page 3175 of 5135
Adhesive
Adhesive
BO4420Body
B67835
Primer M
Primer M
AdhesiveCORRECT
WRONG
: Primer M 70±42
± WINDSHIELD/WINDOWGLASS/MIRRORBACK DOOR GLASS (WAGON MODELS)
AVENSIS REPAIR MANUAL (RM1018E)

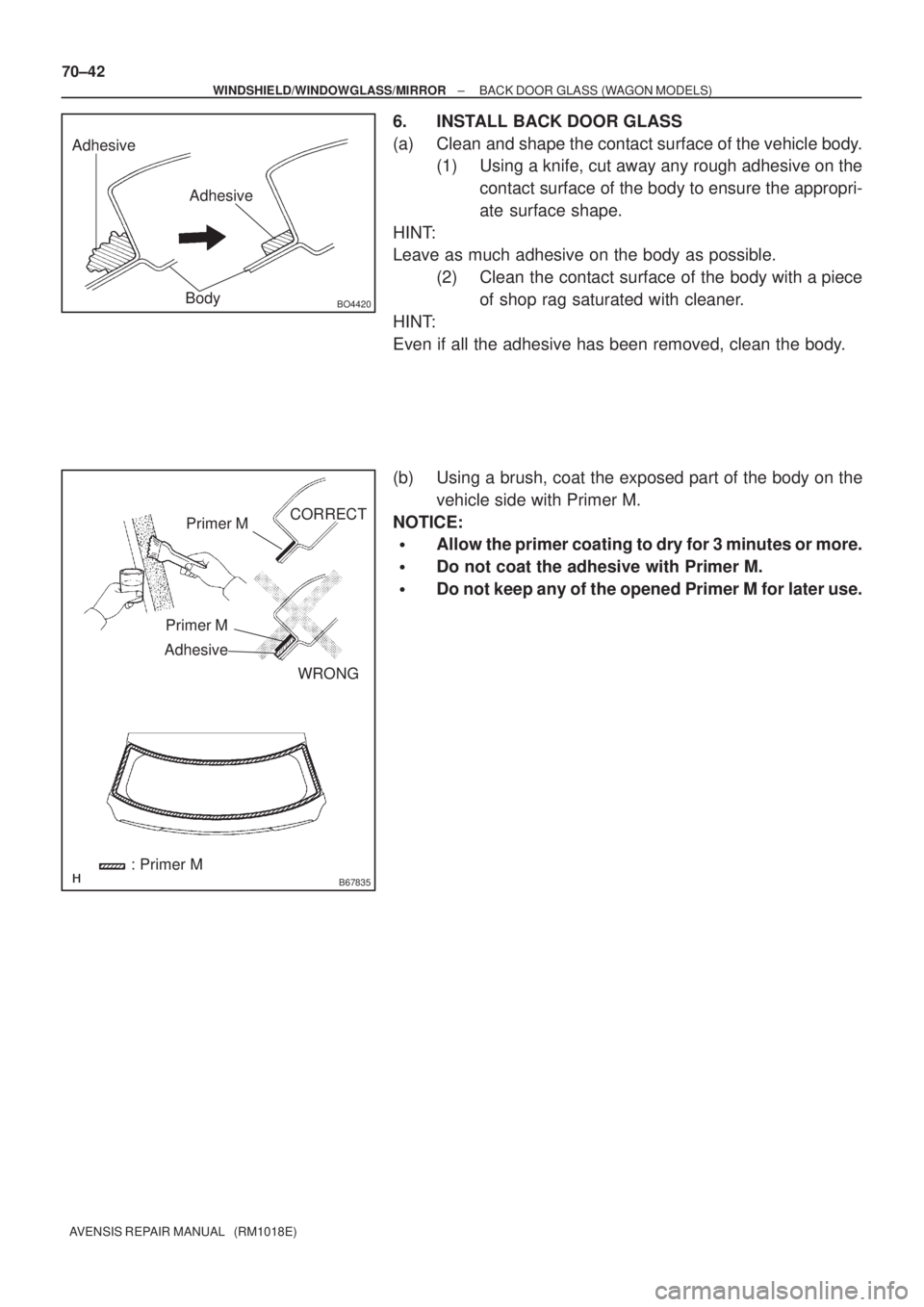

6. INSTALL BACK DOOR GLASS
(a) Clean and shape the contact surface of the vehicle body.
(1) Using a knife, cut away any rough adhesive on the
contact surface of the body to ensure the appropri-
ate surface shape.
HINT:
Leave as much adhesive on the body as possible.
(2) Clean the contact surface of the body with a piece
of shop rag saturated with cleaner.
HINT:
Even if all the adhesive has been removed, clean the body.
(b) Using a brush, coat the exposed part of the body on the
vehicle side with Primer M.
NOTICE:
Allow the primer coating to dry for 3 minutes or more.
Do not coat the adhesive with Primer M.
Do not keep any of the opened Primer M for later use.
Page 3176 of 5135
B67050
a
b A ± A
C ± C B ± B Backside
d
e A
c CB
f A
CB
: Primer G
± WINDSHIELD/WINDOWGLASS/MIRRORBACK DOOR GLASS (WAGON MODELS)
70±43
AVENSIS REPAIR MANUAL (RM1018E)

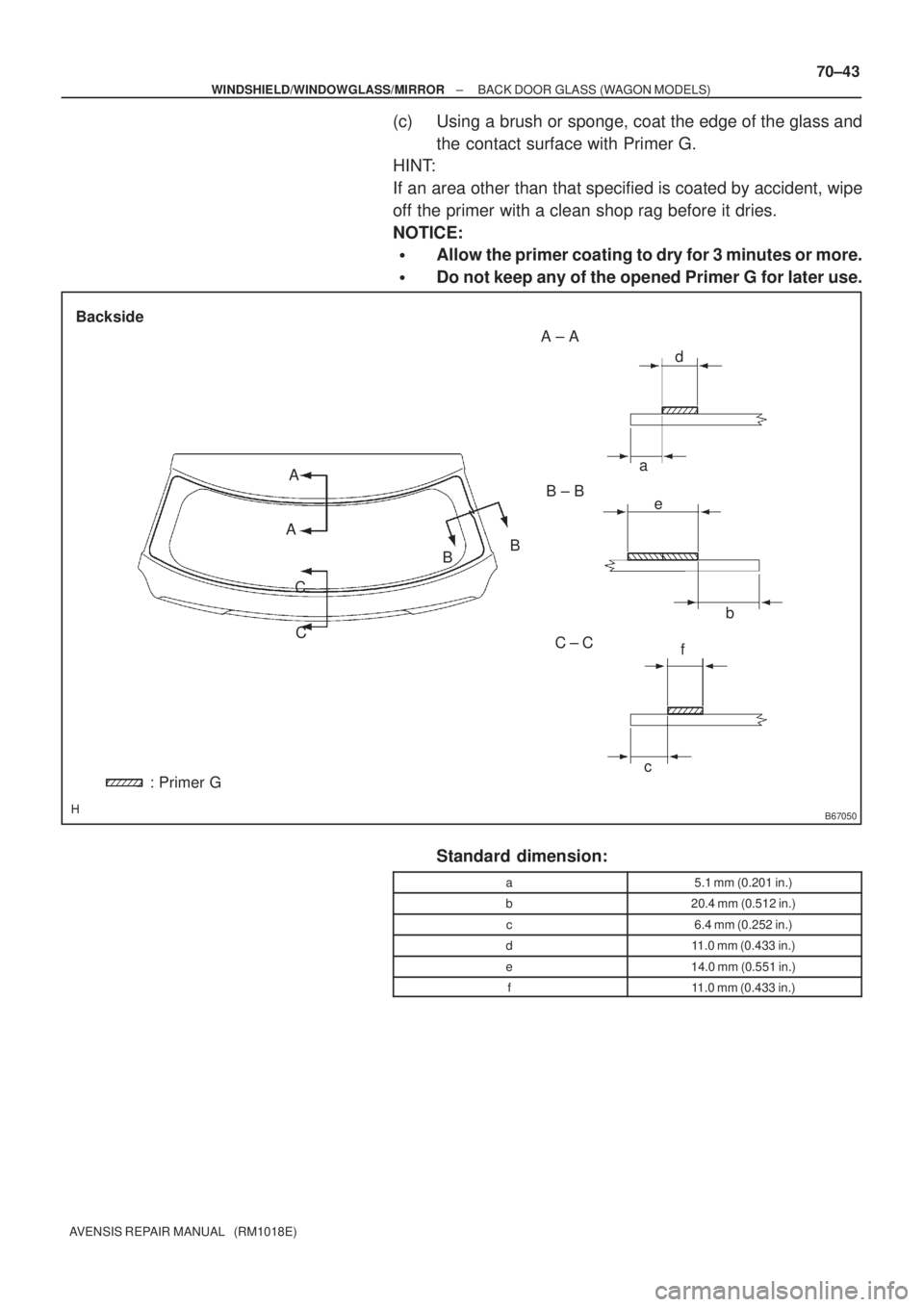

(c) Using a brush or sponge, coat the edge of the glass and
the contact surface with Primer G.
HINT:
If an area other than that specified is coated by accident, wipe
off the primer with a clean shop rag before it dries.
NOTICE:
Allow the primer coating to dry for 3 minutes or more.
Do not keep any of the opened Primer G for later use.
Standard dimension:
a5.1 mm (0.201 in.)
b20.4 mm (0.512 in.)
c6.4 mm (0.252 in.)
d11.0 mm (0.433 in.)
e14.0 mm (0.551 in.)
f11.0 mm (0.433 in.)
