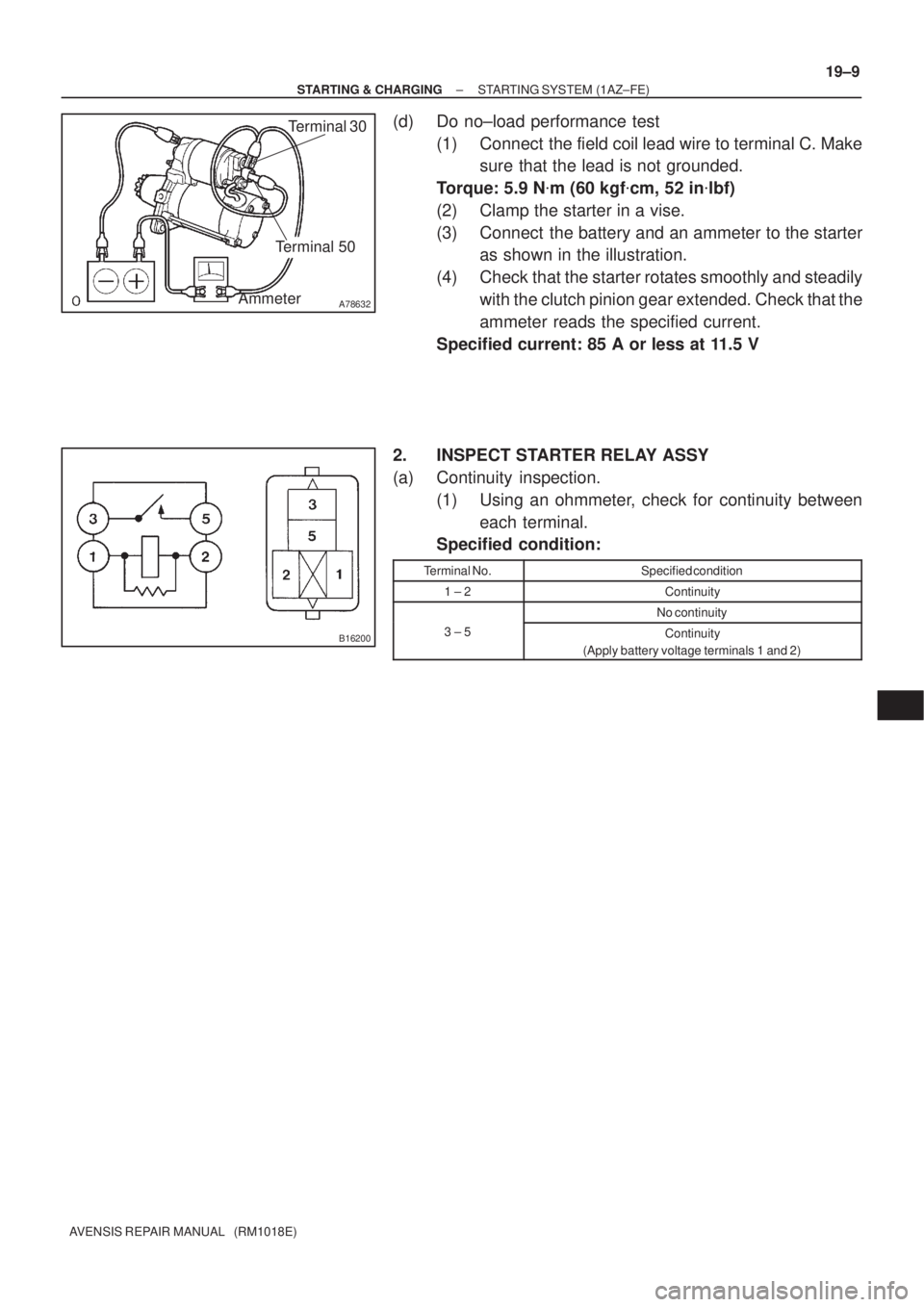

(d) Do no±load performance test
(1) Connect the field coil lead wire to terminal C. Make
sure that the lead is not grounded.
Torque: 5.9 Nm (60 kgfcm, 52 inlbf)
(2) Clamp the starter in a vise.
(3) Connect the battery and an ammeter to the starter
as shown in the illustration.
(4) Check that the starter rotates smoothly and steadily
with the clutch pinion gear extended. Check that the
ammeter reads the specified current.
Specified current: 85 A or less at 11.5 V
2. INSPECT STARTER RELAY ASSY
(a) Continuity inspection.
(1) Using an ohmmeter, check for continuity between
each terminal.
Specified condition:
Terminal No.Specified condition
1 ± 2Continuity
No continuity
3 ± 5Continuity
(Apply battery voltage terminals 1 and 2)
Page 2490 of 5135
270E2±01
G23870
27±14
± REAR SUSPENSIONREAR SHOCK ABSORBER WITH COIL SPRING
AVENSIS REPAIR MANUAL (RM1018E)
DISPOSAL
1. DISPOSE OF SHOCK ABSORBER ASSY REAR LH
(a) Fully extend the shock absorber rod.
(b) Using a drill, make a hole in the cylinder as shown in the
illustration to discharge the gas inside the cylinder.
CAUTION:
When drilling, since the fragments may fly out, work
carefully.
The discharged gas is colorless, odorless and non±
poisonous.
Page 2491 of 5135

270E8±01
G25771
G25772
27±8
±
REAR SUSPENSION REAR SHOCK ABSORBER WITH COIL SPRING
AVENSIS REPAIR MANUAL (RM1018E)
REAR SHOCK ABSORBER WITH COIL SPRING
OVERHAUL
HINT:
COMPONENTS: See page 27±2.
1. REMOVE REAR DOOR SCUFF PLATE LH
2. REMOVE REAR SEAT CUSHION ASSEMBLY
(a)40/60 FOLDING FLIP±UP CUSHION (See page 72±21)
(b)40/60 FOLDING (See page 72±27)
(c)UNITED FIXED (See page 72±32)
3. REMOVE REAR SEATBACK ASSY
(a)40/60 FOLDING FLIP±UP CUSHION (See page 72±21)
(b)40/60 FOLDING (See page 72±27)
(c)UNITED FIXED (See page 72±32)
4. REMOVE REAR FLOOR FINISH PLATE (SEDAN MODELS)
5. REMOVE LUGGAGE COMPARTMENT TRIM COVER INNER LH (SEDAN MODELS)
6. REMOVE REAR FLOOR FINISH PLATE (LIFTBACK MODELS)
7.REMOVE DECK TRIM SIDE BOARD LH (LIFTBACK MODELS) (See page 76±45)
8. REMOVE REAR FLOOR FINISH PLATE (WAGON MODELS)
9.REMOVE DECK TRIM SIDE PANEL ASSY LH (WAGON MODELS) (See page 76±54)
10. REMOVE REAR WHEEL 11. DISCONNECT SKID CONTROL SENSOR WIRE
(a) Disconnect the skid control sensor connector.
(b) Remove the bolt and wire bracket.
12. SEPARATE REAR STABILIZER LINK ASSY LH
(a) Remove the nut, and separate the rear stabilizer link assyLH.
HINT:
If the ball joint turns together with the nut, use a hexagon (5 mm)
wrench to hold the stud.
13. SEPARATE REAR STABILIZER LINK ASSY RH
HINT:
Separate the RH side by the same procedures as the LH side.
Page 2492 of 5135
G25775
G23865
G23866
G23867
G23868
± REAR SUSPENSIONREAR SHOCK ABSORBER WITH COIL SPRING
27±9
AVENSIS REPAIR MANUAL (RM1018E)

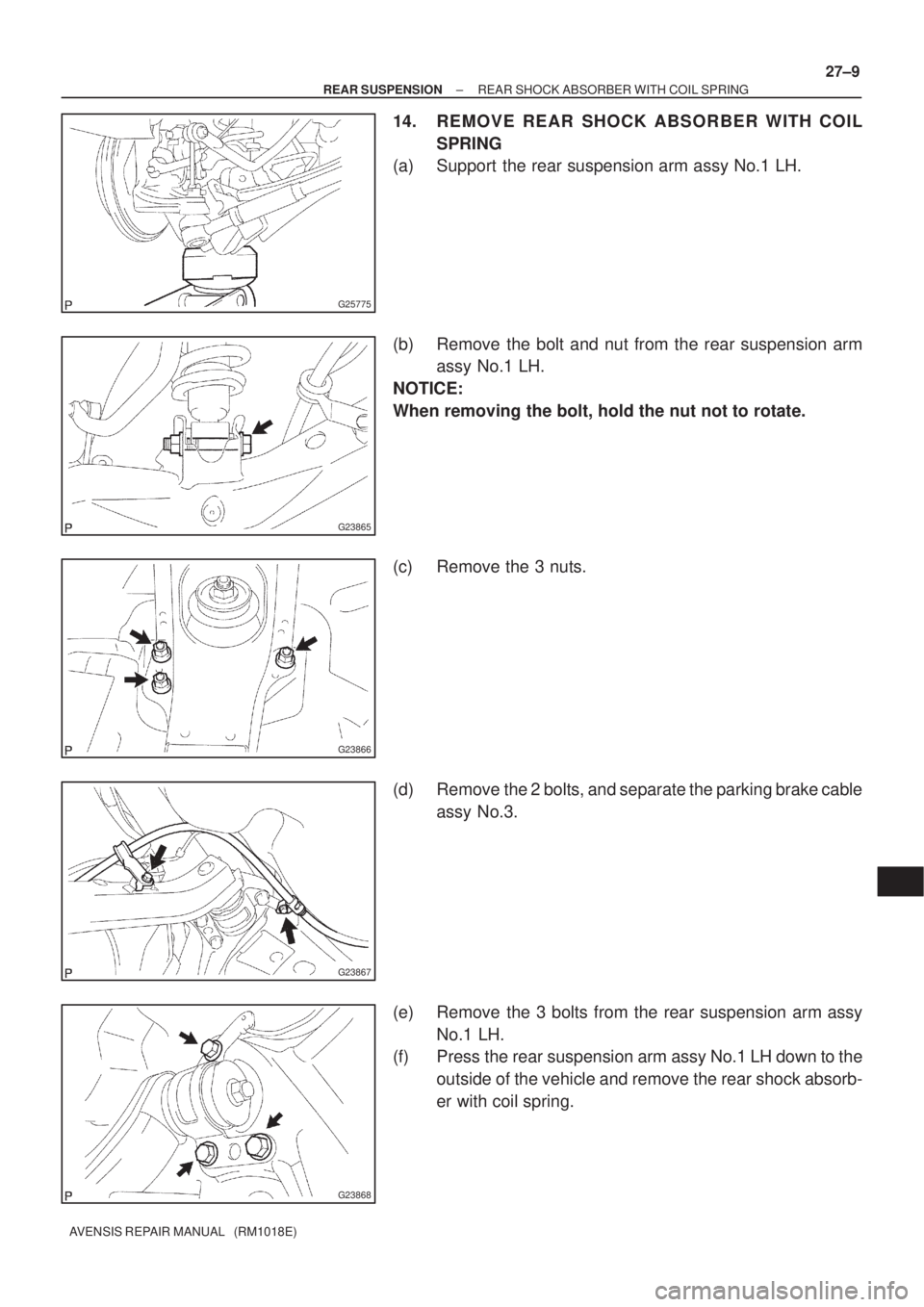

14. REMOVE REAR SHOCK ABSORBER WITH COIL
SPRING
(a) Support the rear suspension arm assy No.1 LH.
(b) Remove the bolt and nut from the rear suspension arm
assy No.1 LH.
NOTICE:
When removing the bolt, hold the nut not to rotate.
(c) Remove the 3 nuts.
(d) Remove the 2 bolts, and separate the parking brake cable
assy No.3.
(e) Remove the 3 bolts from the rear suspension arm assy
No.1 LH.
(f) Press the rear suspension arm assy No.1 LH down to the
outside of the vehicle and remove the rear shock absorb-
er with coil spring.
Page 2493 of 5135

C95735SST
C95736
G24415
Rear shock
absorber
cushion
No.1
Rear
suspension
support
assy LH
G23869
F40128
SST 27±10
± REAR SUSPENSIONREAR SHOCK ABSORBER WITH COIL SPRING
AVENSIS REPAIR MANUAL (RM1018E)

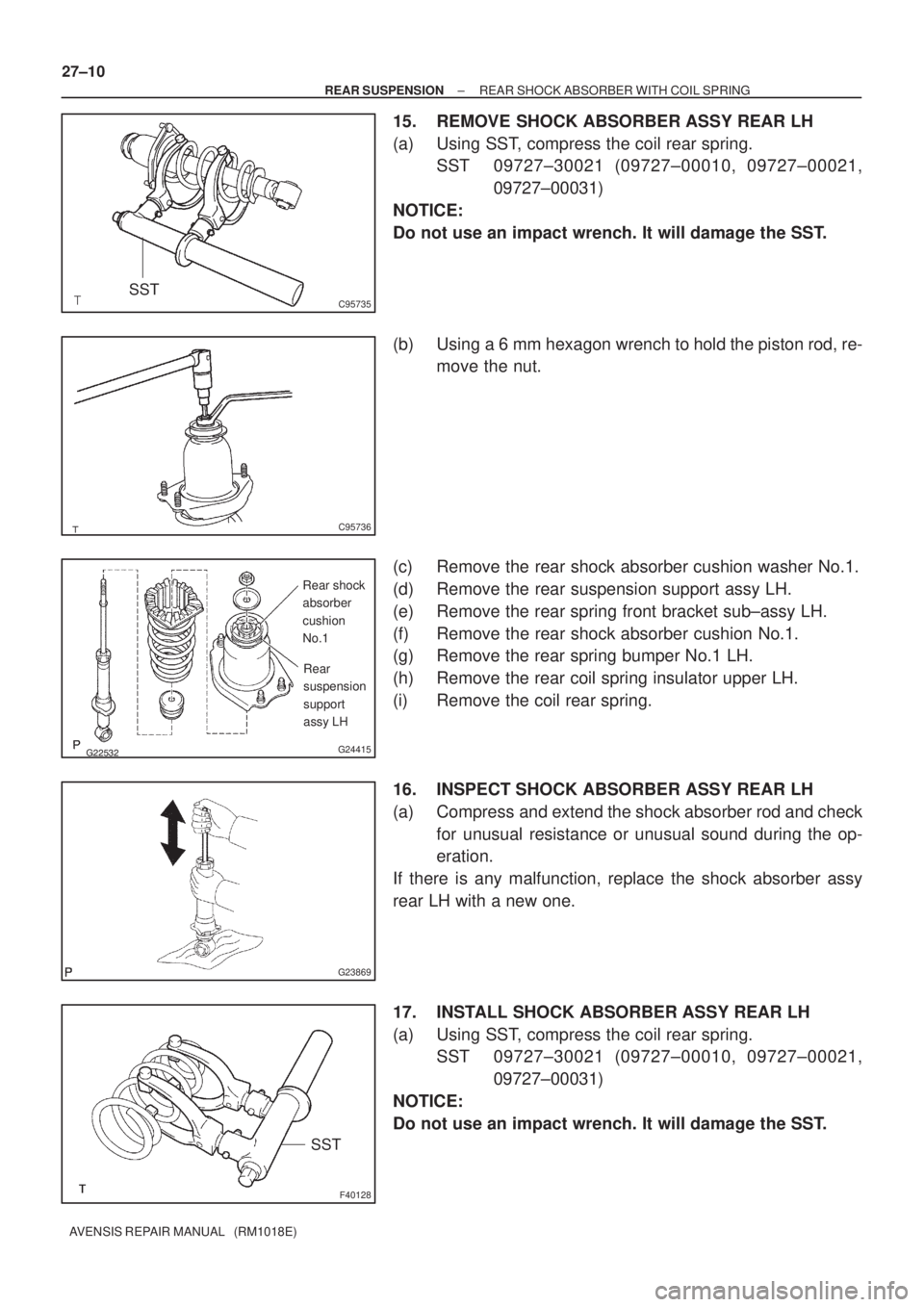

15. REMOVE SHOCK ABSORBER ASSY REAR LH
(a) Using SST, compress the coil rear spring.
SST 09727±30021 (09727±00010, 09727±00021,
09727±00031)
NOTICE:
Do not use an impact wrench. It will damage the SST.
(b) Using a 6 mm hexagon wrench to hold the piston rod, re-
move the nut.
(c) Remove the rear shock absorber cushion washer No.1.
(d) Remove the rear suspension support assy LH.
(e) Remove the rear spring front bracket sub±assy LH.
(f) Remove the rear shock absorber cushion No.1.
(g) Remove the rear spring bumper No.1 LH.
(h) Remove the rear coil spring insulator upper LH.
(i) Remove the coil rear spring.
16. INSPECT SHOCK ABSORBER ASSY REAR LH
(a) Compress and extend the shock absorber rod and check
for unusual resistance or unusual sound during the op-
eration.
If there is any malfunction, replace the shock absorber assy
rear LH with a new one.
17. INSTALL SHOCK ABSORBER ASSY REAR LH
(a) Using SST, compress the coil rear spring.
SST 09727±30021 (09727±00010, 09727±00021,
09727±00031)
NOTICE:
Do not use an impact wrench. It will damage the SST.
Page 2494 of 5135

G24416
C96135
Front
23.7
C95738
G23866
G23865
± REAR SUSPENSIONREAR SHOCK ABSORBER WITH COIL SPRING
27±11
AVENSIS REPAIR MANUAL (RM1018E)

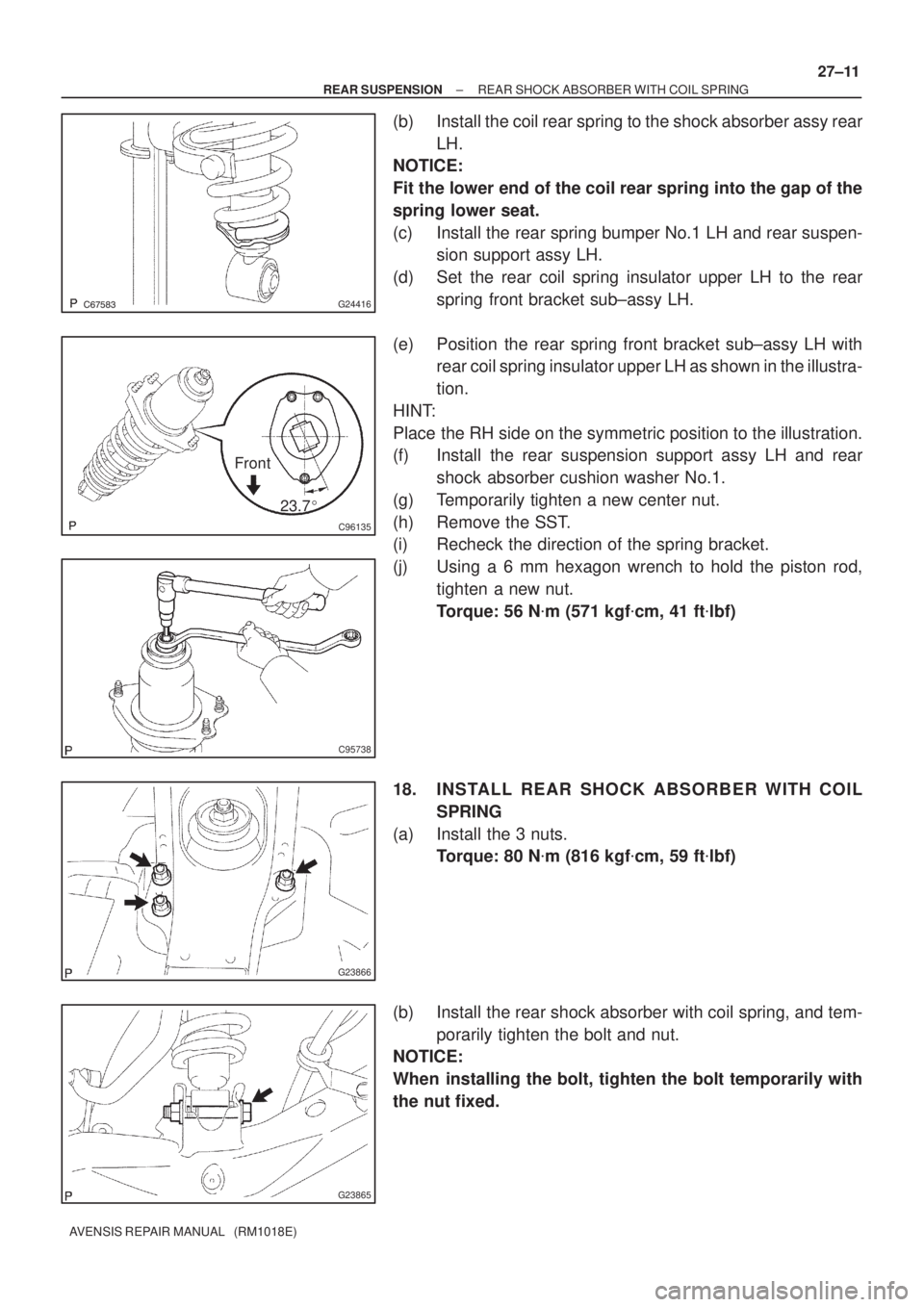

(b) Install the coil rear spring to the shock absorber assy rear
LH.
NOTICE:
Fit the lower end of the coil rear spring into the gap of the
spring lower seat.
(c) Install the rear spring bumper No.1 LH and rear suspen-
sion support assy LH.
(d) Set the rear coil spring insulator upper LH to the rear
spring front bracket sub±assy LH.
(e) Position the rear spring front bracket sub±assy LH with
rear coil spring insulator upper LH as shown in the illustra-
tion.
HINT:
Place the RH side on the symmetric position to the illustration.
(f) Install the rear suspension support assy LH and rear
shock absorber cushion washer No.1.
(g) Temporarily tighten a new center nut.
(h) Remove the SST.
(i) Recheck the direction of the spring bracket.
(j) Using a 6 mm hexagon wrench to hold the piston rod,
tighten a new nut.
Torque: 56 Nm (571 kgfcm, 41 ftlbf)
18. INSTALL REAR SHOCK ABSORBER WITH COIL
SPRING
(a) Install the 3 nuts.
Torque: 80 Nm (816 kgfcm, 59 ftlbf)
(b) Install the rear shock absorber with coil spring, and tem-
porarily tighten the bolt and nut.
NOTICE:
When installing the bolt, tighten the bolt temporarily with
the nut fixed.
Page 2495 of 5135

G23868
G23867
G25772
G25771
27±12
± REAR SUSPENSIONREAR SHOCK ABSORBER WITH COIL SPRING
AVENSIS REPAIR MANUAL (RM1018E)
(c) Install the rear suspension arm assy No.1 LH with the 3
bolts.
Torque: 65 Nm (663 kgfcm, 48 ftlbf)
(d) Connect the parking brake cable assy No.3 with the 2
bolts.
Torque: 5.0 Nm (51 kgfcm, 44 in.lbf)
19. INSTALL REAR STABILIZER LINK ASSY LH
(a) Install the rear stabilizer link assy LH with the nut.
Torque: 44 Nm (449 kgfcm, 32 ftlbf)
HINT:
If the ball joint turns together with the nut, use a hexagon (5 mm)
wrench to hold the stud.
20. INSTALL REAR STABILIZER LINK ASSY RH
HINT:
Install the RH side by the same procedures as the LH side.
21. CONNECT SKID CONTROL SENSOR WIRE
(a) Install the wire bracket and bolt.
Torque: 5.0 Nm (51 kgfcm, 44 in.lbf)
(b) Connect the skid control sensor connector.
22. INSTALL REAR WHEEL
Torque: 103 Nm (1,050 kgfcm, 76 ftlbf)
23. STABILIZE SUSPENSION
(a) Bounce the vehicle up and down several times to stabilize the suspension.
Page 2496 of 5135
G23865
±
REAR SUSPENSION REAR SHOCK ABSORBER WITH COIL SPRING
27±13
AVENSIS REPAIR MANUAL (RM1018E)
24. FULLY TIGHTEN REAR SHOCK ABSORBER WITH
COIL SPRING
(a) Fully tighten the bolt and nut.
Torque: 160 N m (1,632 kgf cm, 118 ft lbf)
NOTICE:
When installing the bolt, hold the nut not to rotate.
Be sure to empty the vehicle when fully tightening the
bolt and nut.
25.INSPECT AND ADJUST REAR WHEEL ALIGNMENT (See page 27±4)
26. CHECK ABS SPEED SENSOR SIGNAL
(a)ABD WITH EBD SYSTEM (See page 05±699)
(b)ABD WITH EBD & BA & TRC & VSC SYSTEM ( See page 05±756)
