TOYOTA AVENSIS 2005 Service Repair Manual B67991 Rear Door Lock w/ Motor Assy LH 26 (265, 19) 26 (265, 19) 5.5 (56, 49 in.´lbf) 30 (306, 22) Rear Door Check Assy Rear Door Weatherstrip LHRear Door Belt Moulding LH Rear Door Outside Handle Fr

Page 3354 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual 750MX±01 B66969: Clip B66970 : Clip : Claw B67801 Claw 75±8 ± ENGINE HOOD/DOOR FRONT DOOR AVENSIS REPAIR MANUAL (RM1018E) OVERHAUL HINT: The installation is in the reverse order of the removal.

Page 3355 of 5135

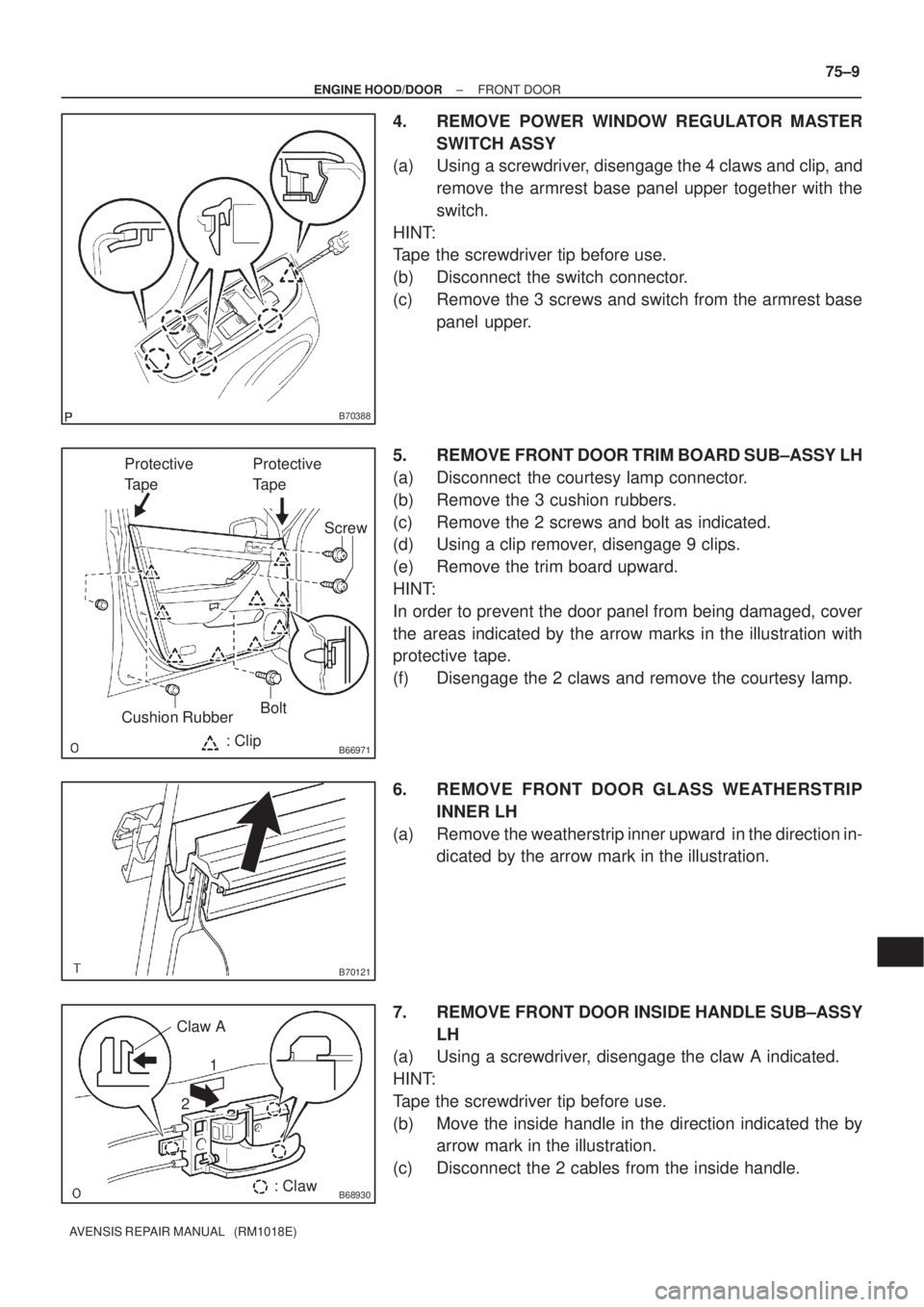

TOYOTA AVENSIS 2005 Service Repair Manual B70388 B66971: Clip Protective TapeProtective Tape Screw BoltCushion Rubber B70121 B68930 Claw A : Claw 1 2 ± ENGINE HOOD/DOORFRONT DOOR 75±9 AVENSIS REPAIR MANUAL (RM1018E) 4. REMOVE POWER WIND

Page 3356 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual B69067 Butyl Tape B66981 B68929 B61431 75±10 ± ENGINE HOOD/DOOR FRONT DOOR AVENSIS REPAIR MANUAL (RM1018E) 8.REMOVE FRONT DOOR SERVICE HOLE COVER (a)Remove the service hole cover. NOTICE: Remove t

Page 3357 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual B62422 B62423 12 B66968 B61434 B68932Hole Plug ± ENGINE HOOD/DOORFRONT DOOR 75±11 AVENSIS REPAIR MANUAL (RM1018E) 14. REMOVE FRONT DOOR GLASS SUB±ASSY LH HINT: Insert a shop rag inside the

Page 3358 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual B66894 B56613 1 2 B70122 Screw B57102 B68928 75±12 ± ENGINE HOOD/DOORFRONT DOOR AVENSIS REPAIR MANUAL (RM1018E) 18. REMOVE FRONT DOOR W/MOTOR LOCK ASSY LH (a) Disconnect the door lock connector. (

Page 3359 of 5135

TOYOTA AVENSIS 2005 Service Repair Manual B68928 Adhesive B70122 Screw B64044 1 2 ± ENGINE HOOD/DOORFRONT DOOR 75±13 AVENSIS REPAIR MANUAL (RM1018E) 22. REMOVE FRONT DOOR WEATHERSTRIP LH (a) Using a clip remover, disengage the clips and r

Page 3360 of 5135

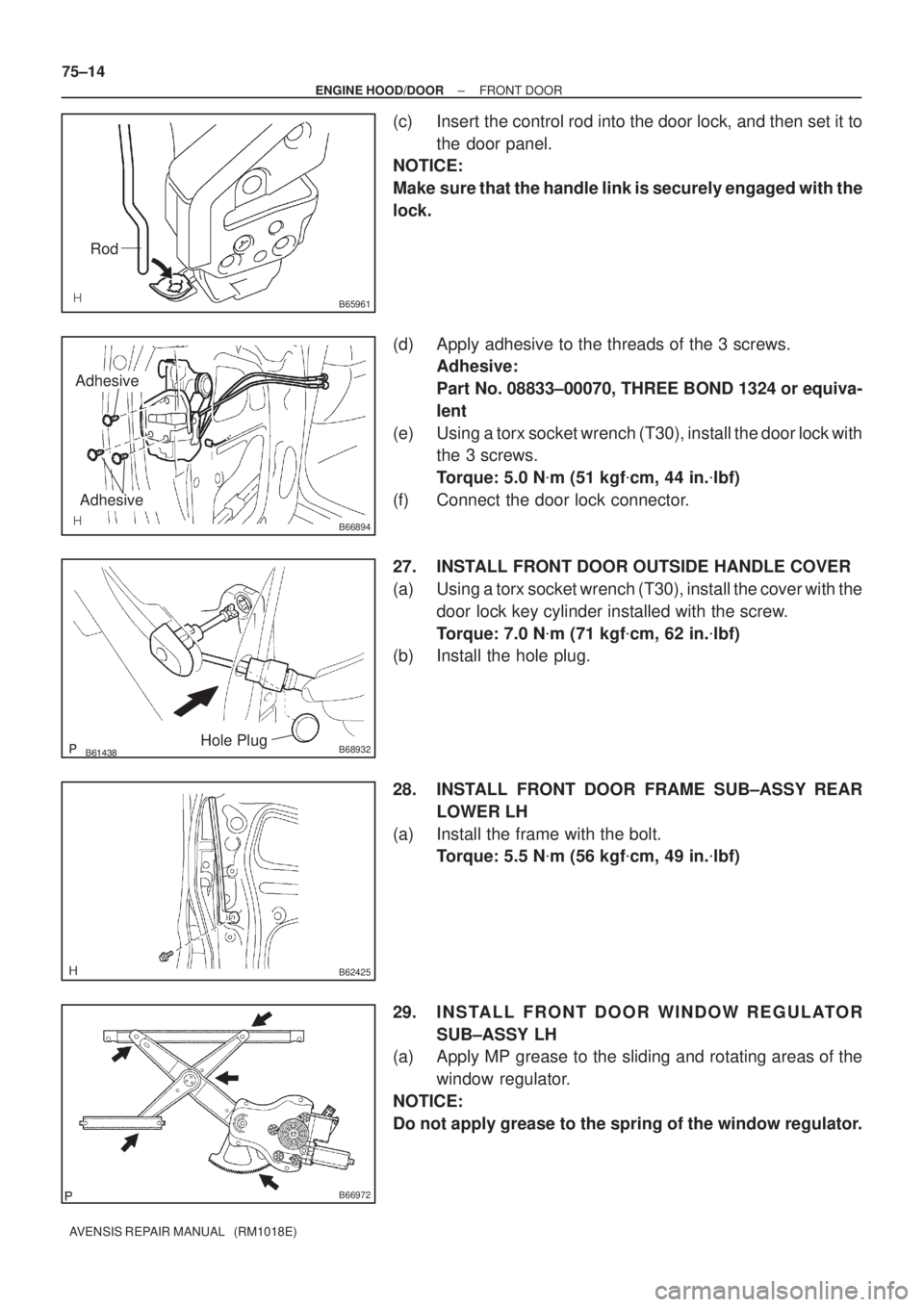

TOYOTA AVENSIS 2005 Service Repair Manual B65961 Rod B66894 Adhesive Adhesive B68932Hole Plug B62425 B66972 75±14 ± ENGINE HOOD/DOORFRONT DOOR AVENSIS REPAIR MANUAL (RM1018E) (c) Insert the control rod into the door lock, and then s
