Shift Lever
Plate
Cable Outer
Cable End
C88568
C88568
± AUTOMATIC TRANSMISSION / TRANSTRANSMISSION CONTROL CABLE ASSY
40±71
AVENSIS REPAIR MANUAL (RM1018E)

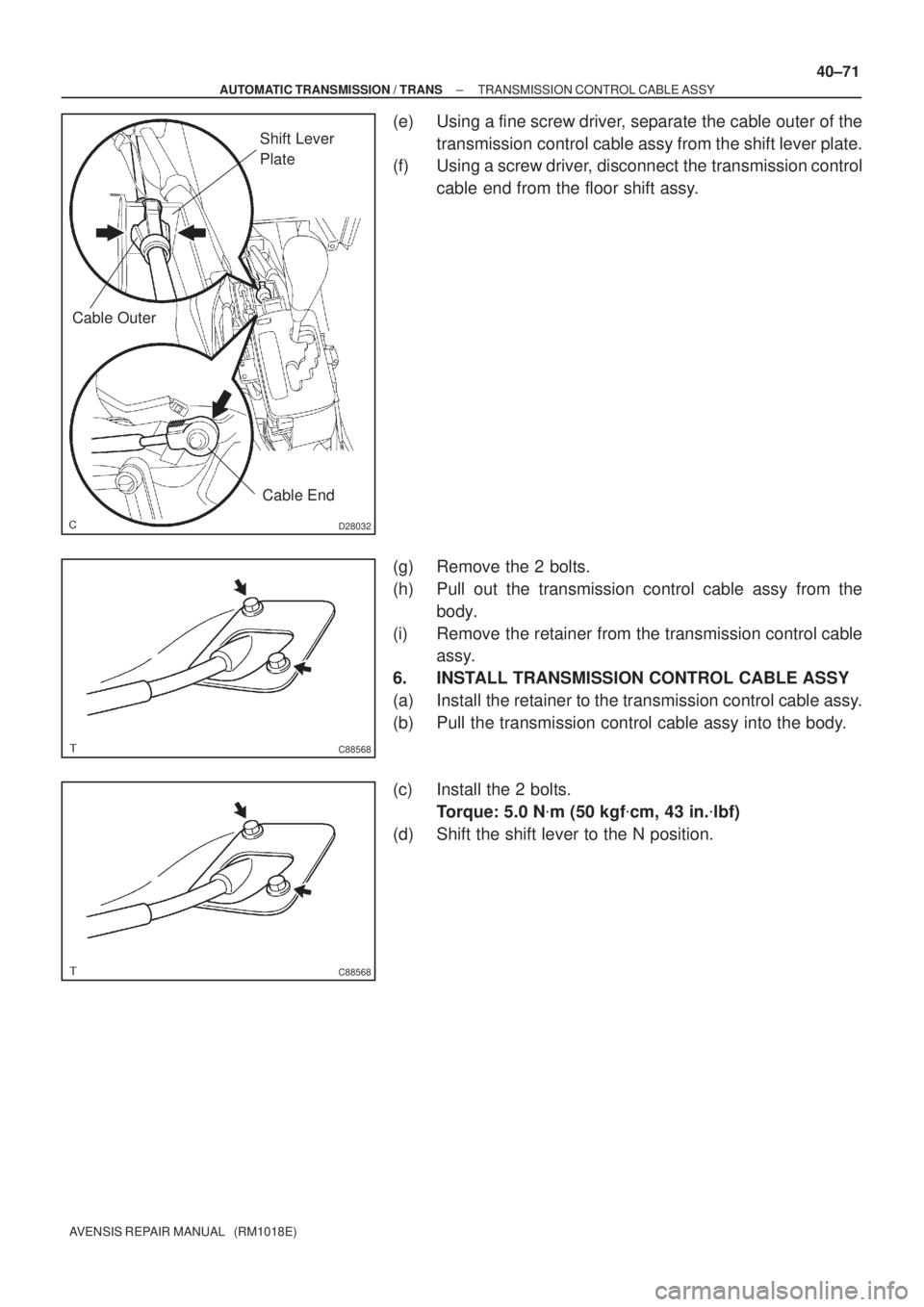

(e) Using a fine screw driver, separate the cable outer of the
transmission control cable assy from the shift lever plate.
(f) Using a screw driver, disconnect the transmission control
cable end from the floor shift assy.
(g) Remove the 2 bolts.
(h) Pull out the transmission control cable assy from the
body.
(i) Remove the retainer from the transmission control cable
assy.
6. INSTALL TRANSMISSION CONTROL CABLE ASSY
(a) Install the retainer to the transmission control cable assy.
(b) Pull the transmission control cable assy into the body.
(c) Install the 2 bolts.
Torque: 5.0 Nm (50 kgfcm, 43 in.lbf)
(d) Shift the shift lever to the N position.
Page 2738 of 5135

D28032
Shift Lever
Plate
Projection
Cable Outer
Projection
Cable End
C83873
Exhaust Pipe
Assy Front
Stabilizer Bar Front
C83114
Clip
Bracket
Park/Neutral
Position Switch
Assy
Control Shaft Lever
40±72
± AUTOMATIC TRANSMISSION / TRANSTRANSMISSION CONTROL CABLE ASSY
AVENSIS REPAIR MANUAL (RM1018E)

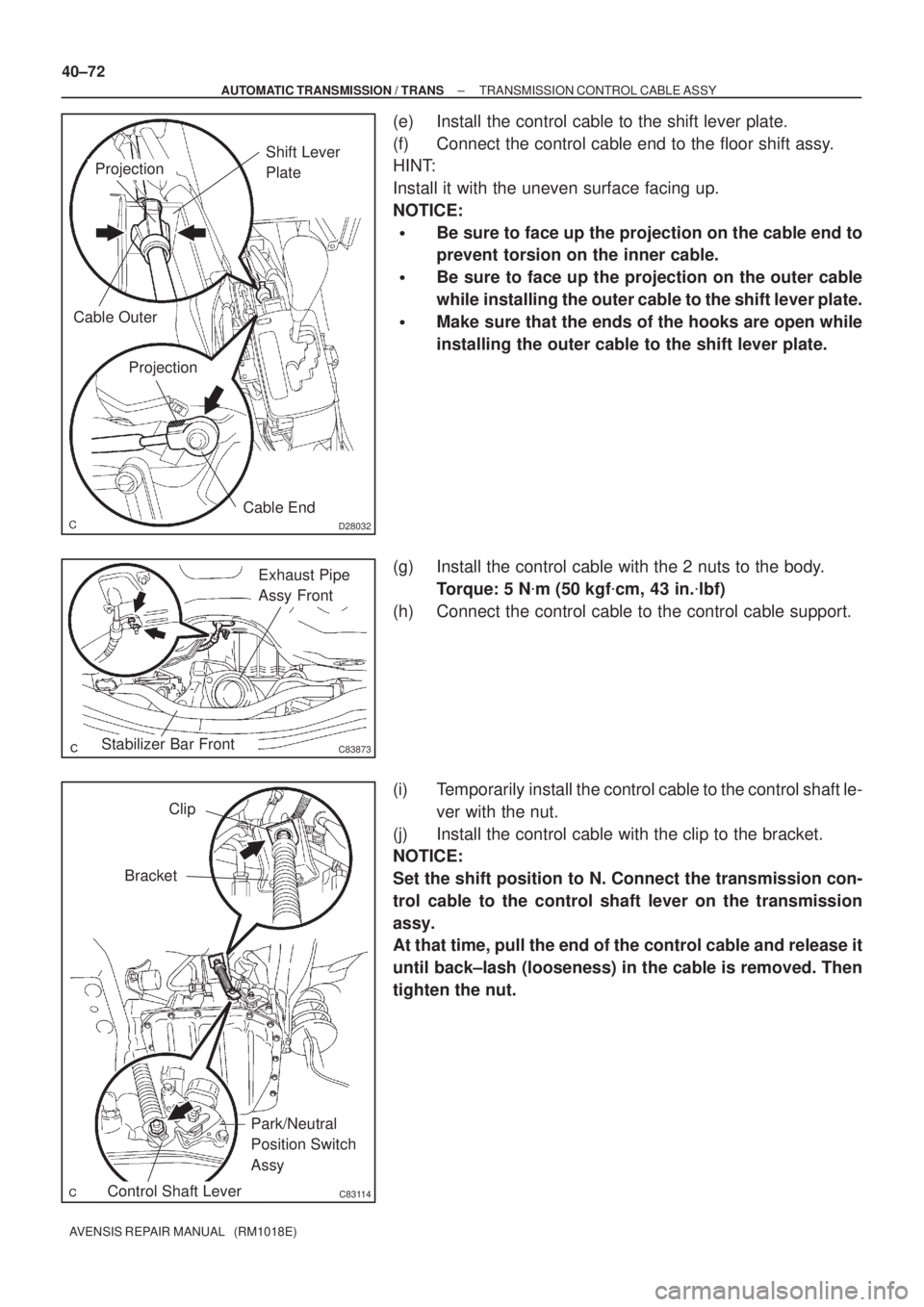

(e) Install the control cable to the shift lever plate.
(f) Connect the control cable end to the floor shift assy.
HINT:
Install it with the uneven surface facing up.
NOTICE:
Be sure to face up the projection on the cable end to
prevent torsion on the inner cable.
Be sure to face up the projection on the outer cable
while installing the outer cable to the shift lever plate.
Make sure that the ends of the hooks are open while
installing the outer cable to the shift lever plate.
(g) Install the control cable with the 2 nuts to the body.
Torque: 5 Nm (50 kgfcm, 43 in.lbf)
(h) Connect the control cable to the control cable support.
(i) Temporarily install the control cable to the control shaft le-
ver with the nut.
(j) Install the control cable with the clip to the bracket.
NOTICE:
Set the shift position to N. Connect the transmission con-
trol cable to the control shaft lever on the transmission
assy.
At that time, pull the end of the control cable and release it
until back±lash (looseness) in the cable is removed. Then
tighten the nut.
Page 2739 of 5135
±
AUTOMATIC TRANSMISSION / TRANS TRANSMISSION CONTROL CABLE ASSY
40±73
AVENSIS REPAIR MANUAL (RM1018E)
7. INSTALL INSTRUMENT PANEL SUB±ASSY UPPER W/INSTR PNL PASS L/DOOR AIR BAG ASSY
(See page 71±11)
8.ADJUST SPIRAL CABLE SUB±ASSY (See page 60±26)
9.INSTALL STEERING WHEEL ASSY (See page 50±9)
10.INSTALL HORN BUTTON ASSY (See page 60±17)
11.INSTALL EXHAUST PIPE ASSY FRONT (1ZZ±FE ENGINE TYPE) (See page 15±2)
12.INSTALL EXHAUST PIPE ASSY FRONT (1AZ±FE/1AZ±FSE ENGINE TYPE) (See page 15±7)
13.INSPECT HORN BUTTON ASSY (See page 60±17)
14.INSPECT SRS WARNING LIGHT (See page 05±1184)
15. CHECK FOR EXHAUST GAS LEAKS
16.ADJUST SHIFT LEVER POSITION (See page 40±69)
17.INSPECT SHIFT LEVER POSITION (See page 40±69)
18.CHARGE REFRIGERANT (See page 55±38)
SST 07110±58060 (07117±58060, 07117±58070, 07117±58080, 07117±58090, 07117±78050, 07117±88060, 07117±88070, 07117±88080)
19.INSPECT LEAKAGE OF REFRIGERANT (See page 55±38)
Page 2740 of 5135

400DI±02
D25118
D25119
± AUTOMATIC TRANSMISSION / TRANSFLOOR SHIFT ASSY
40±69
AVENSIS REPAIR MANUAL (RM1018E)
ADJUSTMENT
1. INSPECT SHIFT LEVER POSITION
(a) When the shift lever from P to R position with the ignition switch is ON and the brake pedal is de-
pressed, make sure that the shifting lever moves smoothly and can be moderately operated.
(b) When starting engine, make sure that the vehicle moves forward when shifting from N to D position
and moves rearward when shifting to R position.
2. ADJUST SHIFT LEVER POSITION
(a) Loosen the nut on the control shaft lever.
(b) Push the control shaft fully downward.
(c) Return the control shaft lever 2 notches to N position.
(d) Set the shift lever to N position.
(e) While holding the shift lever lightly toward the R position
side, tighten the shift lever nut.
Torque: 12 Nm (122 kgfcm, 9 ftlbf)
(f) Start the engine and make sure that the vehicle moves
forward when shifting the lever from N to D position and
moves rearward when shifting it to R position.
Page 2741 of 5135
4011L±01
D28032
Shift Lever
Plate
Cable Outer
Cable End
D28034
Claw
Shift Lock Release Link
D28033
Shift Lever Plate
40±62
±
AUTOMATIC TRANSMISSION / TRANS FLOOR SHIFT ASSY
AVENSIS REPAIR MANUAL (RM1018E)
OVERHAUL

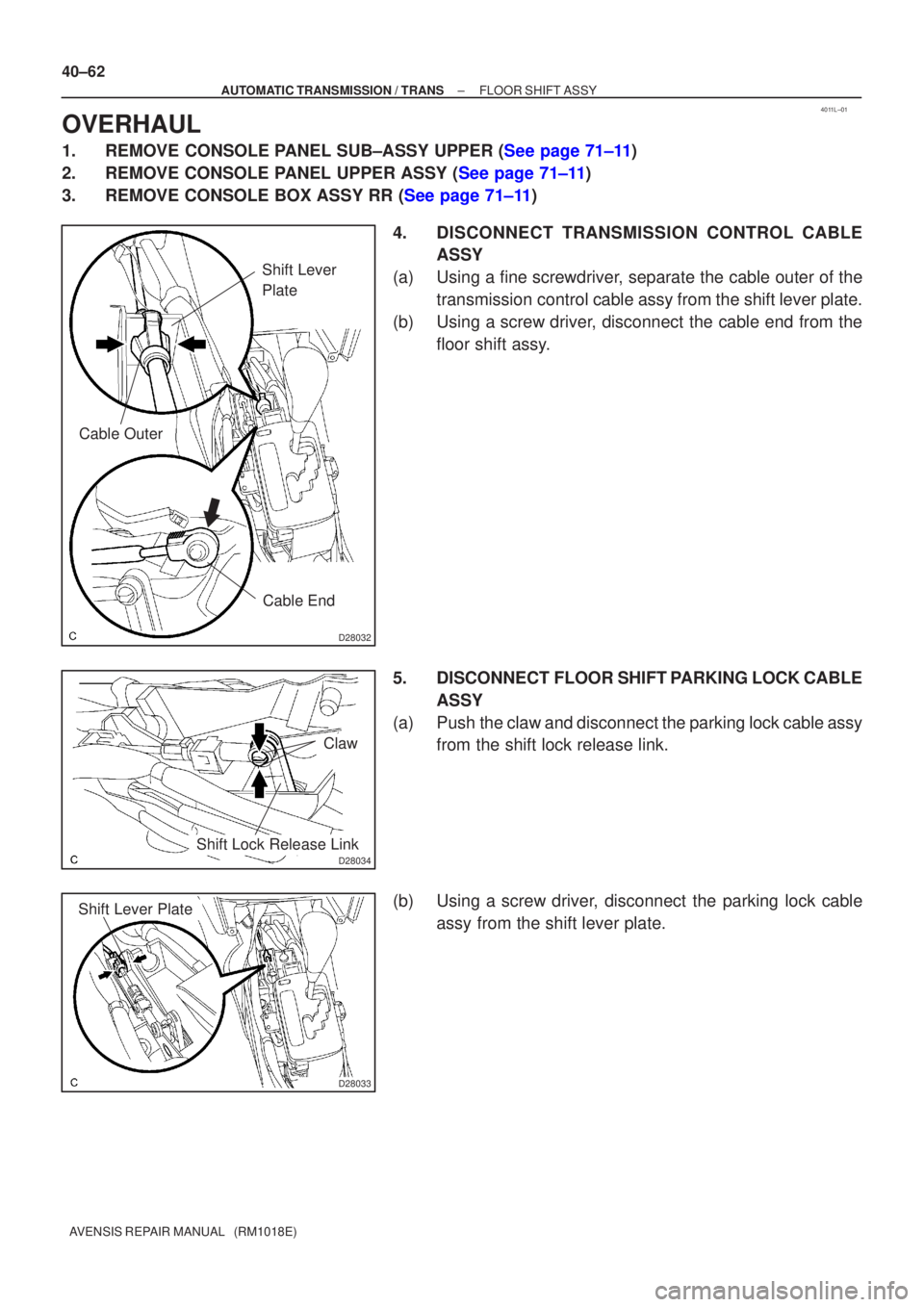

1.REMOVE CONSOLE PANEL SUB±ASSY UPPER (See page 71±11)
2.REMOVE CONSOLE PANEL UPPER ASSY (See page 71±11)
3.REMOVE CONSOLE BOX ASSY RR (See page 71±11) 4. DISCONNECT TRANSMISSION CONTROL CABLEASSY
(a) Using a fine screwdriver, separate the cable outer of the transmission control cable assy from the shift lever plate.
(b) Using a screw driver, disconnect the cable end from the floor shift assy.
5. DISCONNECT FLOOR SHIFT PARKING LOCK CABLE ASSY
(a) Push the claw and disconnect the parking lock cable assy from the shift lock release link.
(b) Using a screw driver, disconnect the parking lock cable assy from the shift lever plate.
Page 2742 of 5135
D28035
D28036
D28037
LH RH
D28038
± AUTOMATIC TRANSMISSION / TRANSFLOOR SHIFT ASSY
40±63
AVENSIS REPAIR MANUAL (RM1018E)

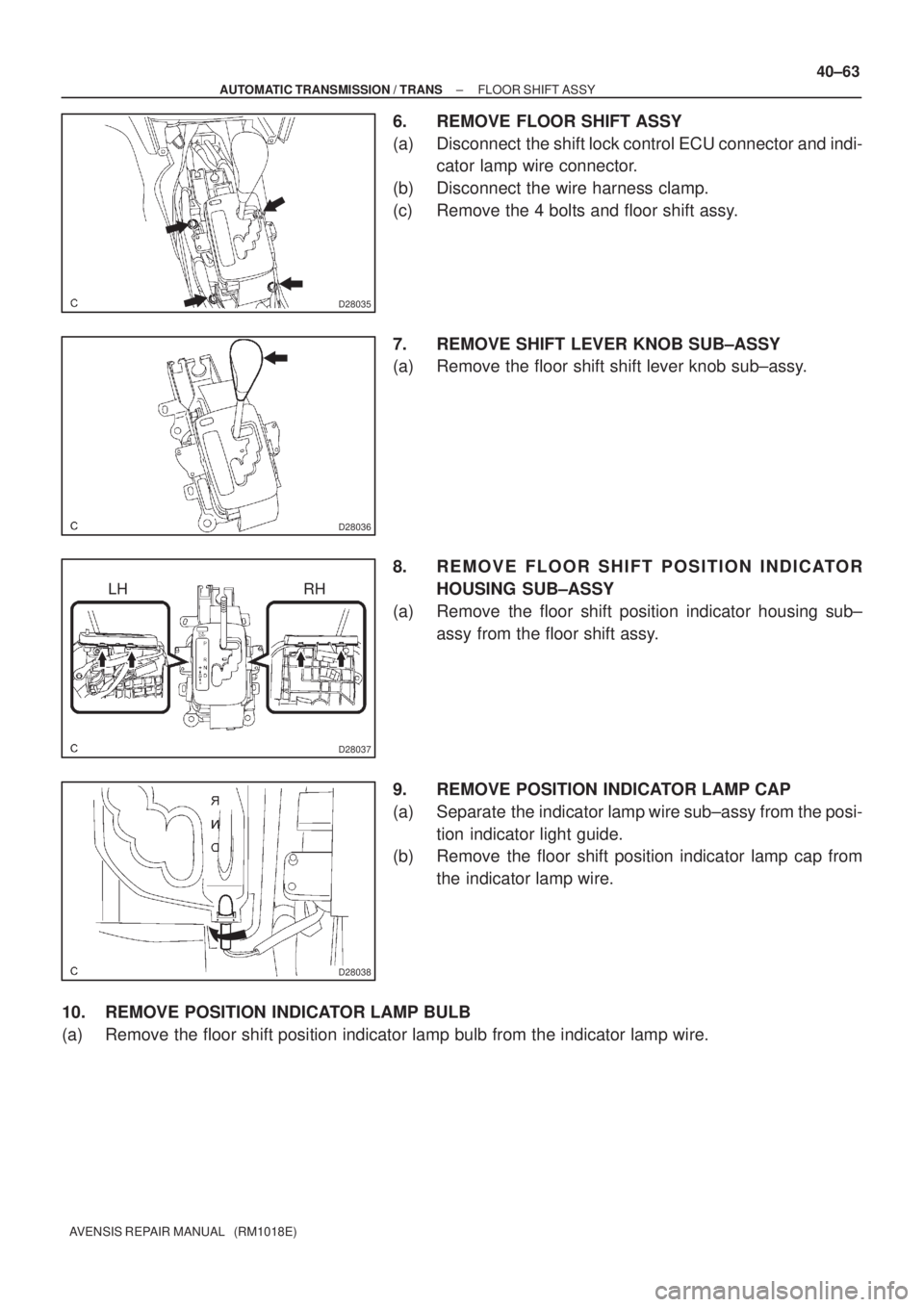

6. REMOVE FLOOR SHIFT ASSY
(a) Disconnect the shift lock control ECU connector and indi-
cator lamp wire connector.
(b) Disconnect the wire harness clamp.
(c) Remove the 4 bolts and floor shift assy.
7. REMOVE SHIFT LEVER KNOB SUB±ASSY
(a) Remove the floor shift shift lever knob sub±assy.
8. REMOVE FLOOR SHIFT POSITION INDICATOR
HOUSING SUB±ASSY
(a) Remove the floor shift position indicator housing sub±
assy from the floor shift assy.
9. REMOVE POSITION INDICATOR LAMP CAP
(a) Separate the indicator lamp wire sub±assy from the posi-
tion indicator light guide.
(b) Remove the floor shift position indicator lamp cap from
the indicator lamp wire.
10. REMOVE POSITION INDICATOR LAMP BULB
(a) Remove the floor shift position indicator lamp bulb from the indicator lamp wire.
Page 2743 of 5135
D28041
Position Indicator
Light Guide
Position Indicator Housing UPR
D28042
Position Indicator
Slide Cover
D28043
Position Indicator
Slide Cover
Position Indicator
Slide Cover No.2
D28045
Shift Lock Release
Button
Spring
D28044
Position Indicator
Housing Lower
40±64
± AUTOMATIC TRANSMISSION / TRANSFLOOR SHIFT ASSY
AVENSIS REPAIR MANUAL (RM1018E)

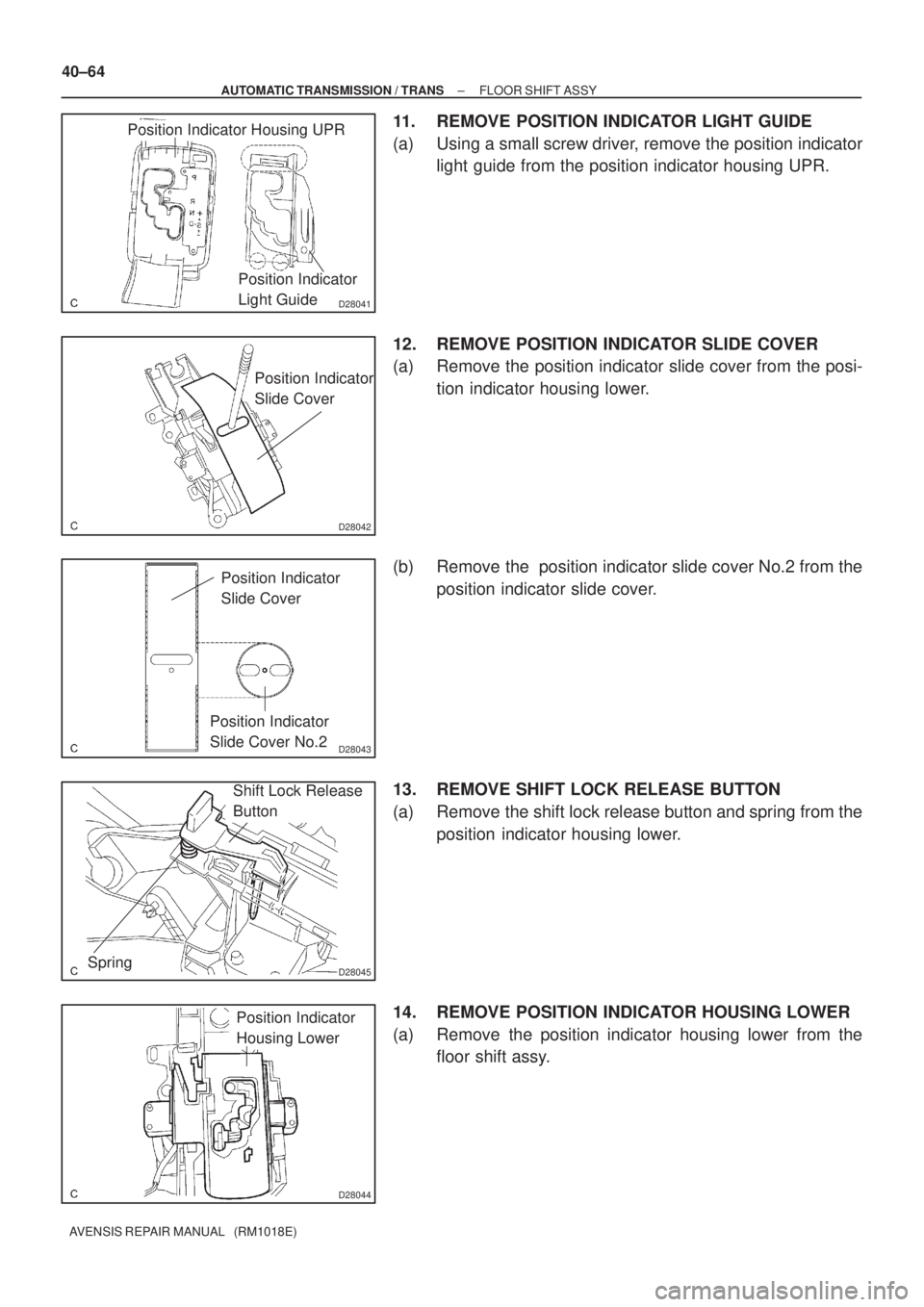

11. REMOVE POSITION INDICATOR LIGHT GUIDE
(a) Using a small screw driver, remove the position indicator
light guide from the position indicator housing UPR.
12. REMOVE POSITION INDICATOR SLIDE COVER
(a) Remove the position indicator slide cover from the posi-
tion indicator housing lower.
(b) Remove the position indicator slide cover No.2 from the
position indicator slide cover.
13. REMOVE SHIFT LOCK RELEASE BUTTON
(a) Remove the shift lock release button and spring from the
position indicator housing lower.
14. REMOVE POSITION INDICATOR HOUSING LOWER
(a) Remove the position indicator housing lower from the
floor shift assy.
Page 2744 of 5135
D28044
Position Indicator
Housing Lower
D30638
Shift Lock Release Button
SpringMP Grease
D28043
Position Indicator
Slide Cover
Position Indicator
Slide Cover No.2
D28042
Position Indicator
Slide Cover
D28041
Position Indicator
Light Guide
Position Indicator Housing UPR
± AUTOMATIC TRANSMISSION / TRANSFLOOR SHIFT ASSY
40±65
AVENSIS REPAIR MANUAL (RM1018E)

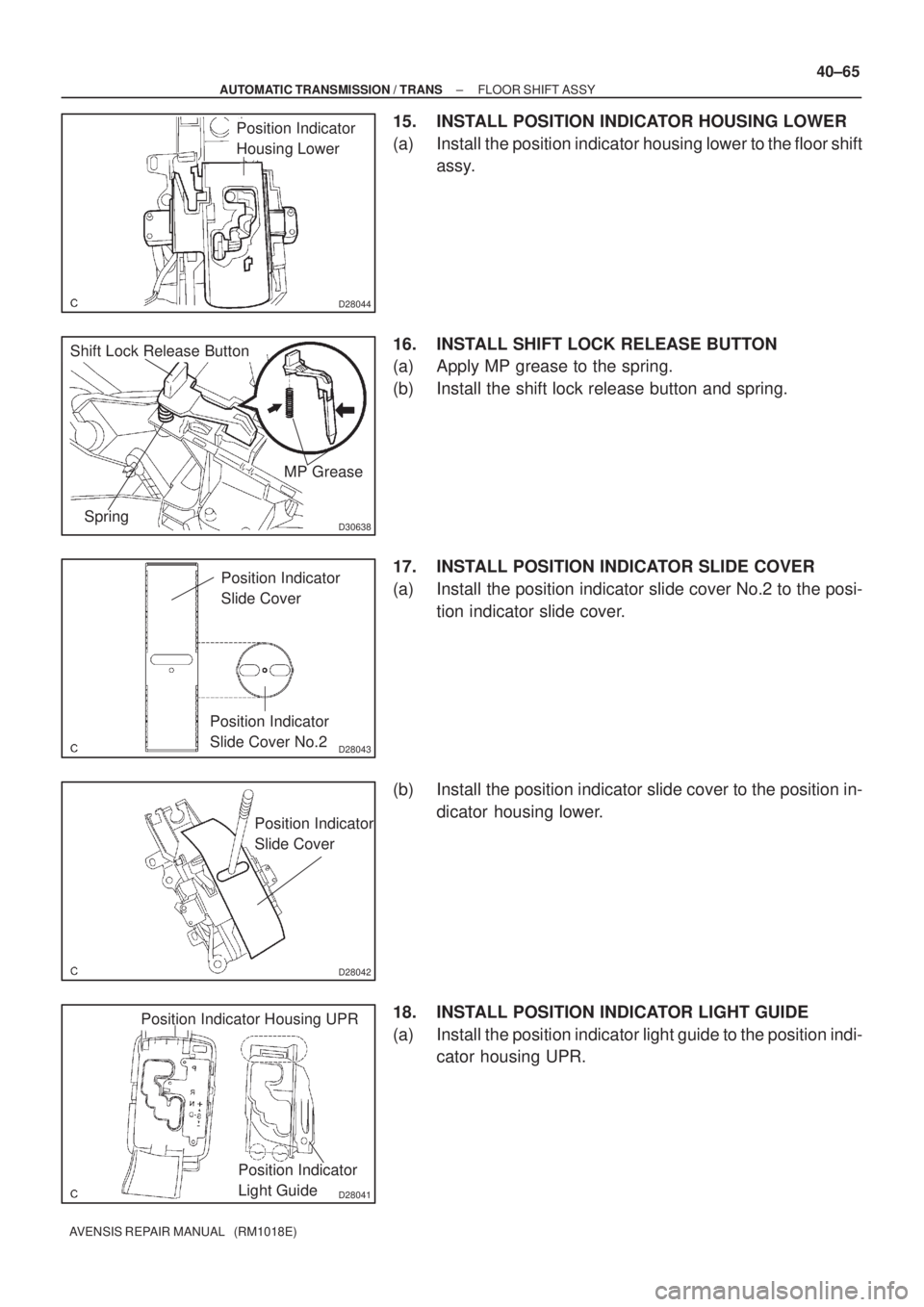

15. INSTALL POSITION INDICATOR HOUSING LOWER
(a) Install the position indicator housing lower to the floor shift
assy.
16. INSTALL SHIFT LOCK RELEASE BUTTON
(a) Apply MP grease to the spring.
(b) Install the shift lock release button and spring.
17. INSTALL POSITION INDICATOR SLIDE COVER
(a) Install the position indicator slide cover No.2 to the posi-
tion indicator slide cover.
(b) Install the position indicator slide cover to the position in-
dicator housing lower.
18. INSTALL POSITION INDICATOR LIGHT GUIDE
(a) Install the position indicator light guide to the position indi-
cator housing UPR.
