AUTOMATIC TRANSMISSION / TRANS TRANSMISSION VALVE BODY ASSY (U241E)
AVENSIS REPAIR MANUAL (RM1018E)

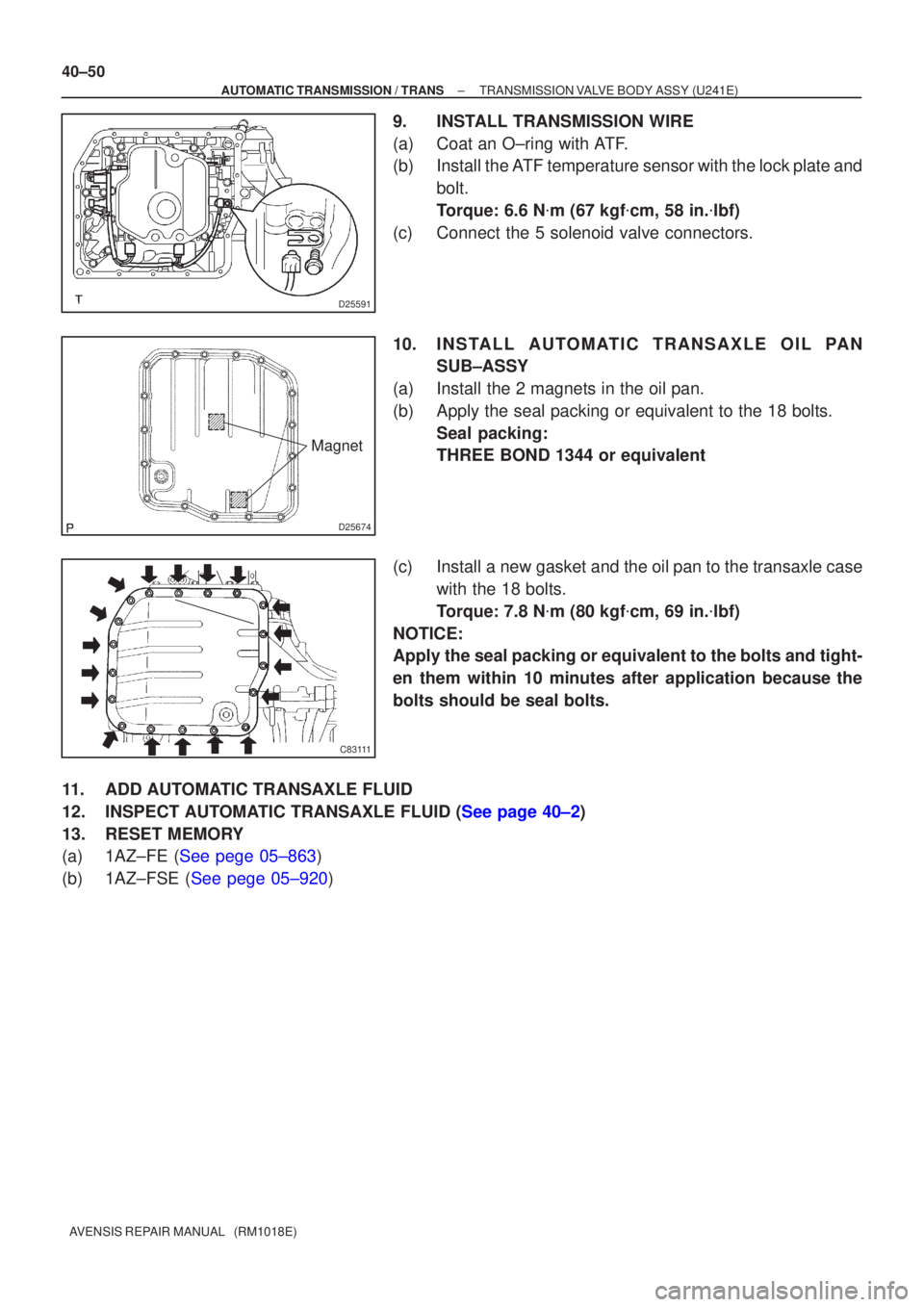

9. INSTALL TRANSMISSION WIRE
(a) Coat an O±ring with ATF.
(b) Install the ATF temperature sensor with the lock plate and bolt.
Torque: 6.6 N
m (67 kgf
cm, 58 in.
lbf)
(c) Connect the 5 solenoid valve connectors.
10. INSTALL AUTOMATIC TRANSAXLE OIL PAN SUB±ASSY
(a) Install the 2 magnets in the oil pan.
(b) Apply the seal packing or equivalent to the 18 bolts. Seal packing:
THREE BOND 1344 or equivalent
(c) Install a new gasket and the oil pan to the transaxle case with the 18 bolts.
Torque: 7.8 N
m (80 kgf
cm, 69 in.
lbf)
NOTICE:
Apply the seal packing or equivalent to the bolts and tight-
en them within 10 minutes after application because the
bolts should be seal bolts.
11. ADD AUTOMATIC TRANSAXLE FLUID
12.INSPECT AUTOMATIC TRANSAXLE FLUID (See page 40±2)
13. RESET MEMORY
(a)1AZ±FE (See pege 05±863)
(b)1AZ±FSE (See pege 05±920)

D08009
40±46
±
AUTOMATIC TRANSMISSION / TRANS TRANSMISSION VALVE BODY ASSY(U341E)
AVENSIS REPAIR MANUAL (RM1018E)

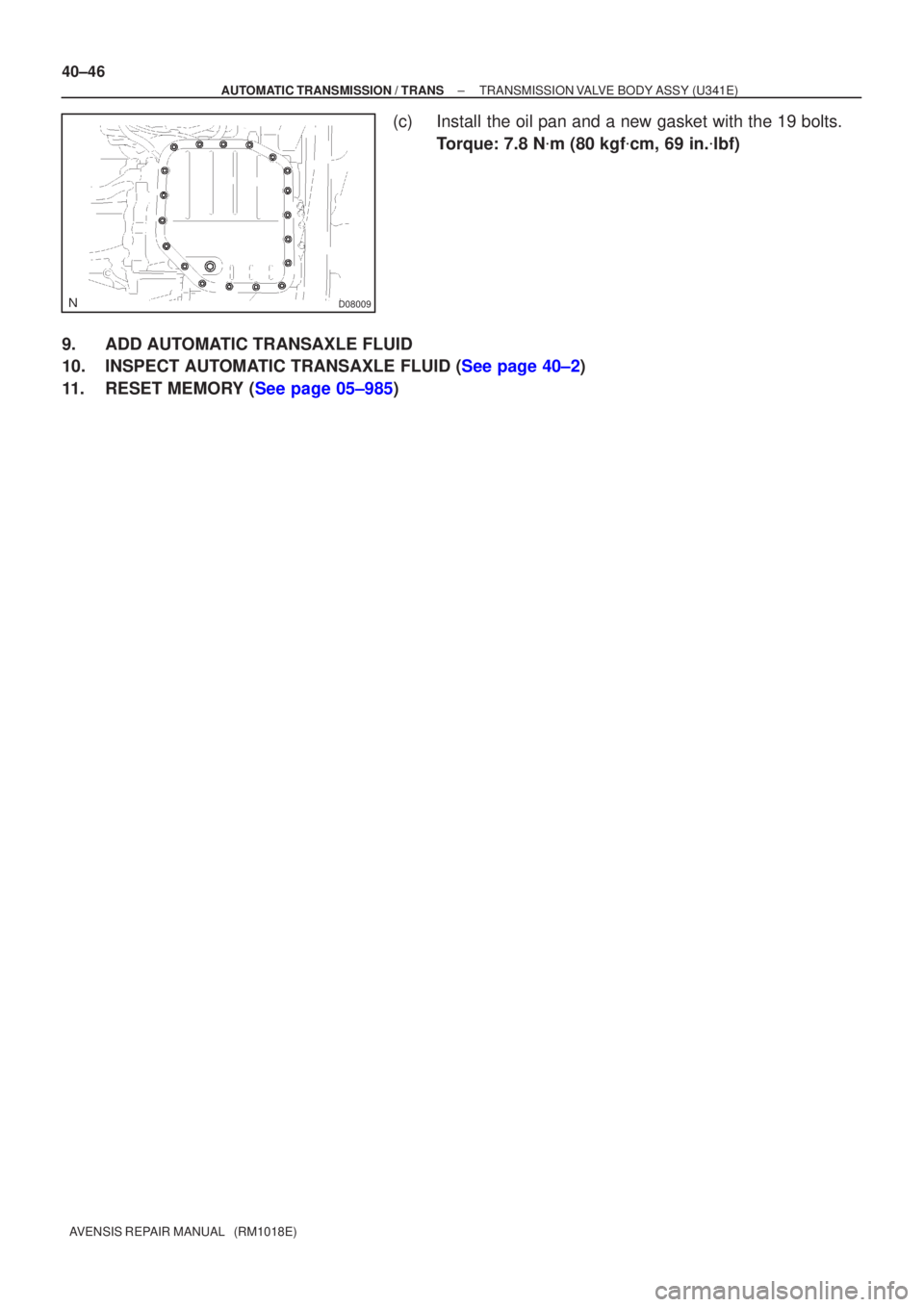

(c)Install the oil pan and a new gasket with the 19 bolts. Torque: 7.8 N
m (80 kgf
cm, 69 in.
lbf)
9.ADD AUTOMATIC TRANSAXLE FLUID
10.INSPECT AUTOMATIC TRANSAXLE FLUID (See page 40±2)
11.RESET MEMORY (See page 05±985)

D30865
C91925
−
AUTOMATIC TRANSMISSION / TRANS TRANSMISSION VALVE BODY ASSY (U151E)
40−23
AVENSIS Supplement (RM1045E)
10. I NSTALL AUTO M AT I C TRANSAXLE O I L PAN
SUB −ASSY
(a) Install the 2 magnets to the oil pan.
(b) Apply seal packing to the 18 bolts. Seal packing:
THREE BOND 1344 or equivalent
(c) Install a new gasket, the oil pan and 18 bolts to the trans- axle case.
Torque: 7.8 N
m (80 kgf
cm, 69 in.
lbf)
NOTICE:
Apply seal packing to the bolts and tighten them within 10
minutes of application.
11 . ADD AUTOMATIC TRANSAXLE FLUID (SEE PUB. NO. RM 1018E, PAGE 40 −2)
1 2. INSPECT AUTOMATIC TRANSAXLE FLUID (SEE PUB. NO. RM 1018E, PAGE 40 −2)
1 3. RESET MEMORY (SEE PAGE 05 −54 1)

C91925
40−1 8
−
AUTOMATIC TRANSMISSION / TRANS TRANSMISSION WIRE (U151E)
AVENSIS Supplement (RM1045E)
(c) Install a new gasket, the oil pan and 18 bolts to the trans- axle case.
Torque: 7.8 N
m (80 kgf
cm, 69 in.
lbf)
NOTICE:
Apply seal packing to the bolts and tighten them within 10
minutes of application.
9. ADD AUTOMATIC TRANSAXLE FLUID (SEE PUB. NO. RM 1018E, PAGE 40 −2)
1 0. INSPECT AUTOMATIC TRANSAXLE FLUID (SEE PUB. NO. RM 1018E, PAGE 40 −2)
11 . RESET MEMORY (SEE PAGE 05 −54 1)
