031H2±01
± SERVICE SPECIFICATIONSENGINE MECHANICAL
03±15
AVENSIS REPAIR MANUAL (RM1018E)
TORQUE SPECIFICATION
1ZZ±FE/3ZZ±FE:
Part TightenedN
mkgf
cmft
lbf
Camshaft bearing cap No. 3 x Cylinder head sub±assy1313310
Camshaft bearing cap No. 1 x Cylinder head sub±assy2323517
Camshaft timing gear or sprocket x Camshaft No. 25455140
Chain tensioner assy No. 1 x Timing chain or belt cover sub±assy9.09280 in.
lbf
V±ribbed belt tensioner assy x Cylinder block sub±assy6970451
V±ribbed belt tensioner assy x Cylinder head sub±assy2929621
Engine mounting insulator RH x Body5253038
Engine mounting insulator RH x Transverse engine engine mounting bracket5253038
Cylinder head cover sub±assy x Cylinder head sub±assy A
B11
9.011 2
928
80 in.
lbf
Cylinder head cover sub±assy x Timing chain or belt cover sub±assy1111 28
Ignition coil assy x Cylinder head cover sub±assy9.09280 in.
lbf
Engine wire x Cylinder head cover sub±assy9.09280 in.
lbf
Cylinder head cover No. 2 x Cylinder head cover sub±assy7.07162 in.
lbf
Engine hanger x Cylinder head sub±assy3838728
Radio setting condenser x Cylinder head sub±assy101027
Engine coolant temperature sensor x Cylinder head sub±assy2020415
Exhaust manifold x Cylinder head sub±assy3737727
Exhaust manifold heat insulator No. 1 x Exhaust manifold Bolt
Nut18
12184
12213
9
Manifold stay No. 2 x Exhaust manifold4950036
Manifold stay No. 2 x Cylinder block sub±assy4950036
Manifold stay x Exhaust manifold A4950036
Manifold stay x Cylinder block sub±assy B3737727
Transverse engine engine mounting bracket x Timing chain or belt cover
sub±assy4747935
V±ribbed idler assy No.1 x Cylinder block sub±assy39.240029
Knock sensor x Cylinder block sub±assy2020415
Crankshaft position sensor x Timing chain or belt cover9.09280 in.
lbf
Camshaft position sensor x Cylinder head sub±assy9.09280 in.
lbf
Water inlet x Cylinder block sub±assy1111 28
Water by±pass pipe No. 1 x Cylinder block sub±assy9.09280 in.
lbf
Water by±pass pipe No. 1 x Cylinder head sub±assy9.09280 in.
lbf
Oil level gage guide x Water by±pass pipe No. 11313310
Intake manifold x Cylinder head sub±assy3030622
Flywheel sub±assy x Crankshaft 1st
2nd49
Turn 90
500
Turn 90
36
Turn 90

Drive plate & ring gear sub±assy x Crankshaft8889765
Transverse engine engine mounting bracket front x Transverse engine en-
gine mounting insulator front5253038
Transverse engine engine mounting bracket rear x Transverse engine engine
mounting insulator rear8788764
Transverse engine engine mounting bracket LH x Transverse engine engine
mounting insulator LH8081659
Transverse engine engine mounting bracket RH x Transverse engine engine
mounting insulator RH5253038
Front suspension crossmember sub±assy x Body A
B45
133459
1,35633
98
Front suspension member brace x Body Bolt A
Bolt B133
801,356
81698
59

03±18
± SERVICE SPECIFICATIONSENGINE MECHANICAL
AVENSIS REPAIR MANUAL (RM1018E)Part Tightenedft
lbf kgf
cm N
m
Knock sensor x Cylinder block2020815
Engine oil pressure switch assy x Cylinder head1515311
Water by±pass pipe No.1 x Cylinder block9.09280 in.
lbf
Drive shaft bearing bracket x Cylinder block5455140
Oil level gauge guide x Cylinder block9.09280 in.
lbf
V±ribbed belt tensioner assy x Timing chain cover6060744
Ignition coil assy x Cylinder head9.09280 in.
lbf
Water inlet x Cylinder block9.09280 in.
lbf
Exhaust manifold converter x Cylinder head3737827
Exhaust manifold stay x Exhaust manifold converter4444932
Manifold converter insulator No. 1 x Exhaust manifold converter121229
Surge tank stay No. 1 x Intake manifold2121015
Intake manifold x Cylinder head3030622
Throttle Body bracket x Throttle body2121015
Fly wheel (M/T) x Crank shaft1301,32796
Drive plate & ring gear (A/T) x Crankshaft981,00072
Transverse engine engine mounting bracket front x Transverse engine en-
gine mounting insulator front8788764
Transverse engine engine mounting bracket rear x Transverse engine engine
mounting insulator rear8788764
Front suspension cross member sub±assy front x Body Front
Rear45
133459
1,35633
98
Front suspension brace RH x Frame Bolt A
Bolt B133
801,356
81698
59
Front suspension brace LH x Frame Bolt A
Bolt B133
801,356
81698
59
Transverse engine engine mounting insulator LH x Engine mounting bracket
LH8788764
Transverse engine engine mounting insulator RH x Engine mounting bracket
RH5253038
Engine mounting bracket x No, 2 RH x Transverse engine
engine mounting insulator A
B
52
11 3530
1,15238
83
Clutch release cylinder x manual transaxle Bolt A
Bolt B
Bolt C12
9.0
5.0122
92
5189
80 in.
lbf
44 in.
lbf
Vane pump assy x Timing chain cover4343931
Front suspension arm sub±assy lower No. 1 x Lower ball joint1271,29694
Front stabilizer link assy x Front suspension7475555
Floor panel brace front x Floor3030622
Engine service cover bracket RH x Body RHD steering position type9.09280 in.
lbf
Cooler bracket x Body LHD steering position type9.09280 in.
lbf
Oil reservoir bracket No. 1 x Body8.08271 in.
lbf
Return tube sub±assy x Frame8.08271 in.
lbf
Radiator reserve tank x sub±assy x body5.05144 in.
lbf
Compressor and magnetic clutch x Cylinder block2525518
Radiator relay block x Frame5.05144 in.
lbf
Engine cover No. 1 x Cylinder head cover7.07162 in.
lbf
Air cleaner assy x Body5.05144 in.
lbf
Cylinder head x Cylinder block 1st
2nd79
Turn 90
806
Turn 90
58
Turn 90

Camshaft timing control valve assy x Cylinder head9.09280 in.
lbf
Camshaft timing gear assy x Camshaft5455140

±
SERVICE SPECIFICATIONS ENGINE MECHANICAL
03±19
AVENSIS REPAIR MANUAL (RM1018E)Part Tightened
ft
lbf
kgf
cm
N
m
Camshaft timing sprocket x Camshaft5455140
Camshaft bearing cap No. 1 x Cylinder head3030122
Camshaft bearing cap No. 2 x Cylinder head3030122
Camshaft bearing cap No. 3 x Cylinder head9.09280 in.
lbf
Chain tensioner assy No. 1 x Timing chain cover9.09280 in.
lbf
Chain tensioner plate x Stiffening crankcase assy121229
Oil pump drive sprocket x Oil pump3030122
Chain vibration damper No. 1 x Cylinder head9.09280 in.
lbf
Chain vibration damper No. 1 x Cylinder block9.09280 in.
lbf
Timing chain guide x Cylinder block9.09280 in.
lbf
Chain tensioner slipper x Cylinder block1919414
Timing chain cover (See page 14±222)Bolt A
Bolt B
Bolt C Nut9.021
43
9.092
214
438 9280 in.
lbf
15
32
80 in.
lbf
Oil pan x Stiffening crankcase assy9.09280 in.
lbf
Oil pan drain plug x Oil pan2525518
Crankshaft pulley x Crankshaft1701,733125
Cylinder head cover x Cylinder head Bolt A
Bolt B
Bolt C11
14
2111 2
143
2148.0 10
15
1CD±FTV:
Part TightenedN
mkgf
cmft
lbf
Idle pulley set nut3839028
Air tube No. 1 x Air tube No. 22525518
Air tube No. 1 x Intake air connector2525518
Air tube No. 1 x Cylinder head sub±assy2525518
Air tube No. 1 x Engine mounting bracket FR2525518
Engine cover No. 1 x Cylinder head cover sub±assy8.08271 in.
lbf
Engine cover No. 1 x Intake manifold8.08271 in.
lbf
Front wheel1031,05076
Drain plug (Manual transaxle)4950036
Engine hanger No.1 x Cylinder head3737727
Engine hanger No.2 x Cylinder head3737727
Engine hanger No. 1 UPR x Engine hanger No. 13737727
Engine coolant temperature sensor x Cylinder head2020415
Crankshaft position sensor x Oil pump assy8.89078 in.
lbf
Camshaft position sensor x Camshaft oil seal retainer8.89078 in.
lbf
Fuel filler to injection pump fuel pipe x Cylinder block M6 and Nut
M88.82190
20978 in.
lbf
15
Oil cooler pipe x Cylinder block5960043
Compressor mounting bracket x Cylinder block4242831
Injection pump x Water pump2121415
Oil level gage guide x Cylinder block1818413
Timing belt No.3 cover x Cylinder head7.47565 in.
lbf
Intake manifold x Cylinder head2121415
Wiring harness clamp bracket x Intake manifold3.9 to 6.940 to 7035 to 61 in.
lbf
Power steering idle pulley bracket x Cylinder head Bolt A
Bolt B72
39734
39853
29
Intake manifold insulator No. 1 x Intake manifold5.05144 in.
lbf

± SERVICE SPECIFICATIONSLUBRICATION
03±29
AVENSIS REPAIR MANUAL (RM1018E)Part Tightenedft
lbf kgf
cm N
m
Crankshaft position sensor x Oil pump assy8.89078 in.
lbf
Oil pan sub±assy x Cylinder block Bolt A
Bolt B
Bolt C
Bolt D42
21
11
12428
214
11 2
12231
15
8
9
Oil pan insulator x Oil pan sub±assy7.57666 in.
lbf
Oil strainer sub±assy x Oil pan sub±assy Bolt
Nut21
13209
13515
10
Oil pan Sub±assy No.2 x Oil pan sub±assy1211 99
Engine oil level sensor x Oil pan sub±assy No.27.07162 in.
lbf
Oil level gage guide x Cylinder block1818413
V±ribbed belt tensioner assy x Oil pump assy3132023
Timing belt idler sub±assy No. 1 x Cylinder head3535726
Timing belt idler sub±assy No. 2 x Oil pump assy4747935
Engine mounting insulator sub±assy RH x Transverse engine engine mount-
ing bracket5253038
Engine mounting insulator sub±assy RH x Body5253038
Engine cover No. 1 x Cylinder head cover sub±assy8.08271 in.
lbf
Engine cover No. 1 x Intake manifold8.08271 in.
lbf
Front wheel RH1031,05076
Oil cooler assy x Cylinder block4545433

030G6±04
± SERVICE SPECIFICATIONSPOWER STEERING
03±59
AVENSIS REPAIR MANUAL (RM1018E)
POWER STEERING
SERVICE DATA
POWER STEERING FLUID
Fluid level rise Maximum5 mm (0.20 in.)
Fluid pressure at idle speed with valve closed AZ Series:
1CD±FTV:8,300 to 9,000 kPa (85 to 92 kgf/cm2, 1,204 to 1,305 psi)
8,800 to 9,500 kPa (90 to 97 kgf/cm2, 1,276 to 1,378 psi)
STEERING WHEEL
Steering effort at idle speed (Reference)5.5 N´m (56 kgf´cm, 49 in.´lbf)
VANE PUMP ASSY
Vane pump rotating torque0.27 N´m (2.8 kgf´cm, 2.4 in.´lbf) or less
Vane pump shaft and vane pump housing oil clearance Maximum0.07 mm (0.0028 in.)
Vane plate thickness Minimum1.405 to 1.411 mm (0.05531 to 0.05555 in.)
Clearance between the rotor groove and plate Maximum0.03 mm (0.0012 in.)
Spring free length Minimum36.9 mm (1.453 in.)
STEERING GEAR ASSY
Total preload (Tie rod rotating torque) (Turning)0.29 to 1.96 N´m (3 to 20 kgf´cm, 2.57 to 17.35 in.´lbf)
Total preload (Control valve rotating torque) (Turning)0.6 to 1.1 N´m (6 to 11 kgf´cm, 5.3 to 9.7 in.´lbf)
RACK & PINION POWER STEERING GEAR ASSY
Total preload (Tie rod rotating torque) (Turning)0.49 to 3.43 N´m (5 to 35 kgf´cm, 4.34 to 30.38 in.´lbf)

05C4G±01
I35933
C10 C11
05±1506

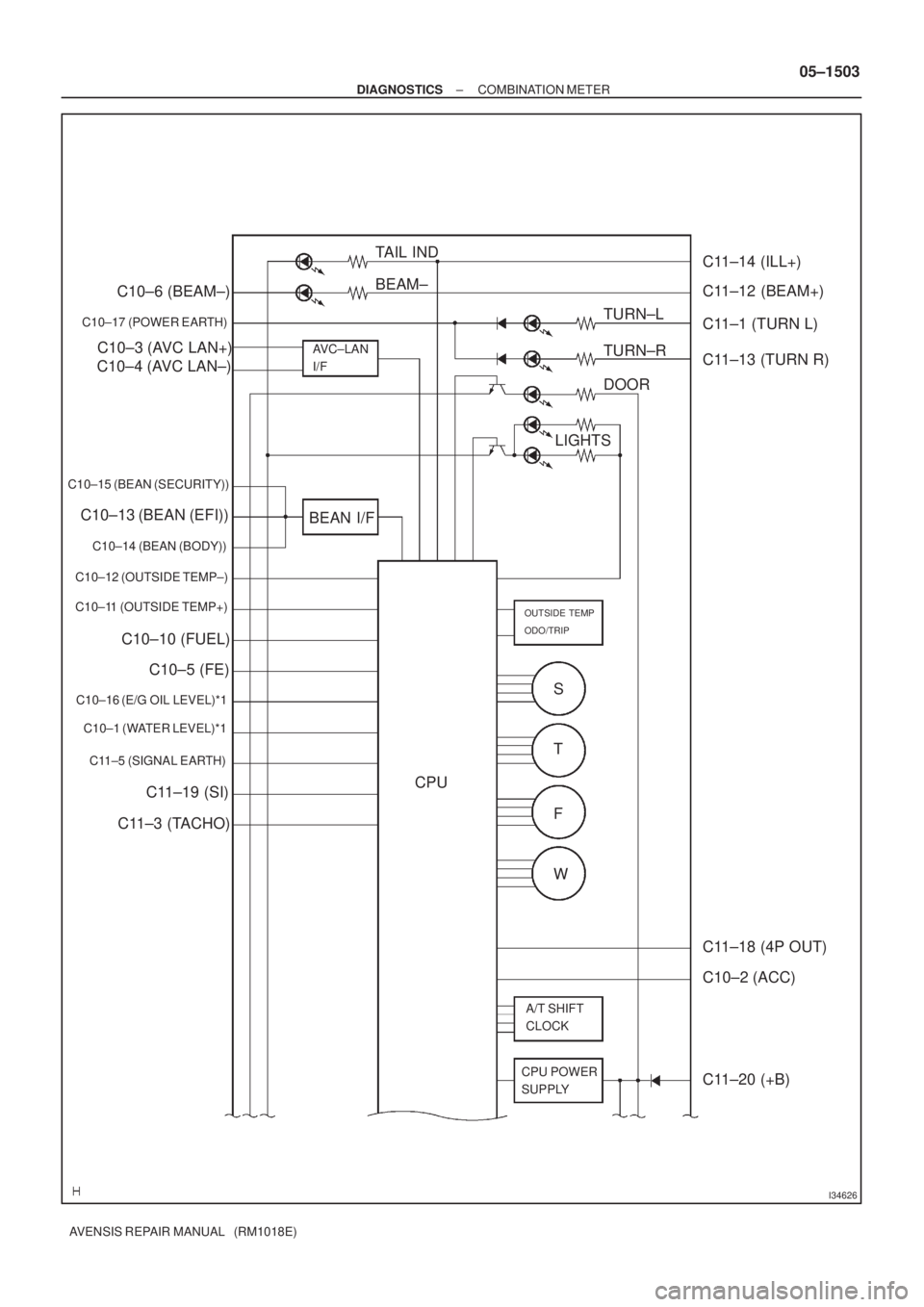

± DIAGNOSTICSCOMBINATION METER
AVENSIS REPAIR MANUAL (RM1018E)
TERMINALS OF ECU
COMBINATION METER ASSY
Terminal No.Wiring colorConditionSpecified condition
C11±1 ± Body ground
(TURN L ± Body ground)G±W ± Body
groundTurn signal LH indicator light OFF  ONBelow 1 V
10 to 14 V
C11±2 ± Body ground
(BRAKE LVL SW ±
Body ground)R±W ± Body
groundBrake fluid level warning switch ONBelow 1 V
C11±3 ± Body ground
(TACHO ± Body ground)GR±R ± Body
groundIgnition switch OFF  ON, Engine idle speedPuls generation (*2)
C11±5 ± Body ground
(SIGNAL EARTH ±
Body ground)W±B ± Body
groundConstantContinuity
C11±6 ± Body ground
(EMPS ± Body ground)B±W ± Body
groundIgnition switch ON and EMPS Indicator OFF  ON10 to 14 V
Below 1 V
C11±8 ± Body ground
(AIRBAG ± Body ground)B±Y ± Body
groundIgnition switch ON and AIRBAG Indicator OFF  ON10 to 14 V
Below 1 V
C11±9 ± Body ground
(CHECK ENGINE ±
Body ground)
W ± Body groundEngine running and CHECK ENGINE indicator OFF9 to 14 V
C11±10 ± Body ground
(AUTO LEVELING ±
Body ground)LG ± Body
groundIgnition switch ON and AUTO LEVERING Indicator OFF  ON10 to 14 V
Below 1 V
C11±11 ± Body ground
(OIL PRESS SW ±
Body ground)Y±B ± Body
groundEngine runningStoppedNo continuity
Continuity
C11±12 ± Body ground
(BEAM+ ± Body ground)R±W (w/HID),
R (w/o HID) ±
Body ground
Headlight OFFONBelow 1 V
10 to 14 V
C11±13 ± Body ground
(TURN R ± Body ground)G±Y ± Body
groundTurn signal RH indicator light OFF  ONBelow 1 V
10 to 14 V
C11±14 ± Body ground
(ILL+ ± Body ground)G ± Body groundCombination switch OFFONBelow 1 V
10 to 14 V
C11±15 ± Body ground
(SLIP ± Body ground)LG ± Body
groundIgnition switch ON and SLIP Indicator OFF  ON10 to 14 V
Below 1 V
C11±16 ± Body ground
(VSC ± Body ground)W±R ± Body
groundIgnition switch ON and VSC Indicator OFF  ON10 to 14 V
Below 1 V

± DIAGNOSTICSCOMBINATION METER
05±1507
AVENSIS REPAIR MANUAL (RM1018E) C11±17 ± Body ground
(TRC OFF ± Body ground)
LG±B ± Body
groundIgnition switch ON and TRC OFF Indicator OFF  ON10 to 14 V
Below 1 V
C1±19 ± Body ground
(SI ± Body ground)L±W ± Body
groundIgnition switch ON and turn the wheel slowlyPuls generation (*1)
C11±20 ± Body ground
(+B ± Body ground)W±R ± Body
groundAny Contents10 to 14 V
C11±21 ± Body ground
(IG1+ ± Body ground)R±W ± Body
groundIgnition switch OFF  ONBelow 1 V
10 to 14 V
C11±22 ± Body ground
(IG2+ ± Body ground)B±W ± Body
groundIgnition switch OFF  ONBelow 1 V
10 to 14 V
C10±1 ± Body ground
(WATER LEVEL ±
Body ground)Y±R ± Body
groundFuel filter warning switch ONBelow 1 V
C10±2 ± Body ground
(ACC ± Body ground)GR ± Body
groundIgnition switch OFF  ACCBelow 1 V
10 to 14 V
C10±3 ± Body ground
(AVC LAN+ ± Body ground)G±Y ± Body
groundCommunication circuit±
C10±4 ± Body ground
(AVC LAN± ± Body ground)G ± Body groundCommunication circuit±
C10±5 ± Body ground
(FE ± Body ground)BR±W ± Body
groundConstantContinuity
C10±6 ± Body ground
(BEAM± ± Body ground)
W±B (DRL)
R±W (w/ HID)
R± (w/o HID)
± Body ground
Headlight ON, Hi±beam indicator OFF  ONNo continuity
Continuity
C10±7 ± Body ground
(Fr FOG ± Body ground)G ± Body groundIgnition switch ON, Fr fog light indicator ON  OFF10 to 14 V
Below 1 V
C10±8 ± Body ground
(Rr FOG ± Body ground)R±W ± Body
groundIgnition switch ON, Rr fog light indicator ON  OFF10 to 14 V
Below 1 V
C10±9 ± Body ground
(ABS ± Body ground)R±Y ± Body
groundIgnition switch ON and ABS Indicator OFF  ON10 to 14 V
Below 1 V
C10±10 ± Body ground
(FUEL ± Body ground)G±W ± Body
groundFuel sender gauge is F position  E position4.0
 110.0

C10±11 ± Body ground
(OUTSIDE TEMP+ ±
Body ground)W±R ± Body
groundIgnition switch ON3.31 V (±9
C)
0.8 V (43
C)
C10±12 ± Body ground
(OUTSIDE TEMP± ±
Body ground)
W ± Body groundConstantContinuity
C10±13 ± Body ground
(BEAN (EFI) ± Body ground)P ± Body groundCommunication circuit±
C10±14 ± Body ground
(BEAN (BODY) ±
Body ground)P±B ± Body
groundCommunication circuit±
C10±15 ± Body ground
(BEAN (SECURITY) ±
Body ground)P±L ± Body
groundCommunication circuit±
C10±16 ± Body ground
(E/G OIL LEVEL ±
Body ground)Y±G ± Body
groundOIL LEVEL switch ONNo continuity
C10±17 ± Body ground
(POWER EARTH ±
Body ground)W±B ± Body
groundConstantContinuity

I34626
C11±14 (ILL+)
C11±1 (TURN L)
C11±13 (TURN R) C11±12 (BEAM+)
TURN±L
TURN±R TAIL IND
BEAM±
AVC±LAN
I/F
DOOR
LIGHTS
OUTSIDE TEMP
ODO/TRIP
S
T
F
W
A/T SHIFT
CLOCK
CPU POWER
SUPPLY
C11±18 (4P OUT)
C10±2 (ACC)
C11±20 (+B) C10±6 (BEAM±)
C10±3 (AVC LAN+)
C10±5 (FE) C10±4 (AVC LAN±)
C10±13 (BEAN (EFI))
C10±15 (BEAN (SECURITY))
C10±14 (BEAN (BODY)) C10±17 (POWER EARTH)
C10±12 (OUTSIDE TEMP±)
C10±11 (OUTSIDE TEMP+)
C10±10 (FUEL)
C10±16 (E/G OIL LEVEL)*1
C10±1 (WATER LEVEL)*1
C11±5 (SIGNAL EARTH)
C11±19 (SI)
C11±3 (TACHO)CPU BEAN I/F
± DIAGNOSTICSCOMBINATION METER
05±1503
AVENSIS REPAIR MANUAL (RM1018E)
