A79173New O±Ring
±
ENGINE MECHANICAL PARTIAL ENGINE ASSY(1CD±FTV)
14±295
AVENSIS REPAIR MANUAL (RM1018E)
106.REMOVE CRANKSHAFT POSITION SENSOR
(a)Remove the bolt and the crankshaft position sensor.
107.REMOVE CAMSHAFT POSITION SENSOR
(a)Remove the bolt and the camshaft position sensor.
108.REMOVE ENGINE COOLANT TEMPERATURE SENSOR
109.REPLACE PARTIAL ENGINE ASSY
110.INSTALL ENGINE COOLANT TEMPERATURE SENSOR
Torque: 20 N
m (204 kgf
cm,15 ft
lbf)
111.INSTALL CAMSHAFT POSITION SENSOR Torque: 8.8 N
m (90 kgf
cm,78 in.
lbf)
112.INSTALL CRANKSHAFT POSITION SENSOR Torque: 8.8 N
m (90 kgf
cm,78 in.
lbf)
113.INSTALL FUEL FILTER TO INJECTION PUMP FUEL PIPE Torque:
8.8 N
m (90 kgf
cm,78 ft
lbf) for M6 and Nut
21 N
m (209 kgf
cm,15 ft
lbf) for M8
114.INSTALL OIL COOLER PIPE
(a)Install 2 new gaskets and the oil cooler pipe with the union bolt. Torque: 59 N
m (600 kgf
cm,43 ft
lbf)
115.INSTALL THERMOSTAT (See page 16±50)
116.INSTALL WATER INLET (See page 16±50)
117. INSTALL COMPRESSOR MOUNTING BRACKET NO.1
Torque: 42 N
m (428 kgf
cm, 31 ft
lbf)
118. INSTALL INJECTION OR SUPPLY PUMP ASSY Torque: 21 N
m (214 kgf
cm, 15 ft
lbf)
119. INSTALL OIL LEVEL GAGE GUIDE
(a) Install a new O±ring to the oil level gage guide.
(b) Apply engine oil to the O±ring.
(c) Push in the oil level gage guide end into the guide hole of the No. 1 oil pan.
(d) Install the oil level gage guide with the bolt. Torque: 18 N
m (184 kgf
cm, 13 ft
lbf)
(e) Apply engine oil to the O±ring on the oil level gage.
(f) Install the oil level gage.
120. INSTALL TIMING BELT NO.3 COVER Torque: 7.4 N
m (75 kgf
cm, 65 in.
lbf)
121.INSTALL INJECTION PUMP DRIVE PULLEY (See page 11±69)
SST 09960±10010 (09962±01000, 09963±01000)
122. INSTALL INTAKE MANIFOLD
(a) Install a new gasket and the intake manifold with the 8 bolts and 2 nuts\
. Torque: 21 N
m (214 kgf
cm, 15 ft
lbf)
(b) Install the wiring harness clamp bracket with the 2 bolts.
Torque: 3.9 to 6.9 N
m (40 to 70 kgf
cm, 35 to 61 in.
lbf)

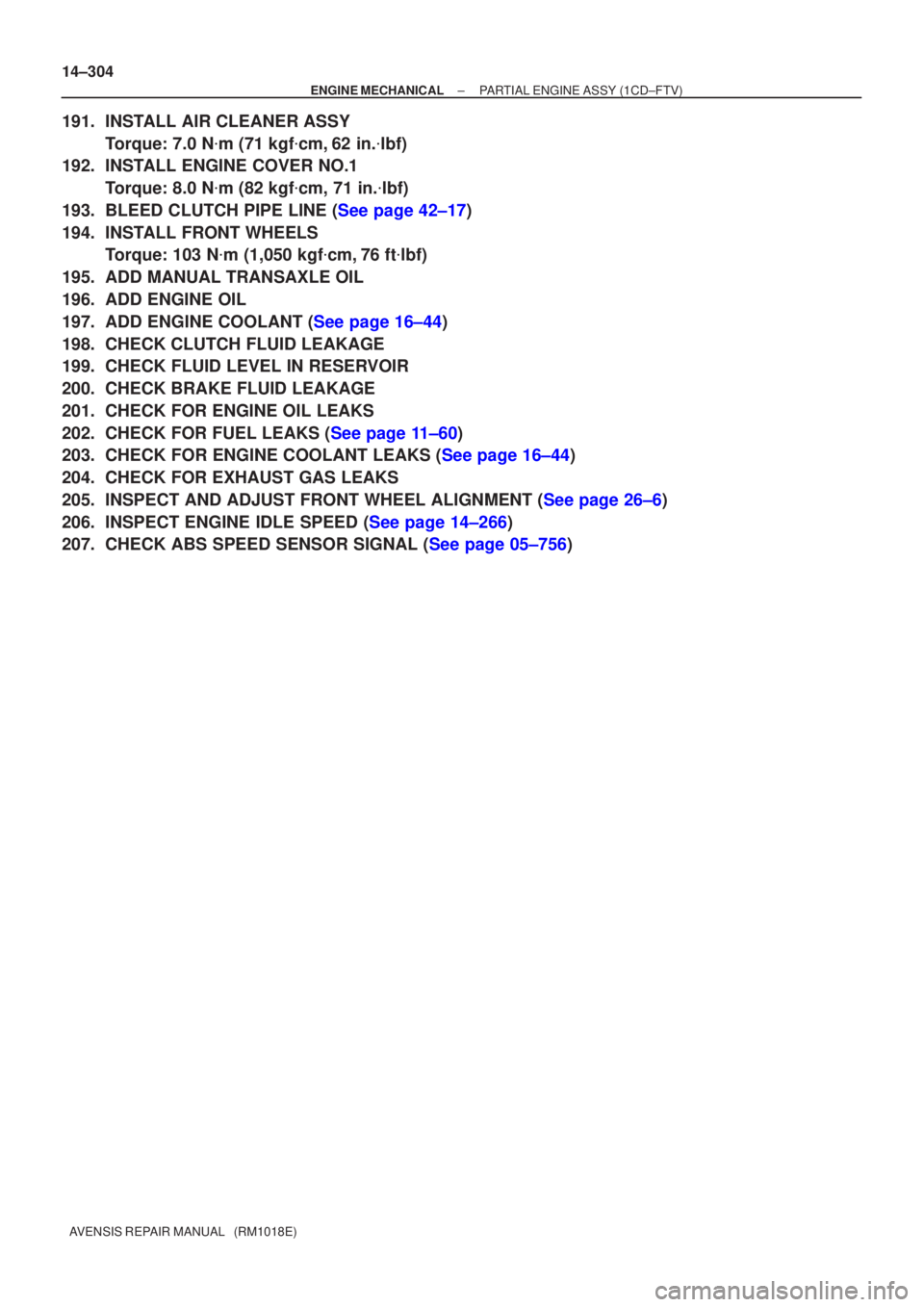

14±304
±
ENGINE MECHANICAL PARTIAL ENGINE ASSY (1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)
191. INSTALL AIR CLEANER ASSY Torque: 7.0 N
m (71 kgf
cm, 62 in.
lbf)
192. INSTALL ENGINE COVER NO.1
Torque: 8.0 N
m (82 kgf
cm, 71 in.
lbf)
193.BLEED CLUTCH PIPE LINE (See page 42±17)
194. INSTALL FRONT WHEELS Torque: 103 N
m (1,050 kgf
cm, 76 ft
lbf)
195. ADD MANUAL TRANSAXLE OIL
196. ADD ENGINE OIL
197.ADD ENGINE COOLANT (See page 16±44)
198. CHECK CLUTCH FLUID LEAKAGE
199. CHECK FLUID LEVEL IN RESERVOIR
200. CHECK BRAKE FLUID LEAKAGE
201. CHECK FOR ENGINE OIL LEAKS
202.CHECK FOR FUEL LEAKS (See page 11±60)
203.CHECK FOR ENGINE COOLANT LEAKS (See page 16±44)
204. CHECK FOR EXHAUST GAS LEAKS
205.INSPECT AND ADJUST FRONT WHEEL ALIGNMENT (See page 26±6)
206.INSPECT ENGINE IDLE SPEED (See page 14±266)
207.CHECK ABS SPEED SENSOR SIGNAL (See page 05±756)

160N1±01
A78433
± COOLINGCOOLING SYSTEM (1AZ±FE)
16±13
AVENSIS REPAIR MANUAL (RM1018E)
COOLING SYSTEM (1AZ±FE)
ON±VEHICLE INSPECTION
1. INSPECT COOLING SYSTEM FOR LEAKS
CAUTION:
To avoid the danger of being burned, do not remove the ra-
diator cap while the engine and radiator are still hot. Ther-
mal expansion will cause hot engine coolant and steam to
blow out from the radiator.
(a) Remove the radiator support opening cover.
(b) Remove the engine room cover side.
(c) Fill the radiator with coolant and attach a radiator cap tes-
ter.
(d) Warm up the engine.
(e) Pump it to 137 kPa (1.4 kgf/cm
2, 19.9 psi), and check that
the pressure does not drop.
If the pressure drops, check the hoses, radiator and water
pump for leaks. If there are no signs or traces of external coolant
leaks, check the heater core, cylinder block and head.
(f) Reinstall the engine room cover side.
(g) Reinstall the radiator support opening cover.
2. CHECK ENGINE COOLANT LEVEL AT RESERVOIR
(a) The engine coolant should be between the ºLOWº and ºFULLº lines, when the engine is cold.
If low, check for leaks and add ºToyota Long Life Coolantº or equivalent up to the ºFULLº line.
3. CHECK ENGINE COOLANT QUALITY
(a) Remove the radiator cap.
CAUTION:
To avoid the danger of being burned, do not remove the radiator cap while the engine and radiator
are still hot. Thermal expansion will cause hot engine coolant and steam to blow out from the radiator.
(b) Check if there is any excessive deposits of rust or scale around the radiator cap and radiator filler hole;
the coolant should be free from oil.
If excessively dirty, replace the coolant.
(c) Reinstall the radiator cap.

160N4±01
A79037
± COOLINGCOOLING SYSTEM (1ZZ±FE/3ZZ±FE)
16±1
AVENSIS REPAIR MANUAL (RM1018E)
COOLING SYSTEM (1ZZ±FE/3ZZ±FE)
ON±VEHICLE INSPECTION
1. INSPECT COOLING SYSTEM FOR LEAKS
CAUTION:
To avoid the danger of being burned, do not remove the ra-
diator cap while the engine and radiator are still hot. Ther-
mal expansion will cause hot engine coolant and steam to
blow out from the radiator.
(a) Remove the radiator support opening cover.
(b) Remove the engine room cover side.
(c) Fill the radiator with coolant and attach a radiator cap tes-
ter.
(d) Warm up the engine.
(e) Pump it to 118 kPa (1.2 kgf/cm
2, 17.1 psi), and check that
the pressure does not drop.
If the pressure drops, check the hoses, radiator and water
pump for leaks. If there are no signs or traces of external coolant
leaks, check the heater core, cylinder block and head.
(f) Reinstall the engine room cover side.
(g) Reinstall the radiator support opening cover.
2. CHECK ENGINE COOLANT LEVEL AT RESERVOIR
(a) The engine coolant level should be between the ºLOWº and ºFULLº lines, when the engine is cold.
If low, check for leaks and add ºToyota Long Life Coolantº or equivalent up to the ºFULLº line.
3. CHECK ENGINE COOLANT QUALITY
(a) Remove the radiator cap.
CAUTION:
To avoid the danger of being burned, do not remove the radiator cap while the engine and radiator
are still hot. Thermal expansion will cause hot engine coolant and steam to blow out from the radiator.
(b) Check if there is any excessive deposits of rust or scale around the radiator cap and radiator filler hole;
the coolant should be free from oil.
If excessively dirty, replace the coolant.
(c) Reinstall the radiator cap.

160N6±01
A78434
Radiator Cap Tester
± COOLINGCOOLING SYSTEM (1CD±FTV)
16±37
AVENSIS REPAIR MANUAL (RM1018E)
COOLING SYSTEM (1CD±FTV)
ON±VEHICLE INSPECTION
1. INSPECT COOLING SYSTEM FOR LEAKS
CAUTION:
To avoid the danger of being burned, do not remove the ra-
diator cap while the engine and radiator are still hot. Ther-
mal expansion will cause hot engine coolant and steam to
blow out from the radiator.
(a) Remove the radiator support opening cover.
(b) Remove the engine room cover side.
(c) Fill the radiator with coolant and attach a radiator cap tes-
ter.
(d) Warm up the engine.
(e) Pump it to 137 kPa (1.4 kgf/cm
2, 19.9 psi), and check that
the pressure does not drop.
If the pressure drops, check the hoses, radiator and water
pump for leaks. If there are no signs or traces of external coolant
leaks, check the heater core, cylinder block and head.
(f) Reinstall the engine room cover side.
(g) Reinstall the radiator support opening cover.
2. CHECK ENGINE COOLANT LEVEL AT RESERVOIR
(a) The engine coolant should be between the ºLOWº and ºFULLº lines, when the engine is cold.
If low, check for leaks and add ºToyota Long Life Coolantº or equivalent up to the ºFULLº line.
3. CHECK ENGINE COOLANT QUALITY
(a) Remove the radiator cap.
CAUTION:
To avoid the danger of being burned, do not remove the radiator cap while the engine and radiator
are still hot. Thermal expansion will cause hot engine coolant and steam to blow out from the radiator.
(b) Check if there is any excessive deposits of rust or scale around the radiator cap and radiator filler hole;
the coolant should be free from oil.
If excessively dirty, replace the coolant.
(c) Reinstall the radiator cap.

160MY±01
A78433
± COOLINGCOOLING SYSTEM (1AZ±FSE)
16±25
AVENSIS REPAIR MANUAL (RM1018E)
COOLING SYSTEM (1AZ±FSE)
ON±VEHICLE INSPECTION
1. INSPECT COOLING SYSTEM FOR LEAKS
CAUTION:
To avoid the danger of being burned, do not remove the ra-
diator cap while the engine and radiator are still hot. Ther-
mal expansion will cause hot engine coolant and steam to
blow out from the radiator.
(a) Remove the radiator support opening cover.
(b) Remove the engine room cover side.
(c) Fill the radiator with coolant and attach a radiator cap tes-
ter.
(d) Warm up the engine.
(e) Pump it to 118 kPa (1.2 kgf/cm
2, 17.1 psi), and check that
the pressure does not drop.
If the pressure drops, check the hoses, radiator and water
pump for leaks. If there are no signs or traces of external coolant
leaks, check the heater core, cylinder block and head.
(f) Reinstall the engine room cover side.
(g) Reinstall the radiator support opening cover.
2. CHECK ENGINE COOLANT LEVEL AT RESERVOIR
(a) The engine coolant should be between the ºLOWº and ºFULLº lines, when the engine is cold.
If low, check for leaks and add ºToyota Long Life Coolantº or equivalent up to the ºFULLº line.
3. CHECK ENGINE COOLANT QUALITY
(a) Remove the radiator cap.
CAUTION:
To avoid the danger of being burned, do not remove the radiator cap while the engine and radiator
are still hot. Thermal expansion will cause hot engine coolant and steam to blow out from the radiator.
(b) Check if there is any excessive deposits of rust or scale around the radiator cap and radiator filler hole;
the coolant should be free from oil.
If excessively dirty, replace the coolant.
(c) Reinstall the radiator cap.

A79173
A79174
A56695
A79175
A56696
± LUBRICATIONOIL PUMP ASSY (1CD±FTV)
17±23
AVENSIS REPAIR MANUAL (RM1018E)
27. REMOVE OIL LEVEL GAGE GUIDE
(a) Remove the bolt which is used to secure the oil level gage
guide to the cylinder block.
(b) Pull out the oil level gage guide together with the oil level
gage from the No. 1 oil pan.
(c) Remove the O±ring from the oil level gage guide.
28. REMOVE ENGINE OIL LEVEL SENSOR
(a) Remove the 4 bolts and the level sensor.
NOTICE:
Be careful not to drop the oil level sensor when removing.
29. REMOVE OIL PAN SUB±ASSY NO.2
(a) Remove the 17 bolts and 2 nuts.
(b) Insert the blade of SST between the No. 1 and No. 2 oil
pans, and cut off applied sealer and remove the No. 2 oil
pan.
SST 09032±00100
NOTICE:
Be careful not to damage the No. 1 and No. 2 oil pans.
30. REMOVE OIL STRAINER SUB±ASSY
(a) Remove the 2 bolts and 2 nuts, then remove the oil strain-
er and the gasket.

A56704
Seal Width
4 to 7 mm
A
B B
A
A79173New O±ring
17±28
±
LUBRICATION OIL PUMP ASSY(1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)
(3)Using a non±residue solvent, clean both the sealing surfaces.
NOTICE:
Do not use a solvent, which will affect the painted surfaces.
(b)Apply a seal packing to the oil pan as shown in the illustra- tion.
Seal packing: Part No. 08826±00080 or equivalent
(1)Install a nozzle that has been cut to a 4 to 7 mm
(0.16 to 0.28 in.) opening.
(2)Parts must be set within 3 minutes and assembled within 15 minutes of application. Otherwise the ma-
terial must be removed and reapplied.
(3)Immediately remove nozzle from the tube and rein- stall the cap.
(c)Install the oil pan with the 17 bolts and 2 nuts. Tighten the
bolts and nuts uniformly in several steps.
Torque: 12 N m (119 kgf cm, 9ft lbf)
42.INSTALL ENGINE OIL LEVEL SENSOR Torque: 7.0 N m (71 kgf cm, 62 in. lbf)
43.INSTALL OIL LEVEL GAGE GUIDE
(a)Install a new O±ring to the oil level gage guide.
(b)Apply engine oil to the O±ring.
(c)Push in the oil level gage guide end into the guide hole of the No. 1 oil pan.
(d)Install the oil level gage guide with the bolt. Torque: 18 N m (184 kgf cm, 13 ft lbf)
(e)Apply engine oil to the O±ring on the oil level gage.
(f)Install the oil level gage.
44.INSTALL V±RIBBED BELT TENSIONER ASSY Torque: 31 N m (320 kgf cm,23 ft lbf)
45.INSTALL TIMING BELT IDLER SUB±ASSY NO.1
Torque: 35 N m (357 kgf cm,26 ft lbf)
46.INSTALL GENERATOR ASSY(See page 19±29)
