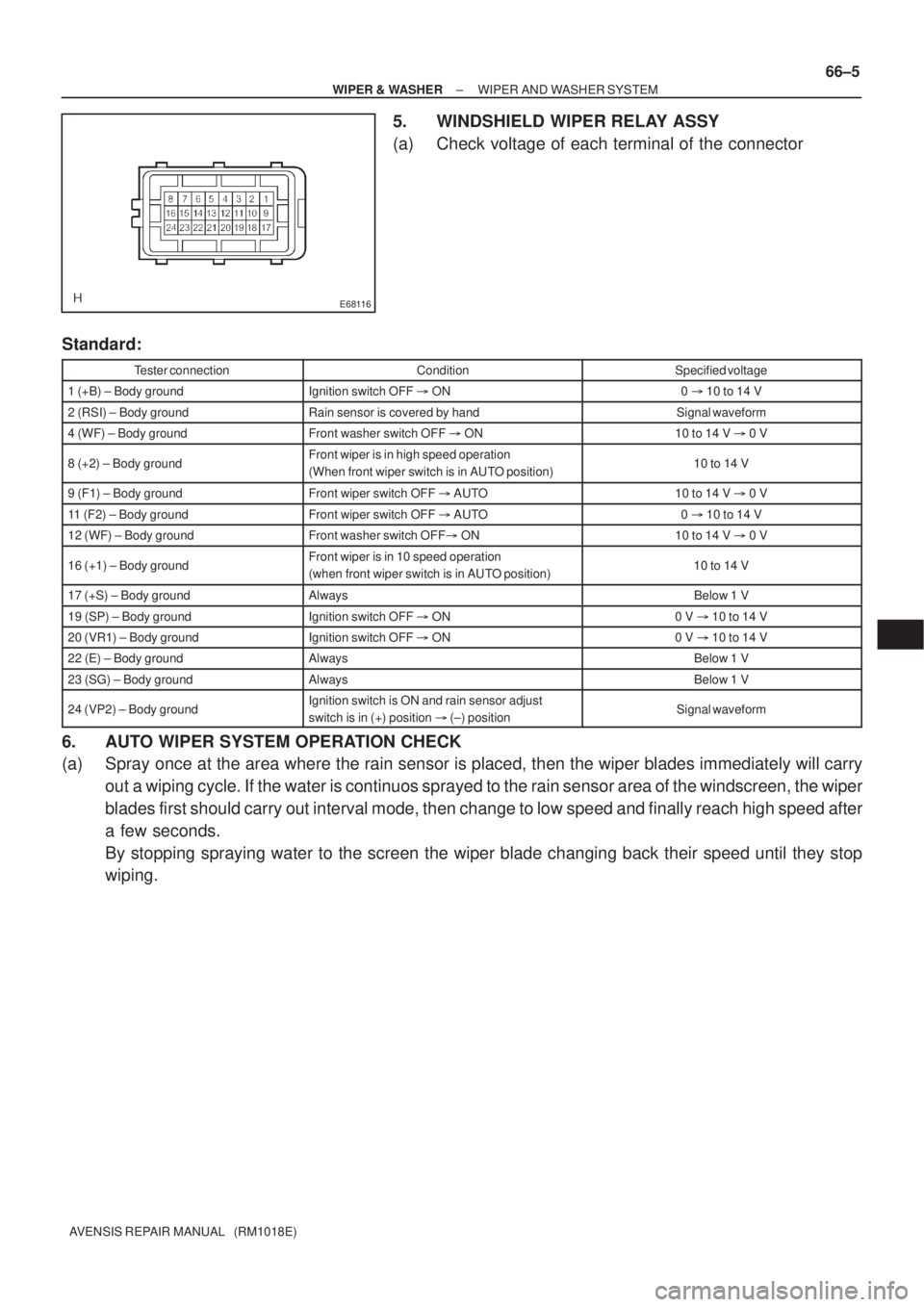

5. WINDSHIELD WIPER RELAY ASSY
(a) Check voltage of each terminal of the connector
Standard:
Tester connectionConditionSpecified voltage
1 (+B) ± Body groundIgnition switch OFF ON0 10 to 14 V
2 (RSI) ± Body groundRain sensor is covered by handSignal waveform
4 (WF) ± Body groundFront washer switch OFF ON10 to 14 V 0 V
8 (+2) ± Body groundFront wiper is in high speed operation
(When front wiper switch is in AUTO position)10 to 14 V
9 (F1) ± Body groundFront wiper switch OFF AUTO10 to 14 V 0 V
11 (F2) ± Body groundFront wiper switch OFF AUTO0 10 to 14 V
12 (WF) ± Body groundFront washer switch OFF ON10 to 14 V 0 V
16 (+1) ± Body groundFront wiper is in 10 speed operation
(when front wiper switch is in AUTO position)10 to 14 V
17 (+S) ± Body groundAlwaysBelow 1 V
19 (SP) ± Body groundIgnition switch OFF ON0 V 10 to 14 V
20 (VR1) ± Body groundIgnition switch OFF ON0 V 10 to 14 V
22 (E) ± Body groundAlwaysBelow 1 V
23 (SG) ± Body groundAlwaysBelow 1 V
24 (VP2) ± Body groundIgnition switch is ON and rain sensor adjust
switch is in (+) position (±) positionSignal waveform
6. AUTO WIPER SYSTEM OPERATION CHECK
(a) Spray once at the area where the rain sensor is placed, then the wiper blades immediately will carry
out a wiping cycle. If the water is continuos sprayed to the rain sensor area of the windscreen, the wiper
blades first should carry out interval mode, then change to low speed and finally reach high speed after
a few seconds.
By stopping spraying water to the screen the wiper blade changing back their speed until they stop
wiping.
