SUPPLEMENTAL RESTRAINT SYSTEM SUPPLEMENTAL RESTRAINT SYSTEM
60±13
AVENSIS REPAIR MANUAL (RM1018E)
5. FRONT SEAT AIRBAG ASSY (VEHICLE NOT IN-
VOLVED IN COLLISION)
(a)Do a diagnostic system check (See page 05±1184).
(b) Do a visual check which includes the following items with
the front seat airbag assy installed in the vehicle:
Cuts, minute cracks or marked discoloration on the front
seat back assy around the front seat airbag assy.
6. FRONT SEAT AIRBAG ASSY (VEHICLE INVOLVED IN COLLISION AND AIRBAG IS NOT DEPLOYED)
(a)Do a diagnostic system check (See page 05±1184).
(b) Do a visual check which includes the following items with the front seat airbag assy removed from the vehicle:

Cuts, minute cracks or marked discoloration on the
front seat airbag assy.

Cuts and cracks in wire harness, and chipping in
connectors.
7. CURTAIN SHIELD AIRBAG ASSY (VEHICLE NOT IN- VOLVED IN COLLISION)
(a)Do a diagnostic system check (See page 05±1184).
(b) Do a visual check of the curtain shield airbag assy installed in the vehicle:
Cuts, minute cracks or marked discoloration on the front
pillar garnish and roof headlining assy around the curtain
shield airbag assy.
8. CURTAIN SHIELD AIRBAG ASSY (VEHICLE IN- VOLVED IN COLLISION AND AIRBAG IS NOT
DEPLOYED)
(a)Do a diagnostic system check (See page 05±1184).
(b) Do a visual check which includes the following items with
the curtain shield airbag assy removed from the vehicle:

Cuts, minute cracks or marked discoloration on the
curtain shield airbag assy.

Cuts and cracks in wire harness, and chipping in the
connectors.
9. INSTRUMENT PANEL AIRBAG ASSY (VEHICLE IN- VOLVED IN COLLISION)
(a)Do a diagnostic system check (See page 05±1184).
(b) Do a visual check of the instrument panel airbag assy
installed in the vehicle:
Cuts, minute cracks of marked discoloration on the instru-
ment panel airbag assy.

600A1±04
H42701
60±62
±
SUPPLEMENTAL RESTRAINT SYSTEM AIR BAG SENSOR ASSY CENTER
AVENSIS REPAIR MANUAL (RM1018E)
REPLACEMENT
1.PRECAUTION (See page 60±1)
2.DISCONNECT BATTERY NEGATIVE TERMINAL (See page 60±1)
3.REMOVE SHIFT LEVER KNOB SUB±ASSY (M/T TRANSAXLE) (See page 71±11)
4.REMOVE CONSOLE PANEL SUB±ASSY UPPER (See page 71±11)
5.REMOVE CONSOLE PANEL SUB±ASSY LOWER (See page 71±11)
6.REMOVE CONSOLE BOX ASSY RR (See page 71±11)
7.REMOVE AIR DUCT REAR NO.3 (See page 71±11)
8.REMOVE AIR DUCT REAR NO.4 (See page 71±11) 9. REMOVE AIR BAG SENSOR ASSY CENTER
(a) Disconnect the 3 connectors from the airbag sensor assycenter.
(b) Remove the 3 bolts and airbag sensor assy center.
10. INSTALL AIR BAG SENSOR ASSY CENTER
(a) Check that the ignition switch is off.
(b) Check that the battery negative (±) terminal is disconnected.
NOTICE:
Do not start the operation for 90 seconds after removing the terminal.
(c) Temporarily install the airbag sensor assy center with the 3 bolts.
NOTICE:

If the airbag sensor assy center has been dropped, or there are any crac\
ks, dents or other de-
fects in the case, bracket or connector, replace the airbag sensor assy center with a new one.

When installing the airbag sensor assy center, take care that the SRS wiring does not interfere
with other parts and is not pinched between other parts.
(d) Tighten the 3 bolts to the specified torque. Torque: 17.5 N
m (178 kgf
cm, 13 ft
lbf)
(e) Connect the connectors to the airbag sensor assy center.
(f) Check that no play is identified.
(g) Check that the water±proof sheet is properly set.
11.INSPECT SRS WARNING LIGHT (See page 05±1184)

610EB±01
A79910N
m (kgf
cm ft
lbf): Specified torqueRear Window Side
Garnish RH
Roof Side
Garnish Inner RH
Deck Trim
Side Board RH
Deck Floor
Box RH
Deck Floor
Box Front
Tonneau Cover Assy
Deck Board
Sub±assy
Deck Floor
Box Rear
Deck Trim
Side Board LH
Deck Floor
Box LH
Rear Window
Side Garnish
LH
Roof Side
Garnish
Inner LHRear Floor
Finish Plate
Rear Seat Cushion Assy
and Rear Seatback Assy
Rear Seat
3 Point Type
Belt Assy Inner
42 (430, 31)
Rear Seat
3 Point Type
Belt Assy Outer
Rear Seat Belt
Assy Outer Center
Rear Seat
3 Point Type
Belt Assy Inner
31 (316, 23)CRS Anchor
Bracket Sub±assy
7.5 (76.5, 66 in.
lbf)
42 (430, 31)
42 (430, 31)
42 (430, 31)
± SEAT BELTREAR SEAT BELT (WAGON MODELS)
61±23
AVENSIS REPAIR MANUAL (RM1018E)

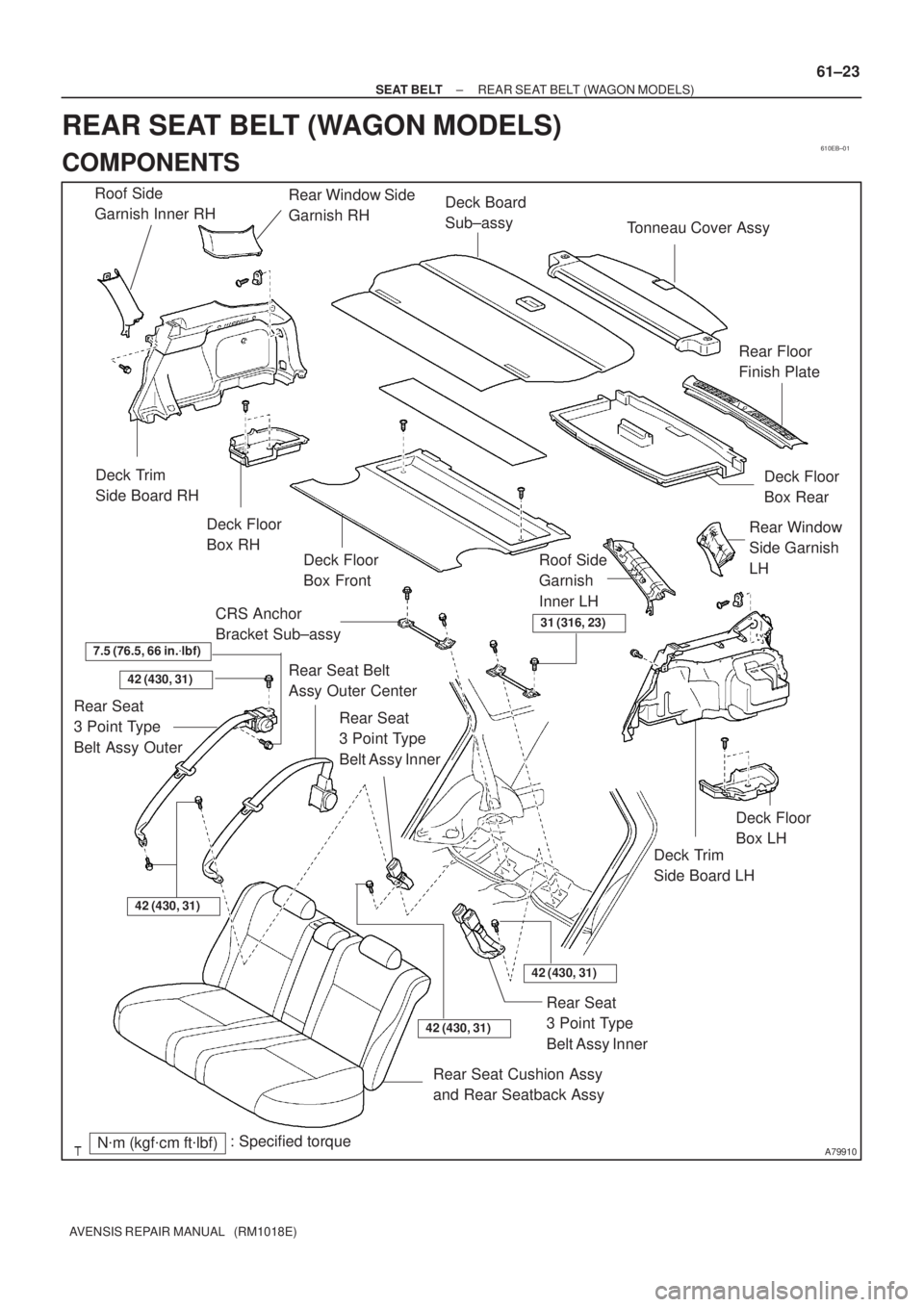

REAR SEAT BELT (WAGON MODELS)
COMPONENTS

610EA±01
B66569
Protrusion Part
Front
Front
Mark
Protrusion Part
61±20
±
SEAT BELT REAR SEAT BELT (LIFTBACK MODELS)
AVENSIS REPAIR MANUAL (RM1018E)
REPLACEMENT
HINT:

The installation is in the reverse order of the removal. However, when there is a special point concern-
ing the installation, it is indicated.

Use the same procedures on the LH side as on the RH side.
1.REMOVE REAR DOOR SCUFF PLATE RH (See page 76±45)
2. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
3.REMOVE REAR SEAT ASSY (See page 72±21)
4.REMOVE PACKAGE TRAY TRIM PANEL ASSY (See page 76±45)
5. REMOVE BACK DOOR WEATHERSTRIP
6.REMOVE REAR FLOOR FINISH PLATE (See page 76±45)
7.REMOVE ROOF SIDE GARNISH INNER RH (See page 76±45)
8.REMOVE DECK TRIM SIDE PANEL ASSY RH (See page 76±45)
9. REMOVE REAR SEAT 3 POINT TYPE BELT ASSY OUTER
(a) Remove the bolt and belt on the floor anchor side.
(b) Remove the 2 bolts and belt on the retractor side.
10. REMOVE REAR SEAT BELT ASSY OUTER CENTER
(a)Remove the rear seatback board RH (See page 72±21).
(b)Remove the rear seat shoulder belt cover (See page 72±21).
(c) Remove the bolt on the retractor side and remove the belt completely.
(d) Remove the bolt and belt assy outer center on the floor anchor side.
11. REMOVE REAR SEAT 3 POINT TYPE BELT ASSY INNER
(a) Remove the bolt and belt.
12. REMOVE REAR SEAT 3 POINT TYPE BELT ASSY INNER
(a) Remove the bolt and belt.
13. REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB±ASSY RH
(a) Remove the 2 bolts and anchor bracket.
14. INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB±ASSY RH
(a) Install the child restraint seat anchor bracket with the 2 bolts. Torque: 31 N
m (316 kgf
cm, 23 ft
lbf)
15. INSTALL REAR SEAT 3 POINT TYPE BELT ASSY INNER
(a) Install the belt with the bolt as shown in the illustration.
Torque: 42 N
m (430 kgf
cm, 31 ft
lbf)
NOTICE:
Make sure that the anchor part does not run onto the protru-
sion part of the floor panel.
16. INSTALL REAR SEAT BELT ASSY OUTER CENTER
(a) Install the belt with the bolt on the retractor side. Torque: 42 N
m (430 kgf
cm, 31 ft
lbf)

610E9±01
B66571N
m (kgf
cm ft
lbf): Specified torqueDeck Trim Side
Panel Assy RH
Package Tray
Trim Panel Assy
Roof Side
Garnish Inner LH
Deck Trim Side
Panel Assy LH
Rear Floor Finish Plate
Rear Seat Cushion Assy
and Rear Seatback Assy
Rear Seat
3 Point Type
Belt Assy Inner
Rear Seat
3 Point Type
Belt Assy Inner
42 (430, 31)
7.5 (76.5, 66 in.
lbf)
Rear Seat
3 Point Type
Belt Assy Outer
Rear Seat Belt
Assy Outer Center
31 (316, 23)
42 (430, 31)
42 (430, 31)
42 (430, 31)
CRS Anchor
Bracket Sub±assy Roof Side
Garnish Inner LH
Rear Seat Side
Back Assy RH
Rear Seat
Side Back
Assy LH
± SEAT BELTREAR SEAT BELT (LIFTBACK MODELS)
61±19
AVENSIS REPAIR MANUAL (RM1018E)

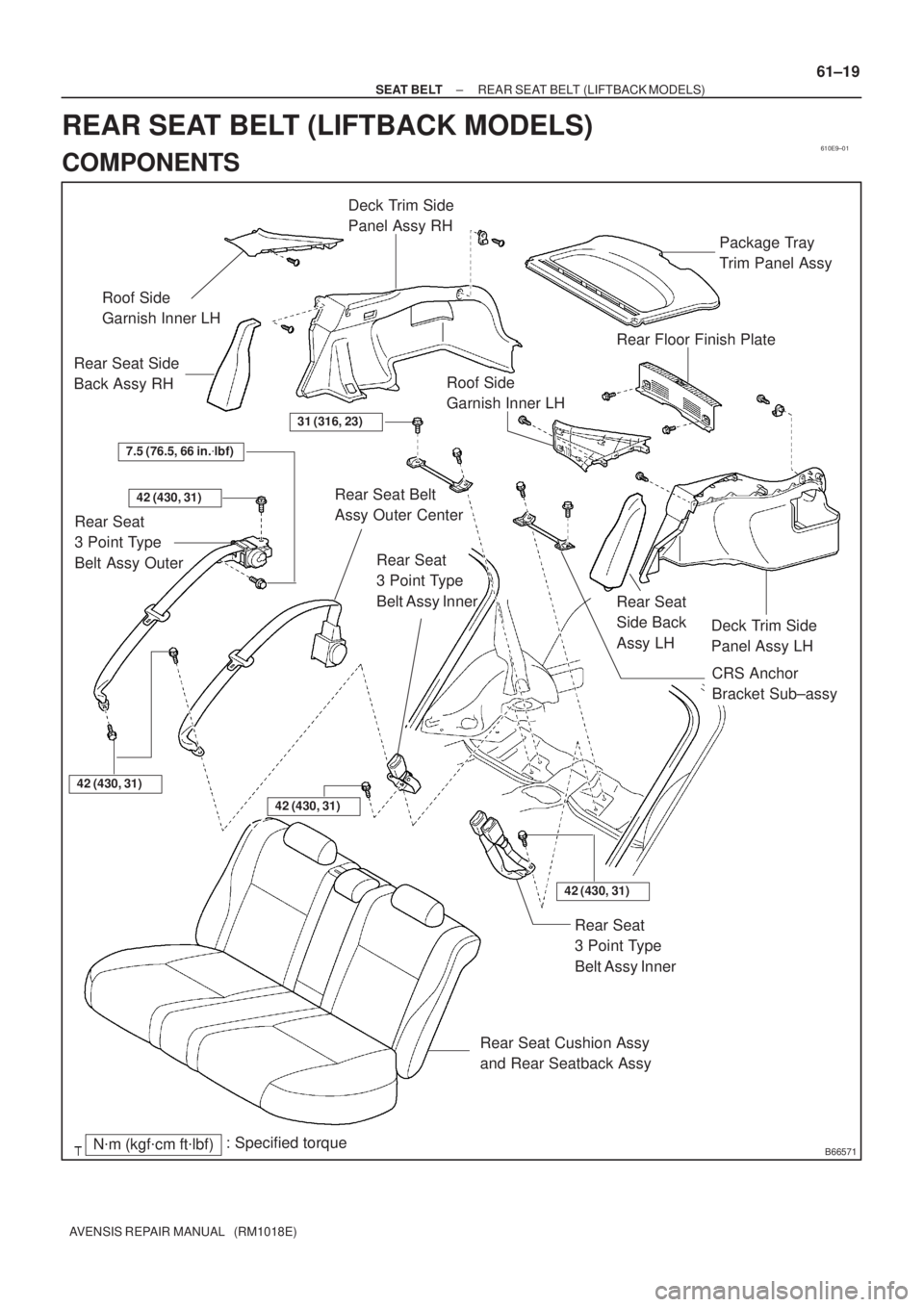

REAR SEAT BELT (LIFTBACK MODELS)
COMPONENTS

610ED±01
B66569
Protrusion Part
Front
Front
Mark
Protrusion Part
±
SEAT BELT REAR SEAT BELT (SEDAN MODELS)
61±15
AVENSIS REPAIR MANUAL (RM1018E)
REPLACEMENT
HINT:

The installation is in the reverse order of the removal. However, when there is a special point concern-
ing the installation, it is indicated.

Use the same procedures on the LH side as on the RH side.
1.REMOVE REAR DOOR SCUFF PLATE RH (See page 76±36)
2.REMOVE REAR DOOR SCUFF PLATE LH (See page 76±36)
3. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
4. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
5.REMOVE REAR SEAT ASSY (See page 72±27, 72±32)
6.REMOVE ROOF SIDE GARNISH INNER RH (See page 76±36)
7.REMOVE ROOF SIDE GARNISH INNER LH (See page 76±36)
8.REMOVE PACKAGE TRAY TRIM PANEL ASSY (See page 76±36)
9. REMOVE REAR SEAT 3 POINT TYPE BELT ASSY OUTER
(a) Remove the bolt and belt on the floor anchor side.
(b) Remove the 2 bolts and belt on the retractor side.
10. REMOVE REAR SEAT BELT ASSY OUTER CENTER
(a) United fixed type: Remove the bolt and belt on the floor anchor side.
(b) United fixed type:
Remove the bolt and belt on the retractor side.
(c) 40/60 folding type: Remove the rear seatback board RH (See page 72±27).
(d) 40/60 folding type: Remove the rear seat shoulder belt cover (See page 72±27).
(e) 40/60 folding type: Remove the bolt on the retractor side and remove the belt completely.
(f) Remove the bolt and belt outer center on the floor anchor side.
11. REMOVE REAR SEAT 3 POINT TYPE BELT ASSY INNER
(a) Remove the bolt and belt.
12. REMOVE REAR SEAT 3 POINT TYPE BELT ASSY INNER
(a) Remove the bolt and belt.
13. REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB±ASSY RH
(a) Remove the 2 bolts and anchor bracket.
14. INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB±ASSY RH
(a) Install the child restraint seat anchor bracket with the 2 bolts. Torque: 31 N
m (316 kgf
cm, 23 ft
lbf)
15. INSTALL REAR SEAT 3 POINT TYPE BELT ASSY INNER
(a) Install the belt assy with the bolt as shown in the illustra-
tion.
Torque: 42 N
m (430 kgf
cm, 31 ft
lbf)
NOTICE:
Make sure that the anchor part does not run onto the protru-
sion part of the floor panel.
16. INSTALL REAR SEAT BELT ASSY OUTER CENTER (UNITED FIXED TYPE REAR SEAT)

610CP±02
B66567
42 (430, 31)
42 (430, 31)
N
m (kgf
cm ft
lbf): Specified torqueRear Seat Cushion Assy
and Rear Seatback Assy
42 (430, 31)
Rear Seat
3 Point Type
Belt Assy OuterRear Seat Belt
Assy Outer Center
Package Tray
Trim Panel AssyRoof Side Garnish Inner RH
Roof Side Garnish Inner LH
Rear Seat
3 Point Type
Belt Assy Inner
Rear Seat
3 Point Type
Belt Assy Inner
42 (430, 31)
42 (430, 31)
31 (316, 23)
31 (316, 23)7.5 (76.5, 66 in.
lbf)Rear Seat Belt
Assy Outer Center
CRS Anchor
Bracket
Sub±assy
42 (430, 31)
40/60 Folding Type:
United Fixed Type: 61±14
± SEAT BELTREAR SEAT BELT (SEDAN MODELS)
AVENSIS REPAIR MANUAL (RM1018E)

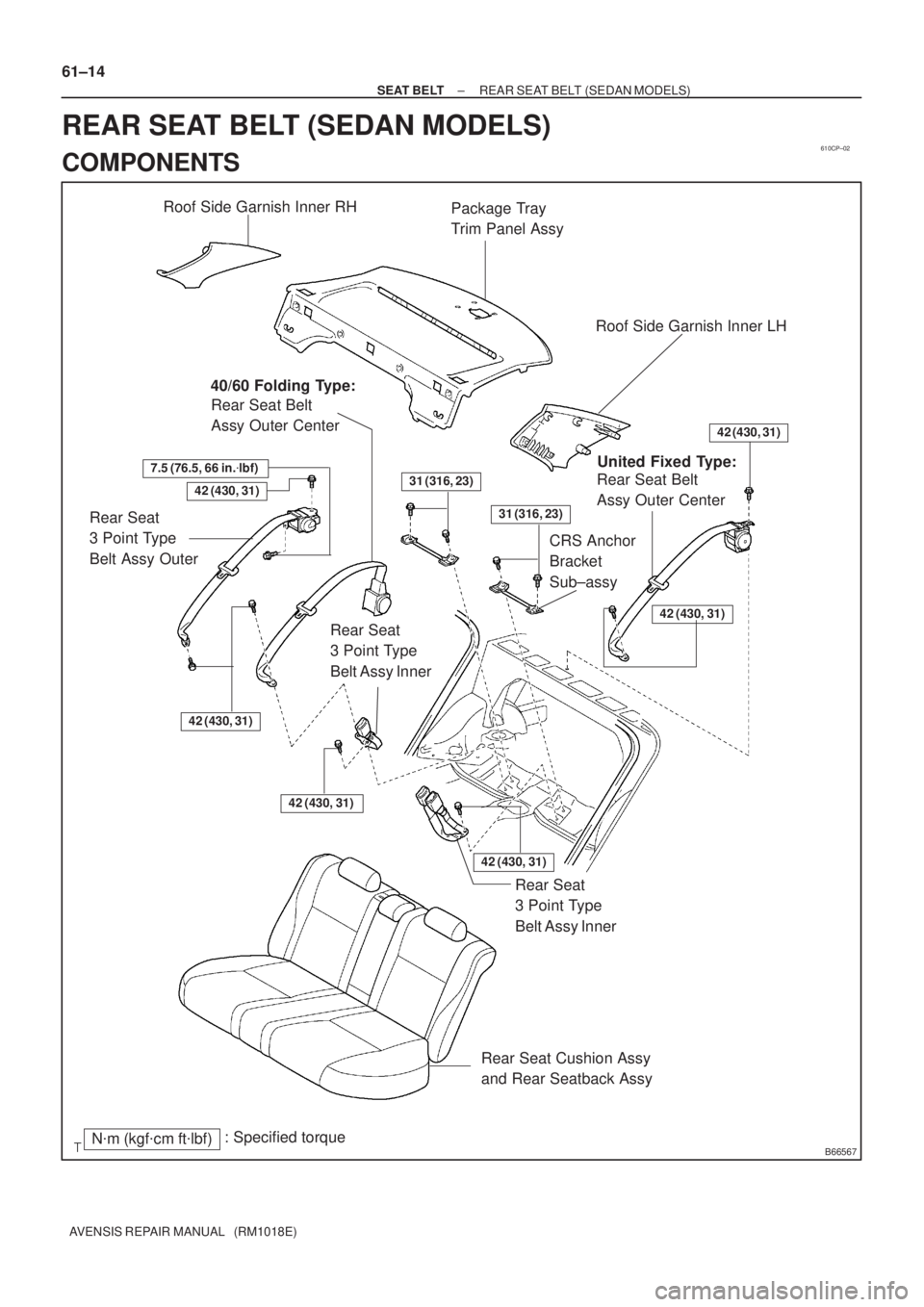

REAR SEAT BELT (SEDAN MODELS)
COMPONENTS

670SD±02
±
AUDIO & VISUAL SYSTEM AMPLIFIER ANTENNA ASSY (WAGON MODELS)
67±19
AVENSIS REPAIR MANUAL (RM1018E)

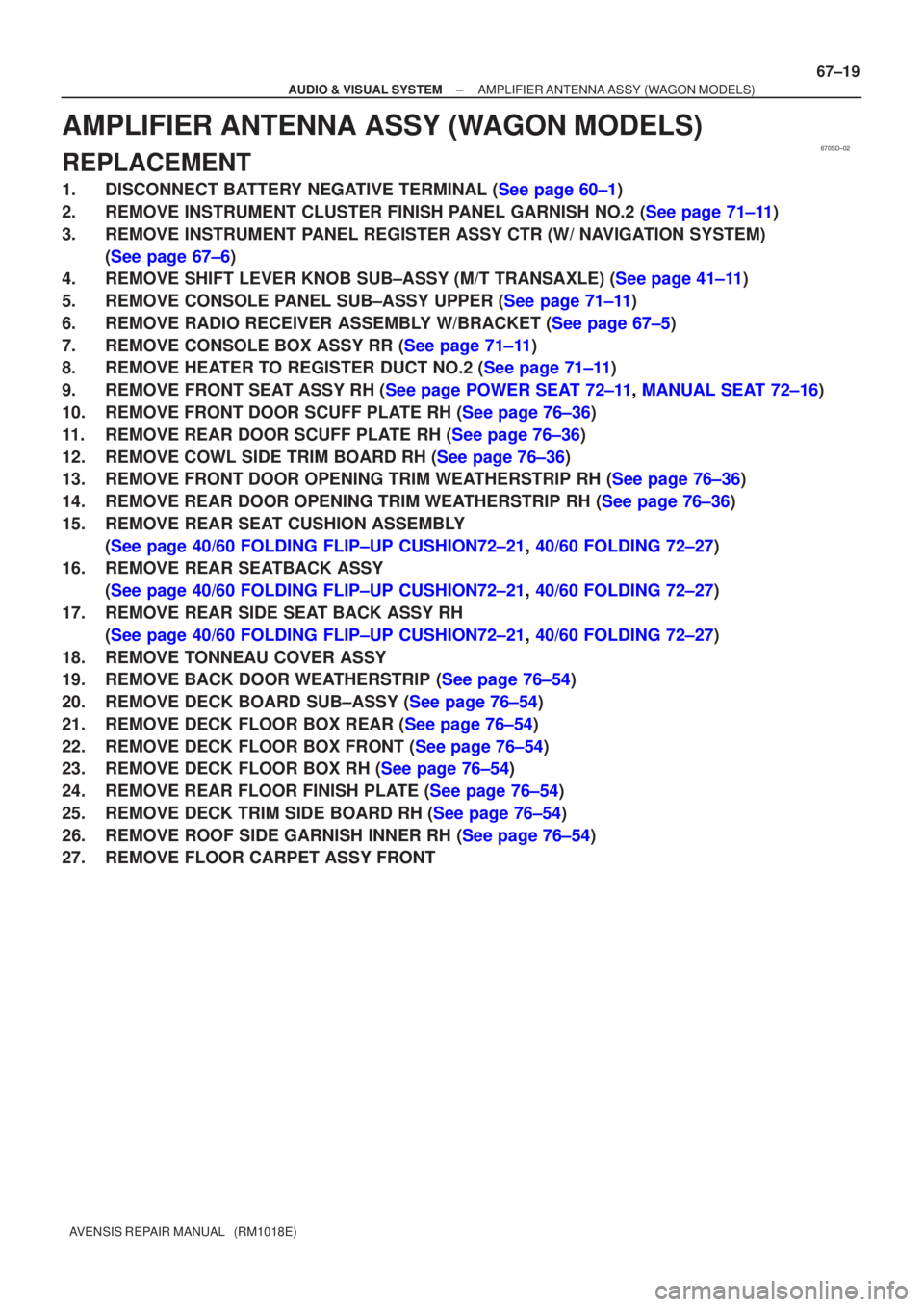

AMPLIFIER ANTENNA ASSY (WAGON MODELS)
REPLACEMENT
1. DISCONNEC T B ATTE RY NEG ATIVE TERMINAL ( See page 60±1)
2 . REMOVE INSTRUMENT CLUSTER FINISH P ANEL GARNISH NO.2 ( See page 71±11 )
3. REMOVE INSTRUMENT PANEL REGISTER ASSY CTR (W/ NAVIGATION SYSTEM) (See page 67±6 )
4 . REMOVE SHIFT LEVER KNOB SUB±ASSY (M/T TRANSAXLE) ( See page 41±11 )
5 . REMOVE CONSOLE PANEL SUB±ASSY UPPER ( See page 71±11 )
6 . REMOVE RADIO RECEIVER ASSEMB LY W/BRACKET ( See page 67±5)
7 . REMOVE CONSOLE BOX ASSY RR ( See page 71±11 )
8 . REMOVE HE ATER T O REGISTER DUCT NO.2 ( See page 71±11 )
9 . REMOVE FRONT SE AT ASSY RH ( See page POWER SE AT 72± 11 , MANUAL SE AT 72±16 )
10 . REMOVE FRONT DOOR SCUFF PL ATE RH ( See page 76±36 )
1 1 . REMOVE REAR DOOR SCUFF PL ATE RH ( See page 76±36 )
12 . REMOVE COWL SIDE TRIM BOARD RH ( See page 76±36)
13 . REMOVE FRONT DOOR OPENING TRIM WE ATHERSTRIP RH ( See page 76±36 )
14 . REMOVE REAR DOOR OPENING TRIM WE ATHERSTRIP RH ( See page 76±36 )
15. REMOVE REAR SEAT CUSHION ASSEMBLY (See page 40/60 FOLDING FLIP±UP CUSHION72±21 , 40/60 FOLDING 72±27 )
16. REMOVE REAR SEATBACK ASSY
(See page 40/60 FOLDING FLIP±UP CUSHION72±21 , 40/60 FOLDING 72±27 )
17. REMOVE REAR SIDE SEAT BACK ASSY RH (See page 40/60 FOLDING FLIP±UP CUSHION72±21 , 40/60 FOLDING 72±27 )
18. REMOVE TONNEAU COVER ASSY
19 . REMOVE BACK DOOR WE ATHERSTRIP ( See page 76±54 )
20 . REMOVE DECK BOARD SUB±ASSY ( See page 76±54)
21 . REMOVE DECK FLOOR BOX REAR ( See page 76±54)
22 . REMOVE DECK FLOOR BOX FRONT ( See page 76±54)
23 . REMOVE DECK FLOOR BOX RH ( See page 76±54)
24 . REMOVE REAR FLOOR FINISH PL ATE ( See page 76±54 )
25 . REMOVE DECK TRIM SIDE BOARD RH ( See page 76±54)
26 . REMOVE ROOF SIDE GARNISH INNER RH ( See page 76±54)
27. REMOVE FLOOR CARPET ASSY FRONT
