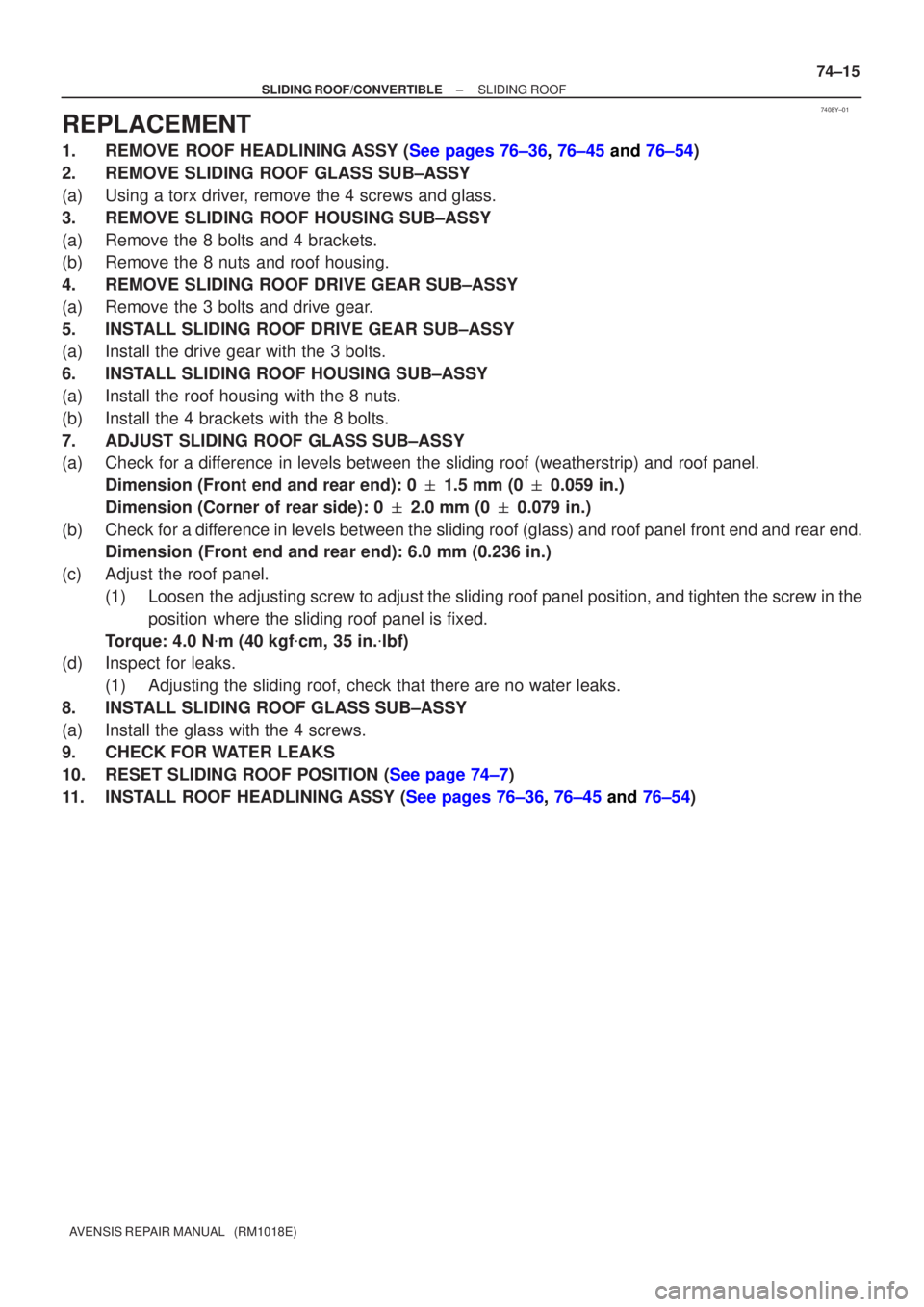

SLIDING ROOF/CONVERTIBL ESLIDING ROOF
74±15
AVENSIS RE PAIR MANUAL (RM1018E)
REPLACEMENT
1. REMOV E ROOF HEADLINING ASSY ( See pages 76±36, 76±45 and 76±54 )
2 . REMOVE SLIDING ROOF GLASS SUB±ASSY
(a ) Using a torx drive r, remove the 4 screws and glass.
3 . REMOVE SLIDING ROOF HOUSING SUB±ASSY
(a ) Remove the 8 bolts and 4 brackets.
(b ) Remove the 8 nuts and roof housing.
4 . REMOVE SLIDING ROOF DRIVE GEAR SUB±ASSY
(a ) Remove the 3 bolts and drive gea r.
5 . INSTALL SLIDING ROOF DRIVE GEAR SUB±ASSY
(a ) Install the drive gear with the 3 bolts.
6 . INSTALL SLIDING ROOF HOUSING SUB±ASSY
(a ) Install the roof housing with the 8 nuts.
(b ) Install the 4 brackets with the 8 bolts.
7 . ADJUST SLIDING ROOF GLASS SUB±ASSY
(a ) Check for a di fference in levels between the sliding roof (weatherstrip) and roof pan\
el.
Dimension (Front end and rear end): 0
1.5 mm (0
0.059 in.)
Dimension (Corner of rear side): 0
2.0 mm (0
0.079 in.)
(b ) Chec k for a di fference in levels between the sliding roof (glass) and roof panel fron\
t end and rear end.
Dimensio n (Front end and rear end): 6.0 mm (0.236 in.)
(c ) Adjust the roof panel.
(1 ) Loose n the adjusting screw to adjust the sliding roof panel position, and tigh\
ten the screw in the
positio n where the sliding roof panel is fixed.
T orque: 4.0 N
m (40 kgf
cm, 35 in.
lbf)
(d ) Inspect for leaks.
(1 ) Adjusting the sliding roof, check that there are no water leaks.
8 . INSTALL SLIDING ROOF GLASS SUB±ASSY
(a ) Install the glass with the 4 screws.
9 . CHECK FOR WATER LEAKS
10 . RESET SLIDING ROOF POSITION ( See page 74±7)
1 1 . INS TALL ROOF HEADLINING ASSY ( See pages 76±36, 76±45 and 76±54 )

B67837
Sliding Roof Glass Assy
Sliding Roof Weatherstrip Assy
Bracket
BracketBracket Sliding Roof Drive
Gear Sub±assy
Sliding Roof Housing
Sub±assy
Drain Hose
Drain Hose
Drain Hose Drain Hose
74±14
± SLIDING ROOF/CONVERTIBLESLIDING ROOF
AVENSIS REPAIR MANUAL (RM1018E)

670SG±02
67±24
±
AUDIO & VISUAL SYSTEM ANTENNA CORD SUB±ASSY NO.3
AVENSIS REPAIR MANUAL (RM1018E)
ANTENNA CORD SUB±ASSY NO.3
REPLACEMENT
1 . DISCONNEC T B ATTE RY NEG ATIVE TERMINAL ( See page 60±1)
2 . REMOVE INSTRUMENT CLUSTER FINISH P ANEL GARNISH NO.2 ( See page 71±11 )
3. REMOVE INSTRUMENT PANEL REGISTER ASSY CTR (W/ NAVIGATION SYSTEM) (See page 67±6 )
4 . REMOVE SHIFT LEVER KNOB SUB±ASSY (M/T TRANSAXLE) ( See page 41±11 )
5 . REMOVE CONSOLE PANEL SUB±ASSY UPPER ( See page 71±11 )
6 . REMOVE RADIO RECEIVER ASSEMB LY W/BRACKET ( See page 67±5)
7 . REMOVE CONSOLE BOX ASSY RR ( See page 71±11 )
8 . REMOVE HE ATER T O REGISTER DUCT NO.2 ( See page 71±11 )
9 . REMOVE FRONT DOOR SCUFF PL ATE RH ( See page 76±36 )
10 . REMOVE REAR DOOR SCUFF PL ATE RH ( See page 76±36 )
1 1 . REMOVE COWL SIDE TRIM BOARD RH ( See page 76±36)
12 . REMOVE FRONT DOOR OPENING TRIM WE ATHERSTRIP RH ( See page 76±36 )
13 . REMOVE REAR DOOR OPENING TRIM WE ATHERSTRIP RH ( See page 76±36 )
14. REMOVE REAR SEAT CUSHION ASSEMBLY (See page 40/60 FOLDING FLIP±UP CUSHION 72±21 , 40/60 FOLDING 72±27 )
15. REMOVE REAR SEATBACK ASSY (See page 40/60 FOLDING FLIP±UP CUSHION 72±21 , 40/60 FOLDING 72±27 )
16. REMOVE REAR SIDE SEAT BACK ASSY RH (See page 40/60 FOLDING FLIP±UP CUSHION 72±21 , 40/60 FOLDING 72±27 )
17 . REMOVE P ACKAGE TR AY TRIM P ANEL ASSY ( See page 76±45 )
18 . REMOVE REAR FLOOR FINISH PL ATE ( See page 76±45 )
19 . REMOVE DECK TRIM SIDE P ANEL ASSY RH ( See page 76±45)
20 . REMOVE ROOF SIDE GARNISH INNER RH ( See page 76±45)
21 . REMOVE FRONT SE AT ASSY RH ( See page POWER SE AT 72± 11 , MANUAL SE AT 72±16 )
22. REMOVE FLOOR CARPET ASSY FRONT

670SC±03
67±16
±
AUDIO & VISUAL SYSTEM AMPLIFIER ANTENNA ASSY (SEDAN MODELS)
AVENSIS REPAIR MANUAL (RM1018E)
AMPLIFIER ANTENNA ASSY (SEDAN MODELS)
REPLACEMENT
1 . DISCONNEC T B ATTE RY NEG ATIVE TERMINAL ( See page 60±1)
2 . REMOVE INSTRUMENT CLUSTER FINISH P ANEL GARNISH NO.2 ( See page 71±11 )
3. REMOVE INSTRUMENT PANEL REGISTER ASSY CTR (W/ NAVIGATION SYSTEM) (See page 67±6 )
4 . REMOVE SHIFT LEVER KNOB SUB±ASSY (M/T TRANSAXLE) ( See page 41±11 )
5 . REMOVE CONSOLE PANEL SUB±ASSY UPPER ( See page 71±11 )
6 . REMOVE RADIO RECEIVER ASSEMB LY W/BRACKET ( See page 67±5)
7 . REMOVE CONSOLE BOX ASSY RR ( See page 71±11 )
8 . REMOVE HE ATER T O REGISTER DUCT NO.2 ( See page 71±11 )
9 . REMOVE FRONT SE AT ASSY RH ( See page POWER SE AT 72± 11 , MANUAL SE AT 72±16 )
10 . REMOV E FRONT DOOR SCUFF PL ATE RH ( See page 76±36 )
1 1 . REMOVE REAR DOOR SCUFF PL ATE RH ( See page 76±36 )
12 . REMOVE COWL SIDE TRIM BOARD RH ( See page 76±36)
13 . REMOVE FRONT DOOR OPENING TRIM WE ATHERSTRIP RH ( See page 76±36 )
14 . REMOVE REAR DOOR OPENING TRIM WE ATHERSTRIP RH ( See page 76±36 )
15 . REMOVE REAR SE AT CUSHION ASSEMB LY ( See page 72±32 )
16 . REMOVE REAR SE ATBACK ASSY ( See page 40/60 FOLDING 72±27 , UNITED FIXED 72±32 )
17 . REMOVE ROOF SIDE GARNISH INNER RH ( See page 76±36)
18. REMOVE FLOOR CARPET ASSY FRONT
