030AA±10
03±50
± SERVICE SPECIFICATIONSAUTOMATIC TRANSMISSION / TRANSAXLE
AVENSIS REPAIR MANUAL (RM1018E)
TORQUE SPECIFICATION
U341E
Part TightenedN
mkgf
cmft
lbf
Park/neutral position switch x Transaxle Bolt
Nut5.4
6.955
7048 in.
lbf
61 in.
lbf
Control shaft lever x Park/neutral position switch131309
Battery carrier x Body1313210
Engine hanger x Engine3838728
Drain plug x Oil pan4950036
Transaxle x Engine Bolt A:
Bolt B:
Bolt C:64
46
23650
470
23547
34
17
Torque converter clutch x Drive plate2828520
Engine mounting bracket RR x Transaxle6465347
Engine mounting bracket FR x Transaxle6465347
Center member x Body Bolt A:4545933
Center member x Suspension member Bolt B:
BoltC:96
52979
53071
38
Engine mounting insulator RR x Engine mounting bracket RR8788764
Engine mounting insulator RR x Suspension member5253038
Engine mounting insulator FR x Engine mounting bracket FR5253038
Engine mounting bracket LH x Transaxle6465347
Engine mounting insulator LH x Body Bolt A:
Nut B:52
80530
81538
59
Starter x Transaxle3737727
Starter wire x Starter9.810087 in.
lbf
Froor panel brace x Body3030222
Oil filler tube x Transaxle Bolt A:121229
Oil cooler tube clamp x Oil filler tube Bolt B:5.55649 in.
lbf
Oil cooler outlet tube x Transaxle3535725
Oil cooler inlet tube x Transaxle3535725
Wire harness clamp bracket x Transaxle121229
Wire harness x Transaxle Bolt A:
Bolt B:5
2651
26544 in.
lbf
19
Control cable bracket x Transaxle121229
Control cable support x Transaxle121229
Air cleaner assy x Body7.07162 in.
lbf
Cylinder head cover No. 2 x Engine7.07162 in.
lbf
Speed sensor x Transaxle5.45548 in.
lbf
Transmission wire x Transaxle5.45548
Solenoid valve x Valve body Bolt A:
Bolt B:11
1111 0
11 08
8
Valve body x Transaxle1111 08
ATF temperature sensor x Valve body1111 08
Oil strainer x Valve body1111 08
Oil pan x Transaxle7.88069 in.
lbf
Floor shift assembly x Body121229
Control cable x Control shaft lever121229

± SERVICE SPECIFICATIONSAUTOMATIC TRANSMISSION / TRANSAXLE
03±51
AVENSIS REPAIR MANUAL (RM1018E) U241E
Part TightenedN
mkgf
cmft
lbf
Park/neutral position switch x Transaxle Bolt
Nut5.4
6.955
7048 in.
lbf
61 in.
lbf
Control shaft lever x Park/neutral position switch131309
Battery carrier x Body1313210
Engine hanger x Engine3838728
Drain plug x Oil pan4950036
Transaxle x Engine Bolt A:
Bolt B:
Bolt C:64
46
44650
470
44947
34
32
Torque converter clutch x Drive plate4142030
Engine mounting bracket RR x Transaxle6465247
Engine mounting bracket FR x Transaxle6465247
Center member x Body4545933
Center member x Suspension member Bolt B:
Boltc:96
52979
53071
38
Engine mounting insulator RR x Engine mounting bracket RR8788764
Engine mounting insulator RR x Suspension member5253038
Engine mounting insulator FR x Engine mounting bracket FR5253038
Engine mounting bracket LH x Transaxle6465347
Engine mounting insulator LH x Body Bolt A:
Nut B:52
80530
81638
59
Starter x Transaxle3737727
Starter wire x Starter9.810087 in.
lbf
Oil filler tube x Transaxle5.55649 in.
lbf
Oil cooler tube clamp x Oil filler tube5.45547 in.
lbf
Oil cooler outlet tube x Transaxle3434725
Oil cooler inlet tube x Transaxle3434725
Wire harness clamp bracket x Transaxle1313210
Wire harness x Transaxle Bolt A:
Bolt B:5.0
8.451
8644 in.
lbf
74 in.
lbf
Control cable bracket x Transaxle121228
Control cable clamp x Transaxle121229
Air cleaner assy x Body5.05049 in.
lbf
Cylinder head cover sub±assy No. 1 x Engine9.09280 in.
lbf
Transmission wire x Transaxle5.45548 in.
lbf
Solenoid valve x Valve body Bolt A:
Bolt B:6.6
1167
11 058 in.
lbf
8
Valve body x Transaxle1111 08
Manual detent spring x Valve body1111 08
Oil strainer x Valve body1111 08
Oil pan x Transaxle7.88069 in.
lbf
Floor shift assy x Body121229
Control cable x Control shaft lever121229
Control cable x Body Bolt
Nut5.0
5.050
5043 in.
lbf
43 in.
lbf
Speed sensor x Transaxle121229
Drive shaft bearing cace x Bearing bracket6465047

TA C
A52006
A01037
14±2
± ENGINE MECHANICALENGINE (1ZZ±FE/3ZZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

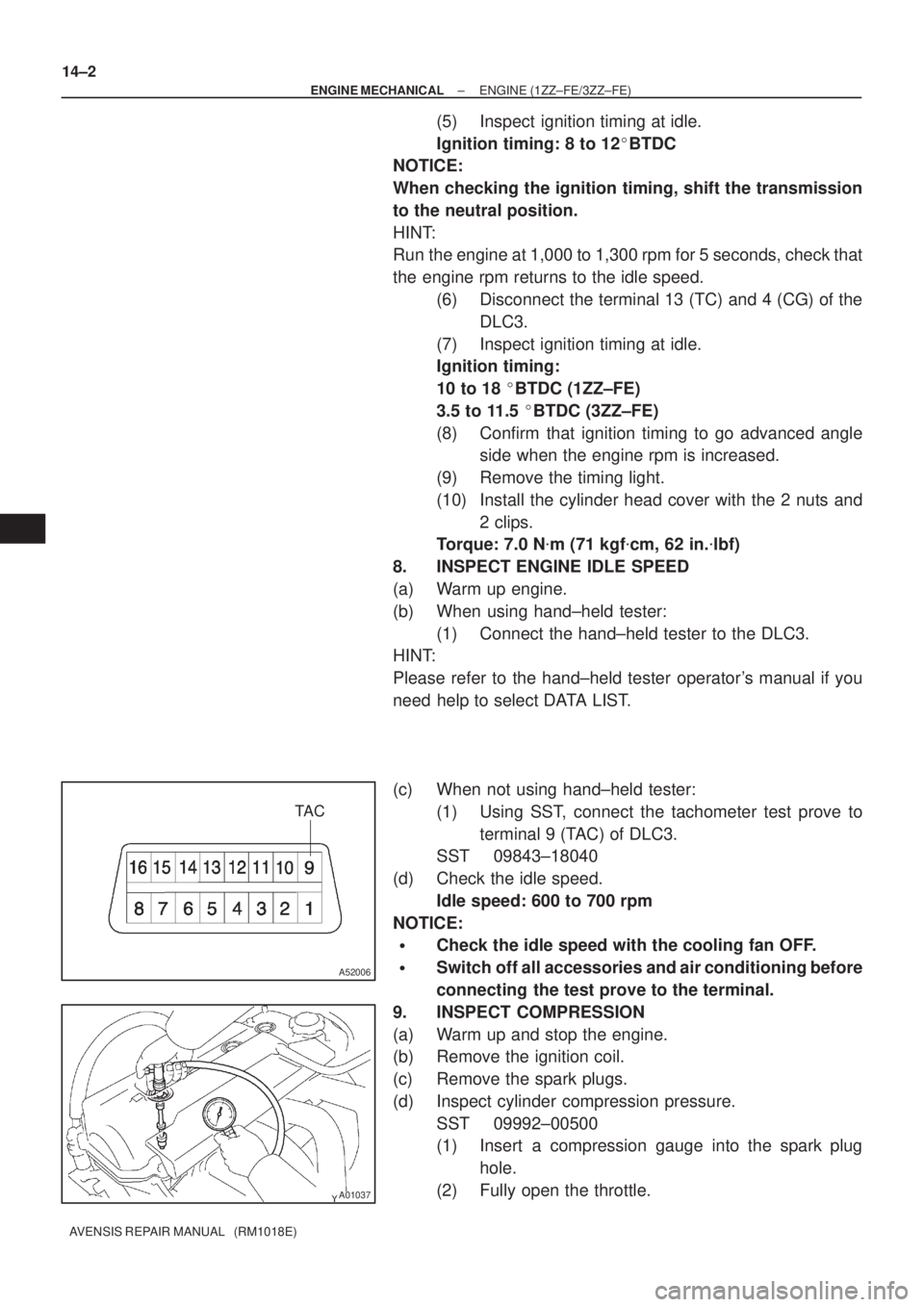

(5) Inspect ignition timing at idle.
Ignition timing: 8 to 12BTDC
NOTICE:
When checking the ignition timing, shift the transmission
to the neutral position.
HINT:
Run the engine at 1,000 to 1,300 rpm for 5 seconds, check that
the engine rpm returns to the idle speed.
(6) Disconnect the terminal 13 (TC) and 4 (CG) of the
DLC3.
(7) Inspect ignition timing at idle.
Ignition timing:
10 to 18 BTDC (1ZZ±FE)
3.5 to 11.5 BTDC (3ZZ±FE)
(8) Confirm that ignition timing to go advanced angle
side when the engine rpm is increased.
(9) Remove the timing light.
(10) Install the cylinder head cover with the 2 nuts and
2 clips.
Torque: 7.0 N
m (71 kgf
cm, 62 in.
lbf)
8. INSPECT ENGINE IDLE SPEED
(a) Warm up engine.
(b) When using hand±held tester:
(1) Connect the hand±held tester to the DLC3.
HINT:
Please refer to the hand±held tester operator's manual if you
need help to select DATA LIST.
(c) When not using hand±held tester:
(1) Using SST, connect the tachometer test prove to
terminal 9 (TAC) of DLC3.
SST 09843±18040
(d) Check the idle speed.
Idle speed: 600 to 700 rpm
NOTICE:

Check the idle speed with the cooling fan OFF.

Switch off all accessories and air conditioning before
connecting the test prove to the terminal.
9. INSPECT COMPRESSION
(a) Warm up and stop the engine.
(b) Remove the ignition coil.
(c) Remove the spark plugs.
(d) Inspect cylinder compression pressure.
SST 09992±00500
(1) Insert a compression gauge into the spark plug
hole.
(2) Fully open the throttle.

140D1±02
CG
TCA51075
A52004
±
ENGINE MECHANICAL ENGINE(1AZ±FE)
14±101
AVENSIS REPAIR MANUAL (RM1018E)

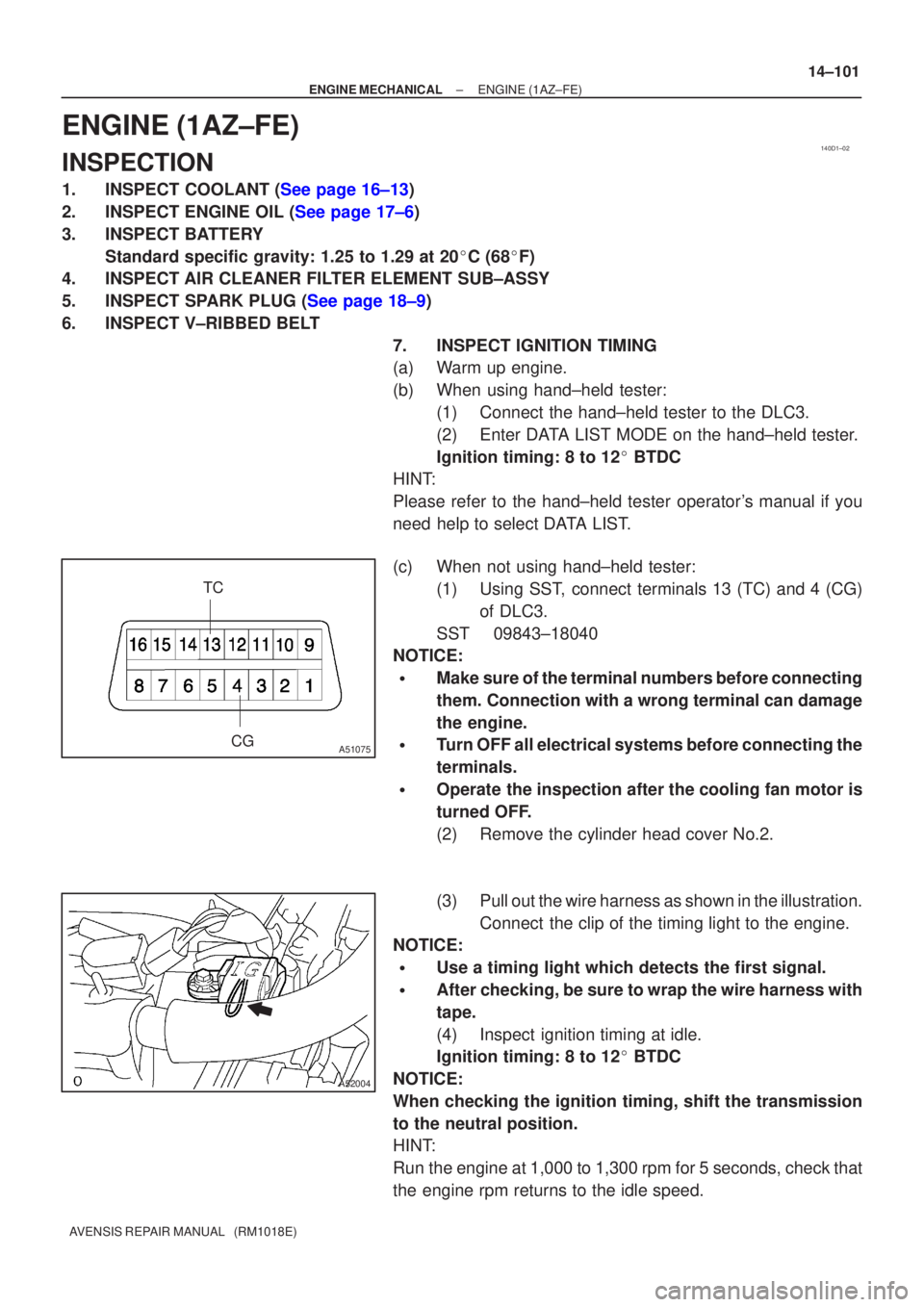

ENGINE(1AZ±FE)
INSPECTION
1.INSPECT COOLANT (See page 16±13)
2.INSPECT ENGINE OIL (See page 17±6)
3. INSPECT BATTERY
Standard specific gravity: 1.25 to 1.29 at 20 C (68 F)
4. INSPECT AIR CLEANER FILTER ELEMENT SUB±ASSY
5.INSPECT SPARK PLUG (See page 18±9)
6. INSPECT V±RIBBED BELT
7. INSPECT IGNITION TIMING
(a) Warm up engine.
(b) When using hand±held tester:(1) Connect the hand±held tester to the DLC3.
(2) Enter DATA LIST MODE on the hand±held tester.
Ignition timing: 8 to 12  BTDC
HINT:
Please refer to the hand±held tester operator's manual if you
need help to select DATA LIST.
(c) When not using hand±held tester:
(1) Using SST, connect terminals 13 (TC) and 4 (CG)of DLC3.
SST 09843±18040
NOTICE:

Make sure of the terminal numbers before connecting
them. Connection with a wrong terminal can damage
the engine.

Turn OFF all electrical systems before connecting the
terminals.

Operate the inspection after the cooling fan motor is
turned OFF.
(2) Remove the cylinder head cover No.2.
(3) Pull out the wire harness as shown in the illustration.
Connect the clip of the timing light to the engine.
NOTICE:

Use a timing light which detects the first signal.

After checking, be sure to wrap the wire harness with
tape.
(4) Inspect ignition timing at idle.
Ignition timing: 8 to 12  BTDC
NOTICE:
When checking the ignition timing, shift the transmission
to the neutral position.
HINT:
Run the engine at 1,000 to 1,300 rpm for 5 seconds, check that
the engine rpm returns to the idle speed.

141CP±01
CG
TCA51075
A79034
±
ENGINE MECHANICAL ENGINE(1AZ±FSE)
14±181
AVENSIS REPAIR MANUAL (RM1018E)

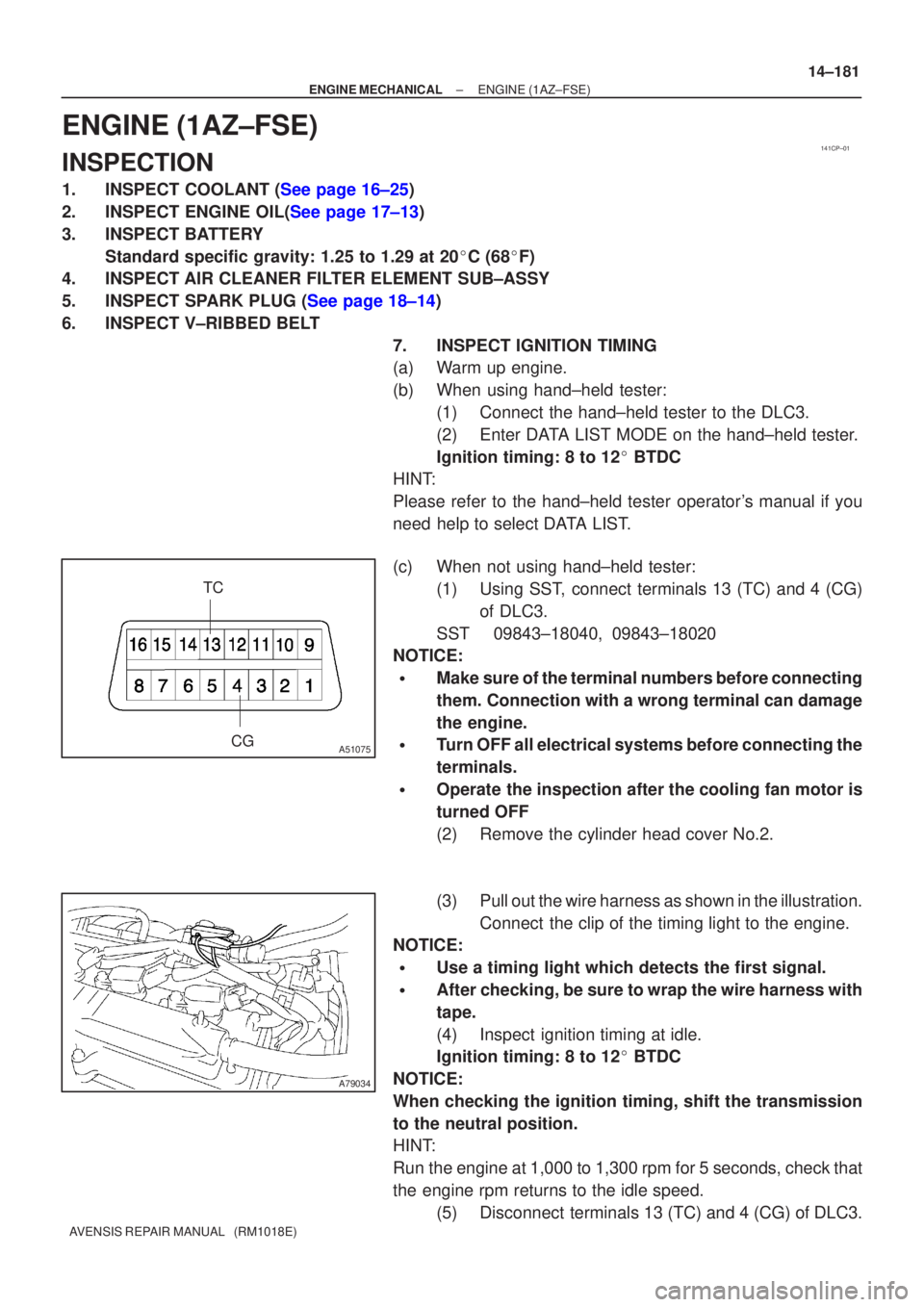

ENGINE(1AZ±FSE)
INSPECTION
1.INSPECT COOLANT (See page 16±25)
2.INSPECT ENGINE OIL(See page 17±13)
3.INSPECT BATTERY
Standard specific gravity: 1.25 to 1.29 at 20 C (68 F)
4.INSPECT AIR CLEANER FILTER ELEMENT SUB±ASSY
5.INSPECT SPARK PLUG (See page 18±14)
6.INSPECT V±RIBBED BELT
7.INSPECT IGNITION TIMING
(a)Warm up engine.
(b)When using hand±held tester:(1)Connect the hand±held tester to the DLC3.
(2)Enter DATA LIST MODE on the hand±held tester.
Ignition timing: 8 to 12  BTDC
HINT:
Please refer to the hand±held tester operator's manual if you
need help to select DATA LIST.
(c) When not using hand±held tester:
(1) Using SST, connect terminals 13 (TC) and 4 (CG)of DLC3.
SST 09843±18040, 09843±18020
NOTICE:

Make sure of the terminal numbers before connecting
them. Connection with a wrong terminal can damage
the engine.

Turn OFF all electrical systems before connecting the
terminals.

Operate the inspection after the cooling fan motor is
turned OFF
(2) Remove the cylinder head cover No.2.
(3) Pull out the wire harness as shown in the illustration.
Connect the clip of the timing light to the engine.
NOTICE:

Use a timing light which detects the first signal.

After checking, be sure to wrap the wire harness with
tape.
(4) Inspect ignition timing at idle.
Ignition timing: 8 to 12  BTDC
NOTICE:
When checking the ignition timing, shift the transmission
to the neutral position.
HINT:
Run the engine at 1,000 to 1,300 rpm for 5 seconds, check that
the engine rpm returns to the idle speed. (5) Disconnect terminals 13 (TC) and 4 (CG) of DLC3.

400D7±02
D25120
OK if hot
Add if hot 40±2
± AUTOMATIC TRANSMISSION / TRANSAUTOMATIC TRANSAXLE FLUID (ATM)
AVENSIS REPAIR MANUAL (RM1018E)
AUTOMATIC TRANSAXLE FLUID (ATM)
ON±VEHICLE INSPECTION
1. CHECK THE FLUID LEVEL
HINT:
Drive the vehicle so that the engine and transaxle are at the nor-
mal operating temperature.
Fluid temperature: 70 ± 80
C (158 ± 176
F)
(a) Park the vehicle on a level surface and set the parking
brake.
(b) With the engine idling and the brake pedal depressed,
shift the shift lever into all position from P to L position and
return to P position.
(c) Pull out the dipstick and wipe it clean.
(d) Push it back fully into the pipe.
(e) Pull it out and check that the fluid level is in the HOT posi-
tion.
If there are leaks, it is necessary to repair or replace O±rings,
FIPGs, oil seals, plugs or other parts.

400DD±02
C83111
AT0103
D25591
C50009
40±52
± AUTOMATIC TRANSMISSION / TRANSTRANSMISSION WIRE (U241E)
AVENSIS REPAIR MANUAL (RM1018E)

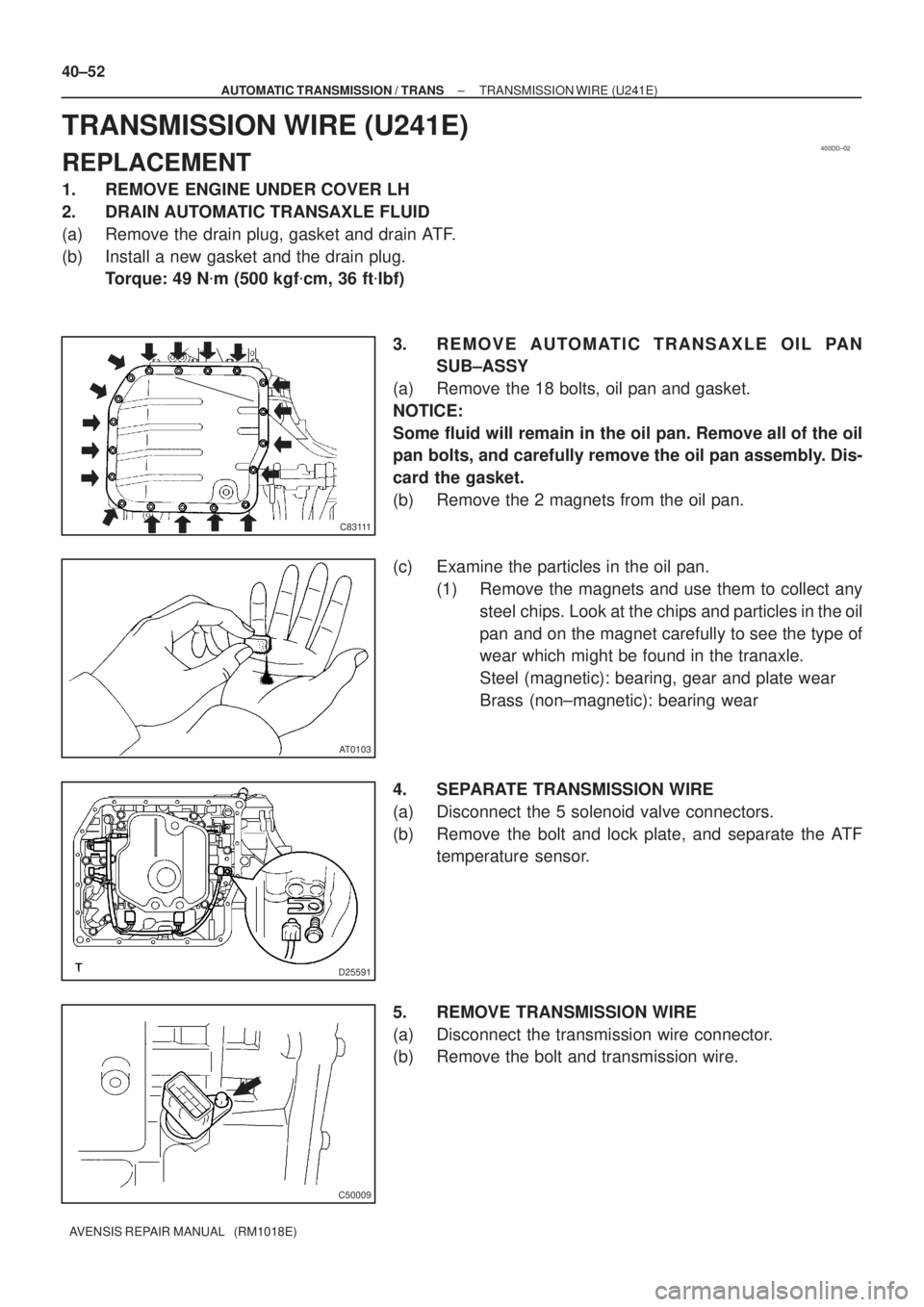

TRANSMISSION WIRE (U241E)
REPLACEMENT
1. REMOVE ENGINE UNDER COVER LH
2. DRAIN AUTOMATIC TRANSAXLE FLUID
(a) Remove the drain plug, gasket and drain ATF.
(b) Install a new gasket and the drain plug.
Torque: 49 N
m (500 kgf
cm, 36 ft
lbf)
3. REMOVE AUTOMATIC TRANSAXLE OIL PAN
SUB±ASSY
(a) Remove the 18 bolts, oil pan and gasket.
NOTICE:
Some fluid will remain in the oil pan. Remove all of the oil
pan bolts, and carefully remove the oil pan assembly. Dis-
card the gasket.
(b) Remove the 2 magnets from the oil pan.
(c) Examine the particles in the oil pan.
(1) Remove the magnets and use them to collect any
steel chips. Look at the chips and particles in the oil
pan and on the magnet carefully to see the type of
wear which might be found in the tranaxle.
Steel (magnetic): bearing, gear and plate wear
Brass (non±magnetic): bearing wear
4. SEPARATE TRANSMISSION WIRE
(a) Disconnect the 5 solenoid valve connectors.
(b) Remove the bolt and lock plate, and separate the ATF
temperature sensor.
5. REMOVE TRANSMISSION WIRE
(a) Disconnect the transmission wire connector.
(b) Remove the bolt and transmission wire.

400DC±02
C83111
AT0103
D25591
D09179
± AUTOMATIC TRANSMISSION / TRANSTRANSMISSION VALVE BODY ASSY (U241E)
40±47
AVENSIS REPAIR MANUAL (RM1018E)
TRANSMISSION VALVE BODY ASSY (U241E)
REPLACEMENT
1. REMOVE ENGINE UNDER COVER LH
2. DRAIN AUTOMATIC TRANSAXLE FLUID
(a) Remove the drain plug, gasket and drain ATF.
(b) Install a new gasket and the drain plug.
Torque: 49 N
m (500 kgf
cm, 36 ft
lbf)
3. REMOVE AUTOMATIC TRANSAXLE OIL PAN
SUB±ASSY
(a) Remove the 18 bolts, oil pan and gasket.
NOTICE:
Some fluid will remain in the oil pan. Remove all of the oil
pan bolts, and carefully remove the oil pan assembly. Dis-
card the gasket.
(b) Remove the 2 magnets from the oil pan.
(c) Examine the particles in the oil pan.
(1) Remove the magnets and use them to collect any
steel chips. Look at the chips and particles in the oil
pan and on the magnet carefully to see the type of
wear which might be found in the tranaxle.
Steel (magnetic): bearing, gear and plate wear
Brass (non±magnetic): bearing wear
4. SEPARATE TRANSMISSION WIRE
(a) Disconnect the 5 solenoid valve connectors.
(b) Remove the bolt and lock plate, and separate the ATF
temperature sensor.
5. REMOVE VALVE BODY OIL STRAINER ASSY
(a) Remove the 3 bolts and oil strainer.
Be careful as some fluid will come out with the oil strainer.
