± AUTOMATIC TRANSMISSION / TRANSAUTOMATIC TRANSAXLE ASSY (U241E)
40±15
U241E A/T REPAIR MANUAL (RM840U)

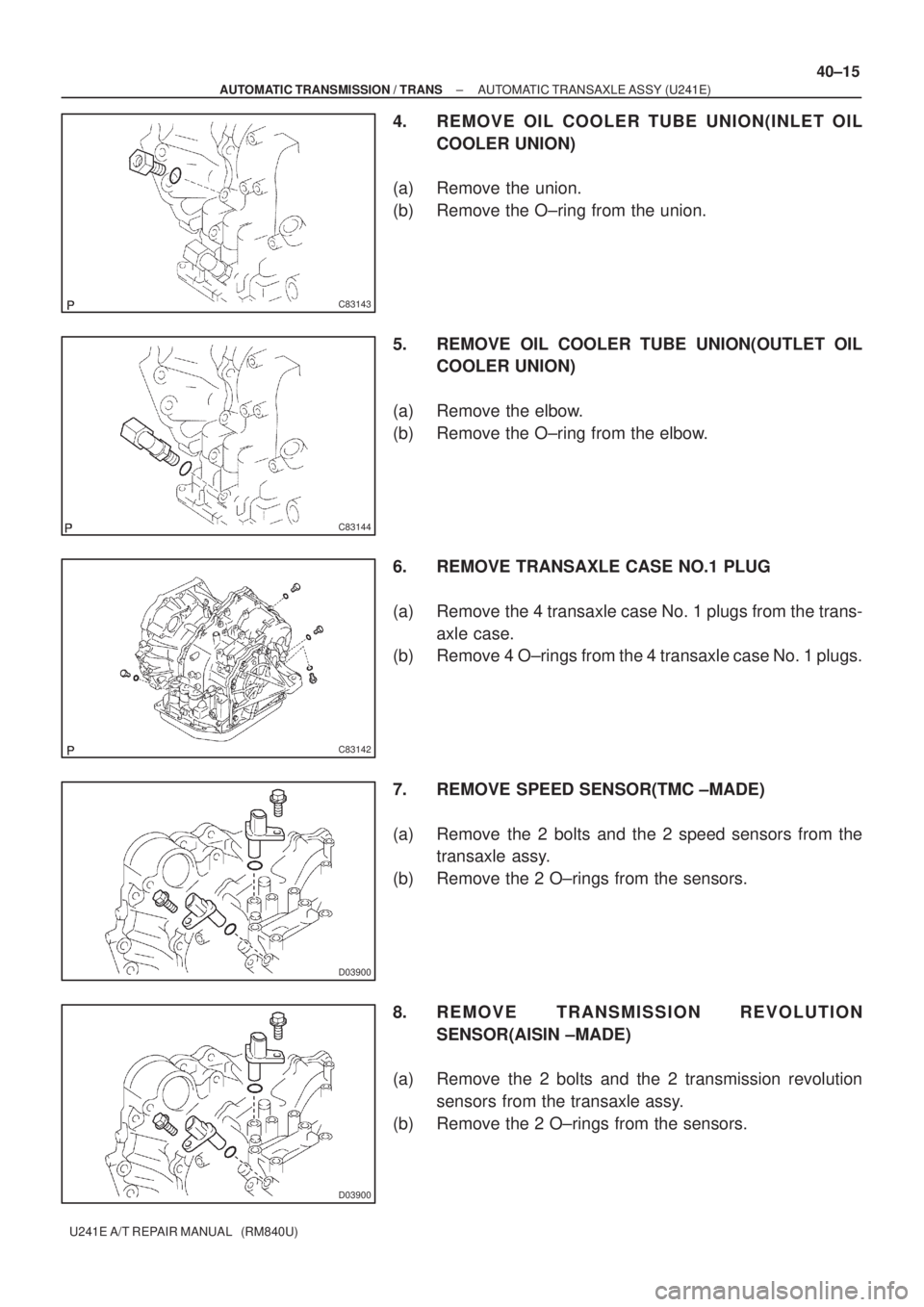

4. REMOVE OIL COOLER TUBE UNION(INLET OIL
COOLER UNION)
(a) Remove the union.
(b) Remove the O±ring from the union.
5. REMOVE OIL COOLER TUBE UNION(OUTLET OIL
COOLER UNION)
(a) Remove the elbow.
(b) Remove the O±ring from the elbow.
6. REMOVE TRANSAXLE CASE NO.1 PLUG
(a) Remove the 4 transaxle case No. 1 plugs from the trans-
axle case.
(b) Remove 4 O±rings from the 4 transaxle case No. 1 plugs.
7. REMOVE SPEED SENSOR(TMC ±MADE)
(a) Remove the 2 bolts and the 2 speed sensors from the
transaxle assy.
(b) Remove the 2 O±rings from the sensors.
8. REMOVE TRANSMISSION REVOLUTION
SENSOR(AISIN ±MADE)
(a) Remove the 2 bolts and the 2 transmission revolution
sensors from the transaxle assy.
(b) Remove the 2 O±rings from the sensors.
Page 3644 of 5135
D08046
C83145
D09182
D03606
SST
D03915
40±22
± AUTOMATIC TRANSMISSION / TRANSAUTOMATIC TRANSAXLE ASSY (U241E)
U241E A/T REPAIR MANUAL (RM840U)
30. INSPECT INPUT SHAFT ENDPLAY
(a) Using a dial indicator, measure the input shaft end play.
END Play: 0.26 ± 1.25 mm (0.0103 ± 0.0492 in.)
31. REMOVE TRANSAXLE CASE NO.1 PLUG
(a) Remove the 2 transaxle case No 1 plugs.
(b) Remove the 2 O±rings from the transaxle case plug.
32. REMOVE TRANSAXLE HOUSING
(a) Remove the 16 bolts.
(b) Tap on the circumference of the transaxle housing with a
plastic hammer to remove the transaxle housing from the
transaxle case.
NOTICE:
Differential may be accidentally removed when the trans-
axle housing is removed.
33. REMOVE UNDERDRIVE CYLINDRICAL ROLLER
BEARING
(a) Using SST, remove the cylindrical roller bearing from the
transaxle case.
SST 09514±35011
34. REMOVE UNDERDRIVE OUTPUT SHAFT OIL SEAL
RING
(a) Remove the oil seal ring from the transaxle housing.
Page 3649 of 5135
D03610
SST
D08051
D03806
D03914
C83141
± AUTOMATIC TRANSMISSION / TRANSAUTOMATIC TRANSAXLE ASSY (U241E)
40±27
U241E A/T REPAIR MANUAL (RM840U)

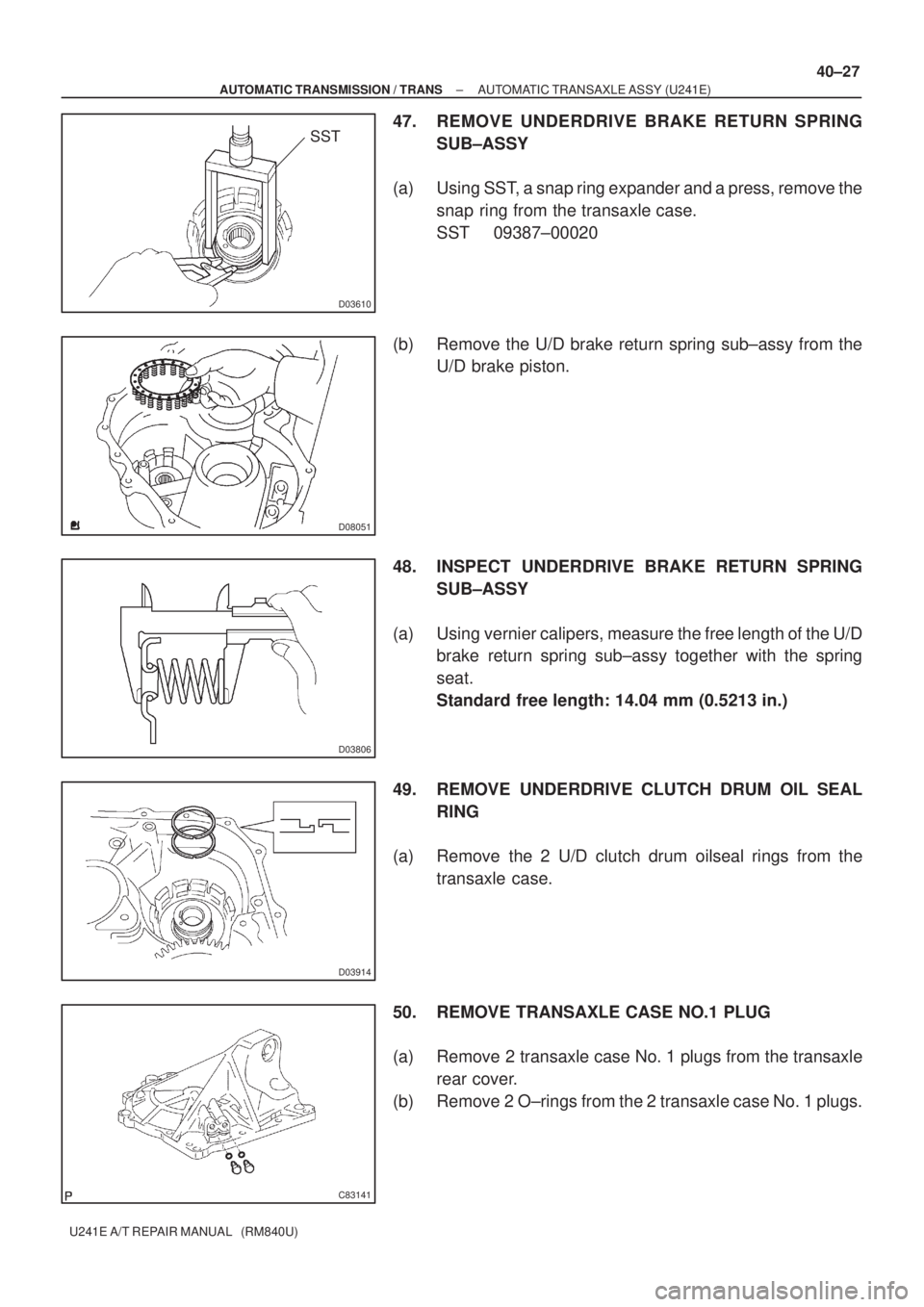

47. REMOVE UNDERDRIVE BRAKE RETURN SPRING
SUB±ASSY
(a) Using SST, a snap ring expander and a press, remove the
snap ring from the transaxle case.
SST 09387±00020
(b) Remove the U/D brake return spring sub±assy from the
U/D brake piston.
48. INSPECT UNDERDRIVE BRAKE RETURN SPRING
SUB±ASSY
(a) Using vernier calipers, measure the free length of the U/D
brake return spring sub±assy together with the spring
seat.
Standard free length: 14.04 mm (0.5213 in.)
49. REMOVE UNDERDRIVE CLUTCH DRUM OIL SEAL
RING
(a) Remove the 2 U/D clutch drum oilseal rings from the
transaxle case.
50. REMOVE TRANSAXLE CASE NO.1 PLUG
(a) Remove 2 transaxle case No. 1 plugs from the transaxle
rear cover.
(b) Remove 2 O±rings from the 2 transaxle case No. 1 plugs.
Page 3672 of 5135
C83141
D09193
C83140
D09194
40±50
± AUTOMATIC TRANSMISSION / TRANSAUTOMATIC TRANSAXLE ASSY (U241E)
U241E A/T REPAIR MANUAL (RM840U)
97. INSTALL TRANSAXLE CASE NO.1 PLUG
(a) Install 2 new O±rings to the 2 transaxle case No. 1 plugs.
(b) Install 2 transaxle case No. 1 plugs to the transaxle rear
cover.
Torque: 7.4 Nm (75 kgfcm, 65 in.lbf)
98. INSTALL TRANSAXLE REAR COVER SUB±ASSY
(a) Using SST and a press, install the bearing.
SST 09950±60010 (09951±00230, 09951±00350)
Press fit depth: 12.05 ± 12.75 mm (0.4744 ± 0.5020 in.)
NOTICE:
Face the inscribed mark side of the bearing race up.
Repeat the press fit until the specified value is ob-
tained.
(b) Apply liquid sealer to the 2 screws.
Sealant:
Part No. 08833±00080, THREE BOND 2430 or equiva-
lent.
(c) Using a torx socket wrench T30, install the transaxle rear
cover plate with the 2 screws.
Torque: 7.5 Nm (76 kgfcm, 66 in.lbf)
(d) Coat 2 new oil seal rings with ATF, install them to the
transaxle rear cover.
Page 3681 of 5135

D03807
SST
D03630Seal Bend Width 1.2 mm (0.047 in.) FIPG
C50259
C
C
C
CA
AA B
BB
C83145
± AUTOMATIC TRANSMISSION / TRANSAUTOMATIC TRANSAXLE ASSY (U241E)
40±59
U241E A/T REPAIR MANUAL (RM840U)

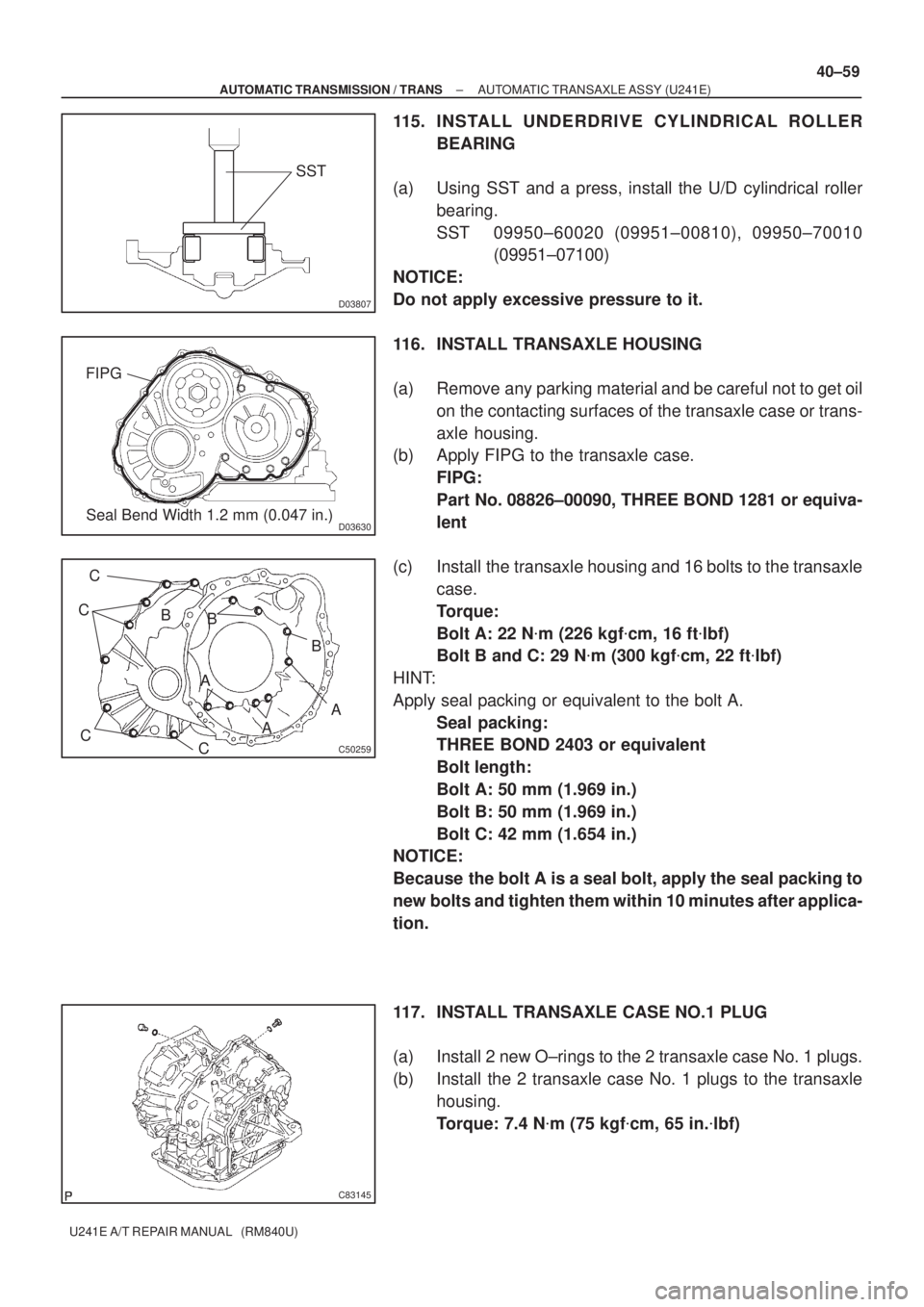

115. INSTALL UNDERDRIVE CYLINDRICAL ROLLER
