05–210– DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U341E) (From February, 2004)
AVENSIS REPAIR MANUAL SUPPLEMENT

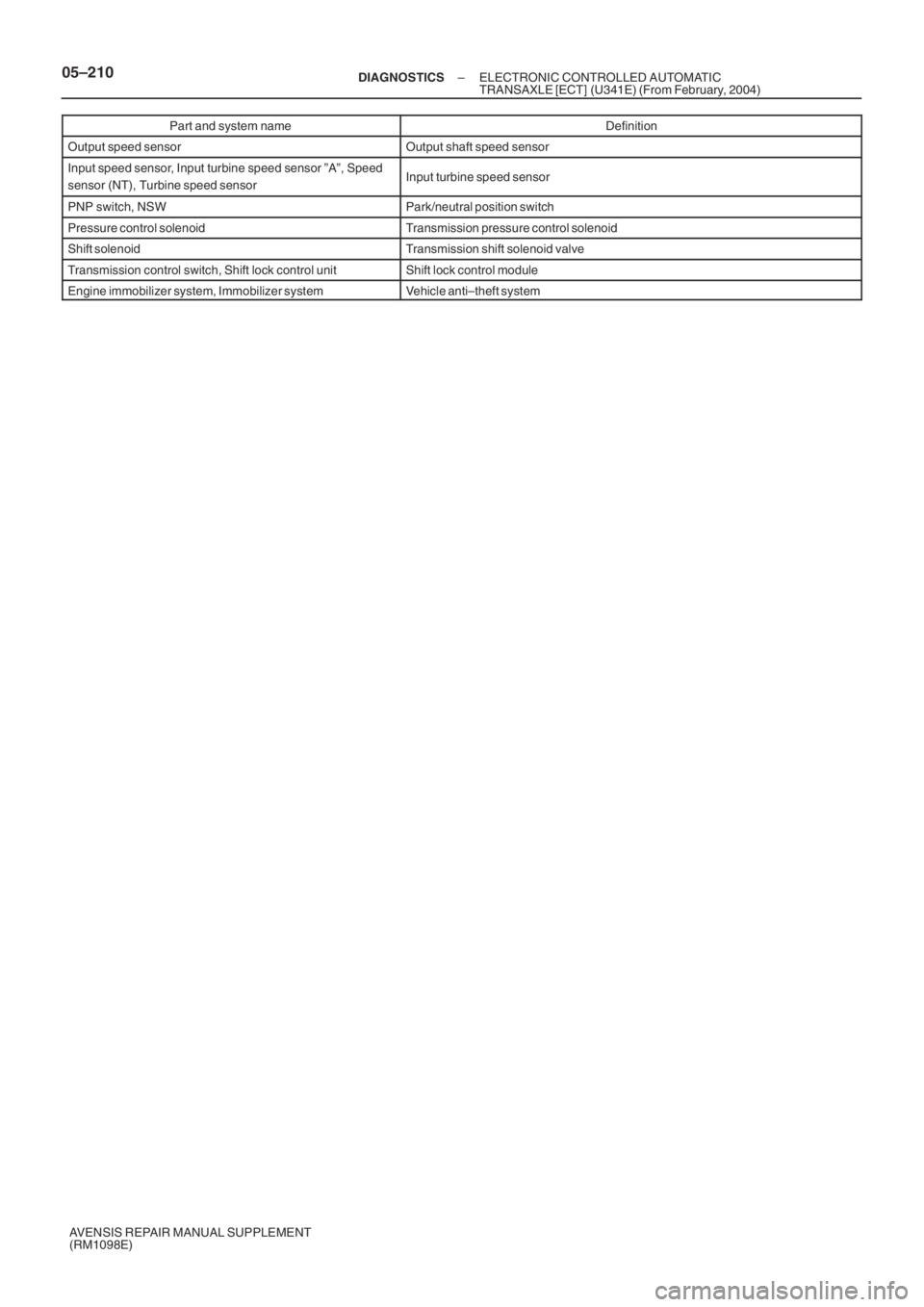

(RM1098E)Part and system name Definition
Output speed sensorOutput shaft speed sensor
Input speed sensor, Input turbine speed sensor ”A”, Speed
sensor (NT), Turbine speed sensorInput turbine speed sensor
PNP switch, NSWPark/neutral position switch
Pressure control solenoidTransmission pressure control solenoid
Shift solenoidTransmission shift solenoid valve
Transmission control switch, Shift lock control unitShift lock control module
Engine immobilizer system, Immobilizer systemVehicle anti–theft system
Page 5010 of 5135
05KAJ–01
05–208– DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U341E) (From February, 2004)
AVENSIS REPAIR MANUAL SUPPLEMENT
(RM1098E)
DEFINITION OF TERMS
TermDefinition
Monitor descriptionDescription of what the ECM monitors and how it detects malfunctions (monitoring purpose and its details).
Page 5011 of 5135
056HH–07
–
DIAGNOSTICS CRUISE CONTROL SYSTEM (2AZ–FSE)(From
February, 2004)05–313
AVENSIS REPAIR MANUAL SUPPLEMENT
(RM1098E)
DIAGNOSTIC TROUBLE CODE CHART
If a trouble code is indicated while checking DTCs, inspect the circuit li\
sted for that code in the table below,
and proceed to the applicable page.
DTC No.
(See Page)Circuit InspectionTrouble Area
P0500/21 ( 05–317 )Vehicle speed sensor circuit
Vehicle speed sensor
Vehicle speed sensor signal circuit
ECM
P0503/23
( 05–317 )Vehicle speed sensor circuit
Vehicle speed sensor
Vehicle speed sensor signal circuit
ECM
P0571/52
( 05–318 )Stop light switch circuit
Stop lamp switch assy
Stop lamp switch assy circuit
ECM
P0607/54
( 05–321 )Input signal circuitECM
Page 5012 of 5135

05KYC–01
F40034DLC3
12 3 4567 8 12 3 4567 8
9 1011 12131415 16
05–306– DIAGNOSTICSCRUISE CONTROL SYSTEM (2AZ–FSE)(From
February, 2004)
AVENSIS REPAIR MANUAL SUPPLEMENT
(RM1098E)
PRE–CHECK
1. DIAGNOSIS SYSTEM
(a) Description
The ECM stores trouble codes when trouble occurs on
the vehicle.
The diagnosis system allows for reading of the trouble
codes from the DLC3. If the CRUISE main indicator light
does not come on after DTC check, it means a malfunc-
tion has occurred in the cruise control system.
Use the intelligent tester II to check and solve the prob-
lem.
(b) Check the DLC3.
The vehicle’s ECM uses ISO 9141–2 (Euro–OBD)/ISO
14230 (M–OBD) for communication protocol. The termi-
nal arrangement of the DLC3 complies with ISO 15031–3
and matches the ISO 9141–2/ISO 14230 format.
Symbols (Terminals No.)Terminal DescriptionConditionSpecified Condition
SIL(7) – SG(5)Bus ”+” lineDuring transmissionPulse generation
CG(4) – Body groundChassis groundAlwaysBelow 1 Ω
SG(5) – Body groundSignal groundAlwaysBelow 1 Ω
BAT(16) – Body groundBattery positiveAlways11 to 14 V
HINT:
If the display shows ”UNABLE TO CONNECT TO VEHICLE” af-
ter connecting the intelligent tester II to the DLC3 and turning
the ignition to the ON position, there is a problem with either the
vehicle or the tool. (Intelligent tester ll only)
If communication is normal when connecting the tool to
another vehicle, inspect the DLC3 on the original vehicle.
If communication is still not possible when connecting the
tool to another vehicle, it suggests the problem is the
tool’s own. In this case, consult Service Department listed
in the tool’s instruction manual.
Page 5013 of 5135
N17520
(2)
I34749
CRUISE main
indicator light
BE4034
Indicator Light:ON
OFF 1.5 sec. 0.5 sec.
–
DIAGNOSTICS CRUISE CONTROL SYSTEM (2AZ–FSE)(From
February, 2004)05–307
AVENSIS REPAIR MANUAL SUPPLEMENT
(RM1098E)
(c) Check the indicator.
(1) Turn the ignition switch to the ON position.
(2) Check that the CRUISE main indicator light comeson when the cruise control main switch ON–OFF
button is pushed on, and that the indicator light
goes off when the ON–OFF button is pushed off.
HINT:
If there is a problem with the indicator light, inspect the CRUISE
main indicator light circuit ( see page 05–327).
HINT:
If a malfunction occurs in the vehicle speed sensors, stop lamp
switch assy or other related parts during cruise control driving,
the ECM actuates AUTO CANCEL of the cruise control. Then
the CRUISE main indicator light starts to blink, informing the
driver of the malfunction. At the same time, data of the malfunc-
tion is stored as a diagnostic trouble code (DTC).
Page 5014 of 5135
C52361
DLC3:CG
TC
I41985
Normal System Code: Diagnosis Trouble Code:
0.25 sec.
0.25 sec.
ON
OFF ON
OFF 0.5 sec.
0.5 sec. 1.5 sec. 2.5 sec.
4.5 sec.
Code 21 Code 52
05–308
–
DIAGNOSTICS CRUISE CONTROL SYSTEM (2AZ–FSE)(From
February, 2004)
AVENSIS REPAIR MANUAL SUPPLEMENT
(RM1098E)
(d) Output DTCs using diagnosis check wire. (1) Using SST, create a short–circuit between terminalsTC and CG of the DLC3.
(2) Turn the ignition switch to the ON position.
(3) Read and record DTCs from the CRUISE main indi- cator light on the combination meter. As examples,
refer to the chart below for the blinking patterns of
the normal system code and diagnosis trouble code
21 and 52.
HINT:
If the CRUISE main indicator light does not blink because of any
DTC or in the normal code blinking pattern, inspect the following
circuits.
Relevant CircuitSee Page
Diagnosis circuit05–328
CRUISE main indicator circuit05–327
Page 5015 of 5135
I39609
LHD:
DLC3Intelligent Tester II
I39608
RHD:
DLC3 Intelligent Tester II
– DIAGNOSTICSCRUISE CONTROL SYSTEM (2AZ–FSE)(From
February, 2004)05–309
AVENSIS REPAIR MANUAL SUPPLEMENT
(RM1098E)

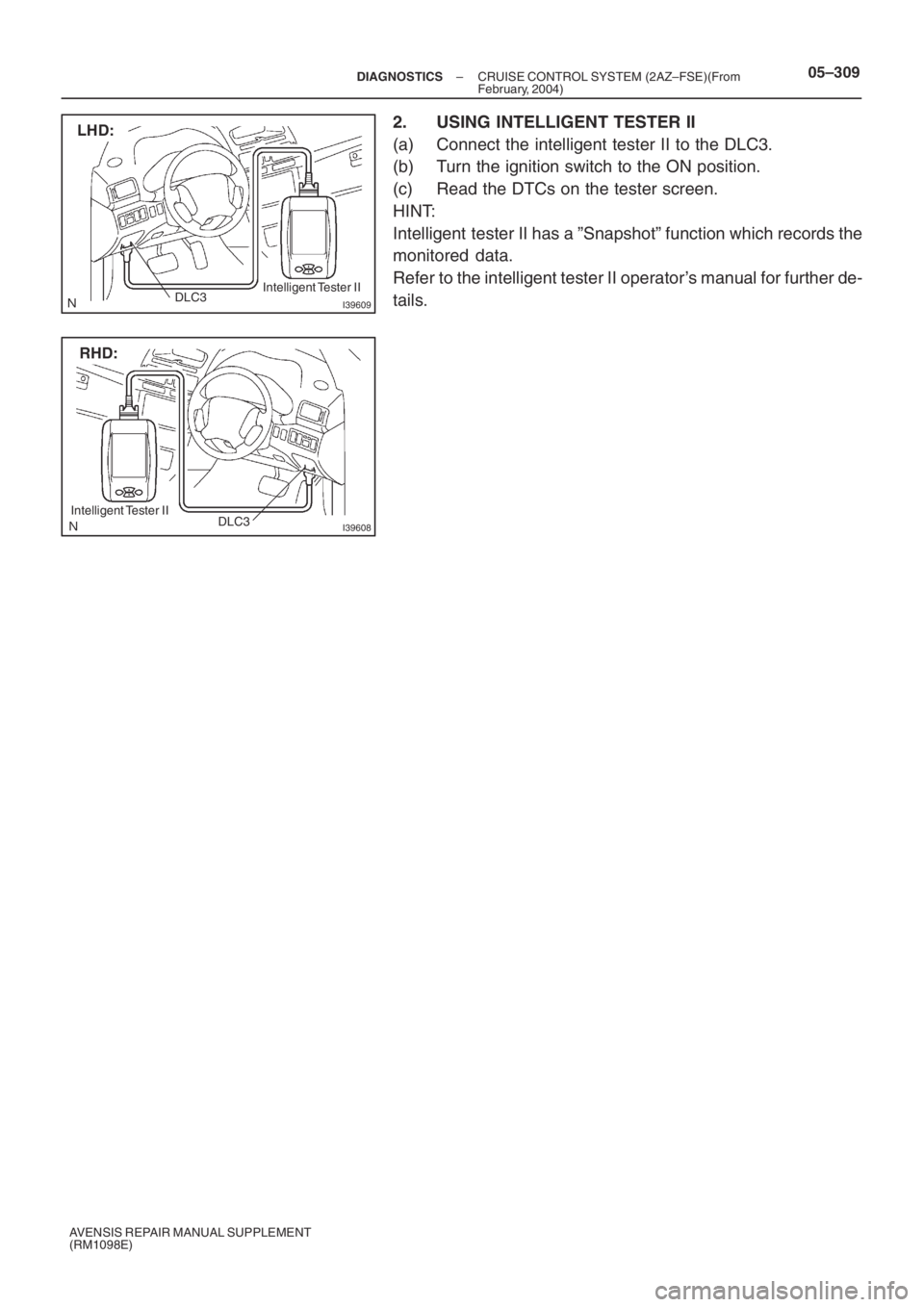

2. USING INTELLIGENT TESTER II
(a) Connect the intelligent tester II to the DLC3.
(b) Turn the ignition switch to the ON position.
(c) Read the DTCs on the tester screen.
HINT:
Intelligent tester II has a ”Snapshot” function which records the
monitored data.
Refer to the intelligent tester II operator’s manual for further de-
tails.
Page 5016 of 5135

05–310– DIAGNOSTICSCRUISE CONTROL SYSTEM (2AZ–FSE)(From
February, 2004)
AVENSIS REPAIR MANUAL SUPPLEMENT
(RM1098E)

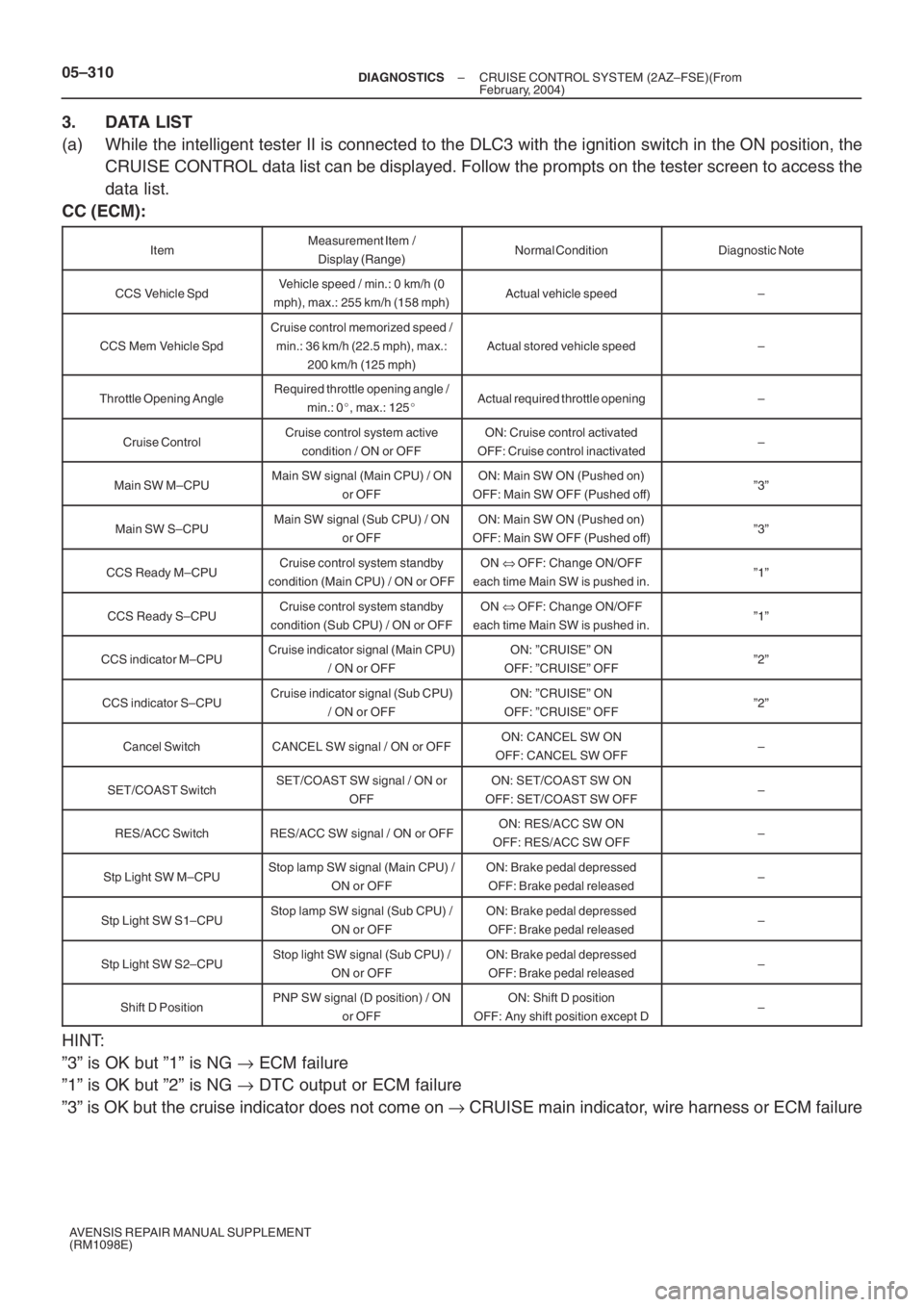

3. DATA LIST
(a) While the intelligent tester II is connected to the DLC3 with the ignition switch in the ON position, the
CRUISE CONTROL data list can be displayed. Follow the prompts on the tester screen to access the
data list.
CC (ECM):
ItemMeasurement Item /
Display (Range)Normal ConditionDiagnostic Note
CCS Vehicle SpdVehicle speed / min.: 0 km/h (0
mph), max.: 255 km/h (158 mph)Actual vehicle speed–
CCS Mem Vehicle Spd
Cruise control memorized speed /
min.: 36 km/h (22.5 mph), max.:
200 km/h (125 mph)
Actual stored vehicle speed–
Throttle Opening AngleRequired throttle opening angle /
min.: 0, max.: 125Actual required throttle opening–
Cruise ControlCruise control system active
condition / ON or OFFON: Cruise control activated
OFF: Cruise control inactivated–
Main SW M–CPUMain SW signal (Main CPU) / ON
or OFFON: Main SW ON (Pushed on)
OFF: Main SW OFF (Pushed off)”3”
Main SW S–CPUMain SW signal (Sub CPU) / ON
or OFFON: Main SW ON (Pushed on)
OFF: Main SW OFF (Pushed off)”3”
CCS Ready M–CPUCruise control system standby
condition (Main CPU) / ON or OFFON ⇔ OFF: Change ON/OFF
each time Main SW is pushed in.”1”
CCS Ready S–CPUCruise control system standby
condition (Sub CPU) / ON or OFFON ⇔ OFF: Change ON/OFF
each time Main SW is pushed in.”1”
CCS indicator M–CPUCruise indicator signal (Main CPU)
/ ON or OFFON: ”CRUISE” ON
OFF: ”CRUISE” OFF”2”
CCS indicator S–CPUCruise indicator signal (Sub CPU)
/ ON or OFFON: ”CRUISE” ON
OFF: ”CRUISE” OFF”2”
Cancel SwitchCANCEL SW signal / ON or OFFON: CANCEL SW ON
OFF: CANCEL SW OFF–
SET/COAST SwitchSET/COAST SW signal / ON or
OFFON: SET/COAST SW ON
OFF: SET/COAST SW OFF–
RES/ACC SwitchRES/ACC SW signal / ON or OFFON: RES/ACC SW ON
OFF: RES/ACC SW OFF–
Stp Light SW M–CPUStop lamp SW signal (Main CPU) /
ON or OFFON: Brake pedal depressed
OFF: Brake pedal released–
Stp Light SW S1–CPUStop lamp SW signal (Sub CPU) /
ON or OFFON: Brake pedal depressed
OFF: Brake pedal released–
Stp Light SW S2–CPUStop light SW signal (Sub CPU) /
ON or OFFON: Brake pedal depressed
OFF: Brake pedal released–
Shift D PositionPNP SW signal (D position) / ON
or OFFON: Shift D position
OFF: Any shift position except D–
HINT:
”3” is OK but ”1” is NG → ECM failure
”1” is OK but ”2” is NG → DTC output or ECM failure
”3” is OK but the cruise indicator does not come on → CRUISE main indicator, wire harness or ECM failure
